To plan a structural layout and to create grids using TSD
Aim - To summarize the user interface in TSD for the following items

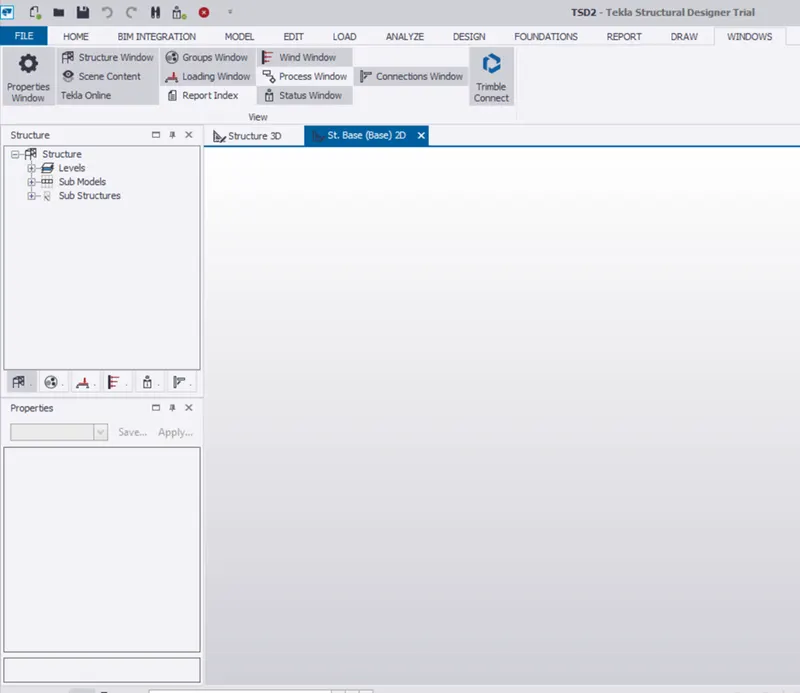

Project Workspace -

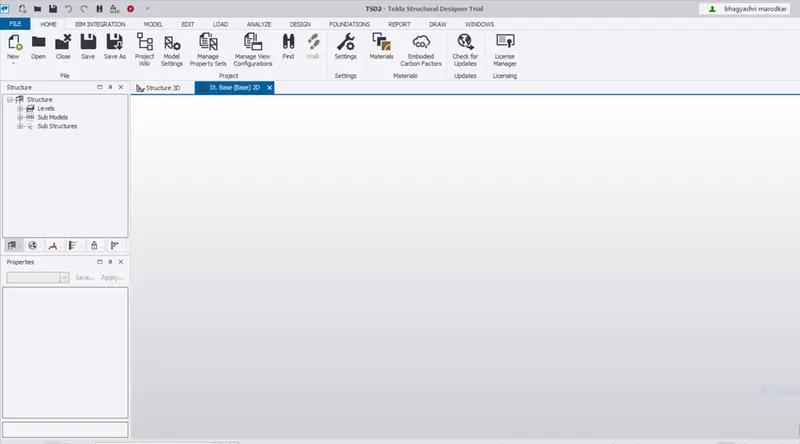

- Open the Tekla structural designer software and click on New option and the new model workspace will appear

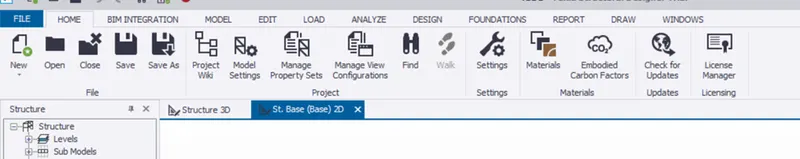

- Now all the ribbons and menu bars are visible

Scene Content -

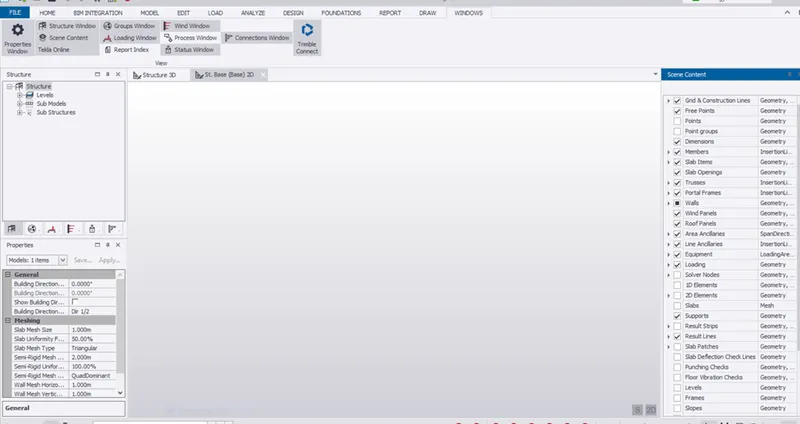

- Select window tab and then click on scene content
- The scene content checkbox will appears and it shows tick and untick element in the box


Two scene view -

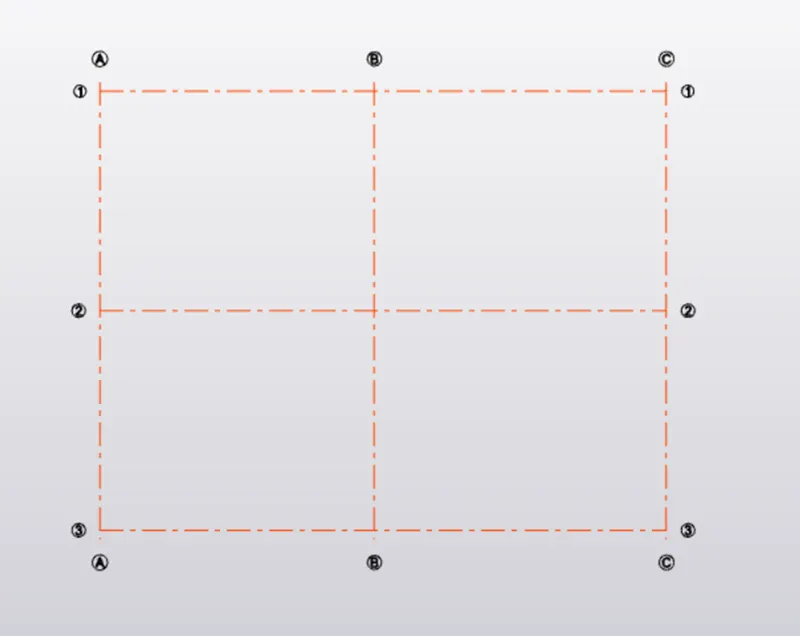

- 2D view of grid line

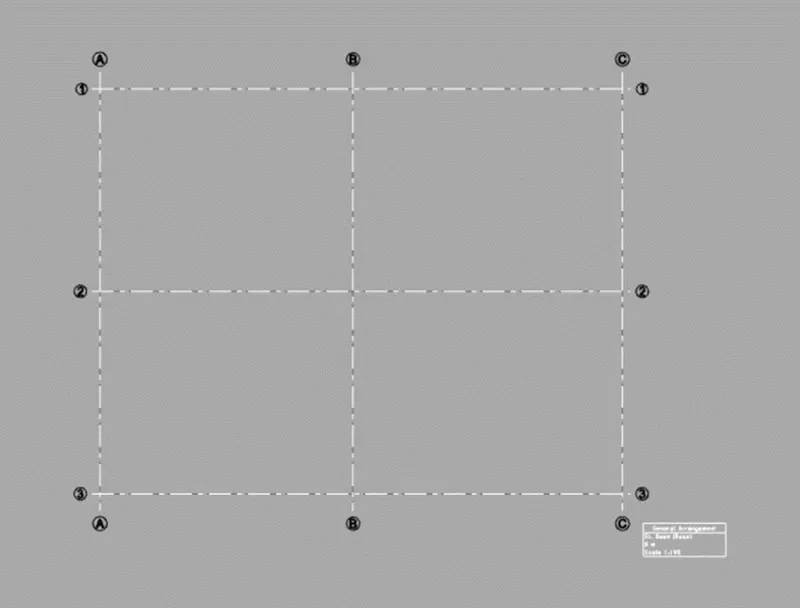

- Scene plan view

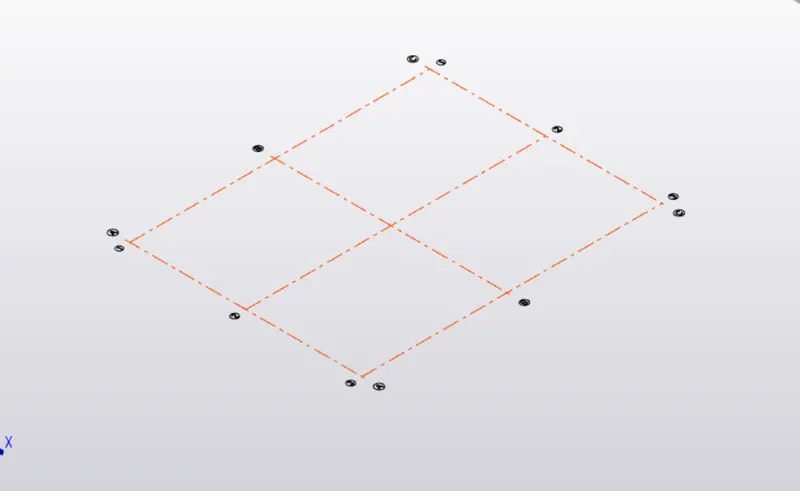

- 3D view

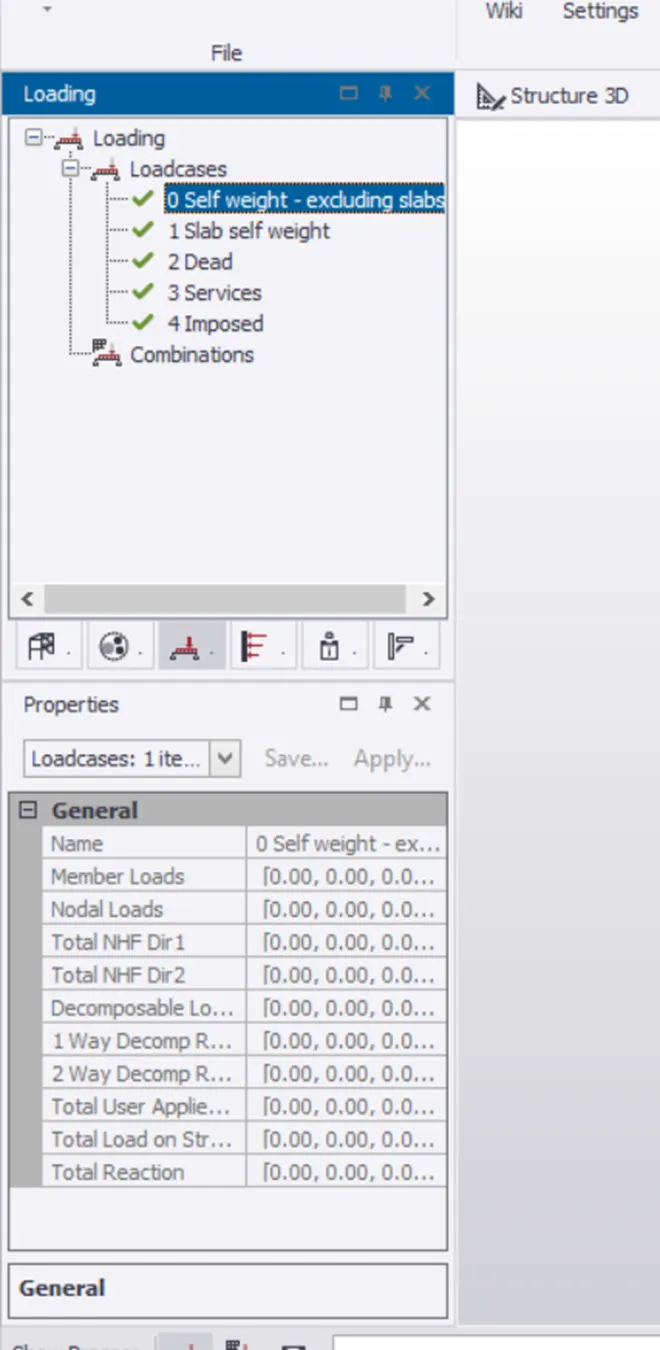

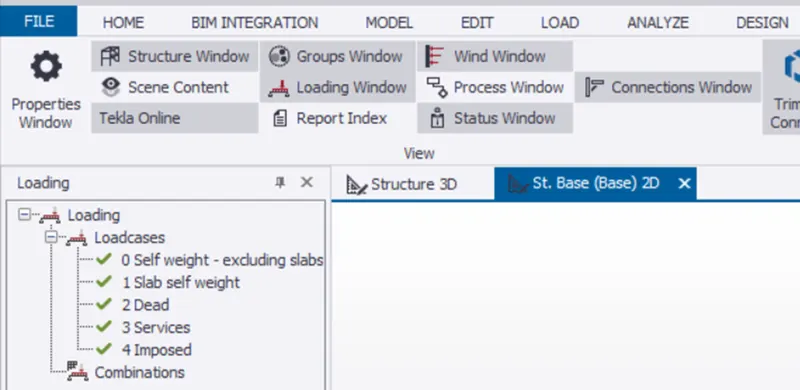

Loading drop list -
- Left side of workspace there is loading option and click on it we get loading drop list
- And below that there is loadcases box appear

Properties windows -
- Select window tab and in that select properties window

2)
Aim - To create a new file in TSD and set up the settings for a steel building to have member grade Fe410 and concrete grade of M30 as per IS codes and also provide covers too the members
Procedure -
- Open the Tekla structural designer software and click on new option to create new model
- Then select material option from home tab

- Click on material option and the material dialogue box appears and the select the option material

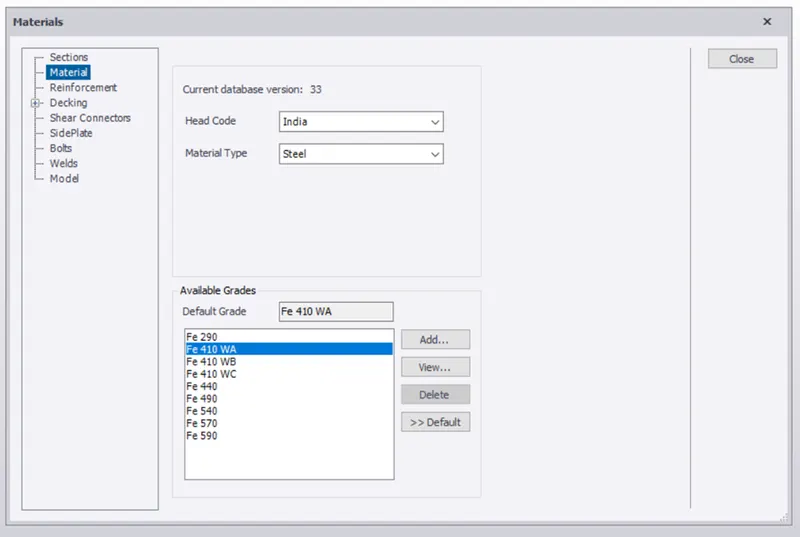

- Under material drop down the list and select material type as steel and grade as Fe 410

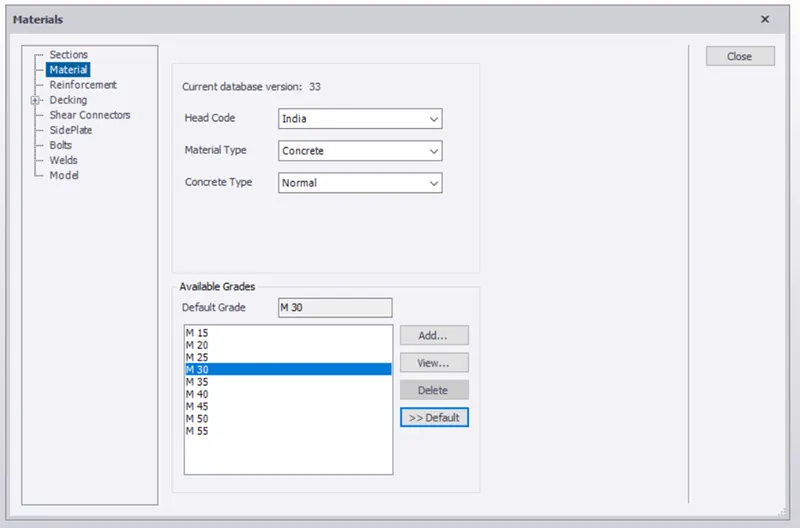

- Then select material type as concrete and also select grade as M30

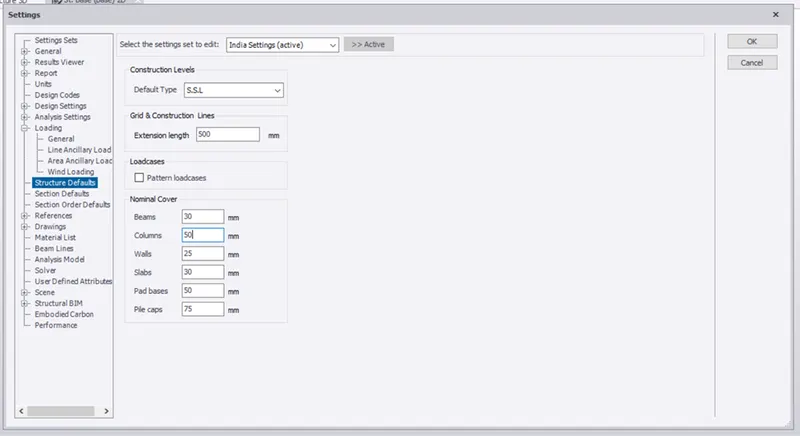

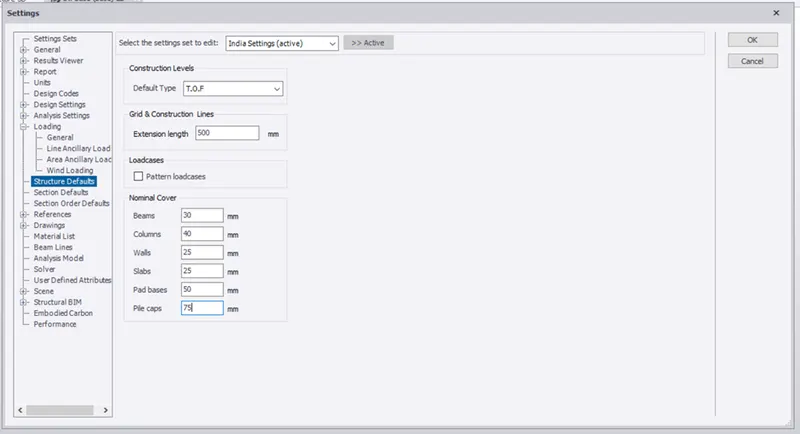

- To change the cover thickness,click on setting option and under the loading section select structure default
- Select SSL as default type and column cover as 50mm,slab as 30mm, and pile cap as 75mm

- Select TOF as default type and cover for column as 40mm,slab as 25mm and pile cap 75mm

3)

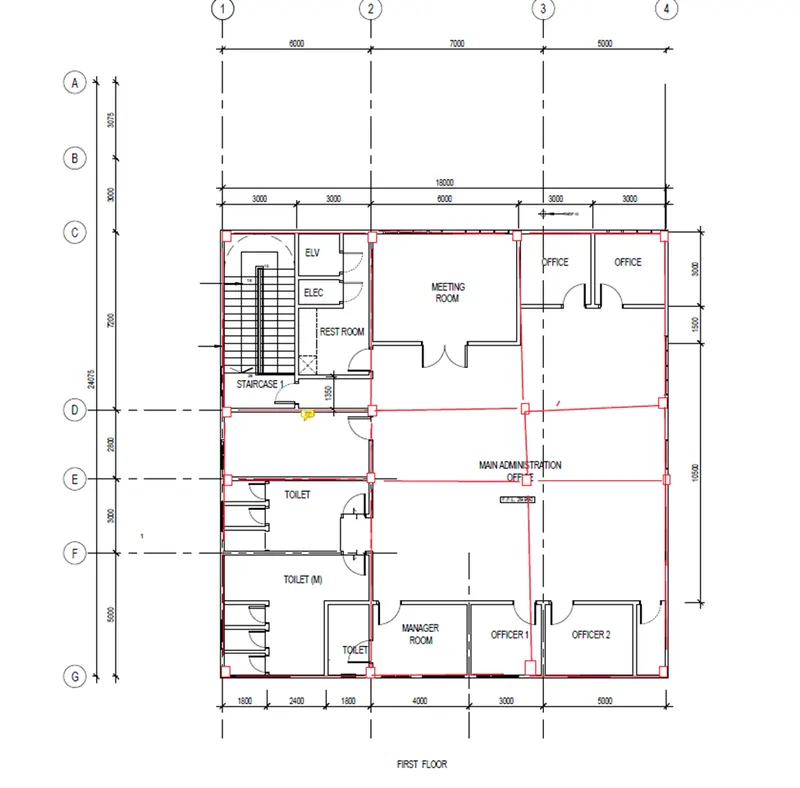

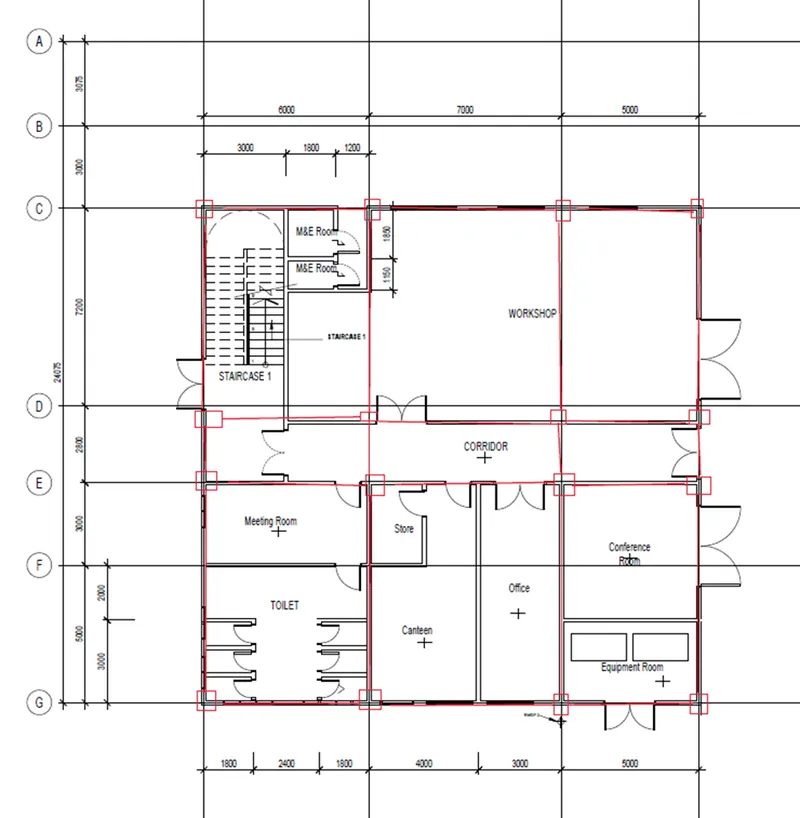

Aim - With the reference to the input drawing given,study the steel building plan and to summarize our understanding of the plan
Column Position -
- Columns are placed at the corners of the builiding and intersection of beam
- Suppose the distance is larged,divide it into half and place the column at centre
- Column should not be placed at opening of door
- For placing of column avoid small space

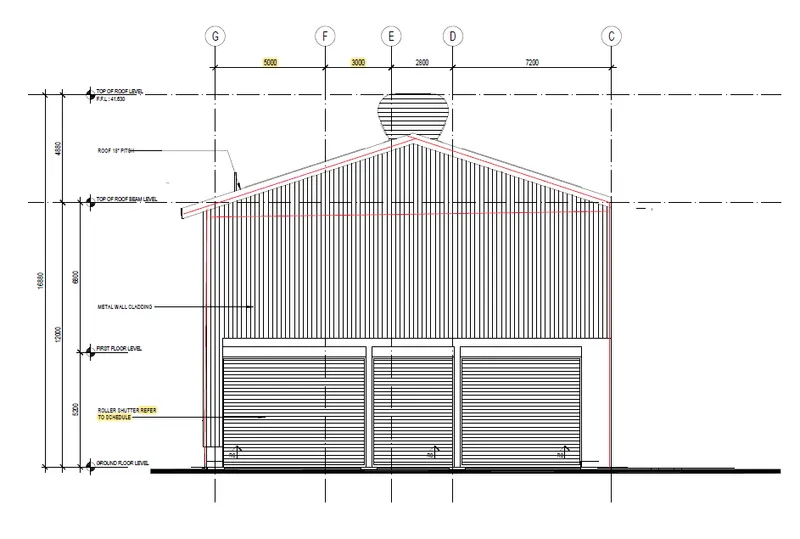

Elevation -

Ground floor -

First floor -

4)
Aim - To model grid lines and construction levels as per given attachment
Procedure -
- Open the Tekla structural designer software and click on new option and new model workspace will appear

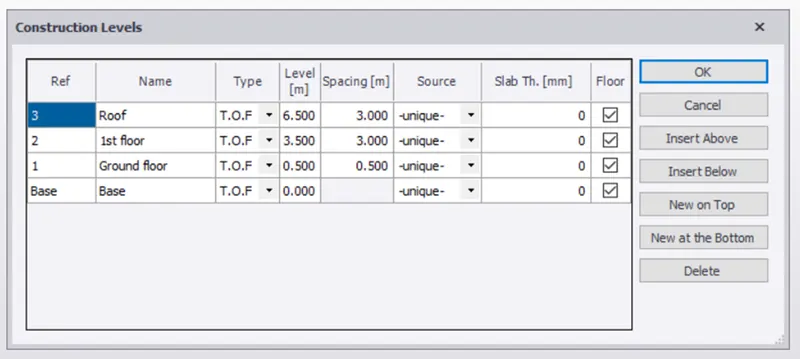

- In the model toolbar select construction levels and the construction level dialogue box is appear
- Name each levels like base,ground floor,1st floor and roof and also height is assigned

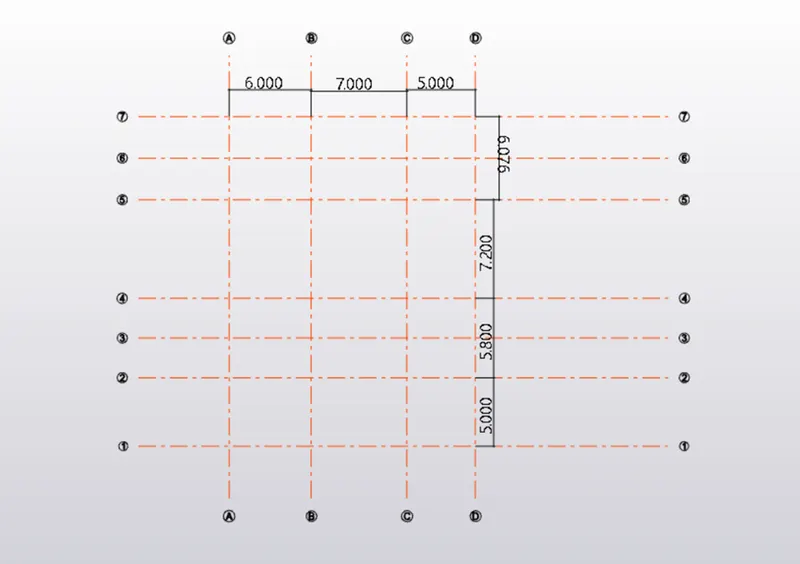

- Now,using grid line and quick parallel line option the vertical and horizontal grids are drawn as per requirement
