Creating a Floor plan, Footing detail and Isometric view using AutoCad

AIM:-Creating a Floor plan, Footing detail and Isometric view using AutoCad

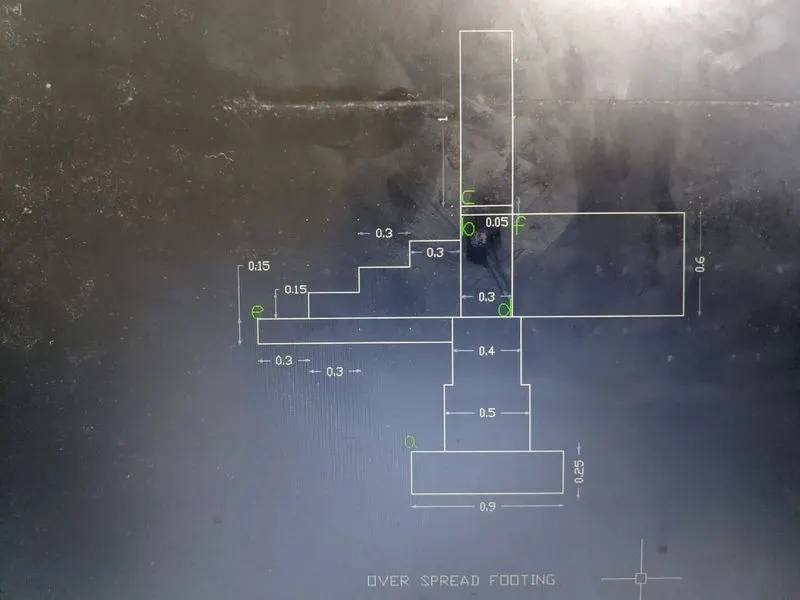

Steps for drawing C.S of Load bearing wall over spread footing is as follows.

• Select rectangle from the ribbon menu
• Specify the first corner of the rectangle.
• Enter D for Dimensions.
• Enter the length: 0.90
• Enter the width: 0.25
• Select line command from ribbon menu.
• Specify the start point a at the corner of rectangle.
• Specify next point: @0.20, 0
• Specify next point:@0, 0.40
• Specify next point:@0.05,0
• Specify next point:@0, 0.40
• Specify next point:@0.05, 0
• Specify next point:@0, 0.60
• Specify next point:@0.30, 0
• Specify next point:@0, -0.60
• Specify next point:@0.05, 0
• Specify next point:@0, -0.40
• Specify next point:@0.05, 0
• Specify next point:@ 0,-0.40
• Select line command from ribbon menu.
• Specify the start point b.
• Specify next point: @0, .05
• Specify next point:@.30, 0
• Specify next point:@0,-.05
• Select line command from ribbon menu.
• Specify the start point c.
• Specify next point: @0, 1
• Specify next point:@.30, 0
• Specify next point:@0,-1
• Select line command from ribbon menu.
• Specify the start point d.
• Specify next point: @-0.30, 0
• Specify next point:@-0.05, 0
• Specify next point: @-1.15, 0
• Specify next point:@0, -.15
• Specify next point:@1.15, 0
• Select line command from ribbon menu
• Specify the start point e.
• Specify next point: @0.30, 0
• Specify next point:@0, 0.15
• Specify next point: @0.30, 0
• Specify next point:@0, 0.15
• Specify next point: @0.30, 0
• Specify next point:@0, 0.15
• Specify next point: @0.30, 0
• Select line command from ribbon menu
• Specify the start point f.
• Specify next point: @1, 0
• Specify next point:@0, -0.60
• Specify next point: @-0.95, 0
• Next use dimension command to show all the dimension

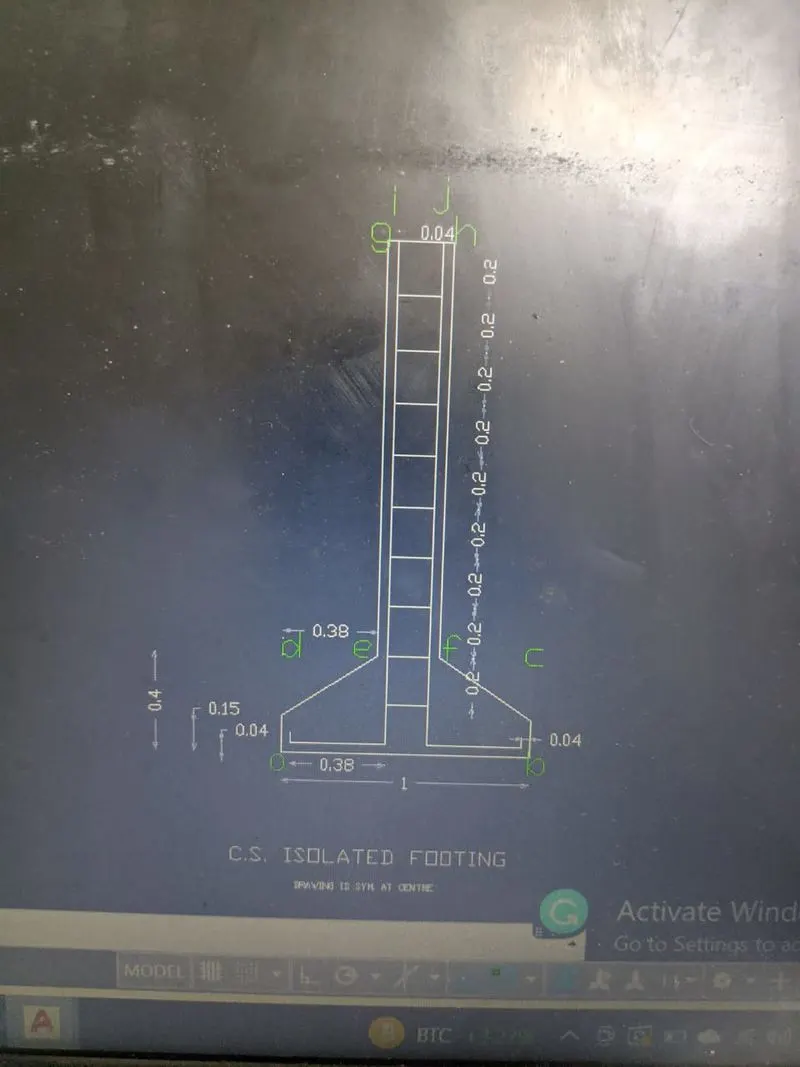

step for drawing C.S of isolated footing is as follows

• Click on rectangular command in the ribbon menu.
• Specify the first corner of the rectangle.
• Enter D for Dimensions.
• Enter the length: 1
• Enter the width: 0.40
• Type CHA or CHAMFER in the command line and press enter
• Enter D for Distance
• Specify first chamfer distance:.25
• Specify second chamfer distance:.38
• Select the first line ab and second line as bc
• Repeat the same step on opposite side on line cd and bc
• Delete line ef
• Click on line command from the ribbon menu.
• Specify the start point e.
• Specify next point:@0, 1.60
• Specify next point:@.24, 0
• Specify next point:@0, -1.60
• Click on line command from the ribbon menu
• Specify the start point g.
• Specify next point:@.04, 0
• Specify next point:@0, -1.96
• Specify next point:@-.38,0
• Specify next point:@0,0.04
• Click on line command from the ribbon menu
• Specify the start point h.
• Specify next point:@-.04, 0
• Specify next point:@0, -1.96
• Specify next point:@.38,0
• Specify next point:@0,.04
• Click on line command from the ribbon menu
• Specify the start point i.
• Specify next point:@.12, 0
• Select offset command fro the ribbon menu.
• Specify the value of offset distance:.20
• Select the object to offset ij
• Give the dimensions as per the drawing using dimension command from the command bar

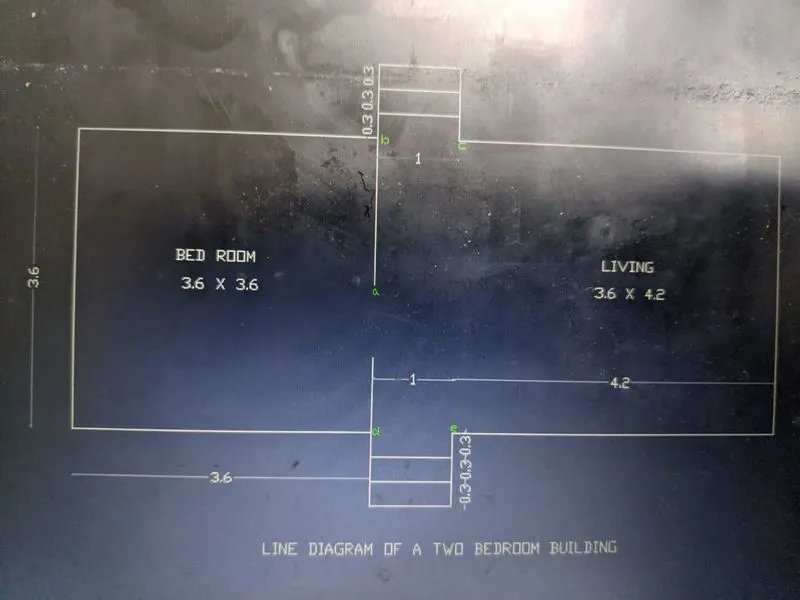

step for drawing line diagram of two bedroom building is as follows.

• Click on line command from the ribbon menu
• Specify the start point a.
• Specify next point: @0, 1.80
• Specify next point:@-3.60,0
• Specify next point:@0, -3.60
• Specify next point:@3.60, 0
• Specify next point:@1, 0
• Specify next point:@4.20, 0
• Specify next point:@0, 3.60
• Specify next point:@-4.20, 0
• Specify next point:-1, o or C
• Delete the lines bc and de
• Type PL in the command line and press Enter.
• Specify the first point of the polyline b
• Specify the next point:@0, .30
• Specify the next point:@1, 0
• Specify the next point: @0, -.30
• Type CO in the command line and press Enter
• Select the above polyline and specify the base point and paste it as required
• Give the dimensions as per the drawing

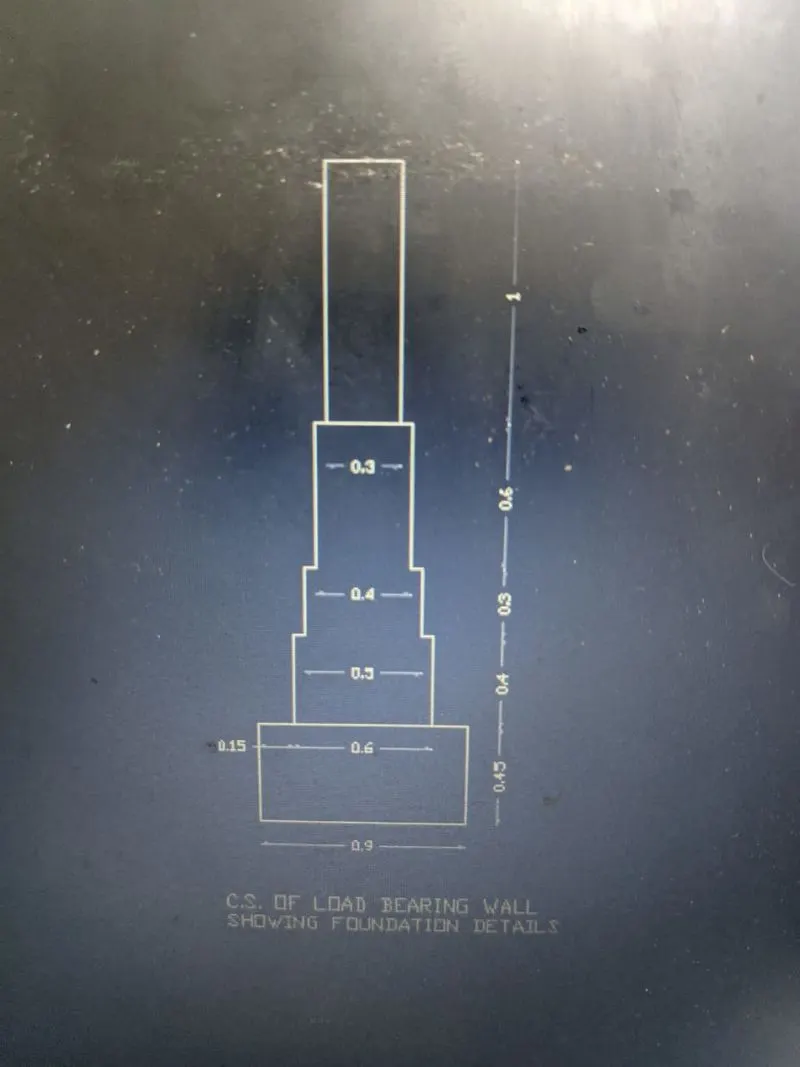

Steps to draft Cross section of load bearing wall showing foundation details

• Create rectangle by typing "REC" in command box or select from ribbon menu.
• Specify the first corner point as (5,5).
• Specify the length of rectangle =0.9 units in command box.
• Specify width of rectangle =0.45 units in command box.
• Create another rectangle -"REC" in command box.
• Specify the first corner point which is 0.15 units from the starting point of first rectangle.
• Enter the length of rectangle as 0.6 units the width of rectangle as 0.4 units.
• Create the third rectangle command- "REC"
• Specify the first corner point which is 0.05 units from the starting point of second rectangle.
• Enter the length of rectangle as 0.5 units the width of rectangle as 0.3 units.
• Create the Fourth rectangle command- "REC"
• Specify the first corner point which is 0.05 units from the starting point of second rectangle.
• Enter the length of rectangle as 0.4 units the width of rectangle as 0.6 units.
• Drawn the fifth rectangle command -"REC"
• Specify the corner point as the corner of fourth rectangular
• Click on dimension -give length as 0.3 units and with as 1 unit.
• Erase the unwanted line by "trim".

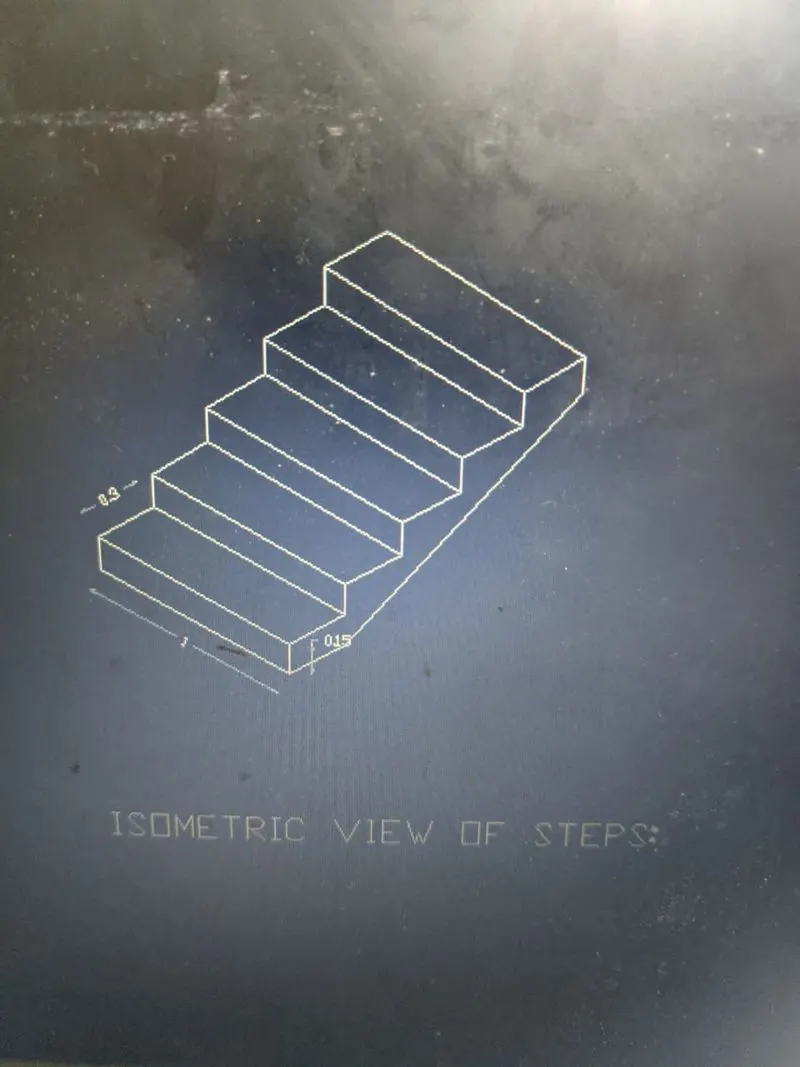

steps for drawing Isometric steps is as follows.

• To work with isometric view -command "ds" - snap off, grid off. Put isometric snap on .
• Make sure that ortho mode is on .
• From isometric drafting select iso-plane left.
• Give command "l" and moving the cursor to -x direction(left) give 1unit .
• Moving the cursor to+ y direction (top), give 0.15 units.
• Moving the cursor to + x direction again give 1 unit and cursor to -y direction(downwards) give 0.15 unit.
• Move the cursor to back and give 0.3 units from the last drawn point.
• Move the cursor to right direction and give 1 unit.
• Move the cursor to front and give 0.3 unit.
• Copy the object drawn, ortho off .
• Command "co" and specify the base point and place it to new point.
• Repeat it until 4 steps are formed.
• With iso-plane right join the two ends with ortho off

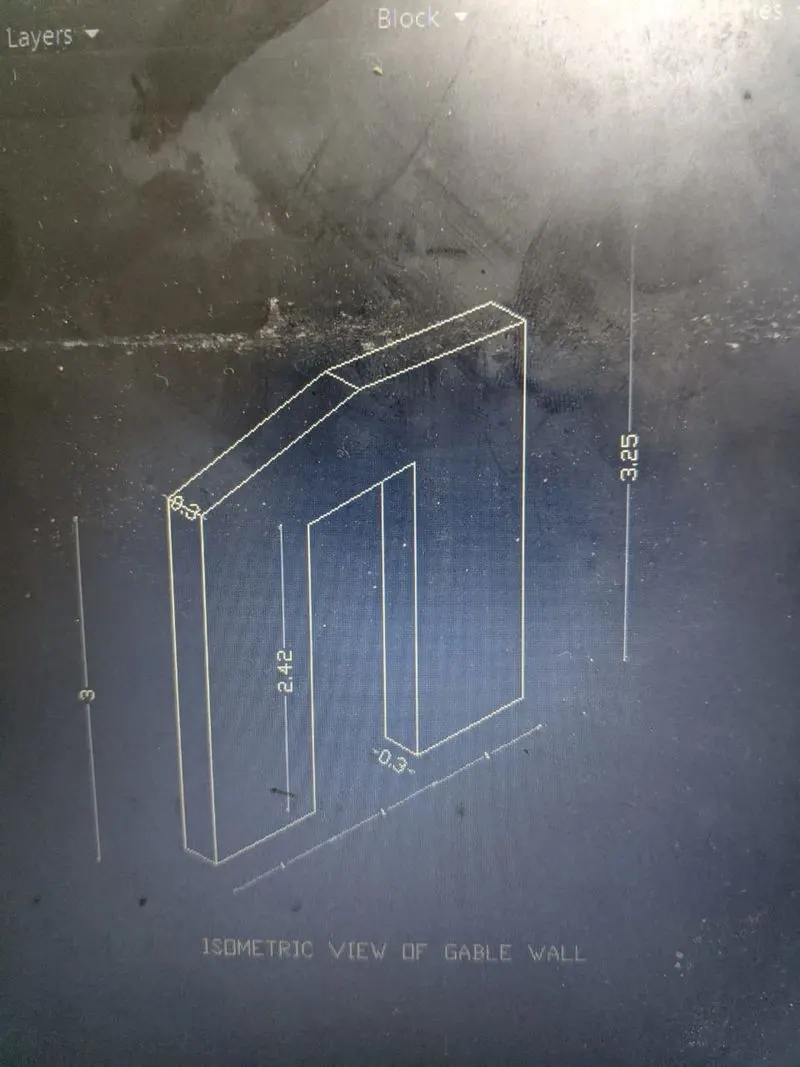

Steps for drafting Isometric view of gable wall.

• To work with isometric view -command "ds" - snap off, grid off. put isometric snap on
• Make sure that ortho mode is on From isometric drafting select iso-plane left.
• Give command "l" and moving the cursor to right give 1 unit
• Pointing the cursor upwards give 3 units
• Draw 0.3 units to left and 3 units downwards and 0.3 units to left.
• Using isometric right, take line command and draw line upwards of 2.42 units from the starting point of step 1
• Draw 1 unit towards the right and 2.42 units downwards.
• Using isometric left again, using line command draw 0.3 units to left side and draw a line which intersects the top line.
• Using iso-metric right with the line command draw 1.0 unit to right Side and 3.0 units upwards.
• By using the line command draw a line from bottom left corner @1.5 units and extend line 4 units upwards i.e., total 3.25 units from bottom.
• With ortho off, draw a line between the corner of left side and the projected line done in step 4
• Draw it to the other side also till it meets the right corner.
• Draw the vertical line with ortho on @0.3 and join the vertical line using line from left and right end same as in the step 5 remove unwanted lines by using erase.

Result-Floor plan, Footing detail and Isometric view drawing can be drafted by various autocad tools such as copy, move, trim,ortho mode.
