To plan a structural layout and to create grids using TSD
1)
AIM - To Summarize the user interface in TSD with the for the following items: -
i) Project Workspace – How to access and usage
ii) Scene Content – Demonstrate the use of scene content
iii) Create two scene views
iv) Loading drop list- How to access
v) Properties windows – how to access and usage
Procedure -
1) Project Workspace -
i) Open the Tekla Structural Designer software

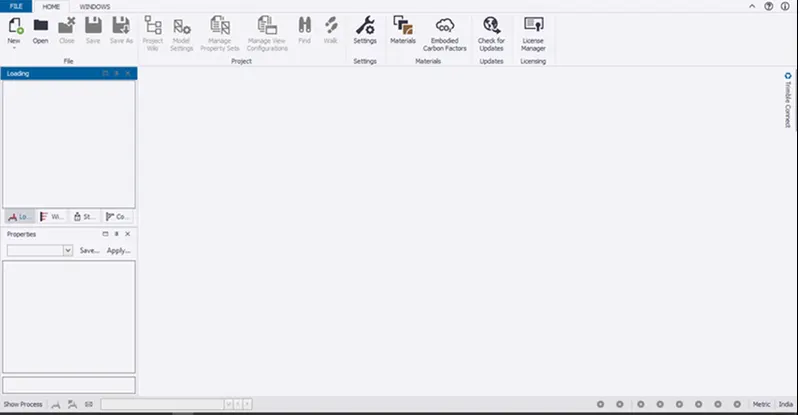

ii) It will look like as follows.
iii) Now click on New to create a new model workspace.

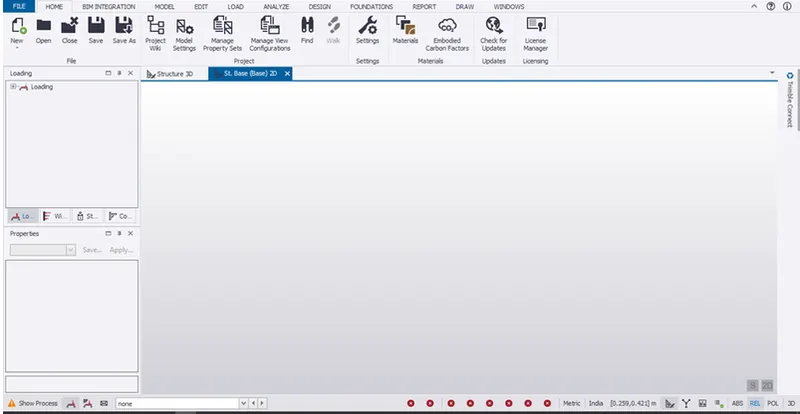

iv) Ribbon tab will be activated as shown below
2) Scene Content -

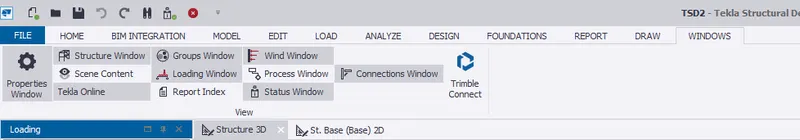

i) Click on Windows tab from Ribbon Menu
ii) Now click on Scene Content

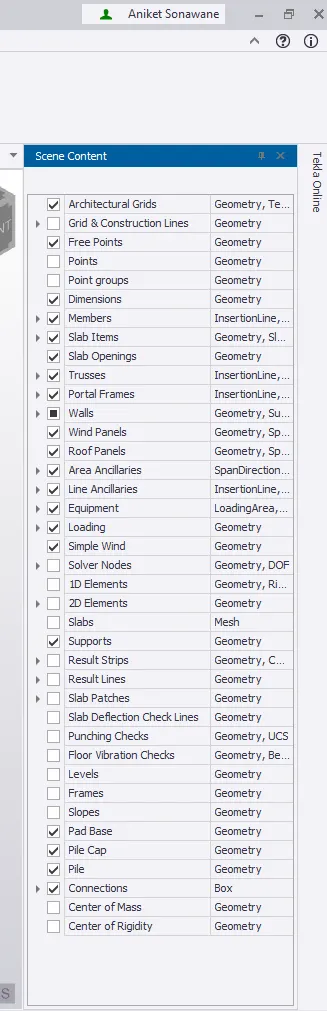

iii) Once you Click on Scene Content a following dialog box will open
iv) You can tick and untick the boxex whichever you want to visible or disable.
3) Create two scene views
i) Tekla software will automatically creates two default views like 2D and 3D.
ii) Draw the Grid lines to create the 2 scene view

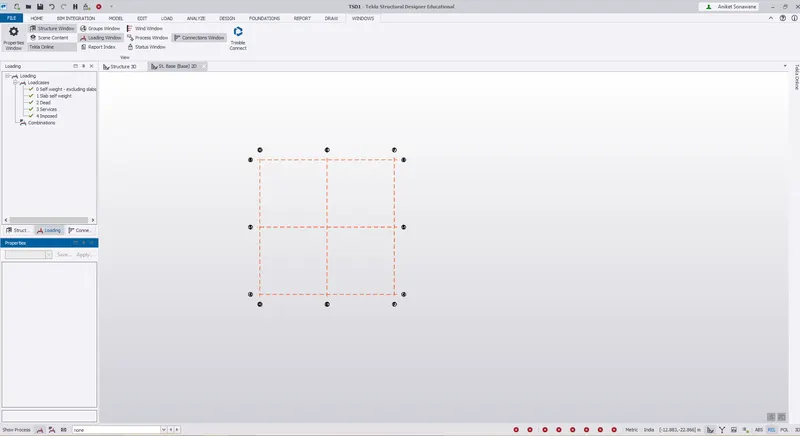

2D view -

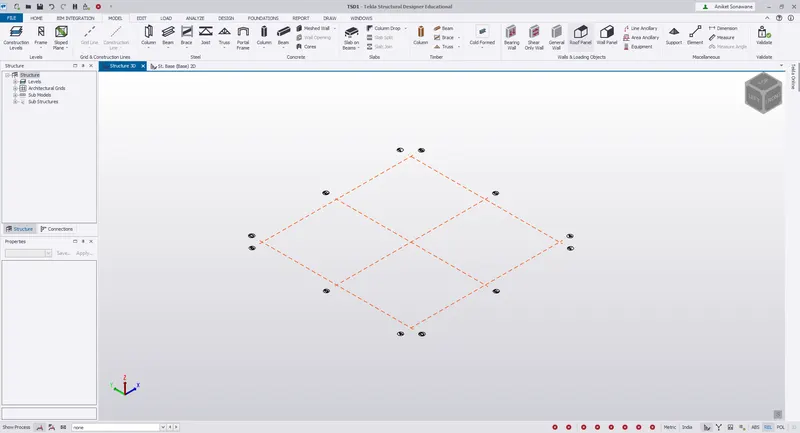

3D View -
4) Loading drop list- How to access

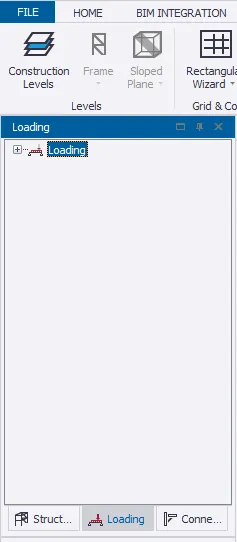

i) On the left hand side called Project workspace there is an option of Loading as shown below

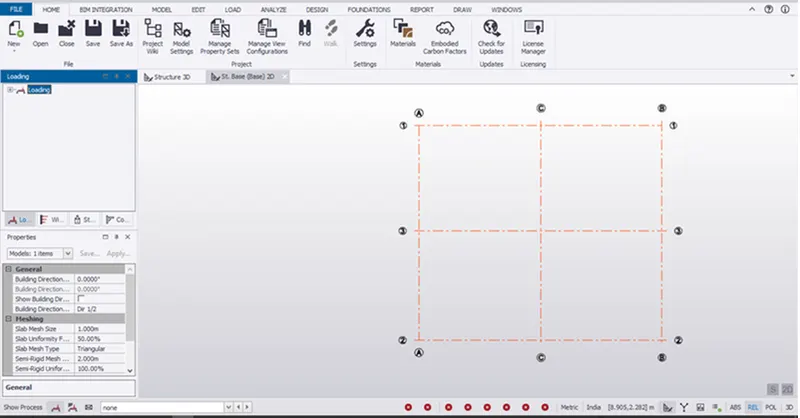

ii) Click on Loading , following loads are considered by default .
5) Properties Window

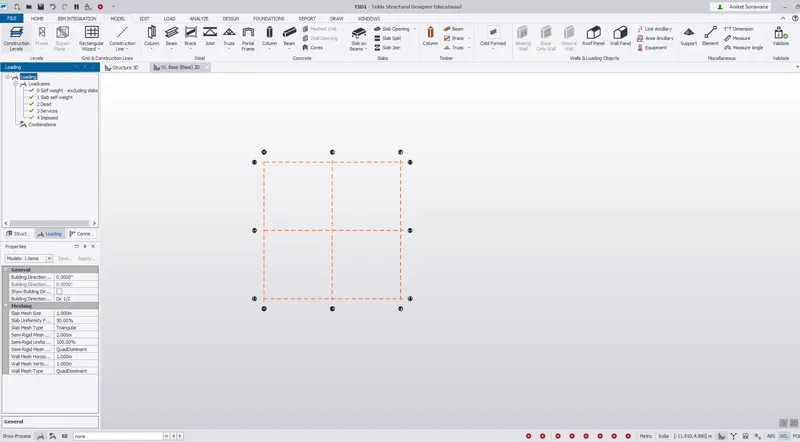

i) Below the Project workspace you will see Properties window where we can edit the properties of material
ii) or Click on Windows tab - Select Properties Windows
Results
We Summarized the user interface in TSD with the for the following items: -
i) Project Workspace
2) Scene Content – Demonstrate the use of scene conten
3) Create two scene views
4) Loading drop list- How to access
5) Properties windows - how to access and usage
2)
Aim - i) To Create a new file in TSD and set up the settings for a steel building to have member grade FE410 and
concrete grade of M30 as per IS codes.
ii) The covers for the members to be as per the following input
Procedure -
i) Open the Tekla Structural Designer software
ii) It will look like as follows.
iii) Now click on New to create a new model workspace.
iv) Ribbon tab will be activated as shown below
v) Click on Home tab - Select Materials

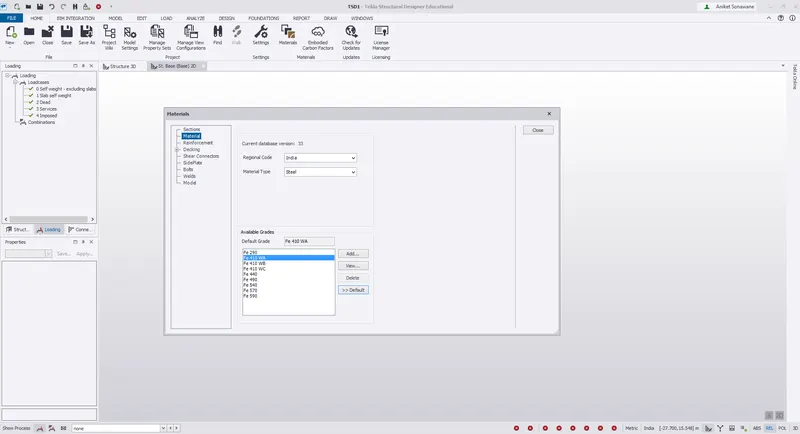

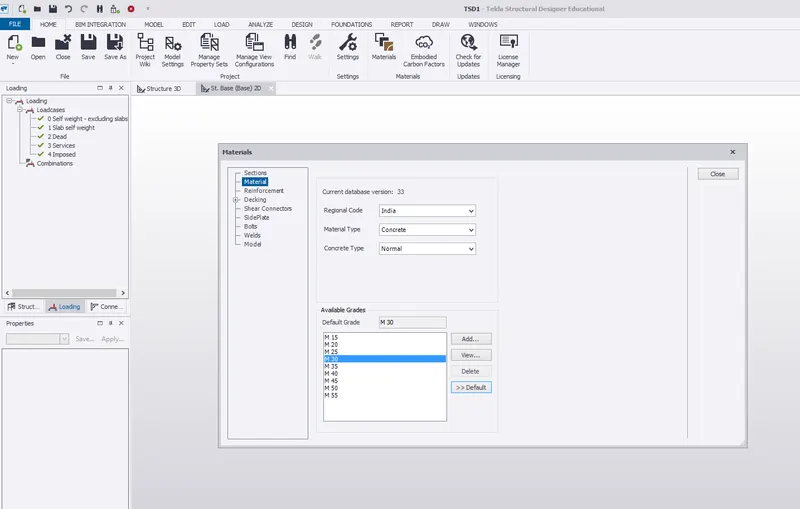

vi) Click on Materials -
vii) Code - India
viii) MAterial type - Concrete
ix) Select - M30 as default
x) Similarly Select for Steel as FE410 and click on Default
Step 2) For Covers

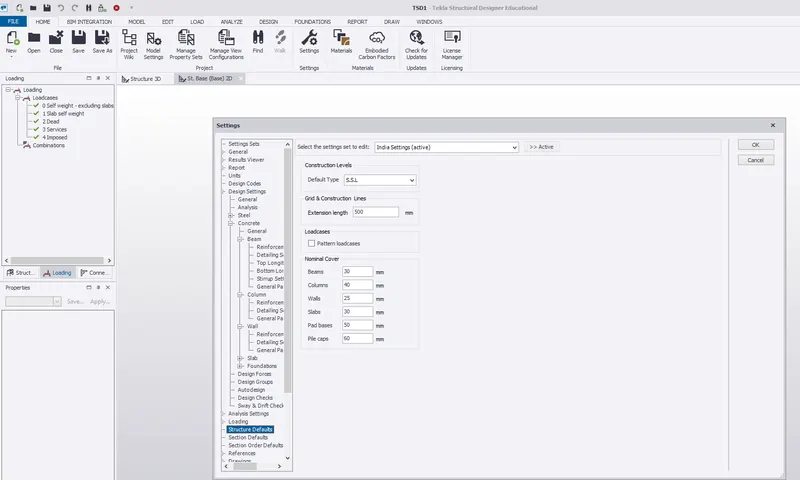

i) Click on Home tab - Setting
ii) Select Structural Defaults -

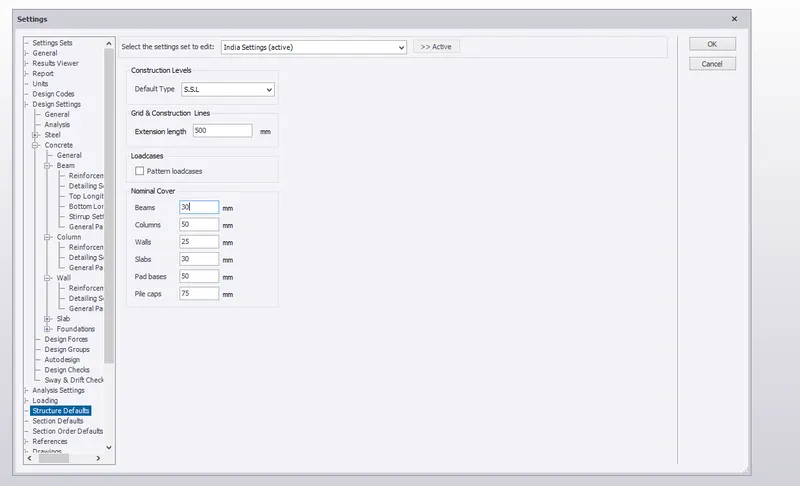

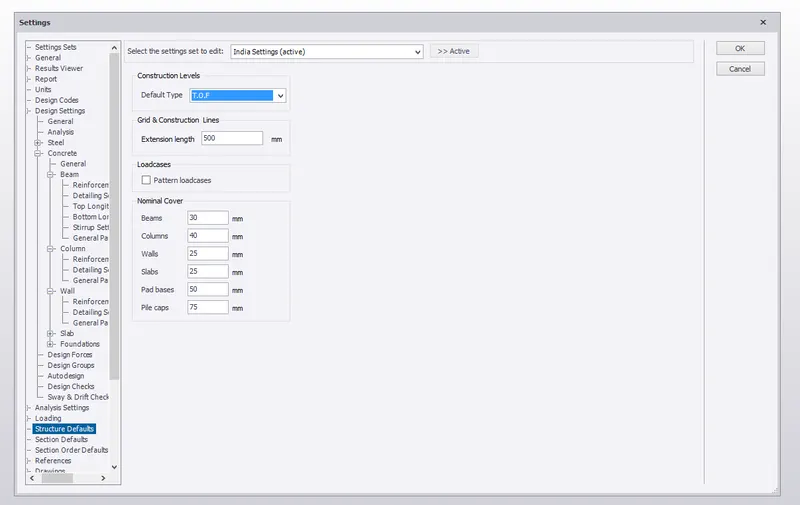

iii) Enter the value as given and Select the option S.S.L
iv) Now Select - T.O.F and enter the given values
Results - A New file is created in TDS and applied all the material as per given .
3)
Aim - To the input drawing given, study the steel building plan and to summarize our understanding of the plan.
Based on our study assume and explain the location of columns and beam and to develop a hand sketch for each plan
Introduction -
Columns are to be placed at:
i) At or near the corners of the building.
ii) Intersection of beam or wall
iii) Avoid larger centre-to-centre distance between columns.
vi) Columns on property line.
vii) Columns should not be placed at places having door(openings) .

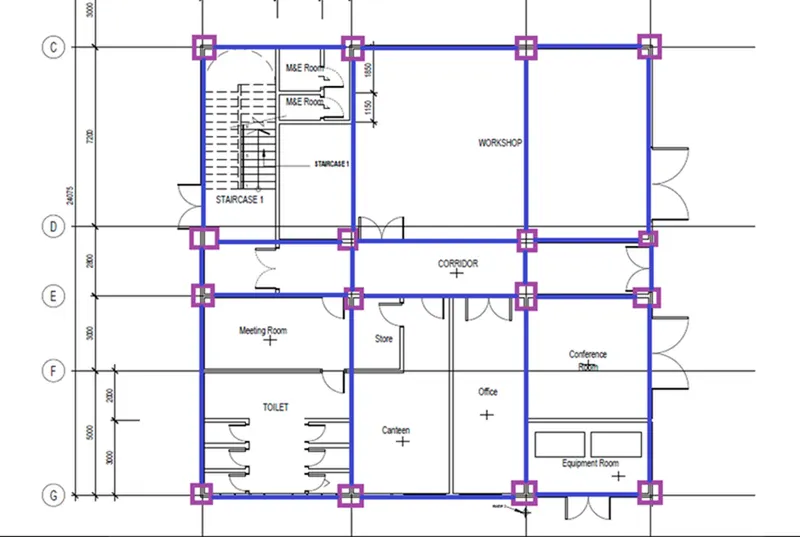

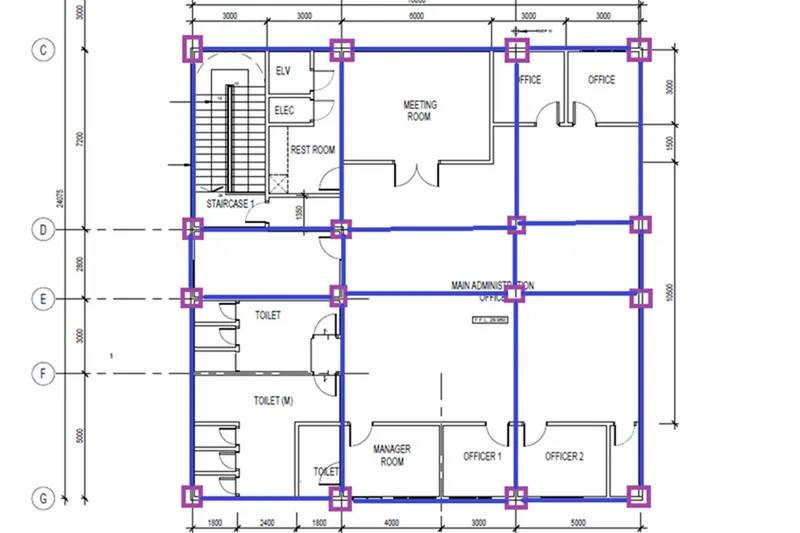

1) Ground Floor -
2) First Floor -

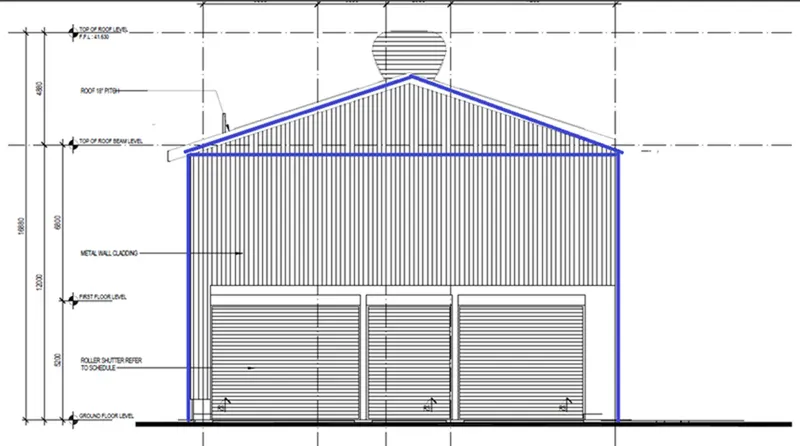

3) Elevations -
4)
Aim - To model grid lines and construction levels as per Attachment 1. 1.1 and 1.2. All dimensions are in mm
Procedure -
i) Open the Tekla Structural Designer software
ii) It will look like as follows.
iii) Now click on New to create a new model workspace.
iv) Ribbon tab will be activated as shown below

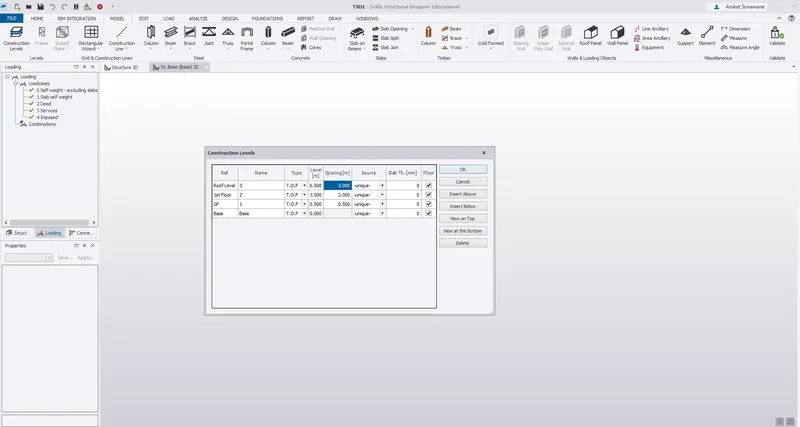

v) Now go to Model - Select Construction Levels
vi) Name the level as Base , GF , 1ST Floor , Roof Level
vi) Enter the level as shown below

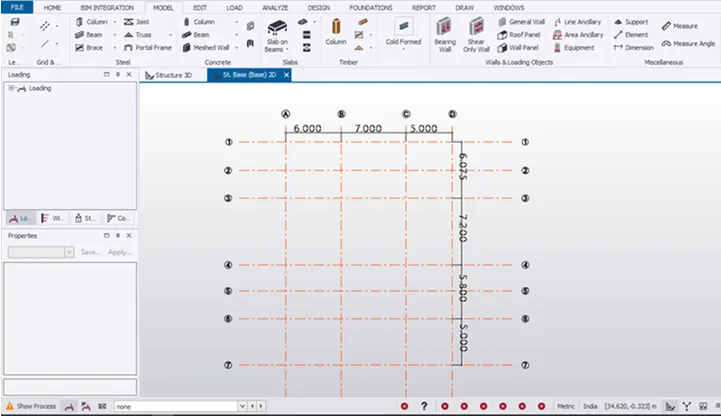

vii) Now using Grid line option draw the grid lines as per the given drawings
viii) Grid to grid dimensions are given is drawings
Results -
i) The construction levels and grids are drawn for given drawings
