To model columns for industrial steel structure using TSD
- Create column properties for different types of pedestal members and model in the grids created as per the assignment 1
- Create column properties for steel columns and model columns in the grid created as per assignment 1.
- Create beam properties and model primary and secondary beams on the ground floor
Step by step procedure for creating columns and beams in Tekla software:

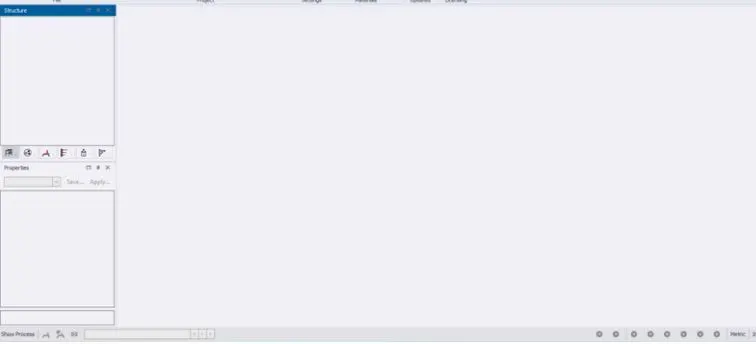

- open tekla software and go to windows select structure window and click on levels

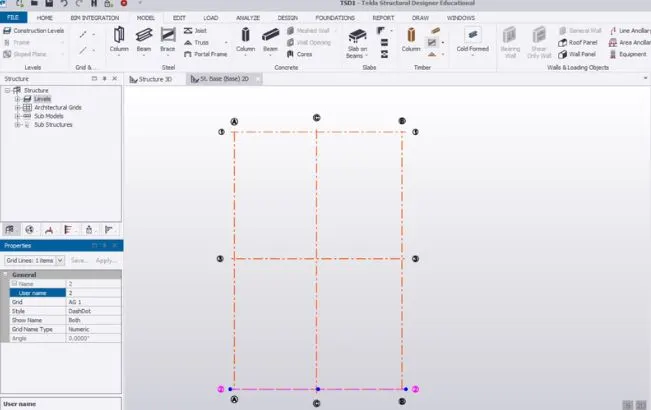

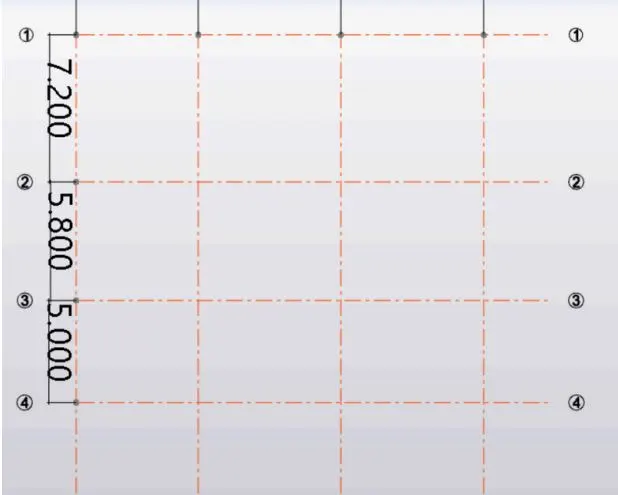

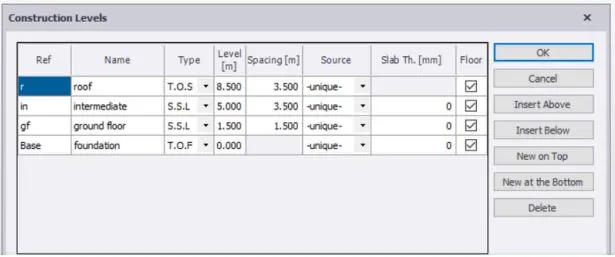

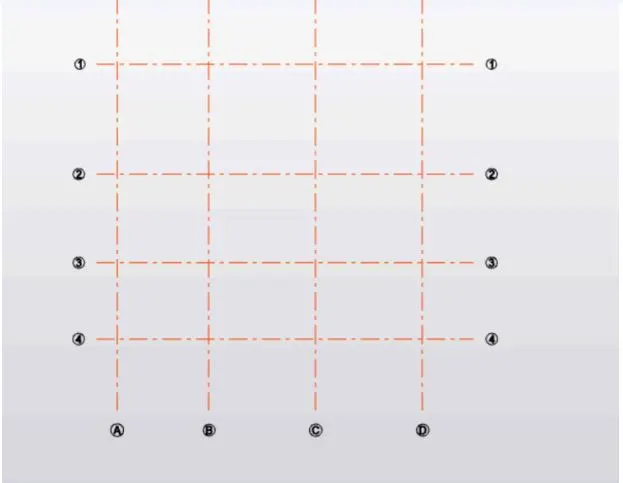

- enter the levels of model from foundation to roof along with the spacing and type then formation of grids will appear in new window

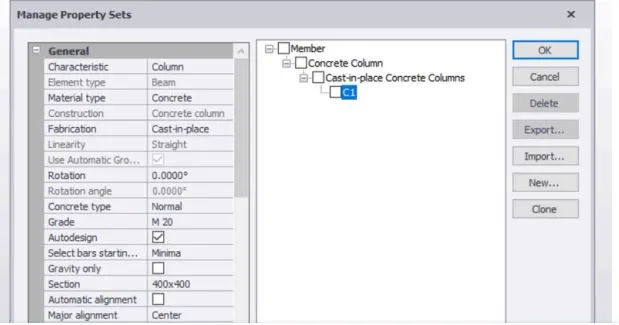

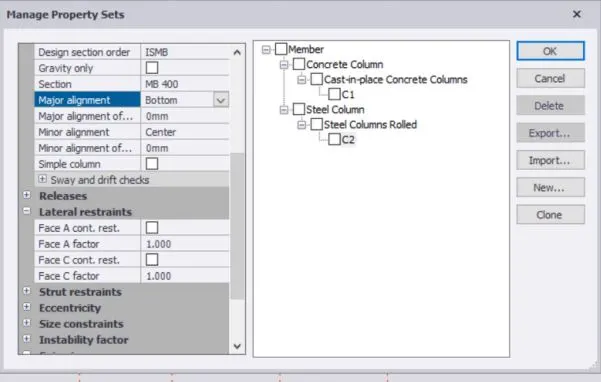

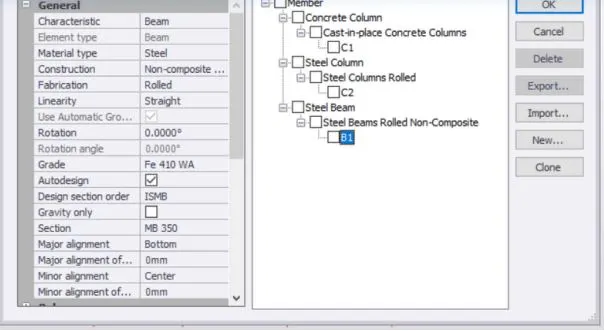

- next go to manage properties sets and click on new and select concrete column

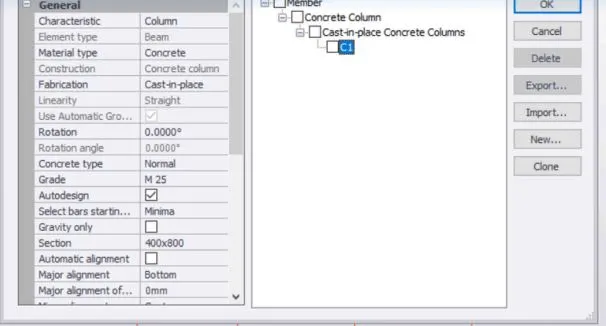

- enter the properties such as grade of concrete and major and minor align axis and enter the dimensions

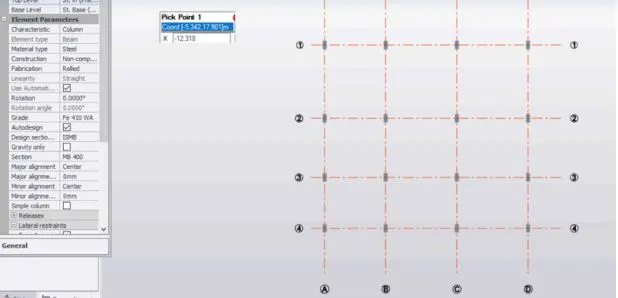

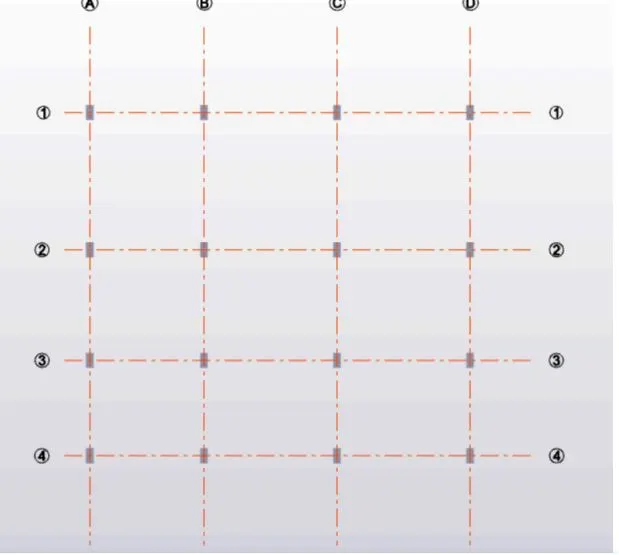

- now place the column in the required portion on the grid intersection

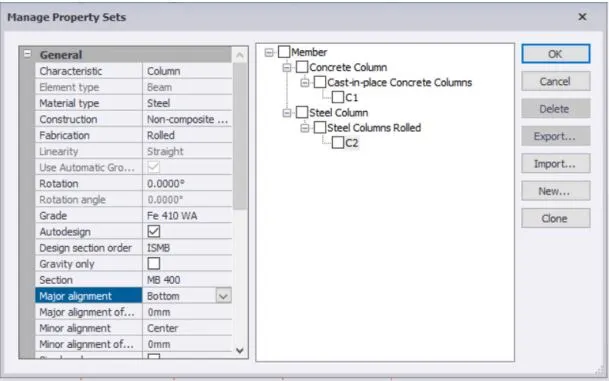

- next go to manage properties enter the steel structure properties

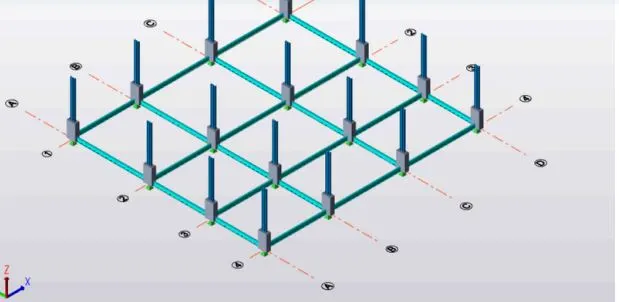

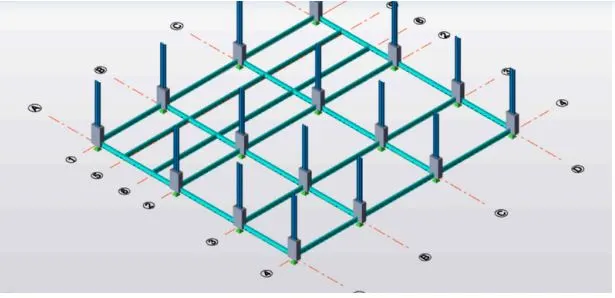

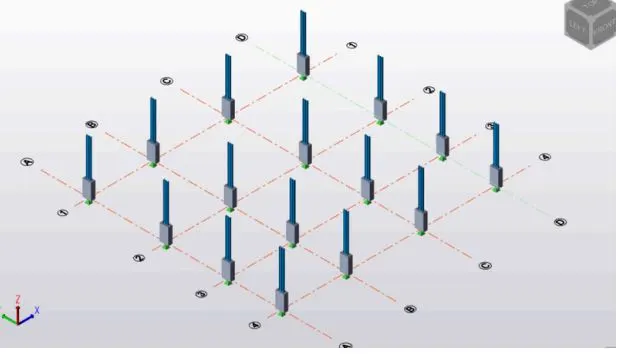

- now place these columns over concrete columns as shown

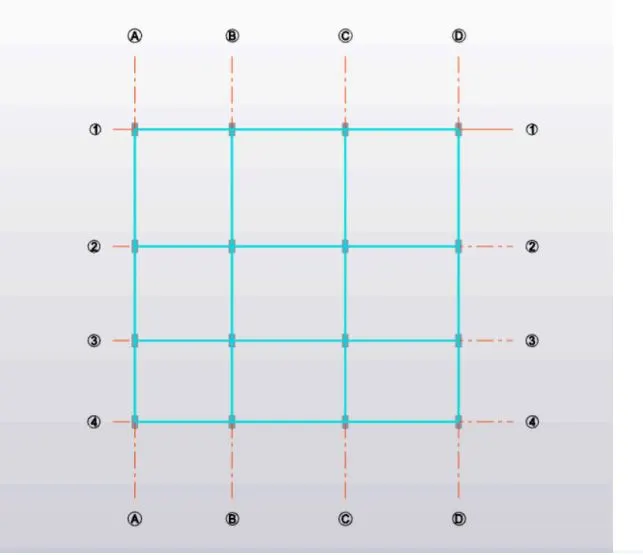

- similar way go to manage properties and enter the properties of beam section and place it on the the intersection of columns
- note that the no beams are to be overlap to each other while modelling

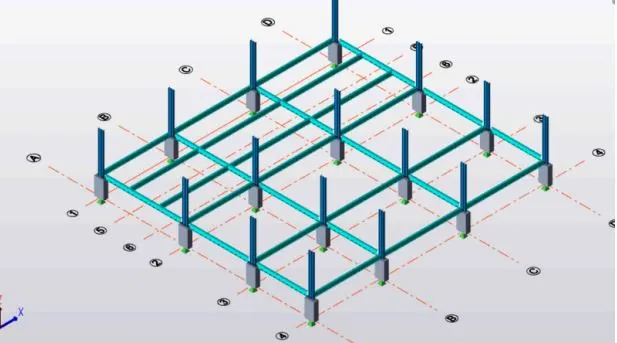

- now place these beam layout provided with columns throughout the layout

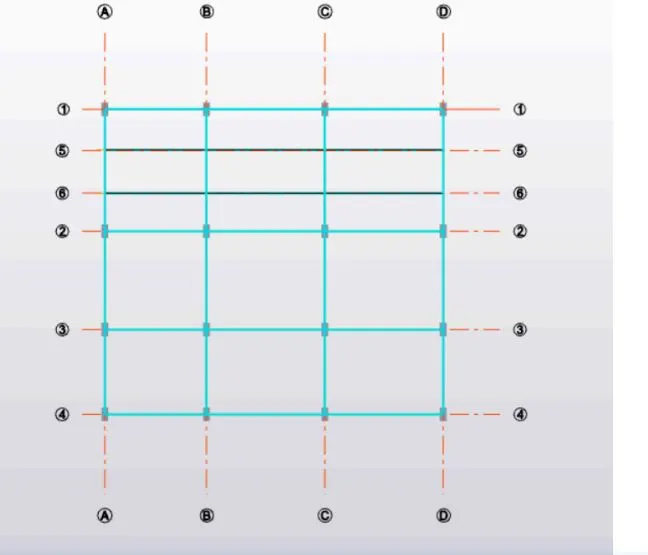

- no beams have been placed at the ground floor along with the secondary beams in between them.
- place the beams in required portion with the intersection of columns
