To model columns for industrial steel structure using TSD

1.

Aim:

To create column properties for column member for pedestral member.

Procedure:

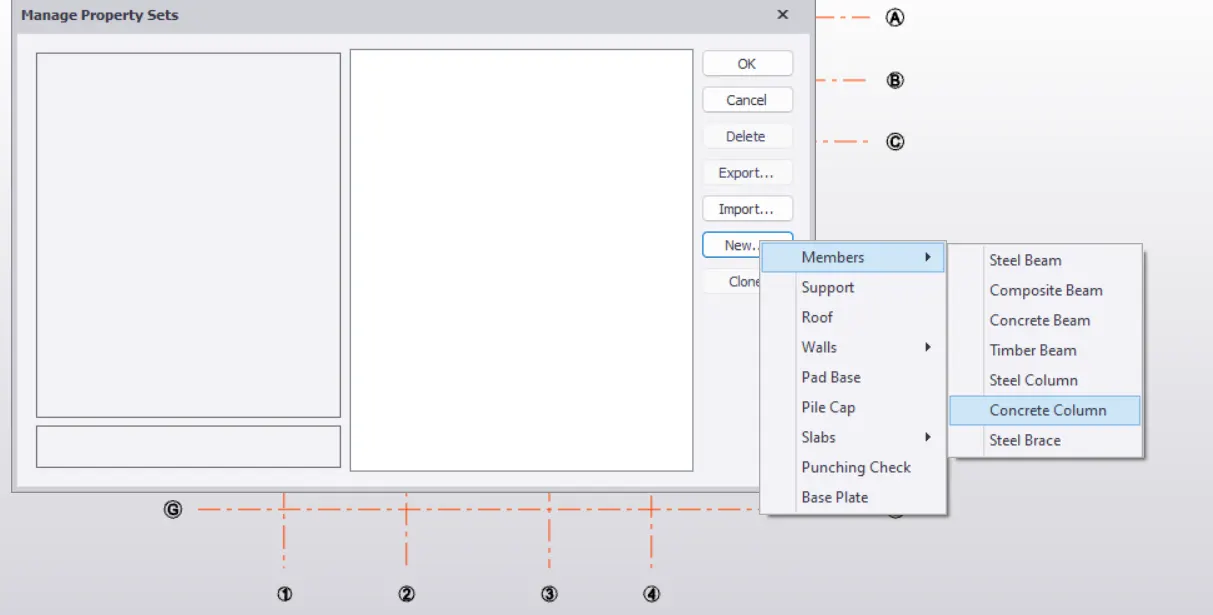

• Open TSD and from manage properties set .
• Choose new member and create a concrete column.

Result:

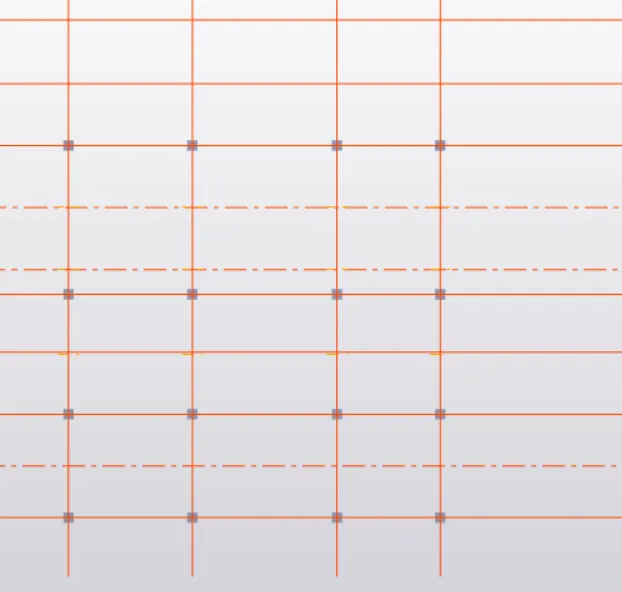

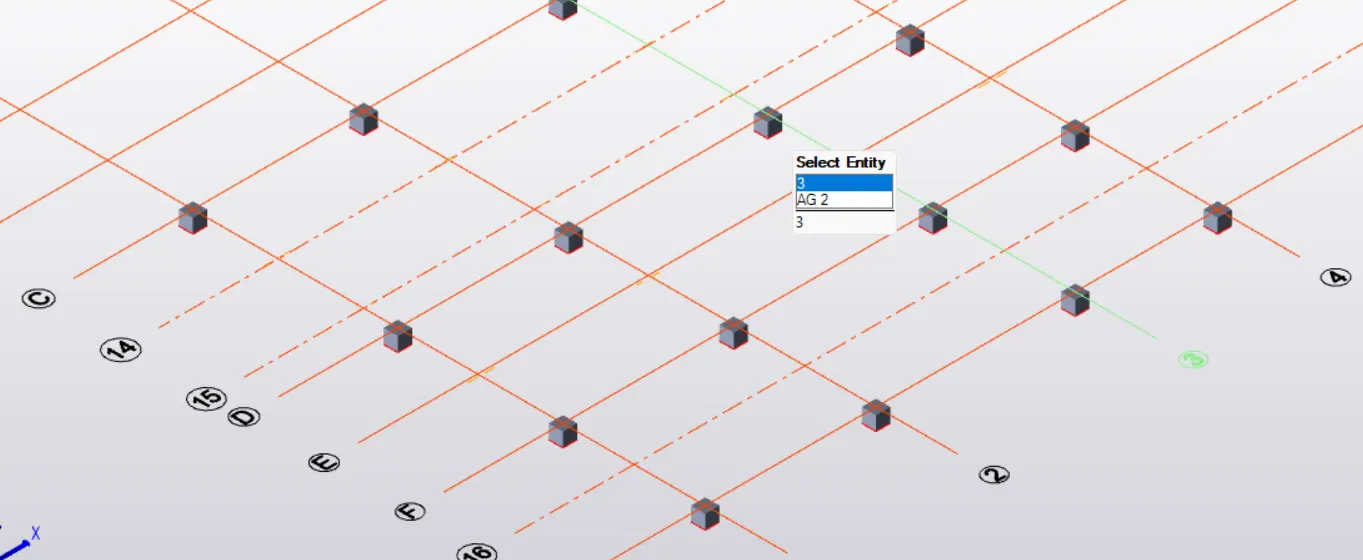

Thus the pedestral column is created and modeled.

2.

Aim:

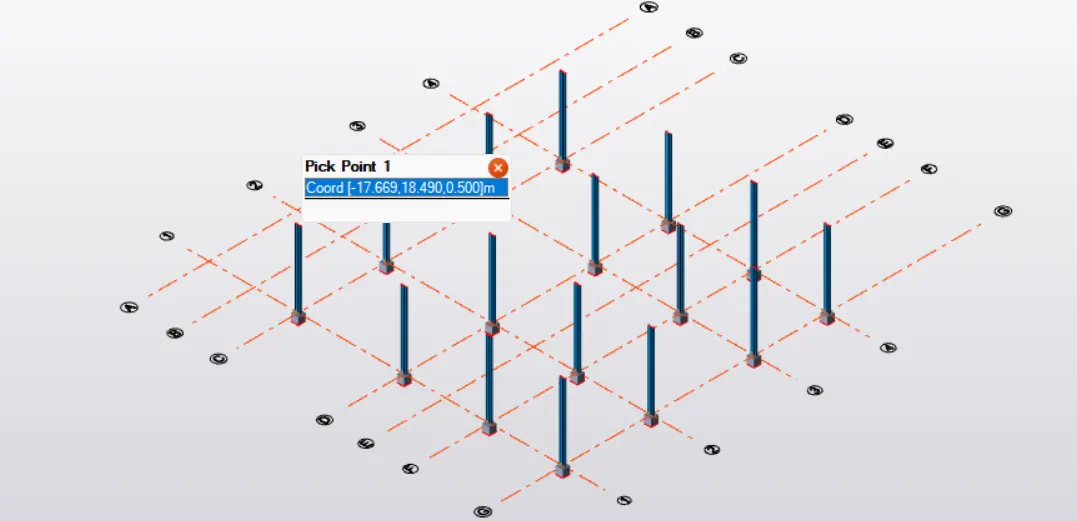

To create steel column and model in the grid.

Procedure:

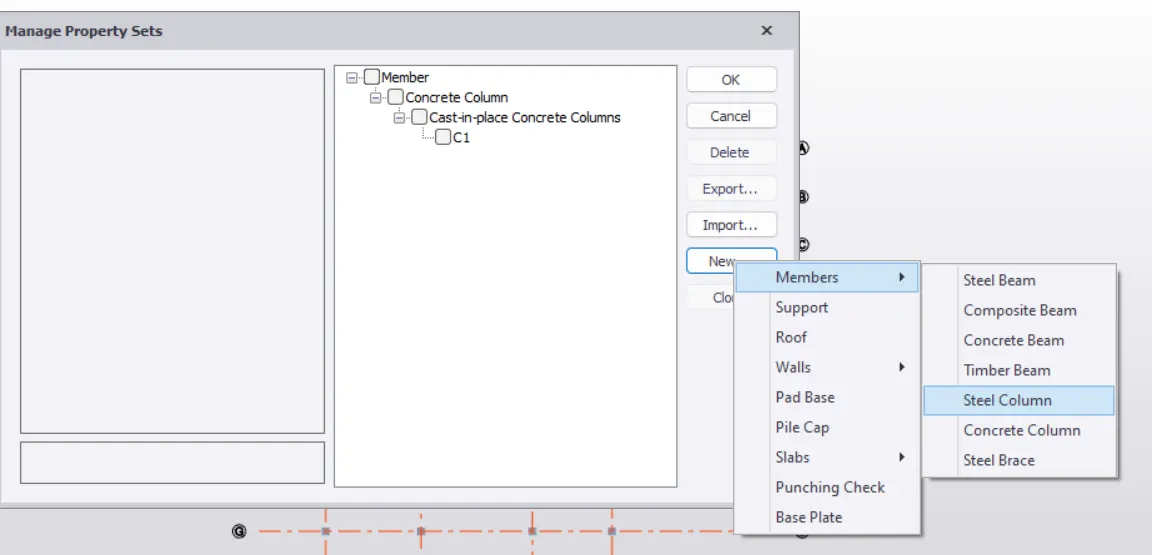

• From manage propertie set choose new member
• From that choose steel column and choose the section.

Result:

Thus the properties of steel column is created and placed in the model.

3.

Aim:

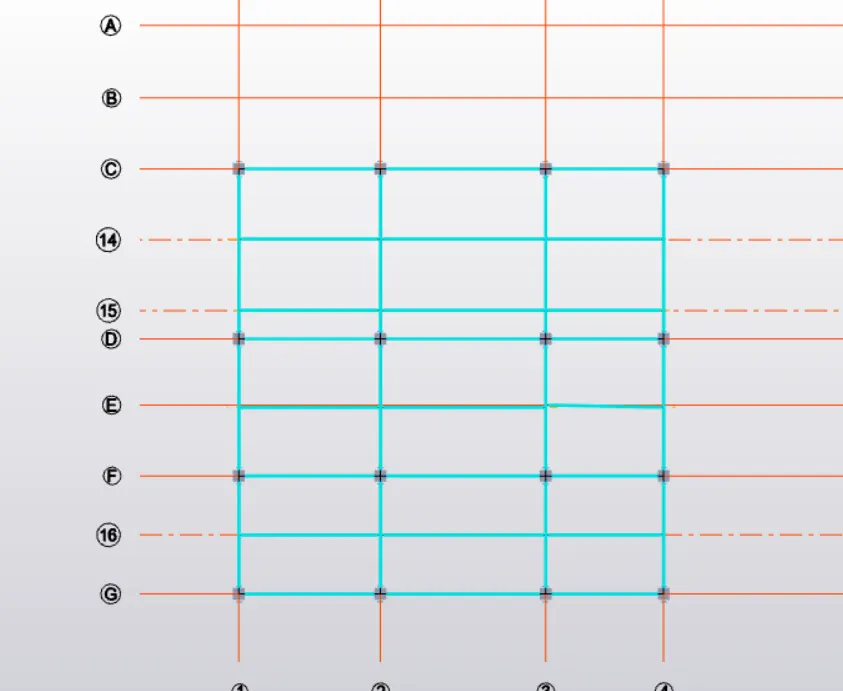

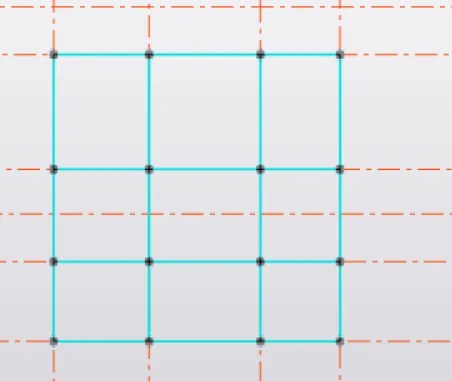

To create bram properties and model primary and secondary beam.

Procedure:

• Create steel beam properties

Primary beam:

Secondary beam:

Result:

Thus the primary abd secondary beam is modeled.
