To model columns for industrial steel structure using TSD

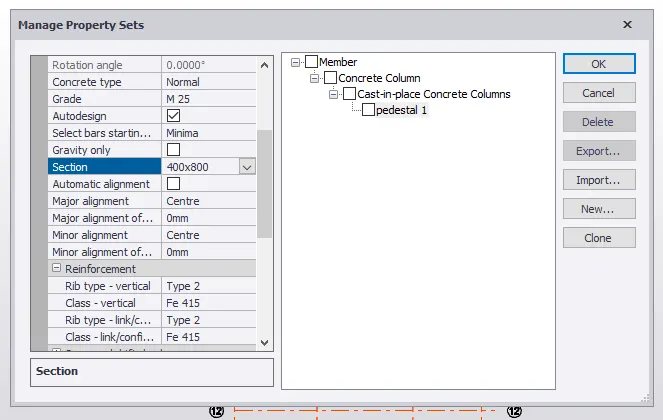

A1 Aim - to ccreate column properties for different types of pedestal members and model in the grids created as per the assignment 1

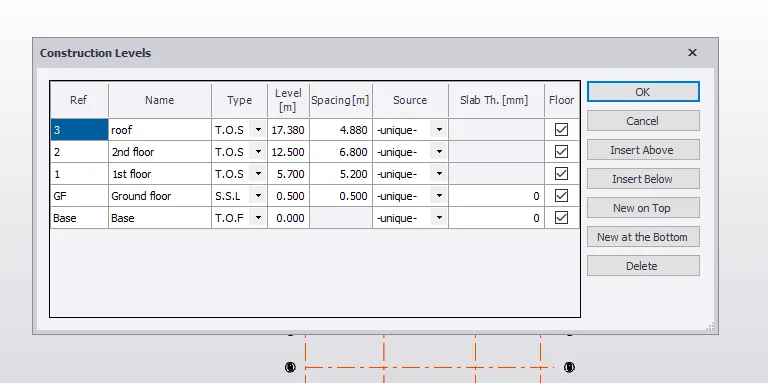

procedure - open TEKLA software and model the levels as shown below

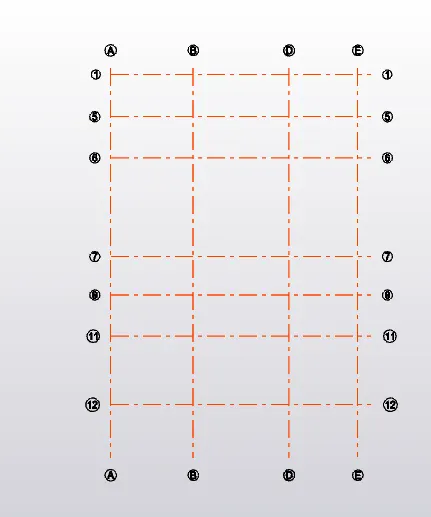

grid lines are created according to the section

pedestal modelling

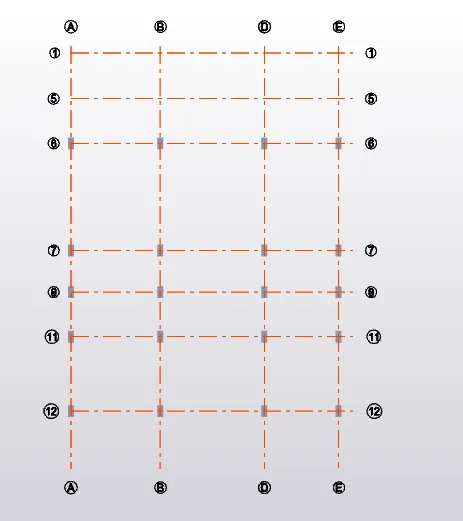

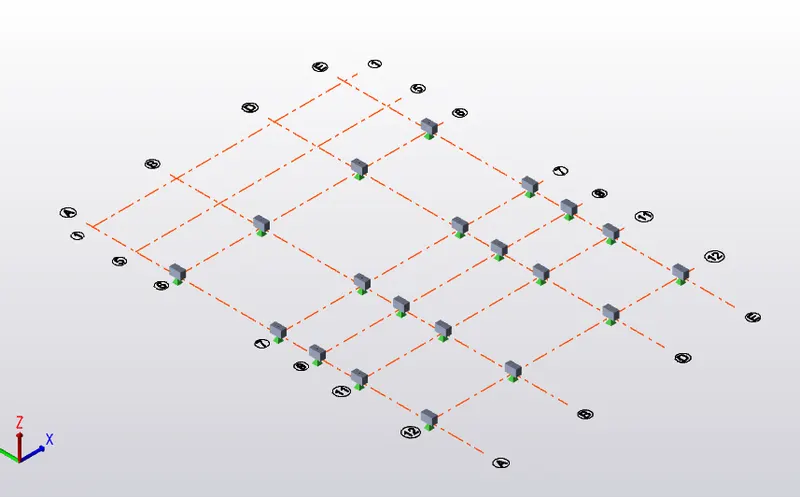

place pedestals in position

A2 aim - to Create column properties for steel columns and model columns in the grid created as per assignment 1.

from manage property sets, input the steel column properties as taught in lessons

place them in position and apply property sets to all the steel columns

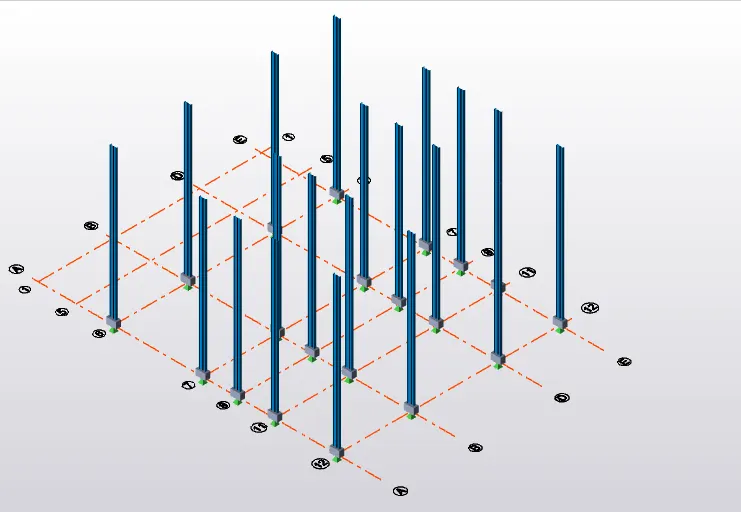

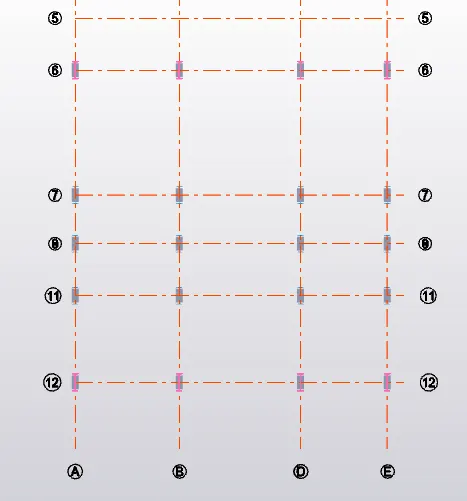

steel columns have been modeled in place

a3 aim - to Create beam properties and model primary and secondary beams on the ground floor

procedure - create the property sets of steel beam

place them in position and make sure to apply the property sets as shown in lessons

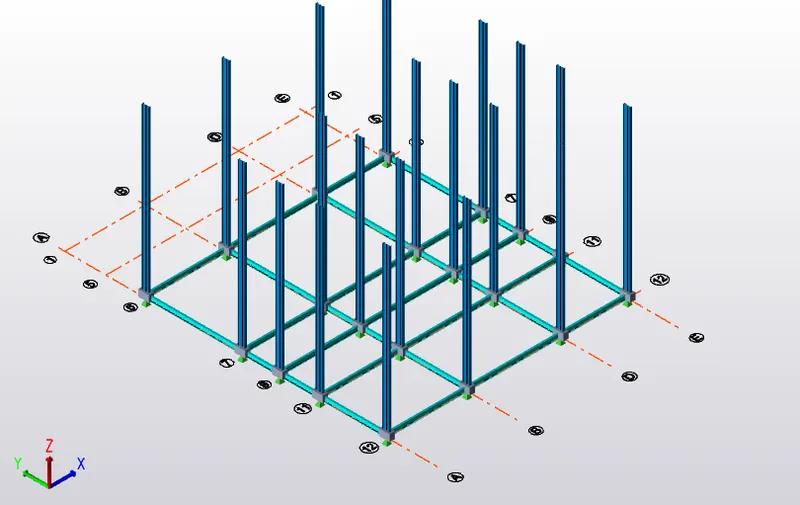

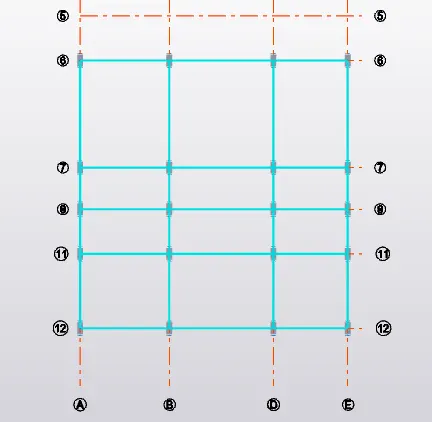

steel beams have been modeled and placed.
