To model beams and bracings for industrial steel structures using TSD

AIM- To Create beam properties for First floor and model the beams

procedure-

Open the tekla structure software
open the week 2 challenge
Now go to the words and select intermediate floor

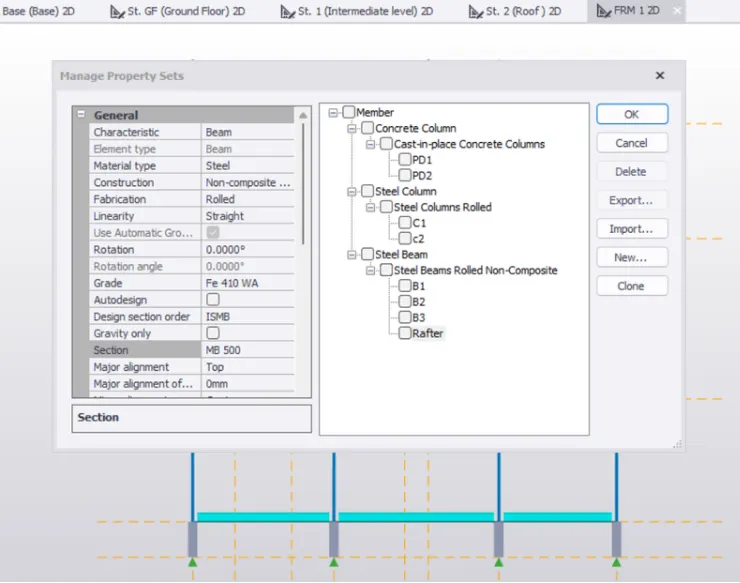

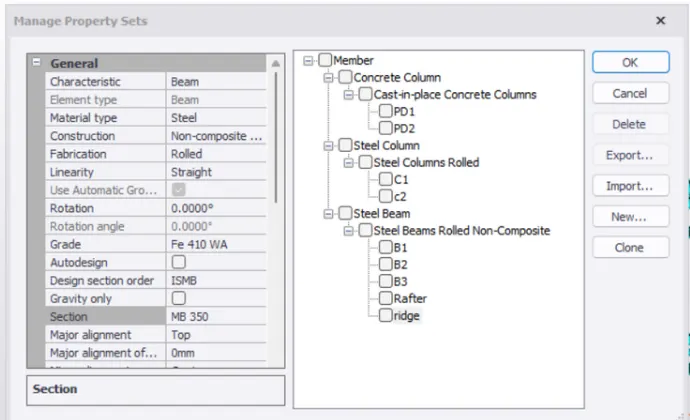

now go to manage property and create the new beam

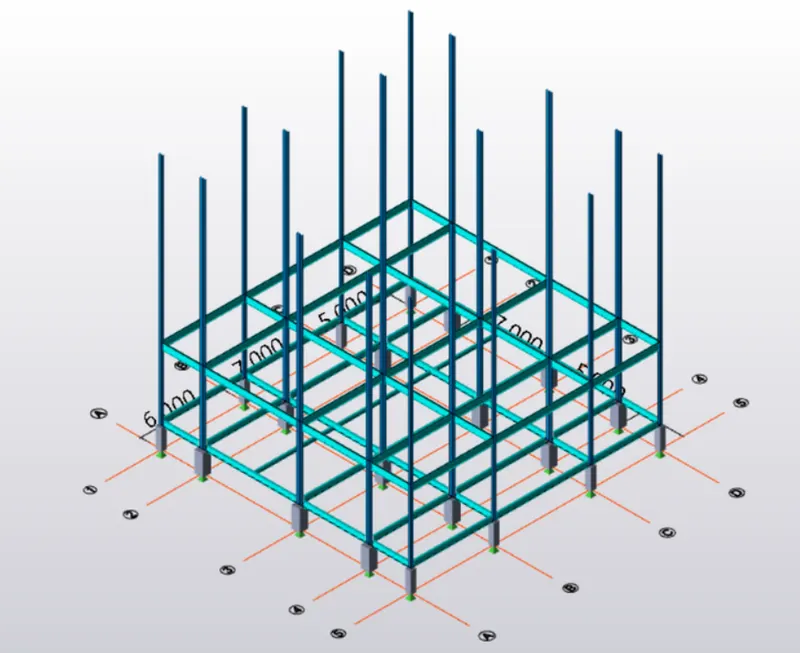

and then model the beam

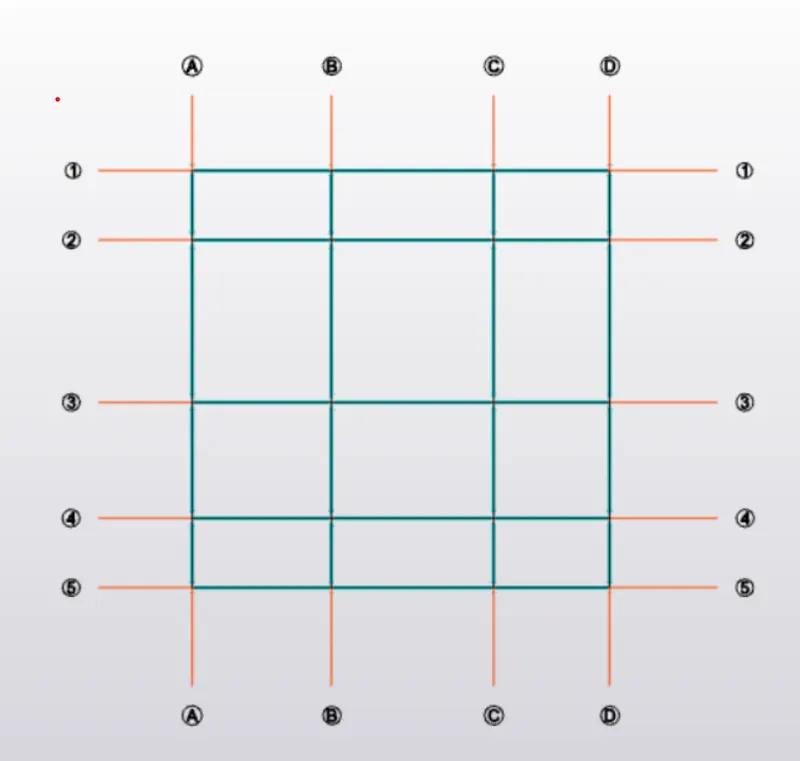

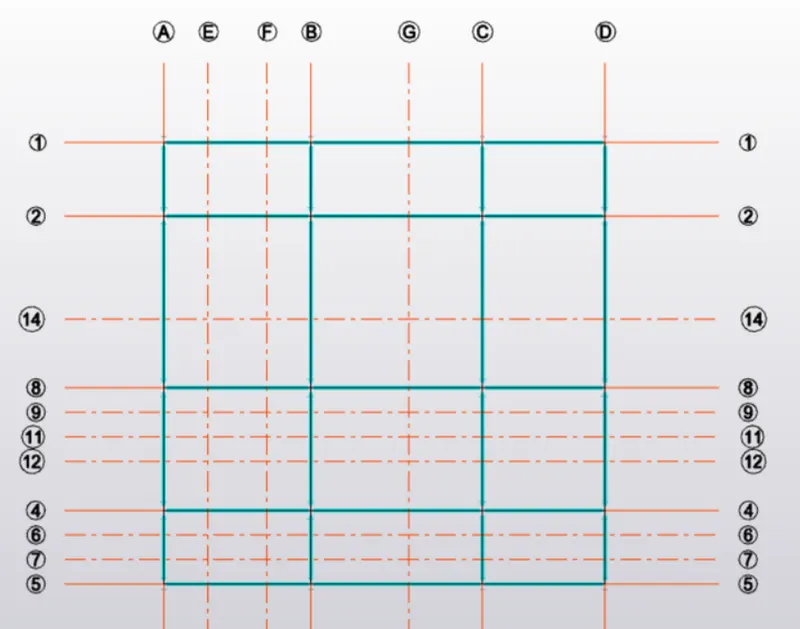

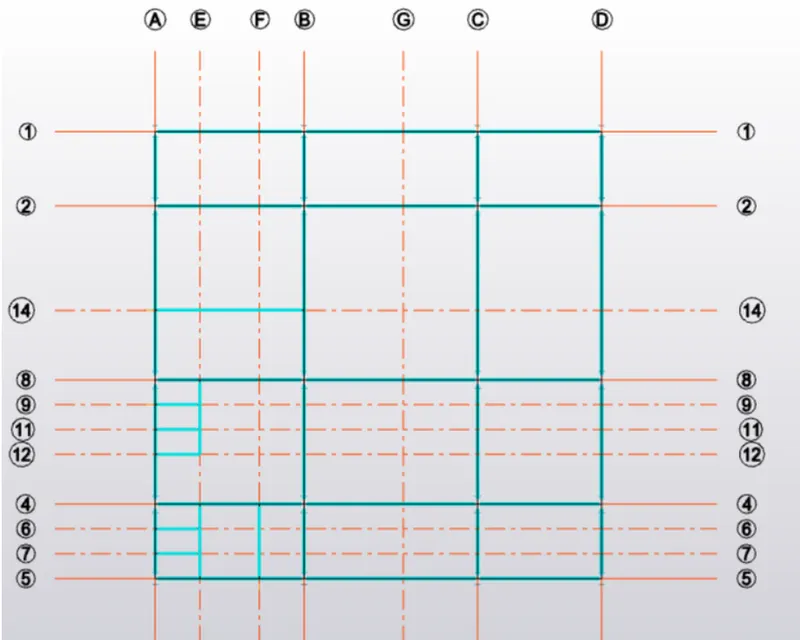

Now model the secondary beam in the intermidiate floor as the plan

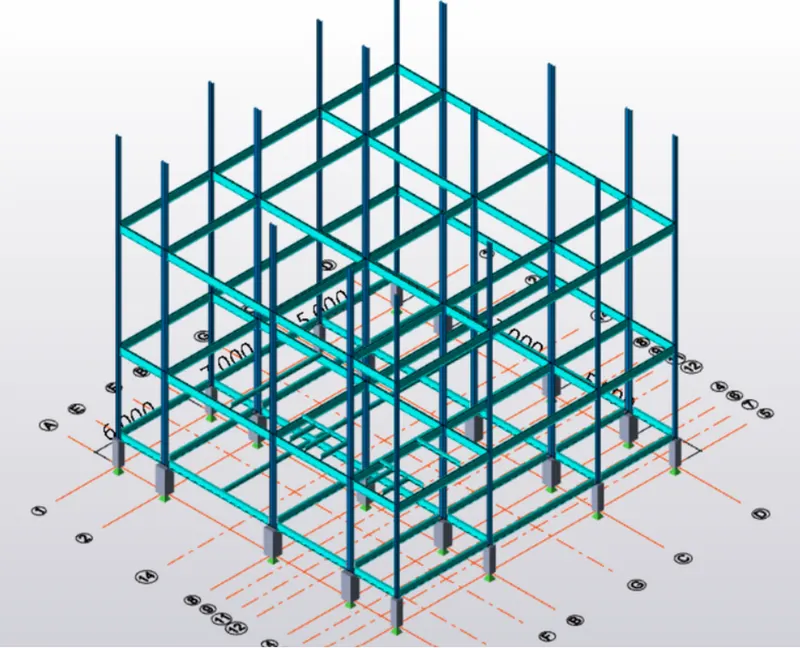

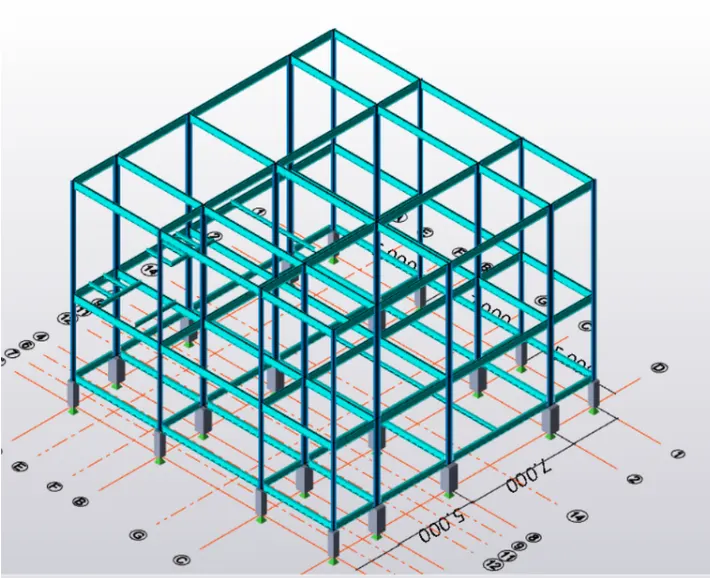

Now model the beam in roof level

result-

Q2-

AIM-To Create rafter beam on second floor as roof and moment frame action in one direction and add bracings at locations as per the design intent

Procedure-

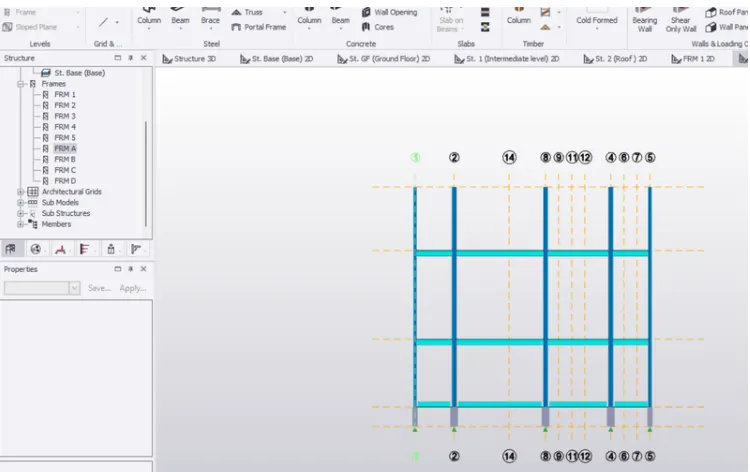

1.now create the frame at every grid

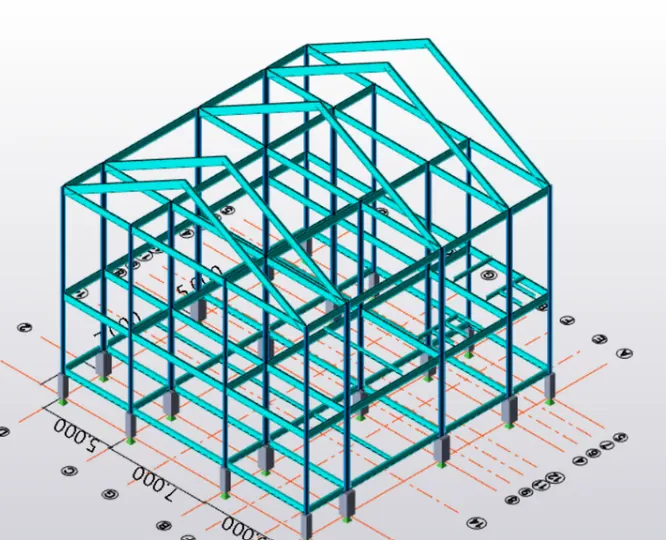

2.now create the rafter

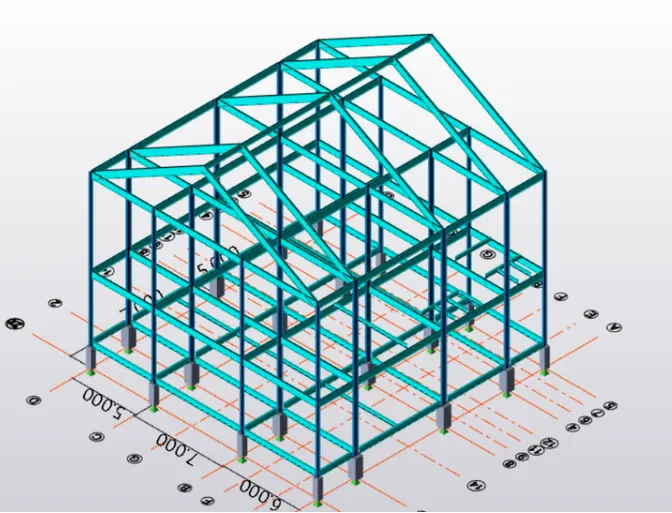

3.and then model the rafter

4.now create the ridge rafter to support rafter

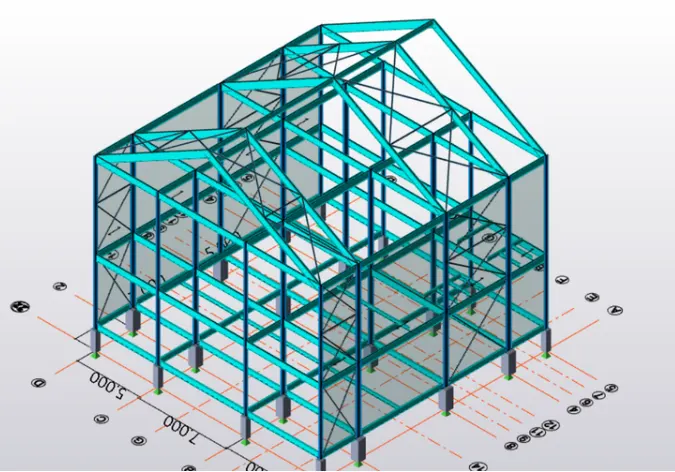

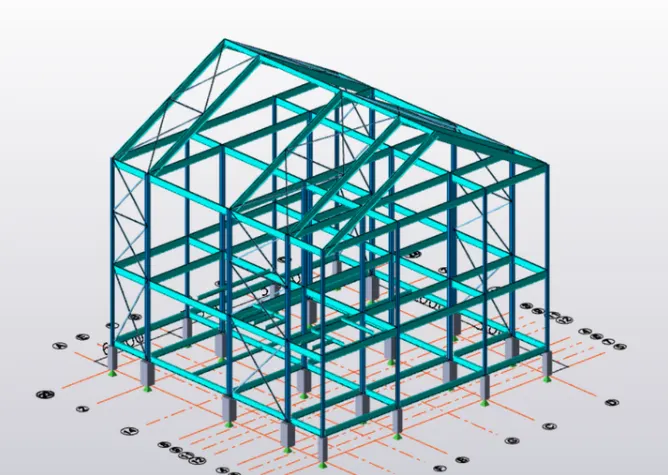

5.now create the steel brace

6.now model the wall panel

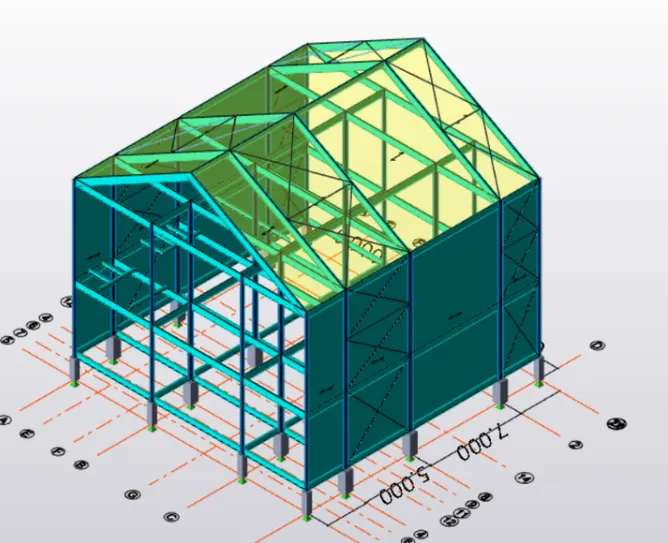

7.Now model the roof panel

8.go to slab property and create the slab

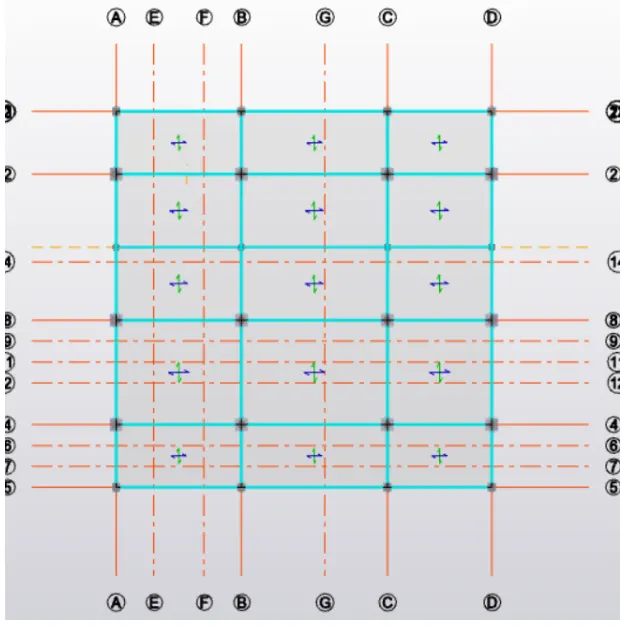

9.now model the slab

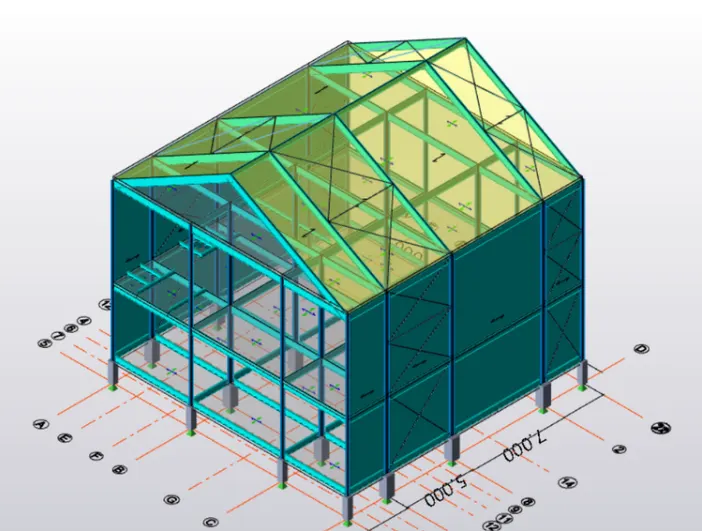

RESULT-
