Creation of geometries by Coordinate system methods using AutoCad

AND1) aim

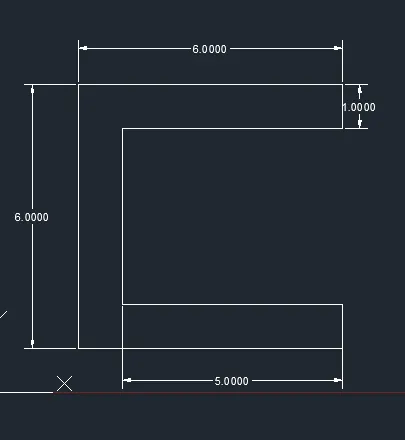

p1) drow the C section with the use of verius camand

steps ) first off the dynamic input

take the line camand then drow (2,2) point then next point (2,6).(6,6).(6,5).(3.5)(3,3).(6,3).(6.2) take point simulteniusly then close

here

ans p2)

aim- drow the geomatrics

stepes - take line comand and fowlled point [2,1].[4,8] .[7,8][9,1][6,1][6,5][5.

,5][5,1] respetivly

here

ans p4 ] steps

take line camand then point [2.1] [2.8][ 3.8] [5.5][ 7.8][ 8.8][ 8.1][ 7.1][ 7.5] [5.3][3.5][ 3.5] [3.1] close

ans p5 ]

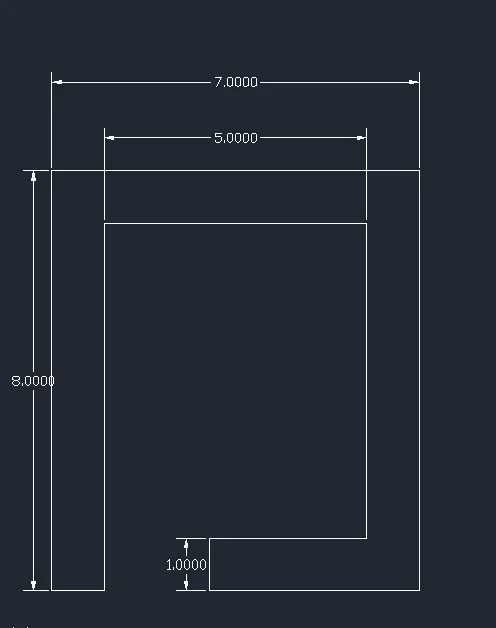

srteps ] take line camaand then point [ 2,1 [2,9[ 9,9] [5,1] [5,2 ][ 8,2][ 8,8[ 3,8[ 3,2 ]close

[

ans p7]

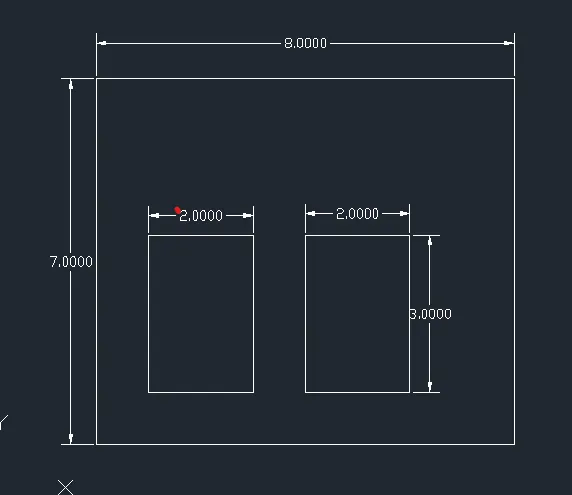

steps] take line camand then point[2,1] [2,8] [10,8] [10,1] then close

then next take camand point [3,2] [3,5] [5,5 ][5,2] then close

next [6,2] [6,5] [8,5] [8,2] then close

ans p8]

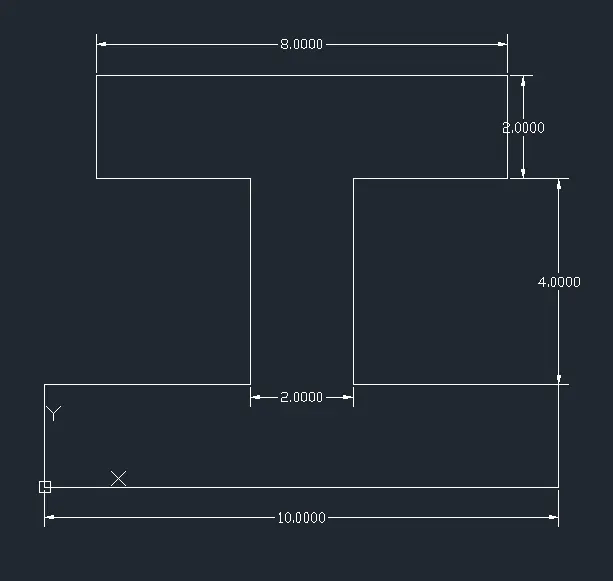

steps take a camand line then point[0,0] [0,2] [4,2] [4,6] [1,6] [1,8] [9,8] [9,6] [6,6] [6,2] [10,2][10,0]

then close

ans p9]

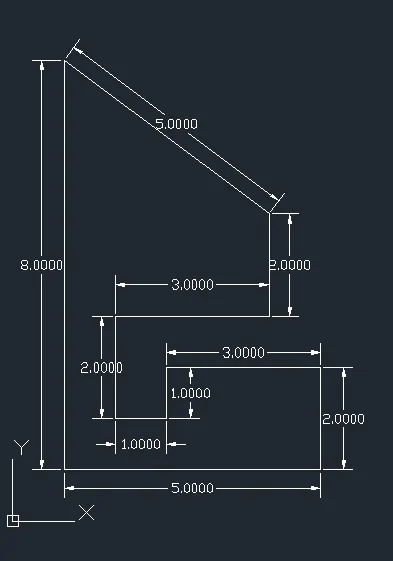

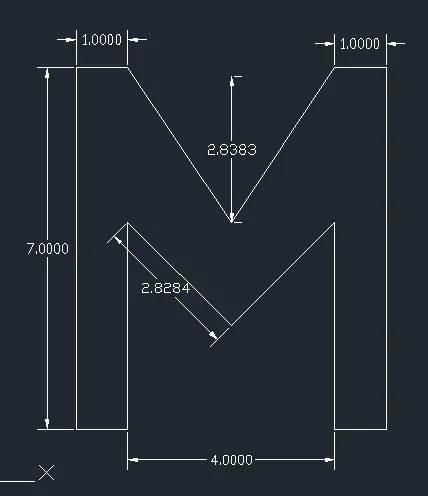

steps take line camand then point [1,1] [1,9] [5,6] [5,4][2,4][2,2] [3,2][ 3,3][ 6,3] [6,1] then close

ans p10]

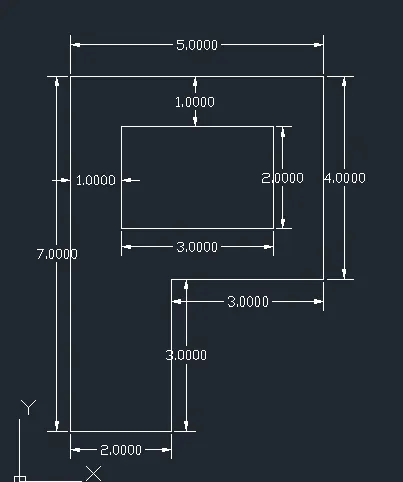

steps take line then point [1,1] [1,8] [6,8] [6,4] [3,4 ][3,1] then close next point[2,5] [,2,7][ 5,7][ 5,5] then clode

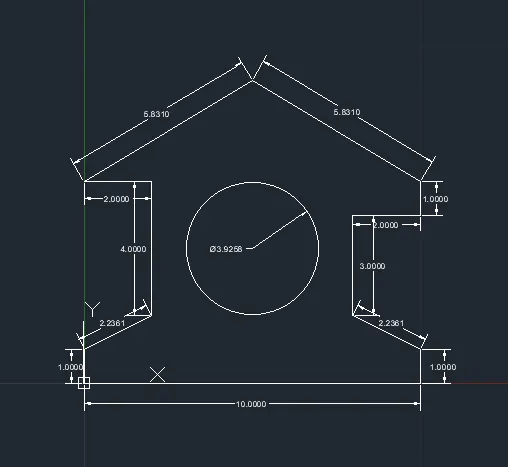

ans profile wood ] steps take line then point[0,0] [0,1][2,2] [2,6] [0,6][5,9] [10,6] [10,5][ 8,5] [8,2] [10,0] [10,0] close

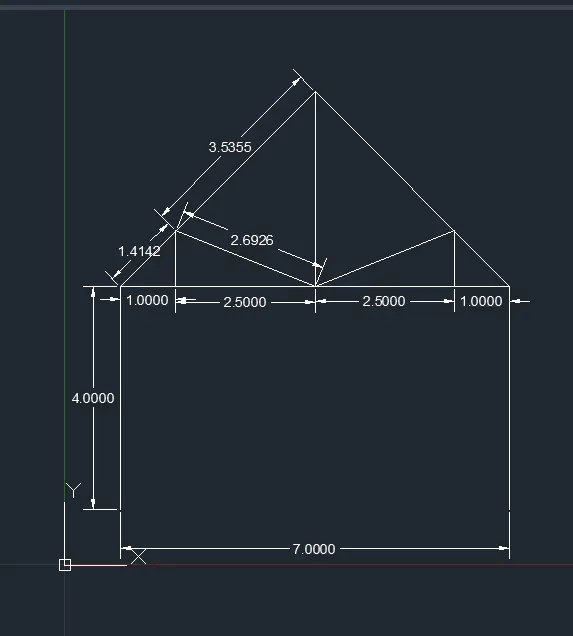

ans queen post steps take line then point [1,1] [1,5] [4.5,8.5][8,5][8,1][1,5][2,5][2,6][4.5,5][7,6][7,5][8,5] close then line and [4.5,5]

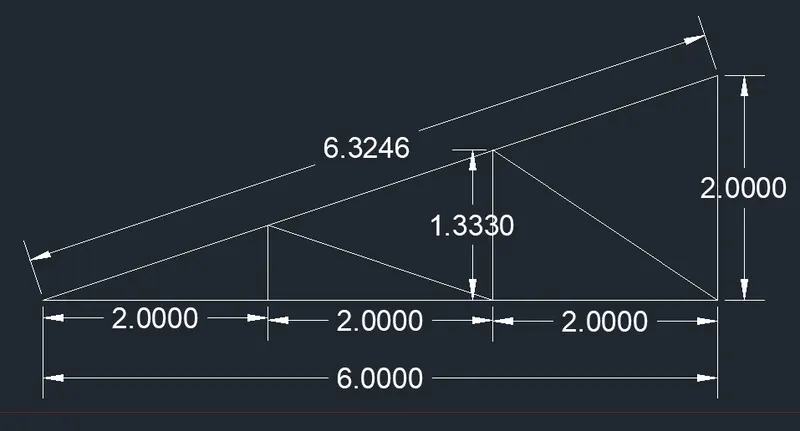

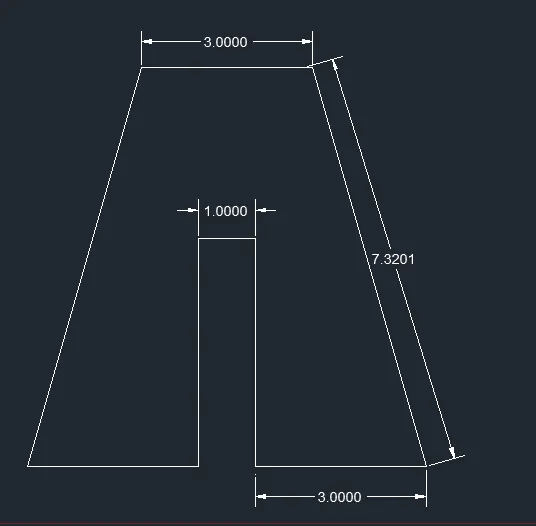

ans ] steps take line then point [1,1][7,3][7,1]close then line camand [7,1][5,2.333][5,1][3,2.667][3,1] close
