Challenge

To Model a RC residential structure using TSD

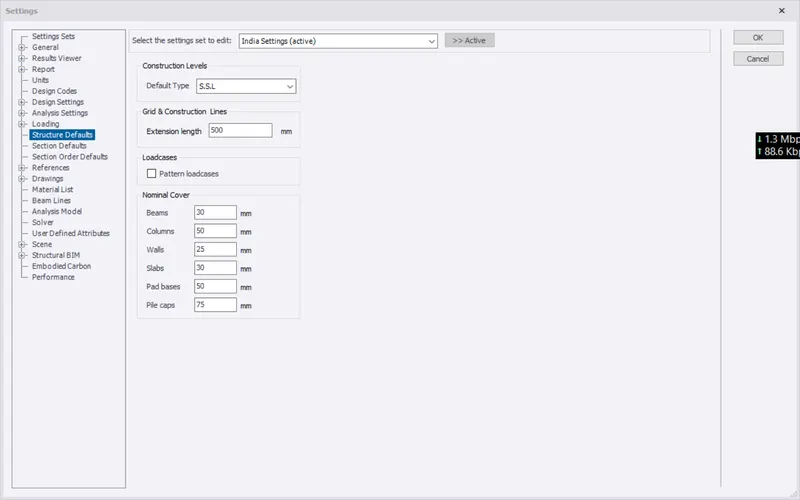

Q1. Setup model for RC building design and based on following parameters for cover

Q2.Model grids as per the attachment 2,2.1 and 2.2

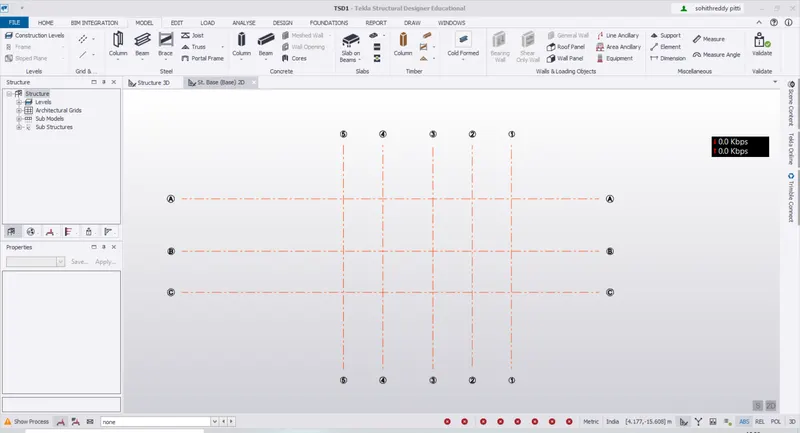

go to model tab select the grid option.then draw a grid line.
next take quick parallel option to create remaining grids with in a given distance.
based on the given data draw the gid lines according to their posiotions.

3. Study the layout and write a summary for general arrangement of the structure.

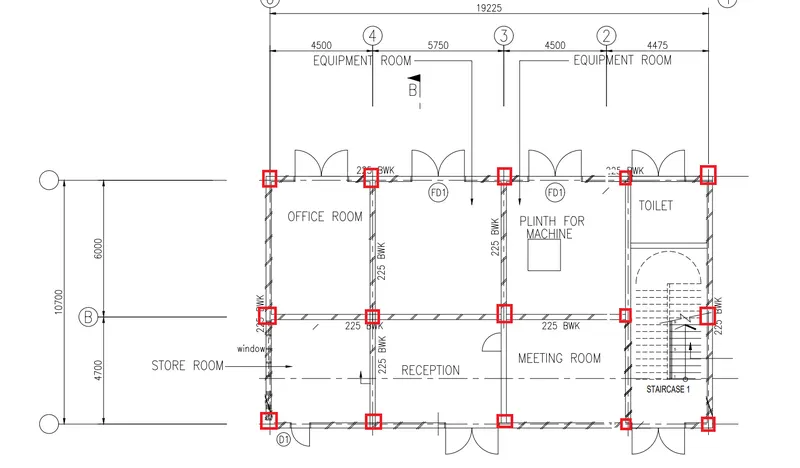

in this study i locate the columns are at the corners and edges of the intersections with the wall positions.

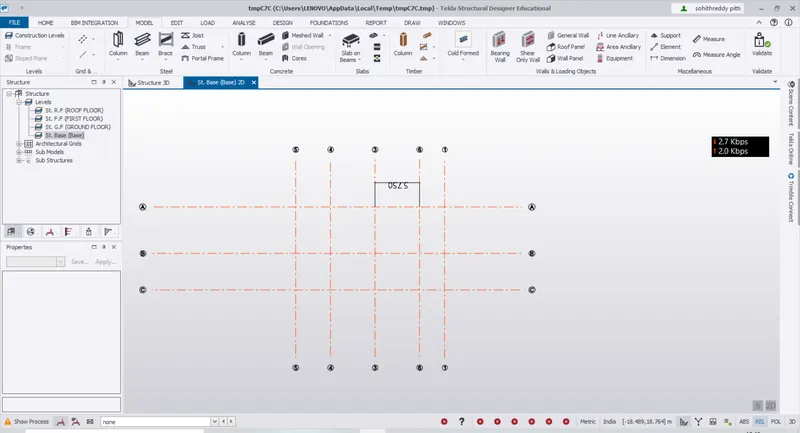

GRID-2 was not inthe place of column alignment .so we need to calculate the distance and draw the grid .

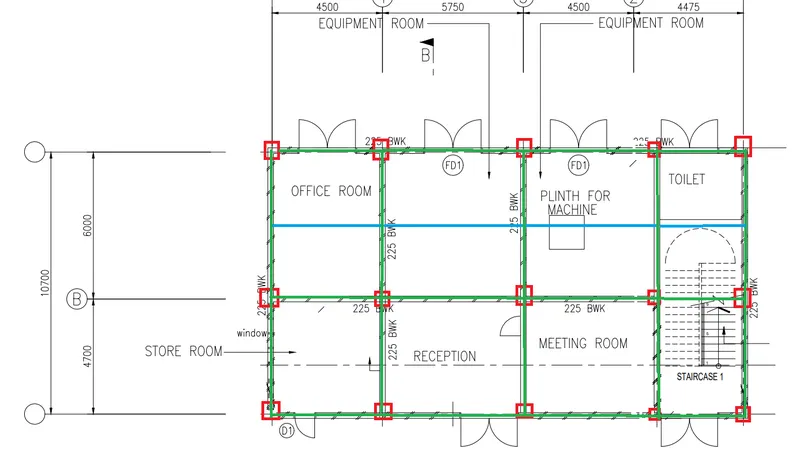

i choose the primary beam positions are at the above of each wall that is shown with green colur.
to reduce the deflection of beams we are going to add secondary beams in middle of grid -B & C.

Q4. Model RC columns, beams and slabs as per your general arrangement

First draw the grid line side of grid -2.

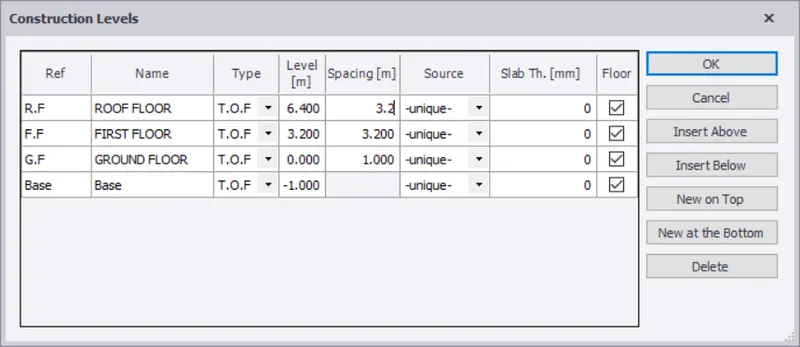

next add the construction levels with the floor height of 3.2mt.

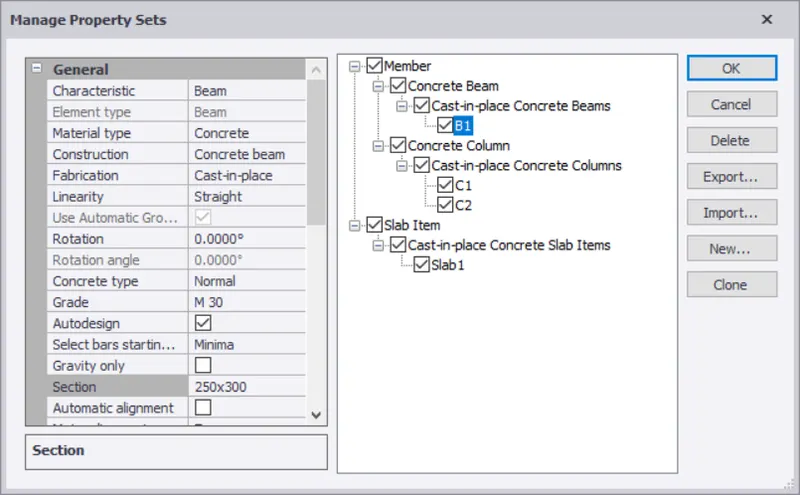

define the properties of elements have to insert in model.

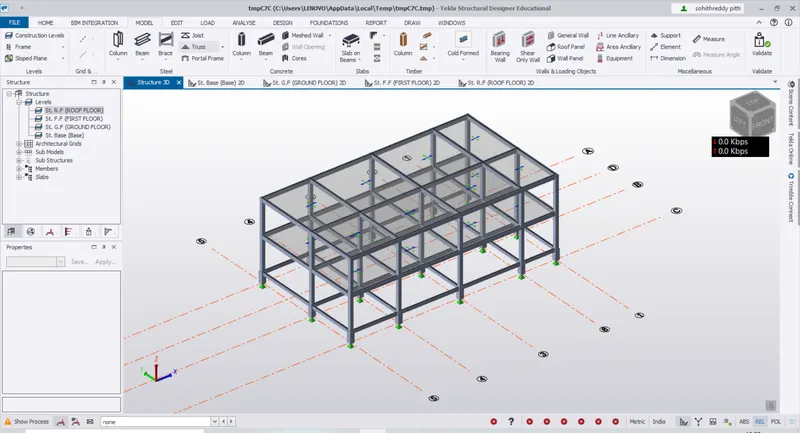

next model the columns beams and slab at their level and suitable locations.
after the created model click on the validation to check any errors might be occured . if occured means correct that errors.
finally save the model and take a snap of model.
