To Generate seismic loading based on IS code and to run the analysis using TSD

Q1:

Aim: To provide seismic load for the structure

Procedure:

Step:1)

Create seismic load case

Step:2)

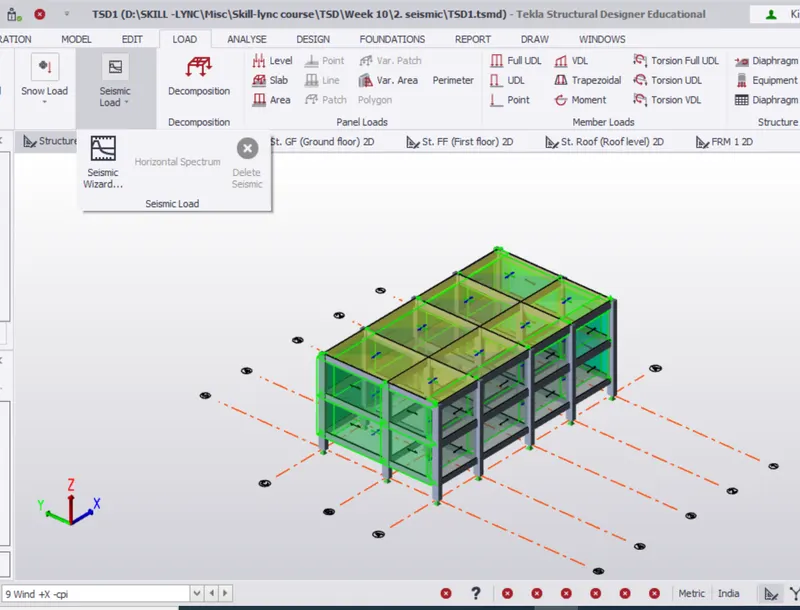

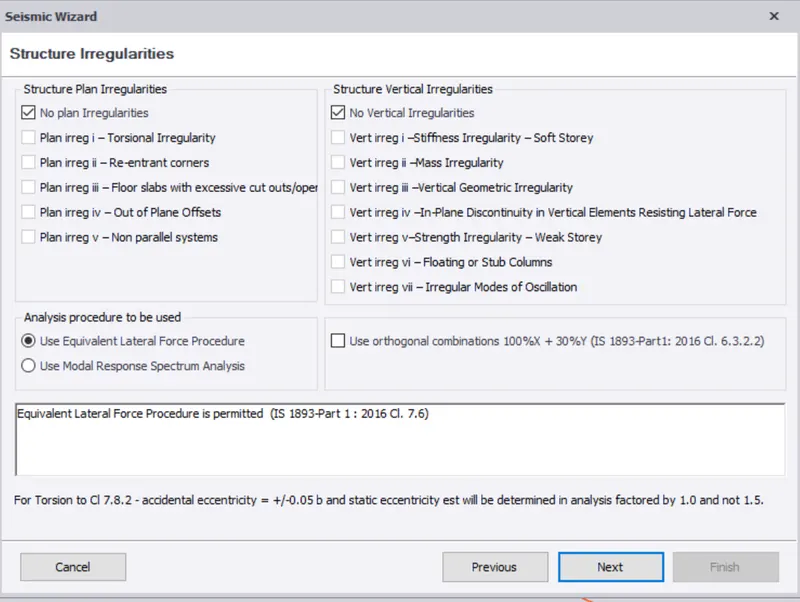

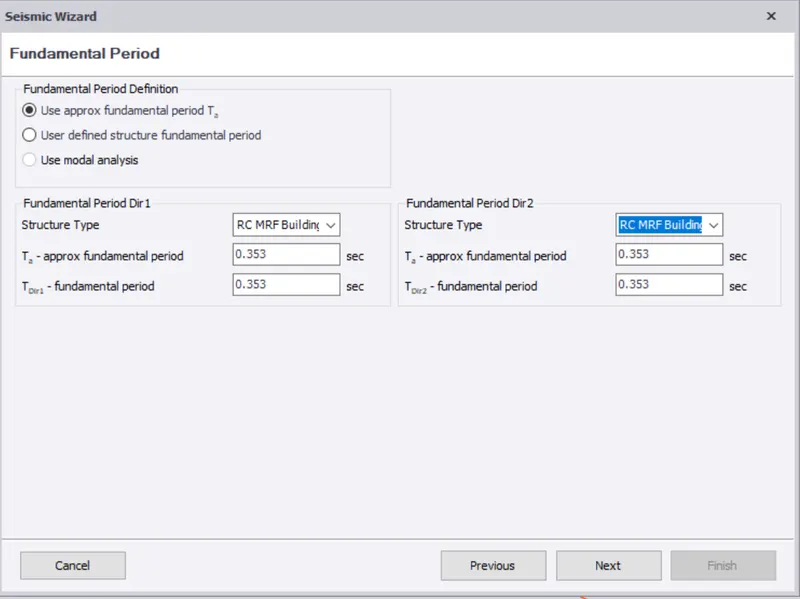

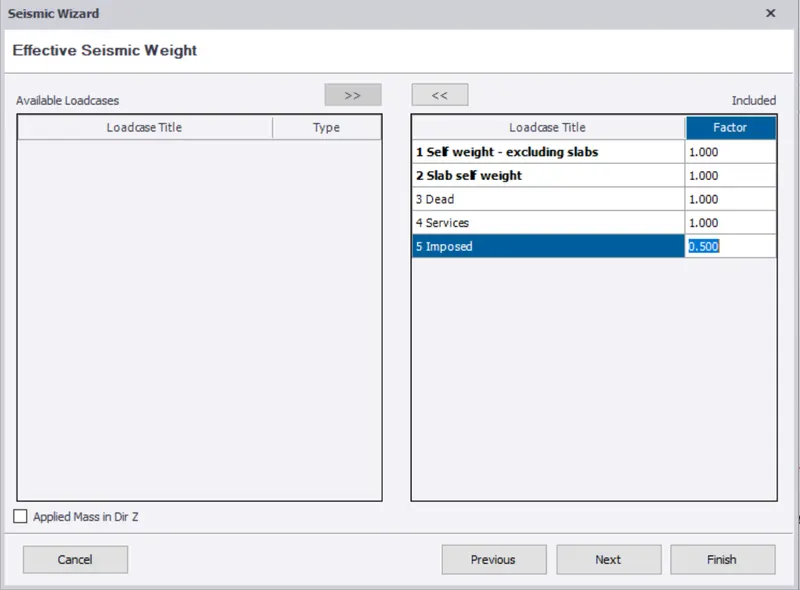

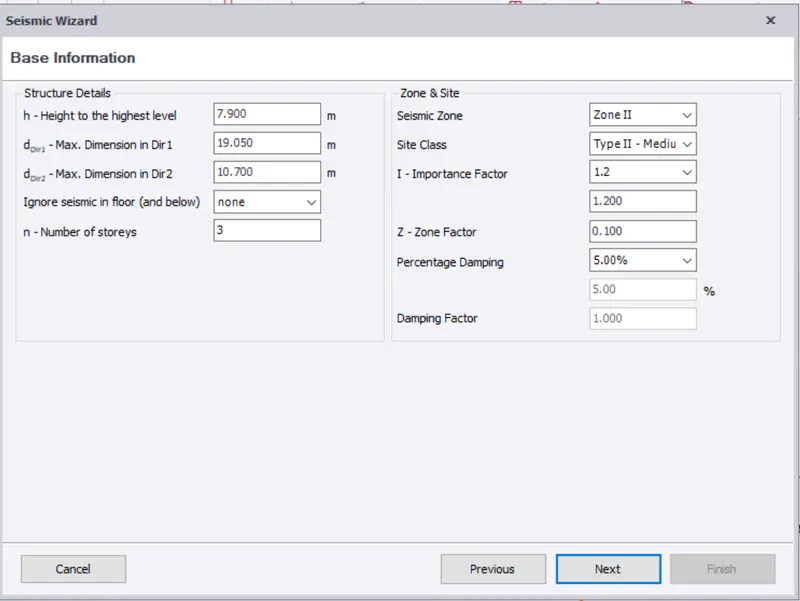

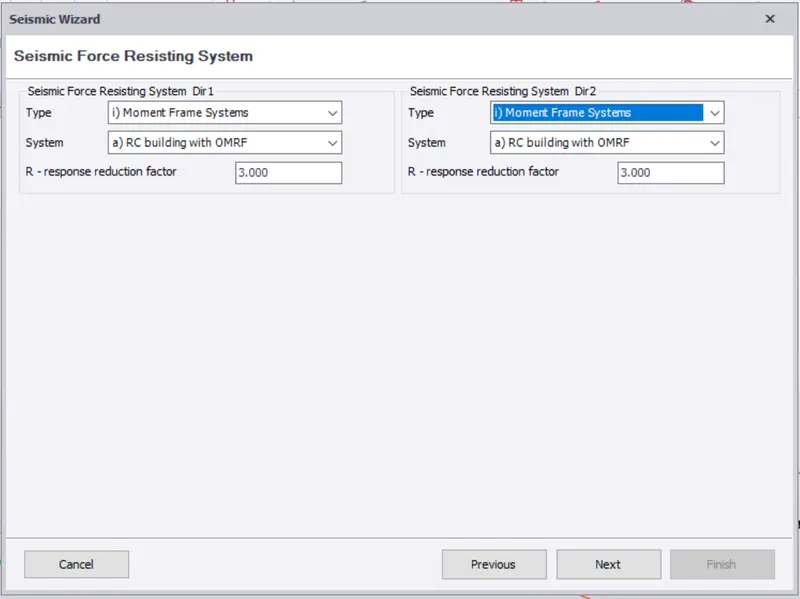

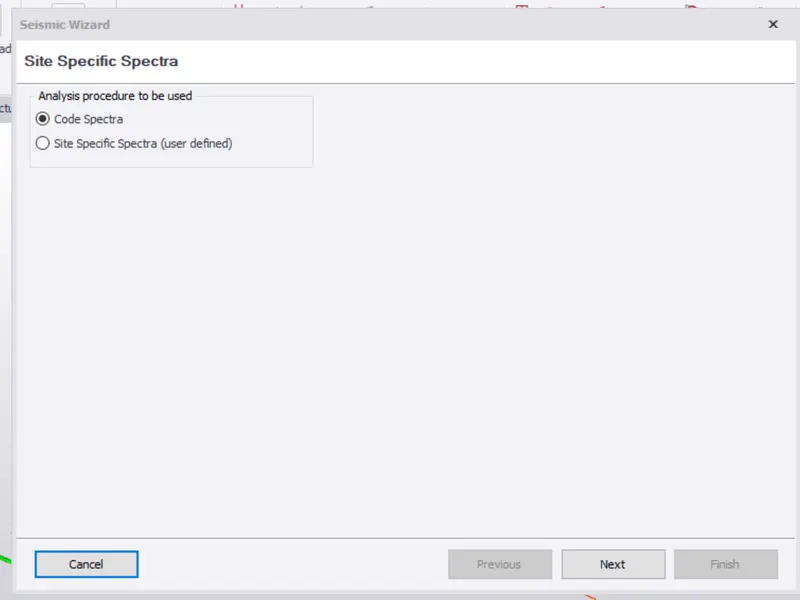

Load > Seismic load > Seismic wizard

Step:3)

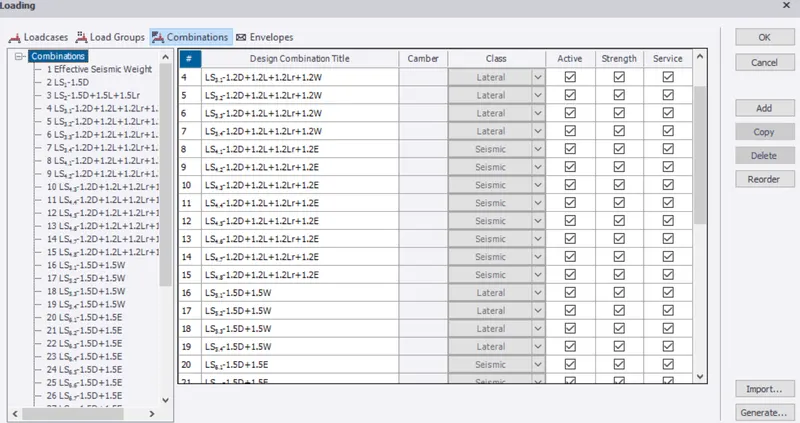

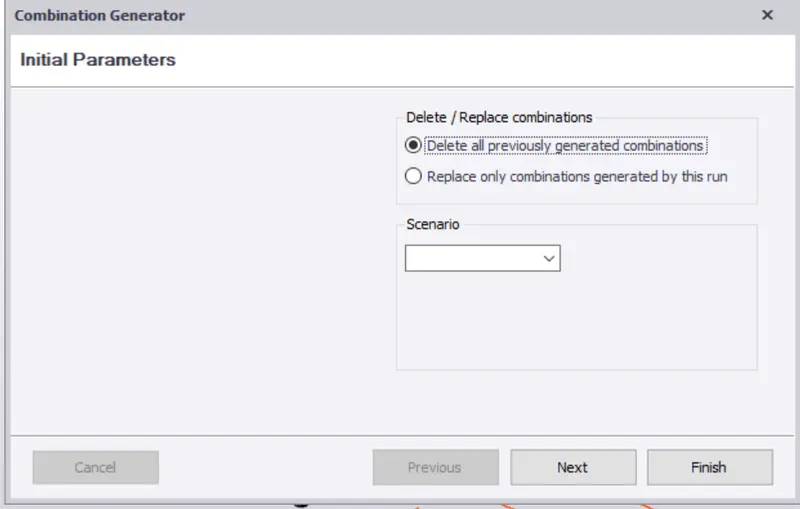

Load combinations

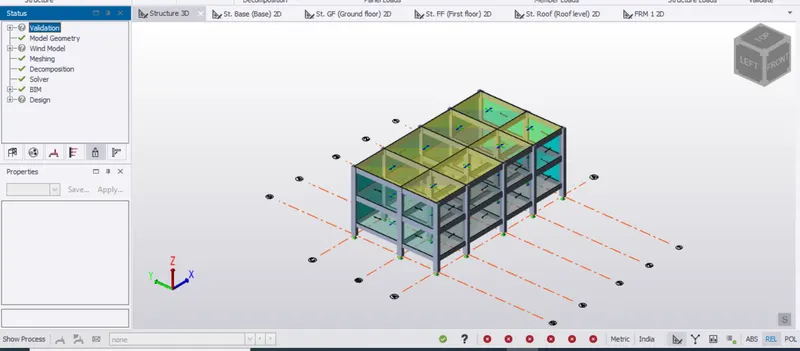

Step:4) Validate the model

Result : Seismic load was assigned and model was validated.

Q2:

Aim: To Analyze the model & check the results

Procedure:

Step:1)

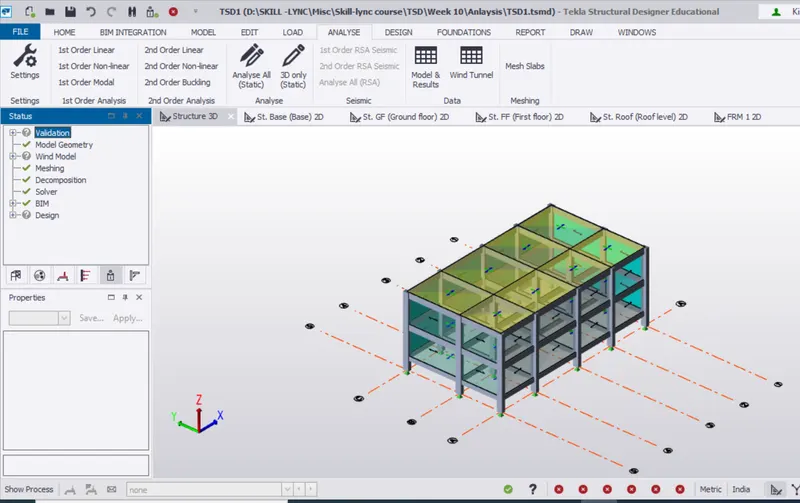

Analyze >First order analysis

Step:2)

Analysis Result

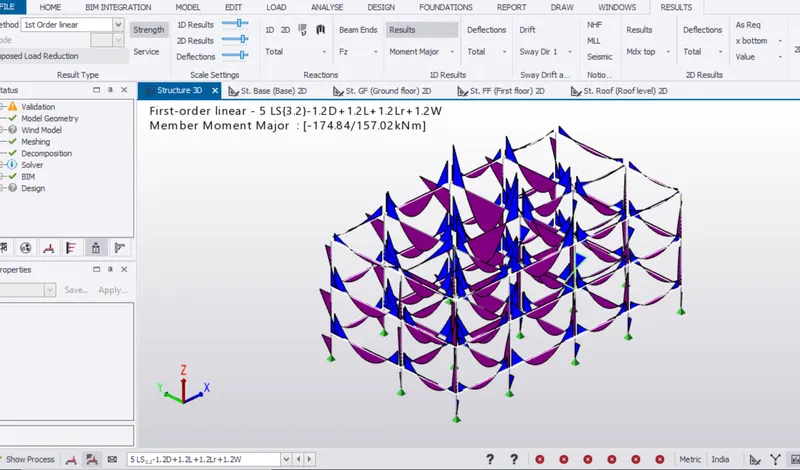

Strength

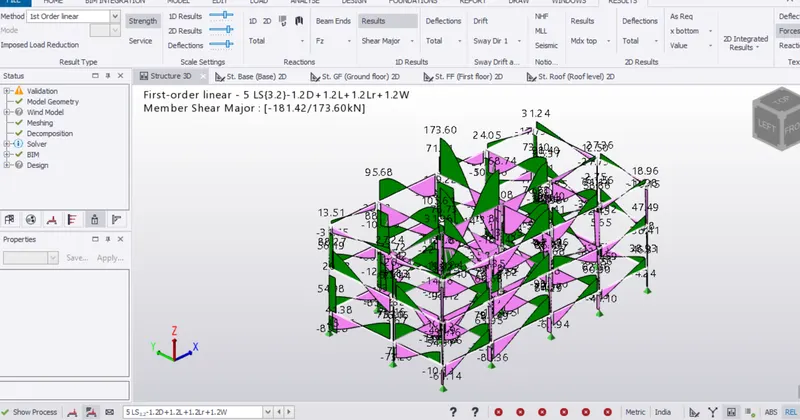

Shear major

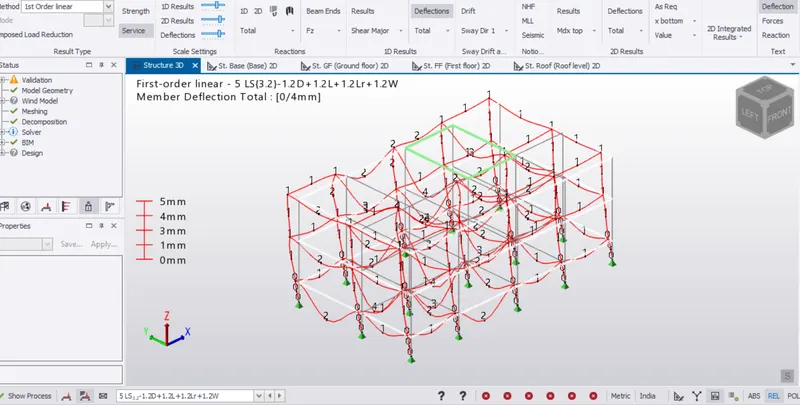

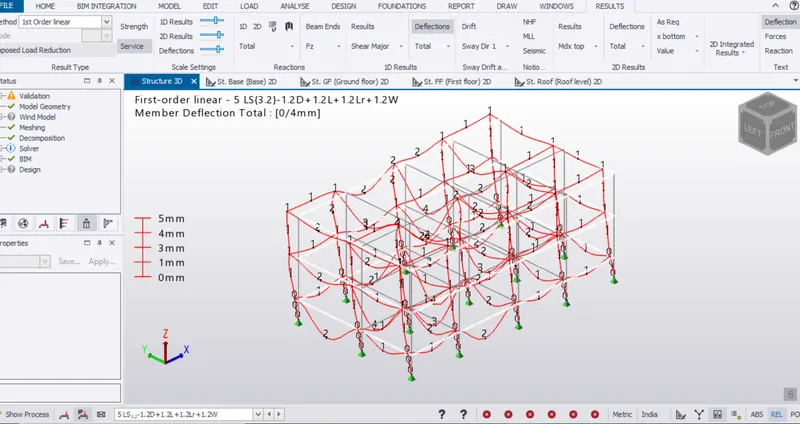

Deflections

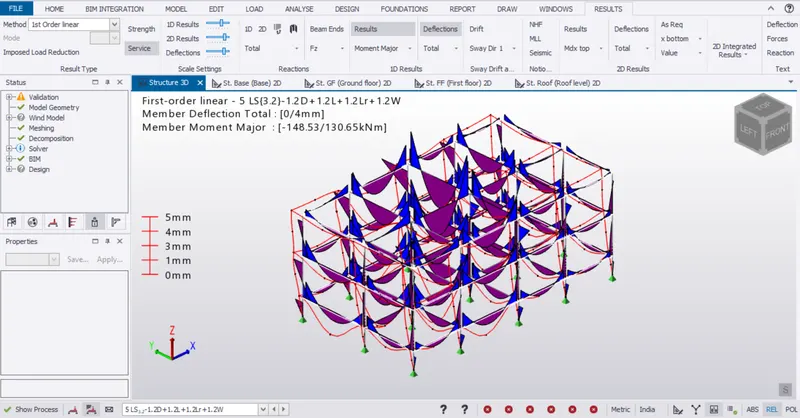

Major moment

 Service

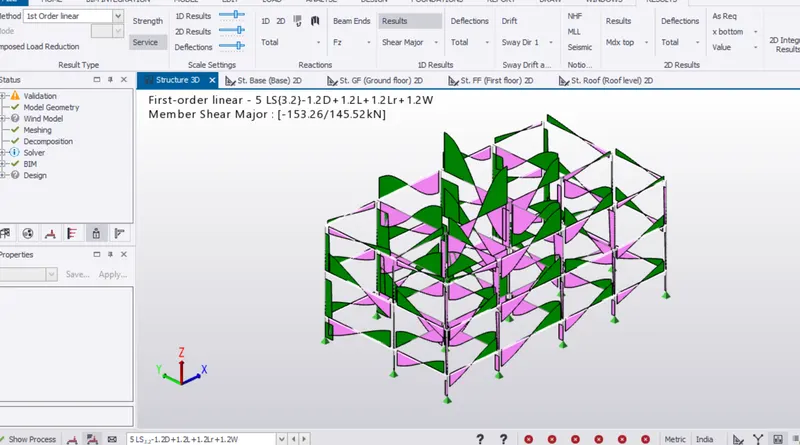

Shear major

Deflections

Moment major



 Result : The analysis results are checked
