To Generate report for Steel Industrial and RC structures using TSD

Questions:-

1. Generate report for the steel building design from challenges 1 – 6 along with the loading summary.
2. Generate report for RC structure along with the loading summary.
3. Update the layers settings in the model and generate plan drawings and details from the model.

Ans=

Question. 1. Generate report for the steel building design from challenges 1 – 6 along with the loading summary.

Ans=

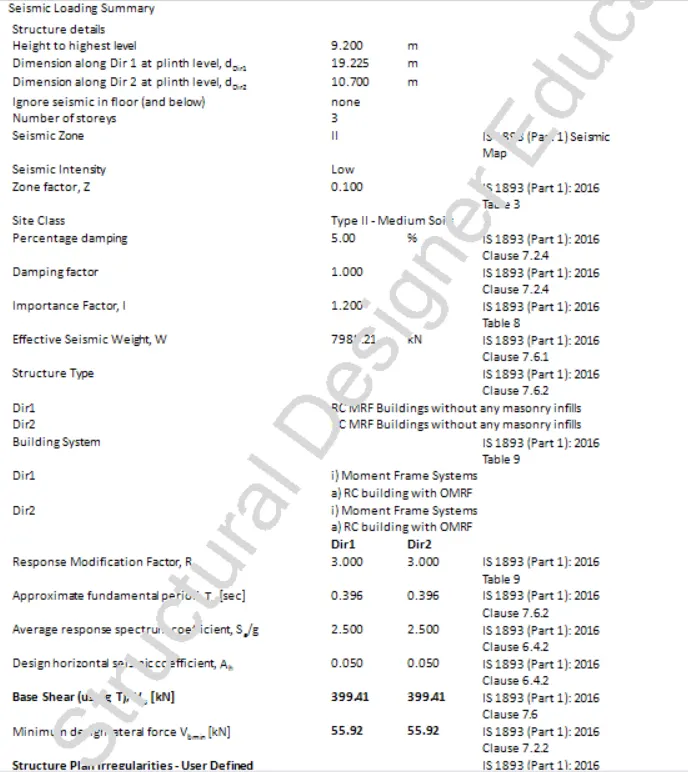

AIM:- To generate load summary report for the steel building design

INTRODUCTION:- Report commands are accessed from the report ribbon tab where we can customize model and member reports with specific content.

• MODEL REPORT : Create or edit chapters of the model report. Customisation to select particular level, frame, plane and substructure option is also available in model report.
  • Example : Structure, Analysis, Loading, Load cases etc
• MEMBER REPORT : Create or edit chapters of the member report
• Example : Diagram and results of SFD, BMD, Deflections etc
• SHOW REPORT : Displays selected style report

PROCEDURE :

• Open steel building model
• First run analysis for the model

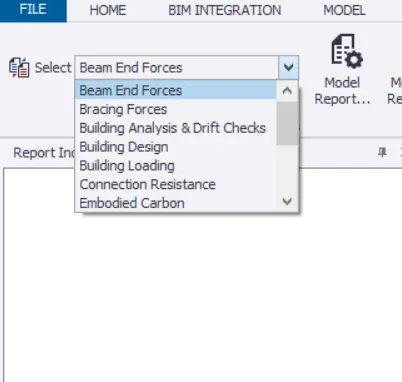

• Then go to report tab and select "Beam end forces"
•

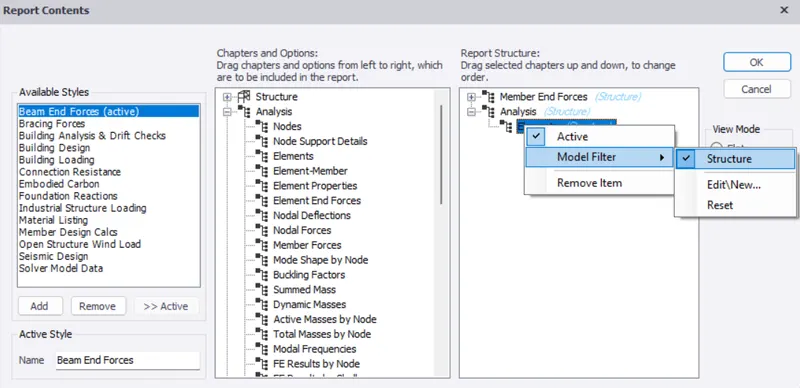

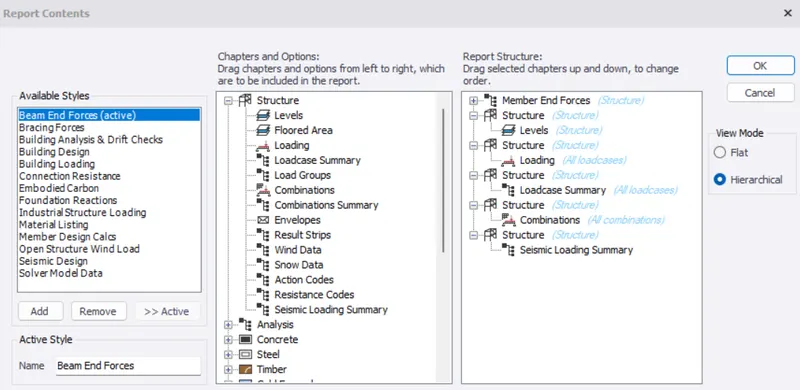

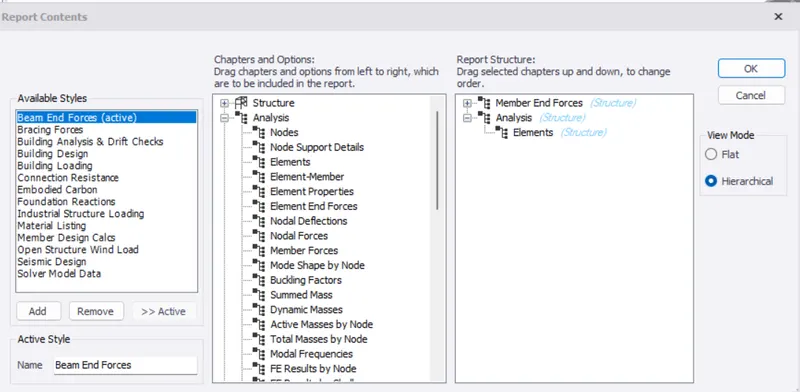

• Click on Model report settings and select necessary content for report generation
  • Example : For Beam end forces, In "Structure"
    Select level, loading, loadcase summary, combination and seismic load
  •
• Now select Show report
• Similarly generate analysis
• Click on Model report settings and select necessary content for report generation
  • Example : For Beam end forces, Analysis
    Select element and move it to right side
  •

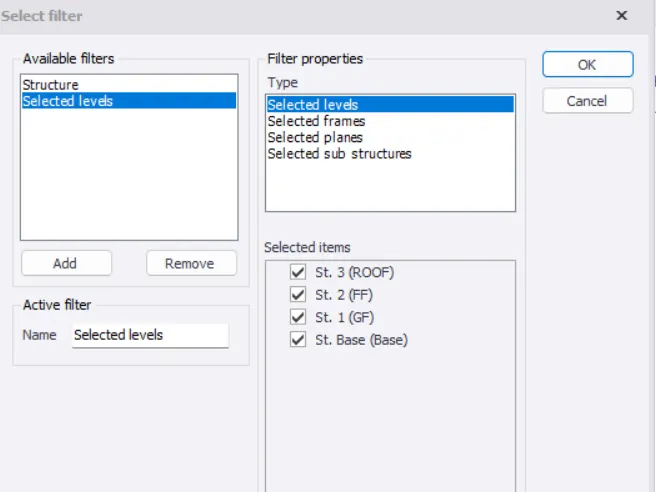

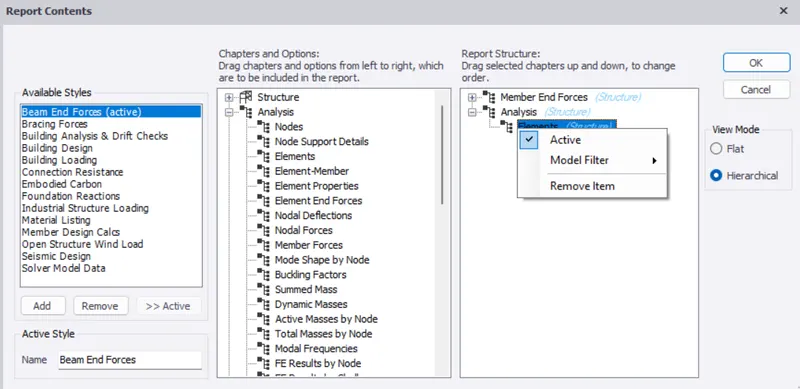

  • Right click and select Model Filter
  •
  • Select "Edit/New"
  •

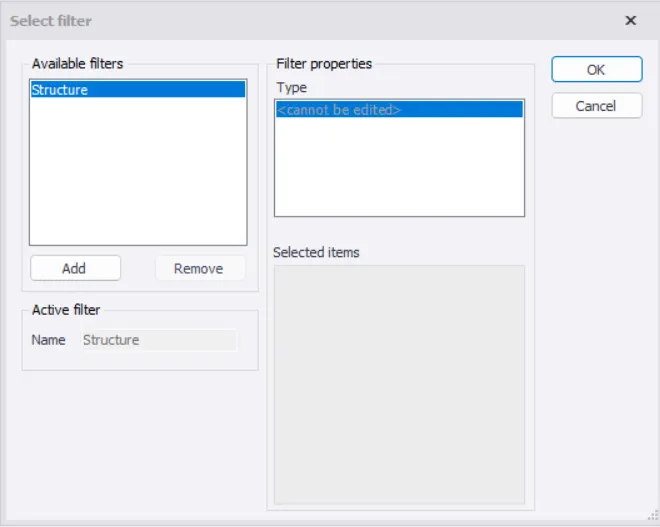

  • We get a "Select Filters"
  •
  • Select "Add"
  • Select the levels and click ok
  •

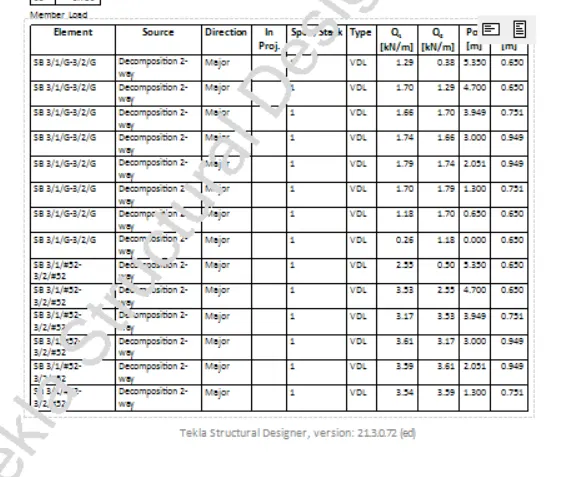

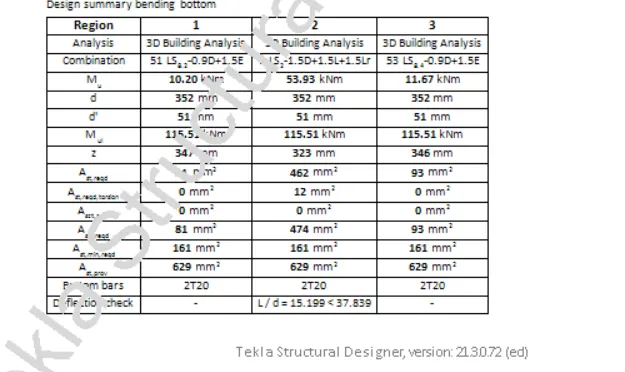

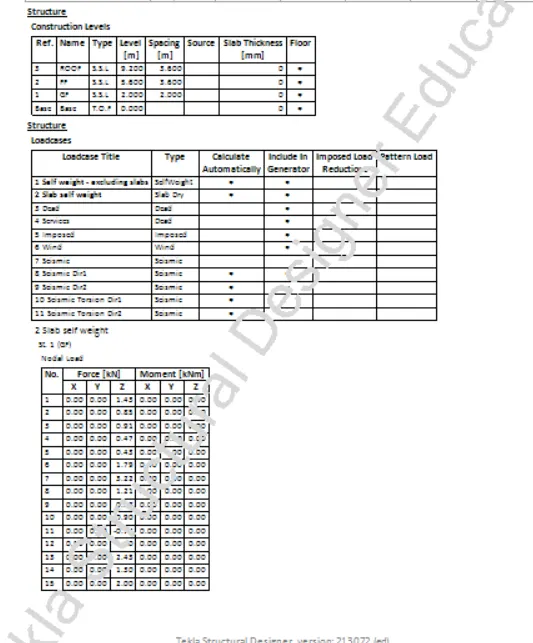

RESULTS:- Structure report( For few members)

•
•
•
•
•
•

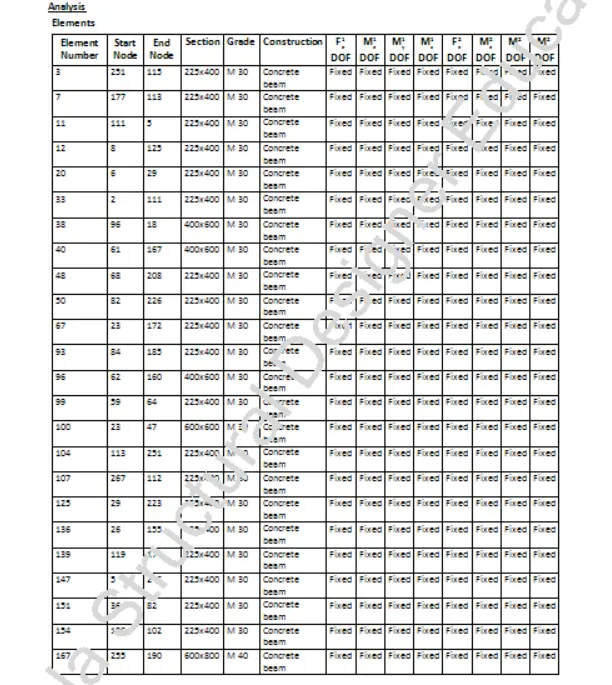

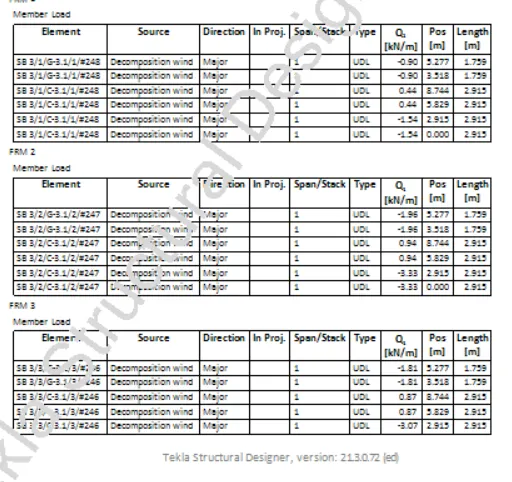

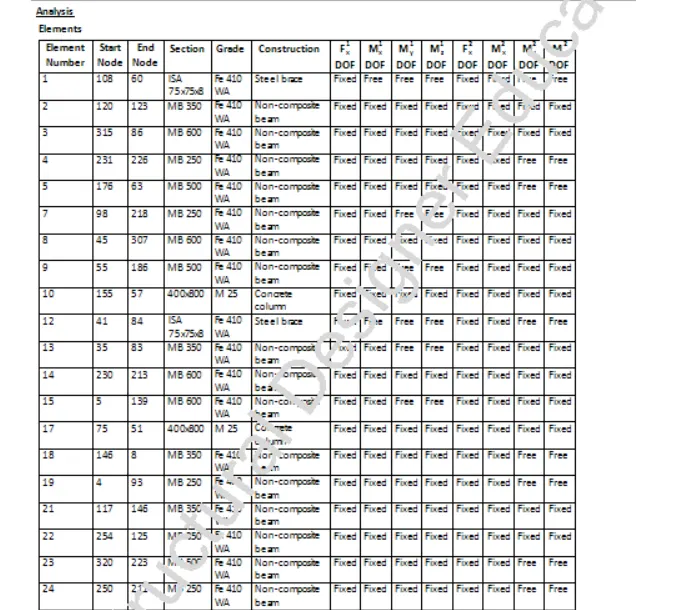

• Analysis report( for few members)
•

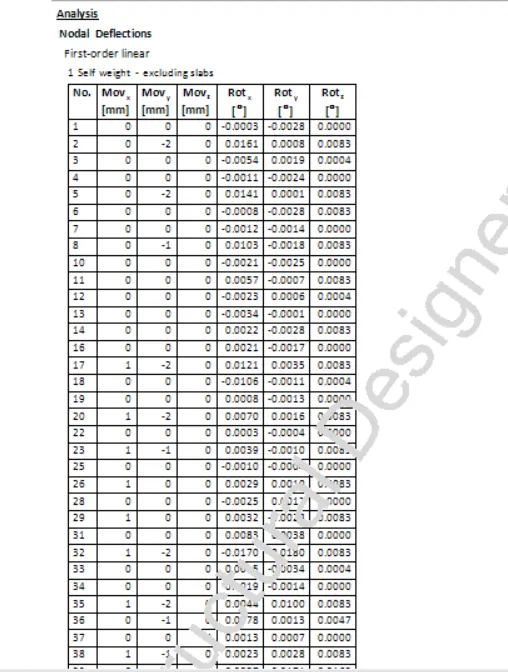

• Nodal deflections
•

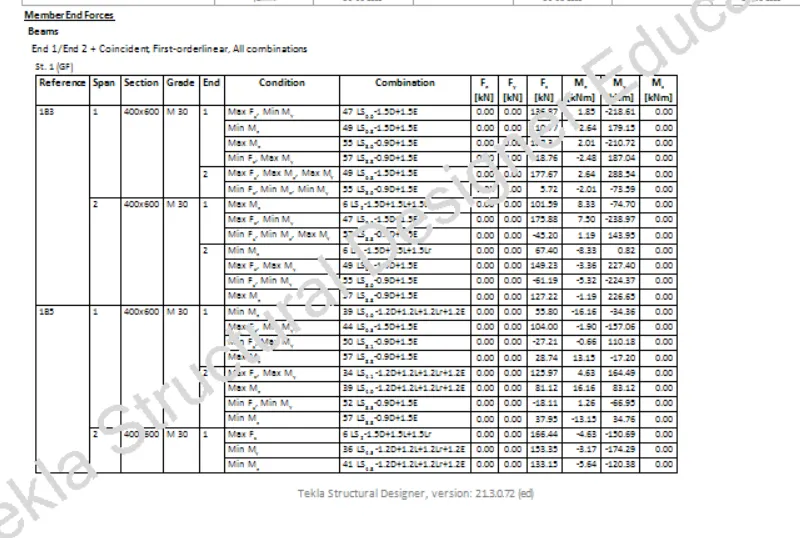

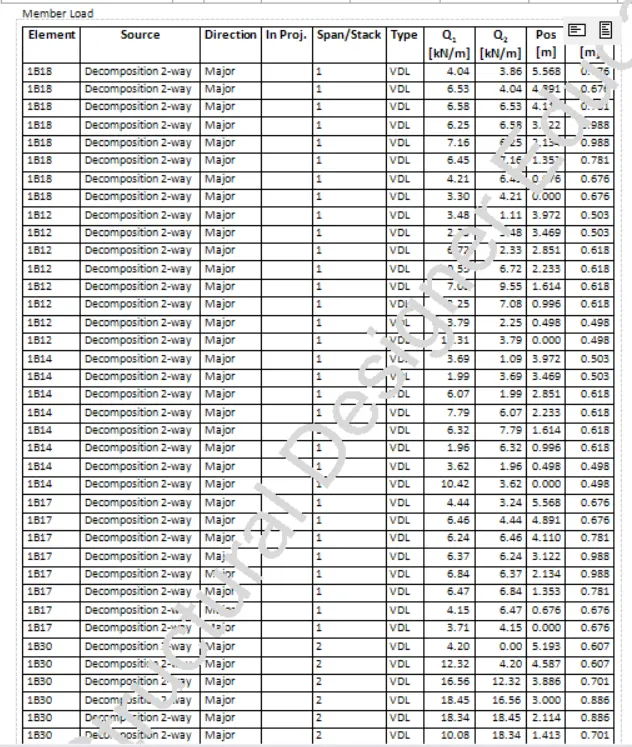

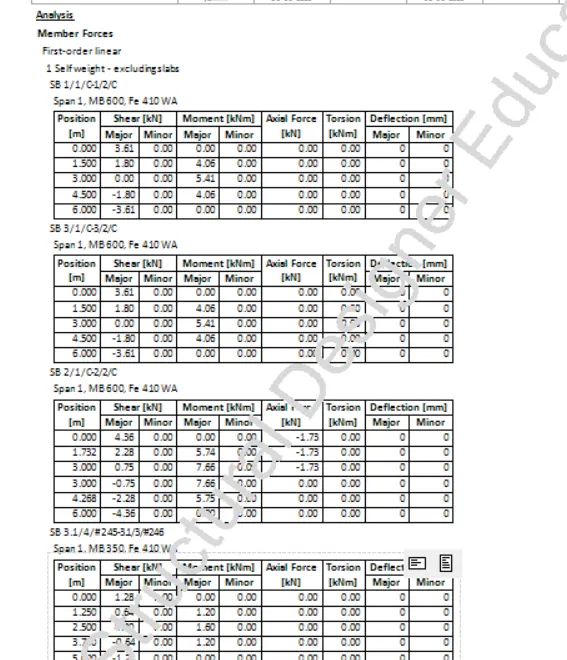

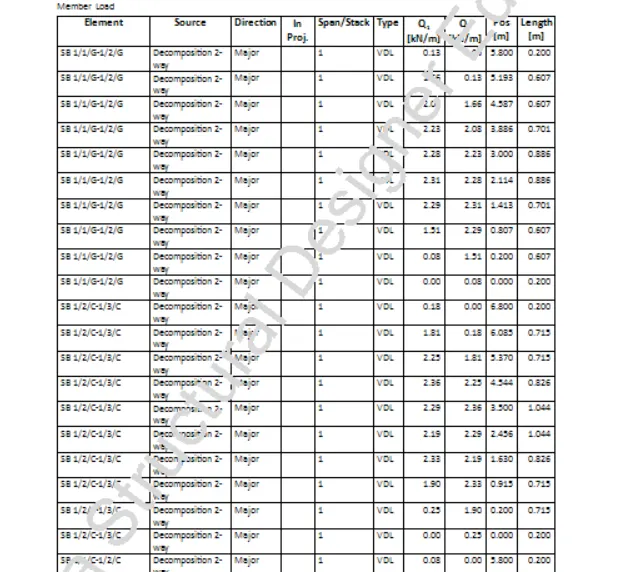

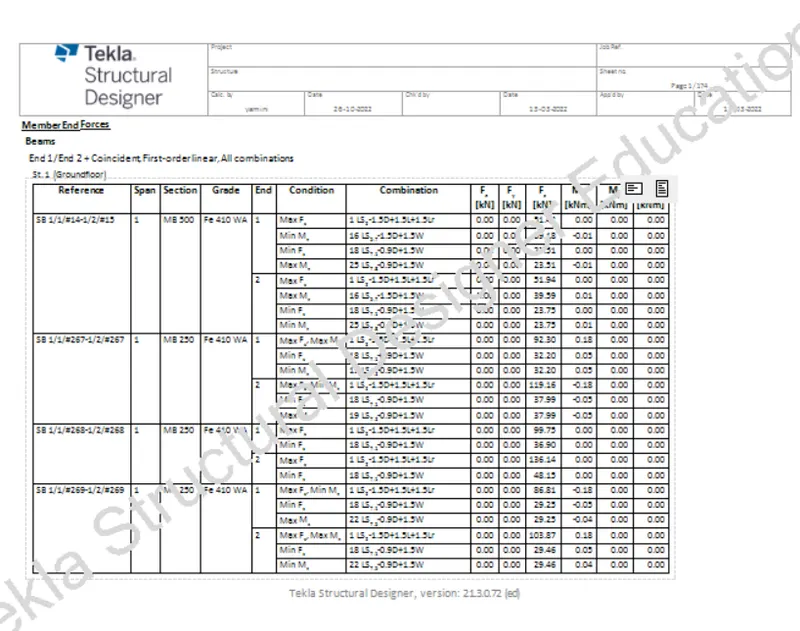

• MEMBER FORCES REPORT
•

Question. 2. Generate report for RC structure along with the loading summary.

AIM:- To Generate loading summary report for RC structure

INTRODUCTION:- Report commands are accessed from the report ribbon tab where we can customize model and member reports with specific content.

• MODEL REPORT : Create or edit chapters of the model report. Customisation to select particular level, frame, plane and substructure option is also available in model report.
  • Example : Structure, Analysis, Loading, Load cases etc
• MEMBER REPORT : Create or edit chapters of the member report
• Example : Diagram and results of SFD, BMD, Deflections etc
• SHOW REPORT : Displays selected style report

PROCEDURE:-

• Open RC building model
• First run analysis for the model
• Then go to report tab and select "Beam end forces"
•
• Click on Model report settings and select necessary content for report generation
  • Example : For Beam end forces
    Select level, loading, loadcase summary, combination and seismic load
  •
• Now select Show report

RESULTS:-

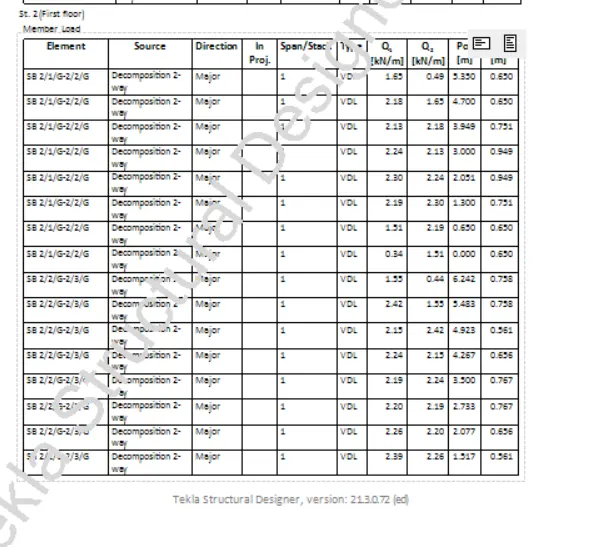

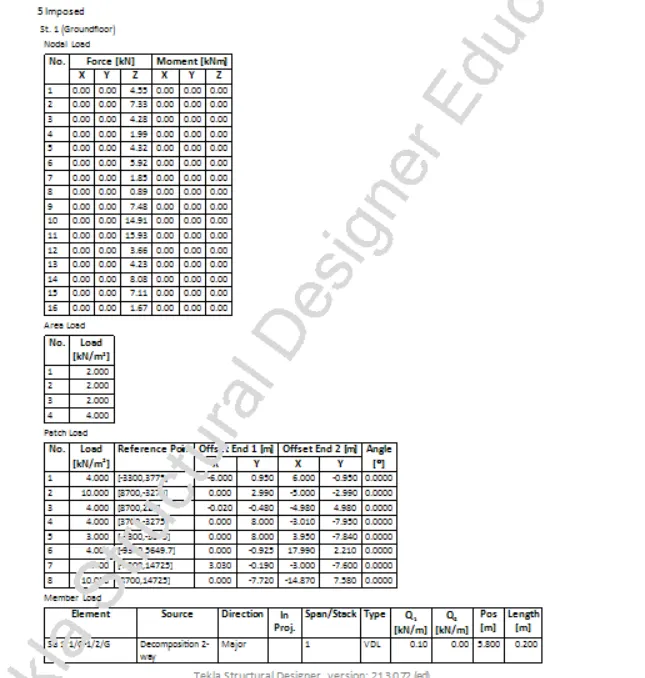

• RC Structure report
•
•
•

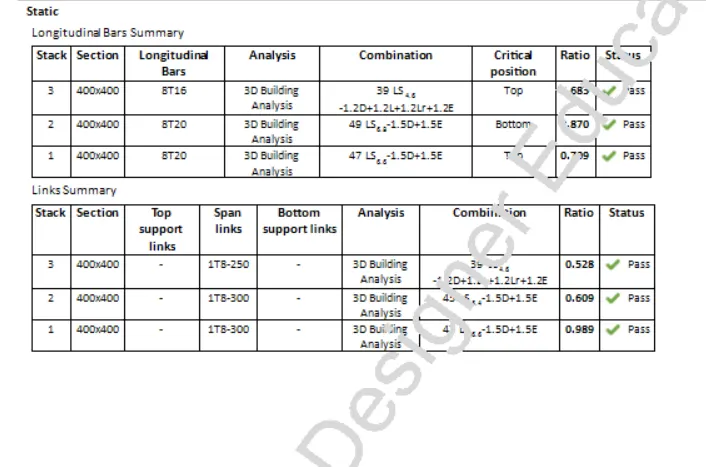

• Analysis report( for few members)
•
•

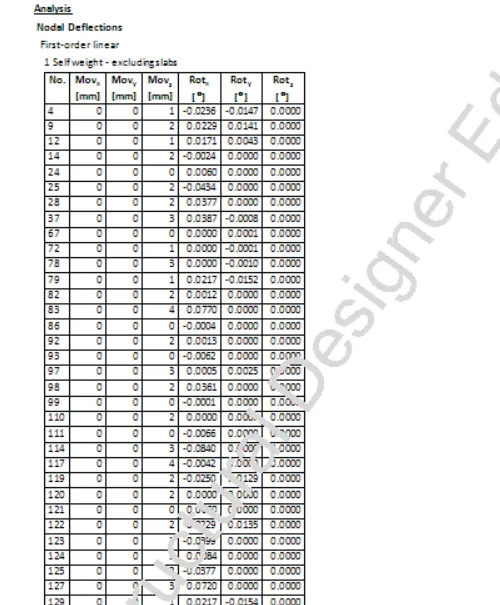

• NODAL DEFLECTIONS
•

Question 3. Update the layers settings in the model and generate plan drawings and details from the model.

AIM:- To generate report for the model on generate plan drawings and details

INTRODUCTION:- Report commands are accessed from the report ribbon tab where we can customize model and member reports with specific content.

• MODEL REPORT : Create or edit chapters of the model report. Customisation to select particular level, frame, plane and substructure option is also available in model report.
  • Example : Structure, Analysis, Loading, Load cases etc
• MEMBER REPORT : Create or edit chapters of the member report
• Example : Diagram and results of SFD, BMD, Deflections etc
• SHOW REPORT : Displays selected style report

PROCEDURE:-

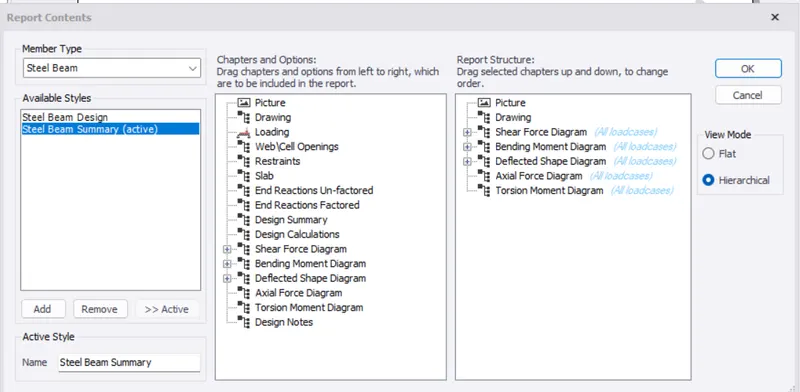

• Go to Report tab and select "Member report"
• Generate Report for contents
  • Picture, Drawing, SFD, BMD, Deflection diagram, Axial force diagram and Torsion moment diagram
•
• Now select a member
  • Example : pile

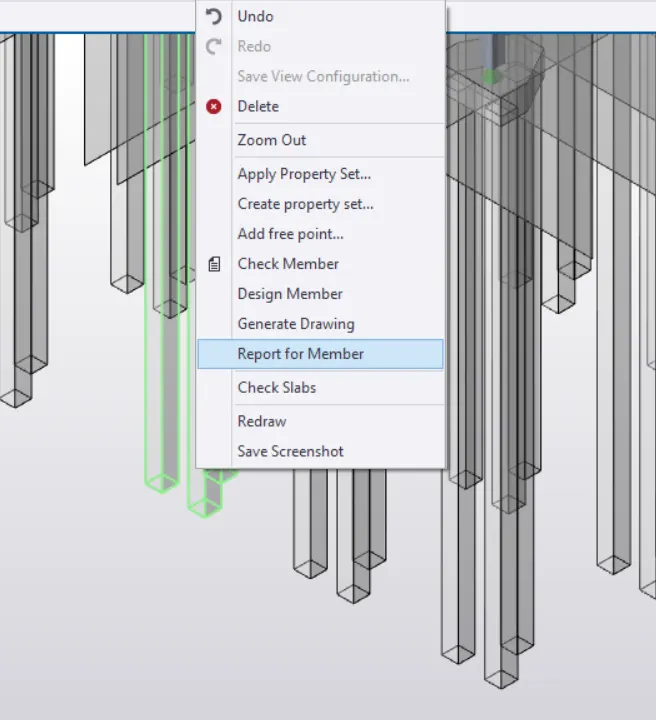

  • Right click and select report for member
  •

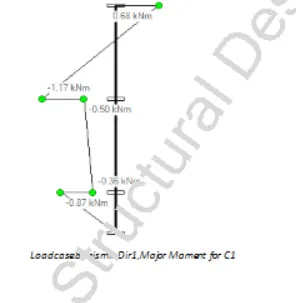

  • We get drawing details, force and moment details

RESULTS:-

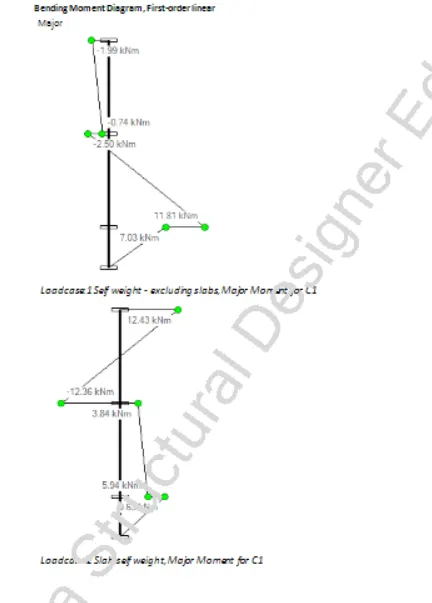

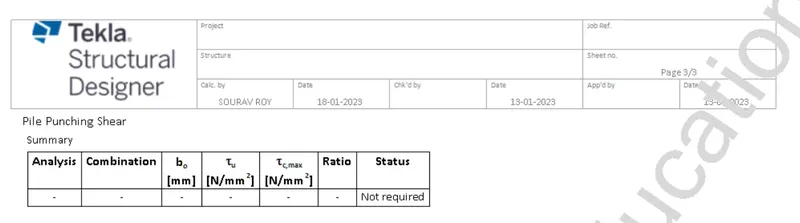

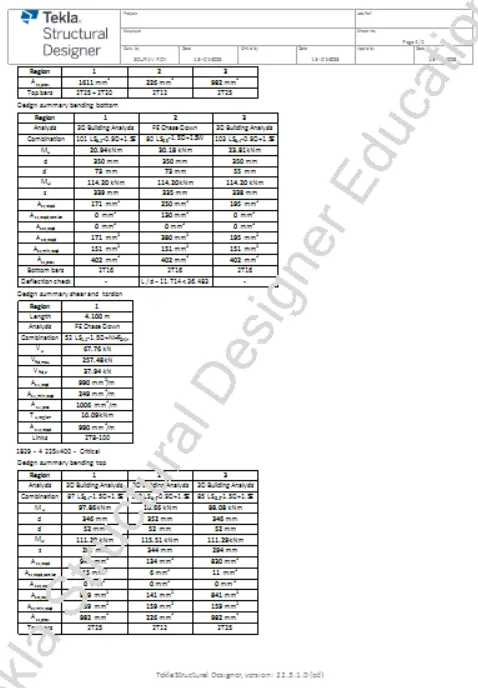

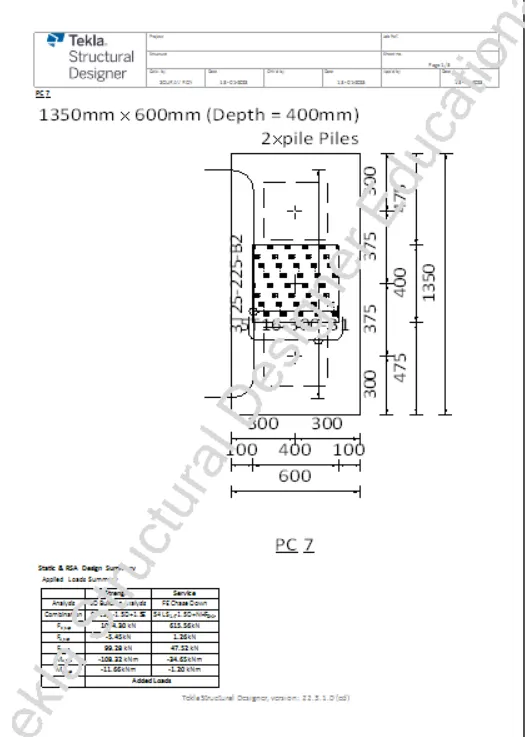

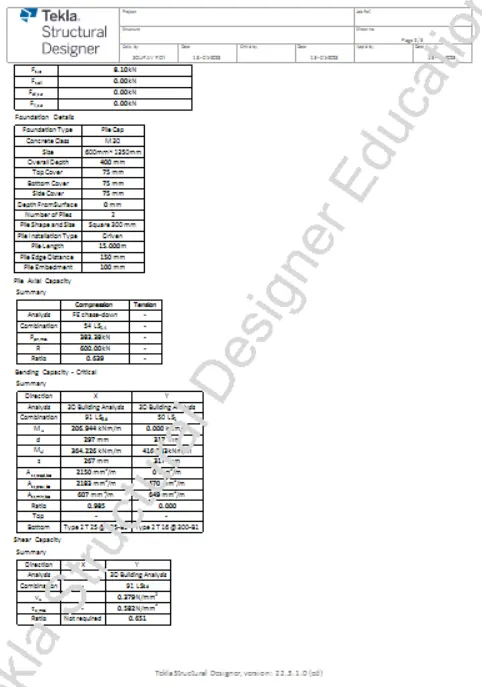

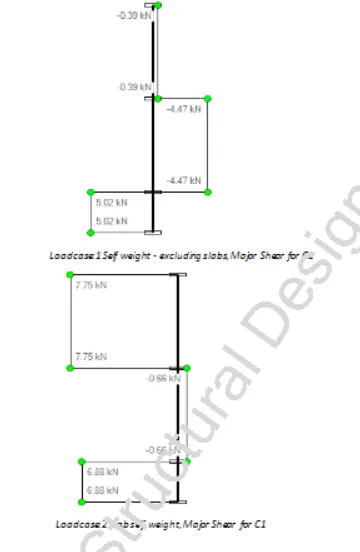

PILE DETAILS and DIAGRAM

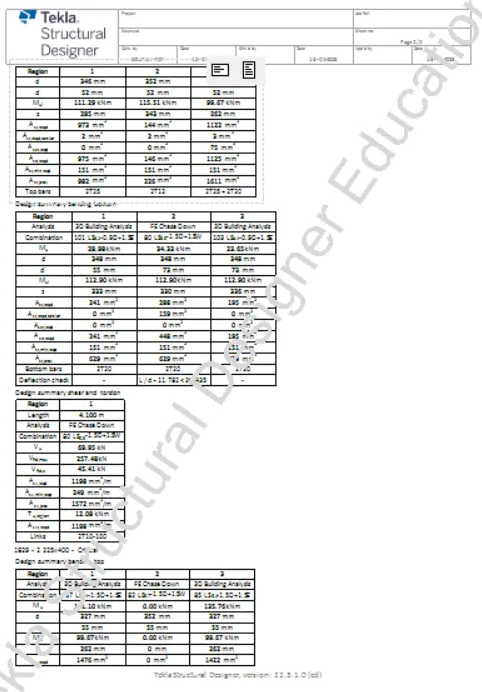

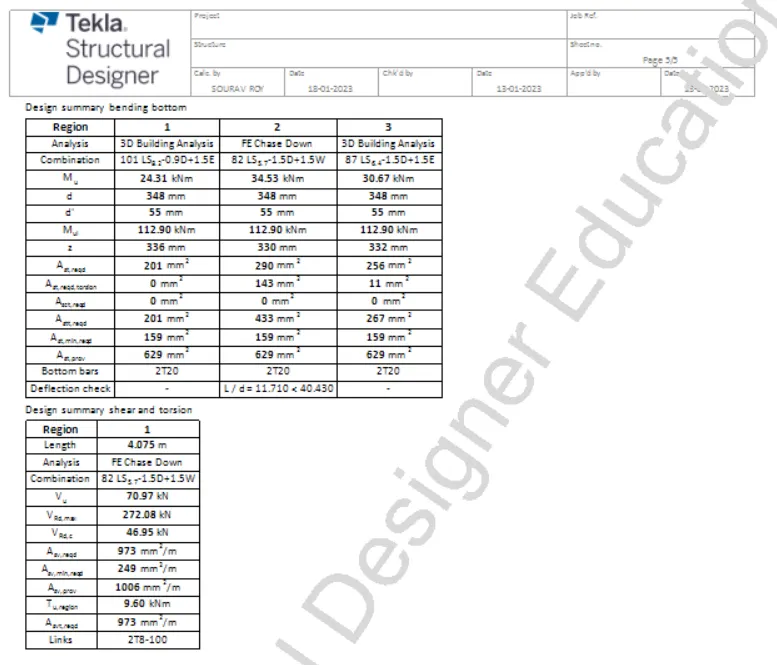

BEAM DETAILS:-

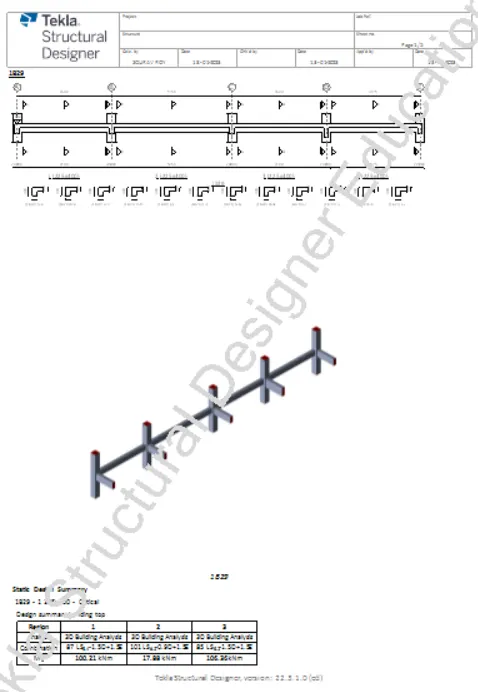

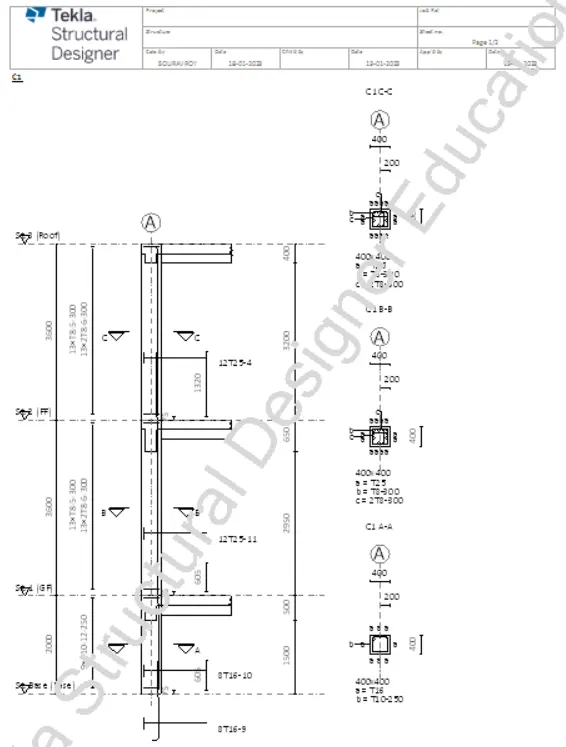

COLUMN DETAILS and DIAGRAMS:-
