To Generate report for Steel Industrial and RC structures using TSD

1)

Aim: To generate report for the steel building design.

Procedure -

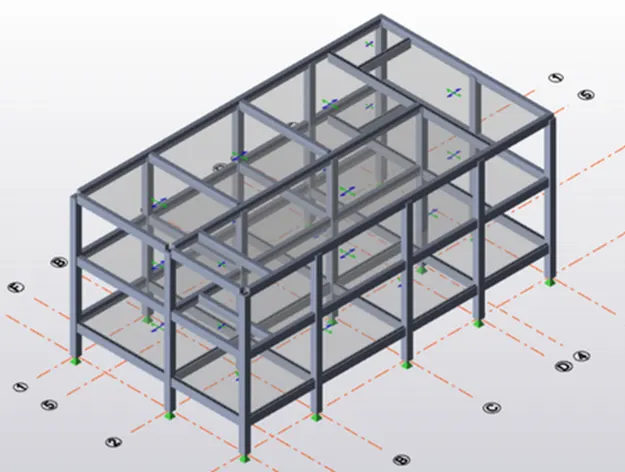

i) Open the previous model where we design all the structural elements.

ii) Now go to the Report option from the Ribbon bar and select Model report.

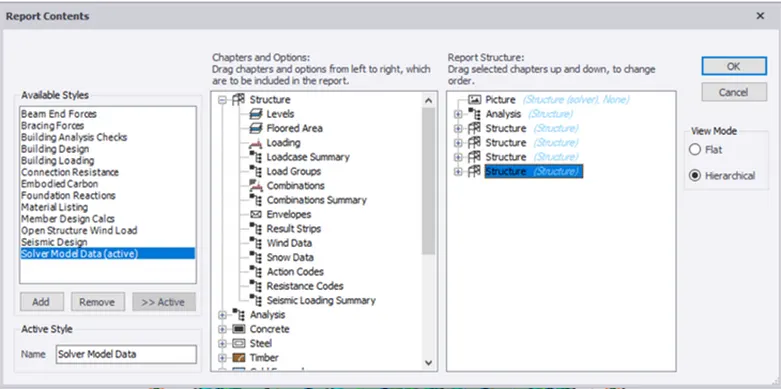

iii) Select the load cases and combinations summary to obtain report.

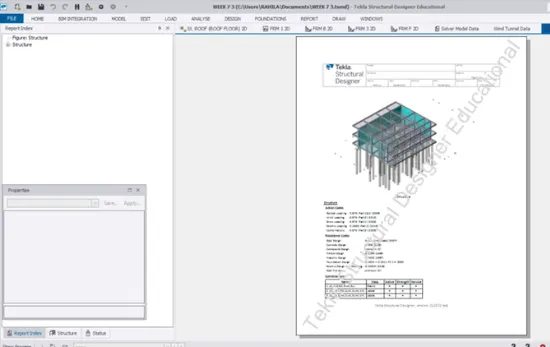

iv) Click on the Show report to obtain the report.

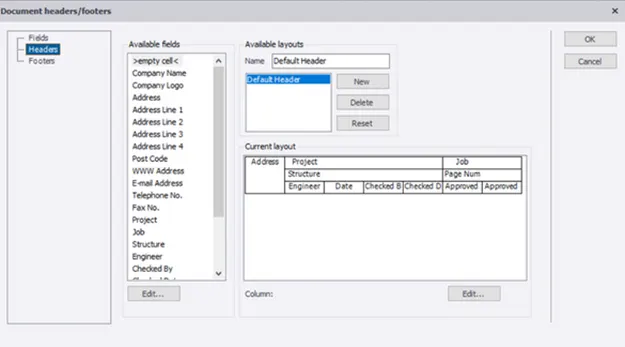

v) We can change the project name, address etc, with the help of edit header option

Result -

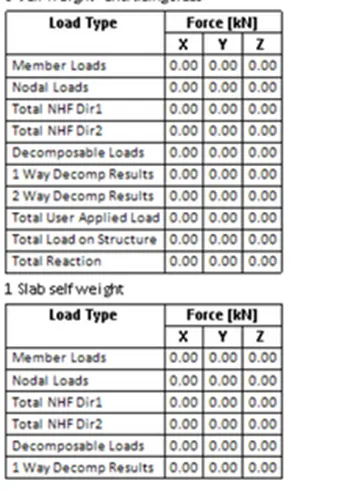

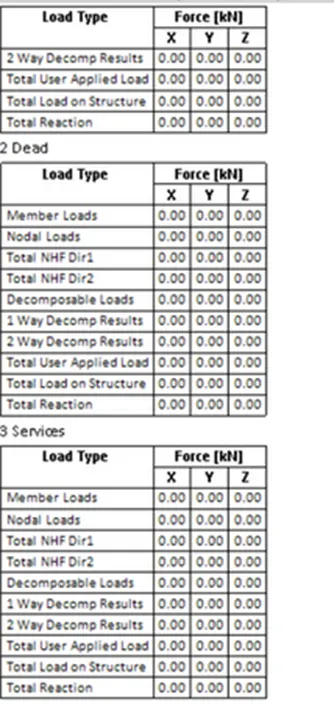

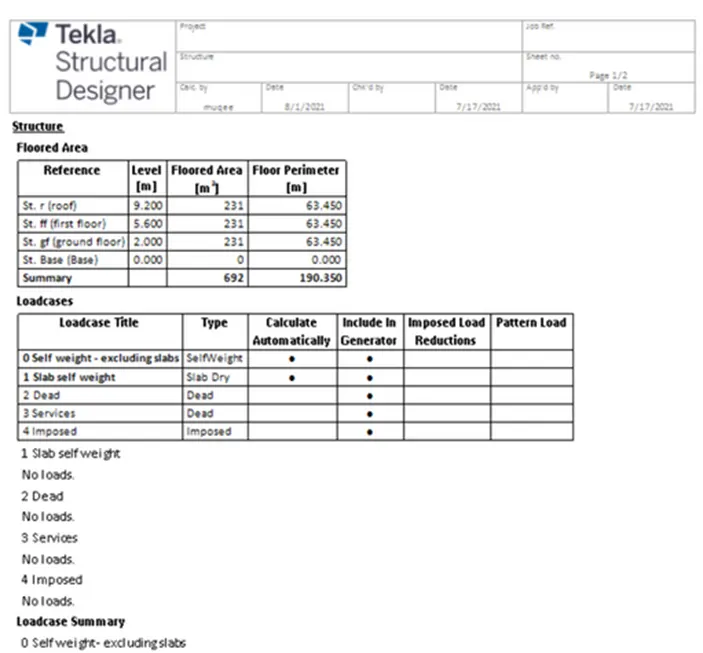

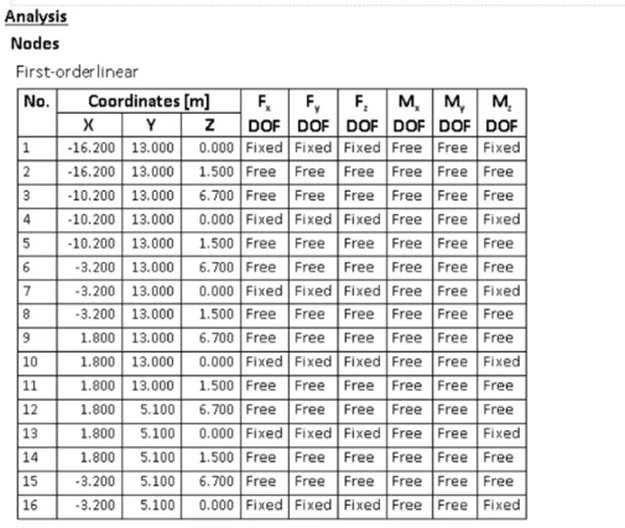

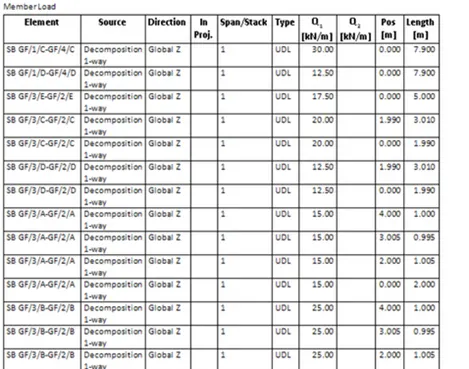

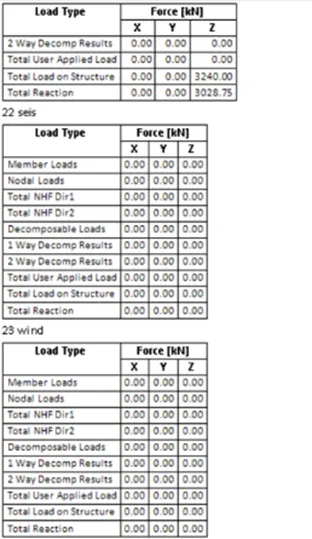

i) A report is generated for given steel building along with loading summary.

2)

Aim - To generate the report for RC structure along with loading summary.

Procedure -

i) Continue the working on the model from the previous task.

ii) Now go to the Report option from the Ribbon and select model report.

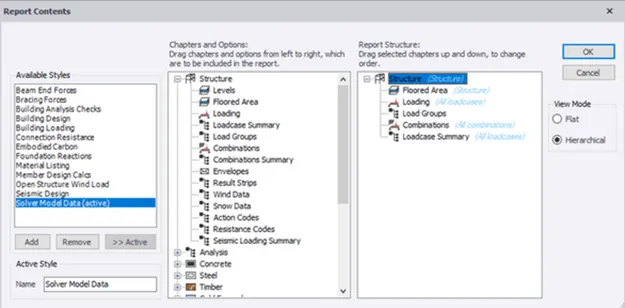

iii) Now select load cases and combinations summary to obtain report.

iv) Now click on show report option to obtain the report.

Result-

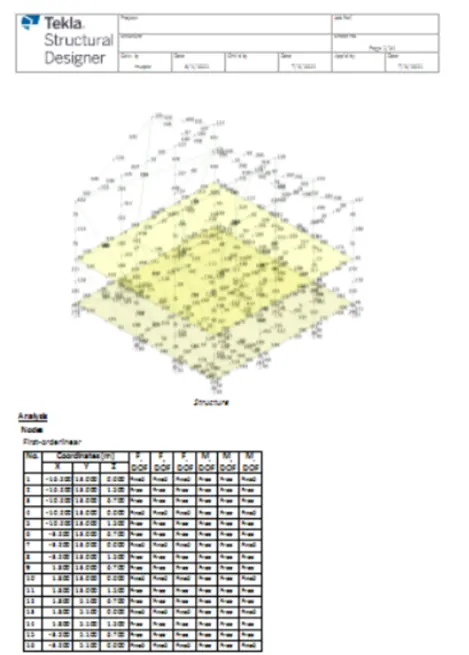

i) The RC structure report along with loading summary is generated .

3)

Aim - To update the layers settings in the model and generate plan drawings and details from the model.

Procedure -

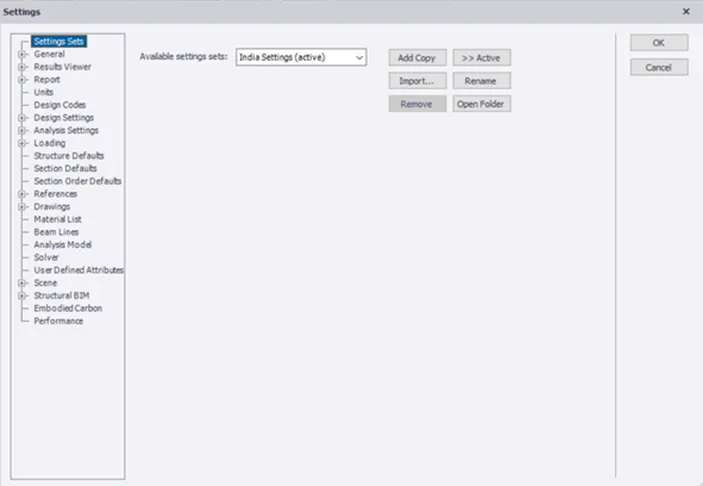

i) Go to the setting option from the ribbon.

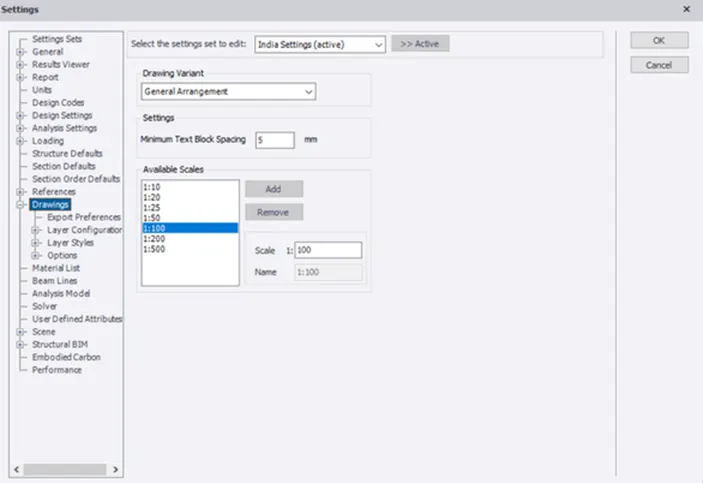

ii) Now click on the drawing option and adjust the scale.

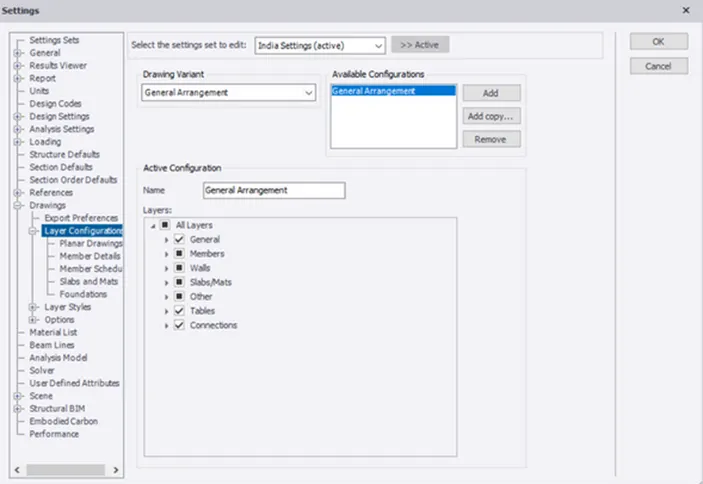

iii) Now click on Layer Configuration

iv) Now we have to select the layer style and choose the style

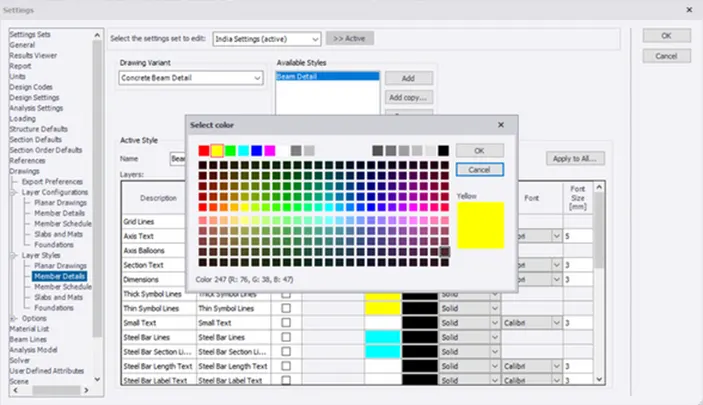

v) Click on a colour option and then select the colour for different structural members.

Result-

i) The layers settings , plan drawings and details are generated successfully.
