To Generate report for Steel Industrial and RC structures using TSD

• AIM : To generate report for steel industrial and RC structure using TSD

• PROCEDURE :

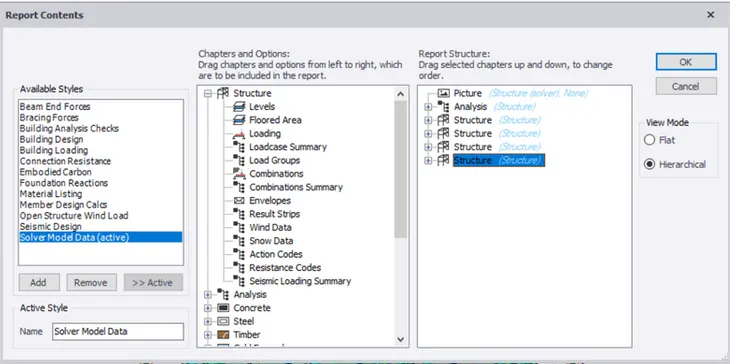

1. Open the saved tekla software
2. Now go to report option from the ribbon and select model report

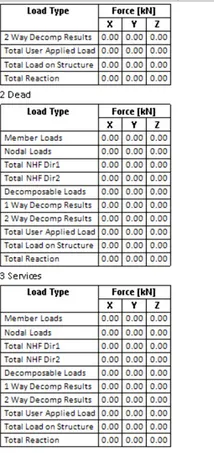

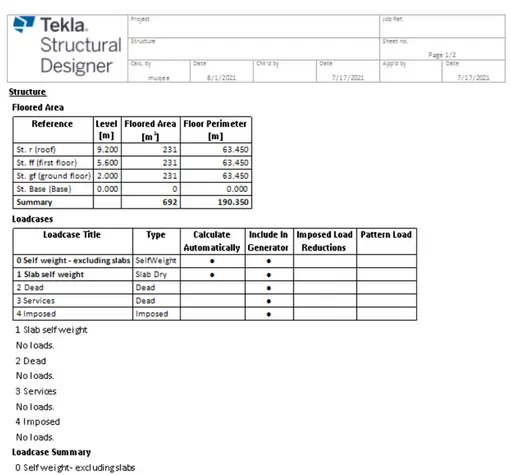

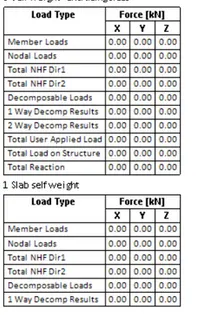

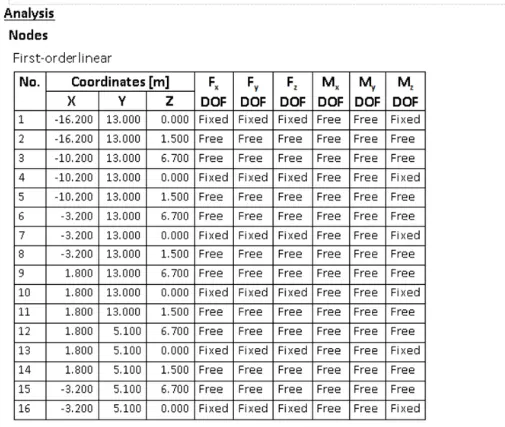

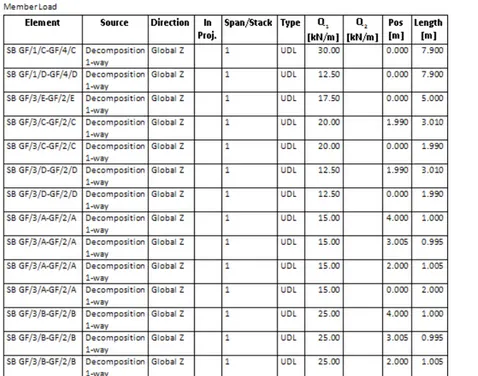

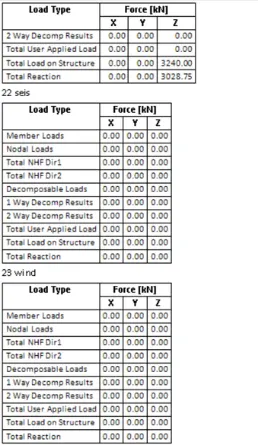

3. NOw select the load cases and combination summary to obtain report

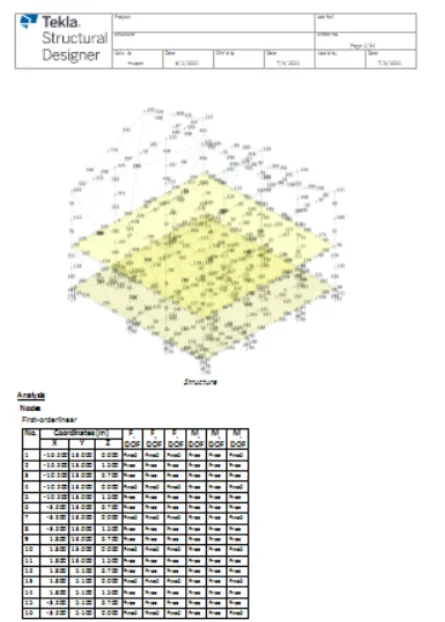

4. Click on the show report to obtain the report

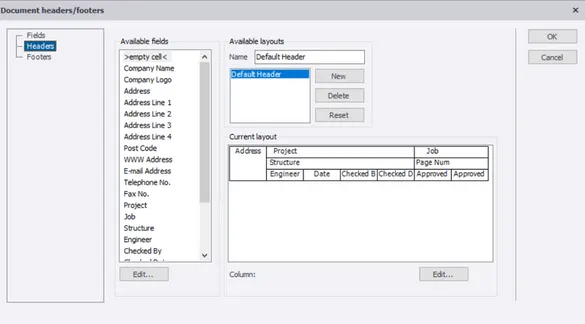

• We can change the project name, address etc.help of edit header option

• We can also convert this report in PDF

• RESULT : With this our objective is completed

• AIM : To generate the report for RC structure along witj loading summary

• PROCEDURE :

• Open the previous tekla software

• Now go to report option from the ribbon and select model report
• Now select load cases and combination summary to obtain report
• Now click on show report option to obtain report

• We can make changes in settings,Project name ,type

• We can convert this file into PDF ,word format

• AIM : To update the layer settings in the model and generate plan drawings and details from the drawings

• PROCEDURE :

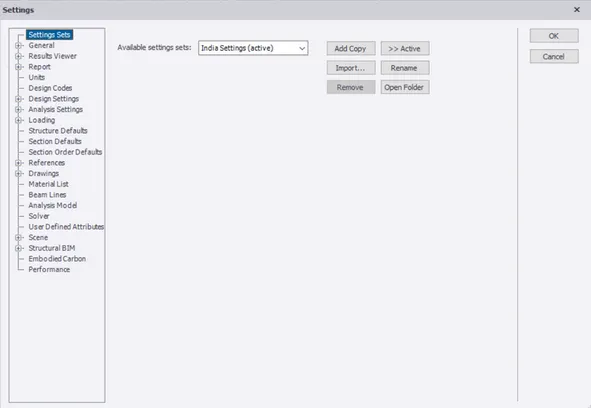

1. Go to settings from the option

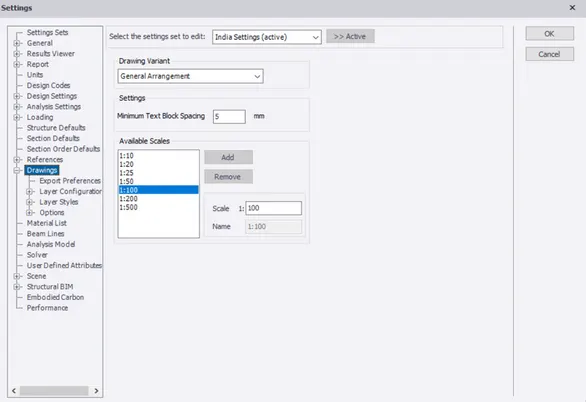

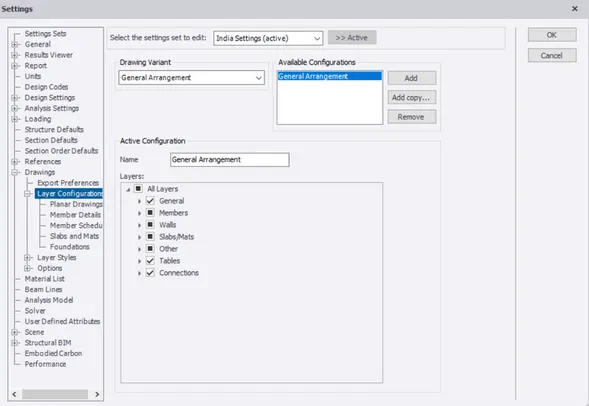

• Now select the drawing option and adjust the scale and sub layer configuration

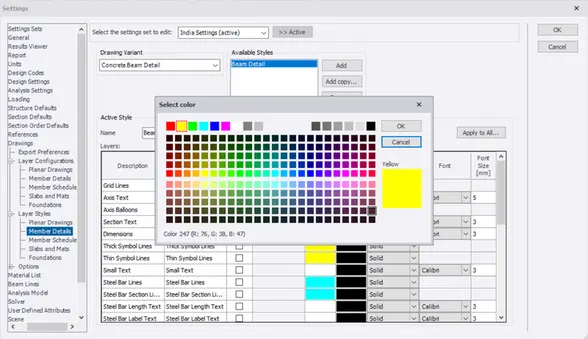

• Now we have to select the layer style and we will get the list of colours of diffrent members of the model
• CLick on colour and then select the desired color for our desired member

• Thus we can make changes in the layer settings

• RESULT : With this our object is satisfied
