To Design RC column and beam for RC residential structure using TSD

Q1

Aim-To design the RC column and beam after the analysis
procedure-
1. open the saved tekla file

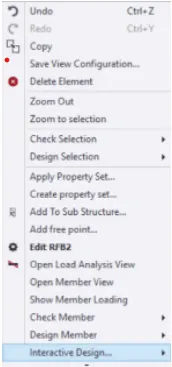

2.now right click the member to be designer and then select interactive design and select static

• Design columns -

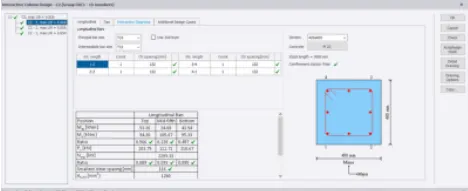

select to static from the interact to design

after that a dialogue box appears this dialogue box is shows the bar retailing whether the member has passed or not

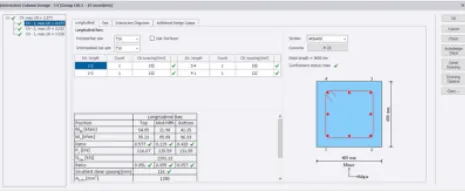

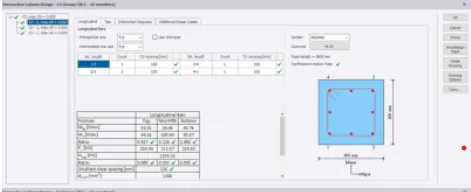

IF there is any failure in any column which can seen a red marker in the left side it can be corrected by increasing the size of member

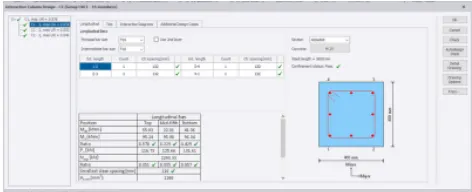

Now repeat the same procedure for all the columns

• design of beams-

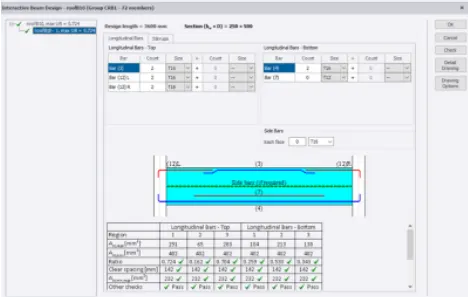

similar to the columns right click on any beam select INTERactive design and select static

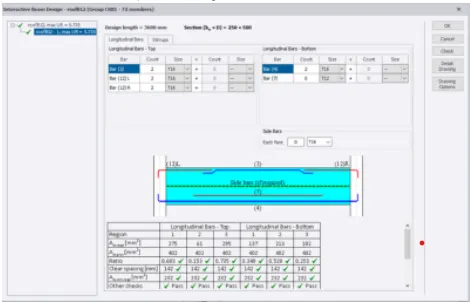

if there is no irrigarities in the bar it will be shown as the green

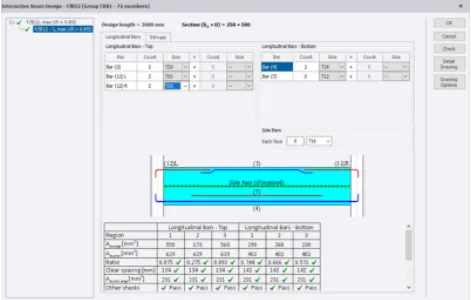

if any beam has a Red Cross marker which indicate the failure then it can be corrected by either increasing the number of bars or increase in the diameter of the bar

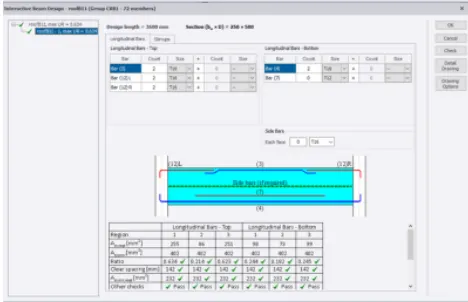

• Repeat the same procedure for all the beams
• after designing All the member we have to select the status and we can see all the member have passed hence the analysis correct
