To Design RC column and beam for RC residential structure using TSD

1) Once the model is validated successfully we can start to run the analysis of the model.

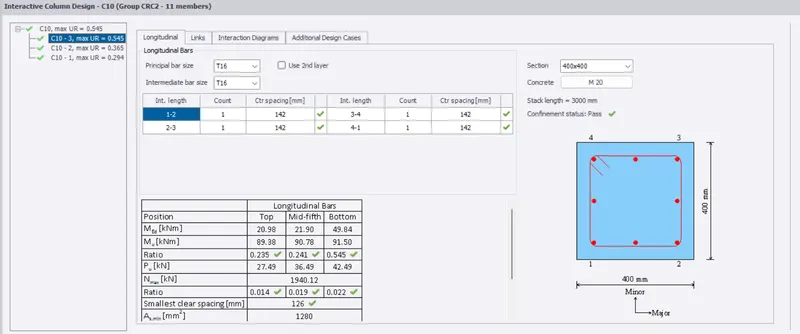

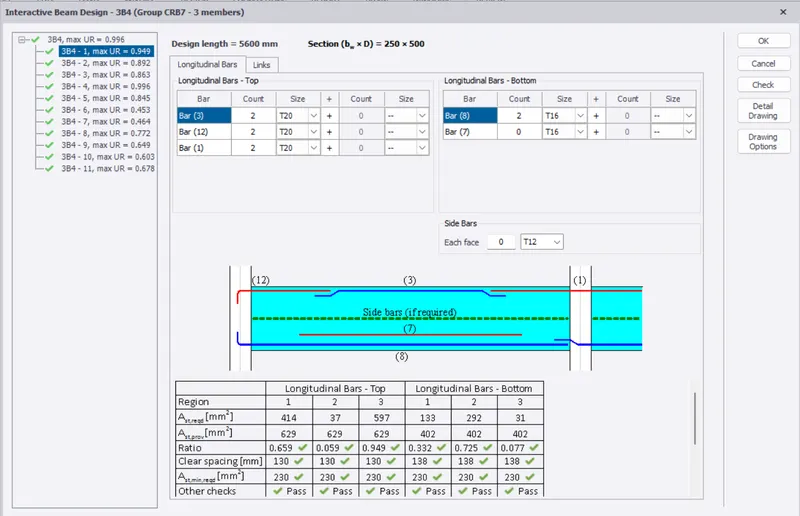

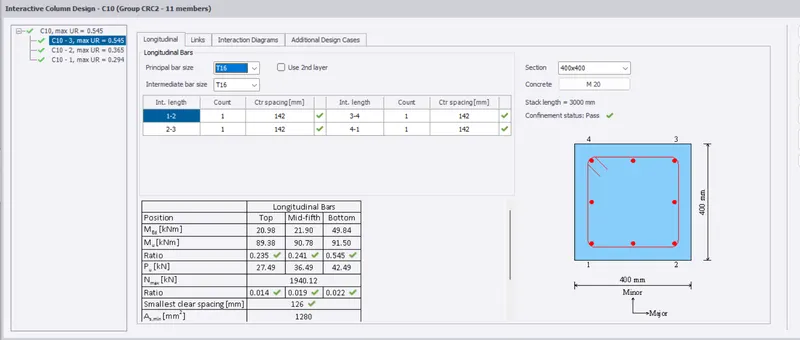

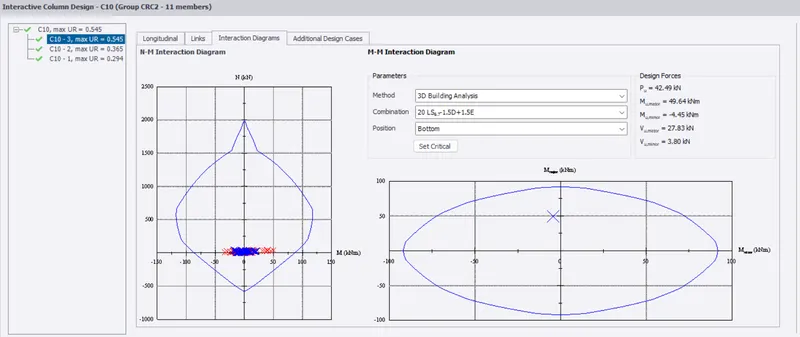

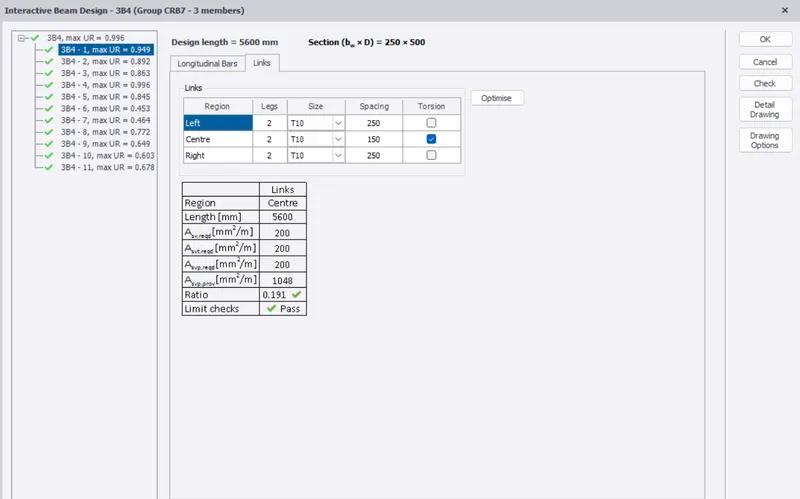

By using Tekla structures we can either design our column and beam using Auto design which is run by the software itself and is not appropriate for us to use because it won't be economical for example if the beam is failing in shear if we auto design this beam the software will increase the section of the beam rather increasing the stirrups diameter or the spacing, So the best option is to use interactive diagram which is best and economical. We can increase the Resiting bending moment So that it won't get failure. Check the point is within the M-N domain if it's outside the domain it considers to be a failure in this case we need to increase the bending resiting of the element.For the beam, its the same based on the bending moment diagram we can just do the interactive design by increasing the bar or the diameter of the bar and stirrups
