To Design RC column and beam for RC residential structure using TSD

AIM:

• To run the analysis of the structure and design reinforced concrete beam and column

PROCEDURE:

• Open the TEKLA model and run the analysis

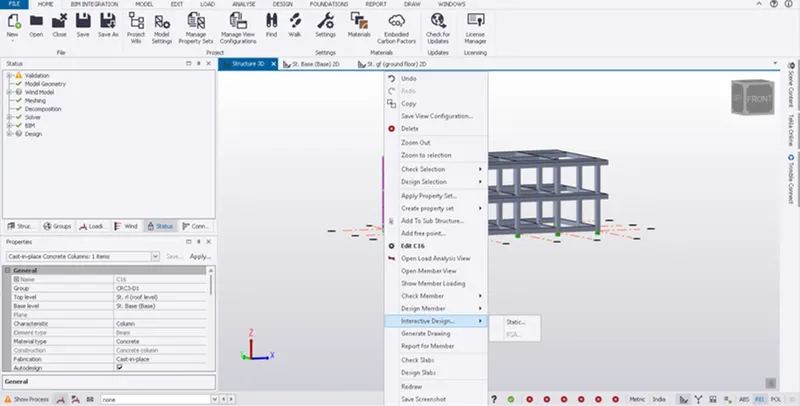

• Now select any of the column member and right click on it

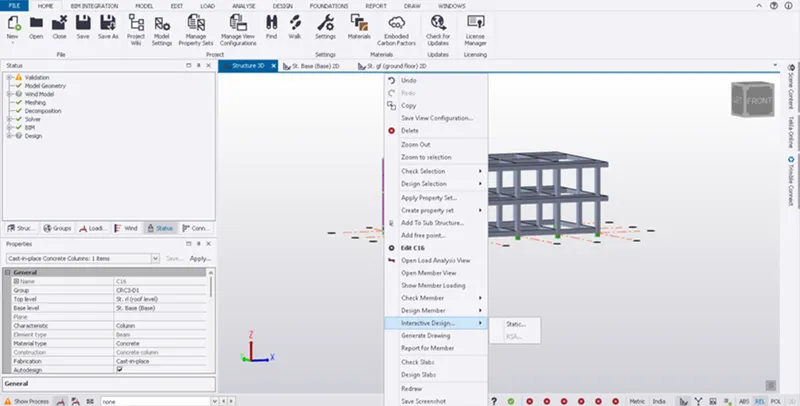

• Then select the interactive design from the given option

• Check whether the member is passing through all the design checks

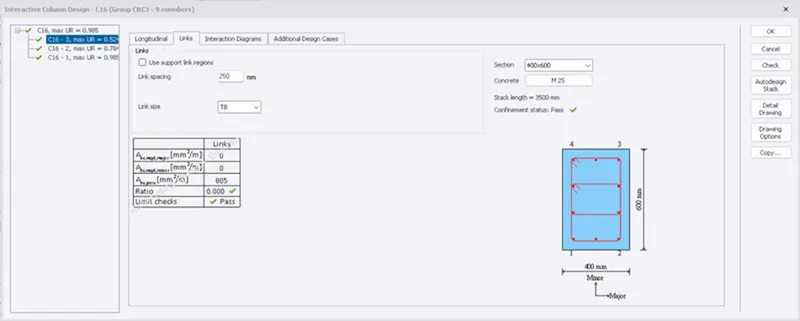

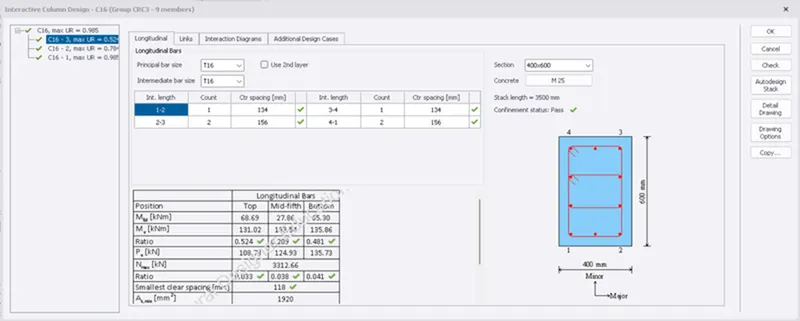

COLUMN NO: 16

• Here we can see that the column is safe in design and consider the reinforcement details

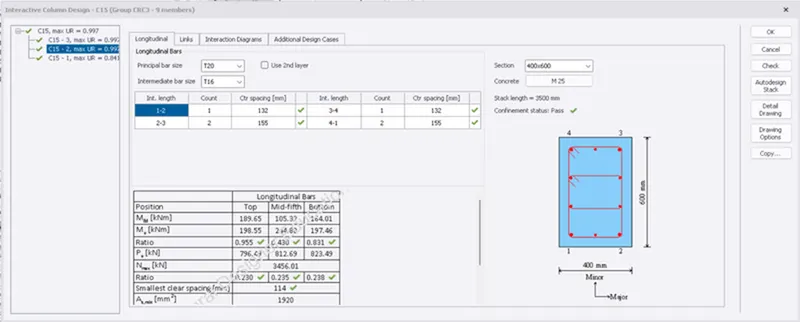

COLUMN NO :15

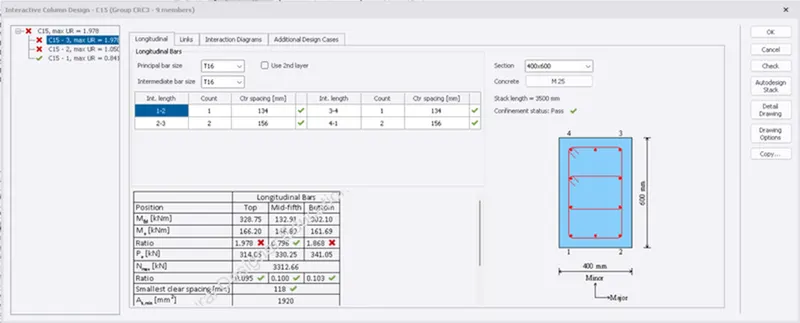

• Here we can see that the ratio of longitudinal bars is greater than 1

• Edit the rebar details to obtain the ratio of longitudinal bars as 1
• Try to change the rebar details of the top reinforcement and bottom reinforcement

• Verify for the design checks.

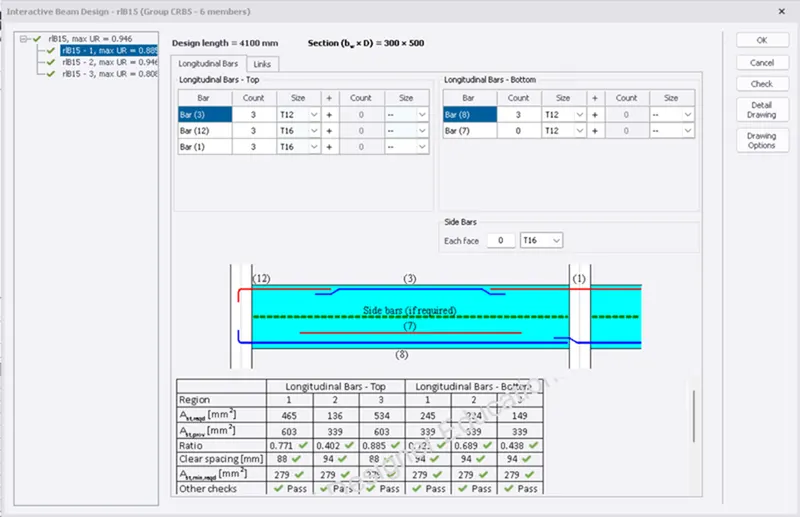

BEAM NO: 15

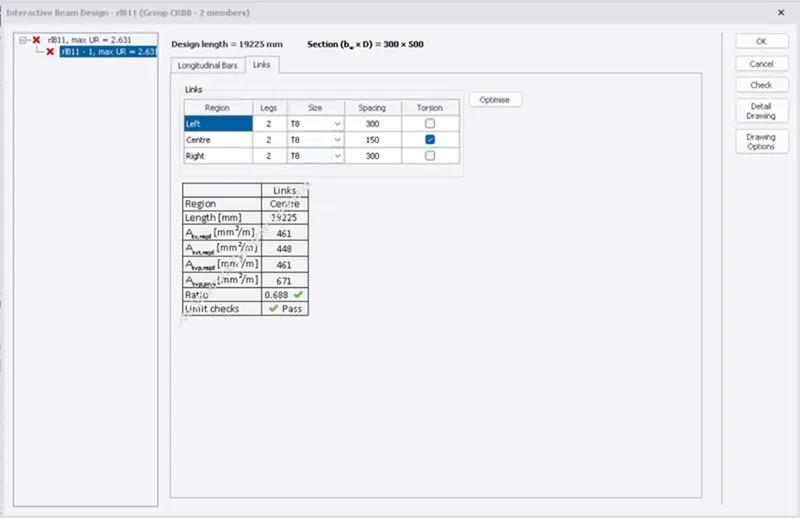

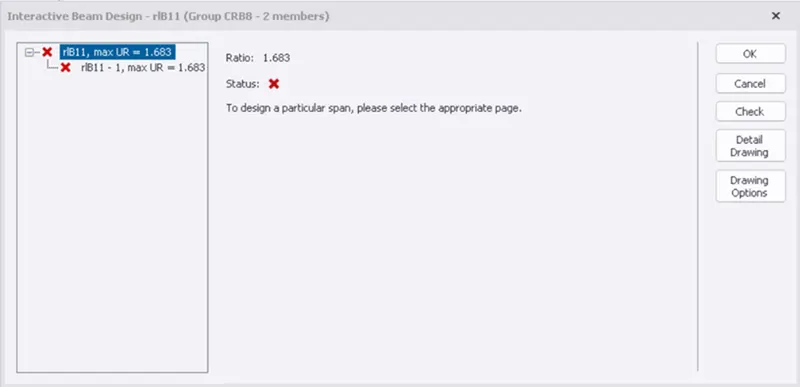

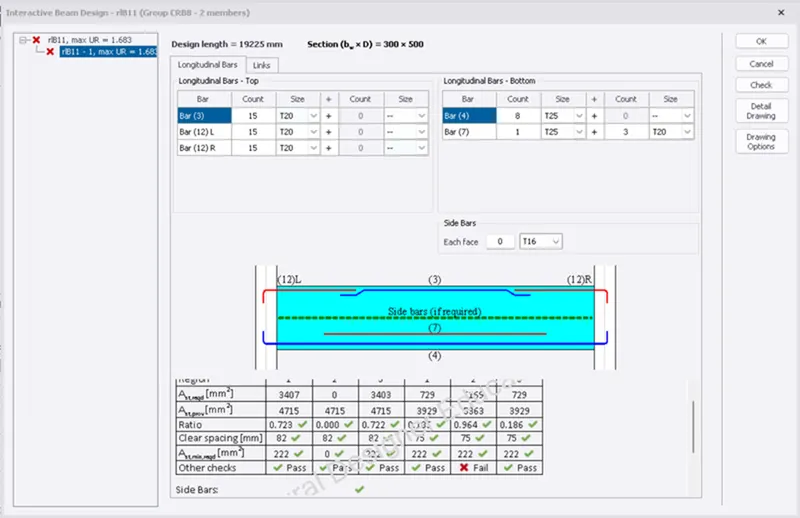

BEAM NO: 11

• The above beam is not satisfied with the deflection check
• To verify the beam for deflection increase the depth of the beam section

RESULTS:-

• The beam design is checked and necessary corrections have been done
