To Analysis and Design of Steel Structures using TSD

1.

Aim:

To summarize the bending moment,shear forcr and deflection.

Procedure:

After application of load generate load combination and run the first order linear analysis.

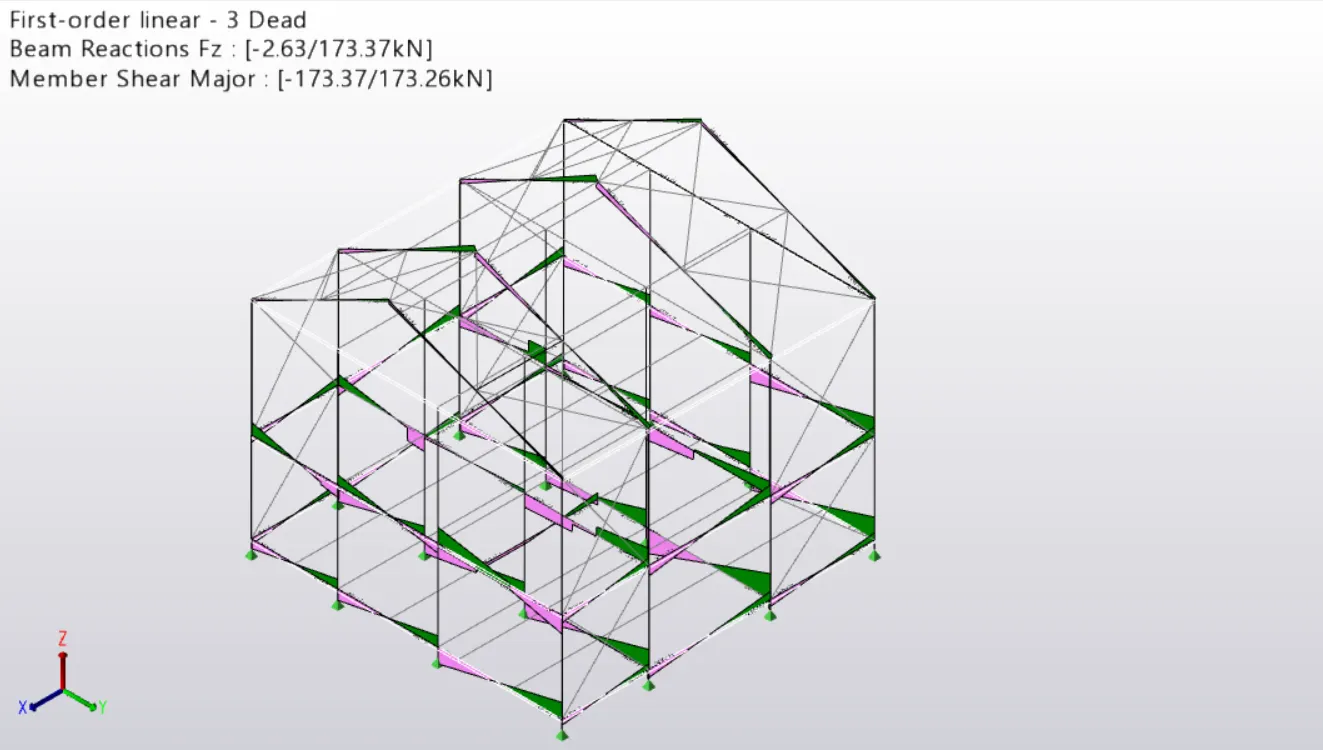

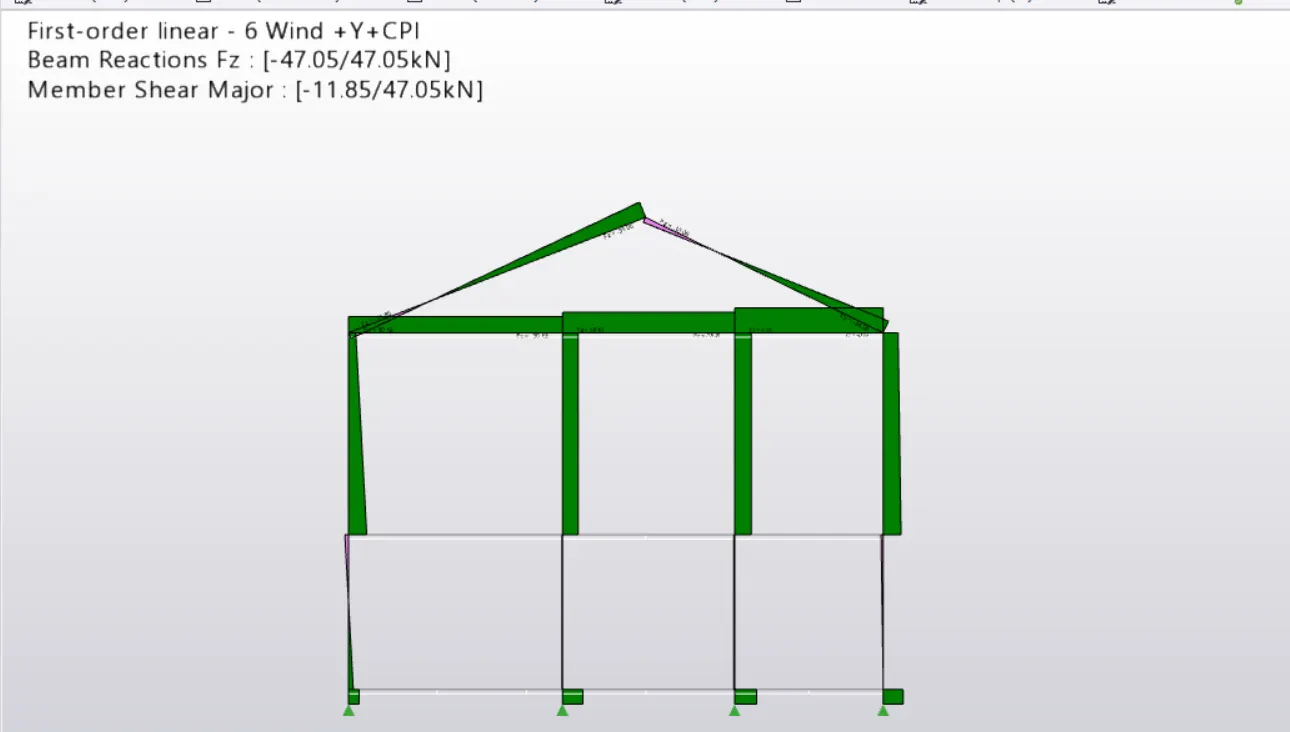

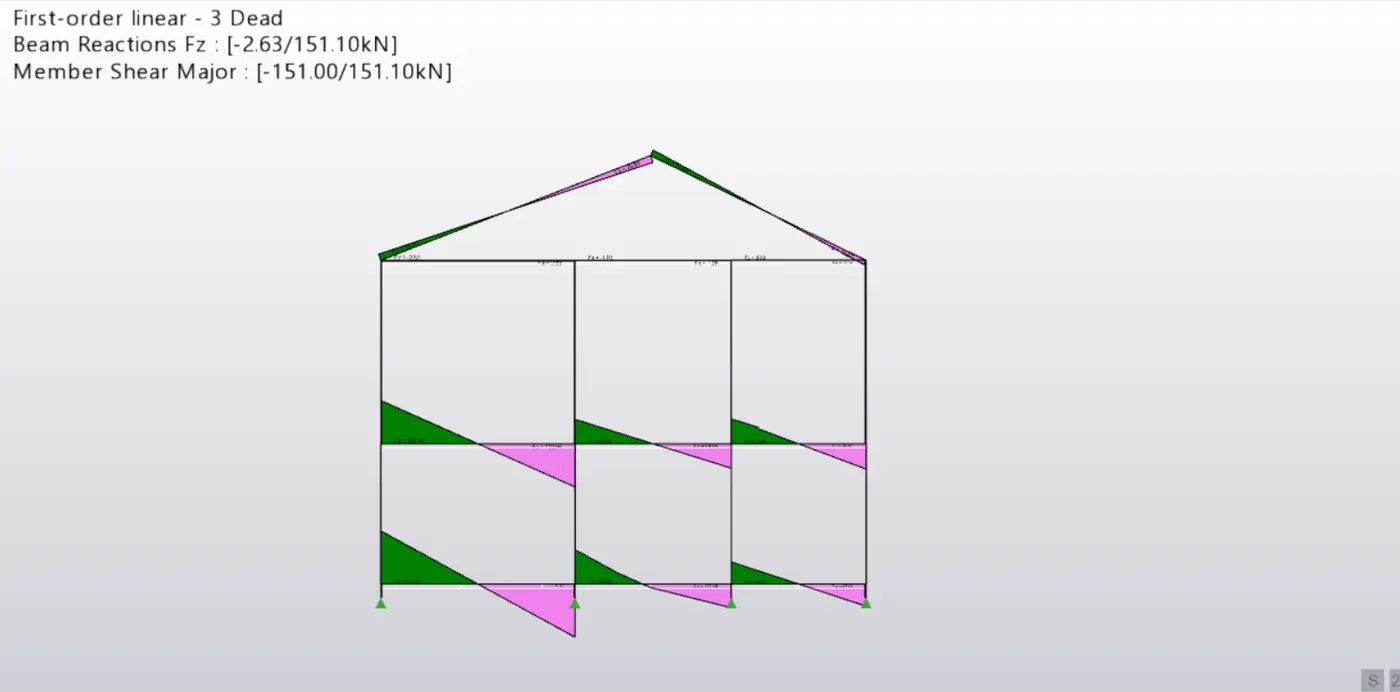

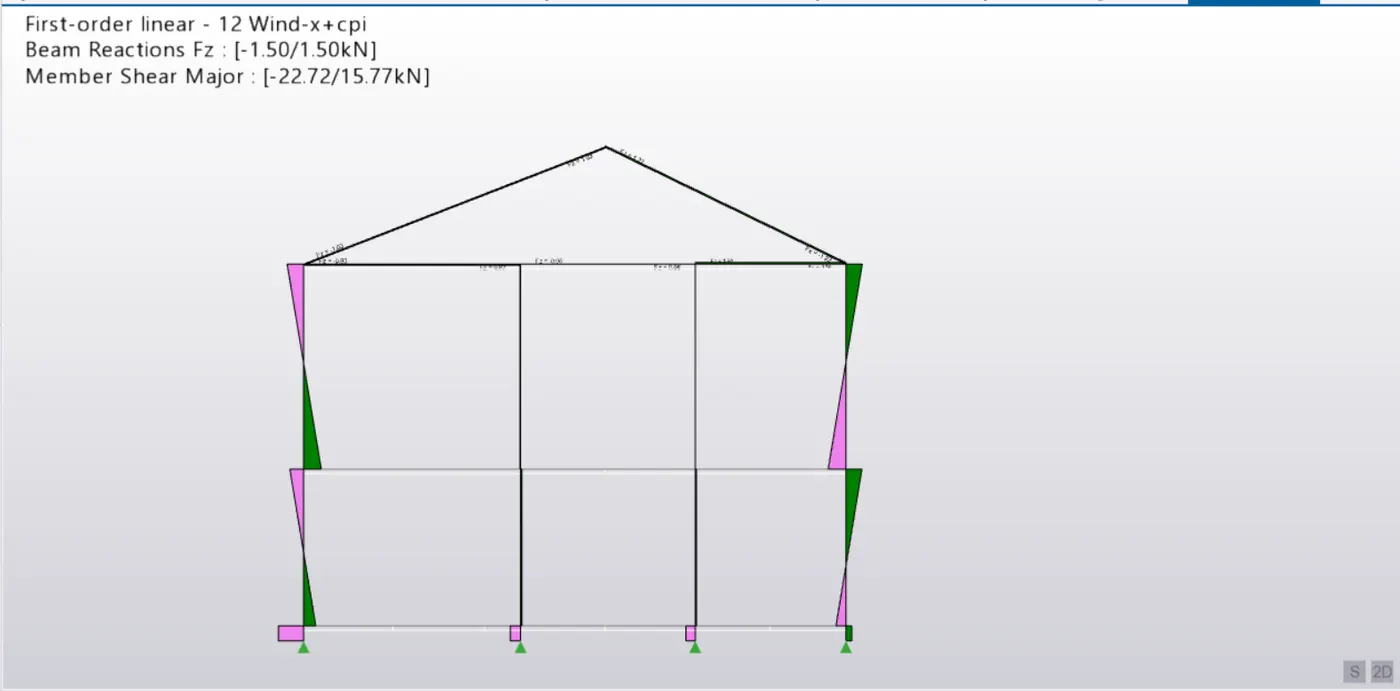

Shear force

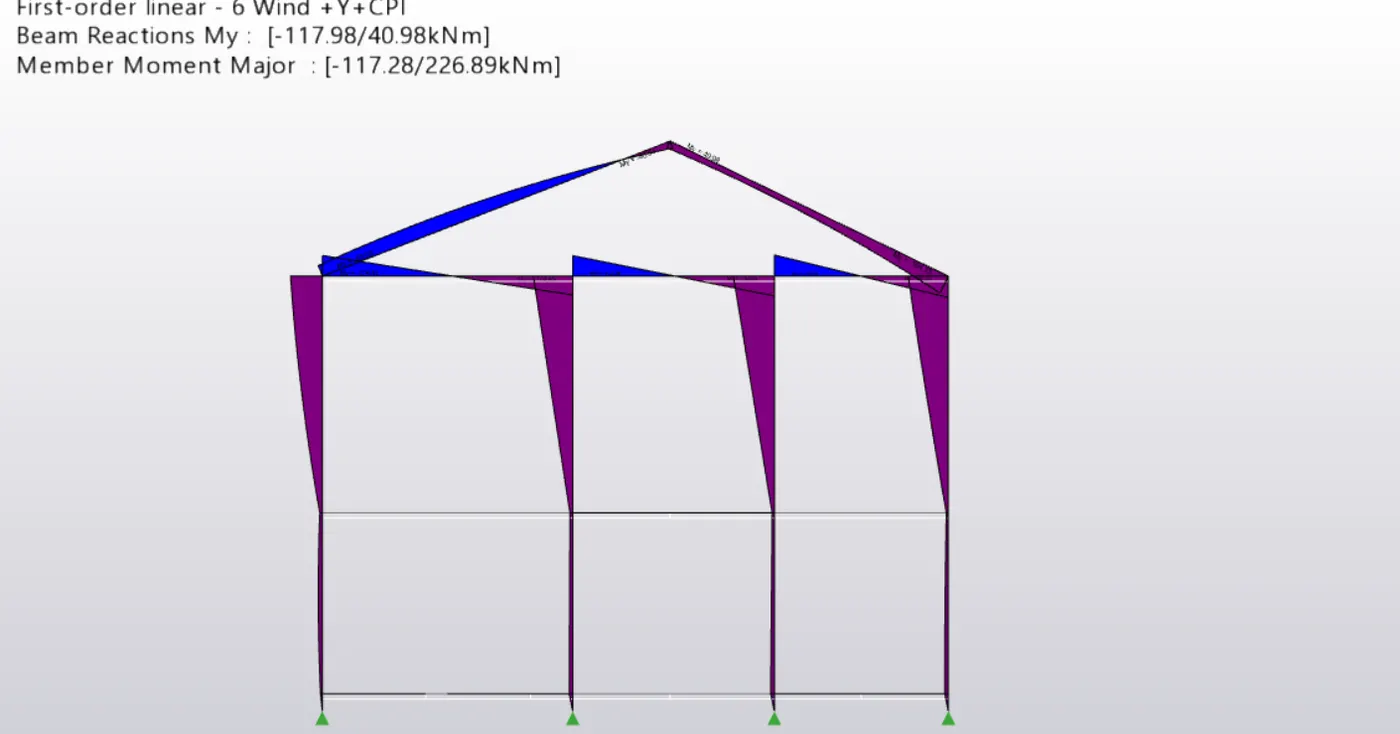

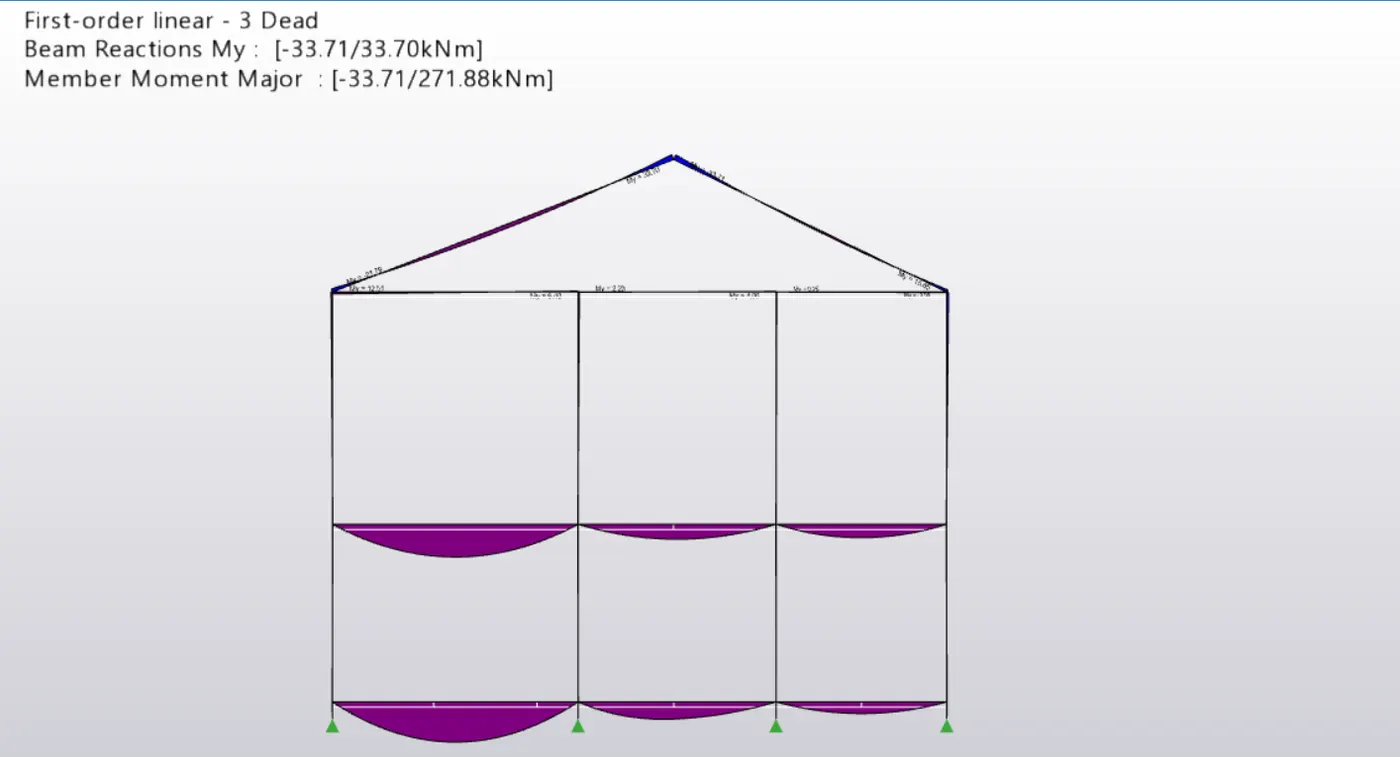

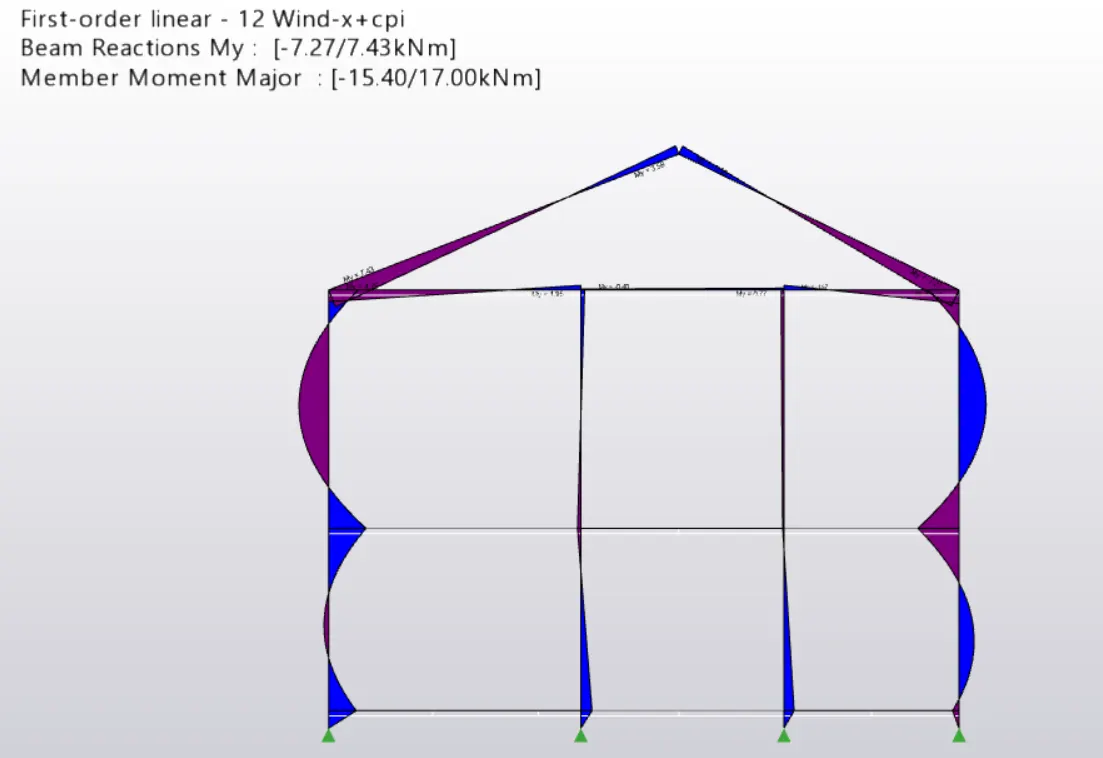

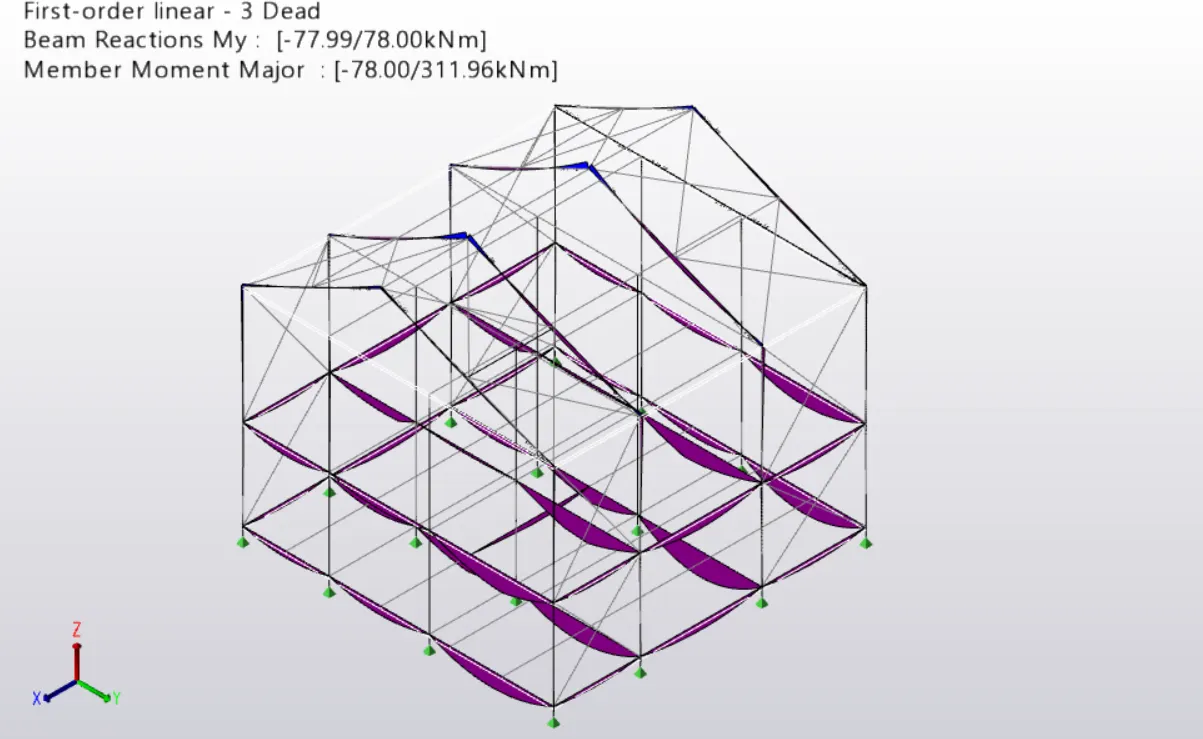

Bending moment:

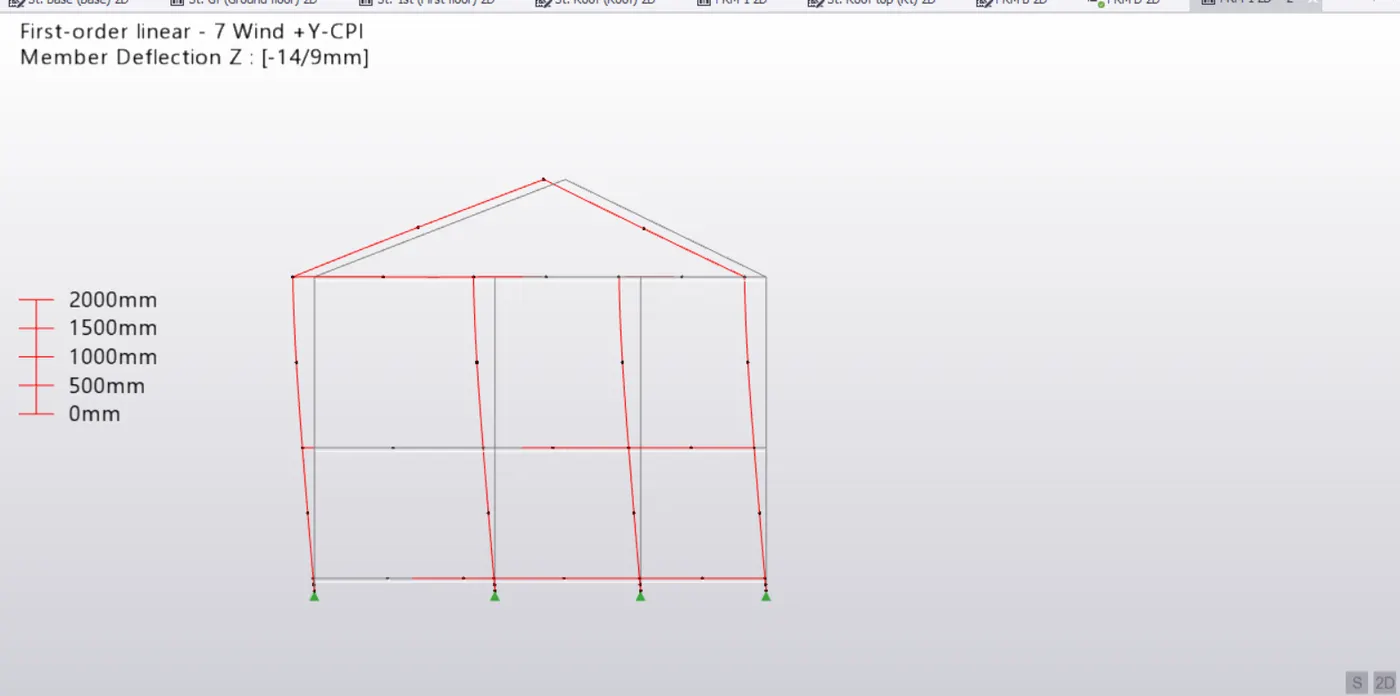

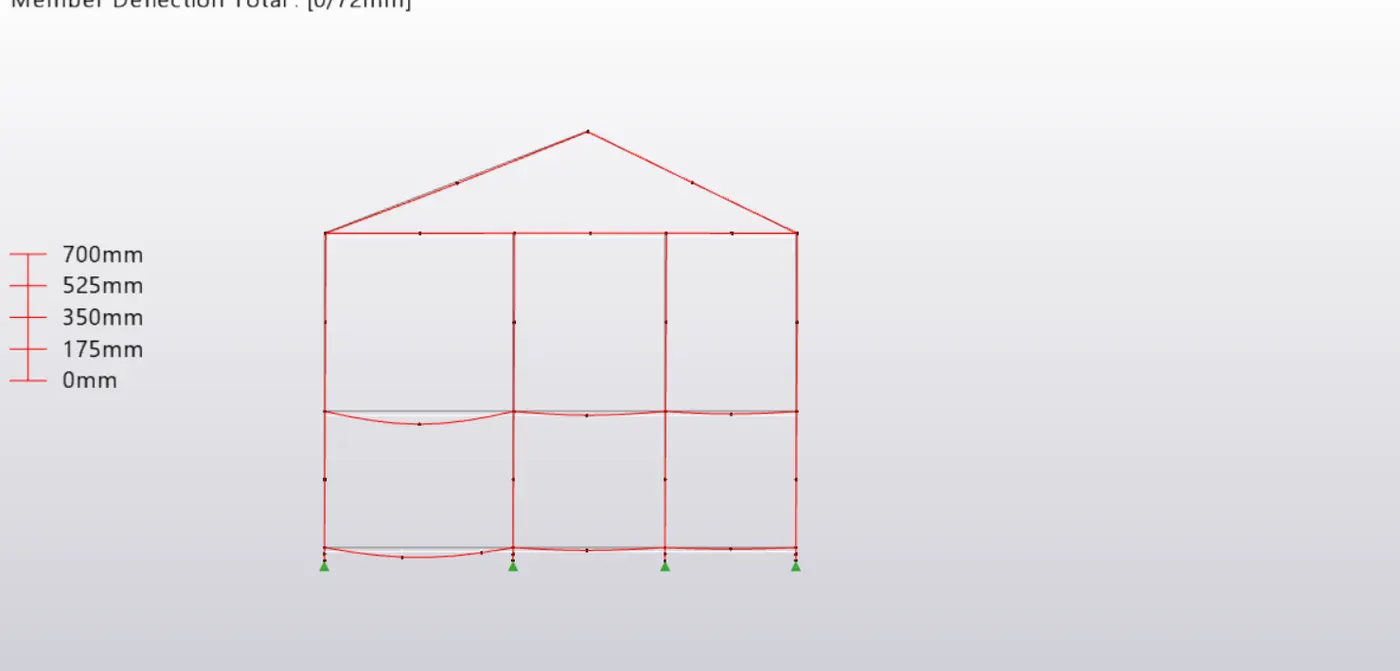

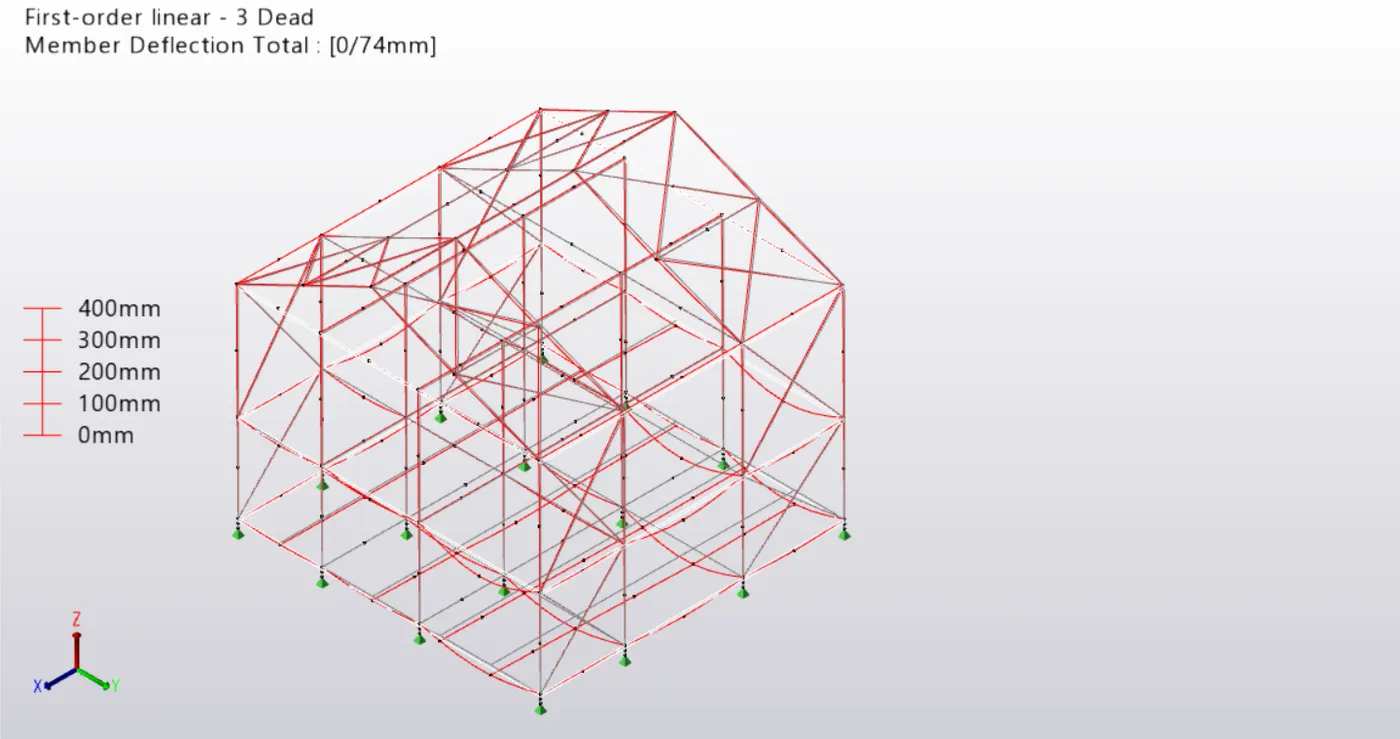

Deflection:

2.

Aim:

To analyze the members.

Procedure:

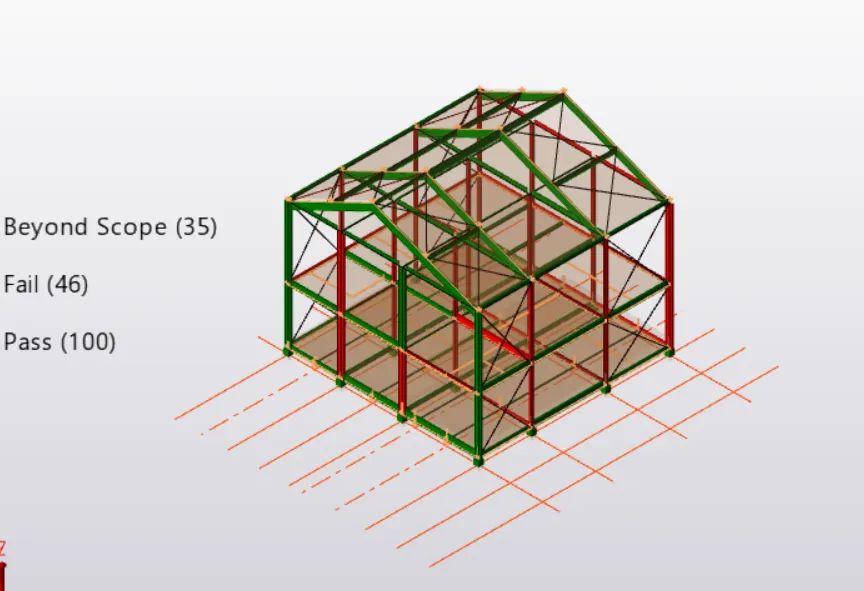

Got to result view and design the member if it fails re design and check the member.

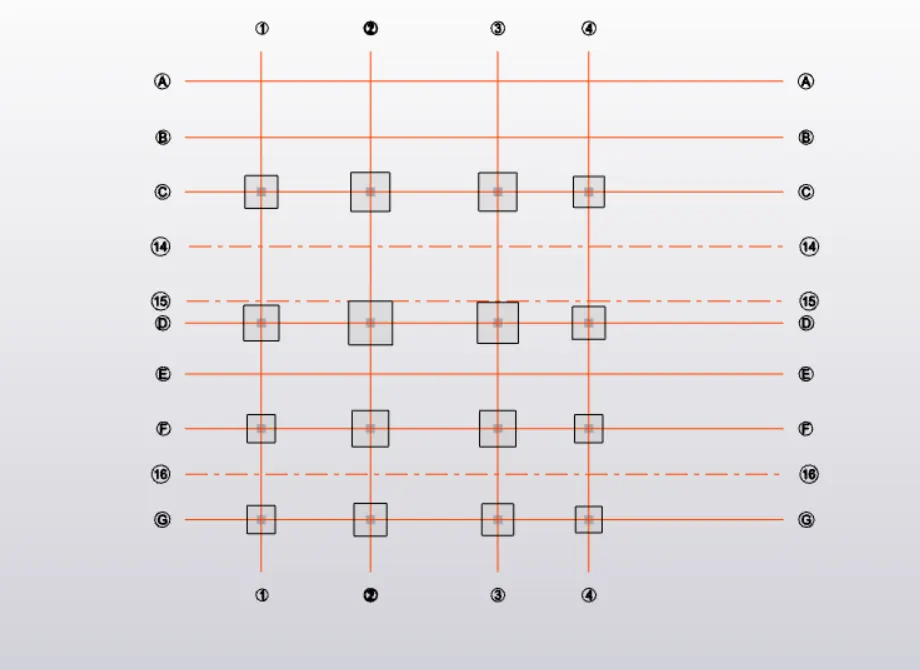

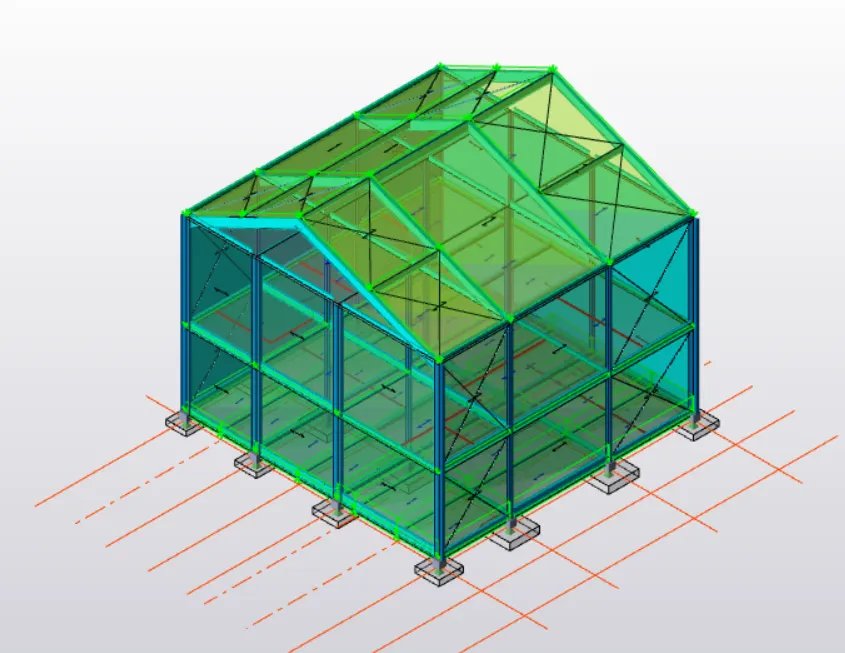

To design foundation go to base and from foundation choose pad base column and select all column and thus the foundation is created.
