Structural Modelling using Etabs 2018

RRonak Patel7 Apr 2022

ANS-

AIM- TO CREATE A G+7 RESIDENTIAL MODEL FROM THE GIVEN ARCHITECTURE DRAWING USING ETABS.

PROSEDURE-

open etabs software.
click on new model.

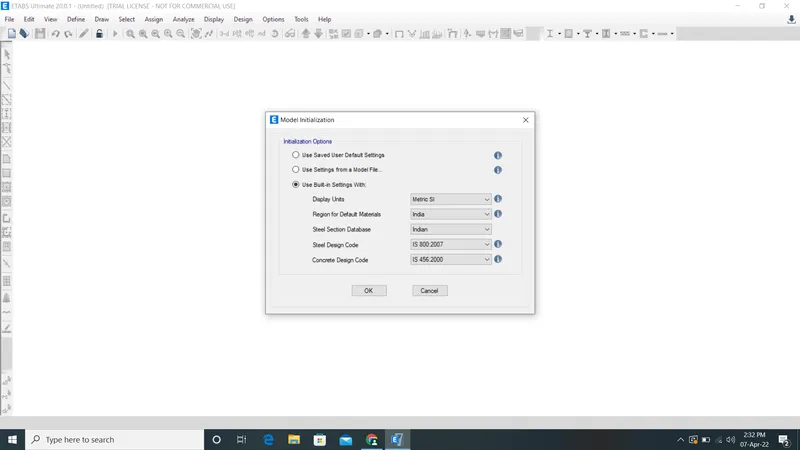

set model information.
set units.

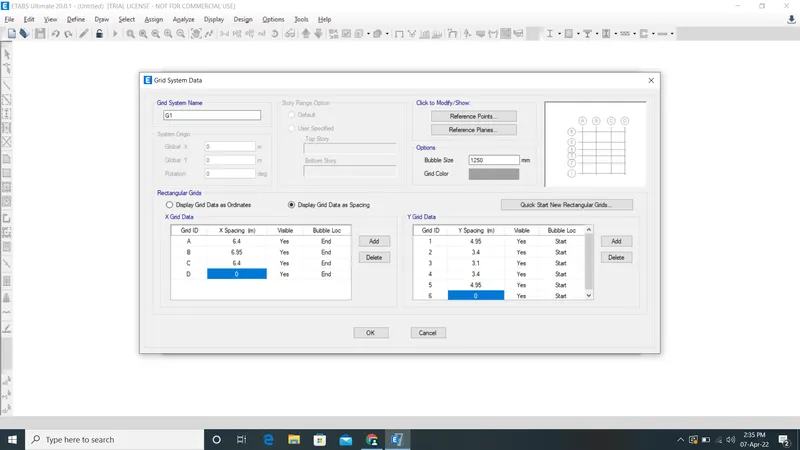

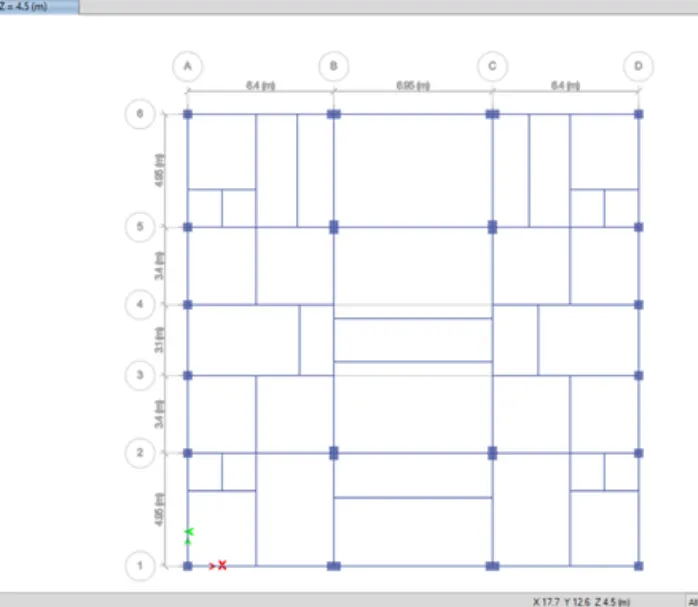

now set grids as per shown below.

now go to storey add option.

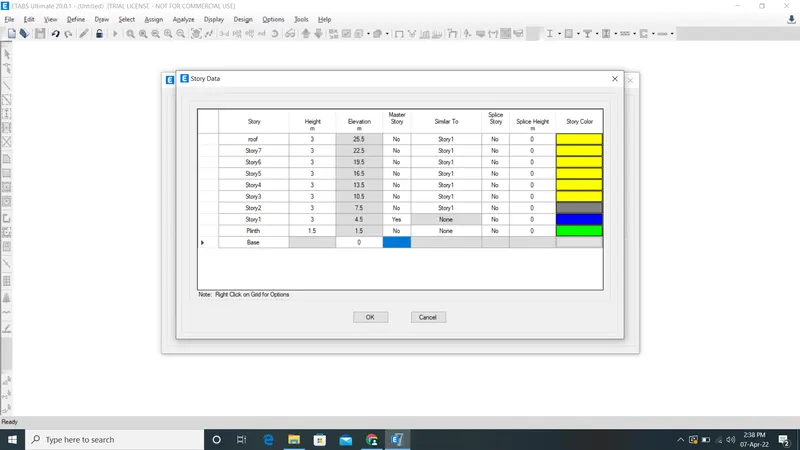

set the storey as per requirment.

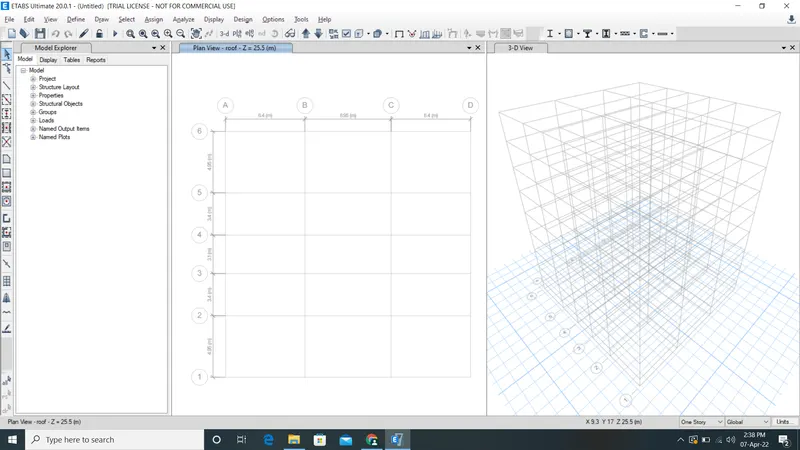

model will look like this.

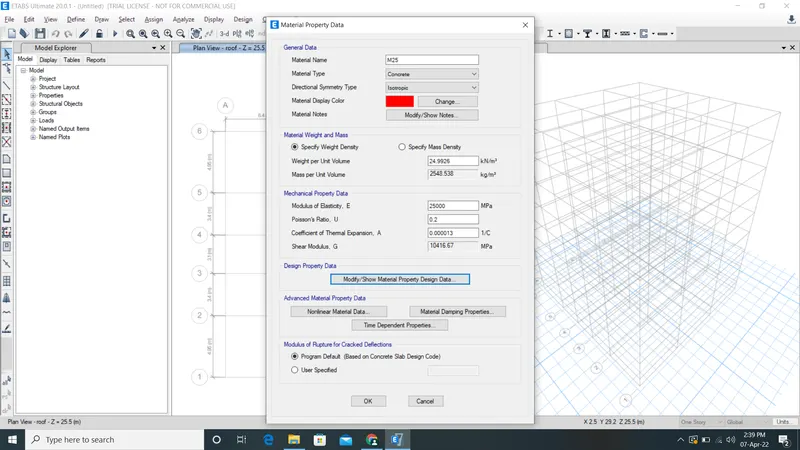

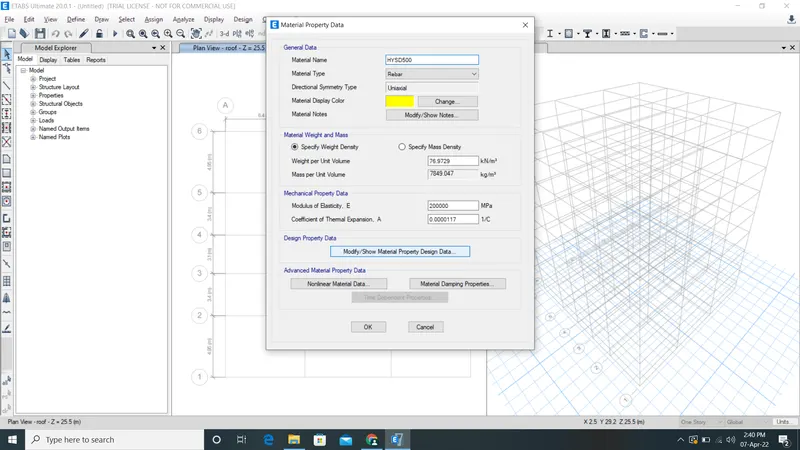

now go to define>material>add new material.

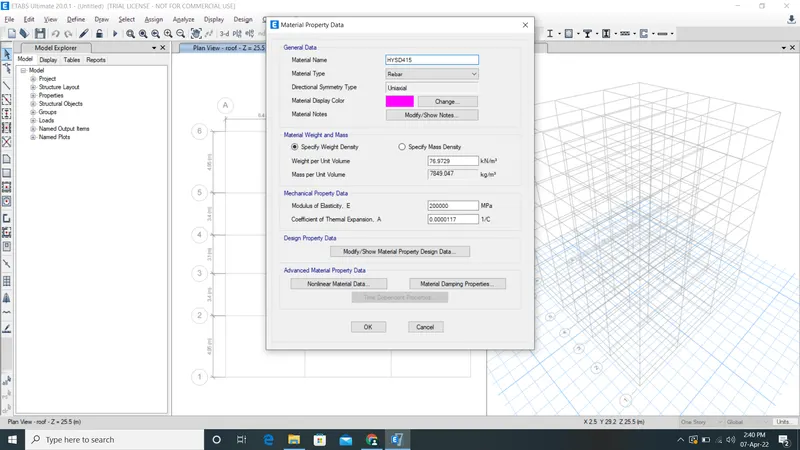

add M25 , HYSD415,HYSD500

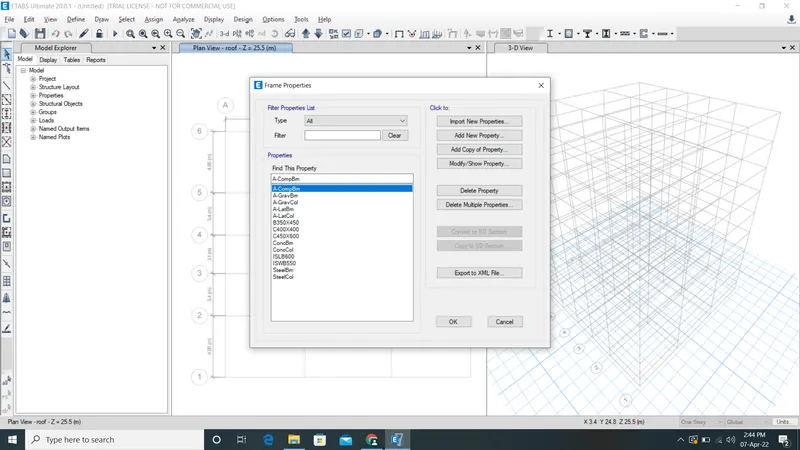

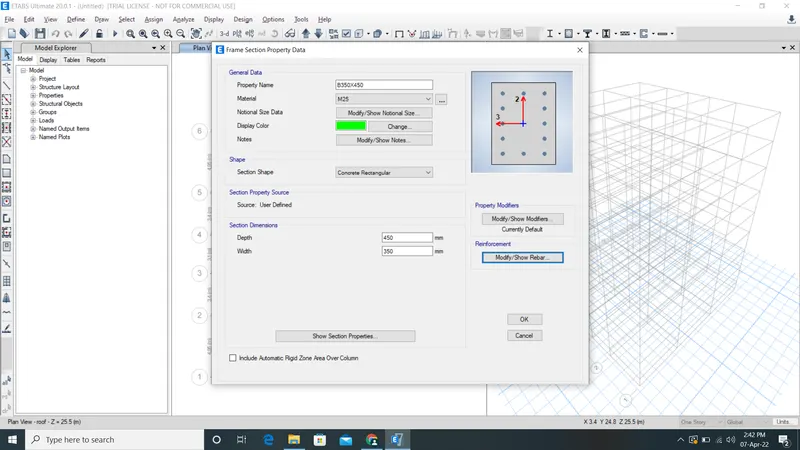

Now go to define>section>add new section.

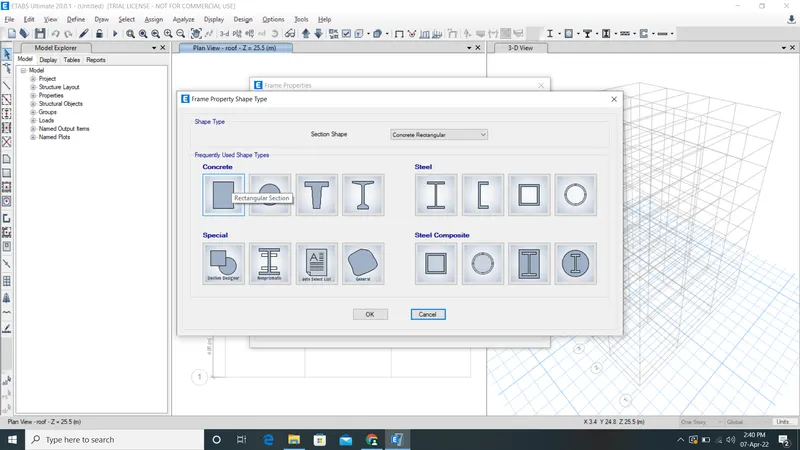

select rectangular section.

now add BEAM 350X450 , COLUMN 400X400 , COLUMN 450X600.

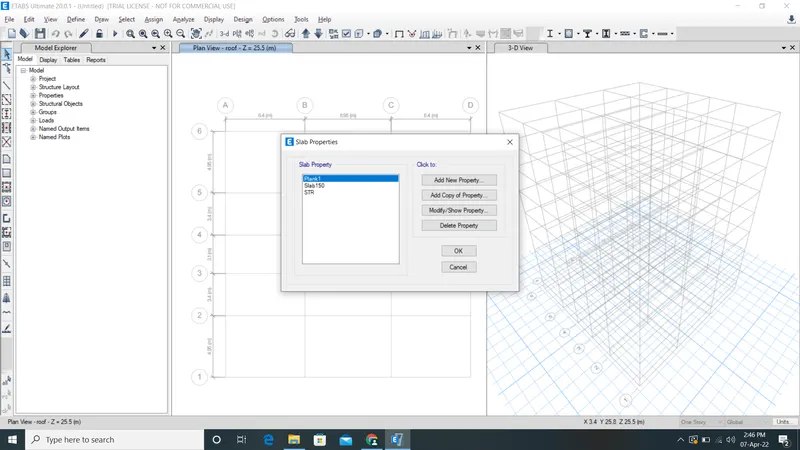

Now go to Define>section properties > slab section.
add new slab of 150mm thickness.

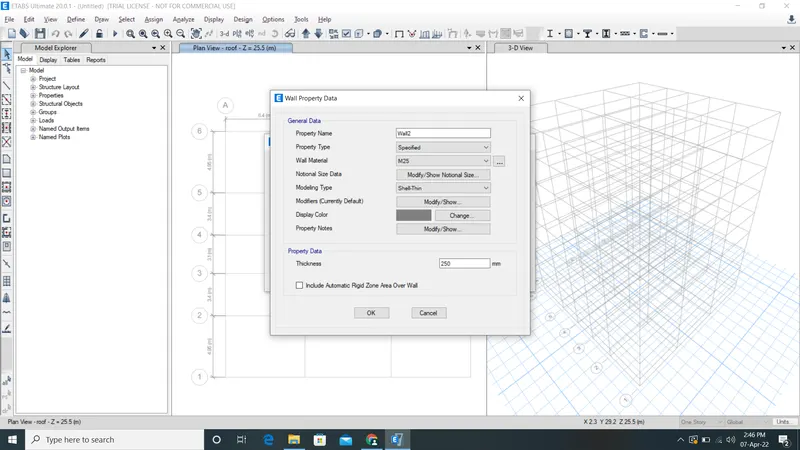

now again go to define > wall properties
add new wall of 250 mm thickness.

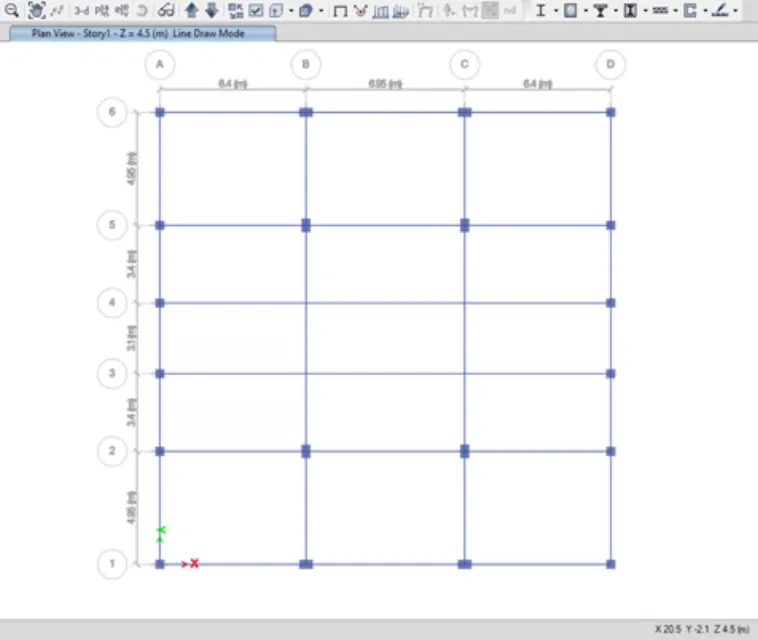

now using quick assign option assign beam , column and slab.

now go to repliceted option and set all beam as shown in attachment.

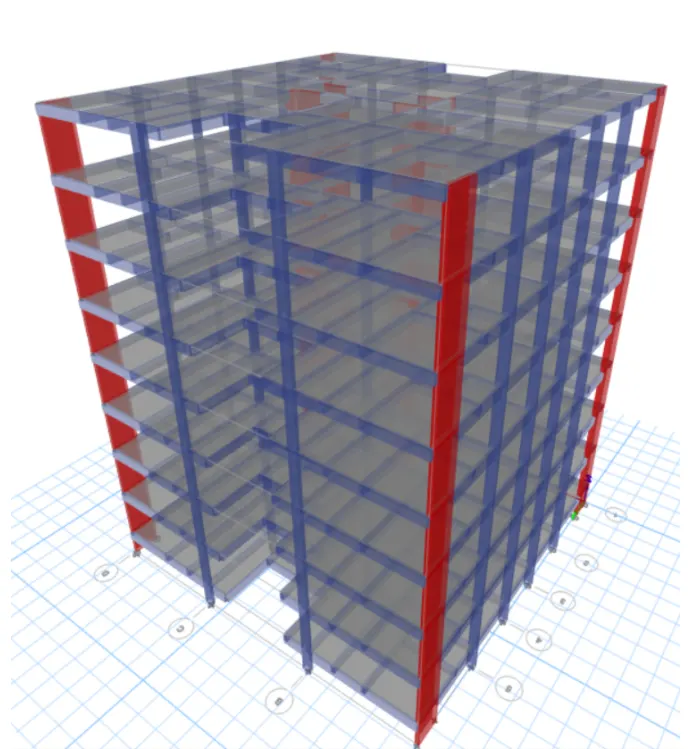

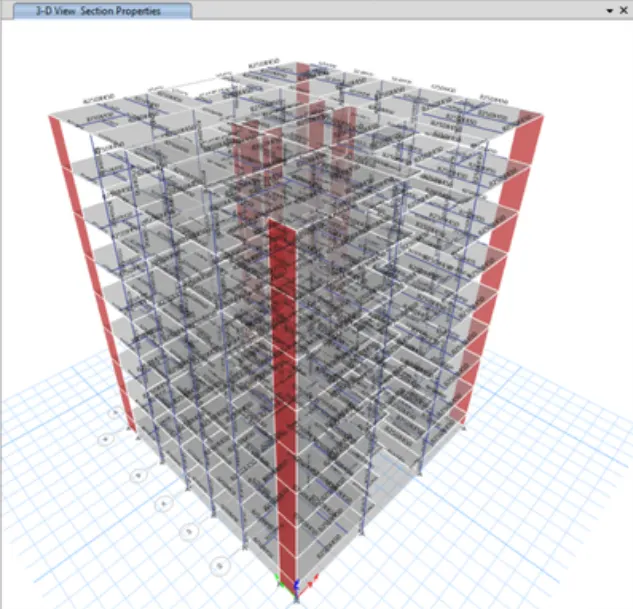

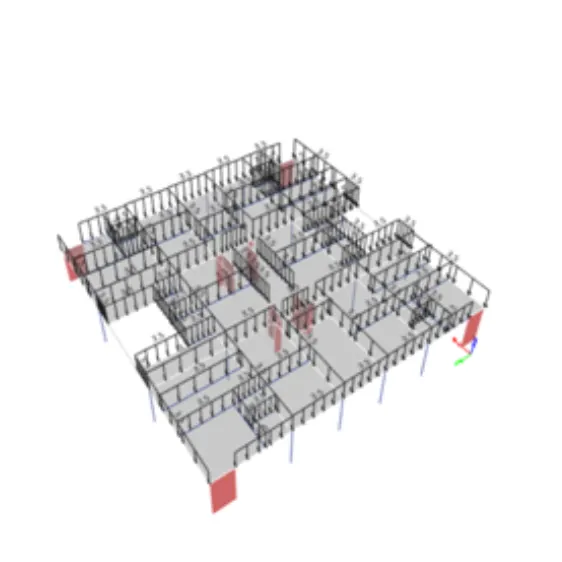

after assigning slab , shear wall result will look like this.

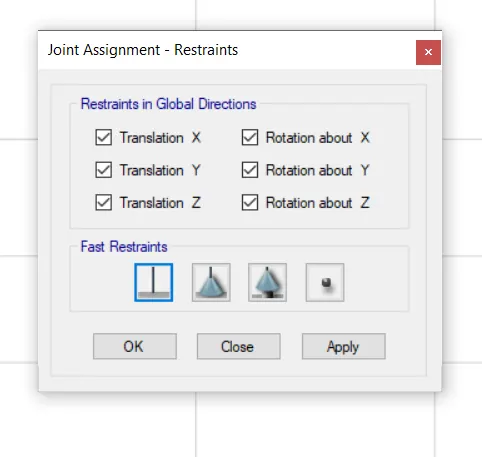

now for joint assignment go to assign >joint assignment.

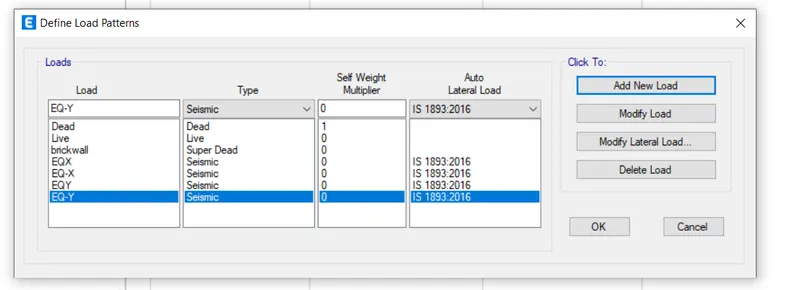

now go to Define > define load patterns .

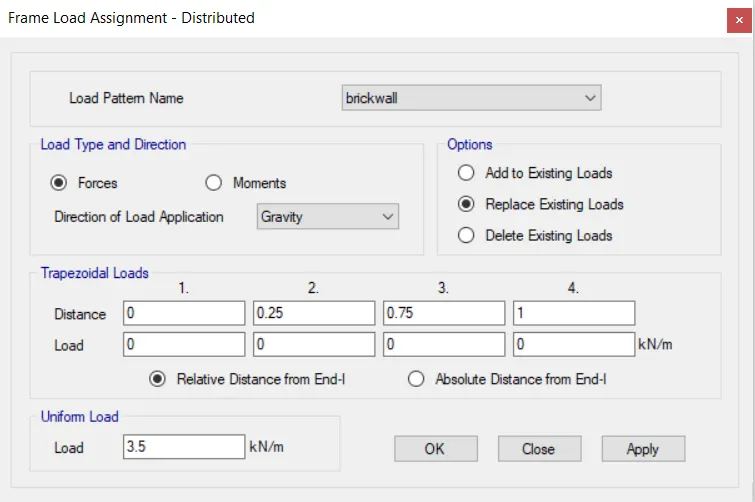

now select beams and assign brickwall load on them.

after the assigning load it will look like this.

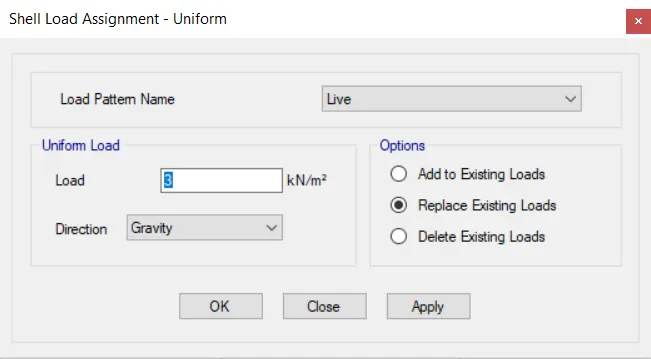

now same as above method select all slab and assign live load.

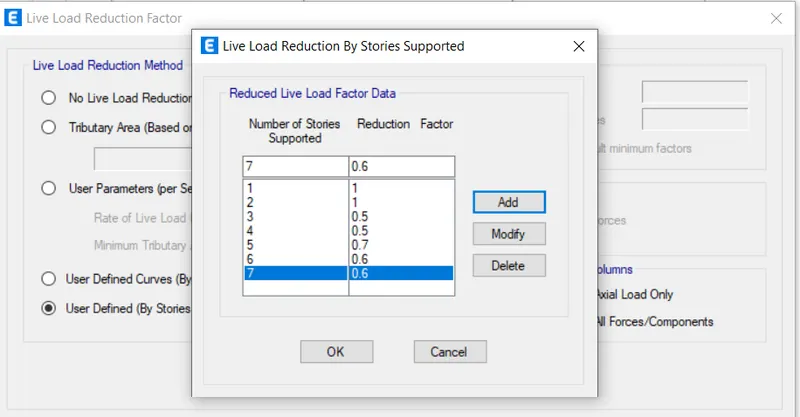

now go for live load reduction factor and fill the data as shown below.

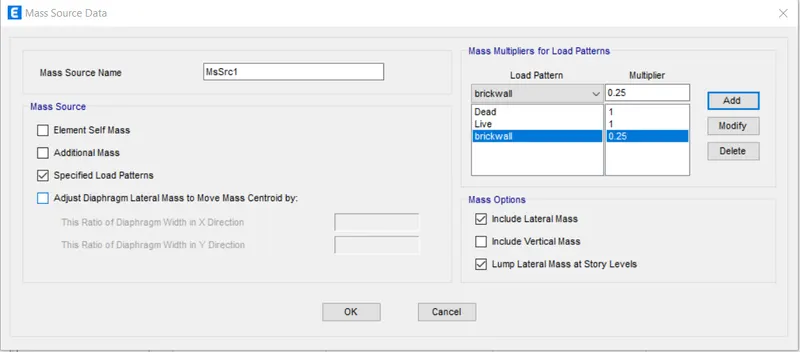

now go to define > mass source data.

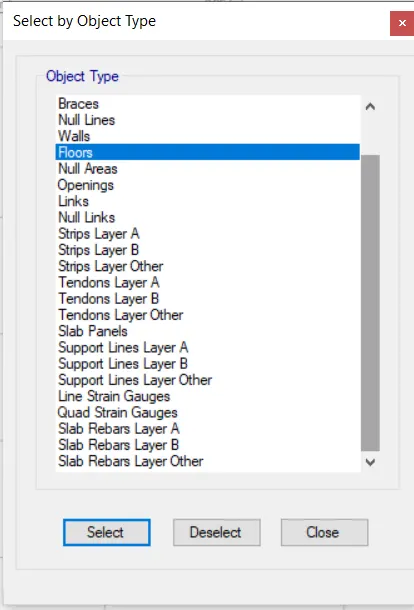

now using select option select all the floors.

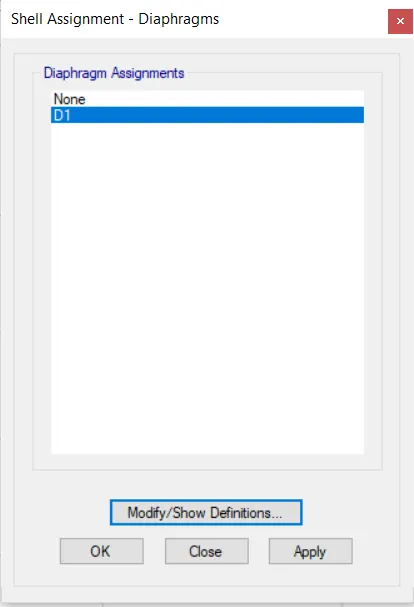

now assign shell diaphram.

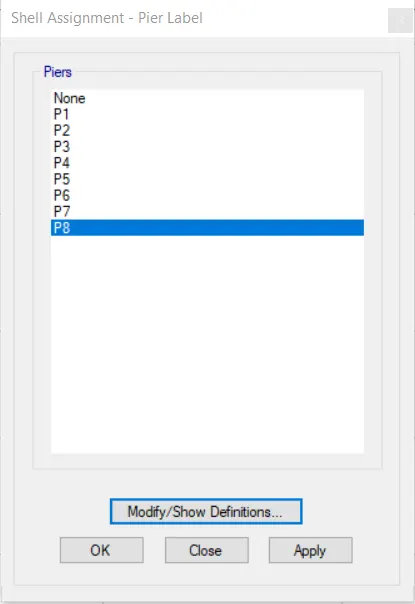

now continious with select option assign pier labels.

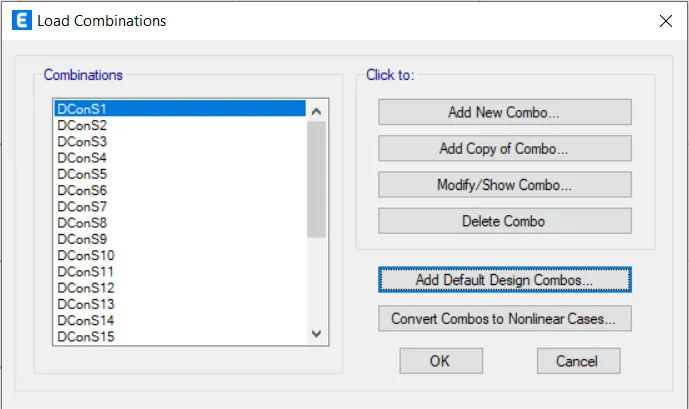

now go to define>load combination>genrate auto load combination.

now check the model.

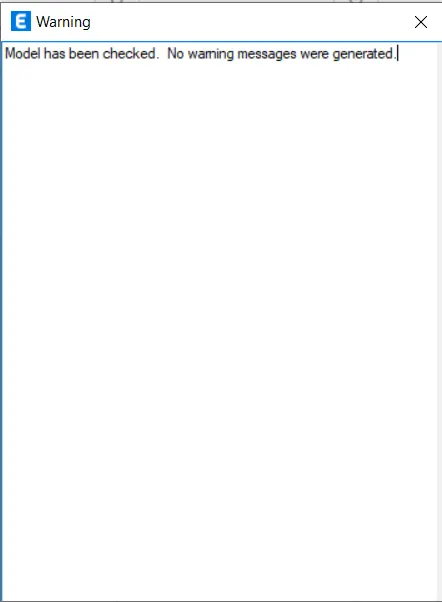

after this warning click on run analysis option.

after this our model is ready for the result .

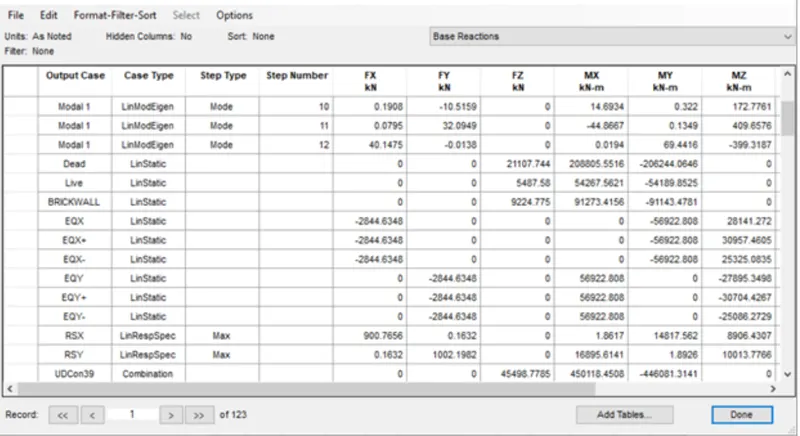

now go to Display>table data>base reaction.

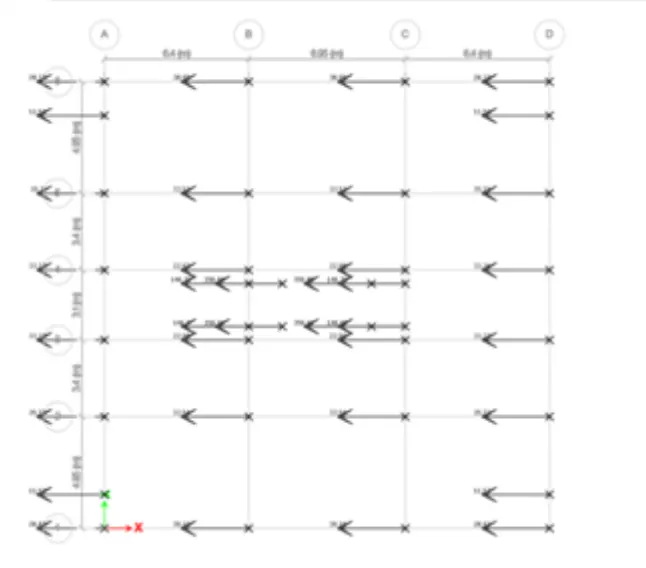

now open the reaction tab select earth quick load toward the X direction.

RESULT :- G+7 residential building is succesfully modeled in etabs.
