Structural Modelling using Etabs 2018

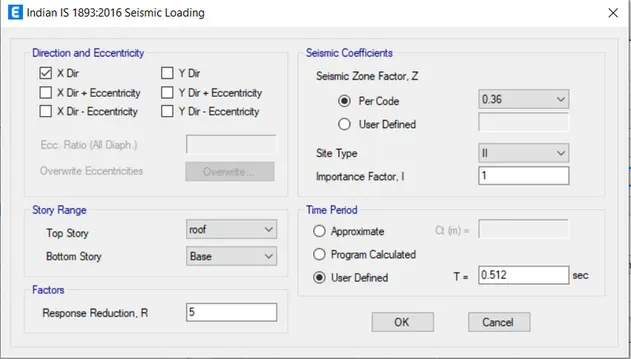

Aim - to create a model of the give G+7 architectural model which must comply with the provisions of IS 1893 and IS 13920

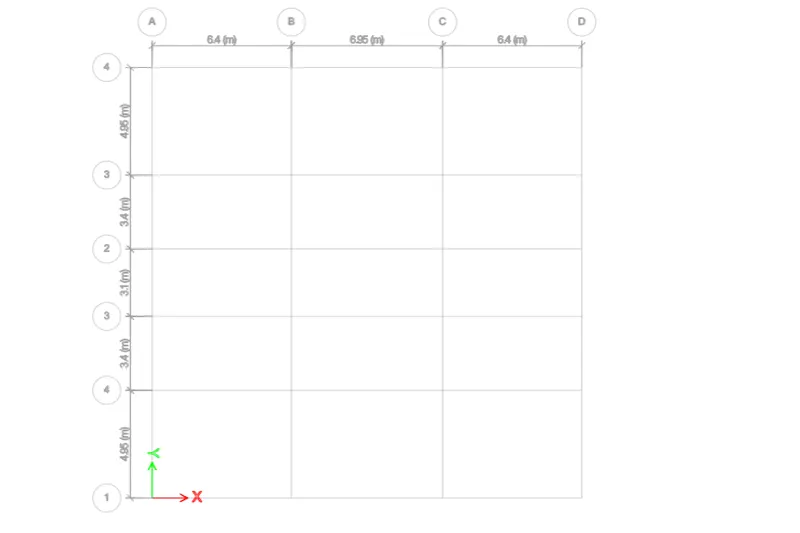

Procedure - Create the grids in the ETABS model

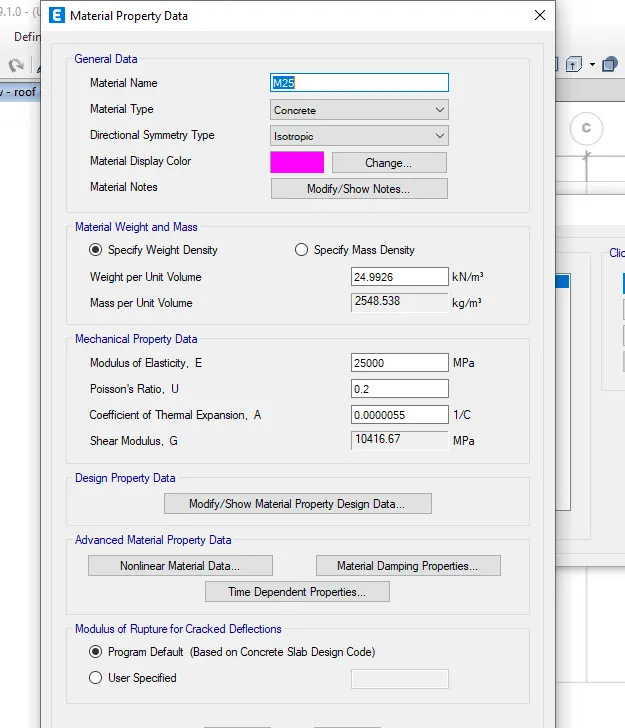

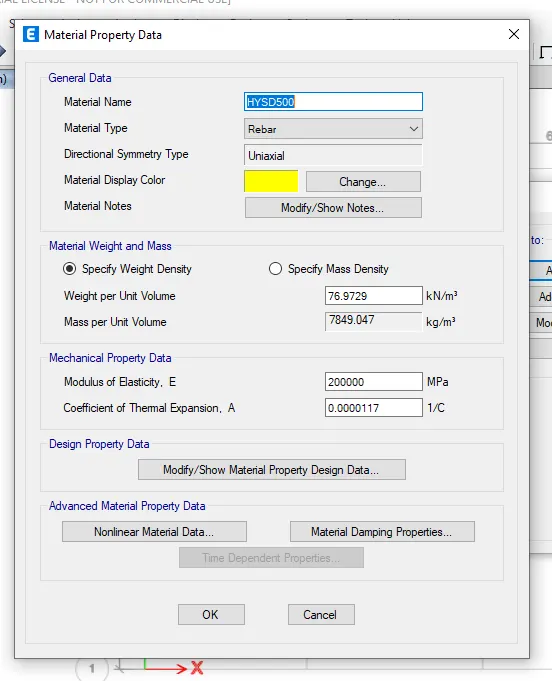

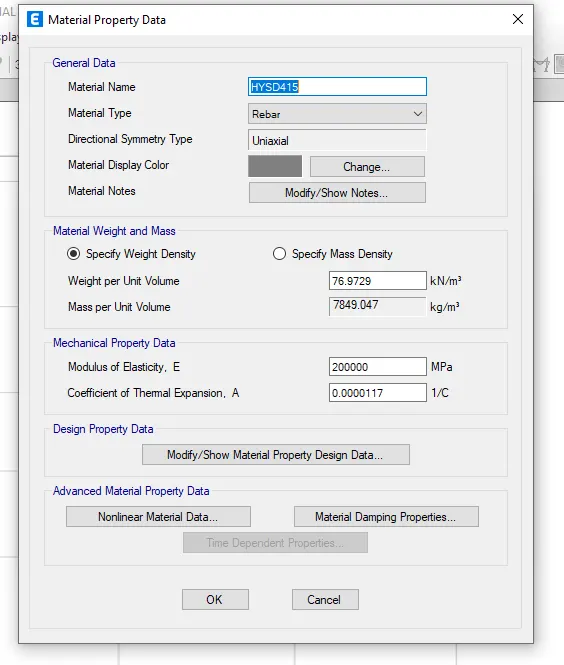

2. input material data

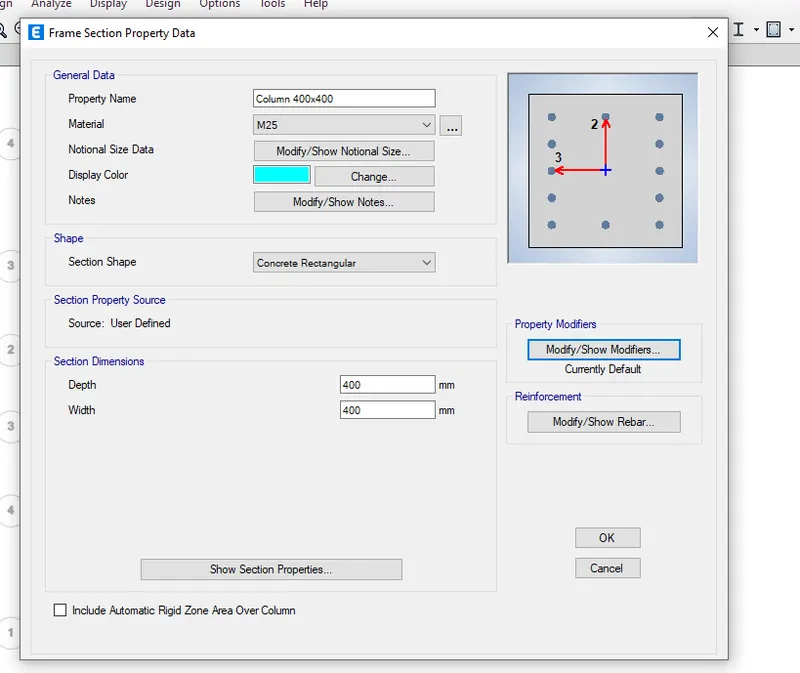

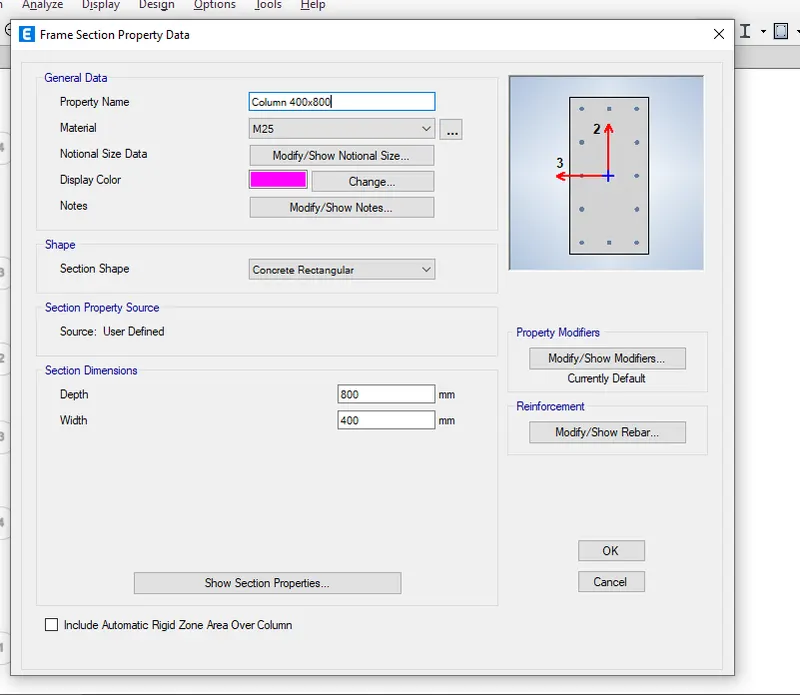

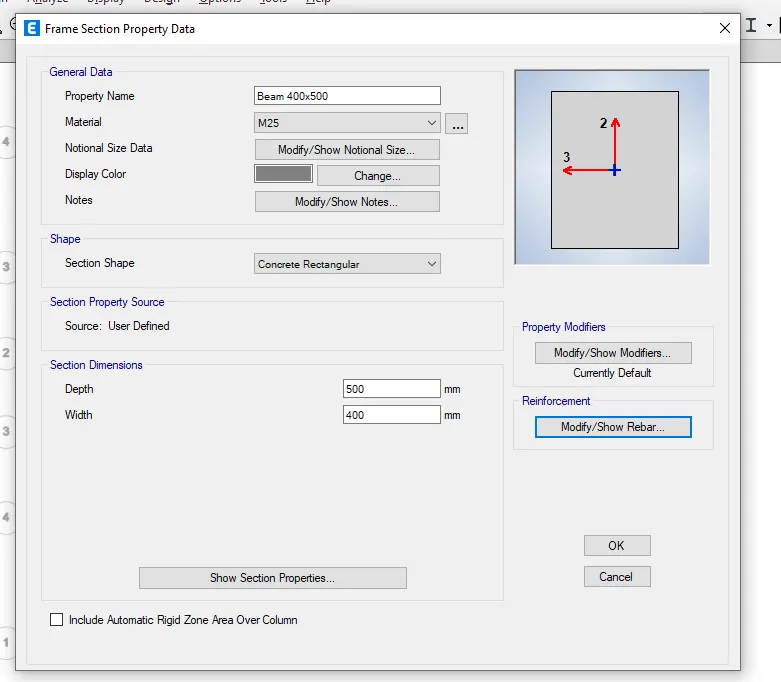

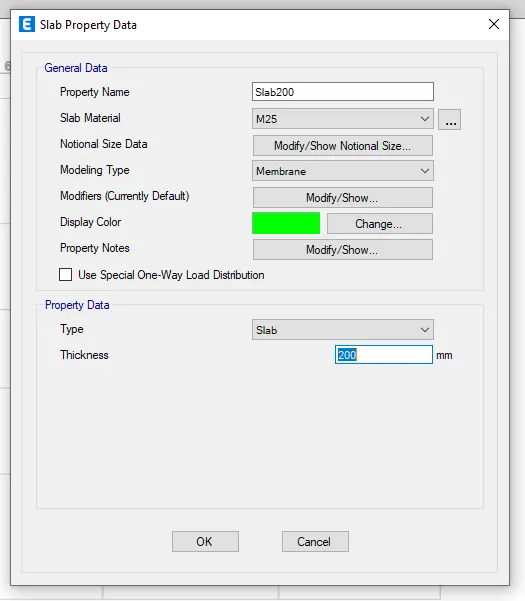

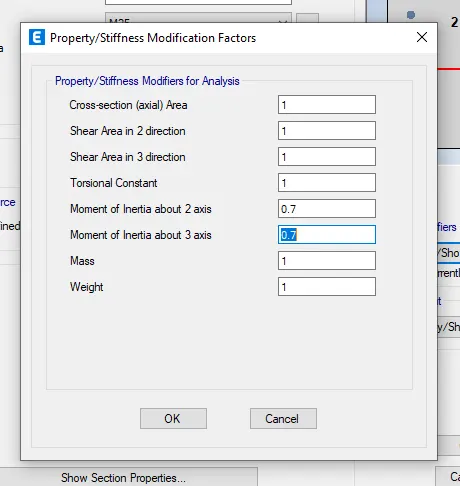

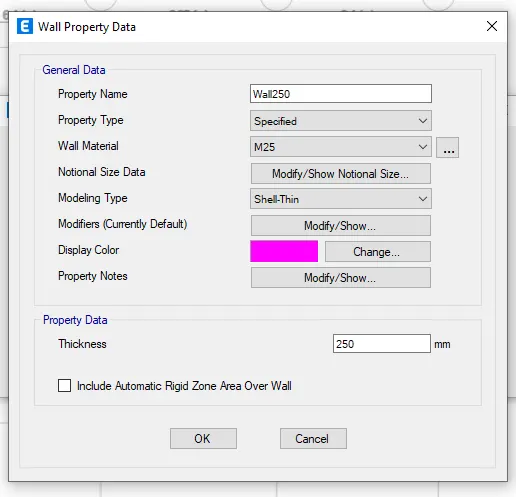

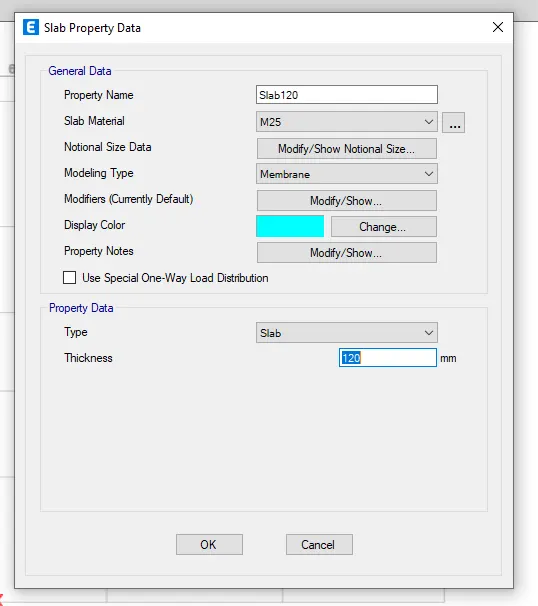

3. add framed section properties

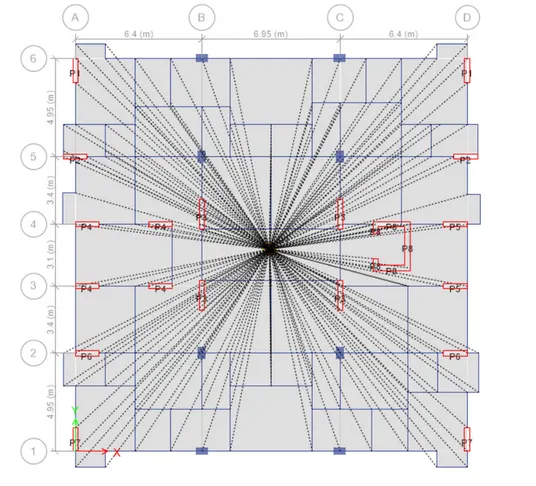

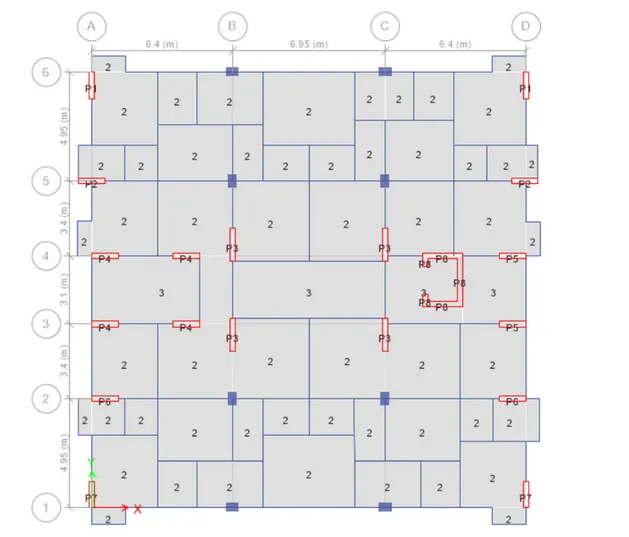

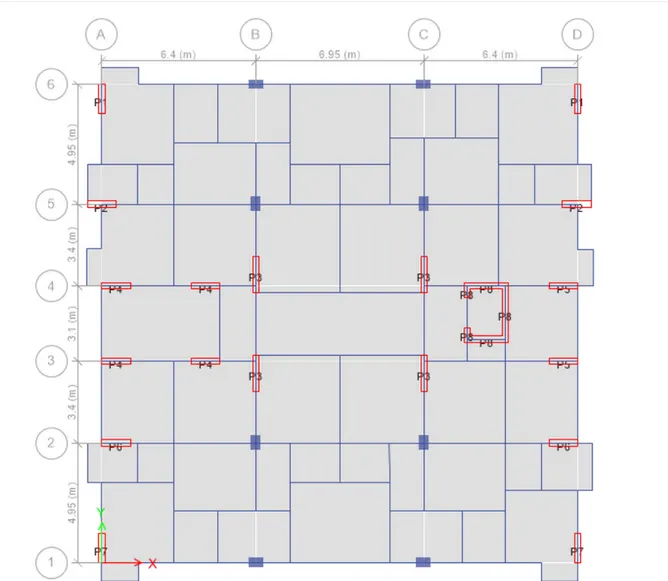

4.columns and beams to be placed in the plan as shown

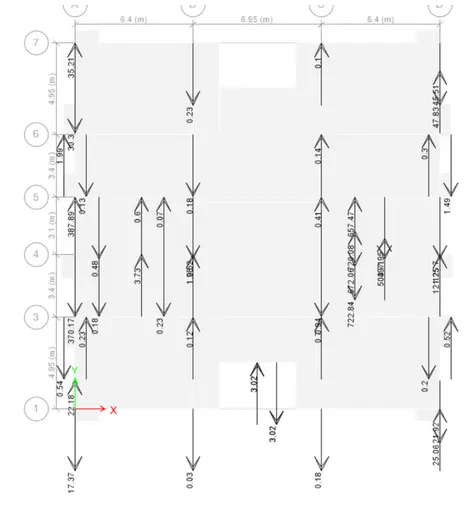

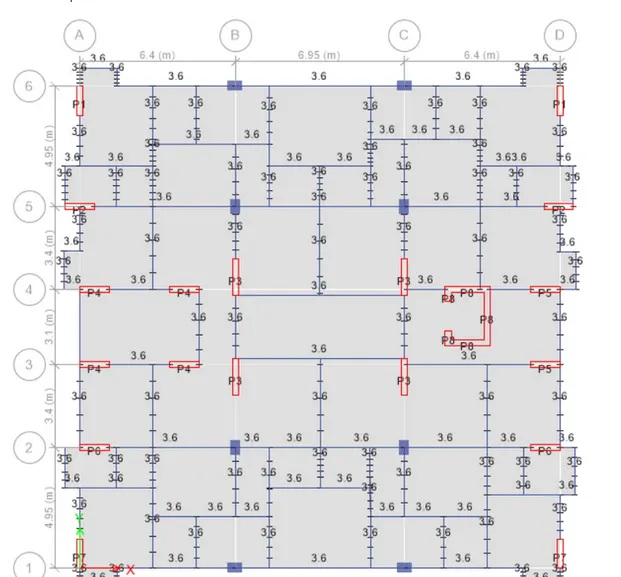

brickwall load of 3.6kN/m has to be applied

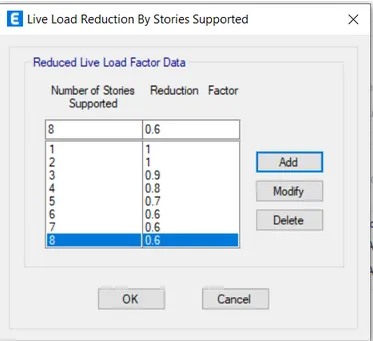

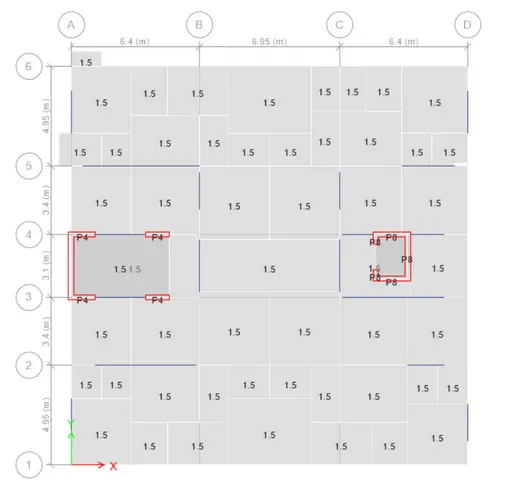

live loads and reduction factor has to be assigned as per IS 875

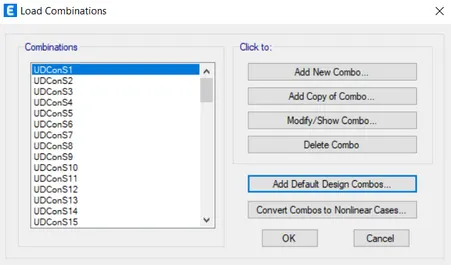

Different load combinations will be assigned

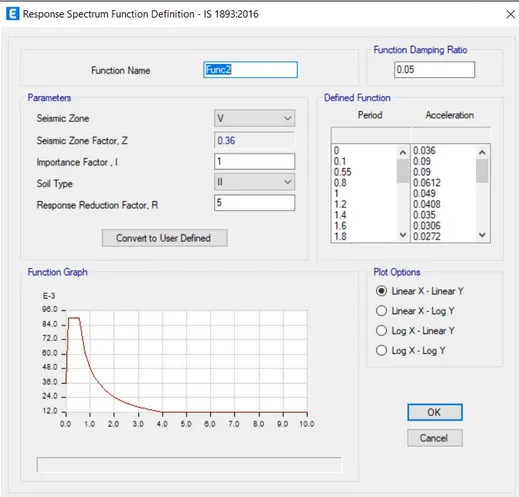

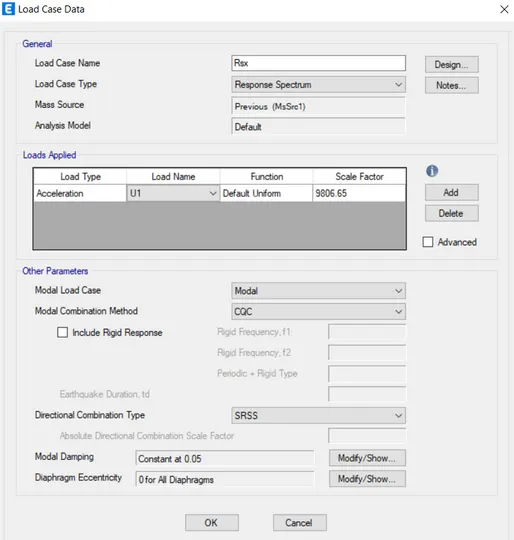

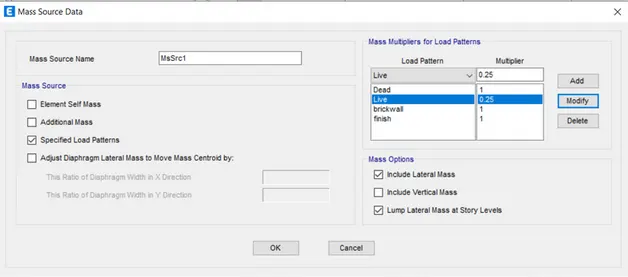

it should be checked for response spectrum analysis

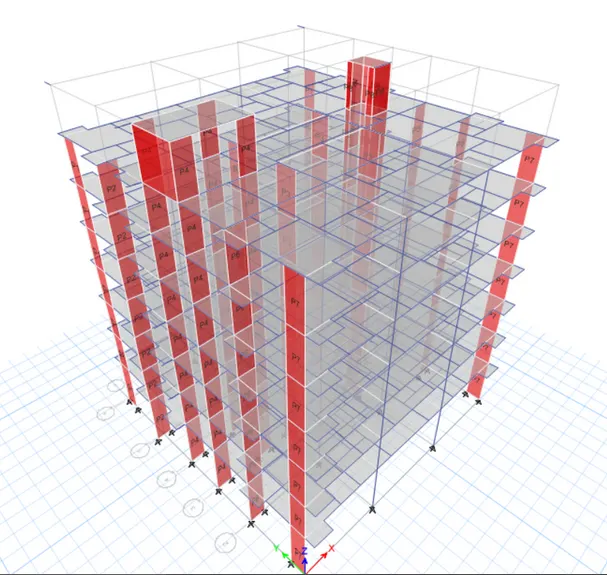

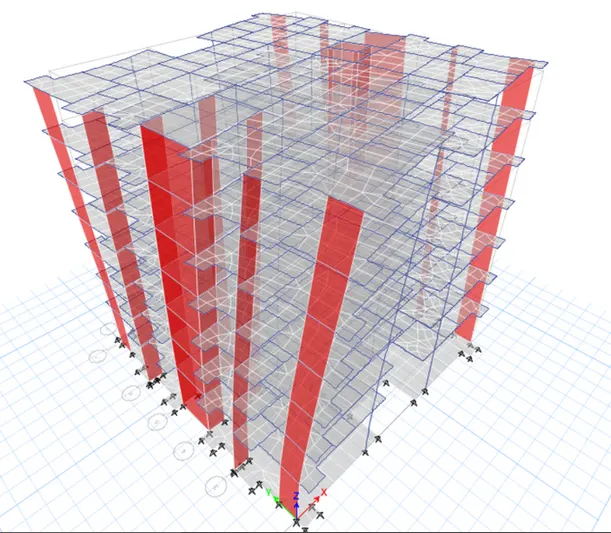

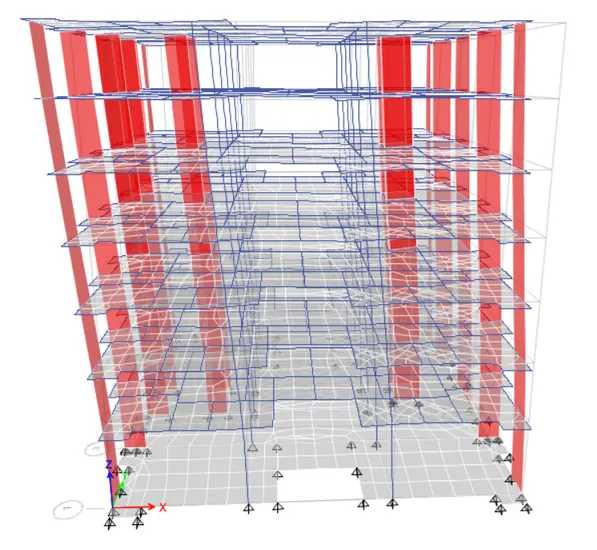

deformed shape of model

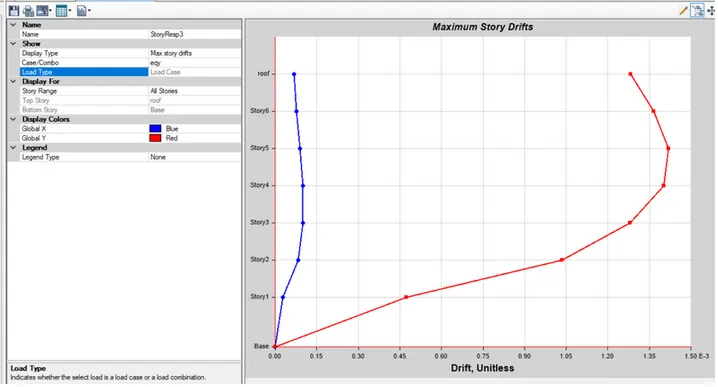

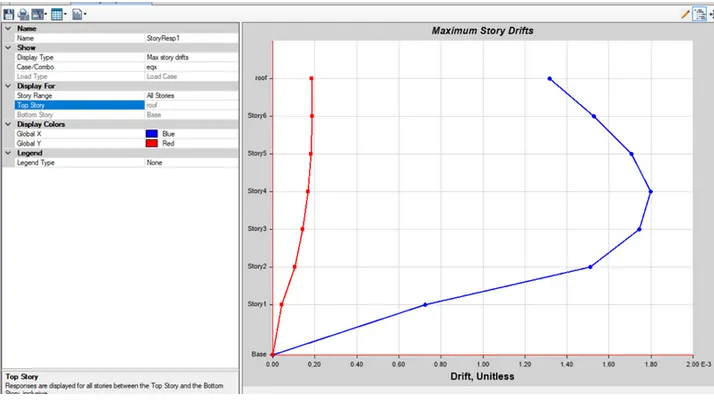

from story response plot we can see the drift is within permissable limit which is 4% in x and y direction

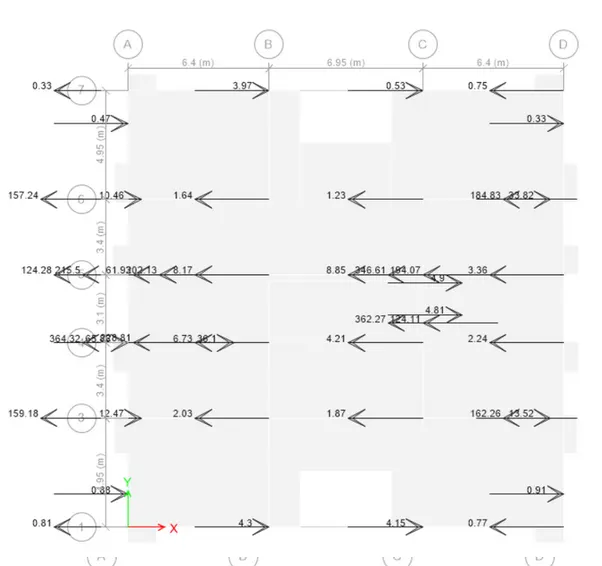

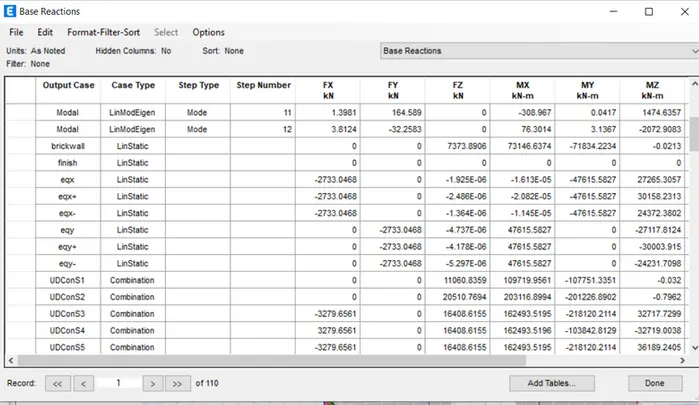

base reaction due to shear wall is obtained in X and Y direction
