Structural Modelling using Etabs 2018

Q1.

AIM:

To design and analysis of the given model in both static and dynamic analysis method and check the model meets the need according to the IS 1893 and IS 13920 codes

Procedure:

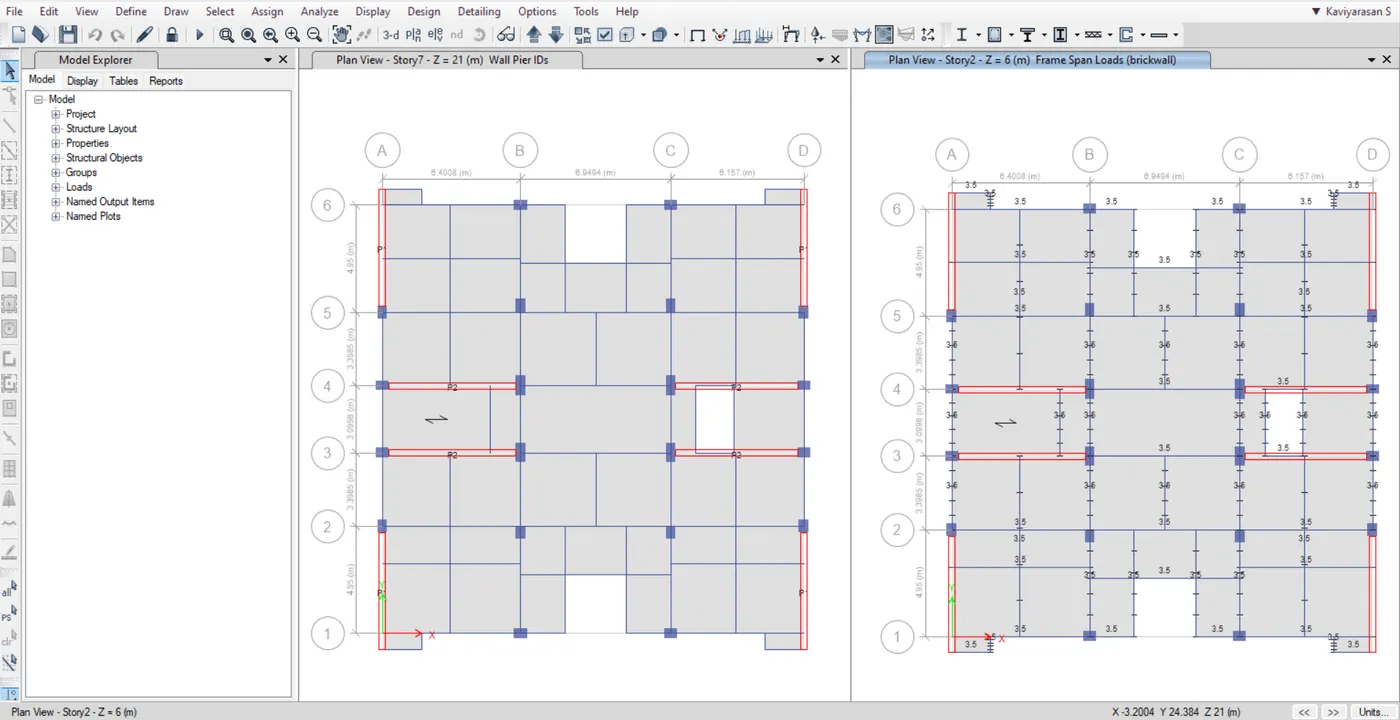

Create a etabs model according to the architectural plan of the model

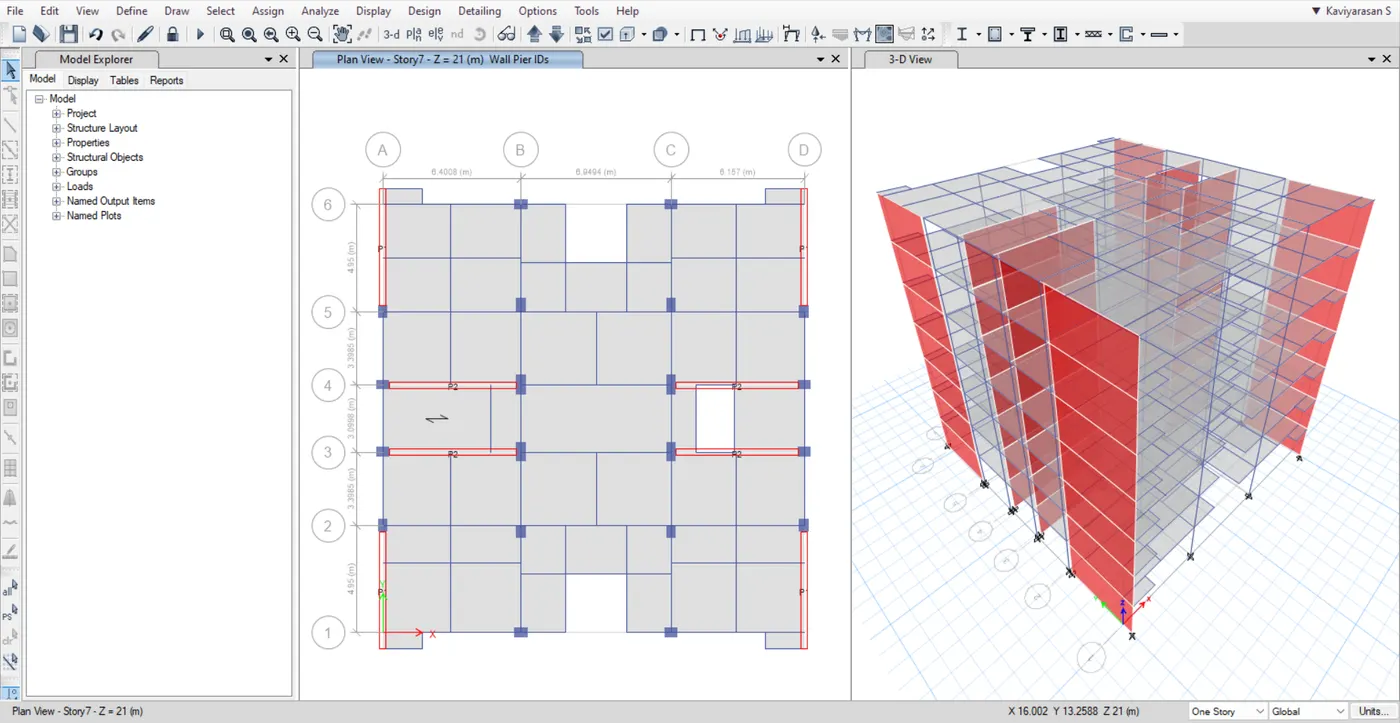

create the beam , columns , slab and shear walls according to the standard

assign the load of the member accoring to the IS 875

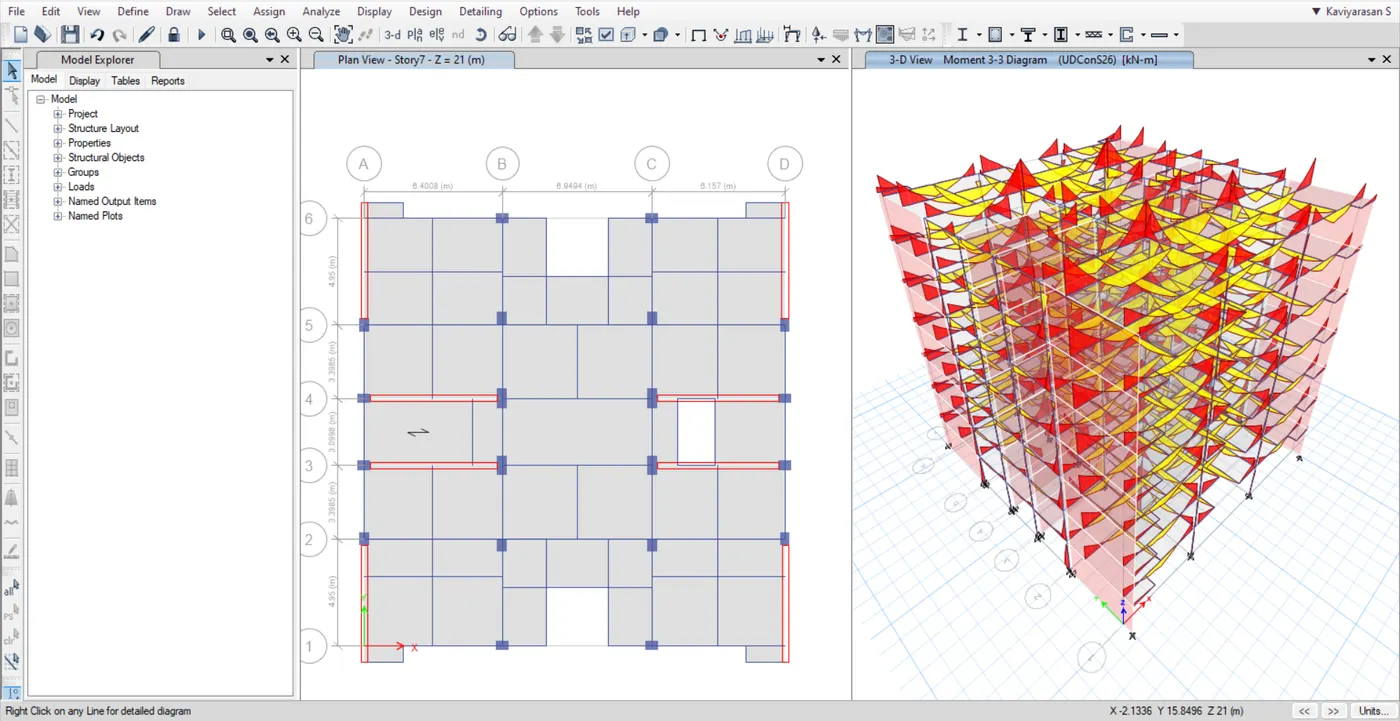

run analysis of the model and check for failure and code specification

modify the failure and re-run the analysis
