Structural Modelling using Etabs 2018

Answer:

Data required for ETABS analysis:

• Pinned Support, Base + 9 story (Ground to terrace) + 1 Mumty
• Column 450mm x 600mm, Beam 400mm x 500mm, Slab 150 thick, Shear wall 300mm thick.

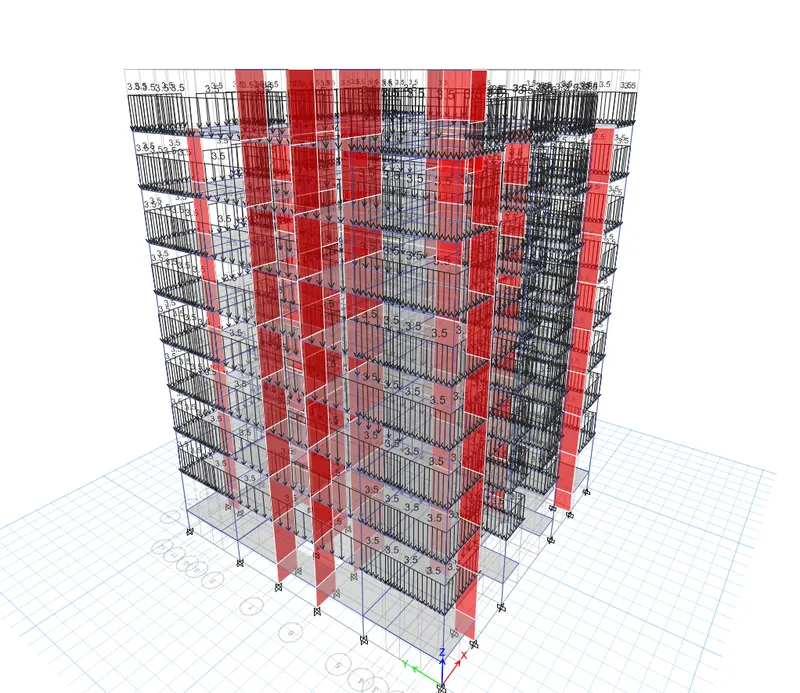

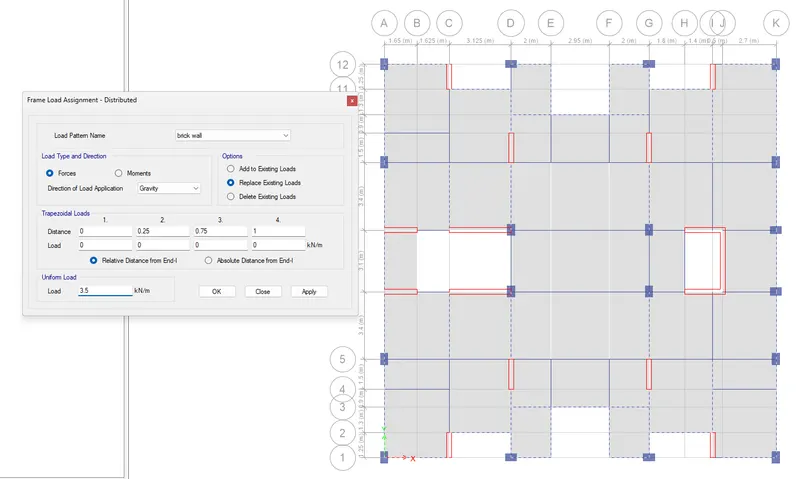

• Live load 2.5 kN/m2, Floor finish 1.5 kN/m2, Wall load 5 kN/m, Water tank 20K litre over mumty equivalent to 200 kN overall load.

Conceptual design considerations before analysis:

• Re-entrant and cutout check and modification (Compromise)
• Vertical irregularity (soft story)
• Planar irregularity (Looks symmetrical)
• 2% shear wall area with respect to the building area (8 m2)
• Stiffness modifier for Column, Beam & Shear wall (0.35 for beam 0.7 for vertical)

Open new model and let's start with grids and the stories:

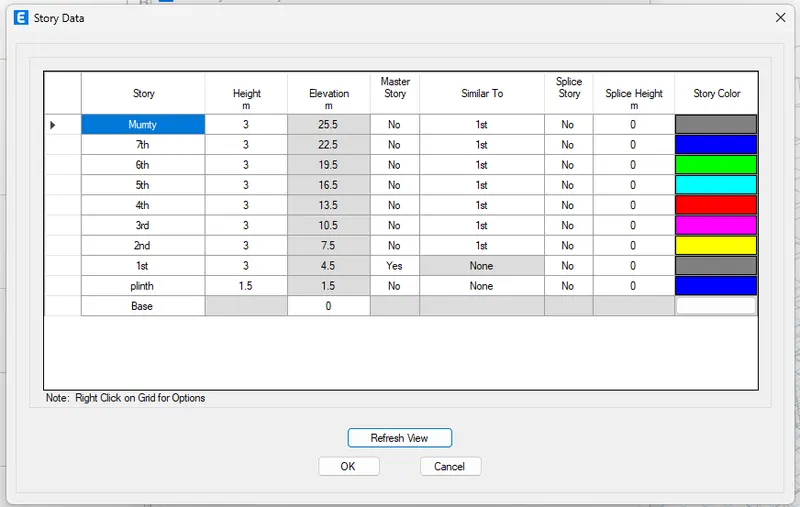

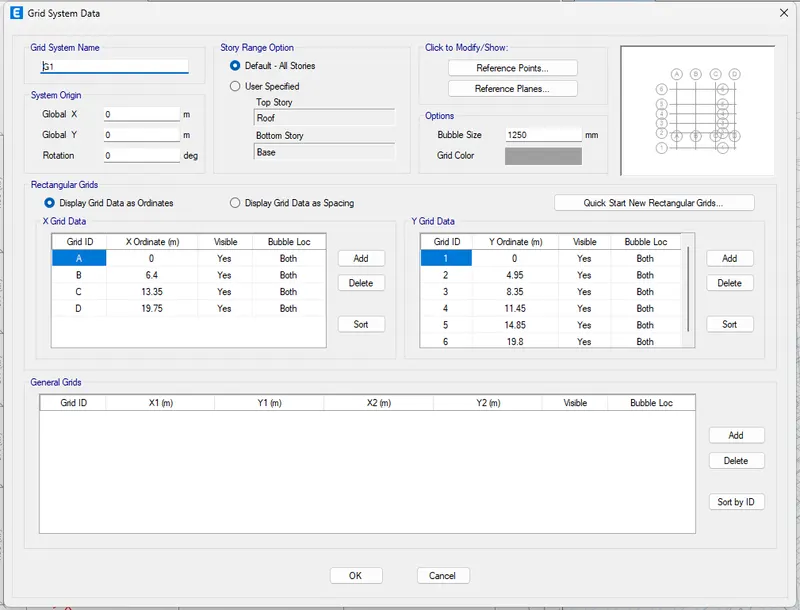

Give custom grids and stories to the model as below:

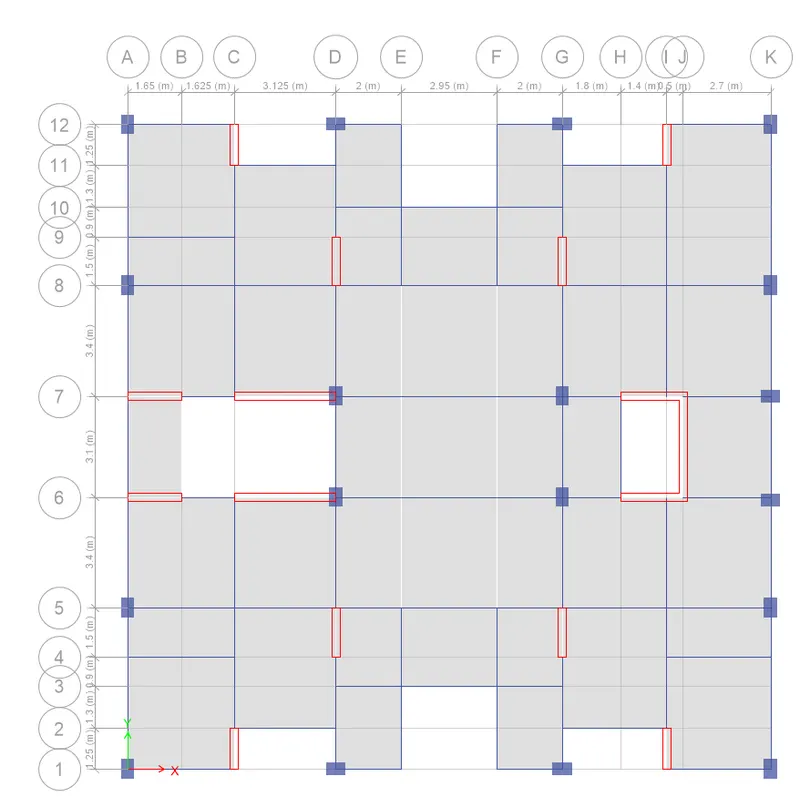

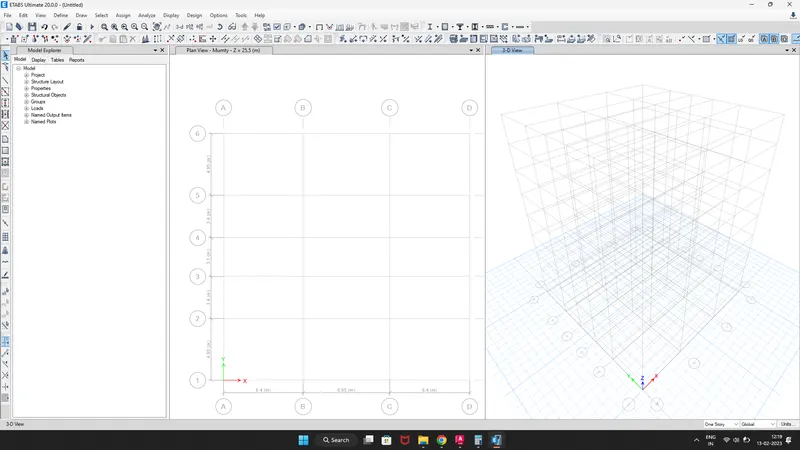

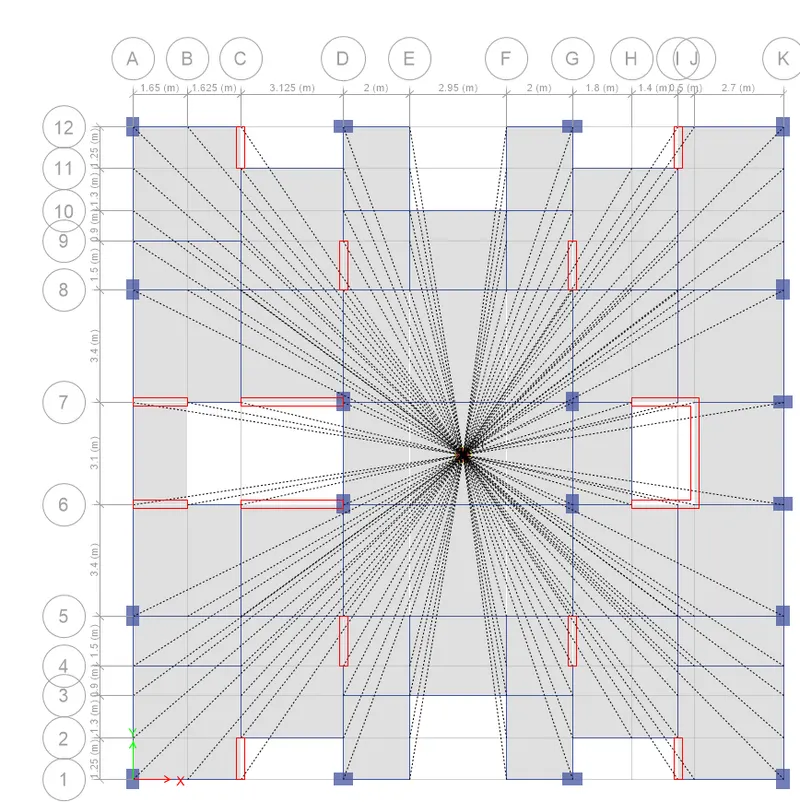

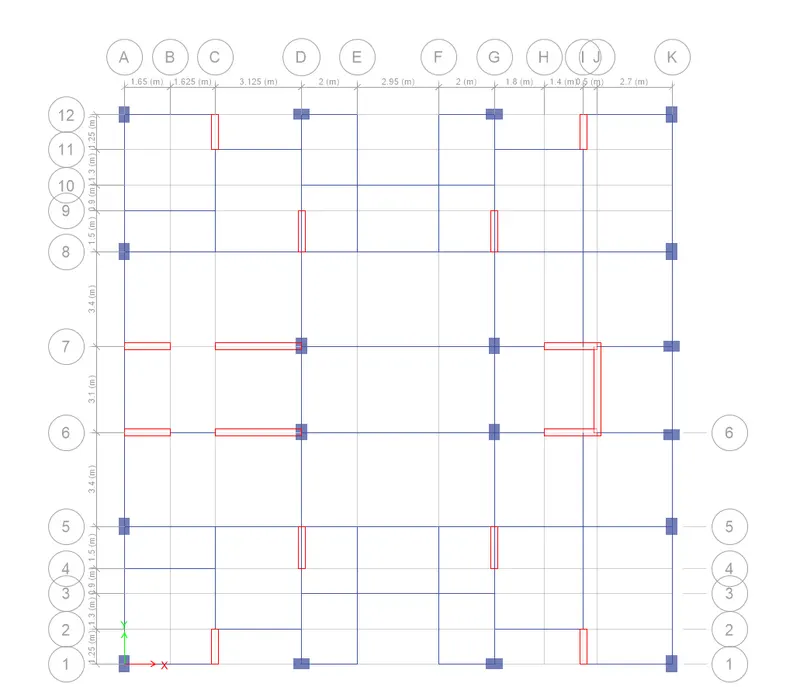

Open plan view and 3d view in Etabs:

Next, we have to add material data to the model:

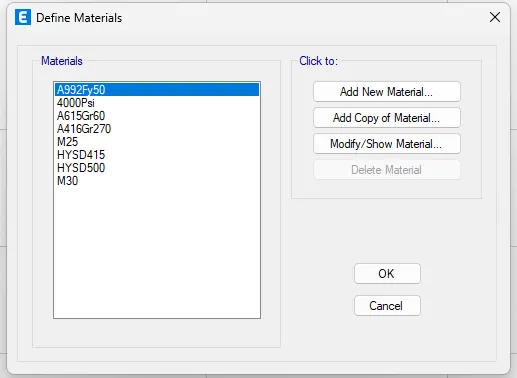

Add M25 grade concrete, HYSD 415 steel, and HYSD 500 steel to the data:

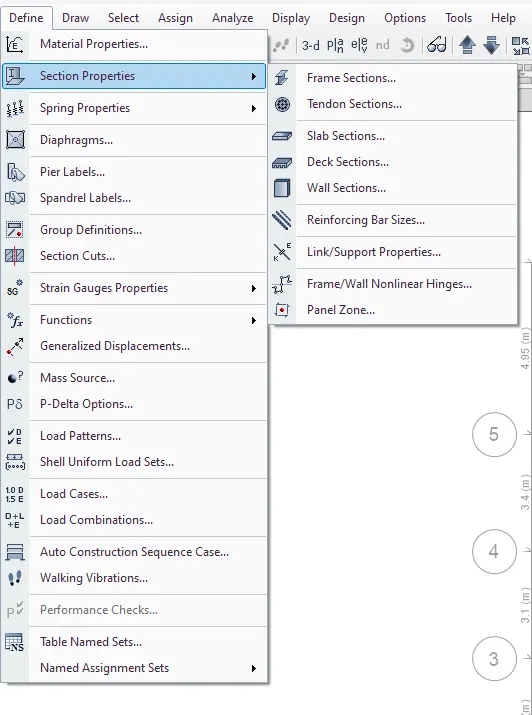

Now, select we have to select the frames by going to the section properties of define:

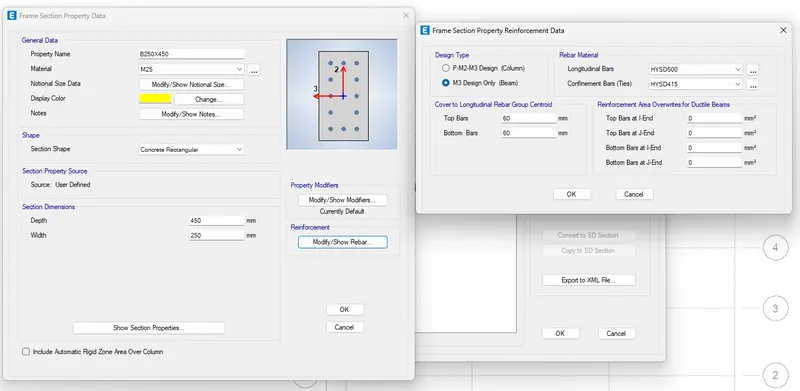

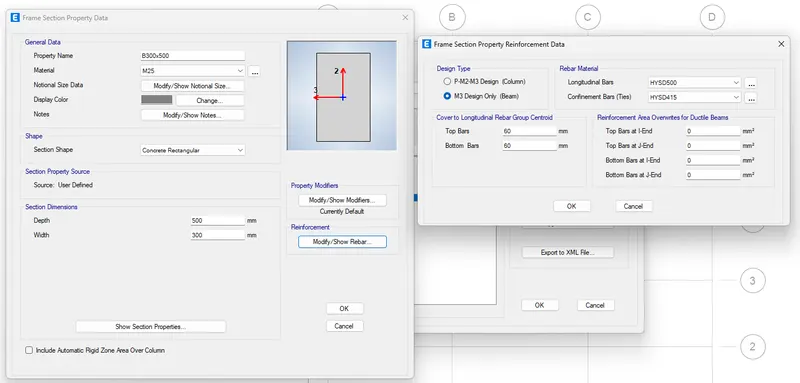

Add new properties of frames, i.e, Vertical and horizontal members:

Again add the new property to the frame:

Beams definition is completed.

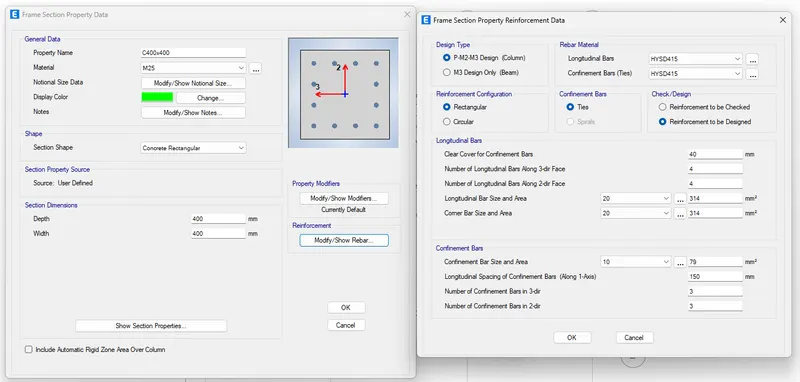

After that add the column for a size of 400x400

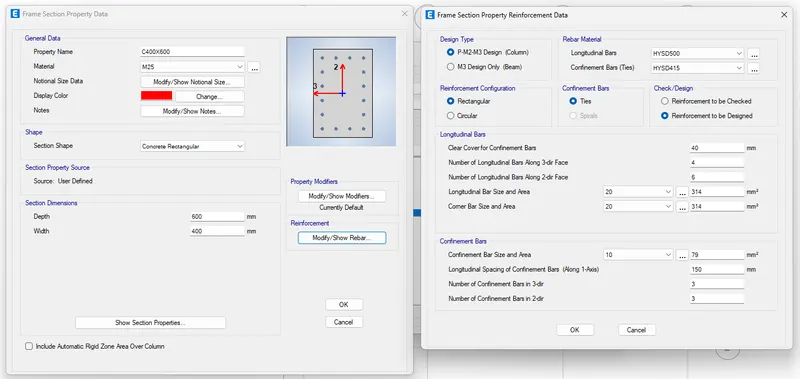

and add the column of size 400X600:

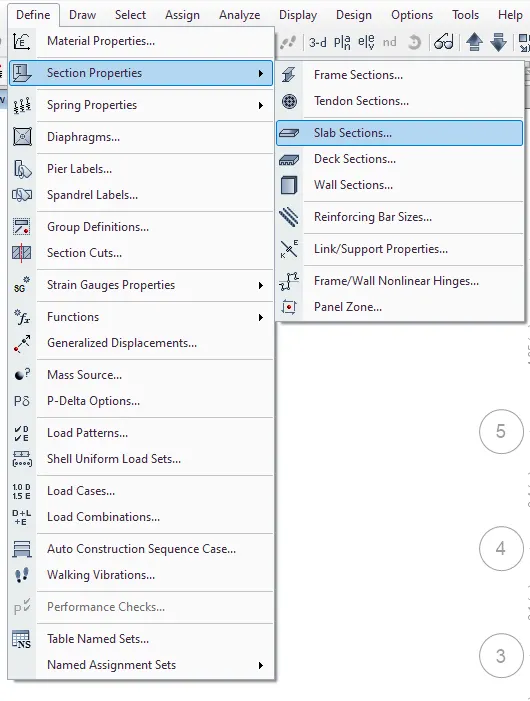

Add the slab by going into slab selection:

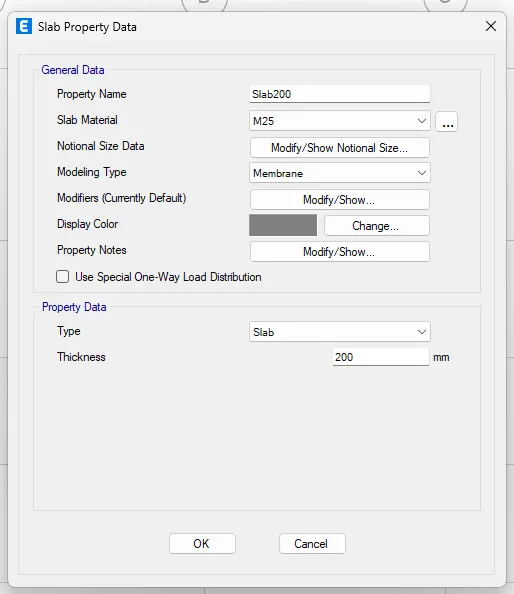

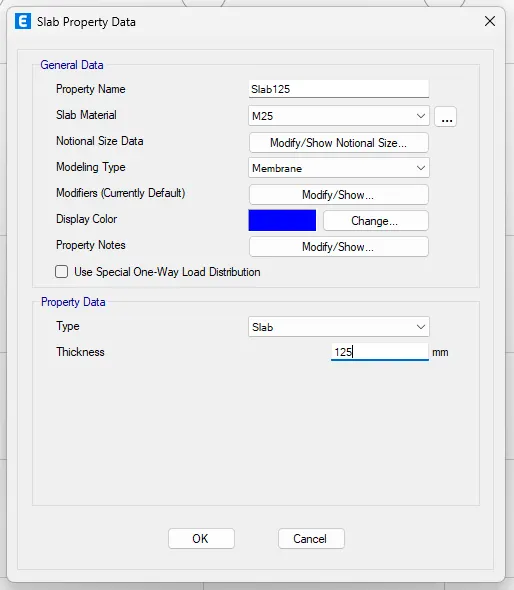

Add the new slab with the properties given below:

Add the new slab with the following properties for the staircase:

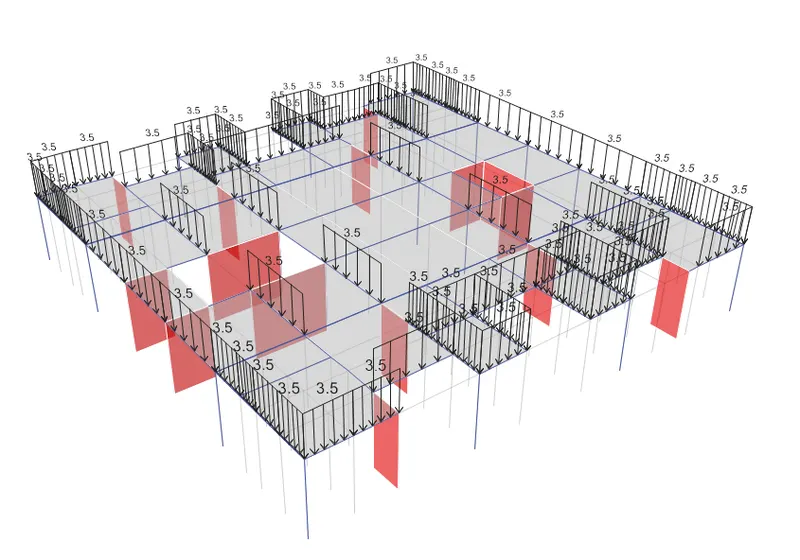

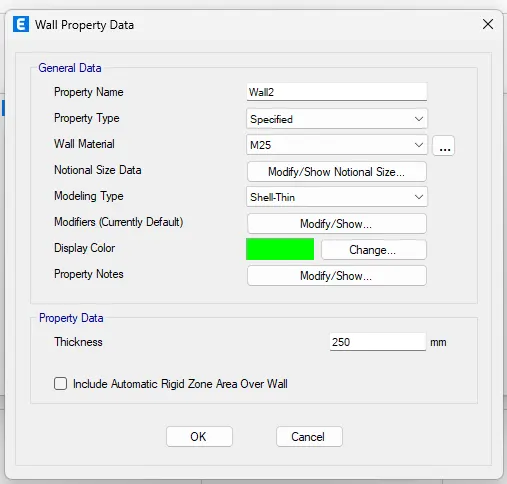

Now its time to add wall properties in the wall property data as follows:

Defining the materials is completed, Now let's add the columns first using the quick draw option:

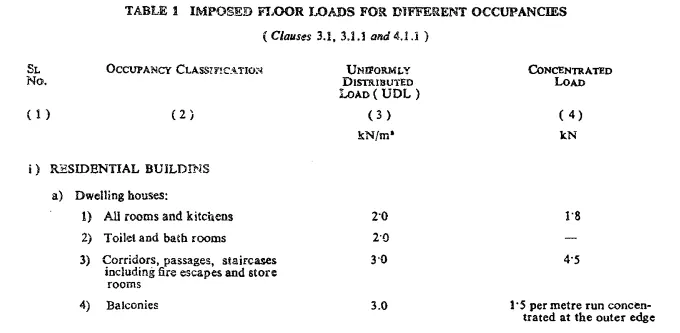

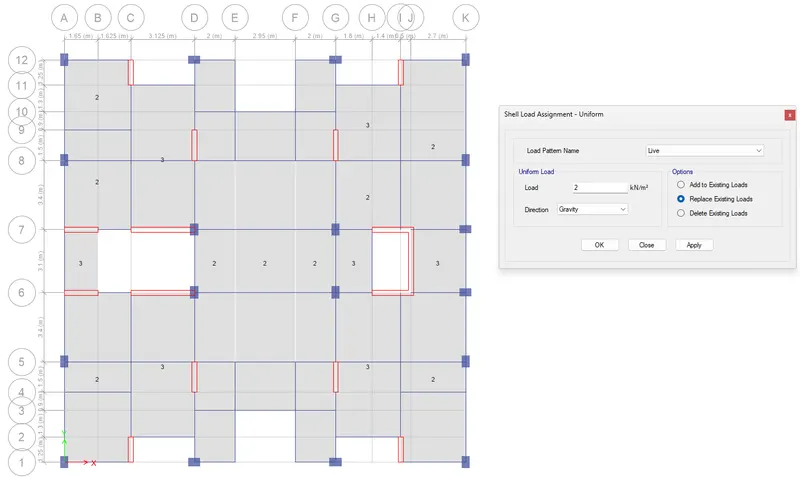

Assign the live loads according to the IS code book:

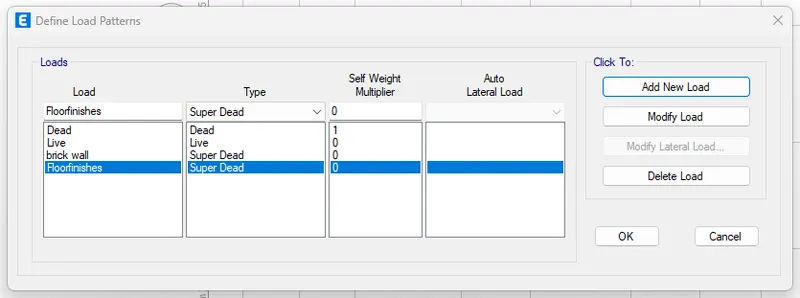

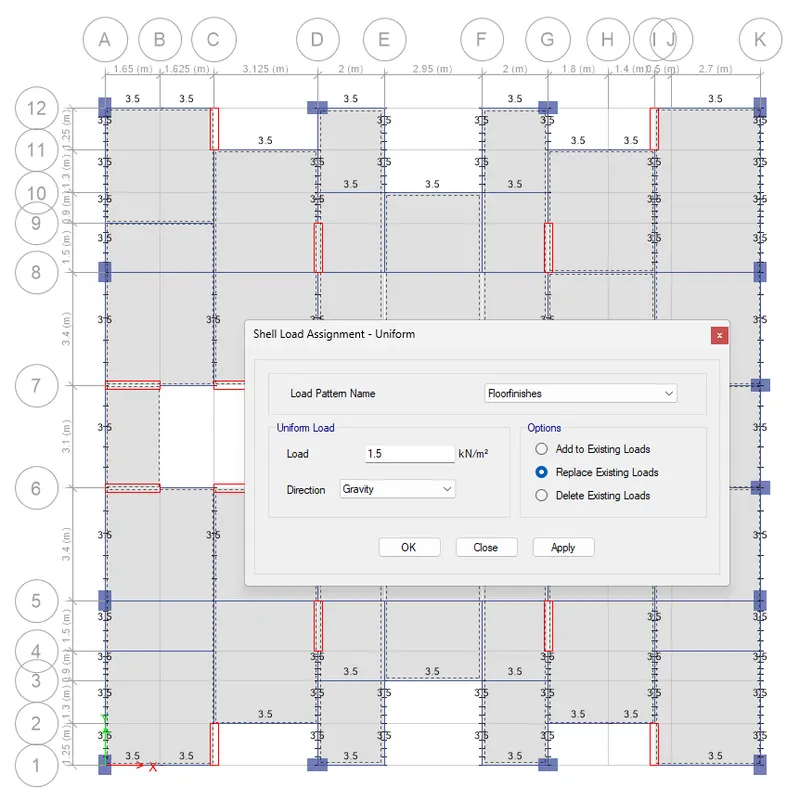

Apply floor finishing 1.5kN/m2

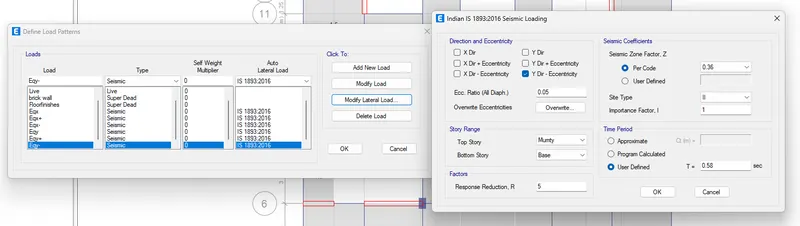

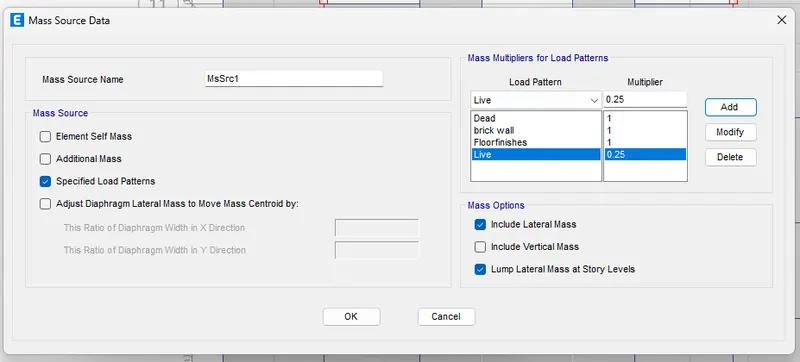

Next, define the earthquake loads:

Time period:

Along the x and y directions Ta=0.58

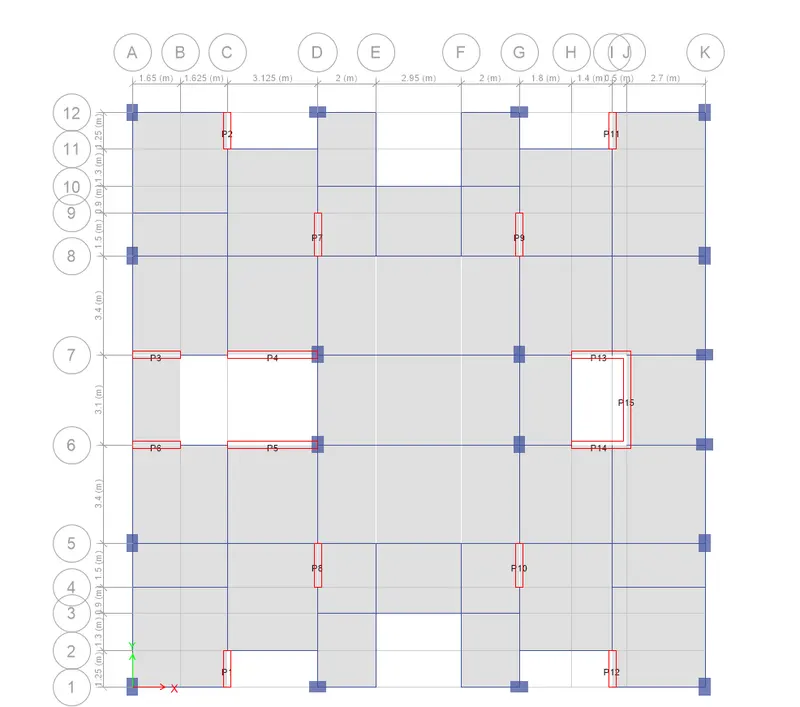

Add pier labels

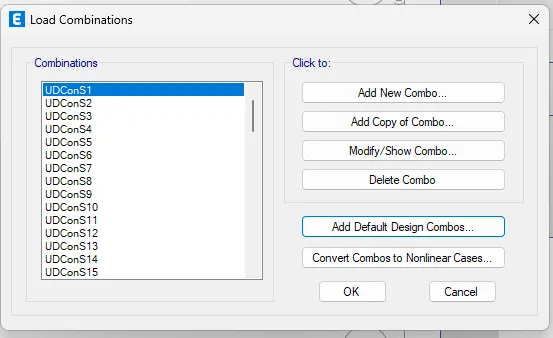

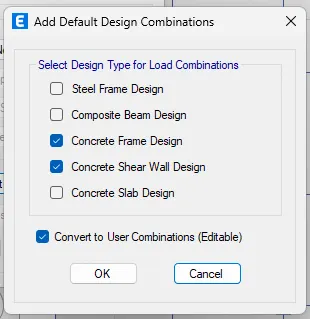

Define Load combinations:

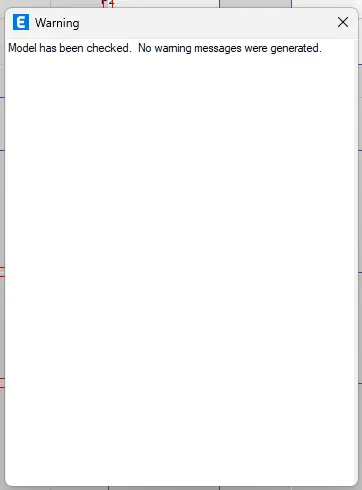

Check the modal before analysing it

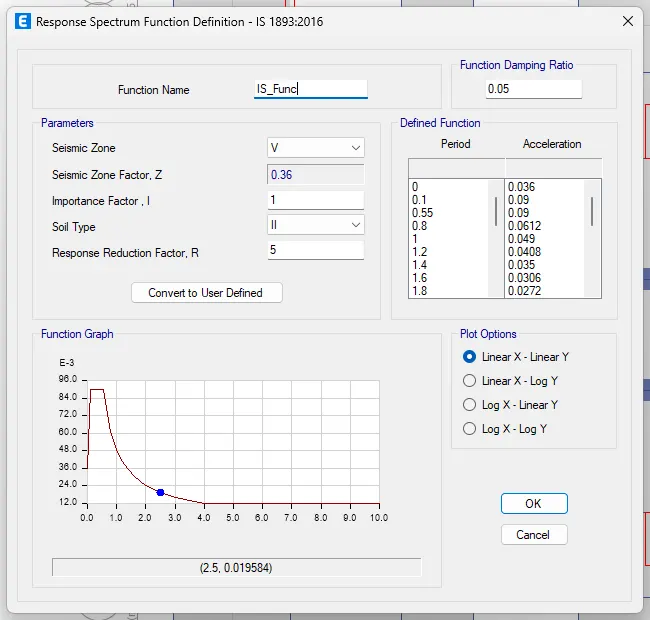

Add Response Spectrum Function:

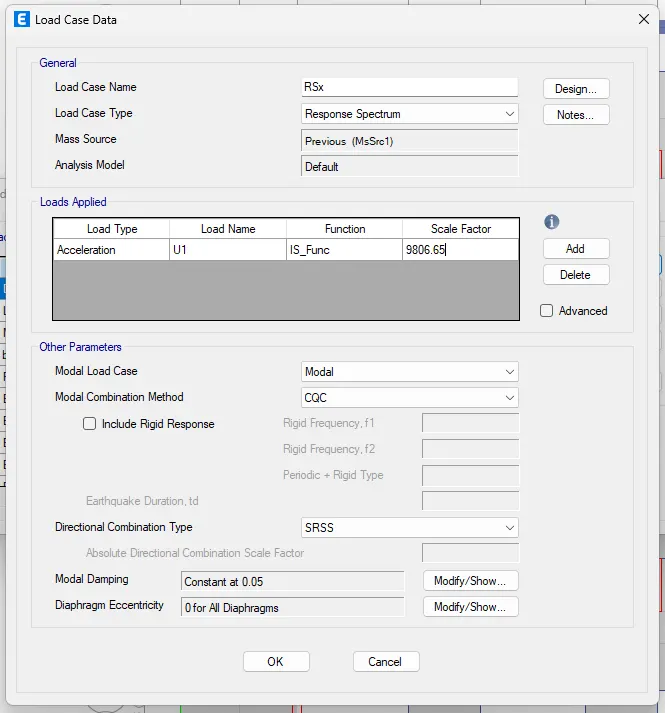

Add response spectrum load case:

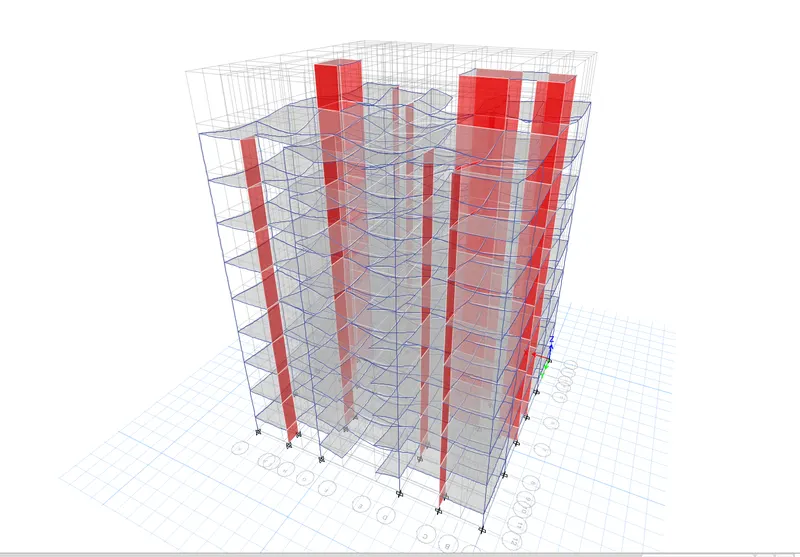

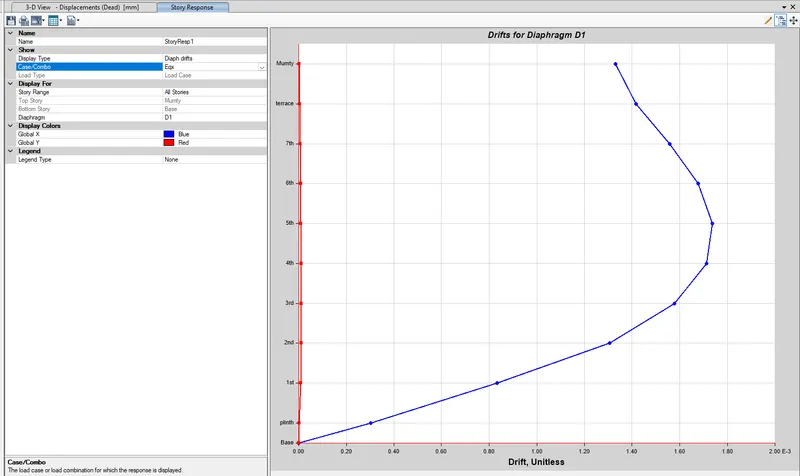

Run the analysis and this is the deformed shape:

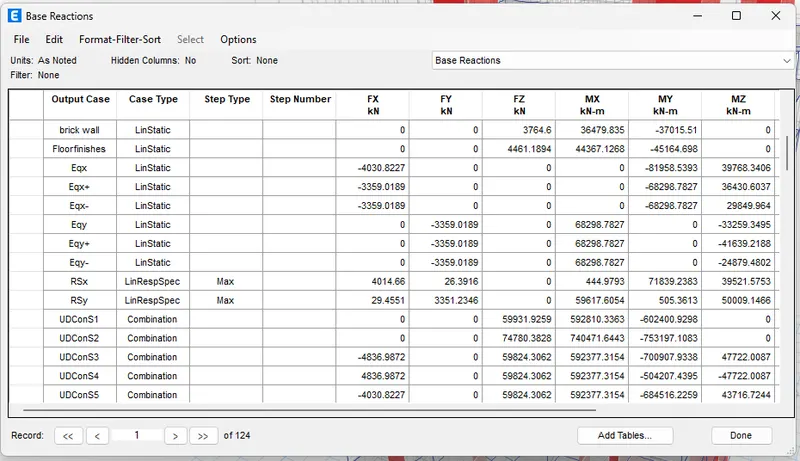

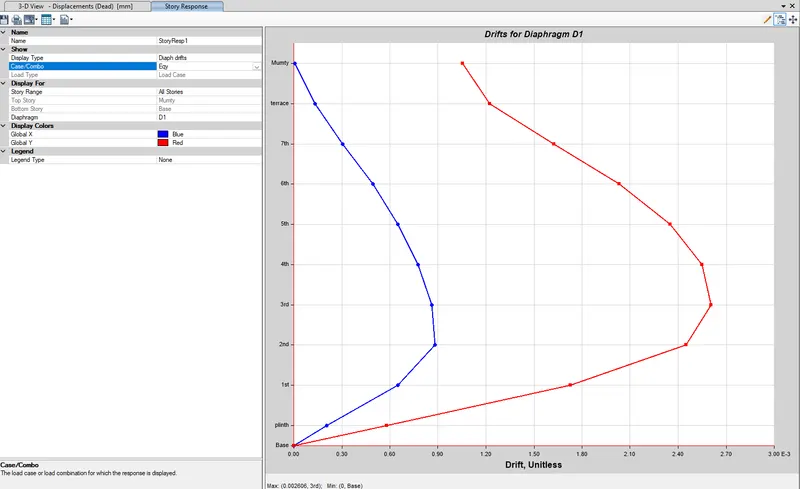

Adjust the response spectrum and base shear values:

Eq X:

Eq Y:

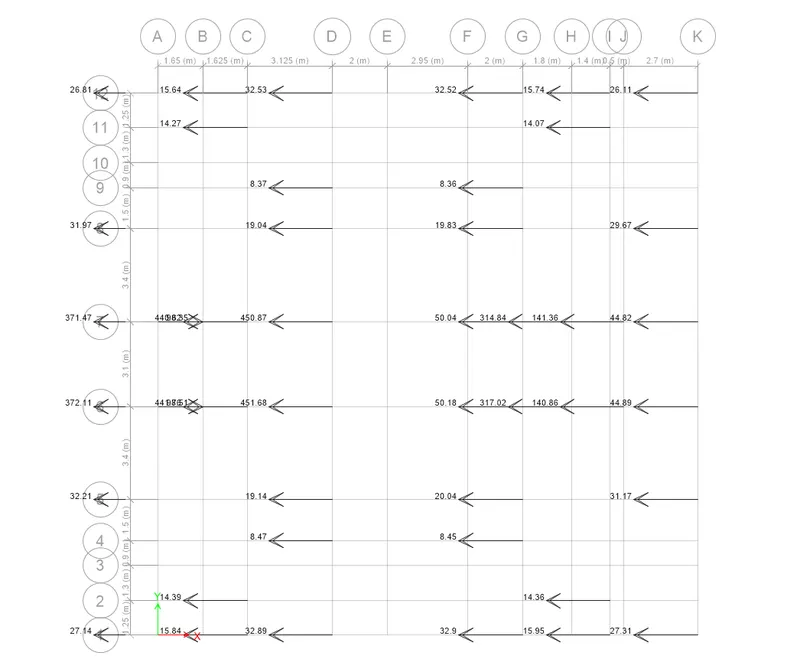

now base reactions due to shear wall is obtained in x and y direction.
