Structural dynamics

Structural dynamics

1. Differentiate Static analysis and Dynamic analysis with proper representing pictures (30 marks)

AspectStatic AnalysisDynamic Analysis
DefinitionAssumes loads are applied slowly and do not vary with timeConsiders loads that change with time, like earthquakes
Load NatureTime-invariantTime-dependent (e.g., seismic loads, vibrations)
Equations Used[K]{u}={F}[K]\{u\} = \{F\}[K]{u}={F}[M]{u¨}+[C]{u˙}+[K]{u}={F(t)}[M]\{\ddot{u}\} + [C]\{\dot{u}\} + [K]\{u\} = \{F(t)\}[M]{u¨}+[C]{u˙}+[K]{u}={F(t)}
ParametersConsiders stiffness onlyConsiders mass, stiffness, and damping
ResultDisplacement and internal forcesTime history response, peak responses, modes of vibration
ApplicationsBuilding loads (dead/live), wind loads (static), bridgesEarthquake design, machine vibration, blast loading

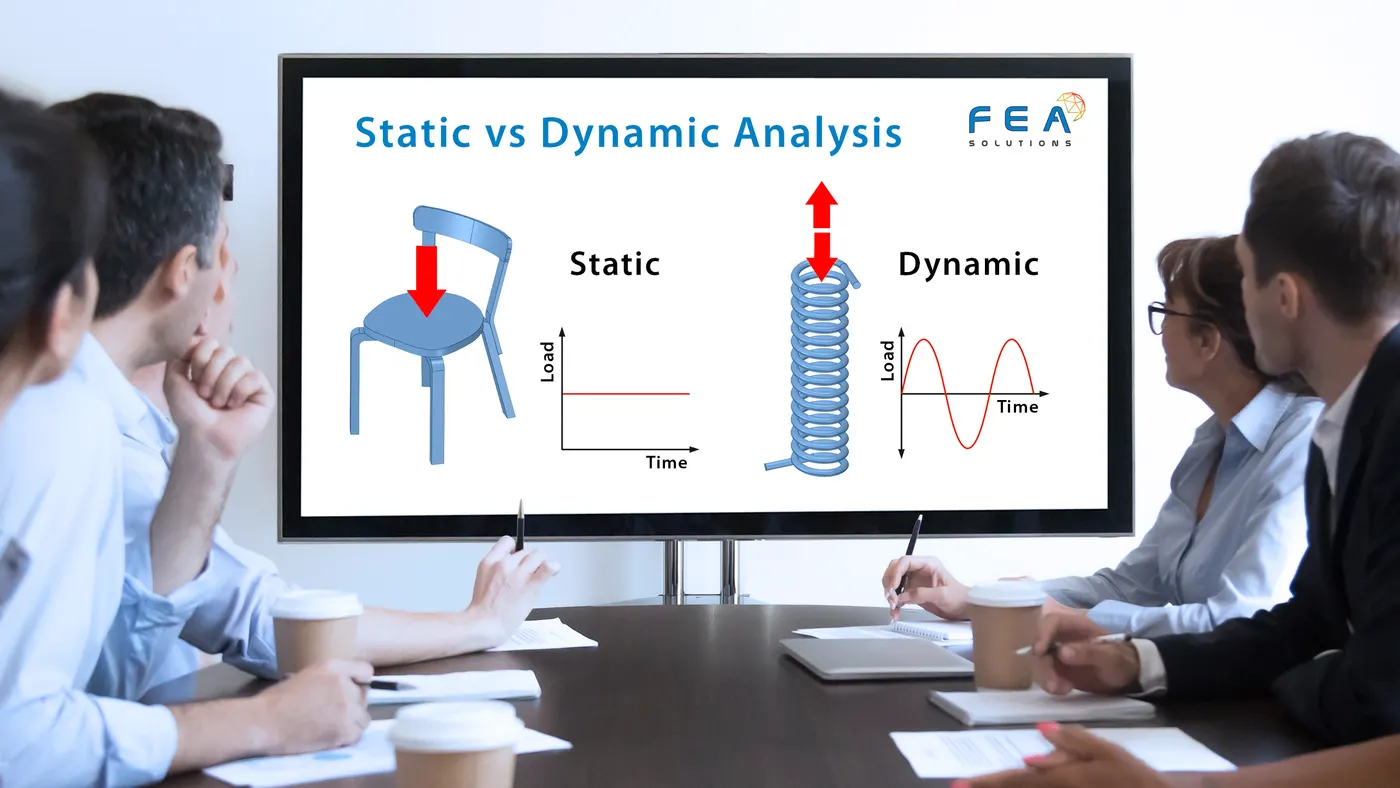

Illustrative Diagrams:

Static Analysis

Dynamic Analysis

2. Explain the following with relevant Force-Displacement Graphs (40 Marks)

Elastic Behavior (10 Marks)

  • Definition: Returns to original shape upon removal of load.

  • Graph: Straight line from origin (Hooke’s Law)

  • Equation: F=kxF = kxF=kx


Inelastic Behavior (10 Marks)

  • Definition: Partial recovery after removing load, some deformation remains.

  • Graph: Curve that does not return fully to origin.


Plastic Behavior (10 Marks)

  • Definition: Permanent deformation even after load is removed.

  • Graph: Sharp yield point followed by flat/softened line.


Non-linear Inelastic Behavior (10 Marks)

  • Definition: Neither linearly proportional nor fully recoverable. Complex behavior under large deformations.

  • Graph: Non-linear, hysteresis loop under cyclic loading.

Here's a proper set of Force-Displacement Graphs for each of the behaviors. These graphs help visualize how different materials or systems behave when subjected to external force.

1. Elastic Behavior

  • Key Point: Fully recoverable deformation.

  • Graph: Linear relationship (Hooke’s Law)

Force (F)↑Displacement (x)→\text{Force (F)} \uparrow \quad \text{Displacement (x)} \rightarrowForce (F)↑Displacement (x)→

| | / | / | / |______/

Explanation: The structureS returns to its original position after the load is removed. The slope of the line = stiffness

k=F/xk = F/xk=F/x.

2. Inelastic Behavior

  • Key Point: Partial recovery; some deformation remains.

  • Graph: Curved path with residual displacement after unloading.

| | / | / | / |_____/_____ \ \___

Explanation: After unloading, the material does not return completely to the origin; some permanent strain remains.

3. Plastic Behavior

  • Key Point: Beyond yield point, permanent deformation occurs.

  • Graph: Linear till yield, then flat or less steep

| | / | / | / |_____/---------

  • Explanation: Initially elastic, but once the yield point is reached, the material flows plastically and doesn’t return to original shape even after unloading.

  • 4. Non-Linear Inelastic Behavior

    • Key Point: Complex, non-linear, often cyclic behavior; energy is dissipated.

    • Graph: Hysteresis loop, often used in seismic or cyclic loading

  • | | /\ | / \ | / \ |__/ \__

Explanation: In repeated loading and unloading (e.g., during earthquakes), the structure exhibits non-linear behavior and dissipates energy, shown by the area of the loop.

Here are the digitally represented Force-Displacement Graphs for:

  1. Elastic Behavior

  2. Inelastic Behavior

  3. Plastic Behavior

  4. Non-linear Inelastic Behavior (Hysteresis)

These visuals clearly illustrate the deformation characteristics under loading and unloading conditions.


3. Mass, Stiffness & Damping in Equation of Motion (30 Marks)

Equation of Motion:

[M]{u¨(t)}+[C]{u˙(t)}+[K]{u(t)}={F(t)}[M]\{\ddot{u}(t)\} + [C]\{\dot{u}(t)\} + [K]\{u(t)\} = \{F(t)\}[M]{u¨(t)}+[C]{u˙(t)}+[K]{u(t)}={F(t)}

TermDescription
[M][M][M]Mass Matrix – Inertia of the structure, resists acceleration
[C][C][C]Damping Matrix – Dissipates energy, resists motion
[K][K][K]Stiffness Matrix – Restores structure to original position
{F(t)}\{F(t)\}{F(t)}Time-dependent external forces like wind, earthquake, etc.
{u¨(t)}\{\ddot{u}(t)\}{u¨(t)}, {u˙(t)}\{\dot{u}(t)\}{u˙(t)}, {u(t)}\{u(t)\}{u(t)}Acceleration, velocity, and displacement respectively

4. Relationship Between Natural Period (Tn) & Natural Frequency (f) + Definitions (25 Marks)

Definitions:

  • Natural Period (Tn): Time taken by a structure to complete one full vibration cycle.
    Tn=2πωnT_n = \frac{2\pi}{\omega_n}Tn​=ωn​2π​

  • Natural Frequency (f): Number of cycles a system completes in one second.
    f=1Tn(Hz)f = \frac{1}{T_n} \quad \text{(Hz)}f=Tn​1​(Hz)

Relationship:

f=1TnorTn=1ff = \frac{1}{T_n} \quad \text{or} \quad T_n = \frac{1}{f}f=Tn​1​orTn​=f1​

Graph: Shows frequency vs period (inverse relationship)

5. Response Spectrum & Its Graph (25 Marks)

Definition:

  • A Response Spectrum shows maximum response (like displacement, velocity, acceleration) of a single degree-of-freedom (SDOF) system to a base excitation (typically an earthquake) across a range of natural periods or frequencies.

Types:

  • Displacement Spectrum

  • Velocity Spectrum

  • Acceleration Spectrum

Applications:

  • Used in seismic design to determine the peak response of structures without time history analysis.

Graph:

  • X-Axis: Natural Period (Tn)

  • Y-Axis: Spectral Acceleration SaSaSa, Velocity SvSvSv, or Displacement SdSdSd
