1)Heating, ventilation, and air conditioning (HVAC) system is designed to achieve the environmental requirements of the comfort of occupants and a process. HVAC systems are more used in different types of buildings such as industrial, commercial, residential and institutional buildings

Efficient HVAC systems make buildings safer and healthier. These systems may use fresh air from external surroundings to regulate temperature and humidity. Specially-trained HVAC consultants are an important authority in the industry because HVAC is an integral part of a building

2)

OPEN THE MECH TEMPLATE AND LINK THE C7

GO TO SYSTEM AND SELECT THE AIR TERMINAL

IN THAT  SELECT THE SUPPLY DIFFUSER AND SETUP THE OFFSET HEIGHT AND PALCE AND REQUIRED POINTS

IN THE SAME SELECT RETURN DUFFUSER AND PLACE THEM

AND SELECT MACHANICAL EQIPMENT AND SELECT AIR HANDING UNIT REQUIRED AND PLACE IT IN CORRCET PLACE

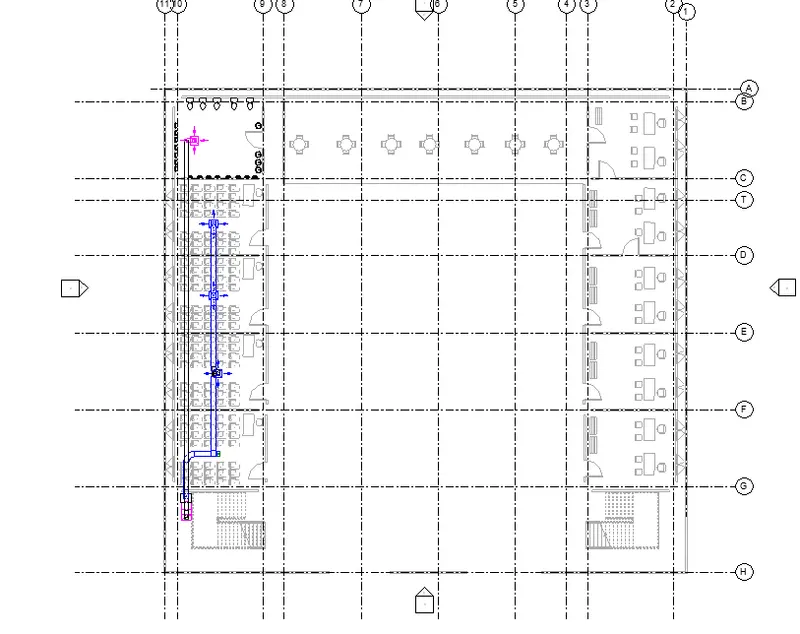

NOW SELECT THE AIR EQIPMENT AND ALL SUPPLY DUFFUSERS CONNECT WITH DUCT AND PALCE IN CORRECT LAYOUT AND OFFSET
