Structural analysis of a buidling using Robot Structural Analysis

 QUE 1 ] What are HVAC systems? Why are they essential in the modeling of buildings

HVAC system is one of the important component in the modelling of building the HVAC stands for heating ventilation and air conditioning now let's get into this terms hitting means to increase the room temperature of the input Air which flows into the building

ventilation can be defined as the replacement of the older air present in the room with new fresh air this can also be said as input of fresh air and output of state and bad air conditioning is a well known term which means that to allow cool air into building has become mandatory

in this days as the technology is developed and everyone are used to comfort with proper system we can increase the sustainability and condition of the building environment IT also improve the computer and increase the work ability of the member mainly this system are used at malls offices and larger clubs where the population is more as the population is more amount of air will be required otherwise it lead to suffocation

this day people have started paying more interested regarding their health with the help of automatic HVAC system we can control the internal temperature every easily proper HVAC system who are the investment for any business because it gives energy savings HVAC system today ARE automated which means one is no longer have to manually adjust temperature settings of each machine entire have access team operate in a am system proper adjustment will be made right when they are needed this makes our energy consumption more efficient as it get rid of energy wasted on improper settings if the outside environment temperature is more automatically the cooling system will on and moderate the temperature by allowing more cool fresh air if the inside temperature is called the system activate the heating system or  which gradually increase the temperature and make us feel comfortable So HVAC systems important and essential model of building

 QUE 2) From week 7 assignment, based on the building designed use the same Revit file to design a HVAC system for each floor to cover the topics included in the class.
            a. Typical HVAC unit includes Distribution center
            b. Collector
            c. Ducts
            d. Blower
Based on the layout choose appropriate ducts and elevation using property browser and assign the components to appropriate groups to complete modeling of the HVAC unit

Aim-to add hvac system for each floor created in week 7 and to include all the compnents like distribution centre duct etc to the models

Tools and component required

• System
• Duct
• Air terminal
• Mechanical equipment

Procedure-

1. 1. Open Revit file and click on new

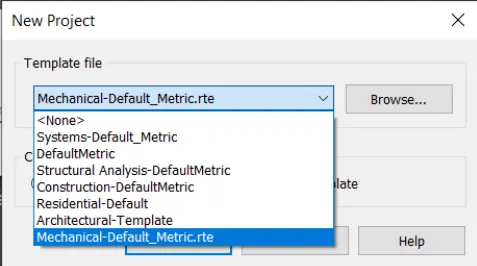

   2. Select Imperial mechanical template and click ok savethe file with appropriate name by selecting file option and save the file with appropriate name

   click on save go to collaborate tab and click on collaborate tab

   1. a dialogue box appears then select within Network and click ok

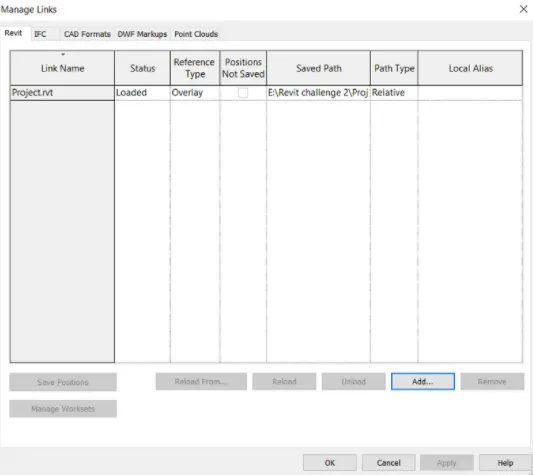

   2. select on manage tab and choose manage link option
   3. then a dialogue box appear on the click on add
   4. now select architectural model which was created last week and
   5. click an open click ok
   6. then the modal is open in the mechanical model place air terminal in required room

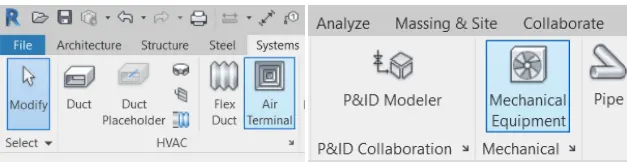

   7. Now select system tab and select duct system
   8. select quick connect option and place them in a required room
   9. now place the duct at required room

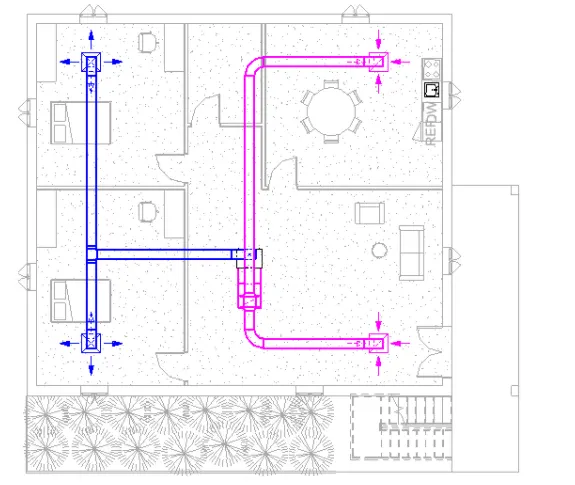

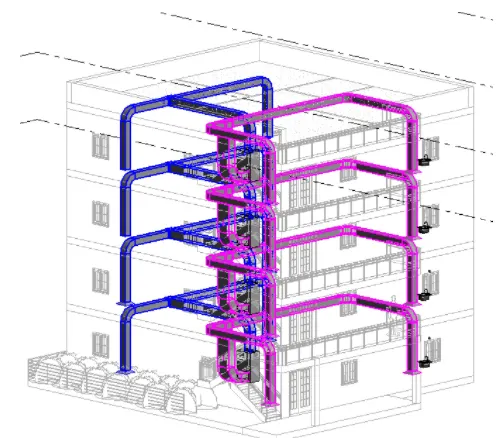

result= all HVAC component are added to the floor layout and other components like doctor air terminal are added to previously created layout mode



QUE  3 ] Use the add-ins tab to load plug-ins for robot structural analysis to your Revit software

AIM- to load plug-in for robot structural analysis for Revit software by using add in Tab

 STEP to add in tab to load plugin for robot structural analysis-

• first check whether the robot structural analysis is enabled or not
• if not available we have to download it from autodest store

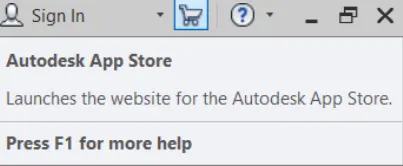

• click on the trolley Logo Shopping Cart logo on the top of Ravit
• The auto desk stores opens in the search box type Structure Analysis followed by the respective version of rivet software
• then download the tool

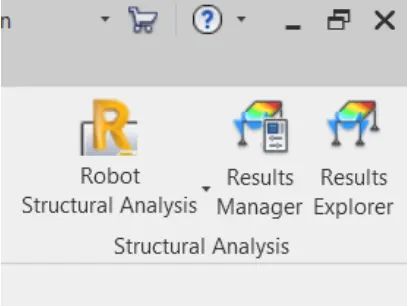

• the robot structural analysis will be reflected in our Revit software
•

result-



 QUE 4 ] Why do we need to assess buildings/analyze while modeling elements? Does design affect modeling in anyways?

Structure is one of the important component in a building we can't imagine our h u a successful building without a proper structure the structure Framework At The Skeleton Framework go to the building all the loads are been taken by the structural part the architecture part only plays an important role in the appearance of the building

structure analysis is  very important to a building as to know how much load can the building where and how long the building can with hold the loads before the construction of the building we do not have all the component installed in the building like walls and other components so before a construct the building where how to do the analysis on taking appropriate load values to calculate how much load the structure can be here after the construction of the building if the structure collapses as it can't hold the load then we can't do anything we can calculate the total load deflection sfd and bmd

Structure Analysis can also be considered as a demo test or sample test to get a detailed strength of the structure in a building we how many types of loads like point load uniform load area load and so on so in this analysis we can add the type of load we want and assume the load values to test our structure it is considered a better if the structure holder more load than the load capacity calculated in the analysis

 the design affect the model so we have to place the column at such places where they do not cause much disturbance and at places where it can hold maximum amount of load so thus we can conclude that it is necessary to do the Structure Analysis file modelling elements and we can say that the design affects modelling

 QUE 5) From the structural model developed in week 6 and 7, export the complete analytical model to robot structural analysis.
             a. List your assumptions on what boundary conditions will be realistic for the analysis approach
             b. Use the design standards to decide what loads must be applied to floorings based on the type of structure decided
             c. List the load combinations and include them in the analysis model
             d. Analyze the building and report the following results
                              i. Maximum Moment in each floor for all Load Combinations
                              ii. Maximum Displacement in each floor for all Load combinations
                              iii. Lateral Displacement in building for all Lateral Load combinations
             e. After analysis, do you think you have a better approach or idea in modeling structural members?

Aim-To perform robot Structure Analysis to the building model which was created elastic model

A]Boundary condition are the condition which are to be satisfied at all part of a bond region where differential condition have to be solved separately for the analysis of the structure we have to have loads as in case we do not have any laws we have to assume suitable amount of load for the analysis we have forces in any direction along x y z Axis we have to assume that the total movement as zero and the structure is in equilibrium we have to play slots at suitable places so as to complete the analysis

B]list of parameter required

• degree of freedom
• supports
• type of a load
• opposing load

C] we can apply different type of a load based on a requirement like-

• dead load
• earthquake load
• wind load

D] load combination

 total number of floors in my building are 3 floors including ground floor  I had applied to loads and mention in below process

1. first we have to open the structural template fiLe which was created previously week
2. we have to select analysis view from 3D view

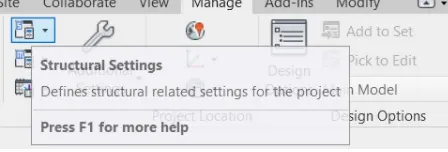

3. go to manage tab and select the structural design setting option

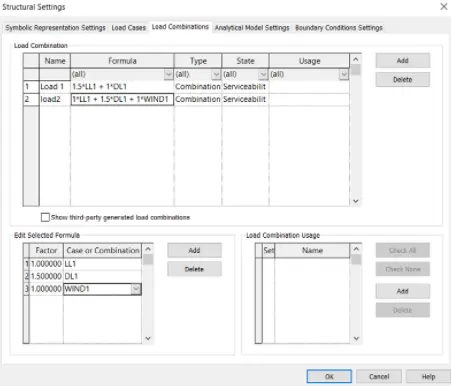

4. A dialogue box appears then select a load combination tool from that box
5. fil required a load in it by adding different to load and their formulas

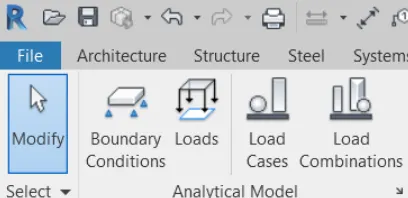

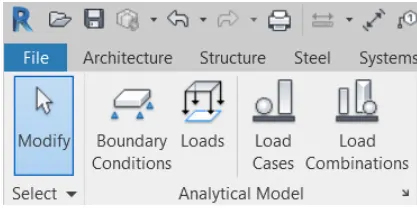

6. select load from analyse tab
7. select any type of a load from the mentioned a load like point load area load EtC
8. select area to be place the load and to do the same to all labour and applied load and click right mark

RESULT=

   E]  procedure –

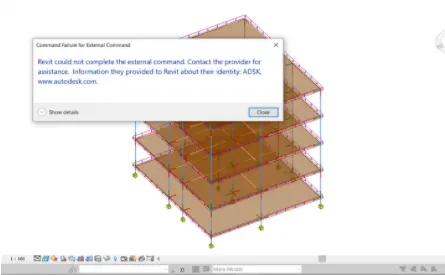

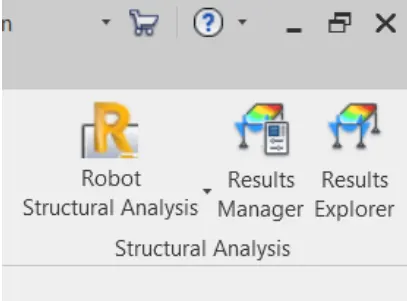

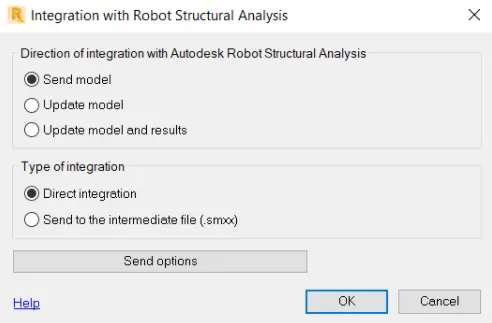

1. open the file and select analyse tab and click on robot structural tab
2. select robot structural analysis link
3. a dialogue box appears then click ok

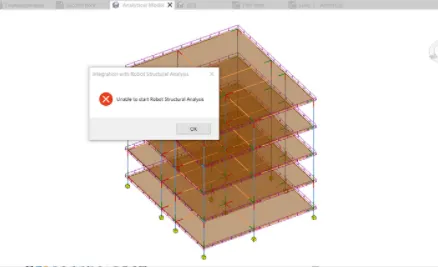

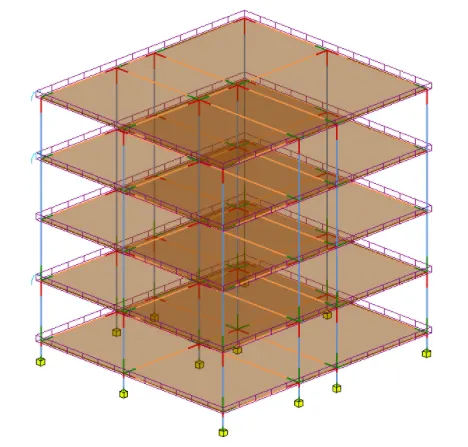

4. the model sends to robot analysis tab and dialogue box appears

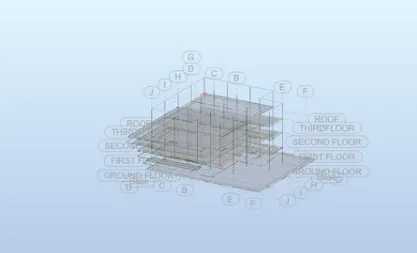

5. click is then the view is opened in robotic Structure Analysis
6. now choose the result from the tab then group of option will be displayed on the screen select reaction
7. a dialogue box a then click yes
8. then group of a dialogue bOX click YES

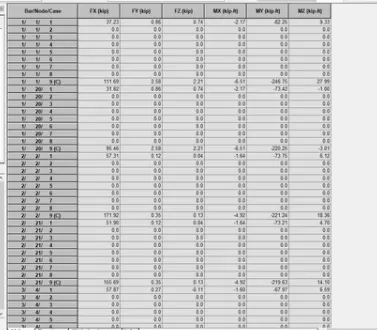

9. a sheet with values are visible
10. do the same process like selecting the displacement movement from the RESULT TAB



RESULT=



6) What is energy analysis and why do we need to consider it while modeling in Revit?

How does the factor of sustainability improve the quality of your design?

Energy analysis is a way where we can calculate the amount of energy used in an operation which involves physical and chemical action which also plays a roll in a transferring and exchange of energy with the help of energy analysis we can analyse the in and out volume of air through the opinions and rooms with this analysis we can find out the defect in our project and rectify the plan in which we do not have any problem from the environment

in this analysis all the component are taken into consideration like electric equipment and other equipment which religious heat into the environment the energy analysis is very important in the modelling of projector in rabbit because if the energy released is more it may cause human and environmental damage

we have to implement different technique where the energy released could be minimised like using renewable source of energy like solar panels Biomass wind energy and so on we have to recycle most of the product which does not cause more damaged to the environment

 we can perform the energy analysis for revit model by using energy analysis for autodesk revit this add-in connect the design power of the Revit project file to the auto desk green building Studio which act as a basic constraint for Calculation and evolution
