Stability analysis in the unsteady problem
Objective:
To compare the effect of Time Step variations on both Explicit and Implicit methods on the stability of the solution. Also evaluate the value at which the CFL becomes unstable.
Input:
Boundary conditions:
Top Boundary = 600 K
Bottom Boundary = 900 K
Left Boundary = 400 K
Right Boundary = 800 K
Error Criteria = 1e-4
TRANSIENT STATE:
A transient state is essentially the time between the beginning of the event and the steady state.
Transient state can be defined by stating that if a quantity is at rest and a change in time takes place, thus changing the current state, a transient has occurred.
δTδt=α⋅(δ2Tδx2+δ2Tδy2)
EXPLICIT METHOD:
In the code used we can see the Explicit Approach used in the Transient Solutions:
Tn+1i,j=Tni,j+(α⋅Δt)(Tni+1,j−2⋅Tni,j+Tni−1,jΔx2+Tni,j+1−2⋅Tni,j+Tni,j−1Δy2)
Here the only term to be found out is the Tn+1i,j
, all the other terms used are from previous time step, which are already known. Therefore, this equation can be solved explicitly and hence the name- Explicit Method.
IMPLICIT METHOD:
Referring to the equations noted below for the Jacobi, GS and SOR method we can see the Implicit method employed in the Transient Approach to solve the problem.
By definition, an implicit approach is one where the unknowns must be obtained by means of a simultaneous solution of the difference equations applied at all the grid points arrayed at a time level. Because of this need to solve large systems of simultaneous algebraic equations, implicit methods are usually involved with the manipulations of large matrices.
JACOBI ITERATION METHOD:
In numerical linear algebra, the Jacobi method is an iterative algorithm for determining the solutions of a strictly diagonally dominant system of linear equations. Each diagonal element is solved for, and an approximate value is plugged in. The process is then iterated until it converges.
The formula for Jacobi Method for Transient Implicit State can be written as:
T(i,j)n+1=term1⋅Tprev(i,j)n+term2⋅(Told(i−1,j)n+1+Told(i+1,j)n+1)+term3⋅(Told(i,j−1)n+1+Told(i,j+1)n+1)
where k1=α.ΔTΔx2
; k2=α.ΔTΔy2 ; term1=11+2k1+2k2 ; term2=k1⋅term1 ; term3=k2⋅term1;Told is last iteration's value.; Tprev
is last Time Step's value; the value n and n+1, gives the time step
GAUSS-SEIDEL ITERATION METHOD:
Gauss–Seidel method is an iterative method to solve a set of linear equations and very much similar to Jacobi’s method.
Here the better solution is x = (x1, x2, … , xn), if x1(k+1) is a better approximation to the value of x1 than x1(k) is, then it would better that we have found the new value x1(k+1) to use it (rather than the old value that isx1(k)) in finding x2(k+1), … , xn(k+1). So x1(k+1) is found as in Jacobi’s Method, but in finding x2(k+1), instead of using the old value of x1(k) and old values of x3(k),…, xn(k), we then use the new value x1(k+1) and the old values x3(k), … , xn(k), and similarly for finding x3(k+1), … , xn(k+1)
The formula for Transient Implicit State can be written as:
T(i,j)n+1=term1⋅Tprev(i,j)n+term2⋅(T(i−1,j)n+1+T(i+1,j)n+1)+term3⋅(T(i,j−1)n+1+T(i,j+1)n+1)
where k1=α.ΔTΔx2
; k2=α.ΔTΔy2 ; term1=11+2k1+2k2 ; term2=k1⋅term1 ; term3=k2⋅term1;Told is last iteration's value.; Tprev
is last Time Step's value; the value n and n+1, gives the time step
SUCCESSIVE OVER RELAXATION ITERATION METHOD:
The method of successive over-relaxation (SOR) is a variant of the Gauss–Seidel method for solving a linear system of equations, resulting in faster convergence.
For any iterative method, in finding x(k+1) from x(k), we move a certain amount in a particular direction from x(k) to x(k+1). This direction is the vector x(k+1) − x(k), since x(k+1) = x(k) + (x(k+1) − x(k)). If we assume that the direction from x(k) to x(k+1) is taking us closer, but not all the way, to the true solution x , then it would make sense to move in the same direction x(k+1) − x(k), but farther along that direction.
SOR Method uses the value from Gauss Seidel to converge the results faster with a parameter ω
TSOR(i,j)=(1−ω)⋅Told(i,j)+ω⋅TGS(i,j)
For ω>1 we have Over-Relaxation and ω<1 we have Under-Relaxation.
CODE For TIME STEP = 1e-4
%Solving the Transient State 2D heat conduction problem
clear all
close all
clc
%Defining GRID and INPUTS_GRID - 10*10 matrix
nx = 10;
ny = 10;
t = ones(nx, ny);
t(1:nx, 1) = 400;
t(1, 1:ny) = 600;
t(1:nx, ny) = 800;
t(nx, 1:ny) = 900;
t(1,1) = (t(1,2)+t(2,1))/2; %Assigning Corner values
t(nx,1) = (t(nx-1,1)+t(nx,2))/2; %Assigning Corner values
t(1,ny) = (t(1,ny-1)+t(2,ny))/2; %Assigning Corner values
t(nx,ny) = (t(nx-1,ny)+t(nx,ny-1))/2; %Assigning Corner values
t(2:nx-1,2:ny-1) = 300; %Assuming grid values
told = t;
tprev = t;
error = 9e9;
tolerance = 1e-4;
x = linspace(0,1,nx);
y = linspace(0,1,ny);
dx = 1/(nx-1);
dy = 1/(ny-1);
[xx yy] = meshgrid(x,y);
dt = 1e-4;
iteratoin_explicit = 0;
alpha = 1.4;
k1 = (alpha*dt)/(dx^2);
k2 = (alpha*dt)/(dy^2);
%Selecting method to solve Transient State Problem
method = input('Select the method to solve the Steady State problem \n 1. Explicit \n 2. Implicit Jacobi \n 3. Implicit Gauss-seidel \n 4. Implicit Successive over-relaxation \n')
% For Explicit Method
if method == 1
for nt = 1:1400
for i = 2:nx-1
for j = 2:ny-1
t(i,j) = told(i,j) + k1*(told(i-1,j)-2*told(i,j)+told(i+1,j)) + k2*(told(i,j-1)-2*told(i,j)+told(i,j+1));
end
end
told = t;
end
contourf(x,y,t,'showtext','on')
colormap(jet)
colorbar
set(gca,'YDIR','reverse')
xlabel('X axis')
ylabel('Y axis')
title(sprintf('Transient Analysis using Explicit Method'))
end
% For Implicit Jacobi Method
if method == 2
iteration_implicit_jacobi = 1;
term1 = 1/(1+2*k1+2*k2);
term2 = k1*term1;
term3 = k2*term1;
for nt = 1:1400
error = 9e9;
while(error>tolerance)
for i = 2:nx-1
for j = 2:ny-1
H = told(i-1,j)+told(i+1,j);
V = told(i,j-1)+told(i,j+1);
t(i,j) = term1*tprev(i,j) + term2*H + term3*V;
end
end
diff = abs(told-t);
error = max(max(diff));
told = t;
iteration_implicit_jacobi = iteration_implicit_jacobi + 1;
end
tprev = t;
end
fprintf('Number of Iterations for Implicit Jacobi Method = %d', iteration_implicit_jacobi)
contourf(x,y,t,'showtext','on')
colormap(jet)
colorbar
set(gca,'YDIR','reverse')
xlabel('X axis')
ylabel('Y axis')
title(sprintf('Transient Analysis using Implicit Jacobi Method'))
end
% For Implicit Gauss-Seidel Method
if method == 3
iteration_implicit_GS = 1;
term1 = 1/(1+2*k1+2*k2);
term2 = k1*term1;
term3 = k2*term1;
for nt = 1:1400
error = 9e9;
while(error>tolerance)
for i = 2:nx-1
for j = 2:ny-1
H = t(i-1,j)+t(i+1,j);
V = t(i,j-1)+t(i,j+1);
t(i,j) = term1*tprev(i,j) + term2*H + term3*V;
end
end
iteration_implicit_GS = iteration_implicit_GS + 1;
diff = abs(told-t);
error = max(max(diff));
told = t;
end
tprev = t;
end
fprintf('Number of Iterations for Implicit Gauss-Seidel Method = %d', iteration_implicit_GS)
contourf(x,y,t,'showtext','on')
colormap(jet)
colorbar
set(gca,'YDIR','reverse')
xlabel('X axis')
ylabel('Y axis')
title(sprintf('Transient Analysis using Implicit Gauss-Seidel Method'))
end
% For Implicit SOR Method
if method == 4
iteration_implicit_SOR = 1;
term1 = 1/(1+2*k1+2*k2);
term2 = k1*term1;
term3 = k2*term1;
w = 1.015;
for nt = 1:1400
error = 9e9;
while(error>tolerance)
for i = 2:nx-1
for j = 2:ny-1
H = t(i-1,j)+t(i+1,j);
V = t(i,j-1)+t(i,j+1);
t(i,j) = term1*tprev(i,j) + term2*H + term3*V;
t(i,j) = (1-w)*told(i,j) + w*t(i,j);
end
end
iteration_implicit_SOR = iteration_implicit_SOR + 1;
diff = abs(told-t);
error = max(max(diff));
told = t;
end
tprev = t;
end
fprintf('Number of Iterations for Implicit SOR = %d', iteration_implicit_SOR)
contourf(x,y,t,'showtext','on')
colormap(jet)
colorbar
set(gca,'YDIR','reverse')
xlabel('X axis')
ylabel('Y axis')
title(sprintf('Transient Analysis using Implicit SOR Method'))
endOUTPUT:

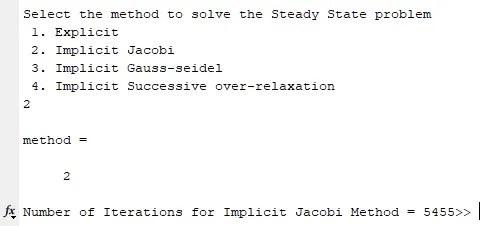

1. Implicit Jacobi Method

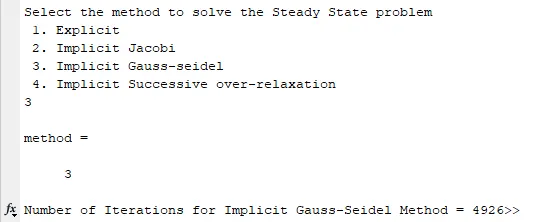

2. Implicit Gauss-Seidel Method

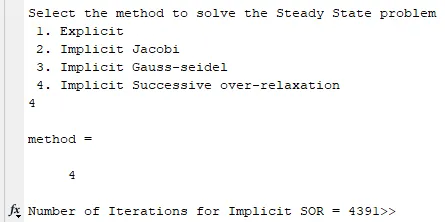

3. Implicit SOR Method
OUTPUT PLOTS:

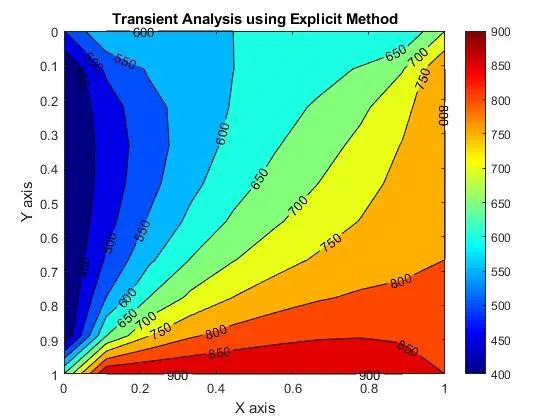

1. Explicit Method

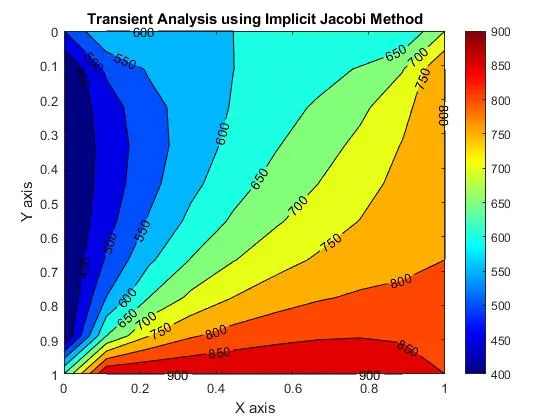

2. Implicit Jacobi Method
3. Implicit Gauss-Seidel Method
4. Implicit SOR Method
TIME STEP VARIATIONS:
|
Time Step |
CFL(K1,K2) |
Explicit |
Jacobi |
GS |
SOR |
|
1e-1 |
11.34 |
Unstable |
2228 |
1869 |
1855 |
|
1e-2 |
1.134 |
Unstable |
2716 |
2193 |
2171 |
|
1e-3 |
0.1134 |
Stable |
3666 |
3117 |
3054 |
|
1e-4 |
0.0113 |
Stable |
5455 |
4926 |
4391 |
UNSTABLE PLOTS:

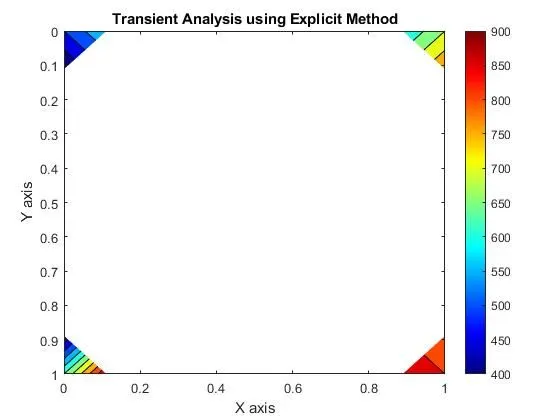

Unstable plot for Time-Step = 1e-1 and 1e-2
RESULT EXPLANATION:
Implicit approach is relatively more complex when compared with Explicit approach, owing to its need for finding unknown values using Simultaneous equations
Main issue for explicit approach- For both implicit and explicit methods, increments Δx and Δy are employed. But for explicit when the Δx and Δy is selected, Δt becomes dependent on Δx and Δy for CFL criteria(Courant-Friedrichs-Lewy)
CFL states that the distance that the information travels during the timestep length within the mesh must be lower than the distance between mesh elements. In other words, information from a given cell or mesh elements must propagate only to its immediate neighbours.
For our problem- CFLx=α⋅(ΔtΔx2)
and CFLy=α⋅(ΔtΔy2)
Here the Δt should be restricted to be equal to or less than Δx2
and Δy2 for the limit imposed by stability criterion.
