Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

Aim:

• To sketch a G+1 floor residential plan according to Vastu Shastra and to list down the names of structural drawings required to be provided to the site of construction.
• Assume the size of structural elements ( column,beam ,slab etc.) and accordingly calculate the individual corresponding loads from the members according to IS code.

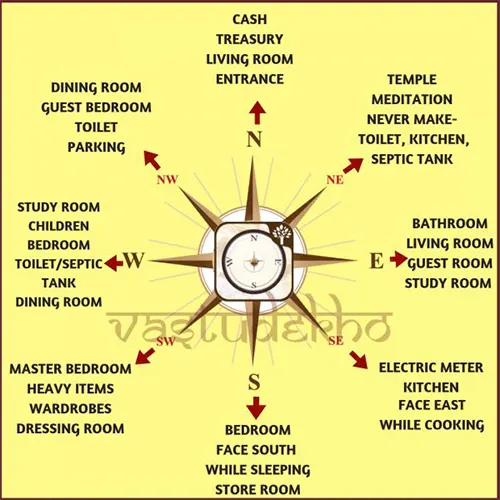

Vastu Shastra:

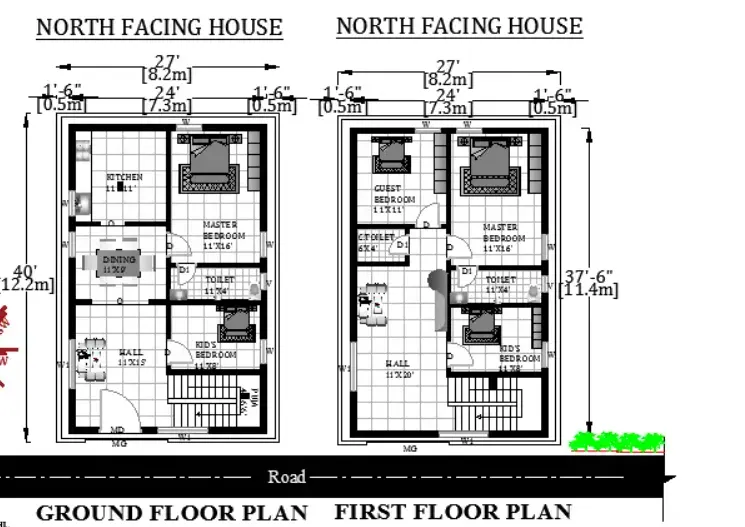

Drawing:

Other dimensions:

• Thickness of internal wall : 0.15 m
• Thickness of external wall : 0.23 m
• Thickness of slab : 0.25 m
• Dimension of column : 0.3m x 0.3 m
• Dimension of beam: 0.3m x 0.45m
• Height of wall of each floor: 3m

List of Drawings provided at construction project:

1. Architectural Drawings
2. Electrical Drawings
3. Plumbing Drawings
4. Structural Drawings
5. Fire Fighting Drawings
6. HVAC Drawings

An architectural drawing is a technical drawing of a building (or building project) that is used by architects to develop a design idea into a coherent proposal, to communicate ideas and concepts, to convince clients of the merits of a design, to enable a building contractor to construct it, as a record of the completed work, and to make a record of a building that already exists.

The following are typical components found in a full set oArchitectural Construction Drawings:

1. Setting Out Plan
2. Floor Plans
3. Elevation Drawings
4. Section Drawings
5. Working Drawings
6. Opening Schedules
7. Rood Drainage Plan
8. Flooring Plan
9. Furniture Plan
10. Typical Details

2.Electrical Drawings

These drawings shows the location of electrical equipment and their layout in the building.

1. Electrical Legend
2. Floor Lighting Plan
3. Floor Power Plan
4. Single Line Diagram
5. Fire Alarm Layout
6. Floor Sound System and CCTV Camera
7. Equivalency Chart
8. Lightening Protection Earthing Details

3.Public Health Drawings

1. Legend and General Notes
2. Sewerage and Rainwater Layout Plan
3. Manhole Schedule
4. Plumbing Construction Details
5. Water Supply Layout

4. Structural Drawings

These drawings show the support system of the building like how the building is standing, what are its structural components, what is the strength of the building and how beams, columns, stairs, slabs etc. are connected and thus like.

1. General Notes
2. Typical sections
3. Foundation excavation plan
4. Footing sections
5. Ground floor column plan
6. Column sections
7. Ground floor plinth beams plan
8. Plinth beams sections
9. Ground floor beam plan
10. Beam sections
11. Ground floor slab bottom rebar detail
12. Ground floor slab top rebar detail
13. Ground floor slab section
14. Overhead water tank design
15. Septic tank design

1. Legend and Notes
2. Fire Fighting Layout Plan (For Each floor)

6.HVAC Drawings

1. Legend and General Notes
2. AC Layout Plan (for each Floor)
3. Equipment Schedule and Installation Detail

Calculation of Loads:

• Dead load calculation:

(a) Dead load of column:

Height of column : (slab thickness x 2) + (Height of each floor x 2) = (0.25 x 2) + (3 x 2) = 6.5 m

Total volume of concrete = 0.3 x 0.3 x 6.5 = 0.585 m^3

Unit weight of RCC = 25 kN/m^3

Dead load on column = 25 x 0.585 = 14.62 kN

(b) Dead load of beam:

Total volume of concrete = 0.3 x 0.45 x 1 = 0.135 m^3

Dead load of beam = 25 x 0.135 = 3.375 kN

Unit weight of building materials as per IS 875 (Part 1)

(c) Dead load of slab:

Slab is always designed for span 1m.Hence , assume size of slab = 1m x 1m

Thickness of slab = 0.25m

Self weight of slab = 1 x 1 x 0.25 x 25 = 6.25 kN

(d) Dead load of walls:

External wall: Thicknes = 0.23 m , Unit weight of brick wall= 20 kN/m^3, Height of wall = 3m

Load of wall on beam = 3 x 0.23 x 20 = 13.8 kN

Internal wall: Thickness = 0.15 m

Load of wall on beam = 3 x 0.15 x 20 = 9 kN

• Live load calculation:

According to IS 875 (Part 2)

Following are the live loads for different buildings:

Sl. No.	Description	UDL Load (kN/m2)	Concentrated Load (kN)
1.	Bathrooms and toilets in all types of buildings	2	1.8
2.	Living and bed rooms	2
3	Office rooms in
	(i) Hostel, hotels, hospitals and business building with separate store	2.5	2.7
	(ii) In assembly buildings	3	4.5
4.	Kitchens in
	(i) Dwelling houses	2	1.8
	(ii) Hostels, hotels and hospitals	3	4.5
5.	Banking halls, class rooms, X-ray rooms, operation rooms	3	4.5
6.	Dining rooms in
	(i) Educational buildings, institutional and mercantile buildings	3	2.7
	(ii) Hostels and hotels	4	2.7
7.	Corridors, passages, stair cases in
	(i) Dwelling houses, hotels, and hostels	3	4.5
	(ii) Educational, institutional and assembly buildings	4	4.5
	(iii) Mercantile buildings	5	4.5
8.	Reading rooms in libraries
	(i) With separate storage	3	4.5
	(ii) Without separate storage	4	4.5
9.	Assembly areas in assembly buildings
	(i) With fixed seats	5
	(ii) Without fixed seats	5	3.6
10.	Store rooms in educational buildings	5	4.5
11.	Store room in libraries	6 for a height of 2.24 2kN/m2 for every 1m additional height	4.5
12.	Boiler rooms and plant rooms in
	(i) Hostels, hotels and hospitals, mercantile and industrial buildings	5	4.5
	(ii) Assembly and storage buildings	7.5	4.5

• Wind load calculation:

Wind load is designed only when the height of building exceed 10 m .

The height of building design is 6m which is less than 10m so, we will not consider wind load.

Codes referred :

IS 875:1987 (PART 1) for Dead load

IS 875:1987 (PART 2) for Live load

IS 875:1987 (PART 3) for Wind load

IS 456:2000 for RCC

Result:

• The plan is designed by considering Vastu Shastra concept
• The load calculations are done as per IS code consideration.
