Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code
AIM
To sketch a G+1 floor residential plan, according to Vaastu Shastra, and the names of the structural drawings required to be provided to the site for construction.
To assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and calculate the individual corresponding loads from the members as per IS code.
PROCEDURE

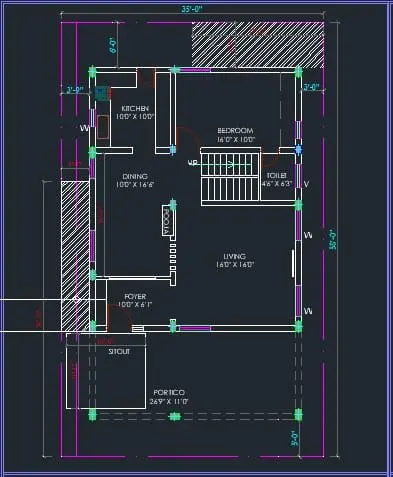

GROUND FLOOR PLAN (All dimensions are in Feet)
DIMENSIONS OF GROUND FLOOR
( Converting feet to meters )
Portico - 26'9" * 11' = 8.2m * 3.35m
Sitout - 10' * 10' = 3.05m * 3.05m
Foyer - 10' * 6'1" = 3.05m * 1.86m
LivingRoom - 16' * 16' = 4.88m * 4.88m
DinningRoom - 10' * 16'6" = 3.05m * 5.06m
KitchenRoom - 10' * 10' = 3.05m * 3.05m
BedRoom 1 - 16' * 10' = 4.88m * 3.05m
Toilet1 - 4'6" * 6'3" = 1.40m * 1.92m

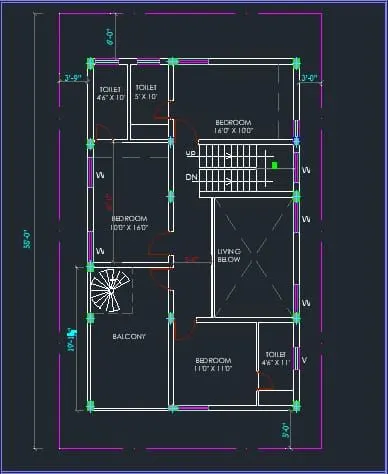

FIRST FLOOR PLAN (All Dimensions are in feet
DIMENSIONS OF FIRST FLOOR
( Converting feet to meters)
Bedroom2 - 16' * 10' = 4.88m * 3.05m
Bedroom3 - 10' * 16' = 3.05m * 4.88m
Bedroom4 - 11' * 11' = 3.35m * 3.35m
Toilet2 - 4'6" * 10' = 1.40m * 3.05m
Toilet3 - 5' * 10' = 1.53m * 3.05m
Toilet4 - 4'6" * 11' = 1.40m * 3.35m
Balcony - 10'4" * 18'9" = 3.17m * 5.76m
OTHER DIMENSIONS
Thickness of internal wall = 0.15m
Thickness of external wall = 0.23m
Thickness of slab = 0.25m
Dimensions of column = 0.3m * 0.3 m
Dimensions of beam = 0.35m * 0.45m
Height of wall of each floor = 3m
VAASTU SHASTRA
Entrance of house is provided in North direction
Living room is placed in North-West direction
Bedroom1 and Bedroom2 is placed in the North direction
Bedroom3 is placed in the South-East direction
Bedroom4 is placed in the North-West direction
The kitchen is placed in the South-East direction
The staircase is placed in the South-East corner direction
Toilet1 faces the South direction,
Toilet2 faces the North-West direction,
Toilet3 faces South-East direction,
Toilet4 faces the South-West direction
The water closet is placed in the West direction
CONCEPT OF VAASTU
LIST OF DRAWING PROVIDED AT THE CONSTRUCTION PROJECT
Centerline drawing
Footing and Column layout with reinforcement details
Column scheduled with reinforcement
Plinth beam with reinforcement details
First-floor beam layout with reinforcement details
Floor plan
Foundation plan
Design drawing
Block plan
Roof sleb layout
Column layout
Site plan
Column section
Septic tank design
Overhead water tank design
Plinth beam section
Flooring plan
Furniture plan
Drainage plan
Setting out plan
Section drawing of the building
Plumbing details
Electrical details
CALCULATION OF LOAD
All columns and Beams are in the same size
DEAD LOAD
1.DEAD LOAD OF COLUMN
Dimensions of column = 0.3m * 0.3m
Height of column = (Slab thickness * 2) + (Height of wall for each floor * 2)
= (0.25*2) + (3*2) = 6.5m
Total volume of concrete = 0.3*0.3*6.5 = 0.585m^3
Unit weight of RCC = 25KN/m^3 ( As per IS 875 Part1 )
Dead load of column = Volume of concrete * Unit weight
= 0.585 * 25 = 14.62KN
2.DEAD LOAD OF BEAM
Dimensions of beam = 0.3*0.45
Total volume of concrete = 0.3*0.45*1 = 0.135m^3
Unit weight of RCC = 25KN/m^3 ( As per IS 875 Part1 )
Dead load of Beam = Volume of concrete * Unit weight
= 0.135*25 = 3.375KN
3,DEAD LOAD OF SLAB
Span of 1m is designed
Size of slab = 1 * 1
Thickness of slab = 0.25m
Density of slab = 25KN/m^3 ( As per IS 875 Part1 )
Dead load of Slab =Density * Unit weight * Dimensions
= 0.25 * 25 * 1 * 1 = 6.25KN
4.DEAD LOAD OF WALLS
EXTERNAL WALL
Thickness of wall = 0.23m
Unit weight = 20KN/m^3 ( As per IS 875 Part1 )
Height of Wall = 3m
Dead load = Thickness of wall * unit weight * height of the wall
= 0.23 * 20 * 3 = 13.8KN
INTERNAL WALL
Thickness of wall = 0.15m
Unit weight = 20KN/m^3 ( As per IS 875 Part1 )
Height of Wall = 3m
Dead load = Thickness of wall * unit weight * height of the wall
= 0.15*20*3 = 9KN
2 LIVE LOAD CALCULATION
According to IS875 Part 2
Bedroom = 2 KN/m^2
Living Room = 2 KN/m^2
Kitchen = 2 KN/m^2
Bathroom = 2 KN/m^2
Toilet = 2 KN/m^2
Terrace = 3 KN/m^2
Balcony = 3 KN/m^2
Portico = 3 KN/m^2
Foyer = 3 KN/m^2
3 WIND LOAD CALCULATION
Wind load is designed when the height of the building exceeds 10m
The height of the building is 6.5m which is less than 10m
So, calculation of wind load is not required.
REFERENCE USED
IS 875- 1987 (Part 1) for Dead load
IS 875- 1987 (Part 2) for Live load
IS 875- 1987 (Part 3) for Wind load
IS 456- 2000 for Reinforced concrete
RESULT
The plan is prepared by Vastu Shastra concept considering all principles and considerations of Vaastu shastra
Load calculations are done according to IS code consideration.
