Drafting of various geometries using Chamfer, Fillet tool in AutoCad

AIM:

To draw the given sketches in AutoCAD.

INTRODUCTION:

AutoCAD offers various tools like rotate,chamfer,fillet,move,offset etc to make ease of the sketching and drafting process.

PROCEDURE:

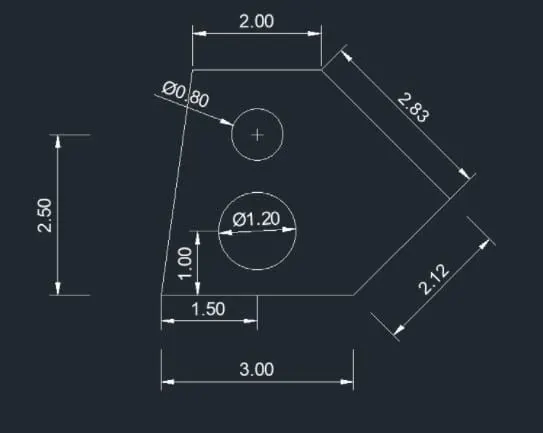

DRAWING 1:

1. Open new file and set decimal and precision to 0.00
2. command : line from random point draw 3.00 line and @2.12<45,@2.83<135 then 2.00 m line and then close.
3. command:offset 3.00m line to 1.00m and 2.50m
4. command:circle from midpoint of 3m line at 2.50m and 1.00m draw a circle of diameter 1.20 at 1.00m and 0.80 at 2.50m
5. command : erase, the offset.

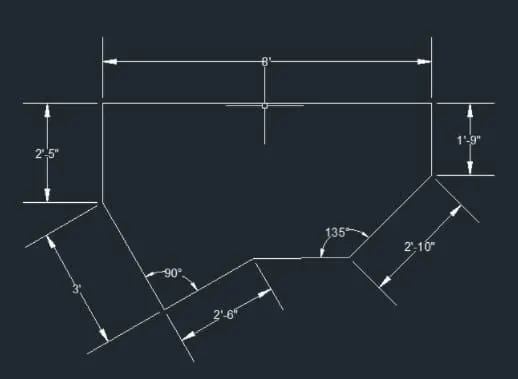

DRAWING 2:

1. Select architectural and polar tracking for angles 15,30,45,60, and so on..
2. command: line, draw a horizontal line and draw 2'6" line at 225 degrees , 3' line perpendicular to it,2'5" vertical line and 8' horizontal line,1'9" vertical line 2'10" @225 degrees and close.

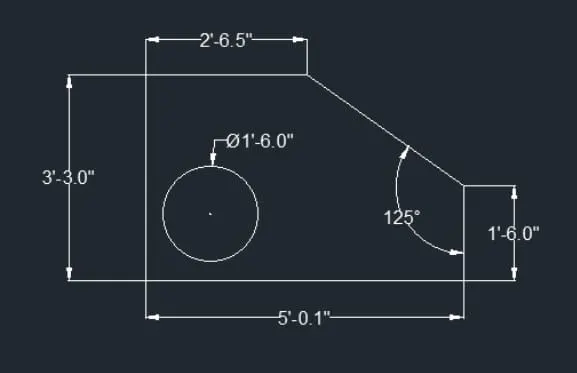

DRAWING 3 :

1. Open new file and set engineering and precision to 0'-0.0".
2. command : line , 2'6.5" in -ve X axis, 3'-3" in -ve Y axis,5'-0.1" in +ve X axis ,1-6.0" in +ve Y axis and close.
3. command : offset, 3'-3" line at distance of 1'-3.0" and 5'-0.1" at a distance of 1'-6.0"
4. command : circle, draw a circle of diameter of 1'-60" from the center of offseted lines.
5. command : erase, the offset.

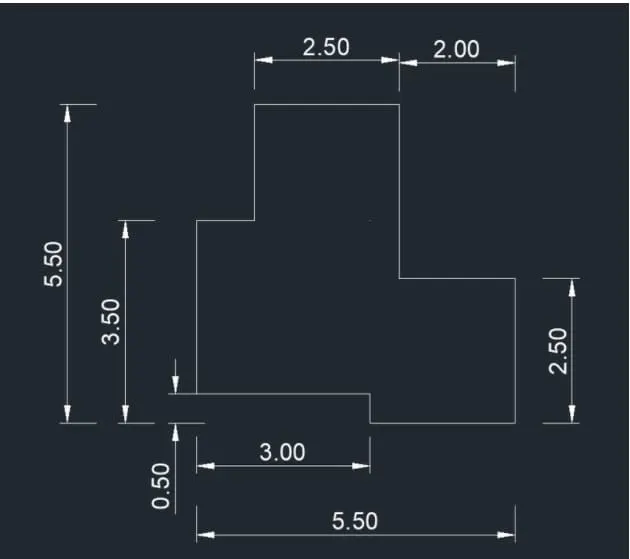

DRAWING 4 :

1. Open a new page and select decimals with precision 0.00 while keeping ortho on.
2. command:line, draw a line 3.00 m in +ve X axis
3. 0.50 in -ve Y axis, 2.50m in +ve X axis,2.50 in +ve Y axis ,2.00 m in -ve X axis , 3.00 in +ve Y axis ,2.50m in -ve X axis , 2.00m in -ve Y axis,3.00 ine -ve Y axis and close.

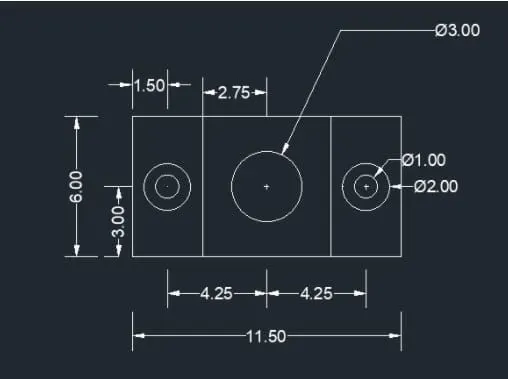

DRAWING 5:

1. Open new page select decimal and precision 0.00 while keeping ortho on.
2. command : line 6.00m vertical ,11.50 m in horizontal and 6.00 m vertical and 11.50m horizontal.
3. in object snap setting keep midpoint , center, intersection and geometric center on.
4. command : circle, draw circle at the center with diameter 3.00m
5. command:offset, 6.00m line at a distance of 3.00m on bothsides and offset the 11.50m line at a distance of 3.00m
6. command : circle, draw concentric circles at the intersection of the offset line of diameter 1.00m and 2.00m line on bothsides.
7. command:erase,the offseted lines.

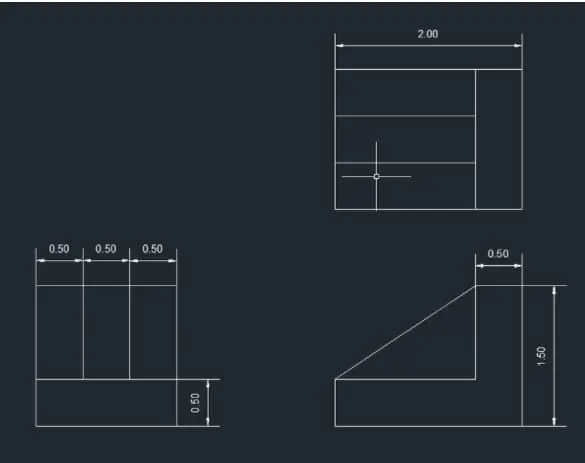

DRAWING 6 :

1. New page select decimal with precision 0.0.
2. command : line 1.5m horizontal and 1.5 m vertical on both sides .
3. command : offset 1.5m line to 0.5m
4. Divide 1.5m line into 3 segments and join the divided line
5. Draw 2m line, 1.5m line and 0.5m horizontal at the top and in vertical and in horizontal 1.5m and vertical 0.5m and join the lines
6. Draw a line of 2m horizontal and 1.5m vertical on both sides
7. Offset 1.5m line to 0.5m
8. Divide 1.5m line into 3 segments and join the divided line
9. Trim the unwanted lines
10. Dimensions should be provided,

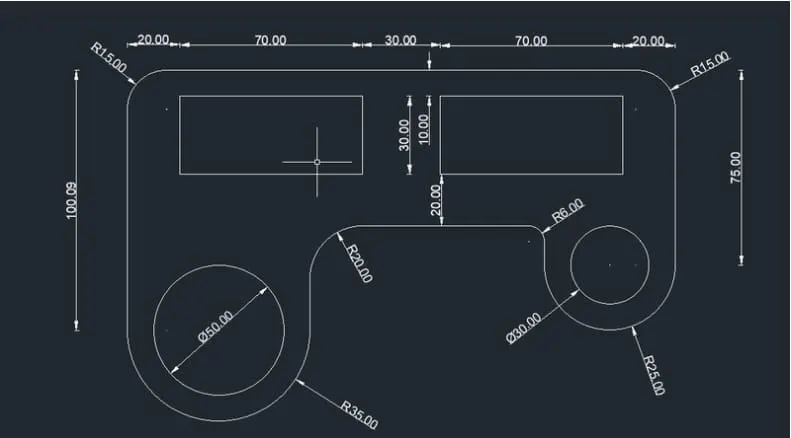

DRAWING 7:

1.Draw a line of 210m on the X-axis,100m on the y-axis, 75 on the y-axis, and arch of radius 35m and draw a line of 70m in X-axis and has a radius of 25m drawing a line of 50m in X-axis
2.Draw an arch of 35m on the right side and 25m on left side
3.From the midpoint of the 70m line draw a circle of dia 50m and 30m on the right side
4.Offset 210m line at a distance of 60m
5.Filleting to the radius of 15m on the top right, and 20m on the inner left, and 6m on the inner right
6.Offsetting 210m line to 100m 75m line to 20m
7.Draw a rectangle of (70,30) on both sides
8.Trim the unwanted lines
9.Dimensions should be provided

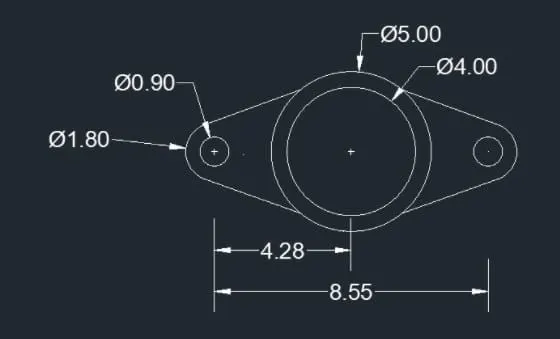

DRAWING 8:

1.Draw a concentric circle of dia 5m and 4m
2.From the center point of the circle draw a line of 4.275m on both sides
3.Draw circle of dia 0.9m on both sides
4.Draw an arc of radius 0.9 on both sides
5.Join the lines to arc
6.Trim the unwanted lines
7.Dimensions should be provided

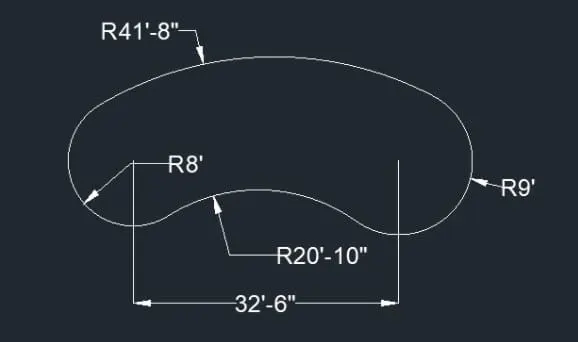

DRAWING 9:

1.Draw a line of 32'6"
2.Draw a circle of radius 8' on the left side and 9' on the right side of the line
3.Draw an arch of 41'8" on top and 20'10" on bottom
4.Trim the unwanted lines
5.Dimensions should be provided

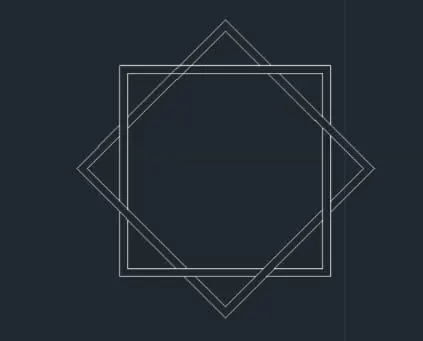

DRAWING 10:

1.Draw a Square of a given dimension
2.Copy the square and rotate the copied square to 45 degrees keeping the original alike
3.Trim the unwanted lines
4.Dimensions should be provided

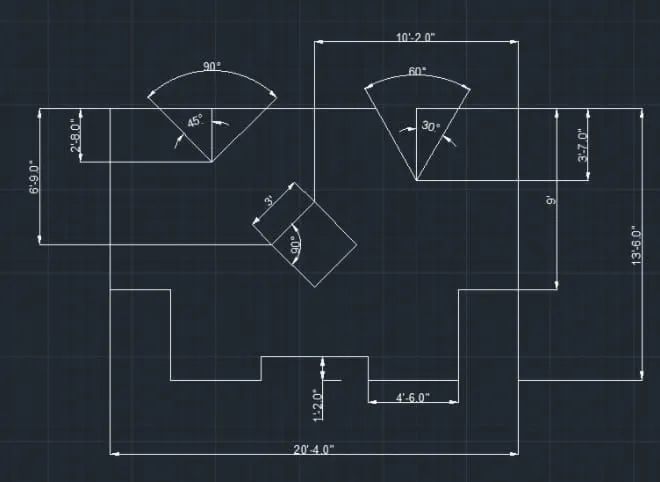

DRAWING 11:

1.Draw a line of 10'2" in horizontal and 9' in vertical, 3' in horizontal, 4'6" in vertical and horizontal, and 1'2" vertical line
2.Mirror the above line at the center axis
3.Offset 20'4" line to 6'9" and 13'6" line to 10'2"
4.Draw a square of length and width of 3' from the center point of the offset line
5.Move the center of the rectangle to the center of the offset point
6.Rotate the rectangle by a 45 degree
7.Offset 20'4" to a distance of 2'8" with polar tracking on a drawn angle of 90 degrees
8.Offset 20'4" to a distance of 3'7" with polar tracking on a drawn angle of 60 degrees
9.Trim the unwanted lines
10.Dimensions should be provided

Result:

The given drawing has been drafted using AutoCAD.
