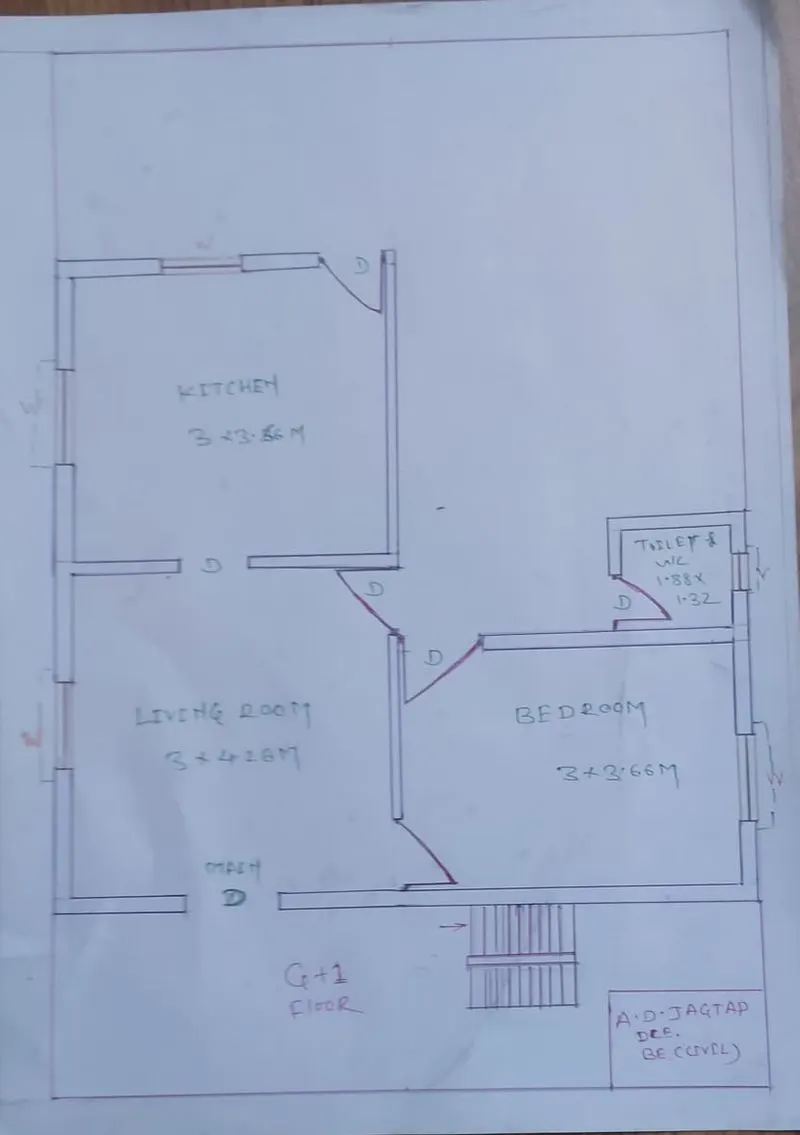

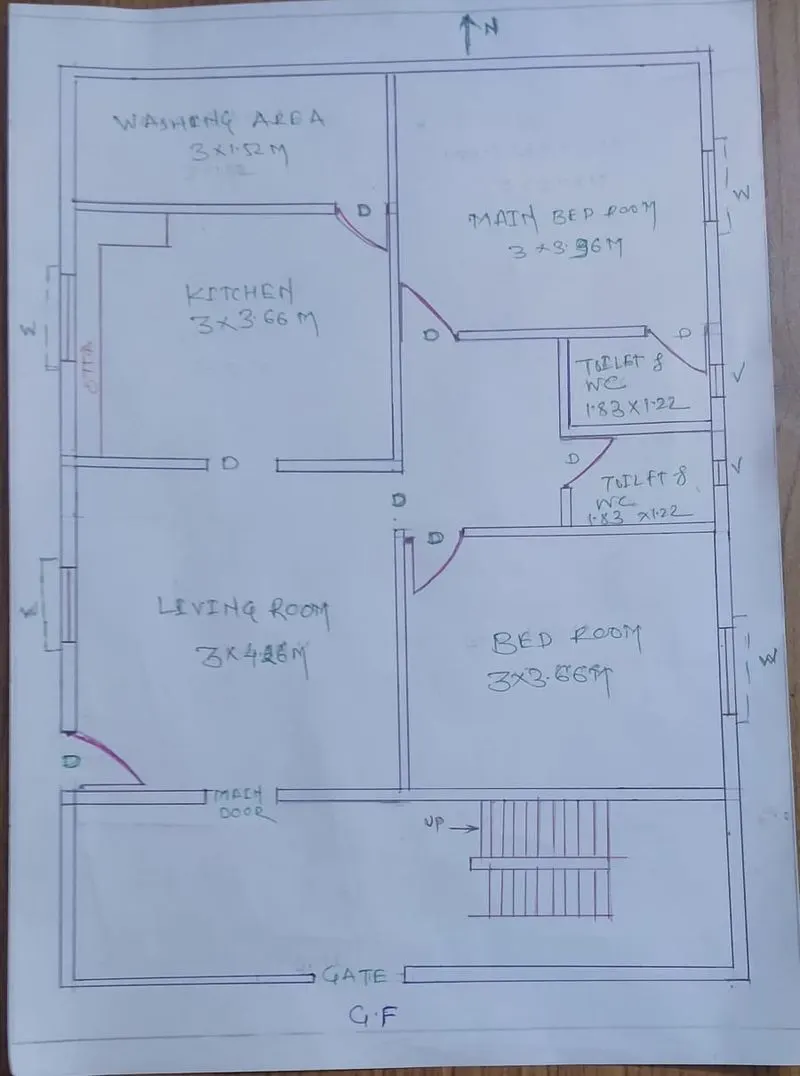

Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code
- IMPORTANT STRUCTRUAL DRAWAING FOR A PROJECT
- CENTRE LINE DRAWING
- FOOTINGAND COLUMN LAYOUT WITH RAINFORCMENT DETAILS
- COLUMN SCHEDUALSWITH RAINEFORCMENT DETAILS
- PLINTH BEAM LAYOUT WITH RAINEFORCMENT DETAILS
- FRIST FLOOR BEAM LAYOUT WITH RAINEFORCMENT DETAILS
- FIRST FLOOR SLAB LAYOUT WITH RAINFORCMENT DETAILS
- LIFT PIT AND HEADROOMRAINFORCMENT DETAILS
- AND SOME TYPES OF OTHER DRAWING TO ESSENTAIL FOR BUILDING PROJECT
- SITE LAYOUT PLAN
- FLOOR PLAN
- SECTIONAL DRAWING
- WORKING DRWAING
- FOUNDATIONAL LAYOUT PLAN
- COLUMN AND LAYOUT PLAN
- DOOR AND WINDOW DRAWING
- PLUMBING DRAWING
- ELECTRIFITING DRAWING

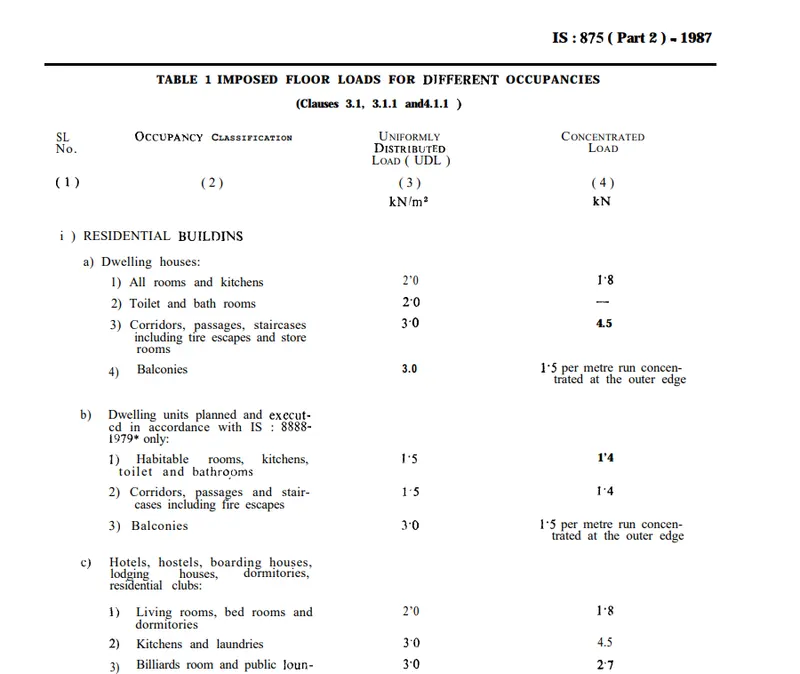

- LIVE LOAD CALLUCATION AS PER IS 875 PART 2
- RESIDENTAL BUILDING UDL =2 KN/M^2
- AND POINT LOAD =1.8 KN/M^2
- FOR DEAD LOAD CALLUCATION EXCAL FILE ATTACHED SEPERATLY.
