Drafting of various geometries using Chamfer, Fillet tool in AutoCad
AIM:- TO DRAW GIVINN DRAWING USING AUTO CAD SOFTWARE

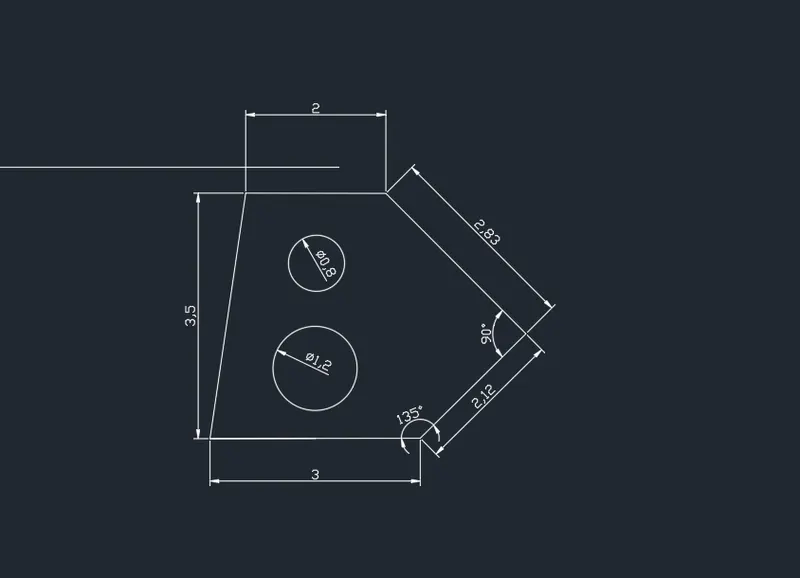

STEP 1- TO Command prompt tpye unit and choose the Decimal.
STEP2 - THE COMMAND PROMPT TYPE PLINE
THE COMMAND PROMPT TYPE 3@0
THE COMMAND PROMPT TYPE 2.12 @45
THE COMMAND PROMPT TYPE 2.83 @135
THE COMMAND PROMPT TYPE 2 @ 180
THE COMMAND PROMPT CLICK CLOSED
STEP 3:- DRAW CIRCLE
THE COMMAND PROMPT TYPE OBJECT SANP
THE COMMAND PROMPT MIDPOINT LINE 3
THE COMMAND PROMPT TYPE LINE 1 @ 90
THE COMMAND PROMPT TYPE DRAW CIRCLE>CENTRE>DIAMETRE
THE COMMAND PROMPT TYPE DRAW CIRCLE DIA-1'-20"
DELTED LINE 1
STEP 4-
THE COMMAND PROMPT MIDPOINT LINE 3
THE COMMAND PROMPT TYPE 2.50 @ 90
THE COMMAND PROMPT CIRCLE>CENTRE >DIAMETRE
THE COMMAND PROMPT TYPE DRAW CIRCLE DIA- 0.80"
DLETED LINE 2.50
RESULT-

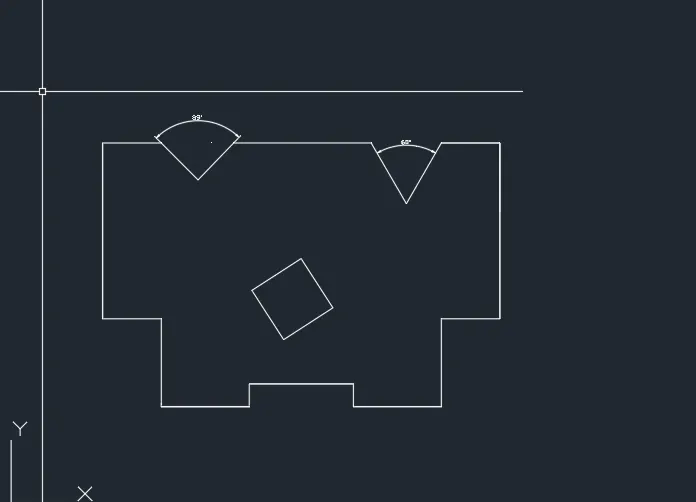

2) AIM- TO DRAW given digram using auto cad
STEP 1
- THE COMMAND PROMPT TYPE unit> architectural >precesion >0'-0"
- THE COMMAND PROMPT TYpe line 3'@45
- THE COMMAND PROMPT TYPE line 2'-6" @45
- THE COMMAND PROMPT TYPE line 3.1 @0
- THE COMMAND PROMPT TYPE angle 1'-5" @45
- THE COMMAND PROMPT TYPE line 1'-9" @ 90
- THE COMMAND PROMPT TYPE line 8' @ 180
- THE COMMAND PROMPT TYPE line 2'-5"@ 270
RESULT:-

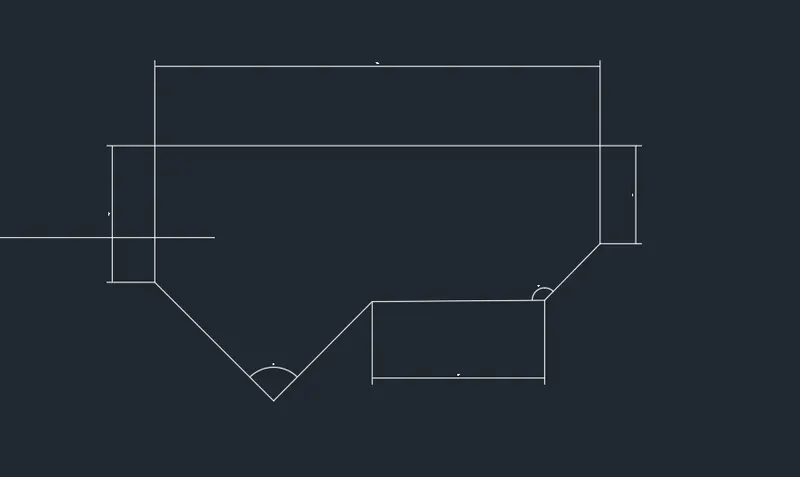

AIM- TO draw given drawing using auto cad soft
STEP-
- THE COMMAND PROMPT TYPE line 5'-01"@0
- THE COMMAND PROMPT TYPE line 1'-6" @ 90
- THE COMMAND PROMPT TYPE line 3'-3" @ 90
- THE COMMAND PROMPT TYPE line 2'-6.5" @ 0
- THE COMMAND PROMPT TYPE JOIN THE LINE 1'-6" @125
- THE COMMAND PROMPT TYPE line 5'-0.1" take a point 1'-0.3" and draw line 1.06"
- THE COMMAND PROMPT TYPE circle >centre>diamter 1'-0.6"
- delted line1'-0.6"
RESULT :-

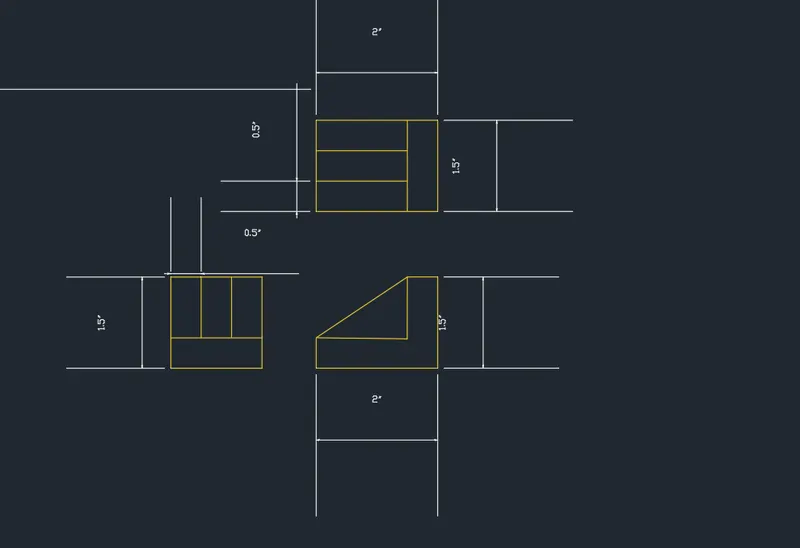

AIM:- TO draw given drawing using auto cad soft
step;-
- THE COMMAND PROMPT TYPE line 3
- THE COMMAND PROMPT TYPE line 0.5
- THE COMMAND PROMPT TYPE line 2.5
- THE COMMAND PROMPT TYPE line 2.5
- THE COMMAND PROMPT TYPE line 2
- THE COMMAND PROMPT TYPE line 2.5
- THE COMMAND PROMPT TYPE line 2
- THE COMMAND PROMPT TYPE line 1
- THE COMMAND PROMPT TYPE click closed
RESULT:-

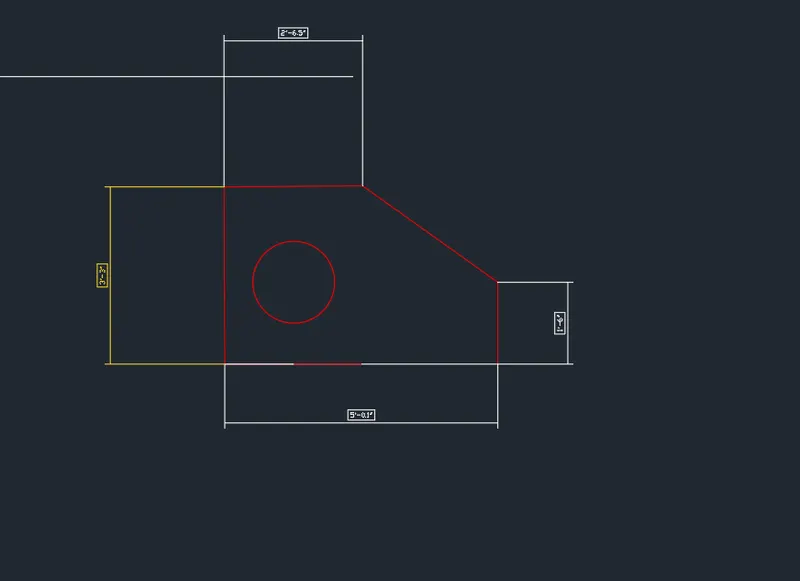

AIM-TO draw given drawing using auto cad
STEP:-
- THE COMMAND PROMPT TYPE line 11.5
- THE COMMAND PROMPT TYPE line 6.0
- THE COMMAND PROMPT TYPE line 11.5
- THE COMMAND PROMPT TYPE click closed
- THE COMMAND PROMPT TYPE 11.5 take point 1.5 draw line 3@90
- THE COMMAND PROMPT TYPE draw circle> centre >diamter >1.0 and 2.0
- THE COMMAND PROMPT TYPE 11.5 take point 1.4 draw line 3@90 (RS)
- THE COMMAND PROMPT TYPE draw circle> centre >diamter >1.0 and 2.0
- THE COMMAND PROMPT TYPE 11.5 take point 5.8 draw line 3@90
- THE COMMAND PROMPT TYPE draw circle> centre >diamter >3.0
RESULT:-

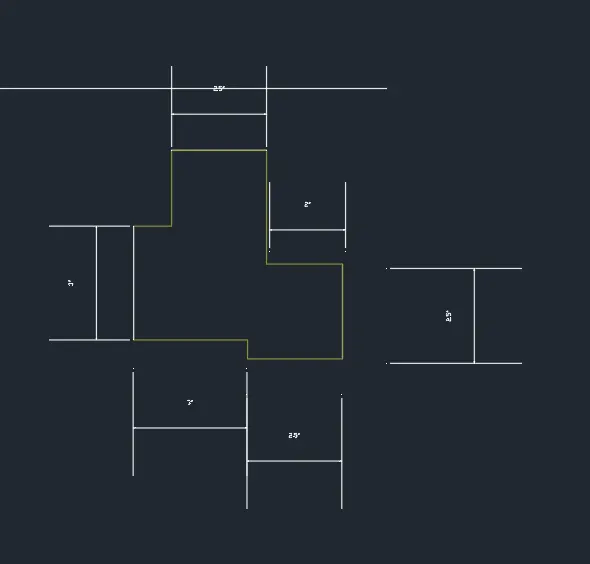

AIM:-TO DRAW given drawing using auto cad
step1:-
- THE COMMAND PROMPT TYPE line 1.5
- THE COMMAND PROMPT TYPe line 1.5
- THE COMMAND PROMPT TYPE line 1.5
- THE COMMAND PROMPT TYPE line 1.5
- THE COMMAND PROMPT TYPE offset 0.5 in horizontal line
- THE COMMAND PROMPT TYPE offset in vertical line 0.5 in 1
step 2:-
- THE COMMAND PROMPT TYPE line 2
- THE COMMAND PROMPT TYPe line 1.5@90
- THE COMMAND PROMPT TYPE offset 0.5 horizontal
- THE COMMAND PROMPT TYPE line 0.5 vertical
- extra line trime
- join the angle point
step 3:-
- THE COMMAND PROMPT TYPE line 1.5
- THE COMMAND PROMPT TYPe line 2@90
- THE COMMAND PROMPT TYPE line 2 @180
- THE COMMAND PROMPT TYPE line 1.5@270
- THE COMMAND PROMPT TYPE offset 0.5 last point line 2 vertical
- THE COMMAND PROMPT TYPE offset 0.5 horizontal in 2 time
RESULT:-

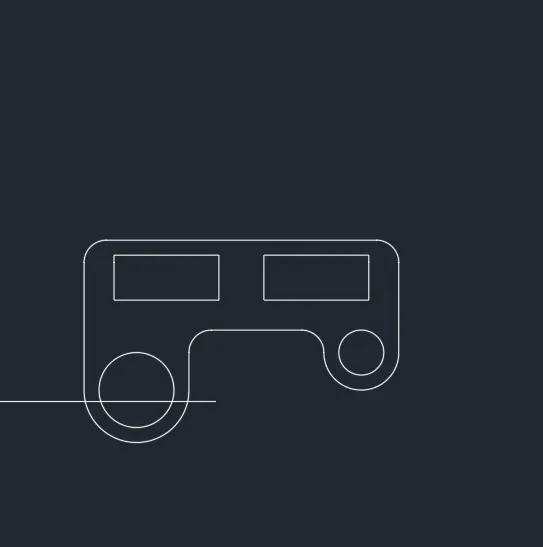

7)ANS:-AIM:- TO DRAW GIVEN DRAWING USING AUTO CAD
STEP 1:-
TO Commnad the prompt type line 100
TO Commnad the prompt type line 210
TO Commnad the prompt type line 75
TO Commnad the prompt type fillet
TO selected the line 210 and 100
to selected the line 210 and 75
step2:-
FROM The end point 100 to draw the line
in the menu bar draw circle >centre>redius
draw the circle redius 35 in line70 midpoint
in the menu bar draw circle >centre>redius
draw the circle redius 25 and dia 35
from the end point of 70 draw the vertical line 40
step3:-
from the end point 70 draw the horizontal line 50
in the menu bar draw circle >centre>redius
draw the circle redius 25 in previsous line
in the menu bar draw circle >centre>redius
draw the circle dia 50 linein previous circle reduis 25
from the end point of line 50 draw the vertical line 15
closed the line
step 4:-
slected the prompt type fillet redius >20
slected the line two to get the curve
slected the prompt type fillet redius >6
slected the line two to get the curve
step 5:-
at distnce of 20 from left top corner and 10 from top
draw the rectangale dimmenssion70*30
offset the rectangale from 30 with the help of offset
result:-

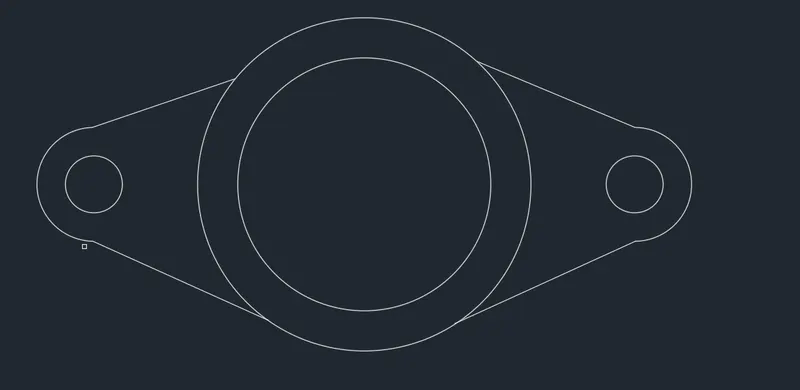

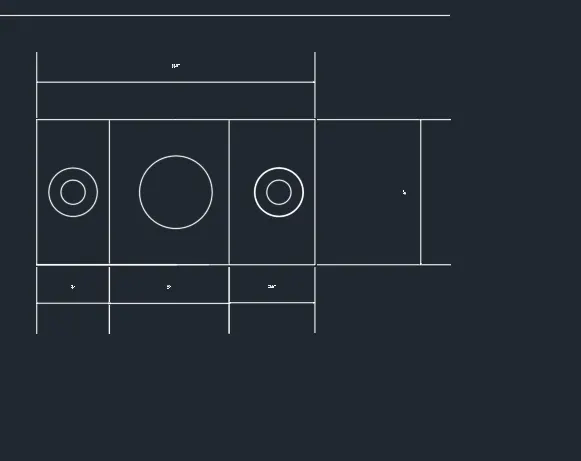

8)ANS:-AIM:- TO DRAW GIVEN DRAWING USING AUTO CAD
STEP:-1(LS)
in the command prompt type line 8.55
in the menu bar draw circle >centre> dia
end point of 8.55 draw the circle DIA0.90
in the menu bar draw circle >centre> dia
end point of 8.55 draw the circle redius 0.90
STEP 2:- (RS)
n the command prompt type line 8.55
in the menu bar draw circle >centre> dia
end point of 8.55 draw the circle DIA 0.90
in the menu bar draw circle >centre> dia
end point of 8.55 draw the circle redius 0.90
STEP 3:-
n the command prompt type line 8.55
in the menu bar draw circle >centre> dia
end point of 8.55 draw the circle DIA 50
in the menu bar draw circle >centre> dia
end point of 8.55 draw the circle DIA 40
JOIN THE TANGENT OF THE OUTER CIRCLE WITH THE HELPOF LINE AND TRIM THE EXTRAS LINE
RESULT:-

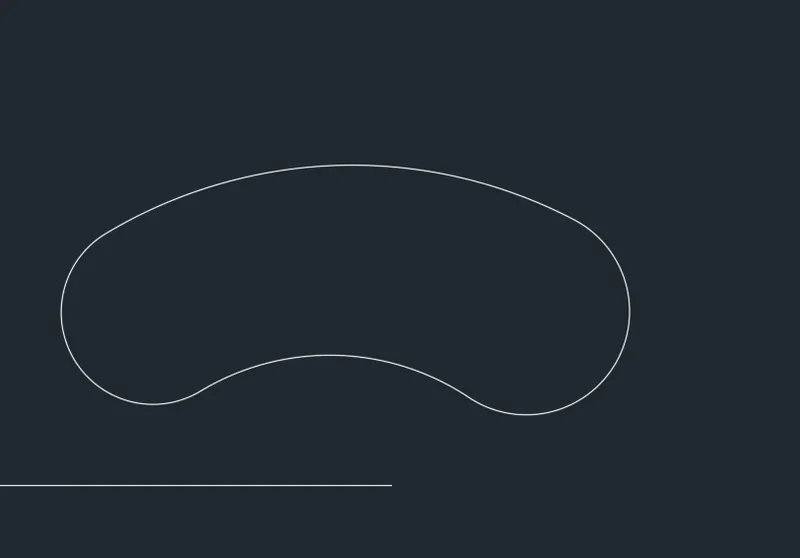

9)ANS:-AIM:-TO DRAW GIVEN DRAWING USING AUTO CAD
STEP:-1
IN THE COMAND PROMPT TYPE LINE DISTANCE>32'-6"
IN THE MENU BAR DRAW CIRCLE>CENTRE>DIA
CENTER THE END POINT OF LINE 32'-6" DIA 8'
IN THE MENU BAR DRAW CIRCLE>CENTRE>DIA
CENTER THE END POINT OF LINE 32'-6" DIA 9'
IN THE MENU BAR DRAW CIRCLE>CENTRE>DIA
CENTER THE END POINT OF LINE 32'-6" DIA 32'-6" LS
IN THE MENU BAR DRAW CIRCLE>CENTRE>DIA
CENTER THE END POINT OF LINE 32'-6" DIA 32'-6" RS
POINT WHERE THE CIRCLE INTERSECTING BOTTOM DRAW THE CIRCLE WITH REDIUS 32'-6"
THUS ARC IS FROMED AND TRIME THE EXTRA LINE
IN THE MENU BAR DRAW CIRCLE>CENTRE>DIA
CENTER THE END POINT OF LINE 32'-6" DIA 33'-8" LS
IN THE MENU BAR DRAW CIRCLE>CENTRE>DIA
CENTER THE END POINT OF LINE 32'-6" DIA 32'-6" RS
POINT WHERE THE CIRCLE INTERSECTING BOTTOM DRAW THE CIRCLE WITH REDIUS 41'-8"
THUS ARC IS FROMED AND TRIME THE EXTRA LINE
RESULT:-

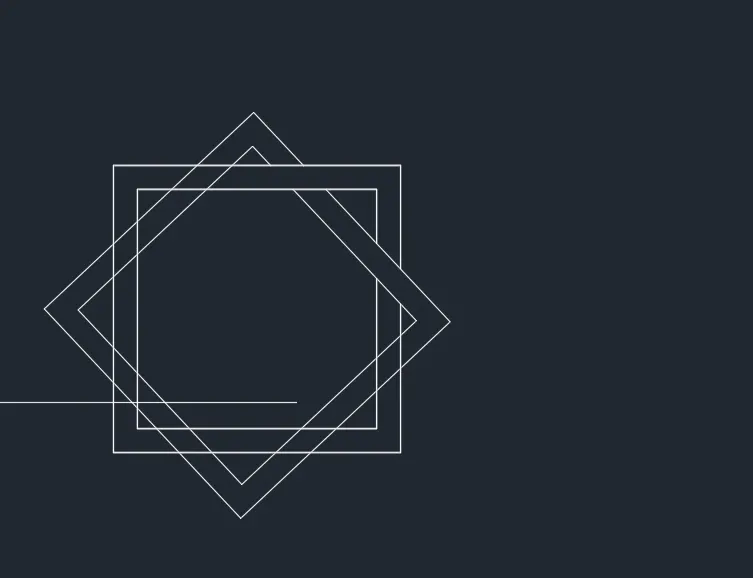

10)ANS:-TO draw drawing using auto cad
step:-
the command prompt type rec>5,5
offset the rectangale and rotet into the diaminod shep
using offset command offset rectangal and diamond
using trim command trim the unwanted line
result:-
11)ans:-
AIM:-TO DRAW THE DRAWING USING AUTO CAD
STEP:-
IN THE COMMAND PROMPT DISTNCE LINE 20'-4">9'>3'>4'-6">1'-2">5'-4">1'-2">4'-6" CLOSED
TAKE THE OFFSET DISTANCE 3' FROM CORNER AND 2'8" FROM TOP WITH OFFSET COMMAND
WITH THE LINE COMMAND DRAWA V AND POLAR COORDINETS MUST BE 45,90,135,180
TAKE THE OFFSET DISTANCE 3' FROM CORNER AND 3'-7" FROM TOP WITH OFFSET COMMAND
WITH THE LINE COMMAND DRAWA V AND POLAR COORDINETS MUST BE 30,60,90,120,150
TAKE THE OFFSET DISTANCE 10'2" FROM CORNER AND 6'10" FROM TOP WITH OFFSET COMMAND
KEPPING THE INTERSECTION POINT AS CENTR DRAW A DIAMOND WITH RED 3 AND NAGLE 90
RESULT:-
