Creation of geometries by Coordinate system methods using AutoCad

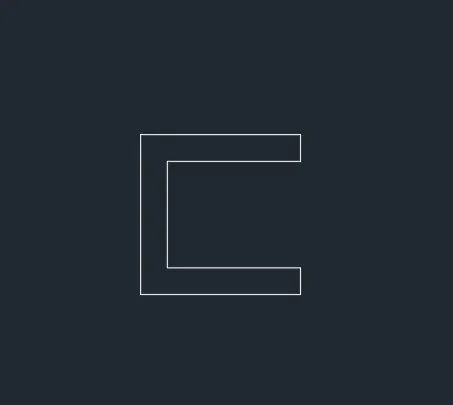

1)ANS- C SHEPD LINE 2,1-8,1-8,2-3,2-3-6,8,6-8,7-2,7

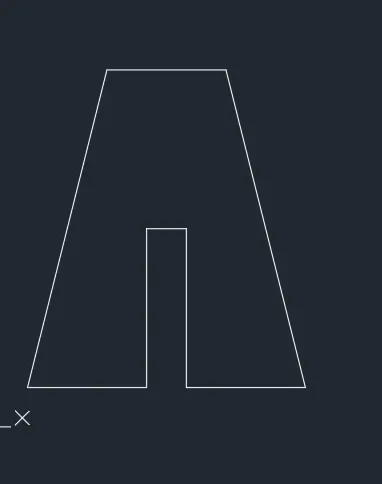

2)ANS-P-2-LINE 2,1-5,1-5,5-6,5-6,1-9,1,-7,9-4,9-CLOSED

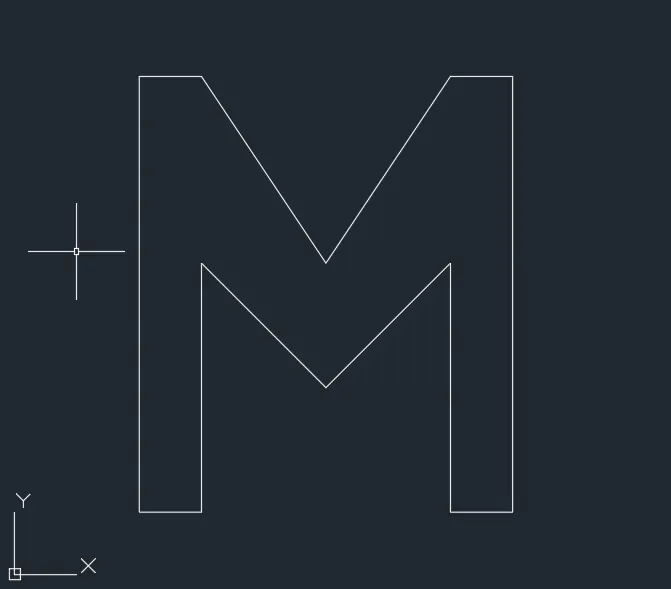

3)ANS-M SHEPD P-4 LINE 2,1-3,1-3,5-5,3-7,5-7,1-8,1-8,8-7,8-5,5-3,8-2,8-CLOSED

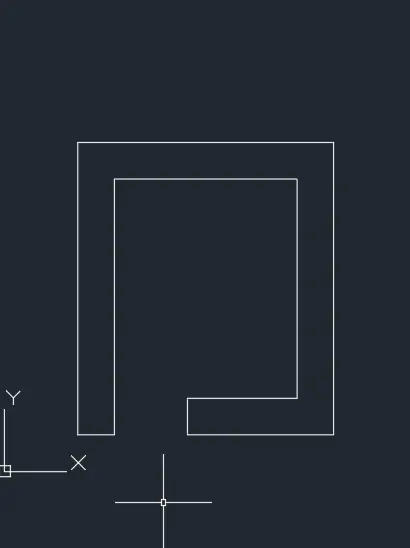

4) ANS-P-5 LINE 2,1-2,9-9,9-9,1-5,1-5,2-8,2-8,8-3,8-3,1-CLOSED

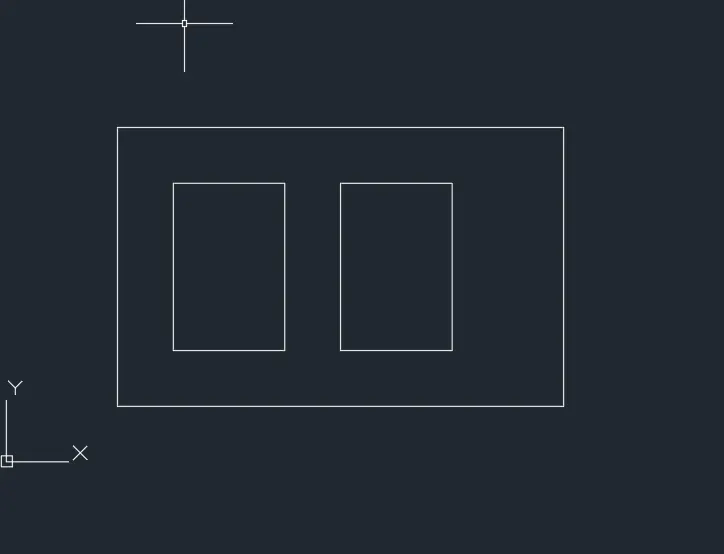

5) ANS-P-7 LINE 2,1-6,1-10,6-10,1-CLOSED-3,2-3,5-5,5-3,5-CLOSED-6,2-6,5-8,5-8,2-CLOSED

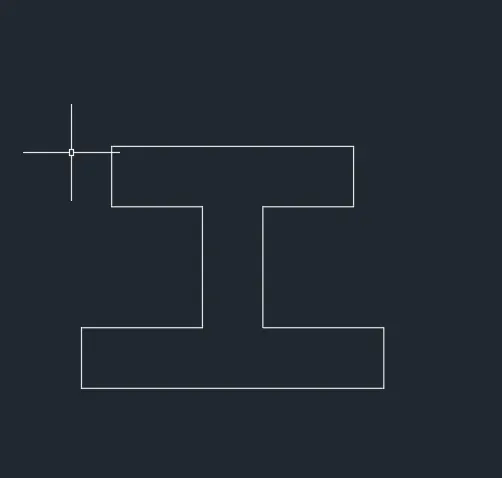

6) ANS-P-8 LINE 0,2-4,2-4,6-1,6-1,9,8-9,6-6,6-6,2-10,2-0,10-CLOSED

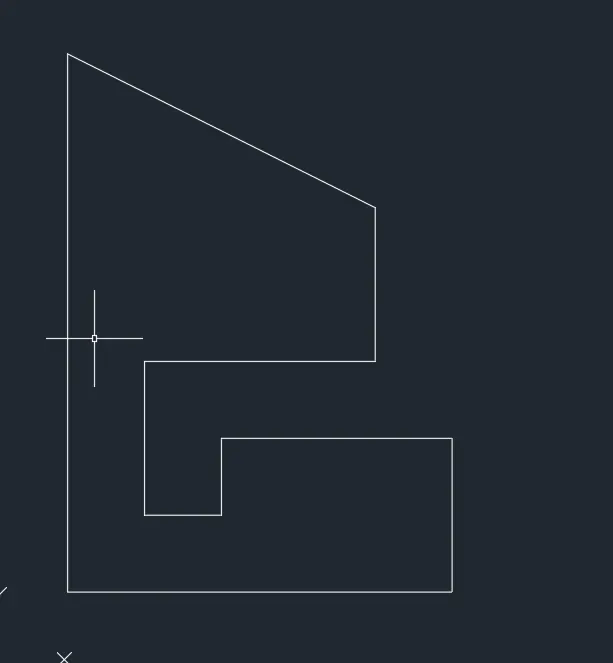

7) ANS-P-9 LINE 1,1-1,8-5,6-5,4-2,4-2,2-3,2-3,3-6,3-6,1-CLOSED

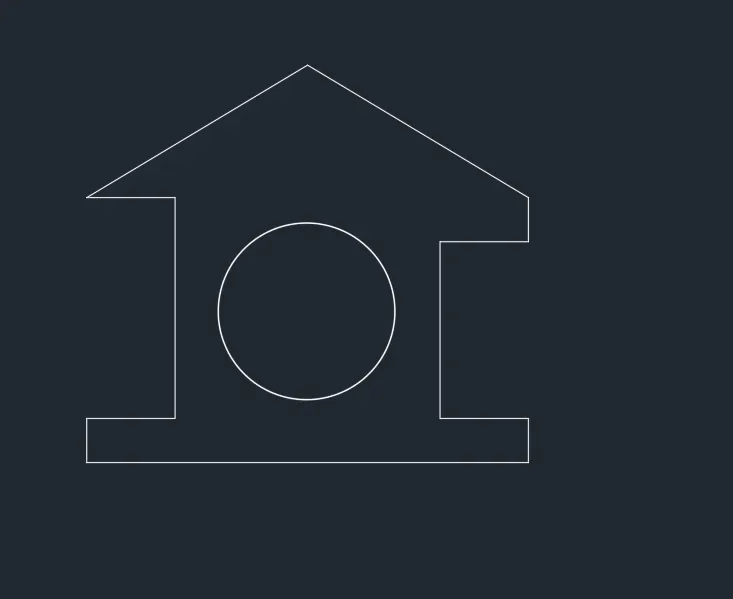

8) ANS-profille wood-LINE 0,0-0,1-2,1-2,6-0,6-5,9-10,6-10,5-8,5-8,1-10,1-10,0-CLOSED-DRAW RADIUS CIRCLE 2M at 5-4

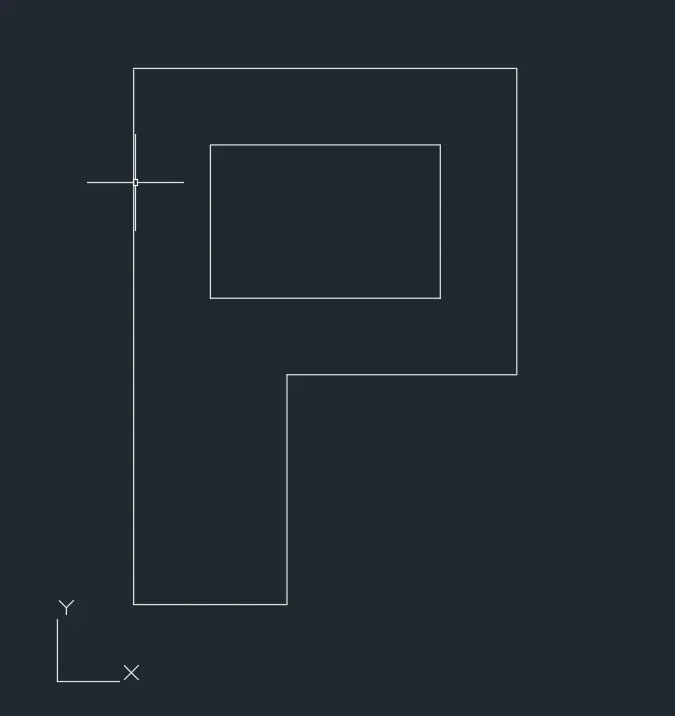

9) ANS-P-10-LINE- 1,1-1,8-6,8-6,4-3,4-3,1-CLOSED-2,5-2,7-5-7-5,5-CLOSED

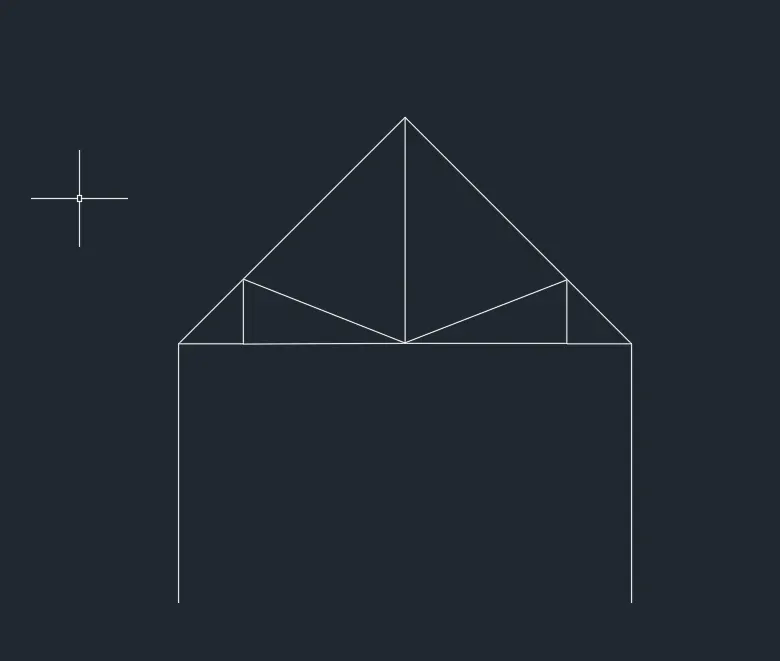

10) ANS-QUEEN POST TRUESS-LINE-1,1-1,5-4.5,8.5-8,5-8,1-2,5-4.5,5-7,6 JOIN POINT3,6 TO 4.5,5 AND 7,6 TO4.5,5

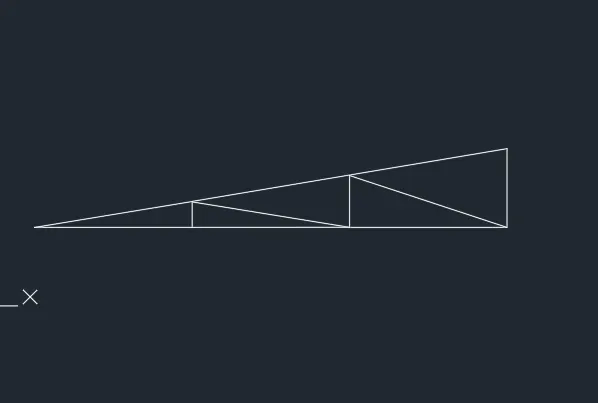

11)ANS-MONO PITCH- LINE-1,1-3,1-5,1-7,1-7-7,3-3,1.66-5,2.33-JOIN THE POINT 1,1 TO 7,3 ALSO JOIN TO 3,1.66 TO 5,1 AND 5,2.33 TO 7,1
