Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

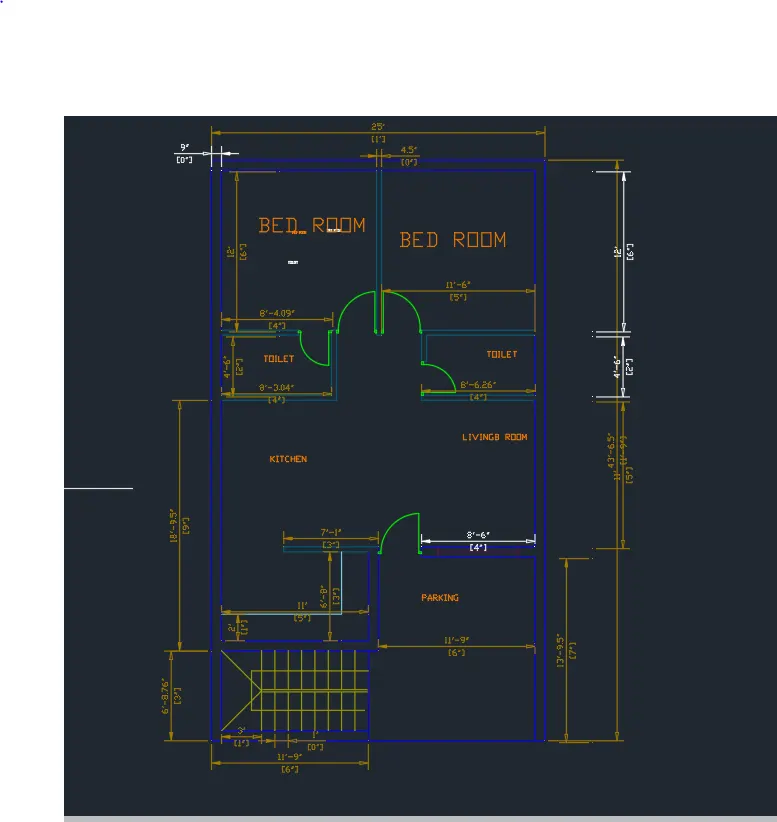

1) ANS:- AIM- TO SKETCH THE LAYOUT OF RESIDENCE AS SHOW IN FIG NO 1
PROCEDURE:-
- TO SELECT THE NEW
- TO PROMPT TYPE LIMIT MAX
- TO PROMPT TYPE ZOOM ALL
- TO PROMPT TYPE LIMIT
- TO PROMPT TYPE ZOOM ALL
- TO PROMPT TYPE XLINE IN HORIZONTAL
- TO PROMPT TYPE XLINE IN VERTICAL
- TO PROMPT TYPE OFFSET 9" IN HORIZONTAL LINE AND VERTICAL LINE
- TO PROMPT TYPE LIMIT OFFSET IN VERTICAL LINE 43'-7"
- TO PROMPT TYPE LIMIT OFFSET IN HORIZONATAL LINE 25'
- TO PROMPT TYPE LIMIT TRIME EXTRA BOTH HORIZONTAL AND VERTICAL LINE
- TO PROMPT TYPE LIMIT OFFSET FROM 6' FROM HORIZONTAL LINE
- THE LINE 12'-6" AND TRIM THE EXTRA LINE
- TO PROMPT TYPE LIMIT OFFSET THE 4.5"
- TO PROMPT TYPE LIMIT TRIM THE EXTRA LINE
- TO PROMPT TYPE LIMIT OFFSET 18'-1"IN HORIZONTAL LINE
- TO PROMPT TYPE LIMIT OFFSET 4.5"
- TO PROMPT TYPE LIMIT OFFSET 4'-6" IN HORIZONTAL LINE
- TO PROMPT TYPE LIMIT OFFSET 12' IN HORIZONTAL LINE
- TO PROMPT TYPE LIMIT OFFSET 9" IN HORIZONTAL LINE
- TO OFFSET THE 12'-6" LINE IN 6'-8" IN HORIZONTAL LINE
- TRIM THE PRIVISSOUS LINE 6'-2"
- TO PROMPT TYPE LIMIT OFFSET FROM 2' IN HORIZONTAL AND VERTICAL FOR THE KITCHEN OTTA
- TO PROMPT TYPE LIMIT OFFSET 11'-7.5"IN LINE 12'
- TO PROMPT TYPE LIMIT OFFSET 4.5"
- TO PROMPT TYPE LIMIT OFFSET 11'
- TO PROMPT TYPE LIMIT OFFSET 9"
- TRIM THE LINE 11'-7.5" IN 3' FOR THE DOOR OPENING
- TO PROMPT TYPE LIMIT TRIM THE 11'-6" LINE IN 3' FOR THE DOOR OPENING
- TRIM THE 25' LINE FOR THE DISTANCE FROM 6'-3" IN LS IN10'-55"
- TO PROMPT TYPE LIMIT TRIM THE 2'-6" FOR THE DOOR IN TOILET
- TO PROMPT TYPE LIMIT TRIM THE 3'3" FOR THE DOOR IN LIVING ROOM
- FOR THE STAIRCASE THE 6' LINE OFFSET THE 3' IN HORIZONTAL LINE
- TO PROMPT TYPE LIMIT OFFSET 1'
RESULET:-

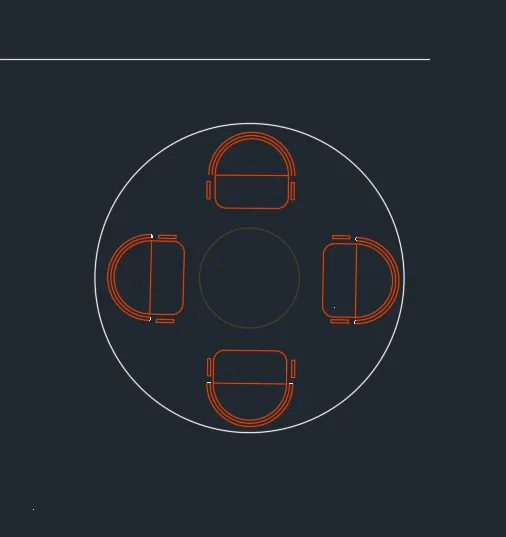

2) ANS:- AIM- TO SKETCH THE SETTING PLAN FOR OUTDOOR CANOPY
PROCEDURE-
- TO COOMAND THE PROMPT TYPE NEW
- TO COOMAND THE PROMPT TYPE LIMTMAX
- TO COOMAND THE PROMPT TYPE LIMIT
- TO COOMAND THE PROMPT TYPE ZOOM ALL
- TO COOMAND THE PROMPT TYPE CICRLE > REDIUS> 452
- TO COOMAND THE PROMPT TYPE CICRLE > REDIUS >1398
- TO COOMAND THE PROMPT TYPE RECTANGAL LEMGTH 662.3 AND 298
- TO COOMAND THE PROMPT TYPE FILLET TYPE REDIUS>100 FILLET THE ARC AT CORNER
- IN THE MENU BAR TYPE CIRCLE> 2P AND END POINT OF RECTANGLE DRAW THE CIRCLE
- TO COOMAND THE PROMPT TYPE CIRCLE > DIA>719
- TO COOMAND THE PROMPT TYPE CIRCLE >DIA>777.2
- TO COOMAND THE PROMPT TYPE TRIM THE EXTRA CICRLE
- TO COOMAND THE PROMPT TYPE FILLET > BEND CURVE> AND SELECTED THE CURVE
- TO COOMAND THE PROMPT TYPE RECTANGLE LENGTH 155.2 WIDTH 27.3
- WITH THE HELP THE CPOY AND ROTATE COMMAND THE PLACE AND ALIGN THE SEATS INSIDE CIRCLE
RESULET:-
V

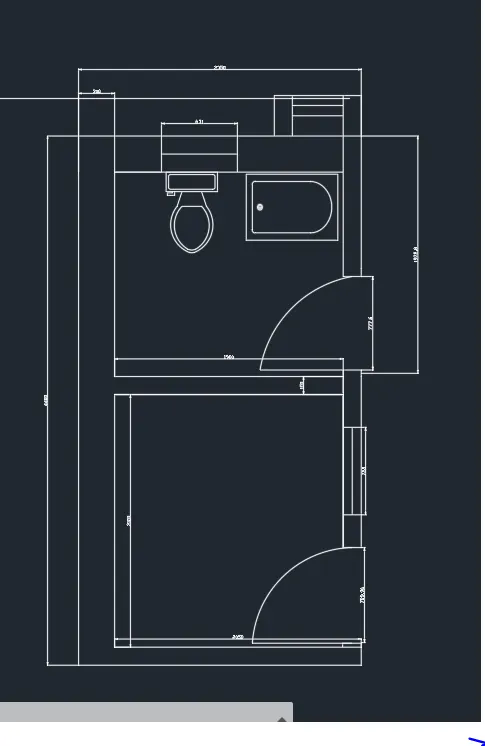

3) ANS:- AIM:- TO SKETCH THE PART PLAN FOR THE TOILETRS AND UTILITY ROOM.
PROCEDURE:-
- TO COOMAND THE PROMPT TYPE NEW
- TO COOMAND THE PROMPT TYPE LIMITMAX
- TO COOMAND THE PROMPT TYPE LIMIT
- TO COOMAND THE PROMPT TYPE ZOOM ALL
- TO COOMAND THE PROMPT TYPE XLINE IN HORIZONTAL DISTANCE 1900
- TO COOMAND THE PROMPT TYPE OFFSET IN LS 300 AND RS 150 AND UPPER SITE 150
- TO COOMAND THE PROMPT TYPE OFFSET 2100 IN HORIZONTAL LINE
- TO COOMAND THE PROMPT TYPE OFFSET 300 IN HORIZONTAL LINE
- TO COOMAND THE PROMPT TYPE OFFSET 828 AND TRIM THE EXTRA LINE FOR DOOR
- TO COOMAND THE PROMPT TYPE NEW MWNU BAR ARC >START>END>LENGTH FOR DOOR
- TO COOMAND THE PROMPT TYPE OFFSET 728 FOR WINDOW USING THE LINE
- TO COOMAND THE PROMPT TYPE OFFSET 1700 IN HORIZONTAL LINE
- TO COOMAND THE PROMPT TYPE OFFSET 300
- TO COOMAND THE PROMPT TYPE 832 FOR DOOR AND TRIM THE EXTRA LINE
- TO COOMAND THE PROMPT TYPE NEW MENU BAR ARC > START END LENGTH DRAW THE DOOR
- TO COOMAND THE PROMPT TYPE OFFSET 631 DRAW THE LINE FOR THE VENTILETOR
- TO COOMAND THE PROMPT TYPE OFFSET 401
- TO COOMAND THE PROMPT TYPE OFFSET 150 IN BOTH SITE
- RESULET:-
