Section Modulus calculation and optimization

Section Modulus calculation and optimization Report

Aim:

Section Modulus calculation and optimization

Section Modulus:

Section Modulus is a geometric property for a given cross-section used in the design of beams or flexural members, it is also referred as the polar modulus or the torsional Section Modulus.

To Use the Section from your Hood design and calculate the section modulus using the formula S = I/y.

S = Section Modulus.

I = Moment of Inertia.

y = distance between the neutral axis and the extreme end of the object.

Section Modulus calculation:

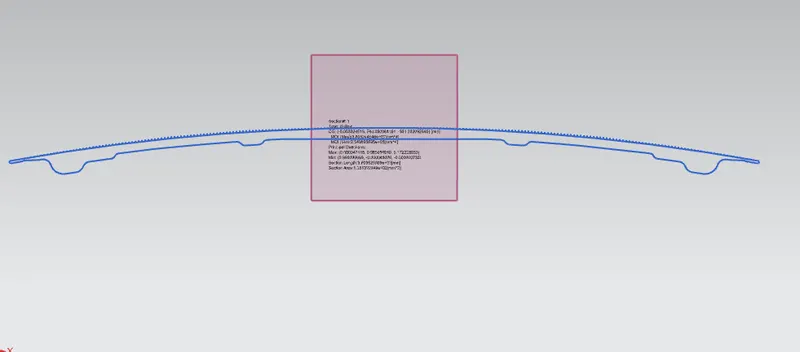

Hood Design Study:

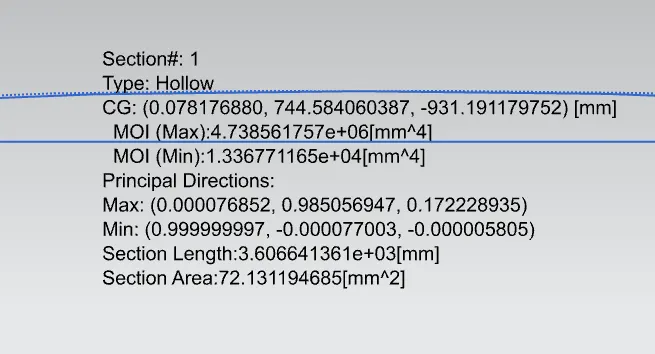

Moment of inertia(max) = 4.73856×10^6×mm^4

Moment of inertia(min) = 1.33677×10^4×mm^4

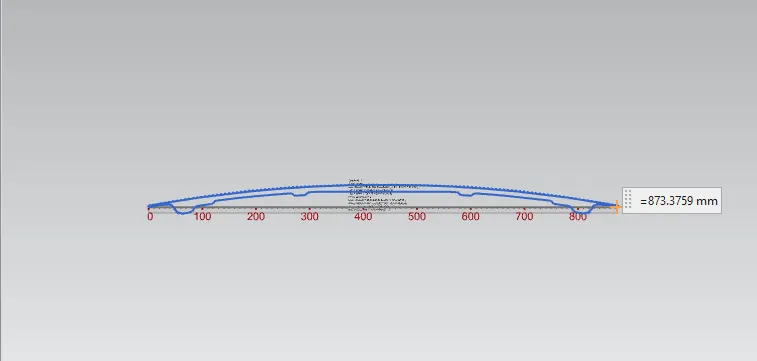

Y = 873.3759/2

Y= 436.687 mm.

S = I/Y

= 1.33677×10^4/436.687

= 0.00306116×10^4

S = 30.6116 mm.

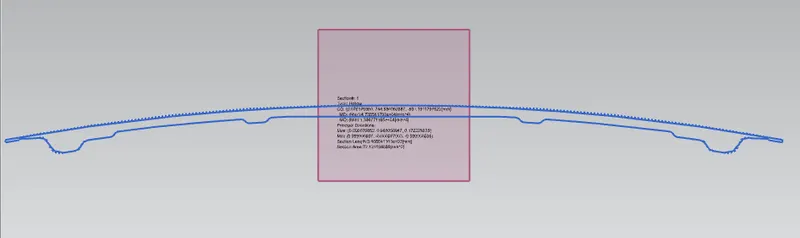

Hood Design optimization:

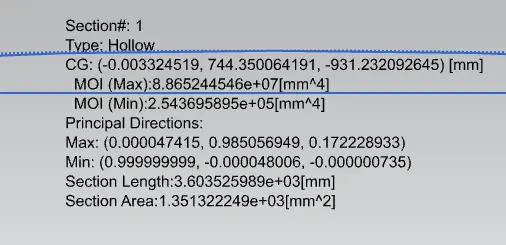

Moment of inertia(max) = 8.86524×10^7×mm^4

Moment of inertia(min) = 2.54369×10^5×mm^4

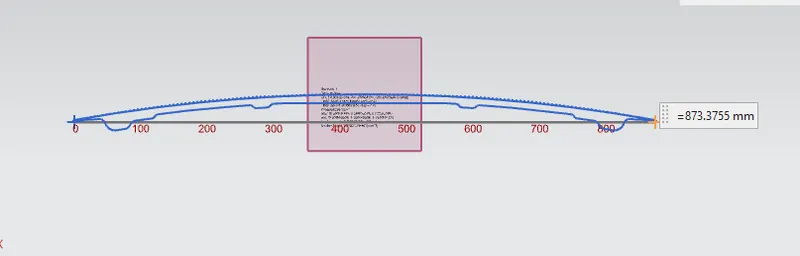

Y = 873.3755/2

Y= 436.687 mm.

S = I/Y

= 2.54369×10^4/436.687

= 0.005825×10^4

S = 58.25 mm

Final Conclusion:

The difference can be seen at the moment of inertia and the change in the section modulus can be seen by the change in the design (depth).
