Section Modulus calculation and optimization

SECTION MODULUS:

• SECTION MODULUS IS A GEOMETRIC PROPETRY OF AA CROSS-SECTIONAL SHAPE THAT MEASURES ITSABILITY TO RESIST BENDING , ITS A CRITICAL PARAMETER USED IN STRUCTURAL ENGINNERING AND MECHANICS TO ANALYZE THE BENDING STRENGTH AND STIFNESS OF BEAMS, COLOUMNS AND OTHER STRUCUTRAL ELEMENTS.

• SECTION MODULUS CAN BE DENOTED AS "S" IS CALULATED USING THE FORMULA

S-SECTION MODULUS

I-MOMENT OF INERTIA

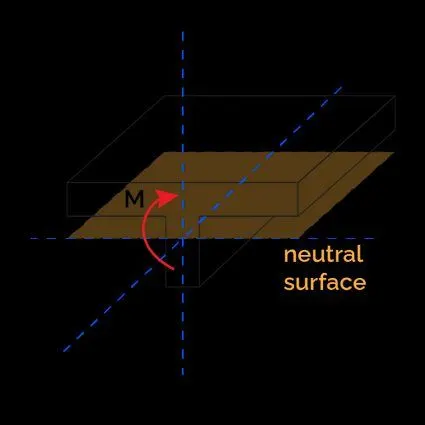

Y- DISTANCE BETWEEN THE NEUTAL AXIS AND EXTREME END OF THE OBJECT

• THE SECTION MODULUS HAS UNITS OF LENGH CUBED(E.G,. IN ^3 OR mm^3) AND ITS TYPICALLY PROVIDED BY MANUFACTURERS FOR STNDARD CROSS SECTIONAL SHAPES LIKE RECTANGLE , CIRCULAR OR I SHAPED BEAMS
• ENGINEERS USE THE SECTION MODULUS TO ENSURE THAT A STRUCTURAL ELEMENT CAN WITHSTAND THE EXPECED BENDING FORCES WITHOUT EXCESSIVE DEFLECTION OR FAILURE, IT HELPS IN DETERMINING THE APPROPRIATE SIZE AND SHAPES OF A STRUCTURAL MEMBER FOR A GIVEN APPLICATION , CONSIDERATION THE REQUIRED STREGTH AND STIFFNESS

IT HAVE SEVERAL ROLES

• BENDING ANALYSIS
• EFFICIENT DESIGN
• MATERIAL SELECTION
• PREDICTING DEFLECTION
• CROSS SECTIONAL COMPARISION
• STRUCTURAL ANALYSIS SOFTWARE

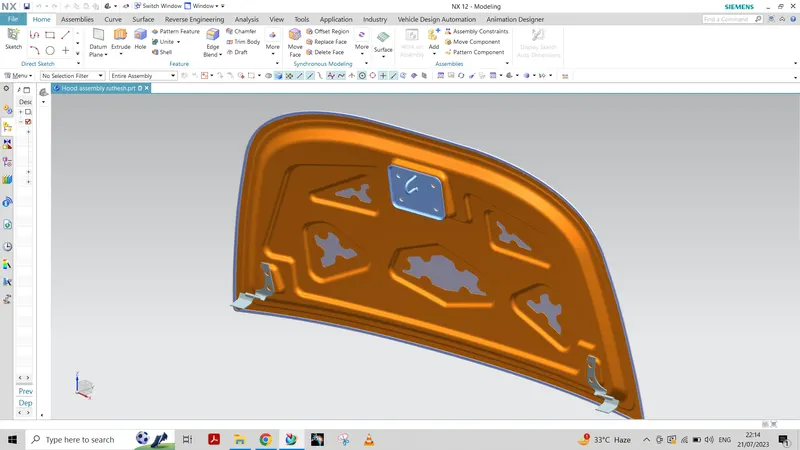

NOW WE ARE GOING TO CALCULATE THE SECTION MODULUS IN MY HOOD

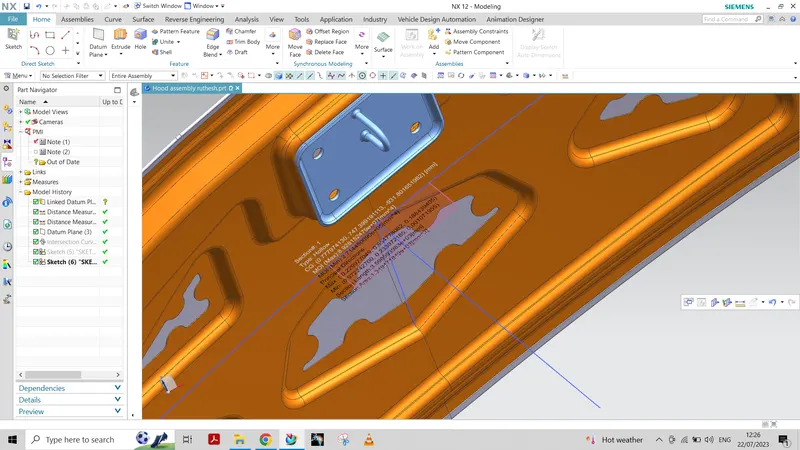

CREATING A DATUMPLANE IN CENTRE OF THE HOOD, BY INTERSECTION CURVE WE ARE TAKING THE INTERSECTION CURVE AND CLOSING THE GAPS USING THE SKETCH AND APPLYING SECTION INERTIA

NOW WE ARE OFFESETTING THE CURVE TO 0.5 MM AND CHECKING THE SECTION AGAIN

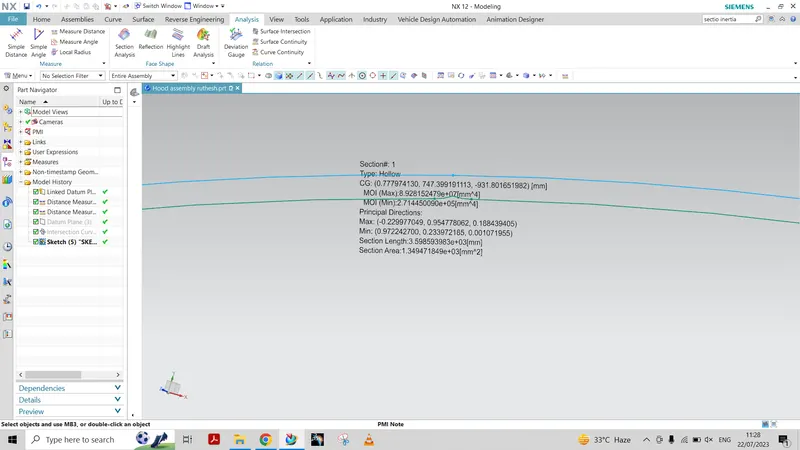

THE MOMENT OF INERTIA IS CALCULATED BY NX-CAD

I_MAX: _{8.92815247e+07[MM^4]}

I_{min: 2.714450090e+05[MM^4]}

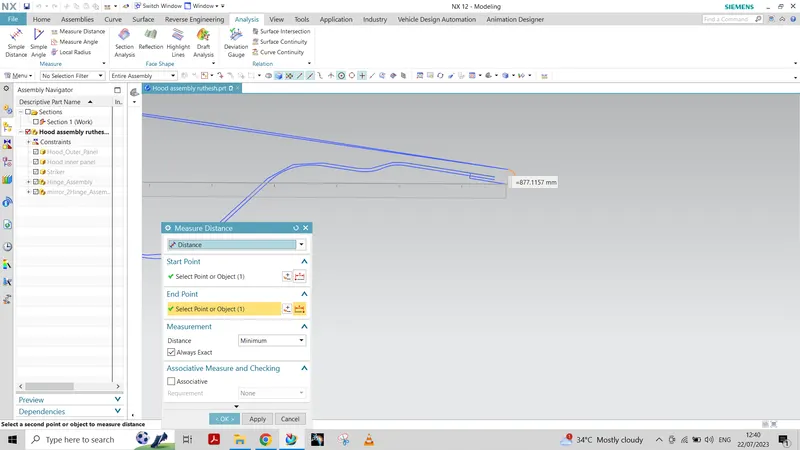

_{TOTAL LENGTH Y VALUE IS =877.1157mm}

_{AT NETURAL AXIS Y VALUE IS =Y/2 =438.5mm}

_{SECTION MODULUS I/Y=8.92815247x10^7/438.5=203606.67mm^3}

_{SECTION MODULUS I/Y=2.714450090x10^5/438.5=619.030807mm^3}

_{so the strength of hood varies from 203606.67mm^3 to 619.030807mm^3}

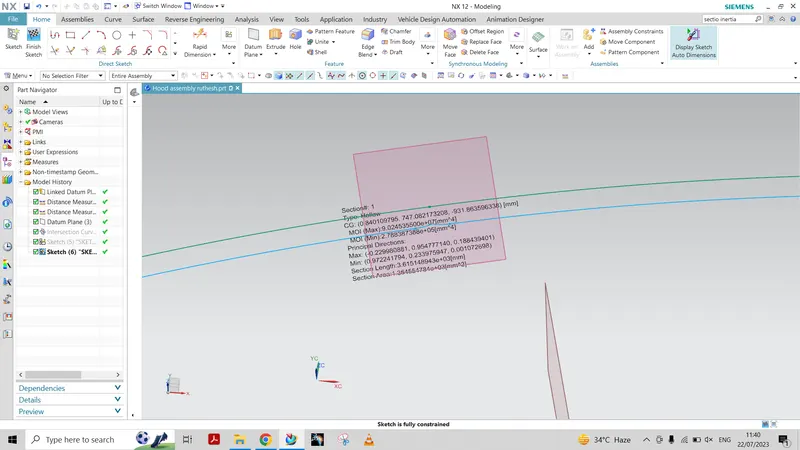

NOW WE ARE INCREASING THE VALUE TO 0.5MM

I_MAX: _{9.024535500e+07[MM^4]}

I_{min: 2.788387388e+05[MM^4]}

_{SECTION MODULUS I/Y=9.024535500X10^7/438.5=205804.686mm^3}

_{SECTION MODULUS I/Y=2.788387388X10^5/438.5=635.892221mm^3}

_{after increasing 0.5mm depth the strength of hood varies from 205804.686mm^3 to 635.892221mm^3}

_{FOR SECTION 1}

_{STRENGTH VARIES FROM 619.030807mm^3 TO 203606.67mm^3}

_{FOR SECTION 2 (INCREASE IN 0.5mm)}

_{STRENGTH VARIES FROM 635.892221mm^3 TO 205804.686mm^3}

CONCLUSION:

WHILE INCREASING THE CROSSSECTIONAL AREA WILL INCREASE THE STRENGTH OF HOOD BY MOMENT OF INERTIA AND MASS OF MATERIAL
