Section Modulus calculation and optimization

Design, Assembly and Rendering of a Tractor using SolidWorks and SolidWorks Visualize Objective: Design the parts of the Tractor Assemble the parts in solidworks assembly. Render a high quality image using photoview 360 and SolidWorks Visualize. Software Used: SolidWorks 2020 SolidWorks is a parametric modeling software…

Standard views of the Radar-Mast along with its complete feature tree are shown below - Front view : Side view (right) : Isometric view : Feature Tree :                                                                                                                 YACHT MODELLING   OBJECTIVE : To model a Yacht using SolidWorks…

MODELLING & RENDERING OF AMERICAN CHOPPER AIM:- The Project Report is about the Designing, Modelling, and Photo Rendering of American Chopper using Solidworks 2021 and Solidworks Visualize 2021. OBJECTIVE:- To Design and model each component required to make assembly of an American Chopper in Solidworks and finally…

Aim: Route the Wiring Harness on given Car body and prepare flatten view drawing in Catia V5 Objective: The objective of this project is to route the wiring harness and prepare flatten view drawing for the tailgate of the car. All types of packaging rules have to be considered while routing the harness and industry based…

WIRING HARNESS DESIGN PROJECT 1 AIM Design and develop the Wiring harness on Given V6 Engine and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design.   INTRODUCTION A wire harness, also commonly referred to as…

AIM: TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY. GIVEN: HARNESS ASSEMBLY: HARNESS FLATTENING: WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS. WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE. CHOOSING A SUITABLE PLANE WE FLATTEN…

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing, Check the bundle Continuity. Add snap of result in submission Add annotation to all connectors. Make an assumptions for annotations like connect 1 , 2 etc…

Aim:  1) To Route the following harness layout in the Electrical workbench. 2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Given: CAD data of the following Connectors:  DT06-4S DT06-6S DT06-2S DT06-08SA Connectors Layout Design: Steps to be followed: 1. Download…

Hellarmann Tyton – 21160129process:Create two points one as entry and another as exit point.create planes at two points and another at base.Switch to Electric part desgnClick on support defination - select part - select entry point - select entry plane, exit and base plane.Again Click on support defination - select…

AIM:  Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html) Tyco 174357-2…

CAR BACK DOOR DESIGN Aim: To design back door of car using given outer class 'A' surface. What is back door of a car? a door on a car's backside that provides access to the boot, where passengers can keep their belongings and spare tyres, among other things. These doors have both manual and electric operation…

ROOF An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements. Safety point of view vehicle roof plays a very crucial role especially in rollover kind of accidents, vehicle  rollover crashes…

DESIGN OF CAR FENDER Fender is  the part of an automobile, motor cycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically rigid and can…

FENDER WHEEL ARCH CHALLENGE FENDER WHEEL ARCH Wheel Arch is the semi-circular part of the fender positioned above the wheel of the vehicle. The design of the wheel arch of the fender should be such that it must shield wheels and protect both passengers compartment and pedestarians from the projection of watr, mud and stones.The…

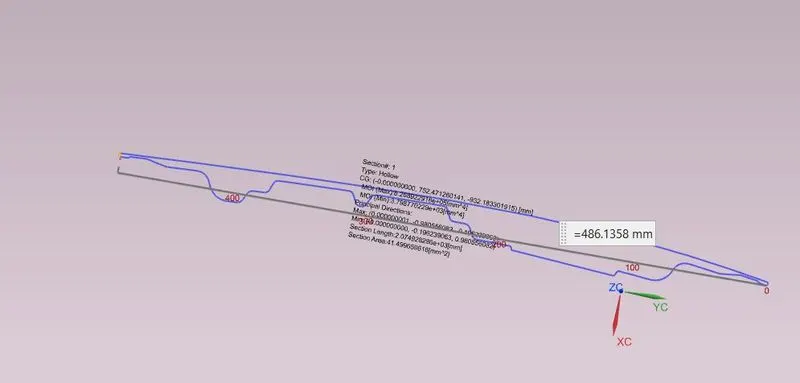

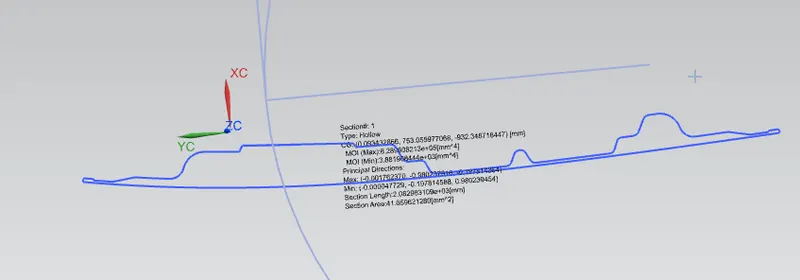

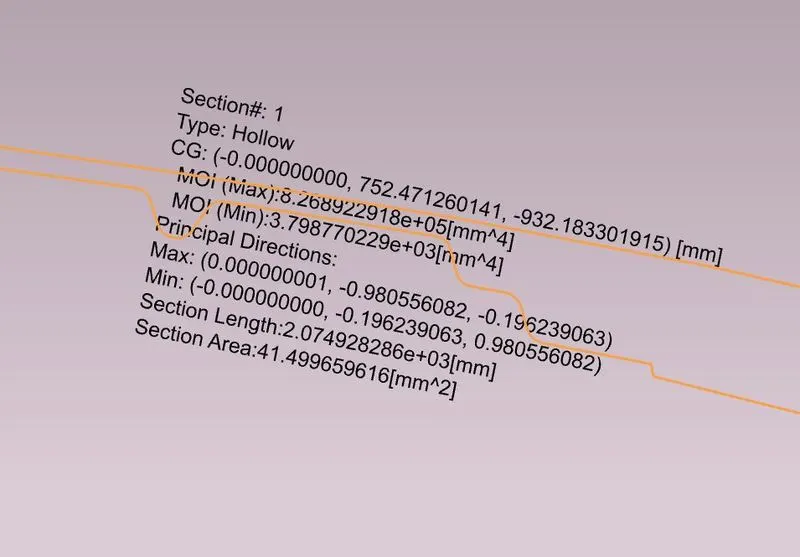

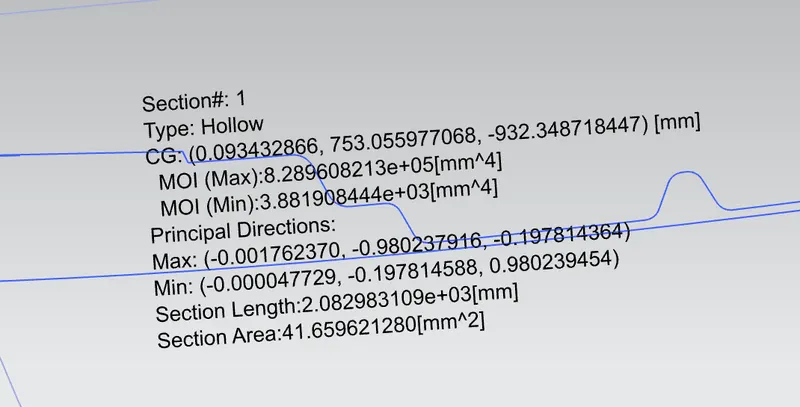

Aim To calculate section modulus of hood and optimize the design to have improved section modulus. Section modulus:- Section modulus is a direct measure of a strength of any cross sectional area of an object about an reference axis. The formula of section modulus is given by, S=I / Ymax Where,I = Moment of inertia (mm^4)Y…

AIM:- To write a report on what is underbody coating,it's type and pros and cons.   INTRODUCTION: WHAT IS UNDERBODY COATING? Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car’s underside. When the automobile is fresh off the lot and spotless, it is usually…

AIM:- To write a report on what is underbody coating,it's type and pros and cons.   INTRODUCTION: WHAT IS UNDERBODY COATING? Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car’s underside. When the automobile is fresh off the lot and spotless, it is usually…

AIM: DETAILED REPORT ON BENCHMARKING To prepare a report explaining what is Bench-marking , Compare at least 4 Vehicles and Provide a Preoper conclusion for the report ,suggesting a suitable vehicle among the comparison made. WHAT IS BENCHMARKING ? It is the process of comparing one's business process and performance…

Week 12- Final project: Development of a Door Trim panel Door trim panel is creation of CAD model considering following inputs as like in OEM and tier1 companies Class A surface is givin but after applying boundries check, it has been found there is some improvement needed to be actioned to get a closed surface. Nominal…

AIM: To create the A Pillar Design with the master section given as the intersection sketch with the Class A surface and create the tooling axis and perform the Draft analysis for the final solid part. CLASS A SURFACE:           Class A is an aesthetic surface with the…

Objective: The main aim of this challenge is to create a solid body of 'Door Trim Lower' with the help of the closed surface method by using the 'Generative shape design' workbench in CATIA V5. Performing the 'Draft Analysis' on the solid part body of the Door trim. Overview:Initially, we need to offset the given…

Attachment Feature Creation - Challenge 2 AIM Create the Dog House for the Door Trim considering the design rules INTRODUCTION DOG HOUSE Dog house is an engineering feature used in plastic design. Dog houses are used as support feature. Sometimes other engineering features like snaps, locators, and screw bosses are mounted…

1.QUICK RETURN MECHANISM Initailly each body create seperate file as per given dimension in drawing  like below mention image , body1 body2 body3 body4 body5   finally each body create to assembly with respective constraint, as per manufacture purpose create 2d drawing,   2.CV JOINT Initailly each body create…

    Attachment Feature Creation (Ribs & Screw Boss) AIM: To Create the Door Handle Component from the given Class-A surface. To Create the tooling axis for the given Class-A Surface meeting the requirements of the draft angle. To Attach B side Features in the component. To perform the Draft analysis on the model.  TOOLS…

AIM: To Create the Core and cavity blocks for the switch bezel component. DESCRIPTION:   1. CREATING TOOLING AXIS -                       The Tooling Direction is basically the direction that the mold pulls a part. The mold is built in two separate pieces,…

Aim : To create the class B surface, C surface and tooling axis also publish it as well as close surface the given door trims. Objectives : Create the Door Trim Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of…

BUMPER DESIGN AIM: to make a model from the provided class-A surface.INTRODUCTION:CLASS-A SURFACE: a surface made by the designer which is given as an input to the plastic modeler to work on. It is aesthetic surfaceand the outer most surface.CLASS-B SURFACE: a surface below a certain thickness from the class-A…

COIN HOLDER To create a coin holder plastic component by closed method with reference to the class A surface and do the draft analysis for the component. Steps followed The class A surface is checked for the connectivity of the surface and ensure it is completely joined and there will be no gap between the surfaces. If…

  AIM: Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. REPORT ON DRAFT ANALYSIS: Given Class A Surface:…
