Wiring harness routing & packaging Rules Week 3 Challenge
Hellarmann Tyton – 21160129

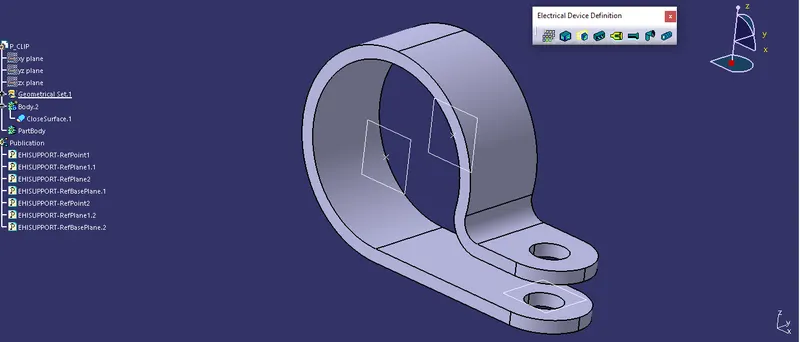

process:
- Create two points one as entry and another as exit point.
- create planes at two points and another at base.
- Switch to Electric part desgn

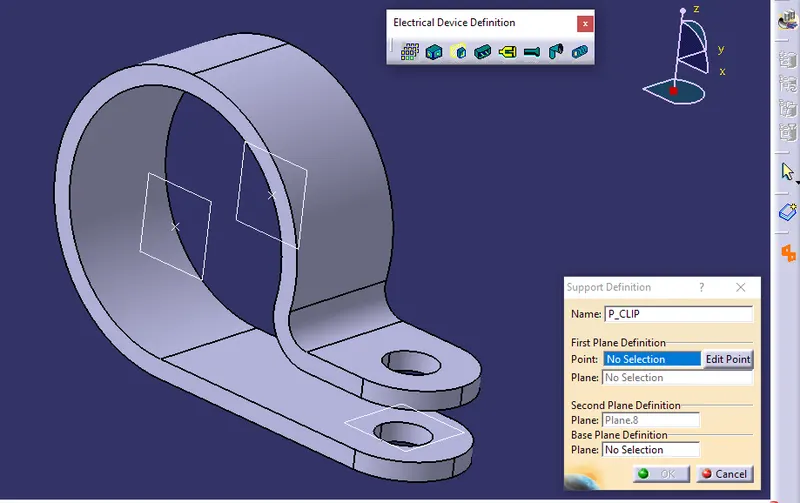

- Click on support defination - select part - select entry point - select entry plane, exit and base plane.
- Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
Process:

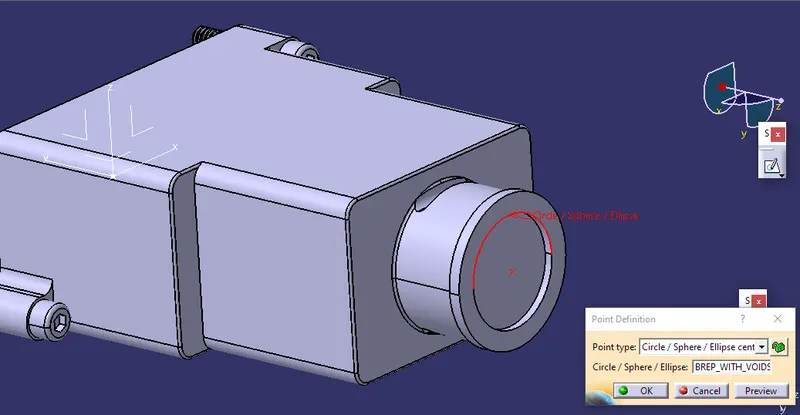

- create Back shell entry point.

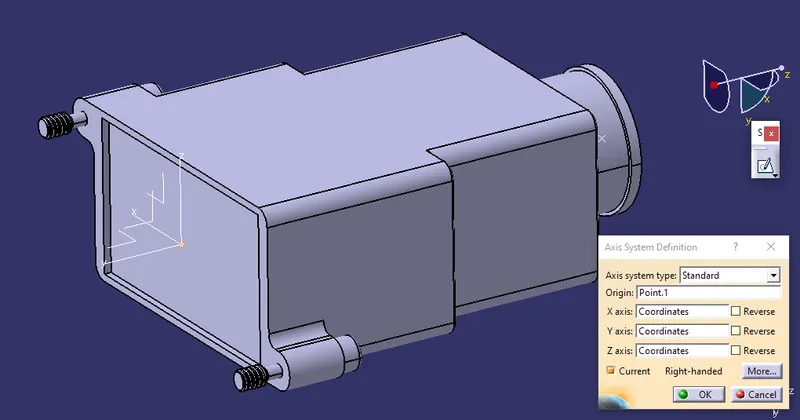

- create axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.

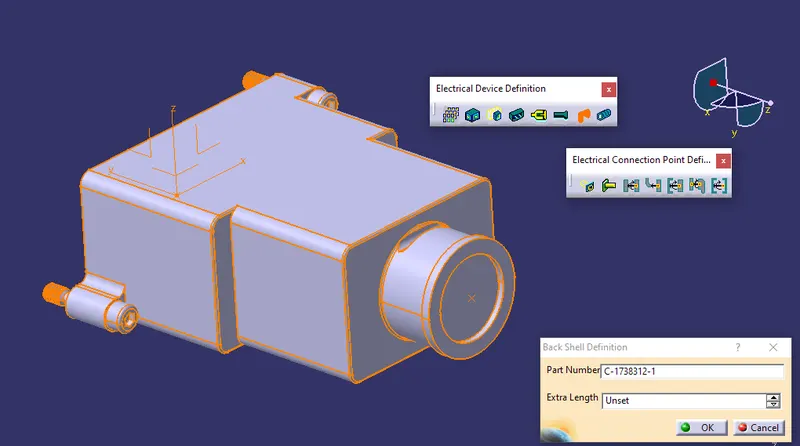

- Define part electricaly as back shell.

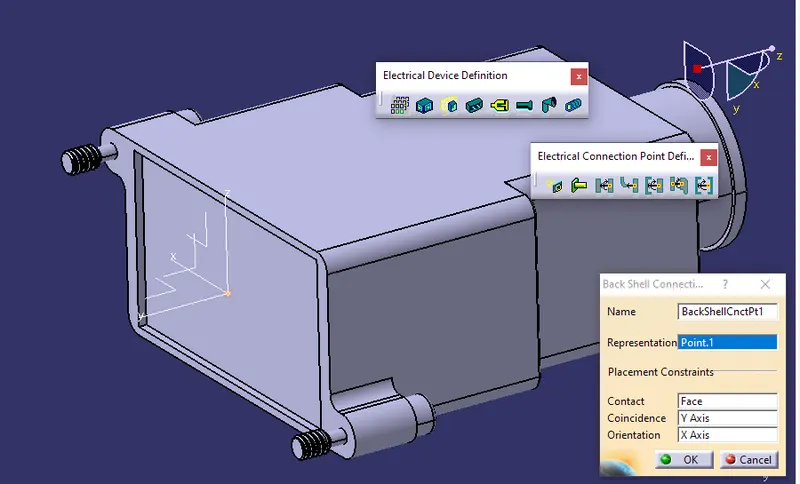

- Then define Back shell connection point.

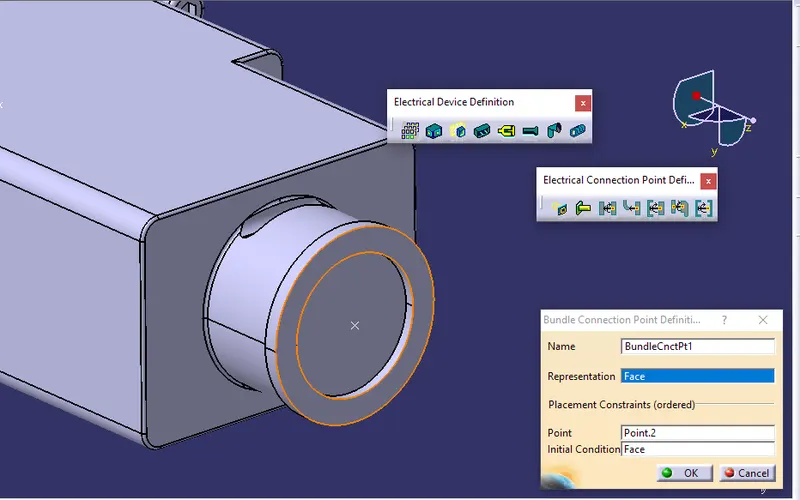

- Define bundle connection point.

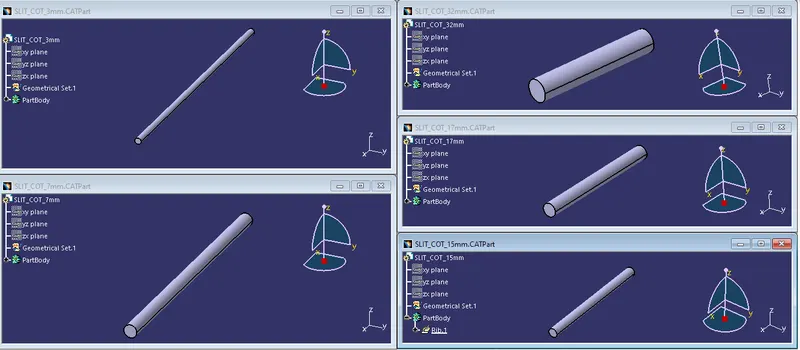

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
Name | ID (mm) | OD (mm) | Thickness (mm) |
15mm COT | 12 | 15 | 1.5 |
20mm COT | 17 | 20 | 1.5 |
35mm COT | 32 | 35 | 1.5 |
10mm COT | 7 | 10 | 1.5 |
5mm COT | 3 | 5 | 1 |
Process:
- Switch to Electrical part design

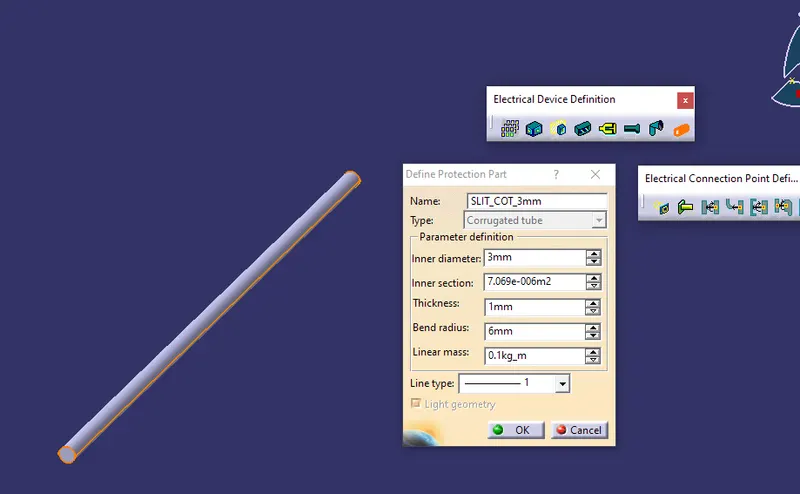

- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.
Catalogue Cretation:
- new part - catalogue document - add family - give name - type - select Conduit - save.

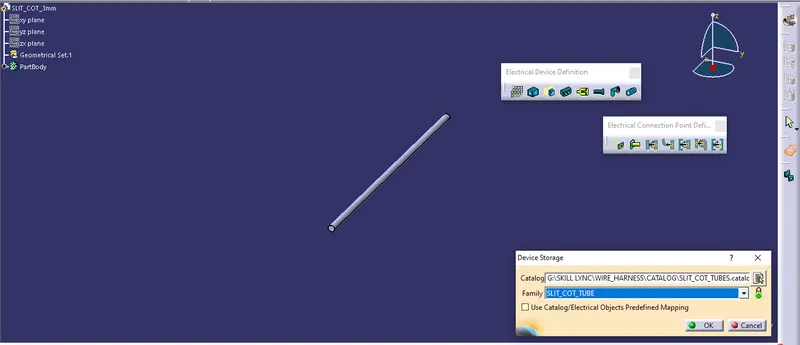

- Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
