Section Modulus calculation and optimization

SSidhartha Sankar Sahu6 May 2023

what is section modulus :

Section Modulus is a geometric property used to calculate the bending stresses in a structural member.

Mathematically, section modulus is the ratio of inertia about the neutral axis to the distance of outermost fiber from the neutral axis.

Z = I/y

Z = Section Modulus

I = Area Moment of Inertia

Y = distance between the neutral axis and the extreme end of the object

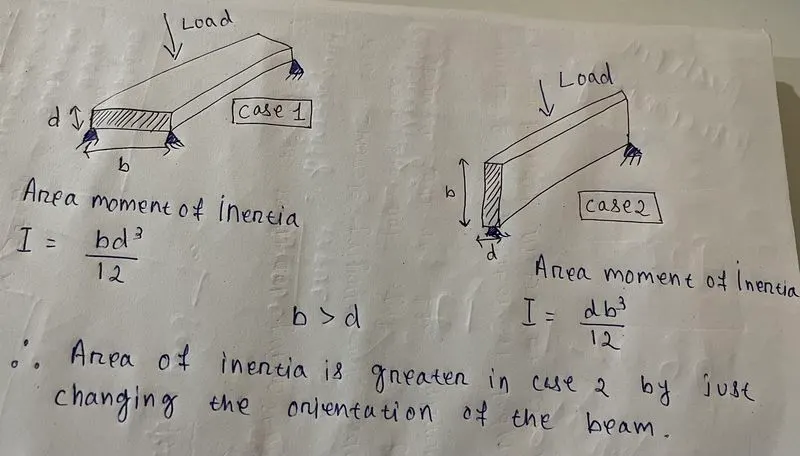

area moment of inertia :

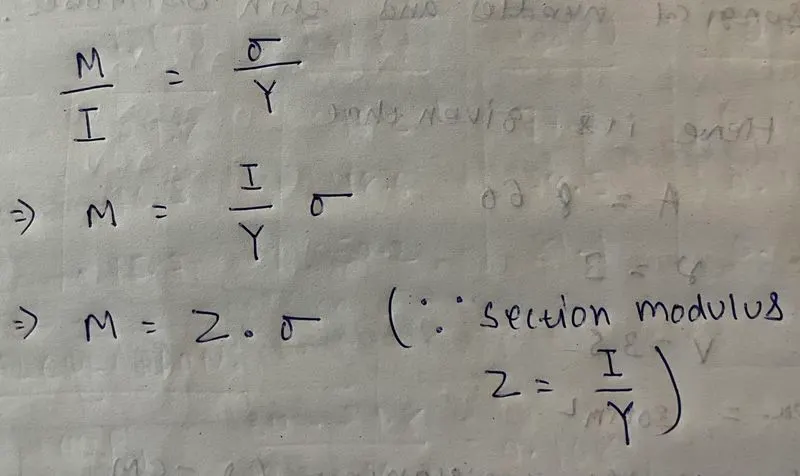

according to the bending equation :

M / I = σ /y = E / R

M = bending moment (or) resistance towards bending

I = area moment of inertia

σ = bending stress

Y = distance between the neutral axis and the extreme end of the object

from the bending equation ,

so in order to get maximum resistance towards bending m max , we need maximum value of section modulus , hence the distance between the neutral axis and the extreme end of the object for an object is constant , resistance towards bending is directly propertional to the area moment of inertia .

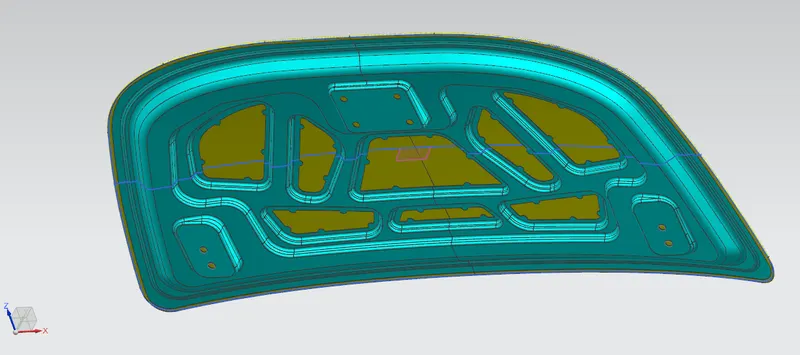

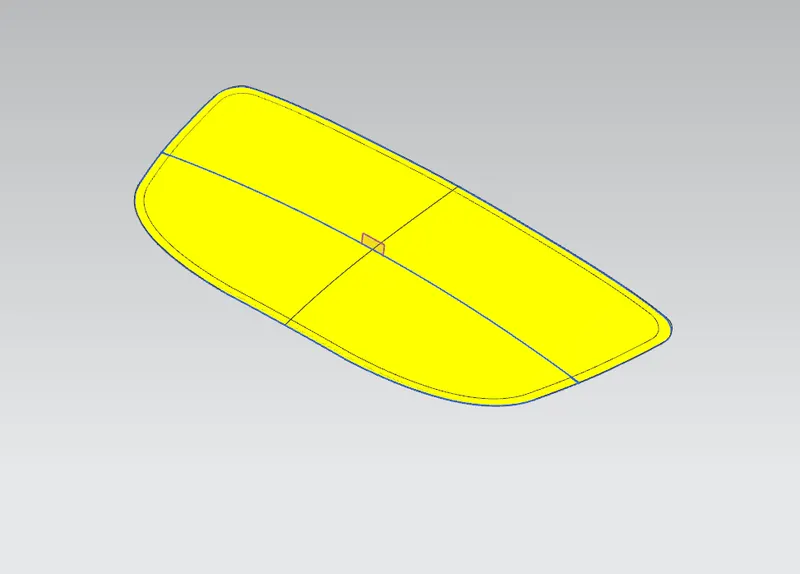

Section from your Hood design and calculate the section modulus :

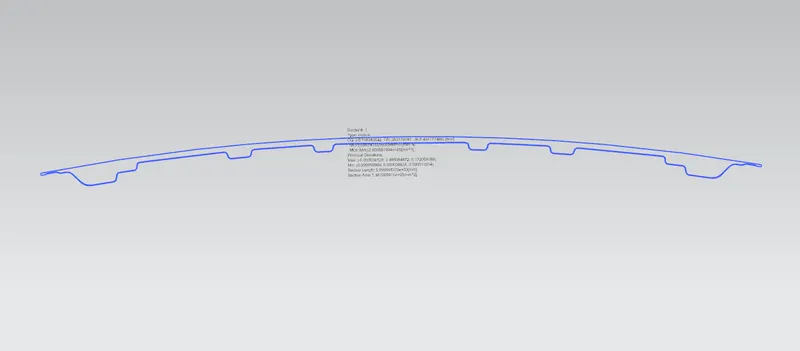

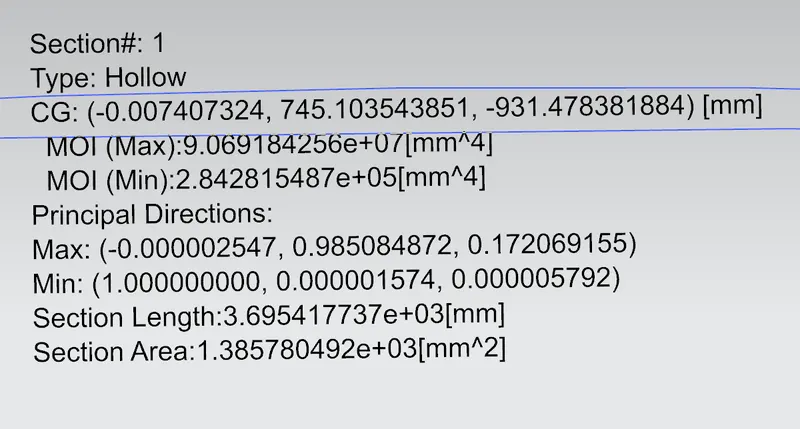

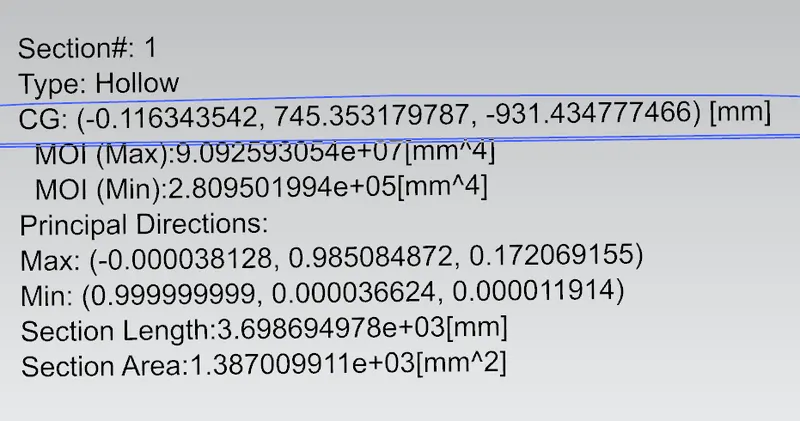

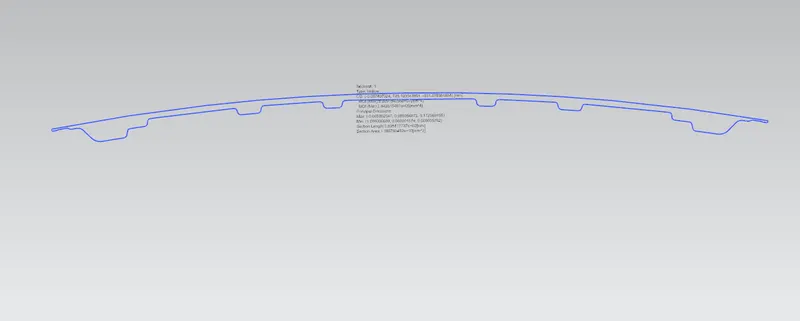

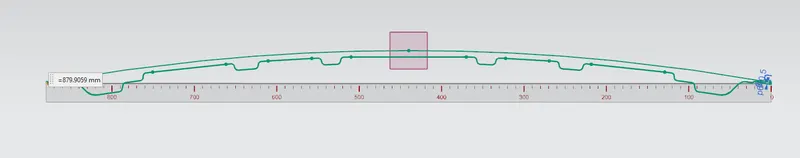

calculating section modulus for frontal impact .
