Roof Design

ROOF DESIGN

AIM: To design a roof with all the components like front roof rail, rear roof rail, and bow roofs by following the given master sections and the high-quality surface, considering all the design requirements as per the OEM standards.

ROOF

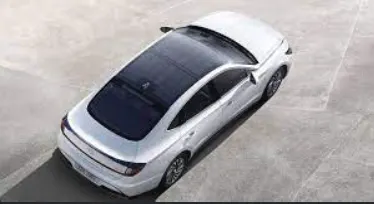

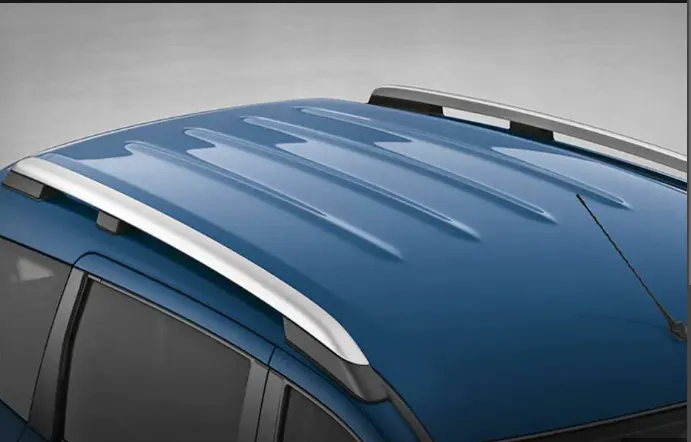

An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements. The roof is not a single panel as seen from the exterior it consists of front roof rail, bow roofs, center roof rail, and rear roof rail with different thicknesses which act as a reinforcement for the top.

Under the styling surfaces that’s is seen from the outside, there are many other structures under the roof that contributes to its strength and stability. The number of such reinforcement structures/supports differ with respect to the size of the vehicle. They are primarily installed on the flatter areas of the roof to enhance the strength.

They are the Front Roof Rail, Rear Roof Rail, Center Rail and Bow Roof Design which are given Mastics and spot welded to the roof flanges & ditch are and improve NVH value by increasing the strength of the roof of using mastics sealants.

Types of Car Roofs:

1. Convertible roofs.
2. Hard Tops
3. Sun roofs.
4. T- Tops.
5. Target tops.
6. Vinyl roofs.

Design Consideration of roof:

• Visibility Criteria
• Head Clearance
• Curvature Study
• Heat Distortion and snow load criteria
• Draft Analysis
• Safety Parameters

OBJECTIVE:

• To design the automotive roof based on the given styling surface and to analyze the prepared model to check the manufacturability and the feasibility of the design.
• To perform the section modulus study for the master sections and create for front roof rail, Bow roofs and center roof rail.
• To create the Ditch area and to perform the draft analysis.

INPUTS:

Joining Process:

Mastics are introduced between the roof outer panel and the reinforcements for joining. Where ever the mastics are introduced there is remarkable strength. Spot welding is also introduced to join the reinforcement and the outer panel.

Reinforcement and its types:

If the roof is flat, it is weak and cannot able to with stand the external load like snow load, roll over and etc. so in order to increase the strength of the roof, reinforcement like front roof rail, central roof rail, rear roof rail and the bow roof are introduced and joined in the flat surface of the roof with different joining process. In general, there are four types of reinforcement are used in the hard roof top they are,

• Front roof rail
• Central Roof rail
• Rear roof rail
• Bow roof rail

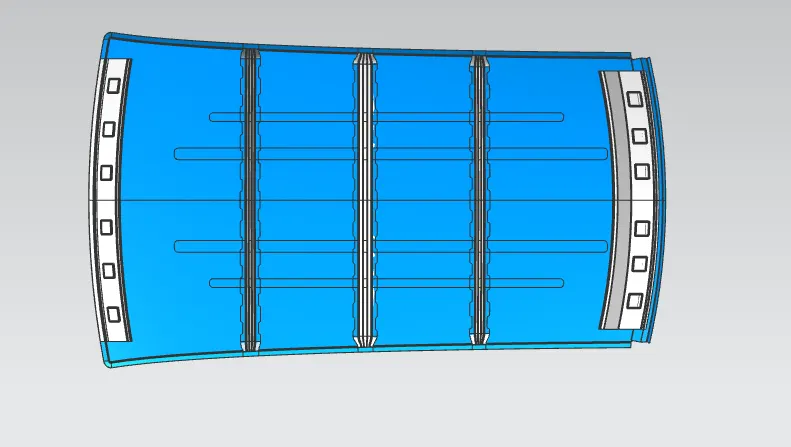

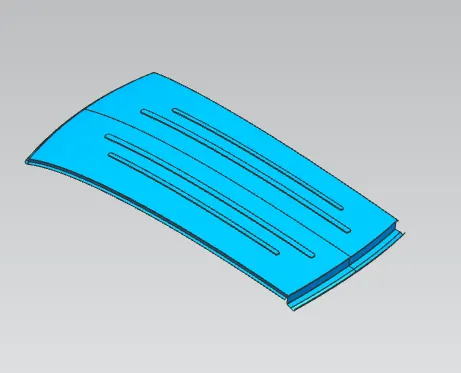

Roof Outer panel:

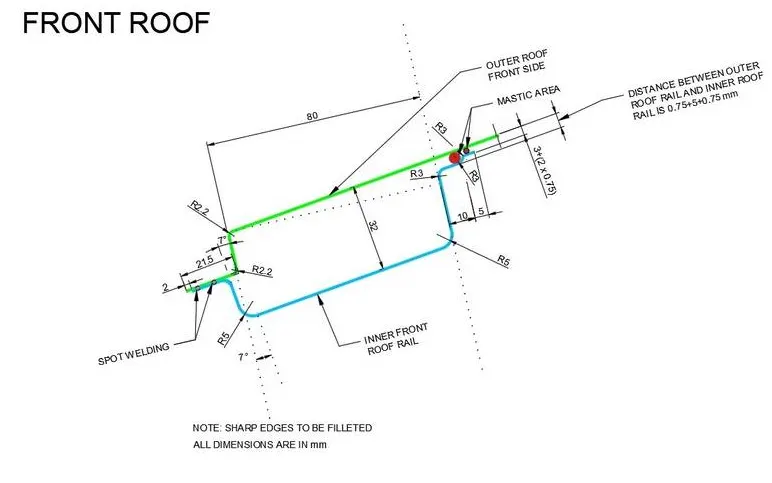

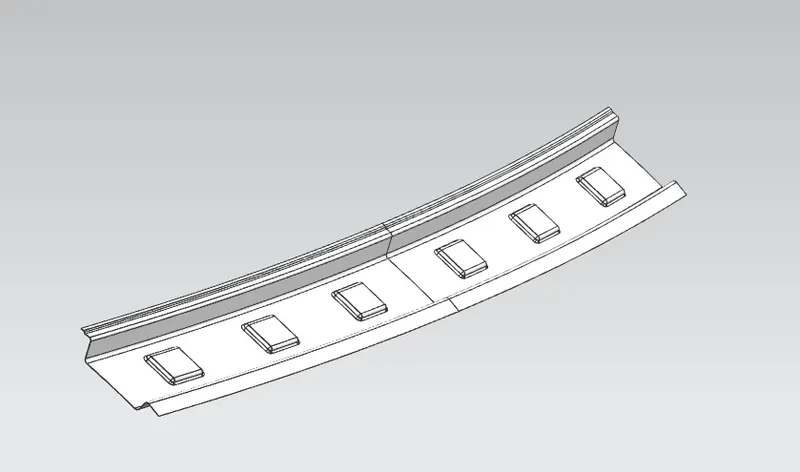

Front Roof rail:

Front roof rail is the one which joins the wind shield glass, body side outer and the inner panel also. Here the front roof rail is designed based up on the master section given.

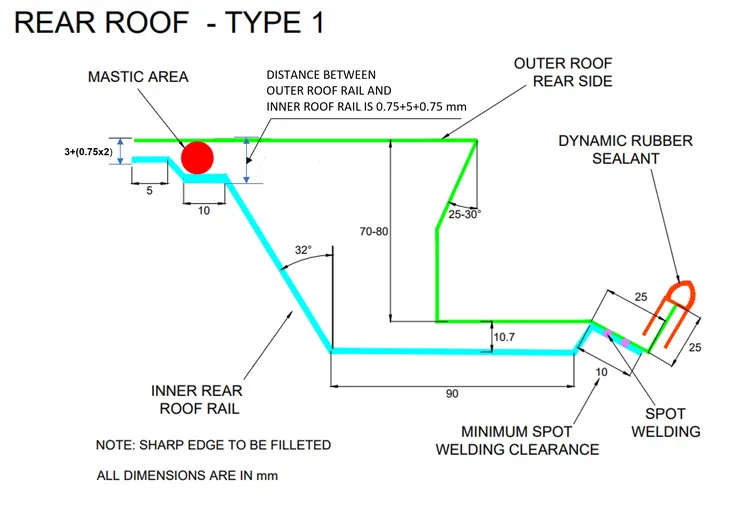

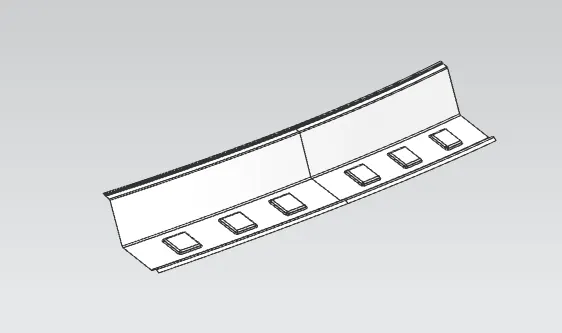

Rear Roof rail:

Just as the front rail roof, the rear rail roof provides reinforcement to the rear part of the car roof. Similar to the front rail roof, the rear roof rail is to be designed considering the rear visibility criteria and the rear passenger’s headroom clearance.

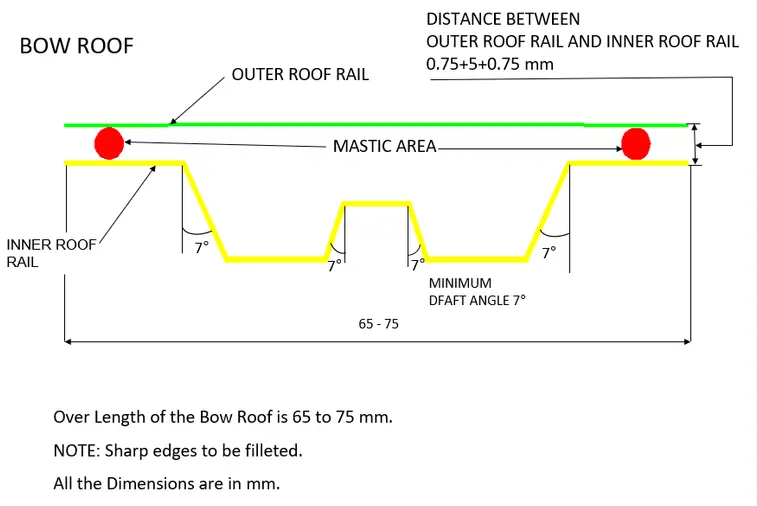

Bow roof rail:

The bow roof are given to improve the torsional stiffness and load bearing capacity of the roof structure. The number of roof presented is depends on the overall size of the roof. Presently in this project two bow roofs are calculated.

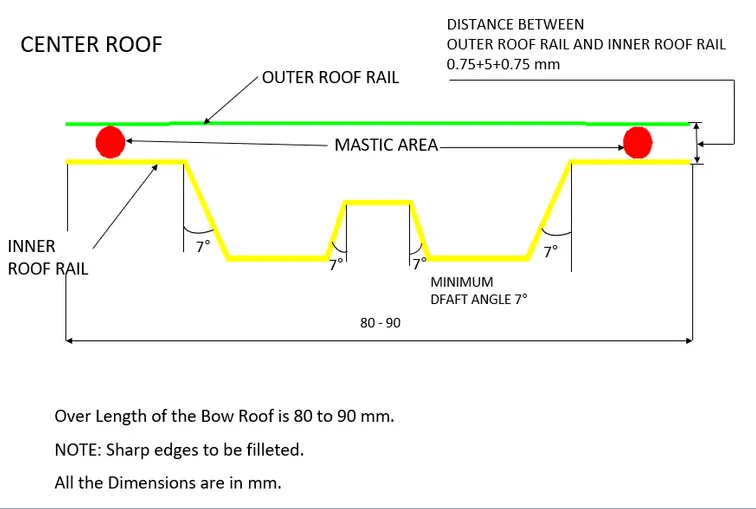

Center roof rail:

Central roof rail helps in providing effectively support to the flat area of the roof as it is more susceptible to failure under the action of load.

Design Calculation of Roof:



To make sure the roof design passes the Analysis test some of the criteria to be considered before the design of bow rails under the roof. They are,

• Heated Distortion study on the roof
• Snow Load Condition

Heated Distortion study on the roof:

The heat distortion study plays a major role in sheet metal usage. Heat distortion temperature is the temperature limit above which the material cannot be used for the structural applications. This study is used to predict the heat distortions temperature at the material where it start to soften when exposed to a fixed load at elevated temperature. In order to avoid bending or damages on the roof, based on the heat distortion temperature, this study will predict the bow roof position which helps to strengthen the roof.

Bow–Roof Prediction Formula

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

Where,

L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)

R = Roof curvature

R = 2(Rx*Ry)/(Rx+Ry)

Rx = X curvature

Ry = Y curvature

t = Roof plate thickness [mm]

l = Bow Roof Span [mm]

Here we have to find out Rx and Ry values. To find out

• Create a sketch on Top roof and draw a horizontal line at a center.
• Then offset this line below 300mm and called it as _3y line.
• From the _3y line offset 100 mm above and below and convert all these line into reference line.
• Draw the vertical lines at the middle of each reinforcements and offset it at 100 mm both sides.
• Intersection point is created where the lines are met.
• Project there points the outer roof panel.

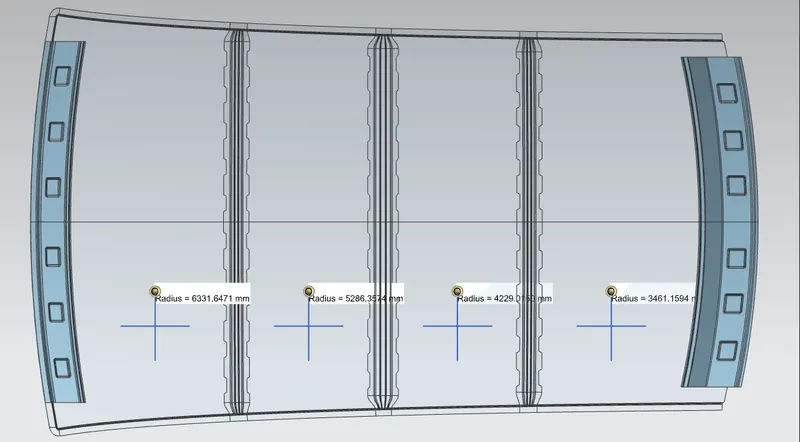

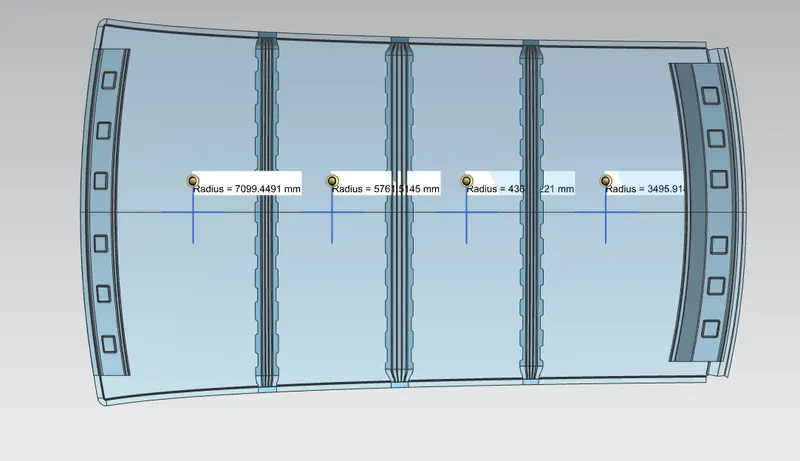

Radius of  Ry  values for Heat Distortion Calculation:

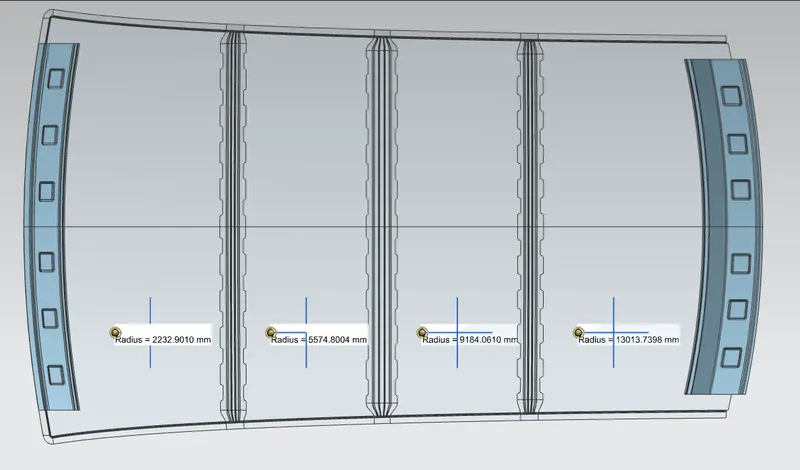

Radius of  Rx  values for Heat Disortion Calculation:

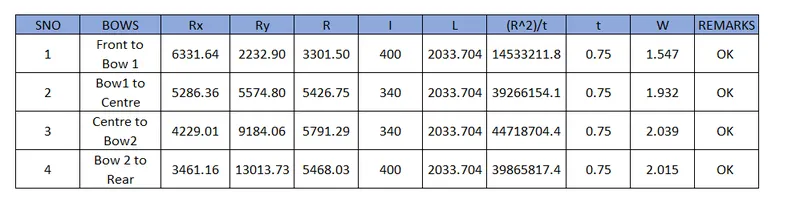

Table of Heat Disortion Caluculation Result

From the above table it can be concluded that all values of W < 2.7 and also not W > 3.1.  So thus infers that current positioning of bow row are good in state as per design and found ok.

Snow Load Condition:

This test is done to know how the roof is behaving when there is a snow over. Normally due to the snow weight the dent will happen. But the roof should be designed in such a way that when the snow is removal the roof should go it its original position. This basic requirement for snow load criteria.

 Snow Load Prediction Formula

Qr = [Iy x t2] / [α x s x [(Rx + Ry)/2]2 x 10-8]

Note: The Qr value given over here is correct. There was a typo error in the formula given in the video.

Where,

α = My x Lx2 x 10-12 , My = Y(Ly-Y)

t = Roof plate thickness [mm]

Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]

Length of Roof panel with the center point between Roof rail Front /Rear as the front and rear reference point.

Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]

The width of the roof panel is exposed on the surface.

Y = Distance front Front Roof Rail to Roof BOW[mm]

s = Distance for which Roof BOW bears divided load [mm]

s = I/Y

Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]

Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]

Roof panel curvature Radius of the Length Lx in Front view

Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]

Roof panel X curvature radius of length s in Side view

Judgment condition

Qr ≥ 3.1

250 ≤ s ≤ 380

Here we have to find out Rx and Ry values. To find that

• Create a sketch on Top roof and draw a horizontal line at a center.
• Offset this line to 100 mm on both sides. Convert all these line into reference line.
• Draw the vertical lines at the middle of each reinforcements and offset it at 100 mm both sides.
• Intersection point is created where the lines are met.
• Project there points the outer roof panel.

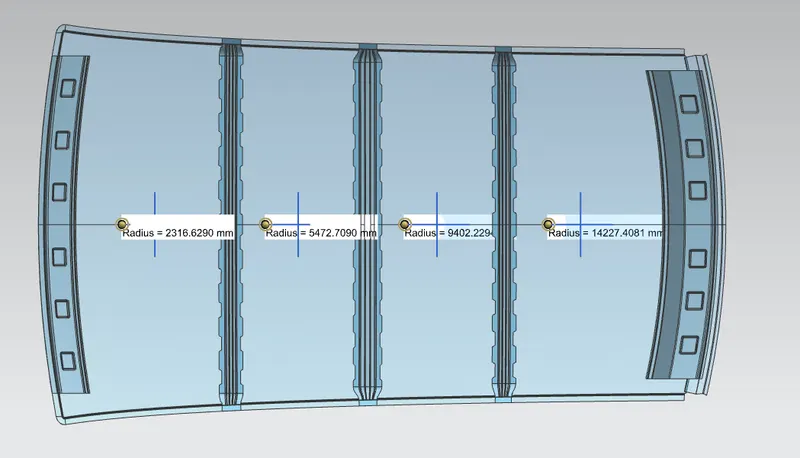

 Radius of  Rx  values for Snow Load Calculation

 Radius of  Ry  values for Snow Load Calculation:

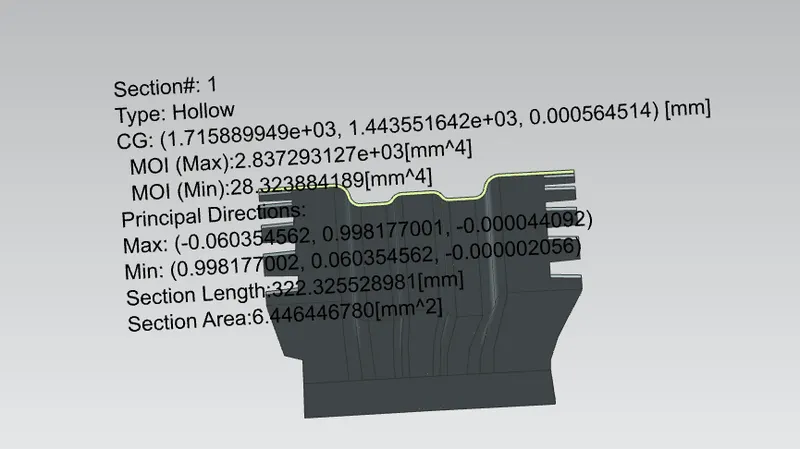

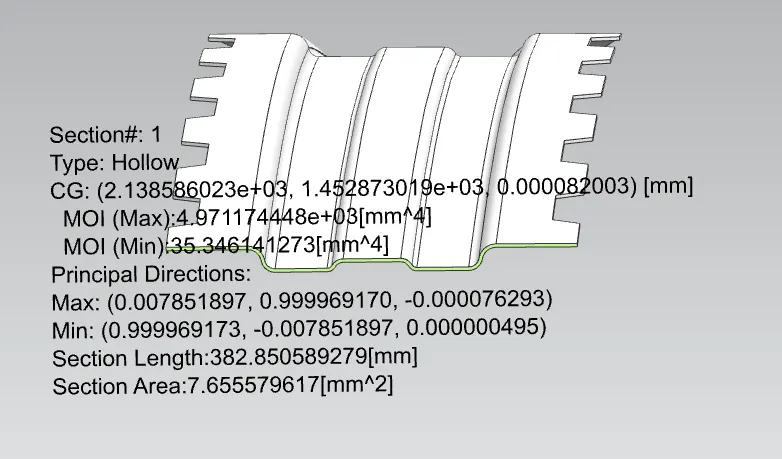

Moment of Inertia for Bow Roof 1 :

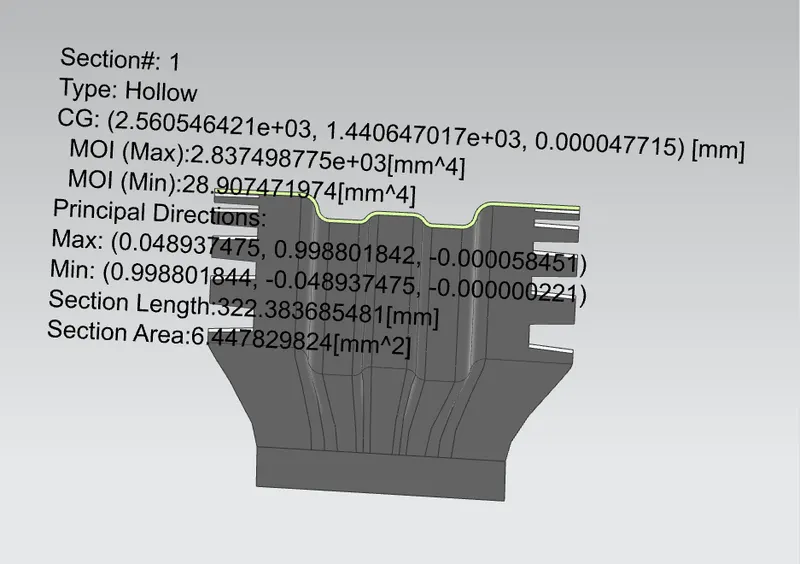

Moment of Inertia for Bow Roof 2 :

Moment of Inertia for Center roof :

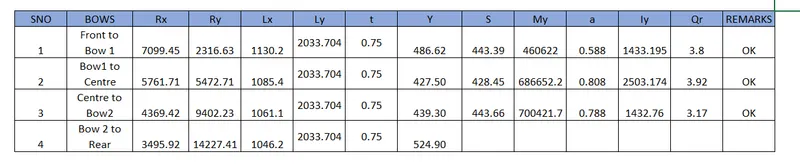

From the above results, the positioning of the bow roofs satisfies the condition for snow load Criteria.

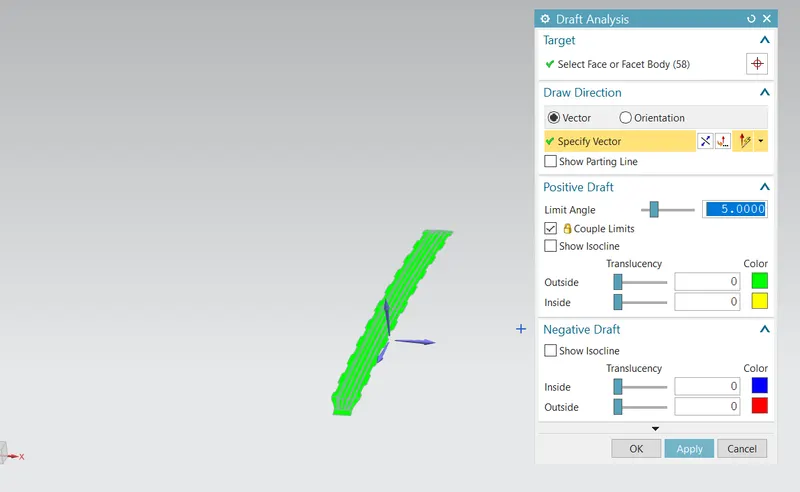

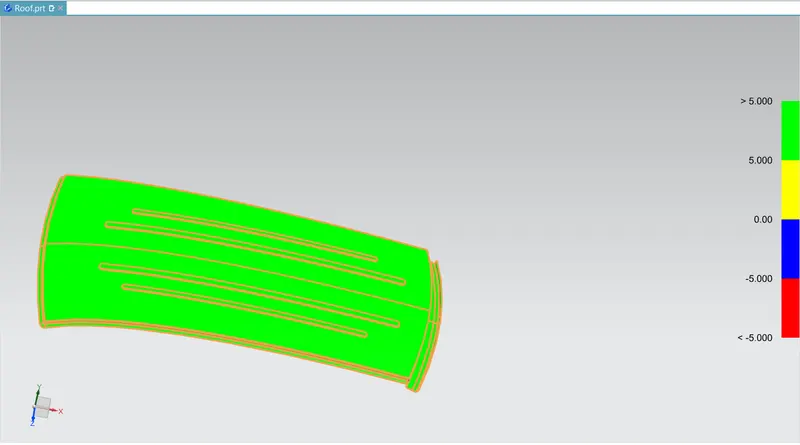

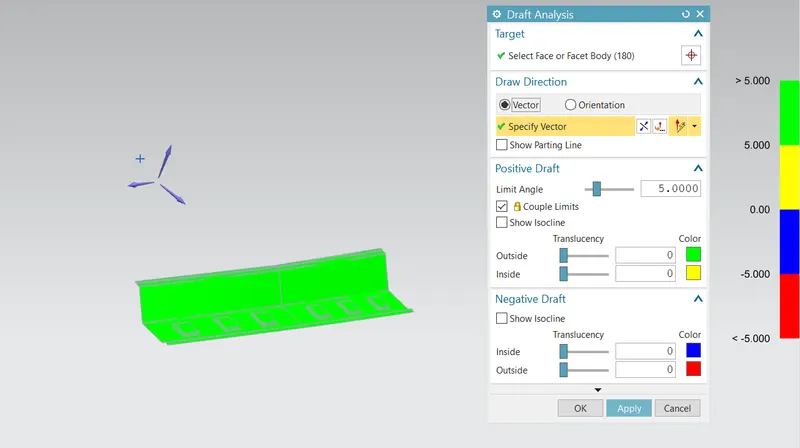

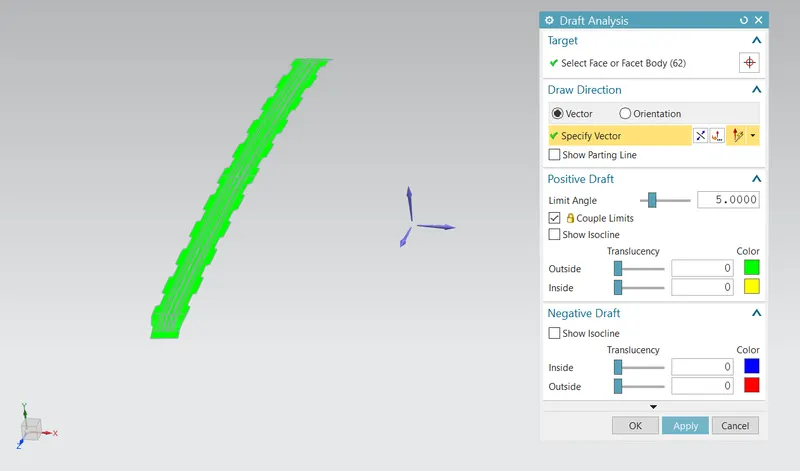

Draft Analysis:

The draft analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

Minimum draft angle of 5 degree is considered for analysis, green color infers on the parts that all face along the tooling direction has positive draft angle greater than 5 degree and passed in analysis.

Outer roof:

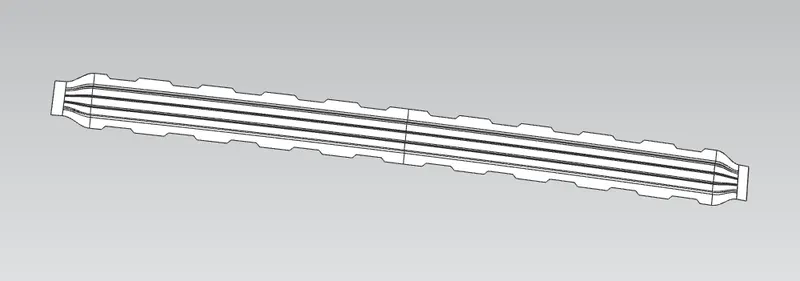

Bow Roof:

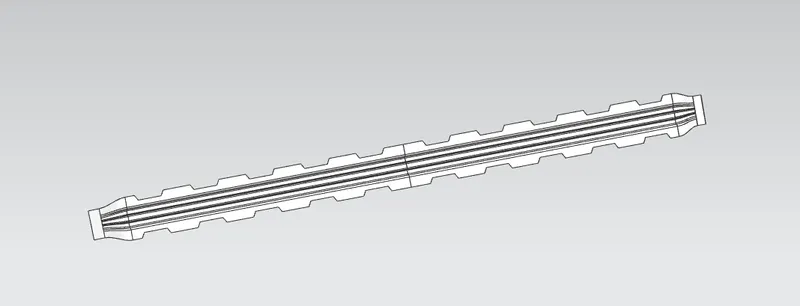

Center Roof:

Rear roof:

Conclusion:

Thus the required reinforcement and the ditch area for the roof were designed and developed from the given styling. The curvature study was done after performing calculation for the Heat Distortion and Snow load conditions with the position criteria met for all reinforcements.

Further the section modulus study was conducted and Draft analysis were done for each reinforcement successfully.
