Roof Design
ROOF DESIGN:
PARTS OF ROOF:

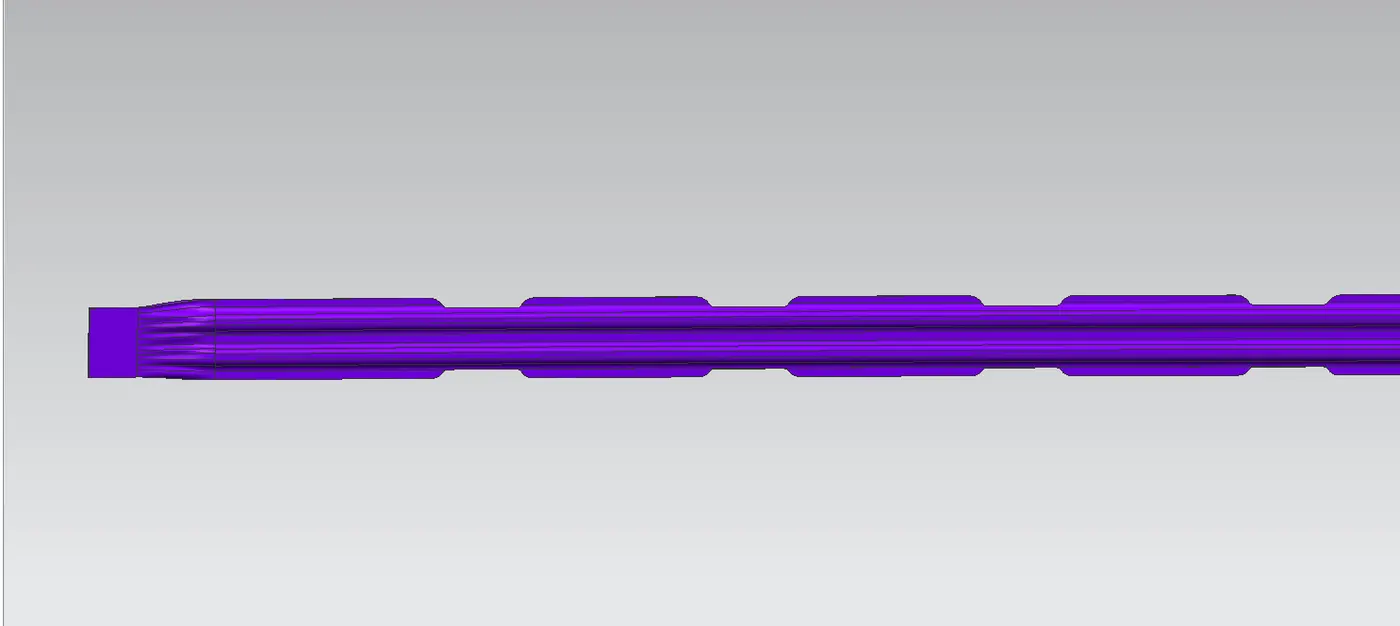

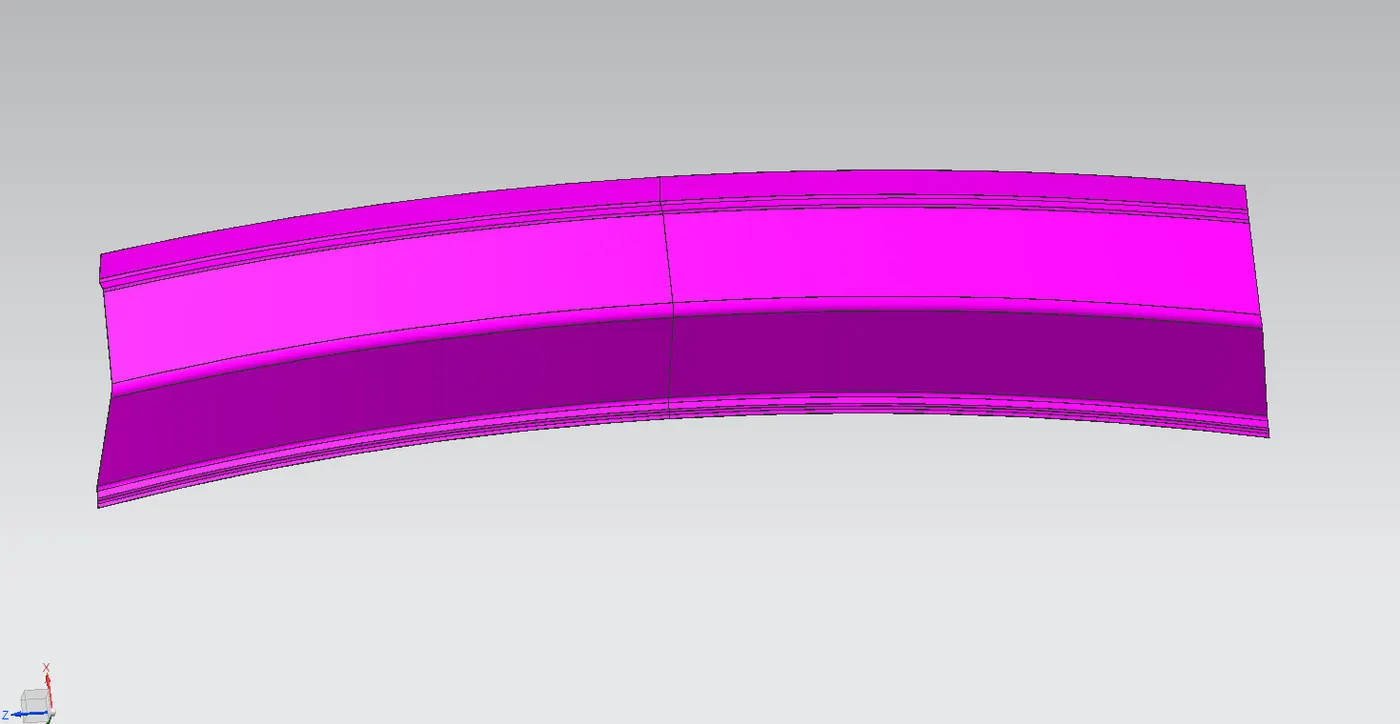

Bow Roof Rail 1 (Front):

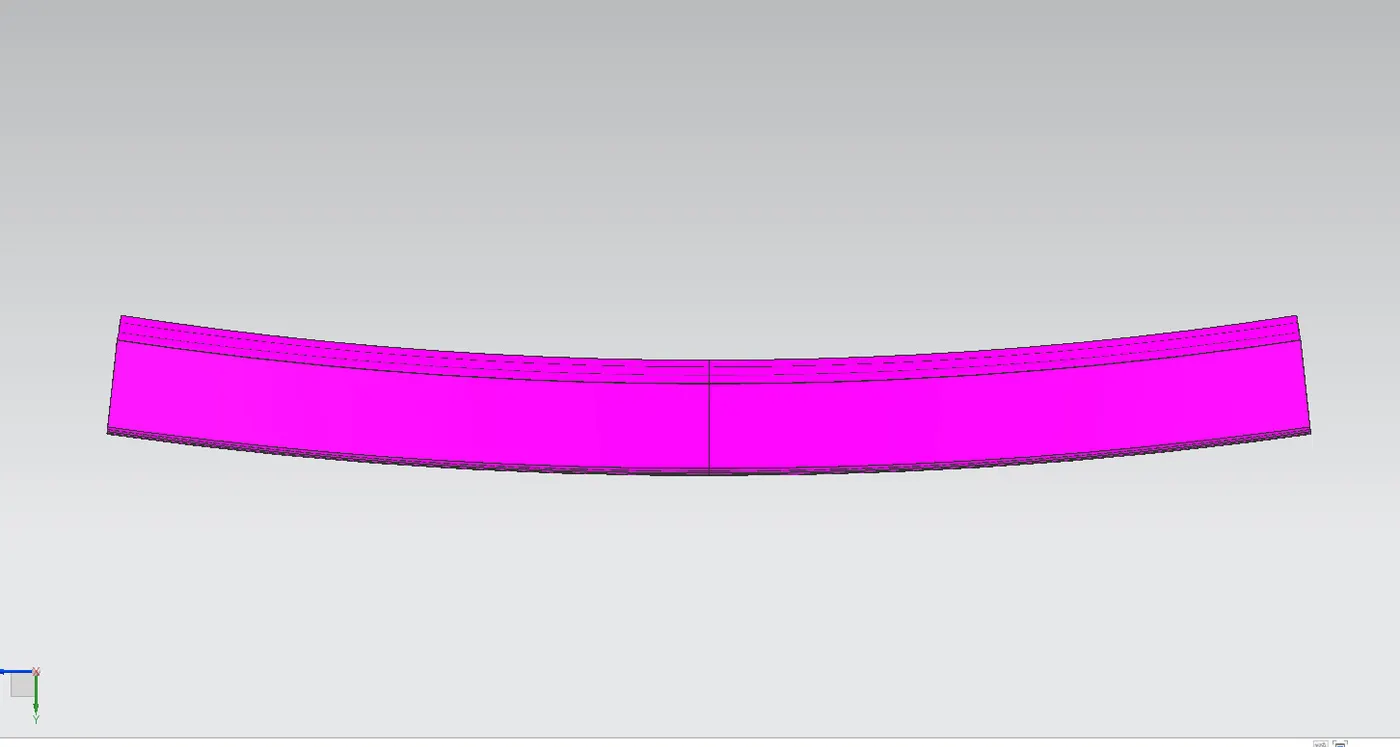

Bow Roof Rail 2 (Rear):

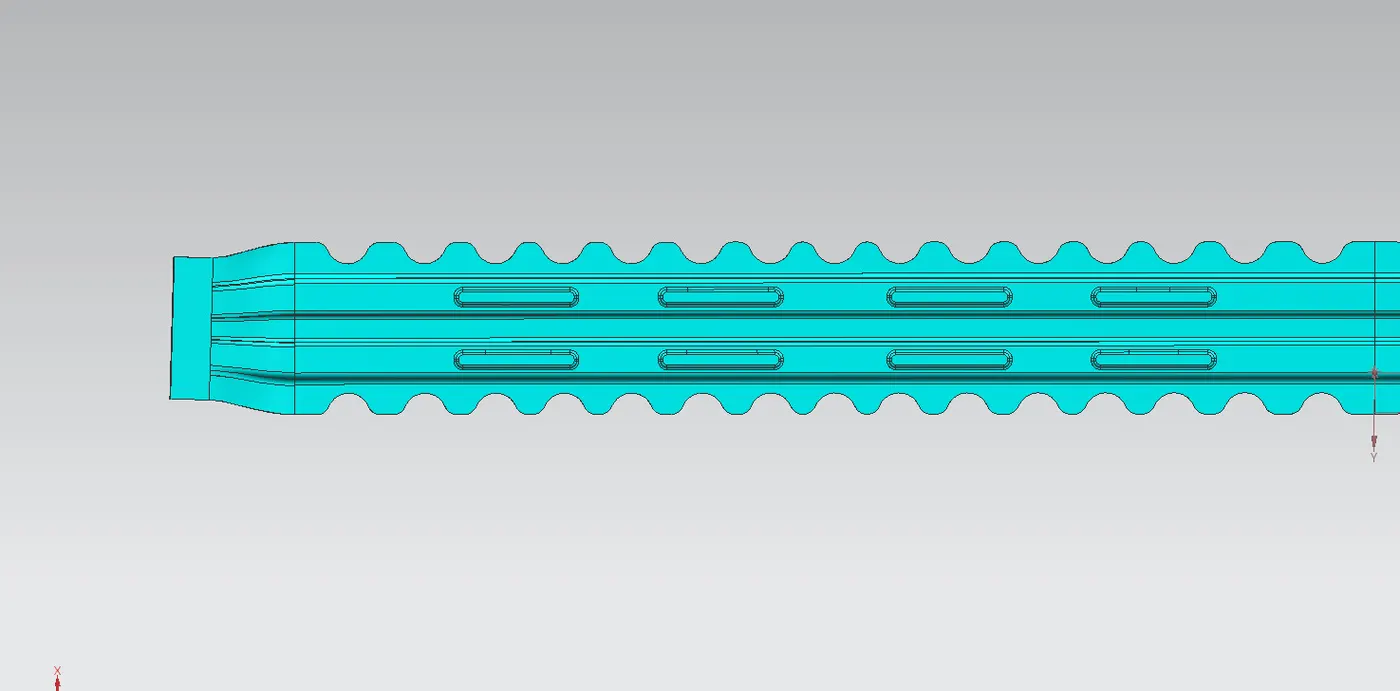

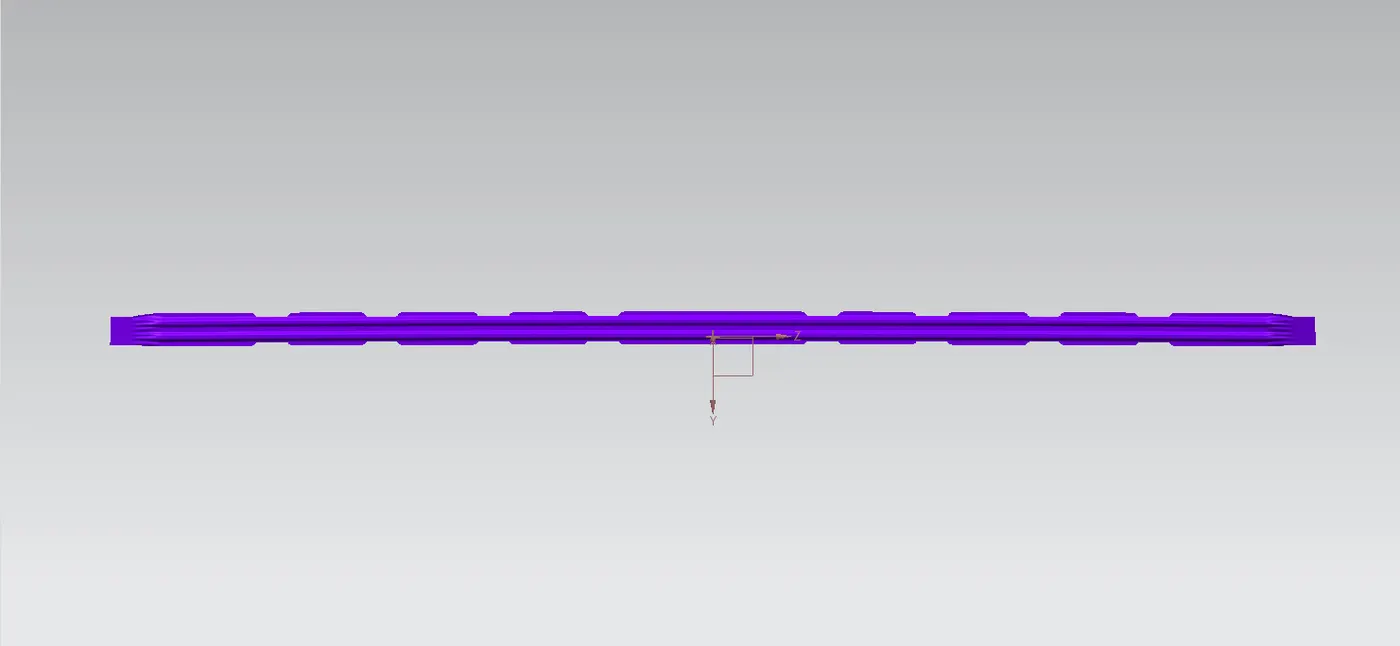

Centre Roof Rail:
Front Rood Rail Inner:

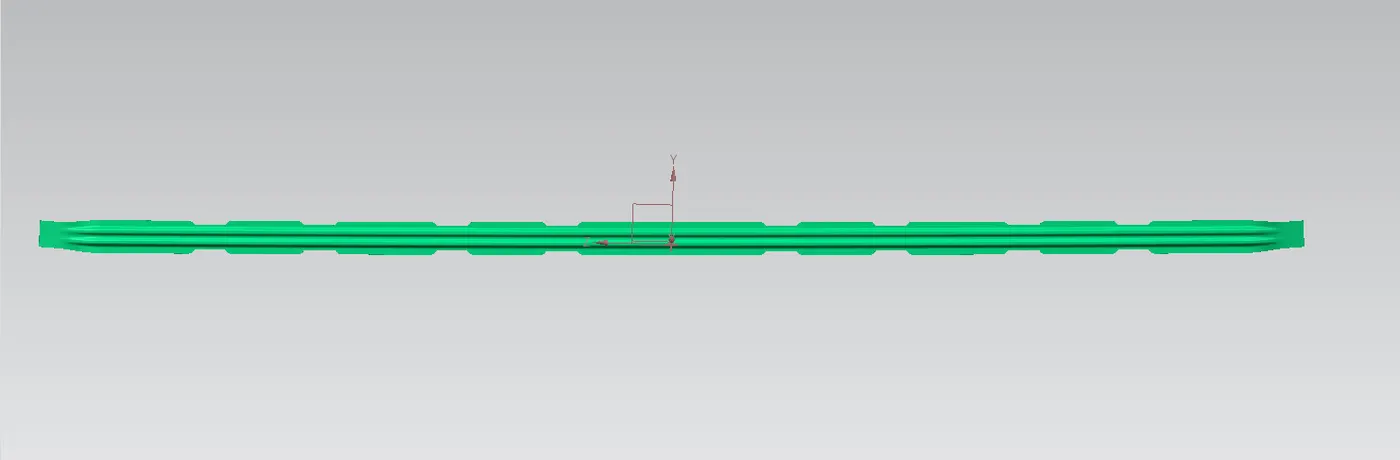

top view:

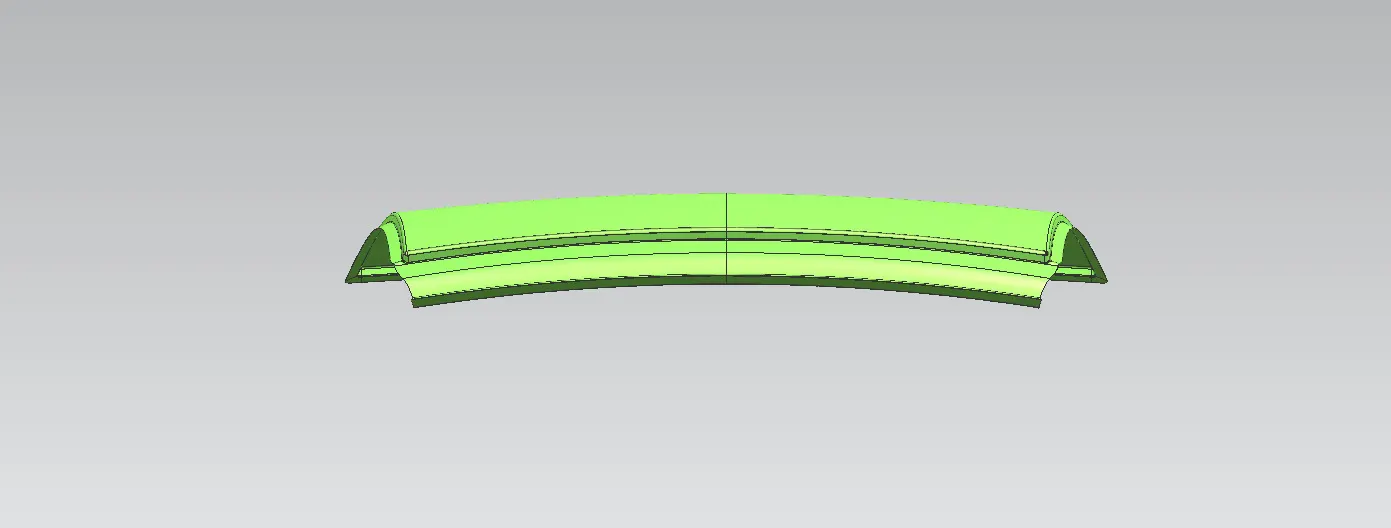

front view:

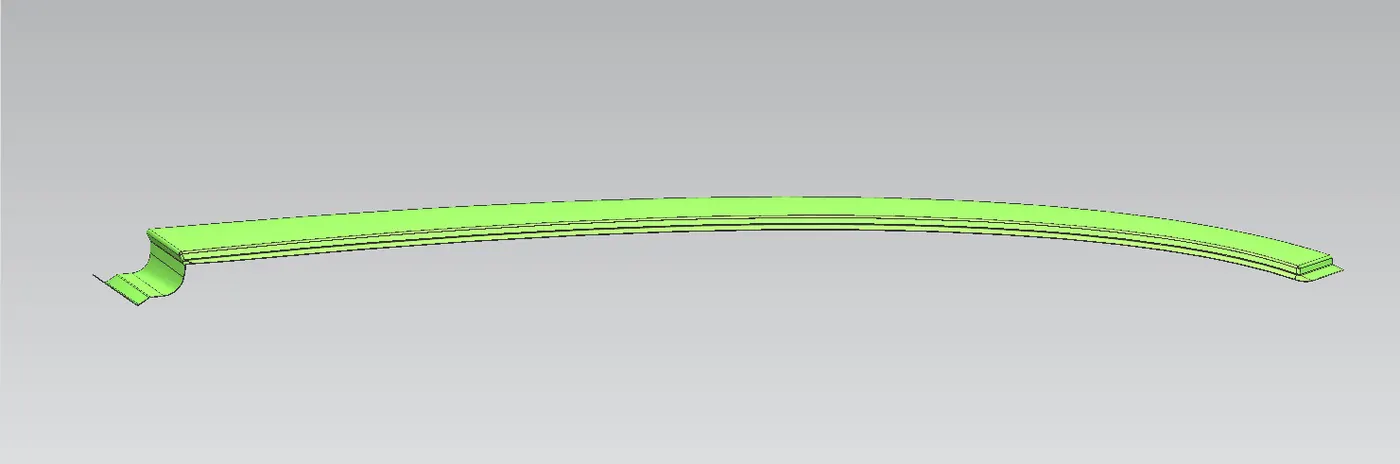

side view:

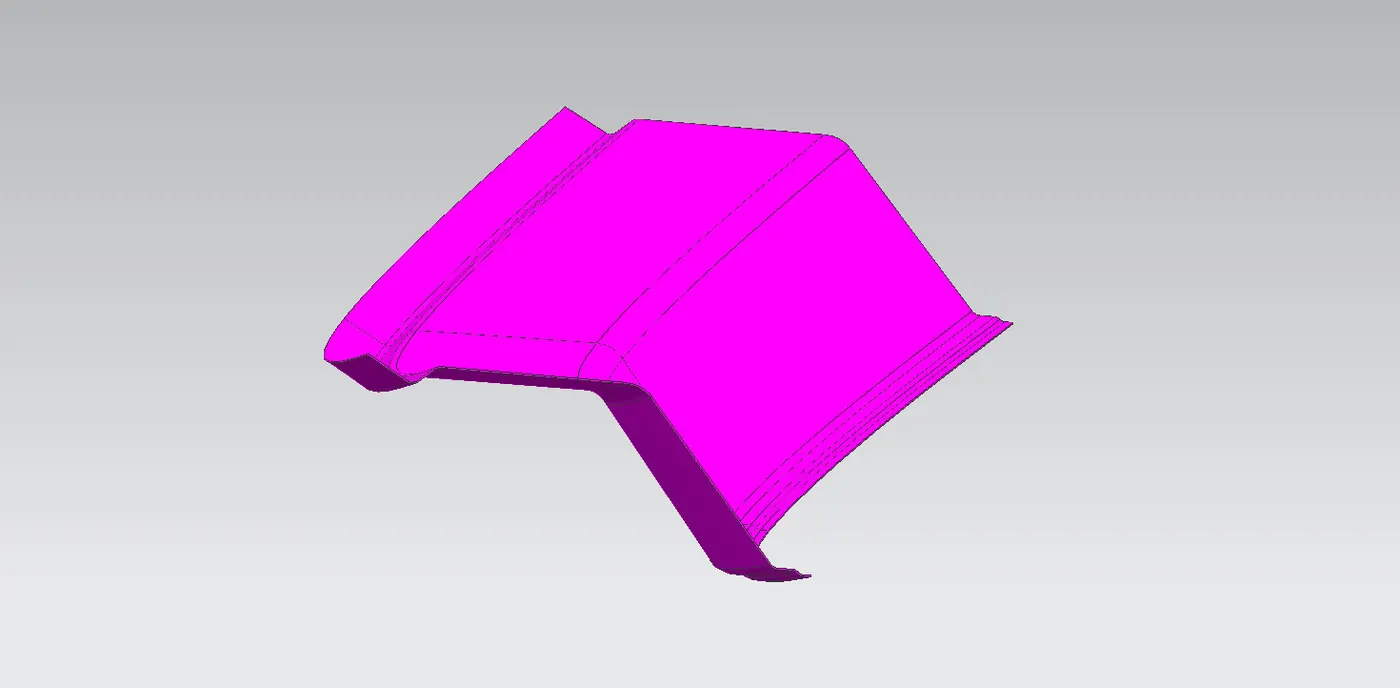

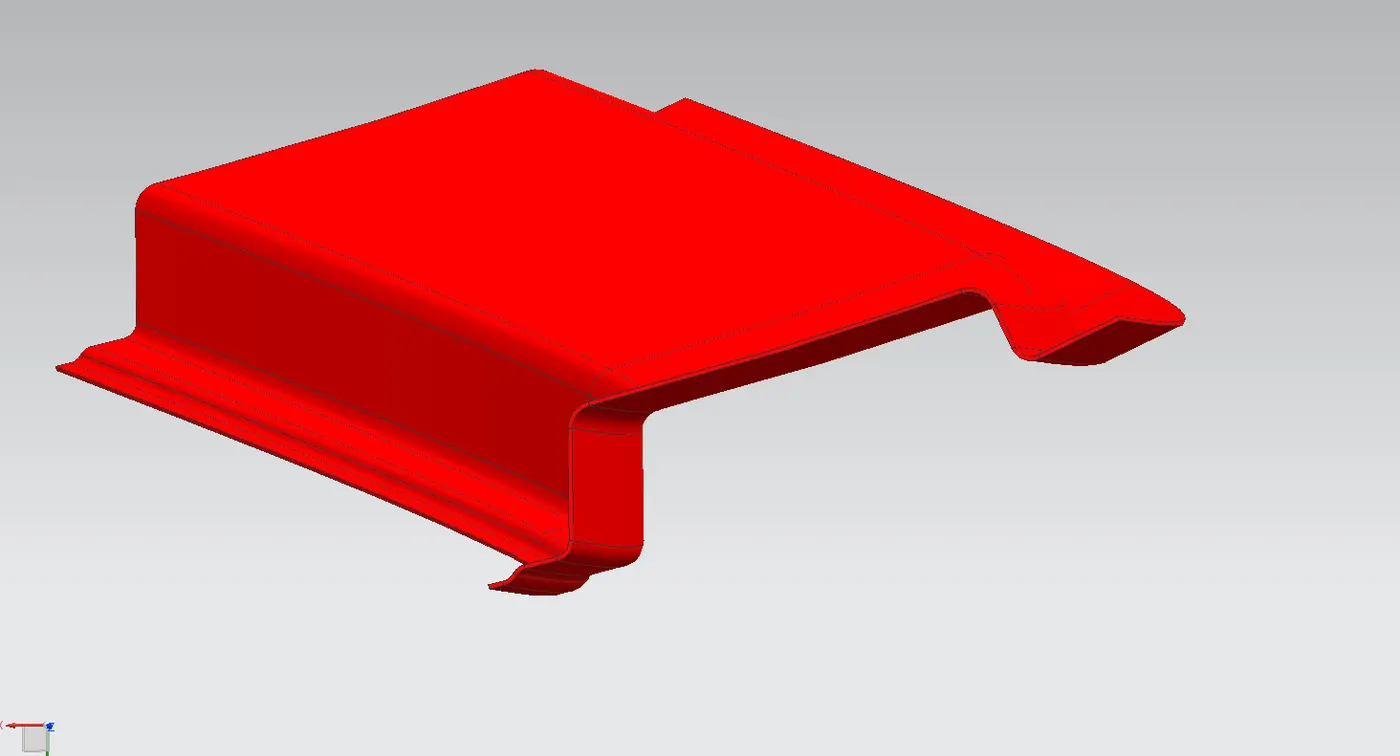

Rear Rood Rail Inner:
side view:
top view:
front view:
Outer Roof:

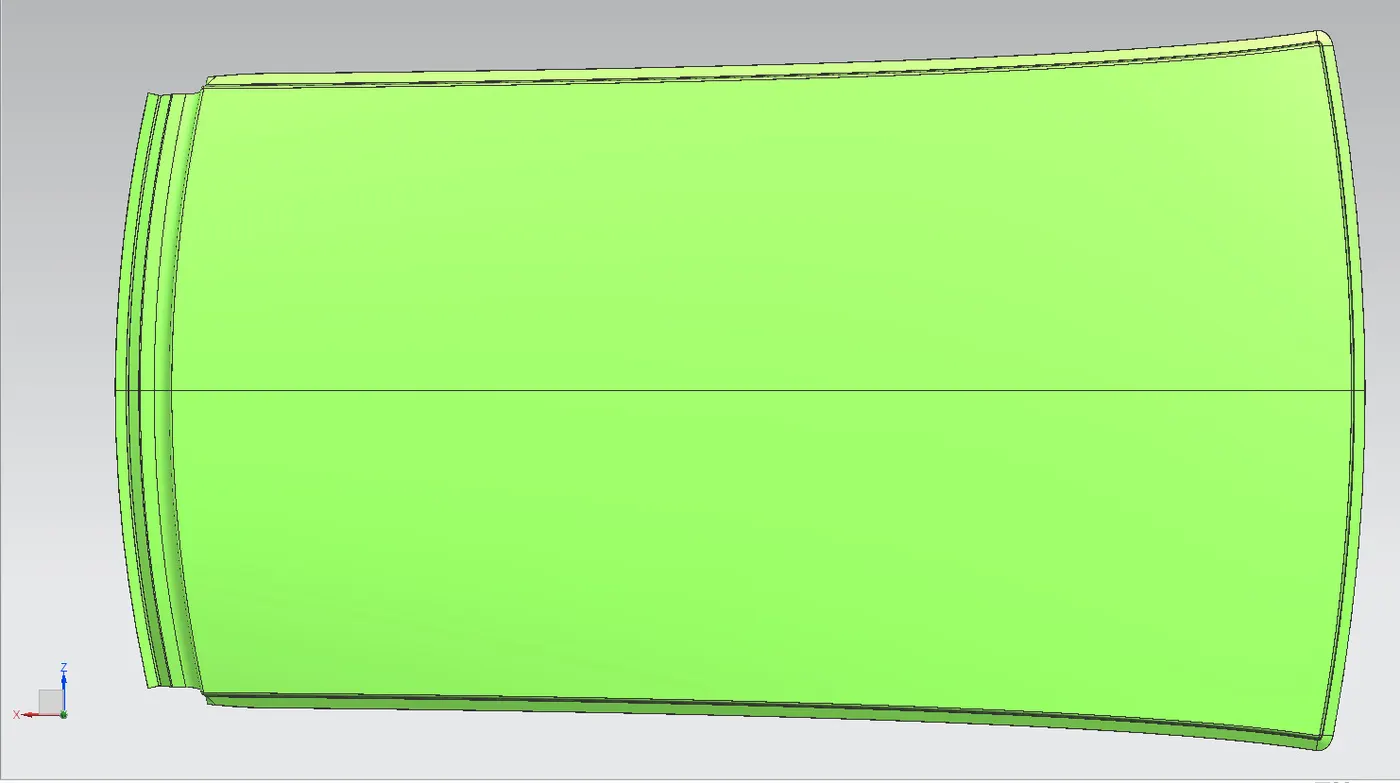

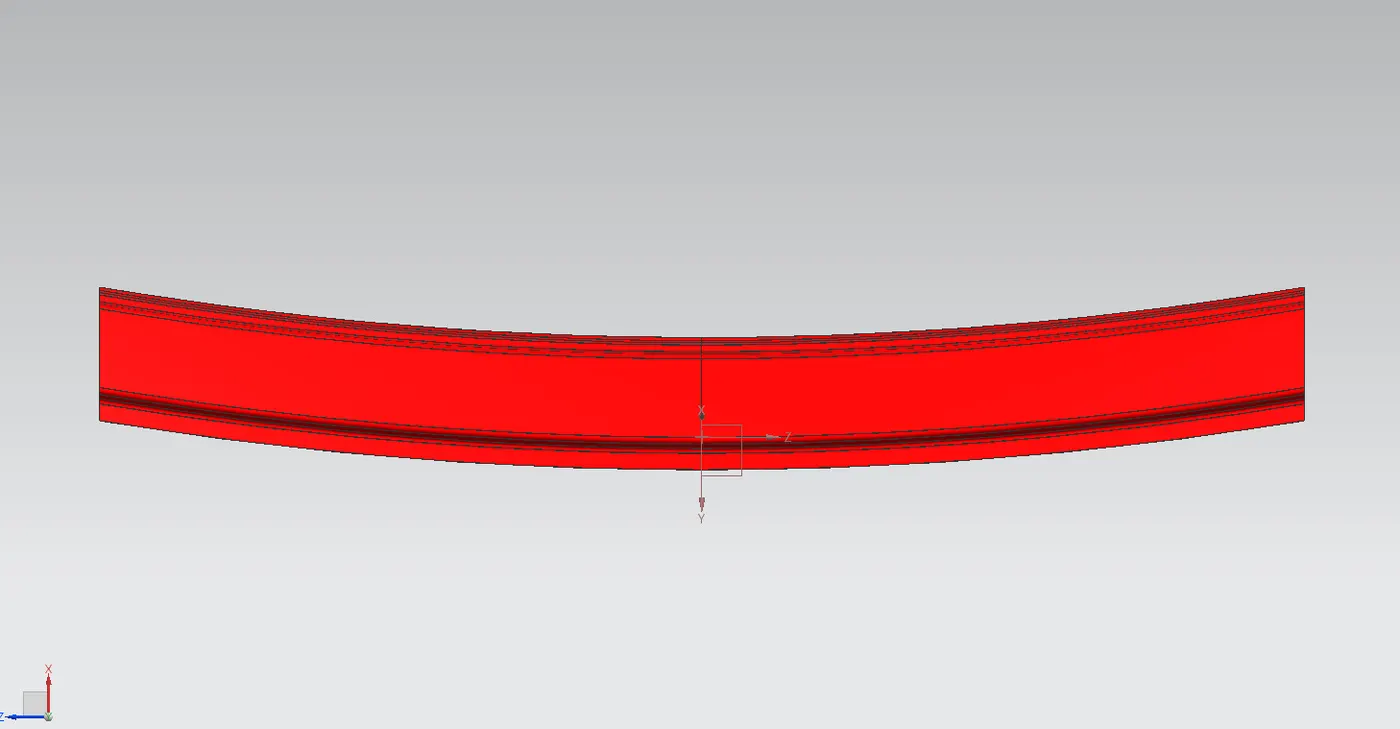

top view:
side view:
front view:
back view:

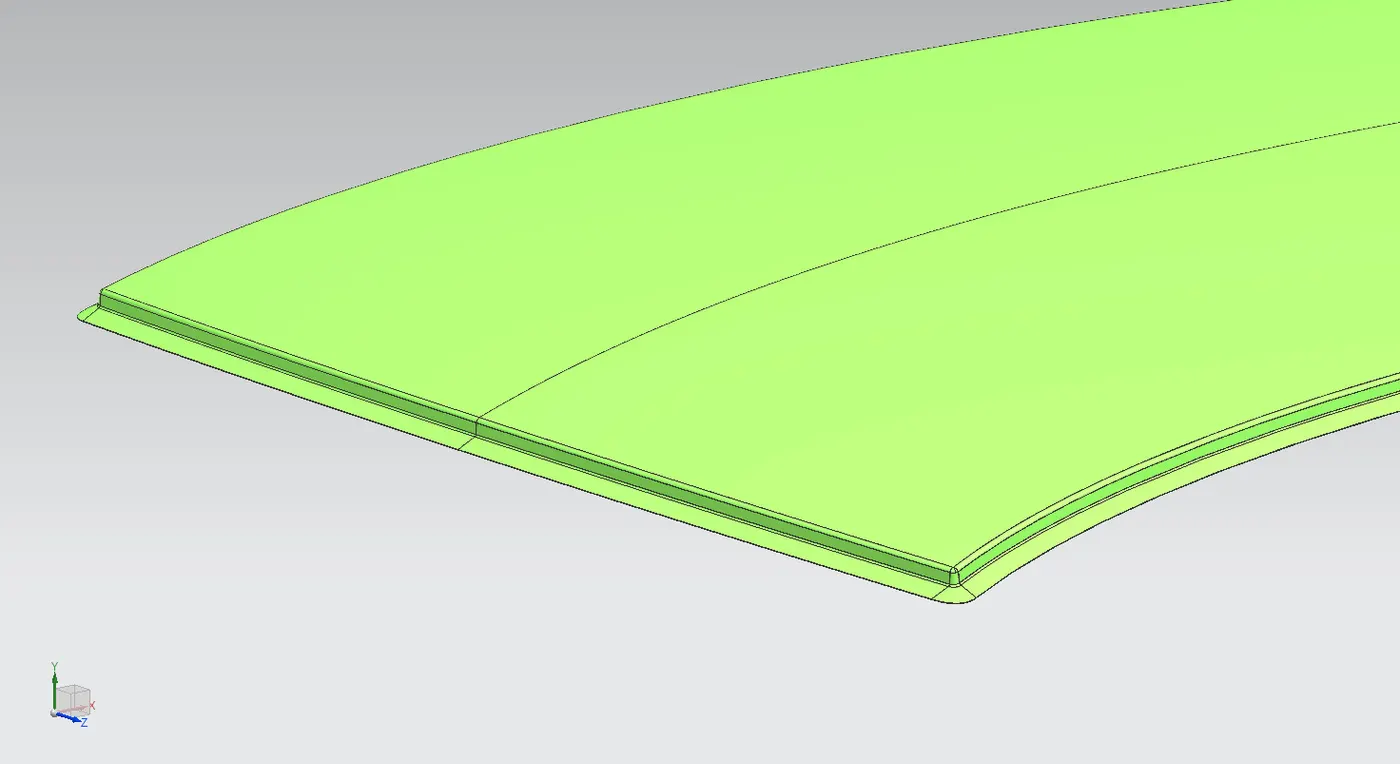

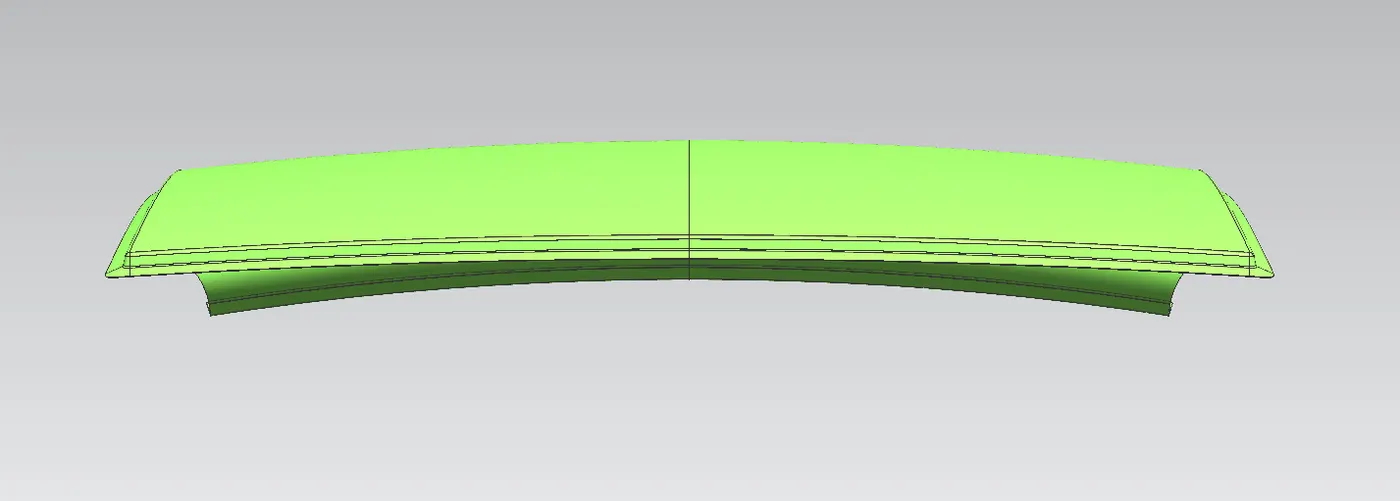

Isometric view 1:
Isometric view 2:

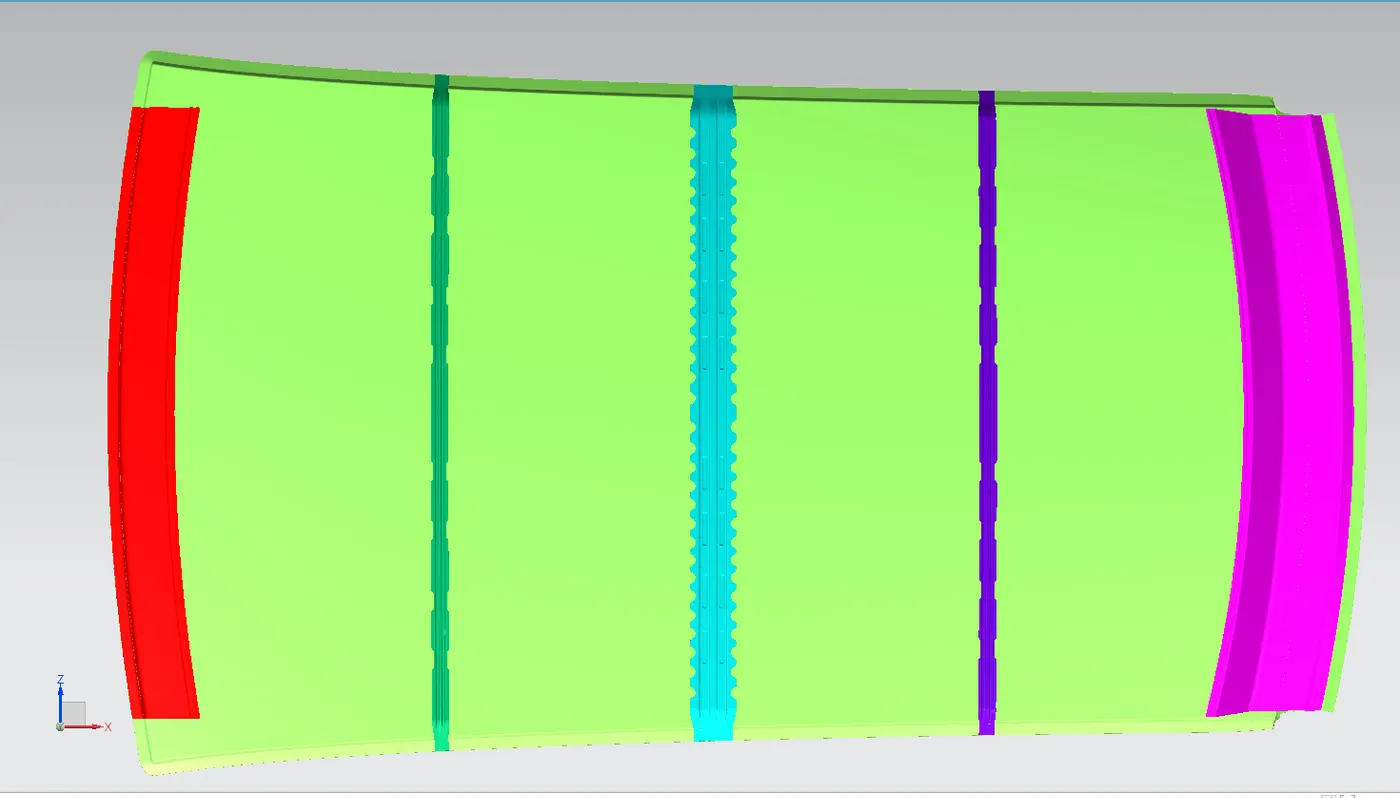

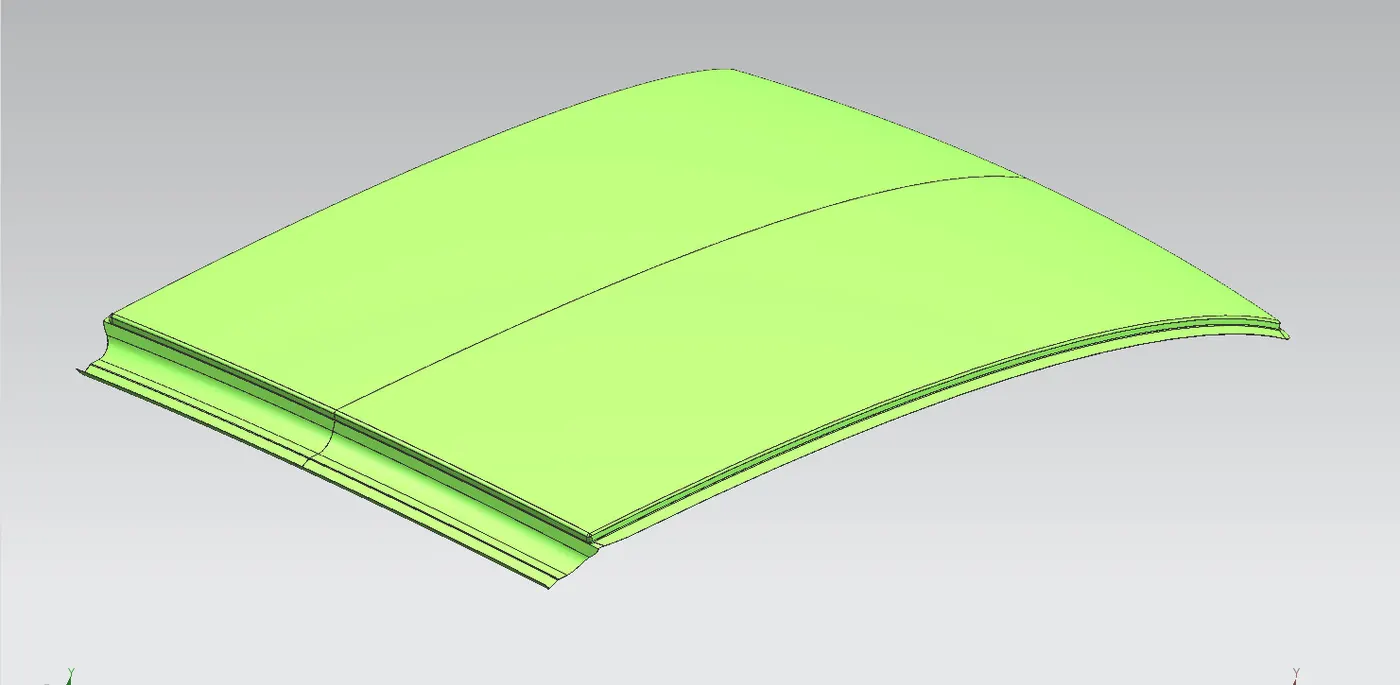

WHOLE ROOF:
without edges:
with edges:

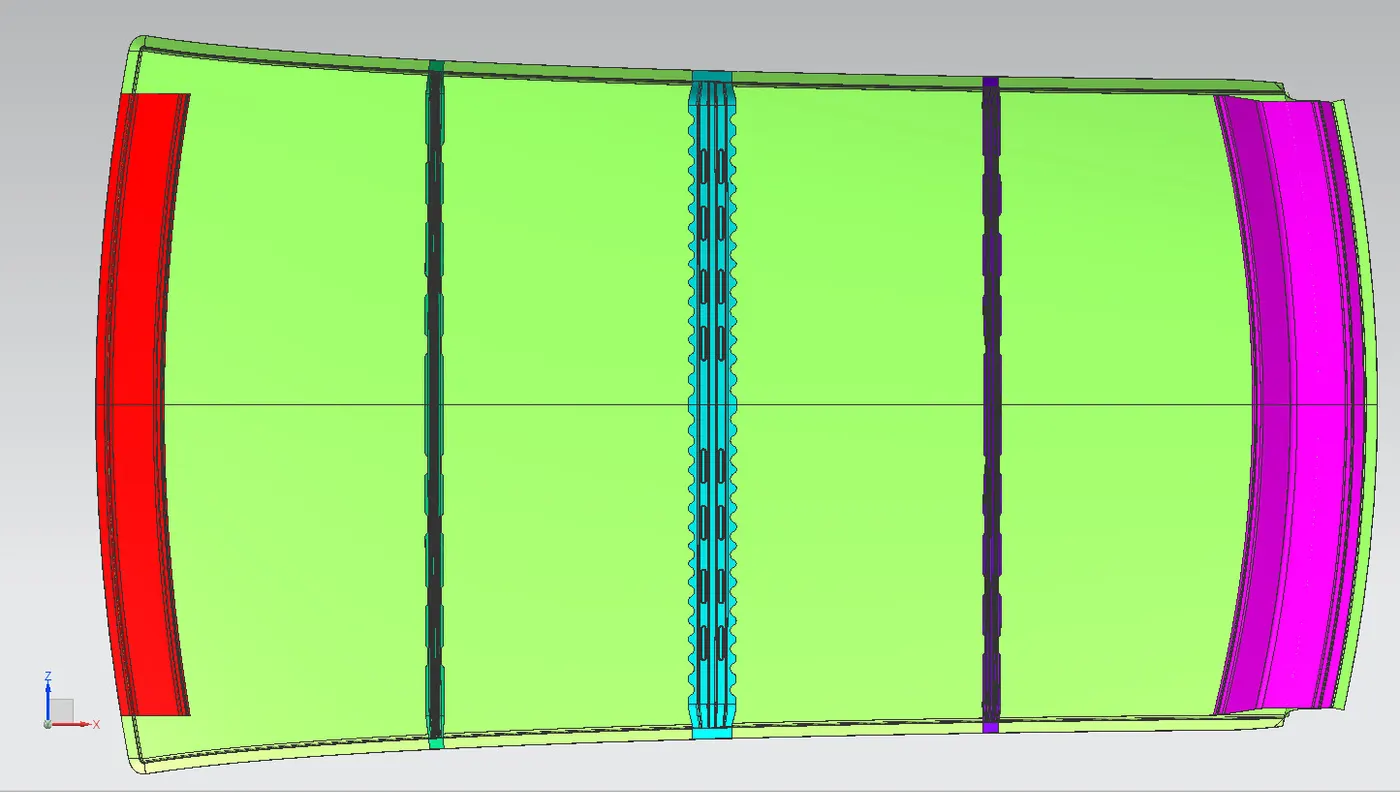

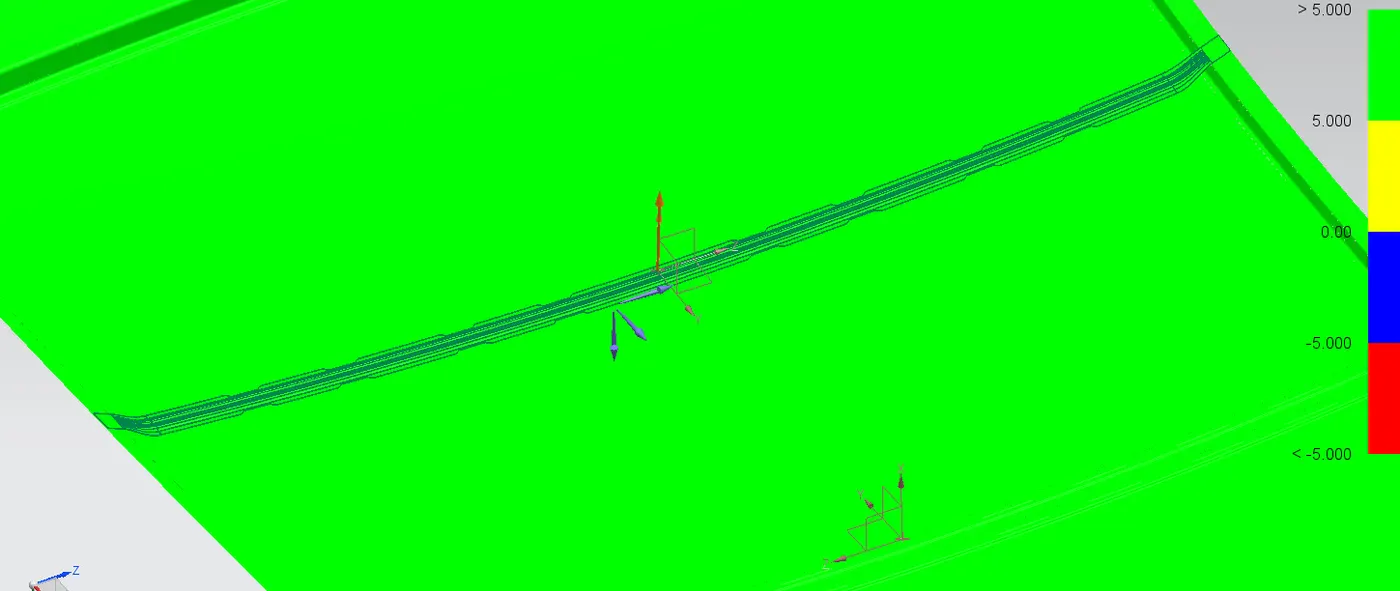

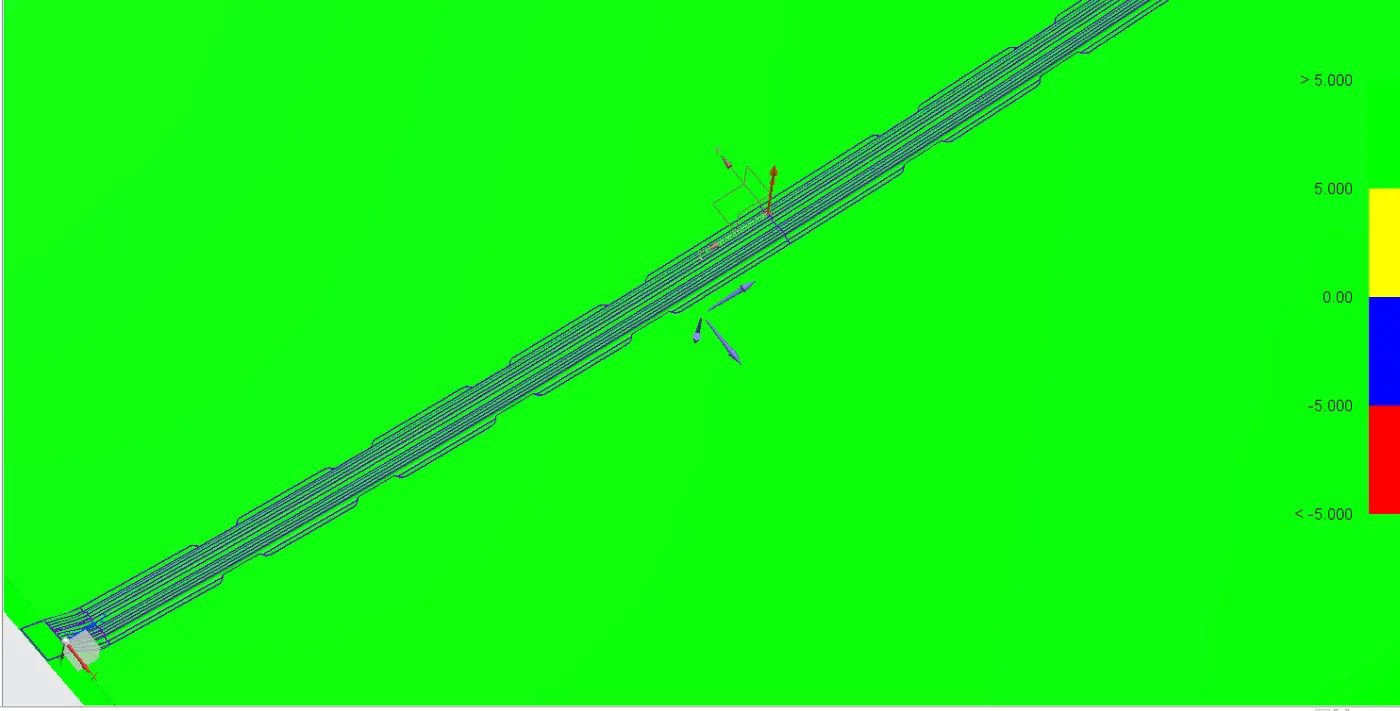

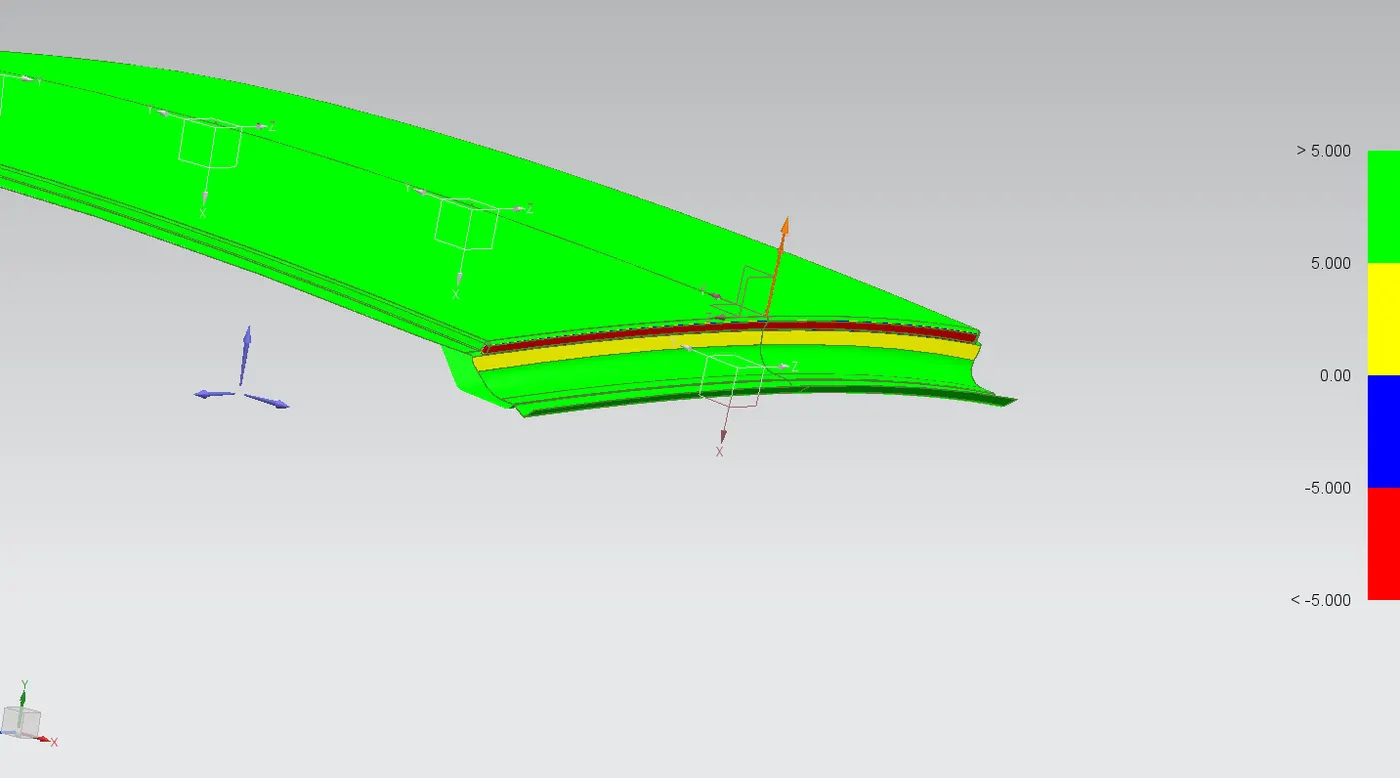

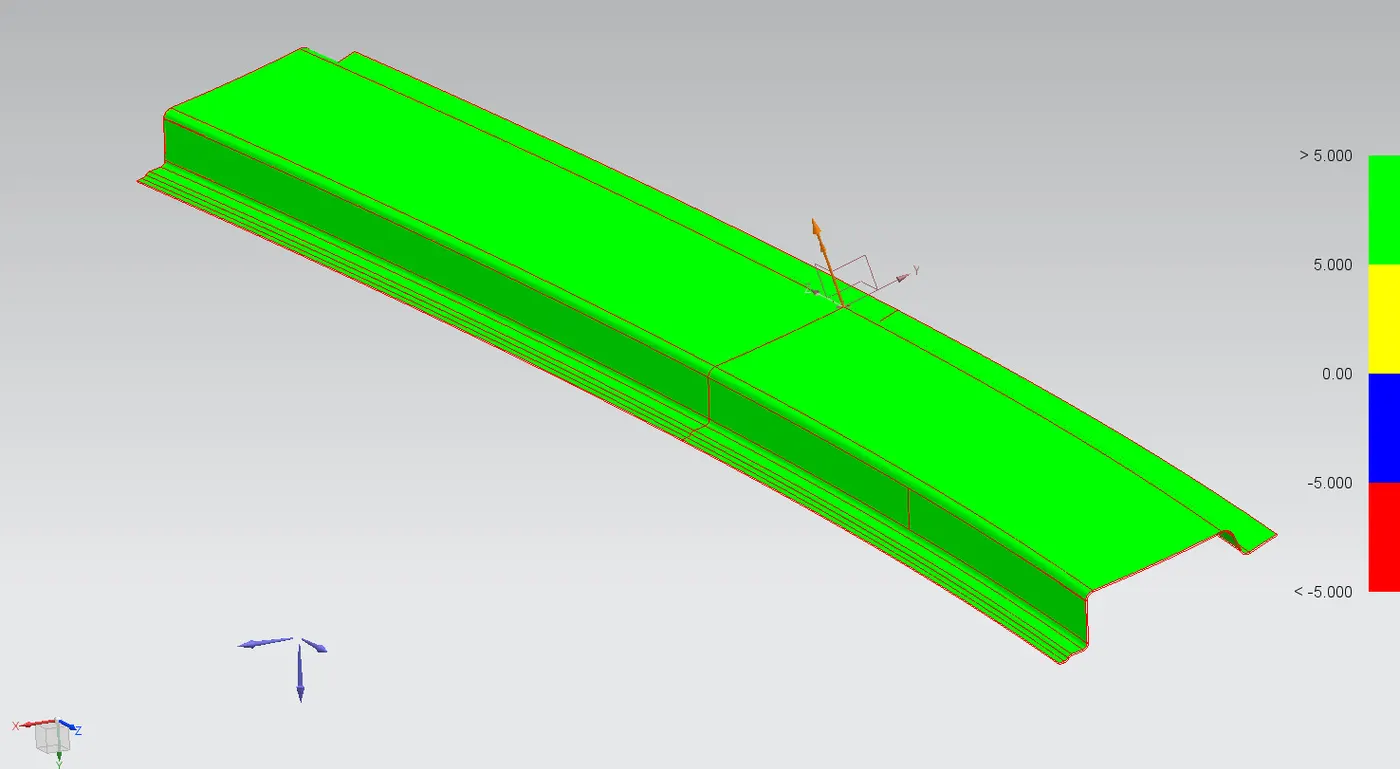

DRAFT ANALYSIS:

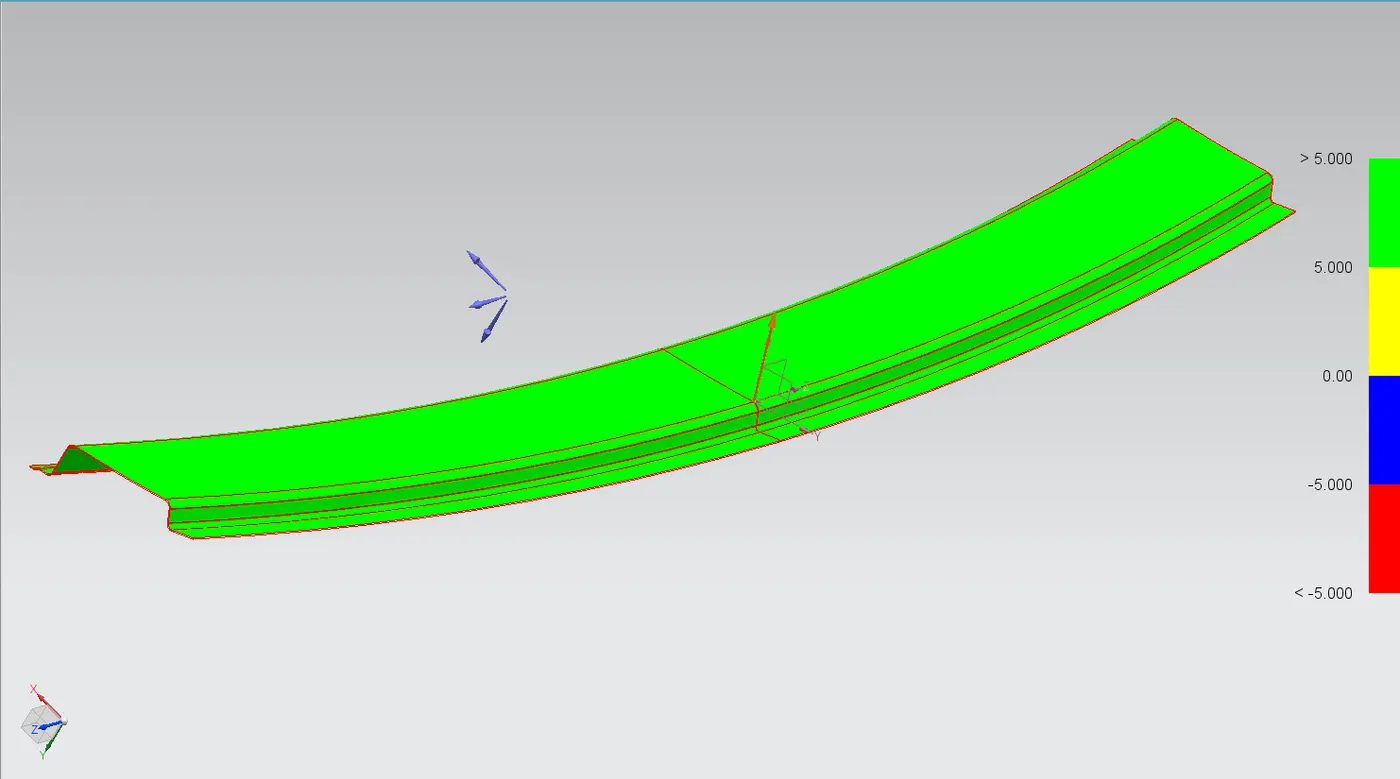

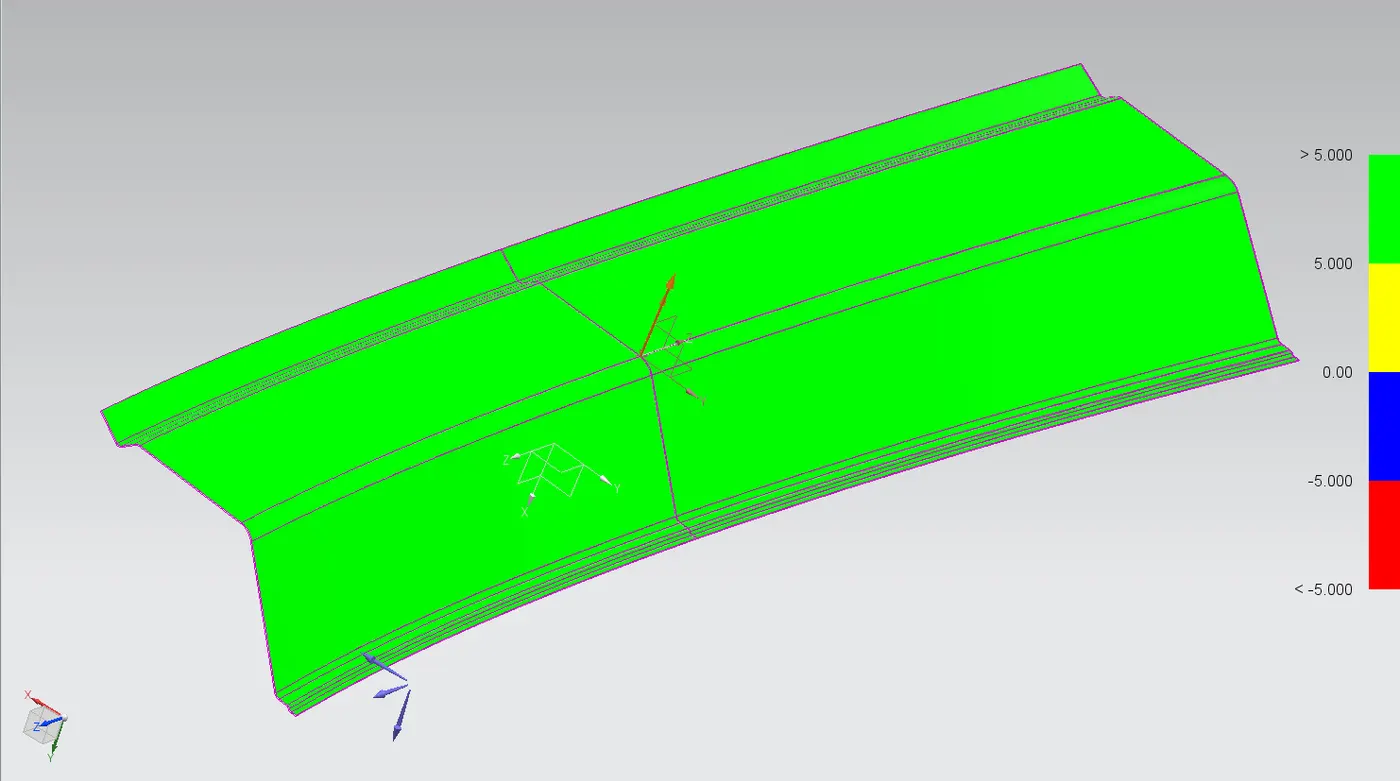

Rear Roof Rail Inner:
Front Roof Rail Inner:
Roof Outer Panel & Rear Roof Rail Outer:

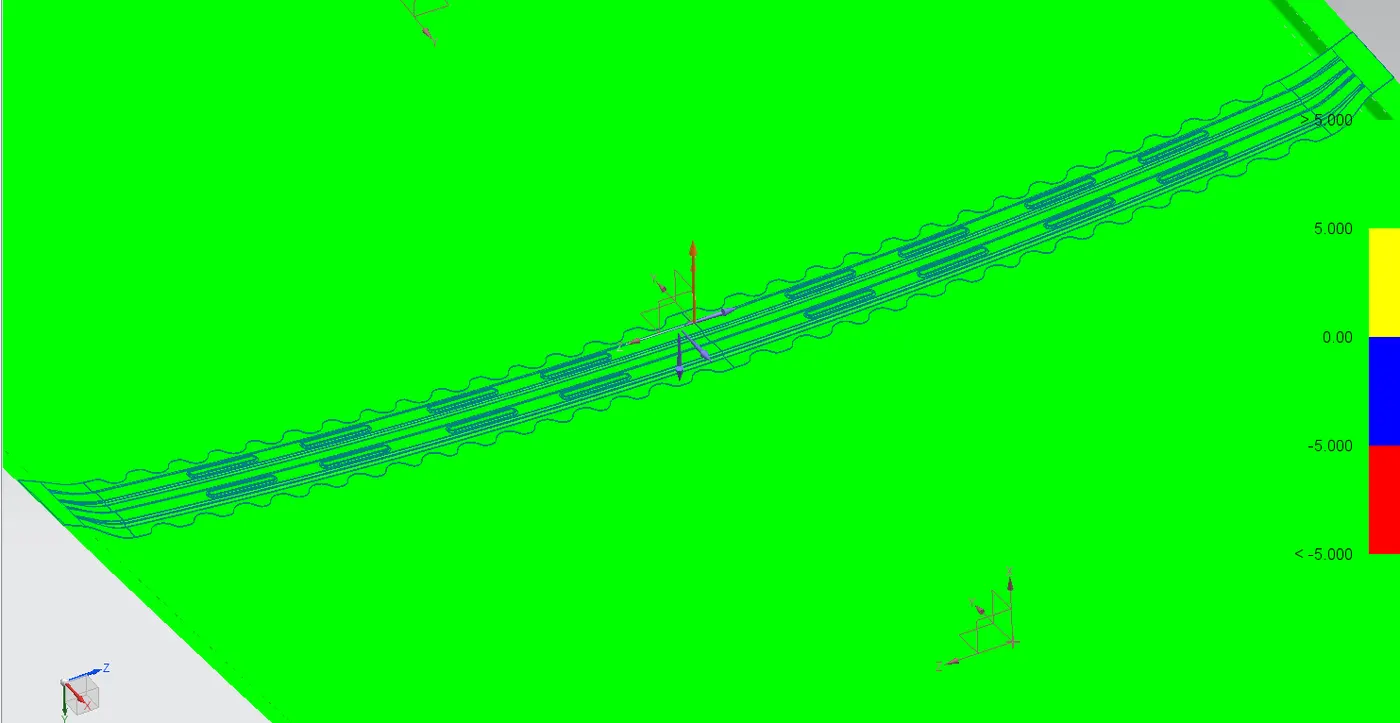

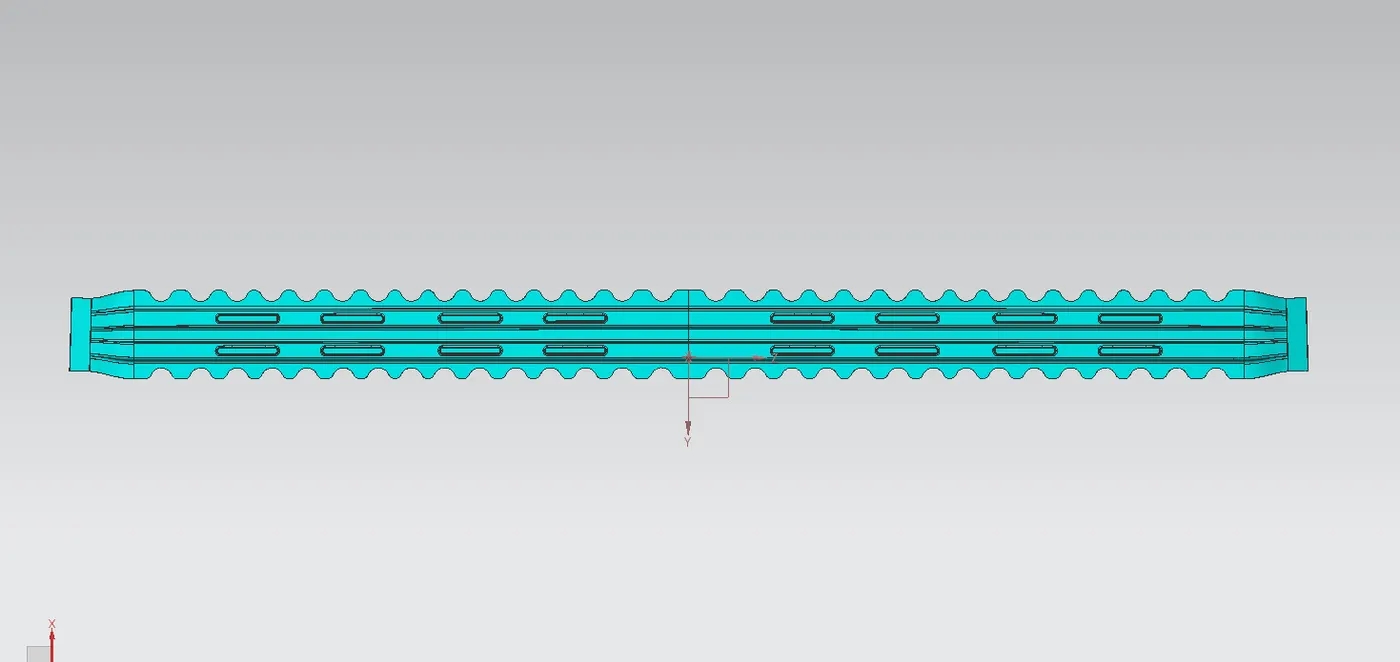

Centre Roof Rail:

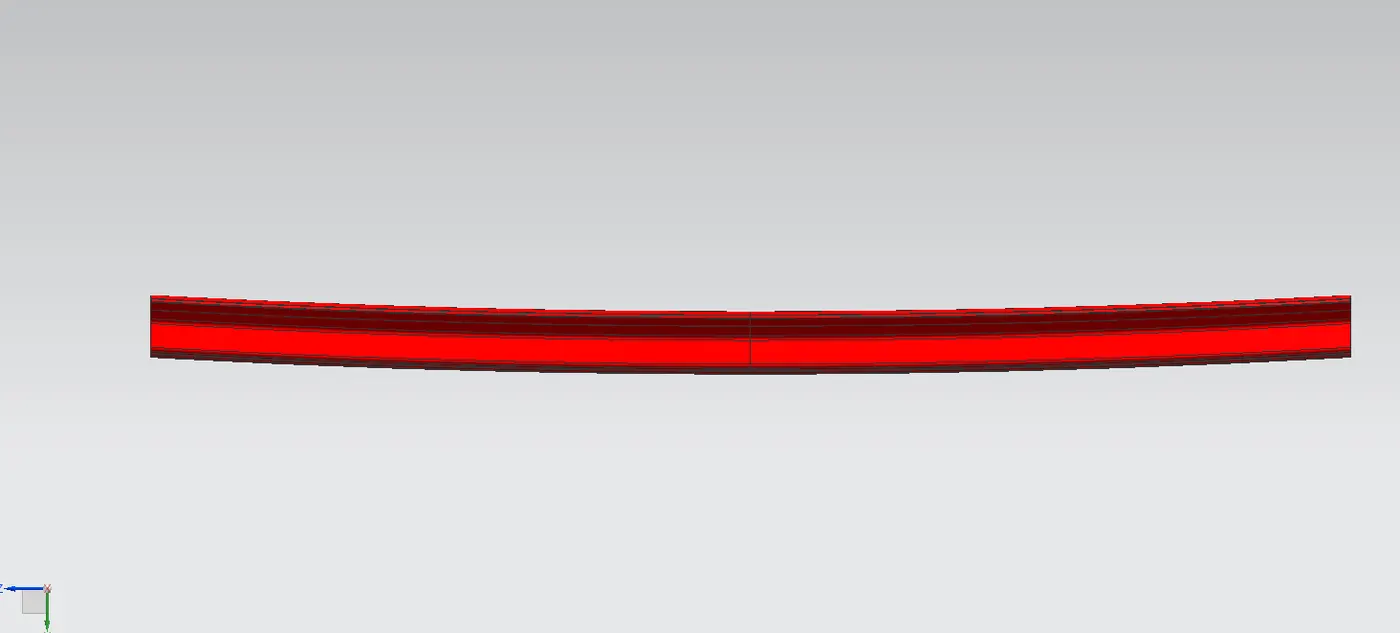

Bow Roof Rail 1 (FRONT):
Bow Roof Rail 2 (REAR):

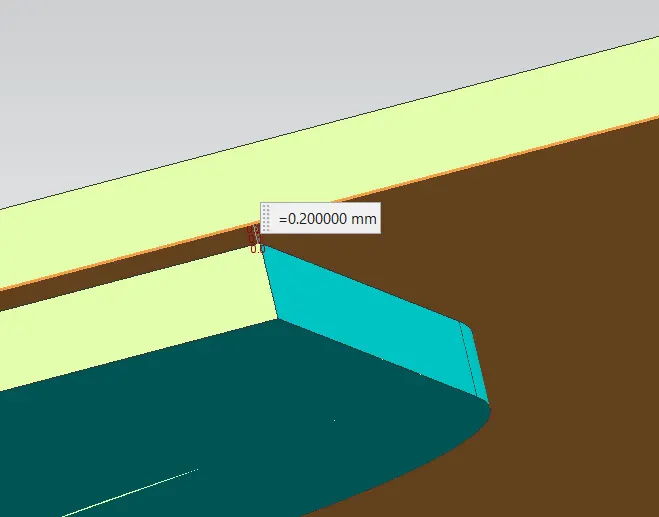

Clearance of "0.2mm" between Outer roof & Roof Rails:
----------------------------------------------REPORT----------------------------------------------
DESIGN REPORT:
There are many parameters included for each part.
These parts include:
1. Outer roof panel.
2. Front and rear roof rail outer.
3. Front roof rail.
4. Rear roof rail.
5. Centre roof rail.
6. Bow Roof rail.
-> Firstly, outer roof panel is developed.
-> The we develop outer front roof rail by law extension and other commands
-> Here in sheet operation designing we mostly use law extensions and extend sheet operations mostly
-> Then later we develop the outer panel of rear roof rail
-> These outer panels are inclusions of outer roof panel.
-> Then inner front roof rail would be developed by the given design parameters
-> Also, the rear roof rail. Rear roof rail is a bit complex design as it must include the tail gate opening and closing in -> the design of it.
-> After these we would be mostly done with key elements of designing roof.
-> Here comes inner support panels of the roof.
-> They are roof rails which provide support and strength to the outer roof.
-> These rails include one front bow roof rail, centre roof rail and rear bow roof rail
-> Typically bow roof rails depend on the length of the vehicle in this case it is a car
-> Here we used one rear bow roof rail as the length of the doesn’t really need two rear rails we include one more if the length increase.
-> There should be clearance of "0.2 mm" between the outer roof panel and these inner roof rails
-> These rails positions are fixed the help of certain formulae.
-> After these sheet operations are we would have also given blends wherever required.
-> By now we have done the sheet design of entire roof.
-> Now will be the thickening of it to required thickness, mostly what we use is "0.75 mm".
-> Later would be the blends wherever we could not do in the sheet operations.
-> This is the process of designing an entire roof.
-> This design should take the inclusions drafting and done according.
-> Now we perform draft analysis to checking tooling ability of it.
