Roof challenge
ROOF DESIGN AND ANALYSIS USING CATIA V5 :
Objective :
Design a roof using the provided skin data and also position bow roof rails in accordance with heat distortion and snow weight formula also find section modulus of the roof and roof rails and check the draft of the designed parts.
Software :
CATIA V5
Given Data :
Introduction :
Roof :
An Automobile roof is the portion of the automobile that sits above the passenger compartment and protects the occuoants from sun, wind, rain and other external elements. While designing a car roof forces due to impact, falling objects, vehicle rollover, temperature, roof loading, aesthetics etc. Must also be taken into account. There are different types of roofs, the most prominent are as follows.
- Hard tops
- Soft tops
- Targa tops
- Glass roofs
- T-tops
Some roofs have a window on them and are called sunroofs, While convertibles have special mechanisms that allow the roof to be retracted and be stowed away through a wide array of methods depending on the design.
The roof of the car is made up of multiple partd that provides support and strength to the roof component. The actual roof sheet and the roof rails which support the roof sheet. There are 3 primary roof rails in a car the front, the centre and on the size of the roof. Headroom, visibility criteria and target also play a key role in roof design.
Roof Panel :
The roof is made from a sheet of at least 0.75mm. This protects the cabin from external conditions and objects. The ditch areas are spot welded to the pillers of the car and certain areas of the roof rails, welding on the upper suface is order to maintain a good aesthetic.
Front Roof Rail :
The front roof rail is made from a sheet of at least 0.75mm thickness. This part acts as a support for the roof sheet on the front it also provides a mounting area headroom space in mind. The roof is fixed to the roof rails with the use of mastics while the ends are spot welded.
Rear Roof Rail :
The rear roof rail is made of a sheet of at least 0.75mm thickness. The rear roof rail acts as a support for the rear end of the roof and also supports the window in some cases also supports the rear door, it's designed in accordance with the support requirement of roof, window and rear door, and also rear visibility and headroom criteria. The roof is fixed to the roof rails with the use of mastics while the ends are spot welded.
Centre Roof Rail :
This is the roof rail that runs between the B piller of the car and provides support to the centre of the roof sheet they are usually 0.75mm thick and also provide a support area for the centre cabin light mount. The roof is fixed to the roof rails with the use of mastics while the ends are spot welded.

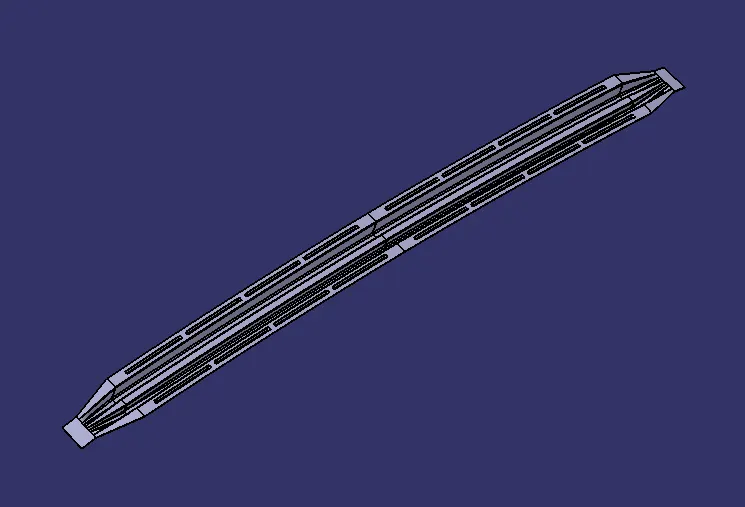

Bow Roofs Rails :
The bow roof rails provide additional support to the roof and at least 0.75mm thick, they are positioned in such a way that they provide maximum support to the roof, Care must be taken so that they do not intude into the headroom requirement of the car. Bow roof rails are an optional feature provided as required by the design. Small cars may have none while large ones may have 3 or more, they may also be integrated into the centre roof rail in some cases. The roof is fixed to the roof rails with the use of mastics while the ends are spot welded.
Roof Assembilies :

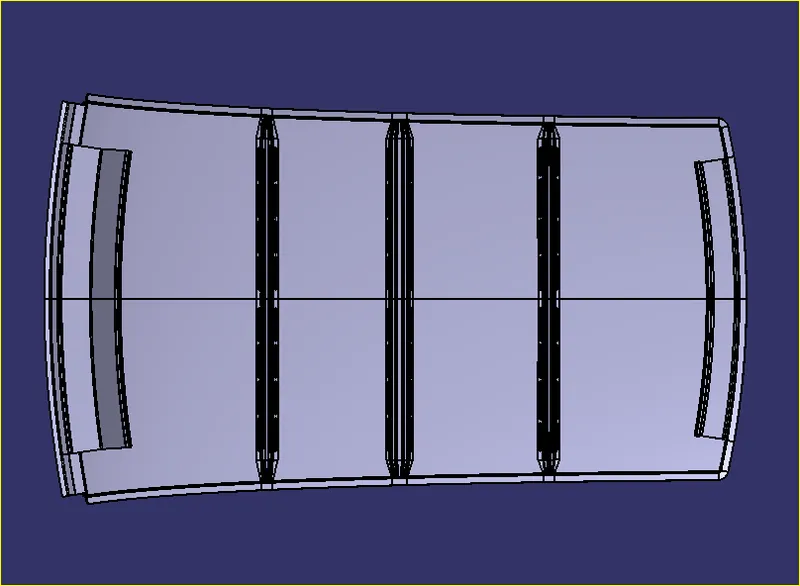

Roof Rail Position Analysis :
The roof rail positions are confirmed and necessary modifications are made in accordance with the snow load and heat distortion criteria.
Heat Distortion Criteria :
The roof of the vehicle is the most exposed to changes in temperature, these changes causes deformation in the roof. In order to prevent failure of the roof due to excessive thermal stress, the roof rails must be placed in the correct locations. Improper designing of the roof may cause warping, cracking and failure of mounts.
This calculation is done to find if the roof under thermal stress deforms within set limits.
It is calculated using the formula
Heat Distortion :
W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [1.10x10^(-3) x l] - 2.68
Where,
L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)
R = Roof curvature
R = 2(Rx*Ry)/(Rx+Ry)
Rx = X curvature
Ry = Y curvature
t = Roof plate thickness [mm]
l = Bow Roof Span [mm]
Note : Judgment Condition [W<2.7mm]
Here we use the analyse the spans between the roof rails.
Heat Distortion Table
From the values of "W", we can see that all values are within distortion limits, therefore, the roof design is cleared for the next stage.
Snow Load Condition :
The roof of a vehicle is normally not designed to hold up weight but for regions with snowfall, It must be properly reinforced to hold up the weight of accumulated snow on the roof, If done improperly it may cause the roof to bend and intrude into the passenger compartment which is dangerous. This calculation is done in order to check if the location and strength of the roof rails are enough to avoid plastic deformation of the roof.
The formula for the snow load analysis is as follows
Snow Load Prediction Formula
Qr = [Iy x t2] / [α x s x [(Rx + Ry)/2]2 x 10-8]
Note: The Qr value given over here is correct. There was a typo error in the formula given in the video.
Where,
α = My x Lx2 x 10-12 , My = Y(Ly-Y)
t = Roof plate thickness [mm]
Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]
Length of Roof panel with the center point between Roof rail Front /Rear as the front and rear reference point.
Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]
The width of the roof panel is exposed on the surface.
Y = Distance front Front Roof Rail to Roof BOW[mm]
s = Distance for which Roof BOW bears divided load [mm]
s = L1/2 + L2/2
Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]
Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]
Roof panel curvature Radius of the Length Lx in Front view
Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]
Roof panel X curvature radius of length s in Side view
Judgment condition
Qr ≥ 3.1
250 ≤ s ≤ 380
Snow load Table
From the value od "Qr", we are able to see that all values are above 3.1.
Draft Analysis :
The draft of the part is the amount of taper of the edges to the striking mould of the part. The draft allows for easy removal of the part from the striker while an improper draft or negative draft causes the part to deform or get stuck on the mould.

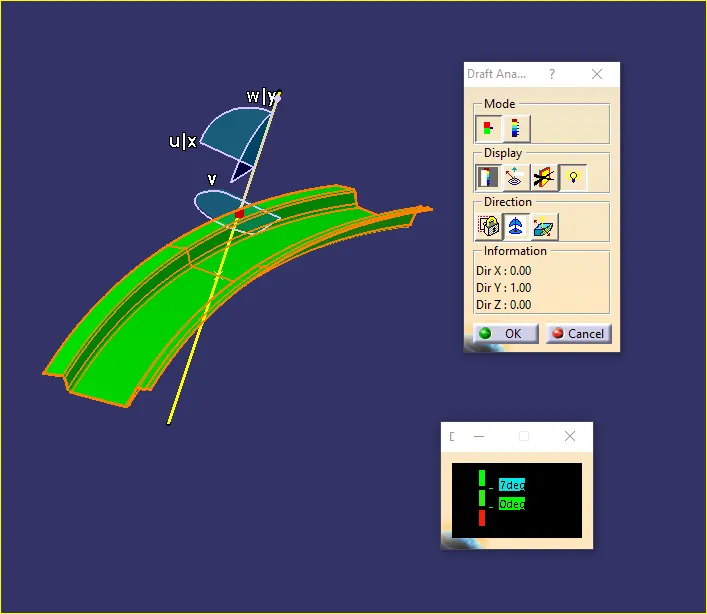

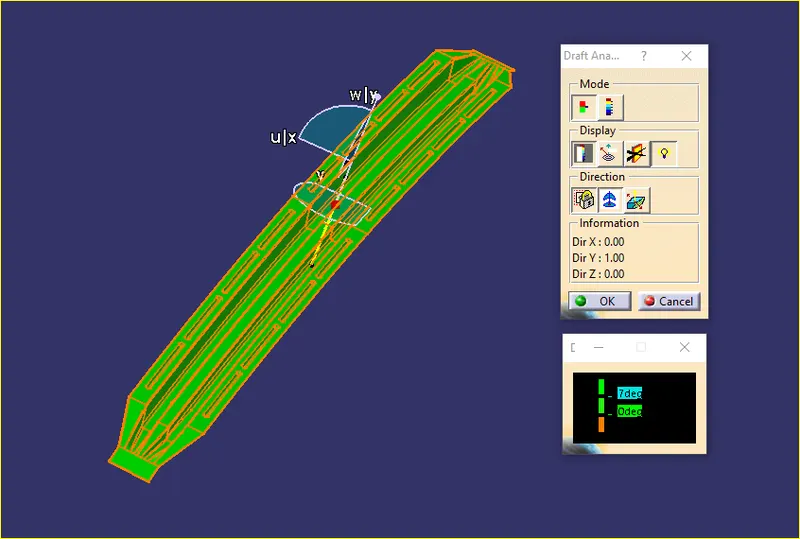

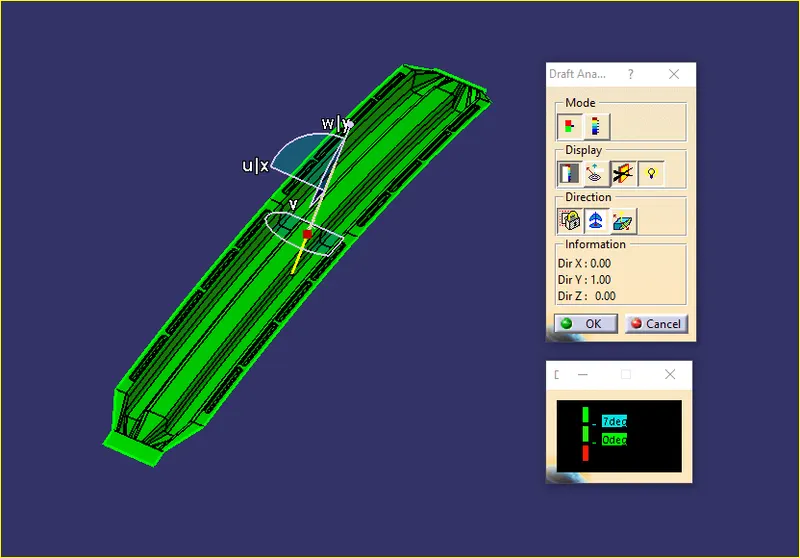

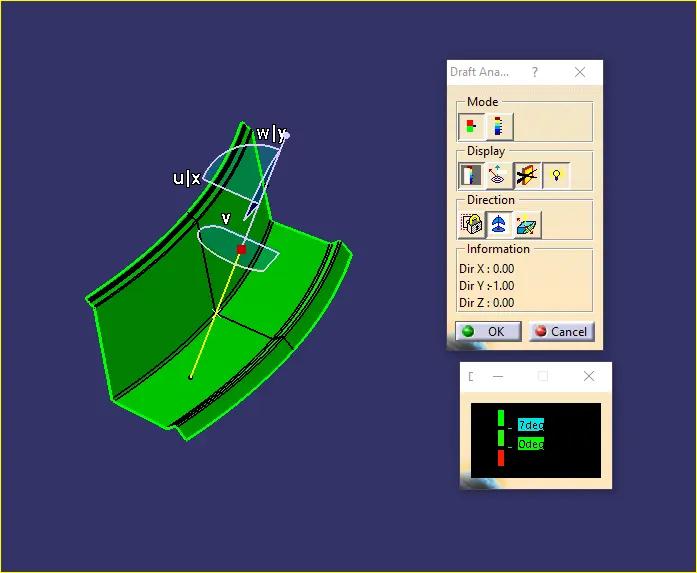

Here using software we check if all the parts have a proper draft and are formable, green denotes positive draft and red denotes a negative draft.

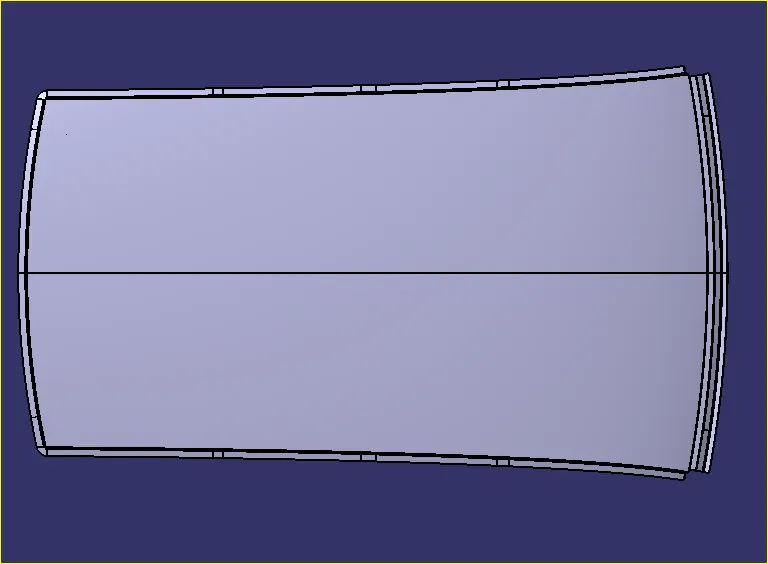

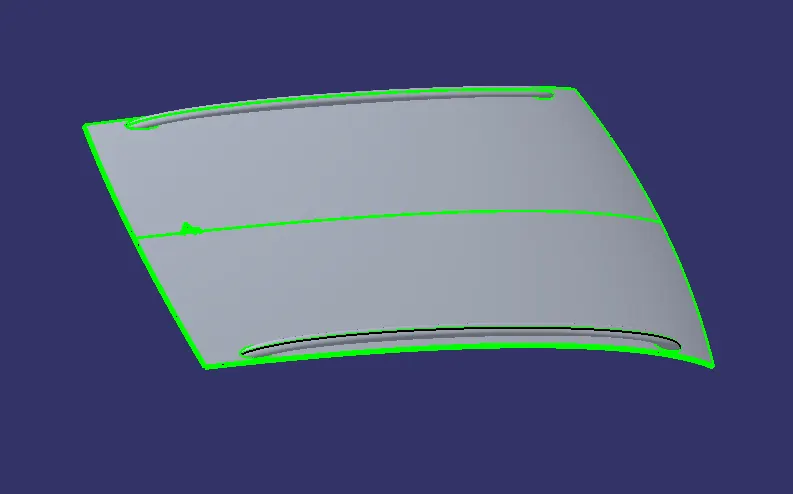

Roof Panel:

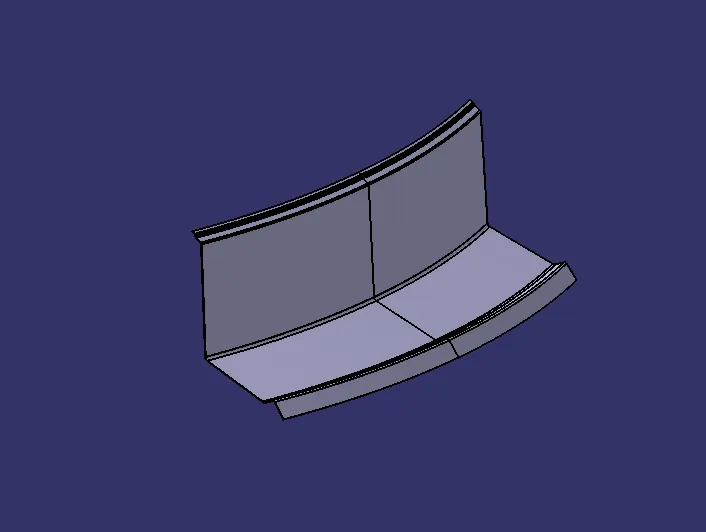

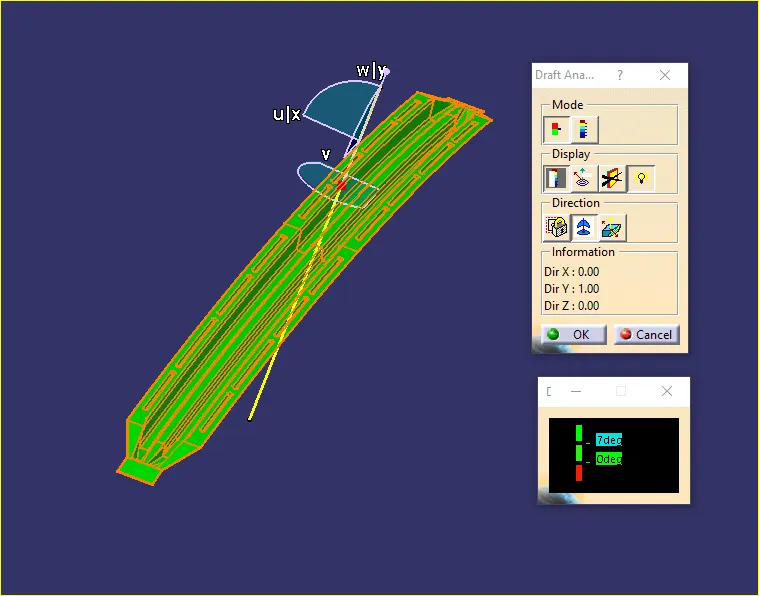

Front roof Rail :

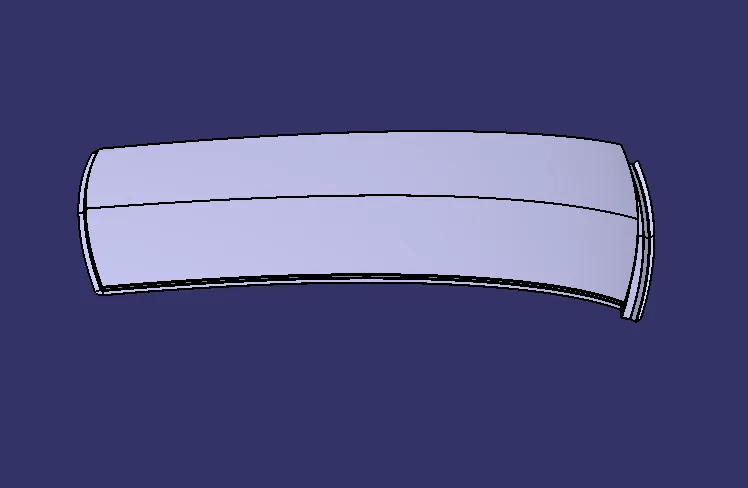

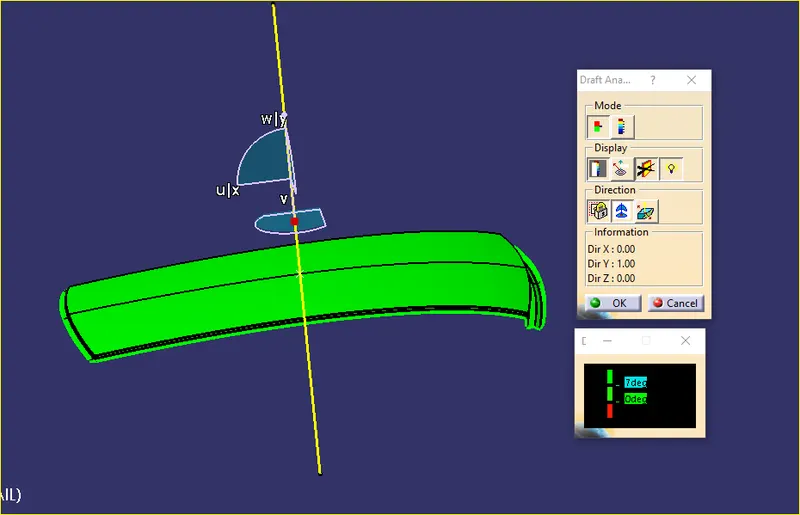

Rear Roof Rail :

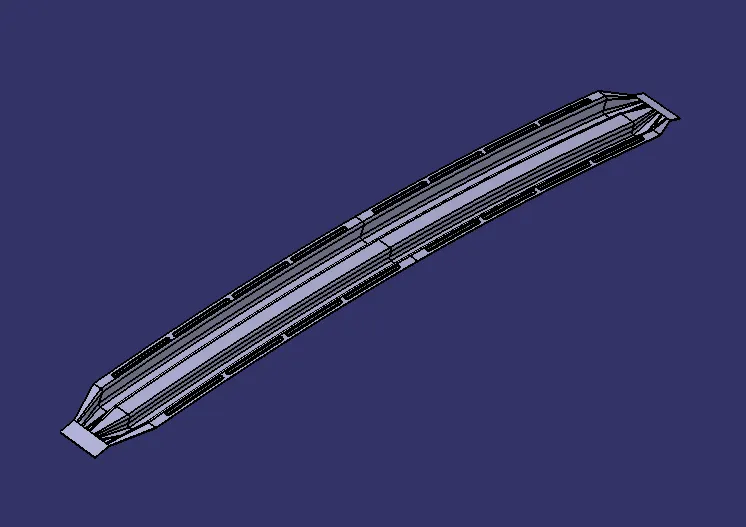

Centre Roof Rail :
Bow Roofs :

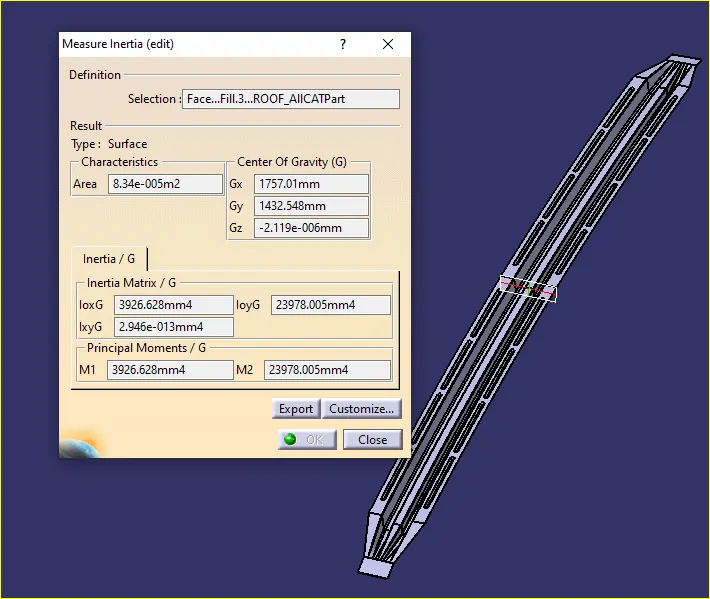

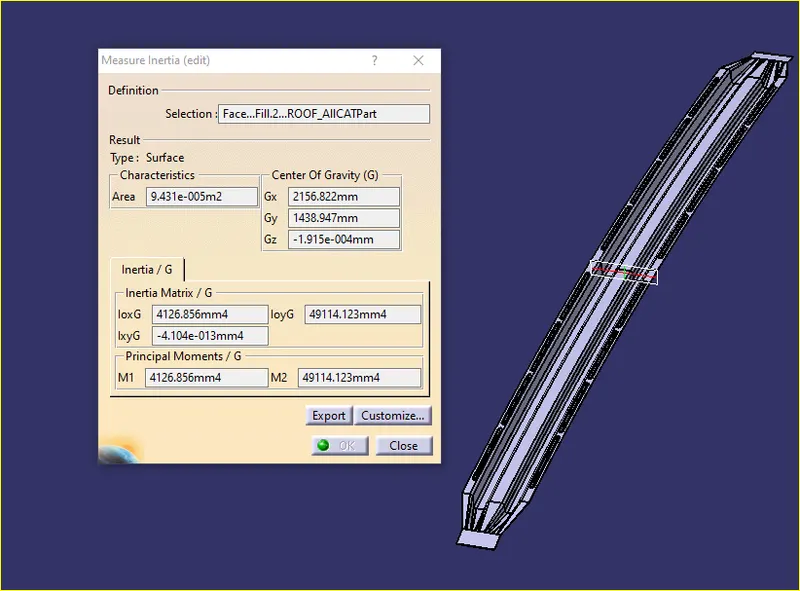

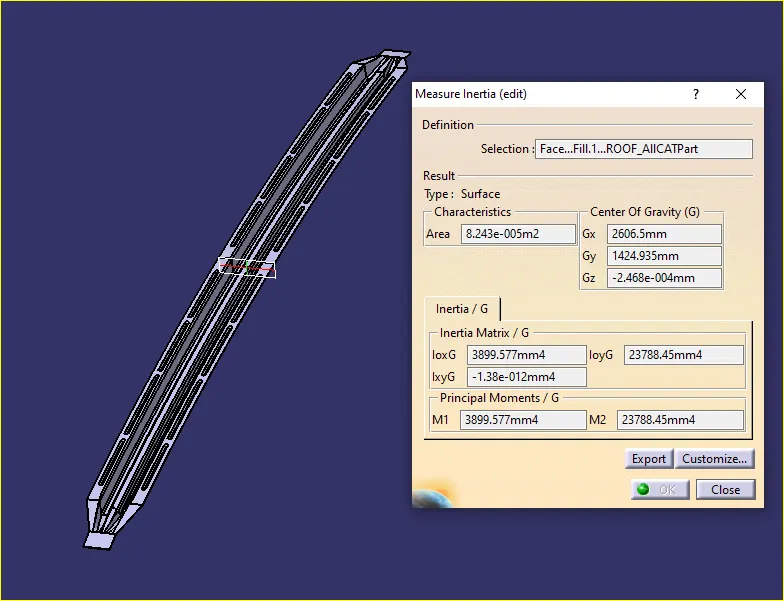

Section Moment Of Inertia Analysis Values :
Section moment of inertia is used to predict the amount of deformation and deflection of a part. A higher moment of inertia is preferable as it reduces the amount of deflection for a given force. The thickness of the part and addition of flanges and embosses increase the section inertia of the part. Here the master sections of the roof and roof rails and their section analysis are given.

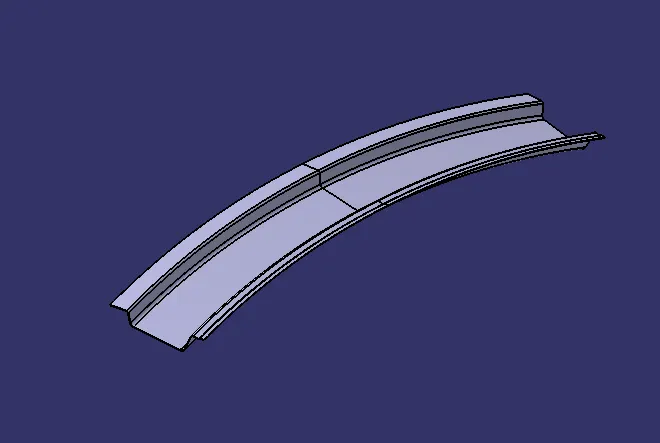

Centre Roof Rail :

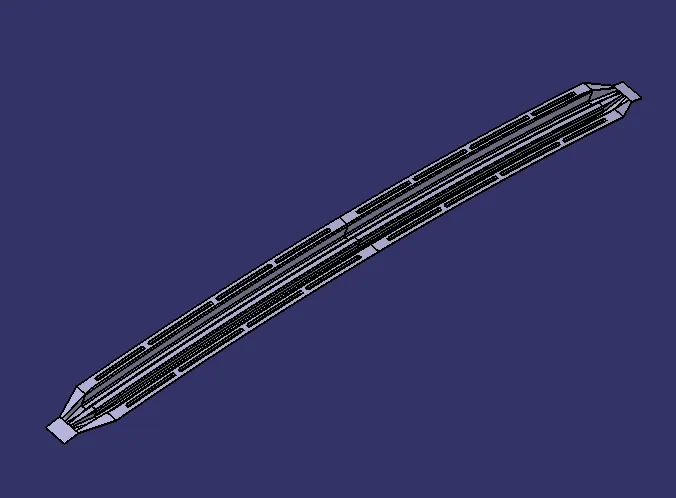

Bow Roofs :
Conclusion :
