Roof challenge

AIM:

Design of Roof Panel

OBJECTIVE:

To design and calculate the performance criteria for the Roof and Rail Reinforcement design, Adding necessary features to develop the strength of the roof.

INTRODUCTION:

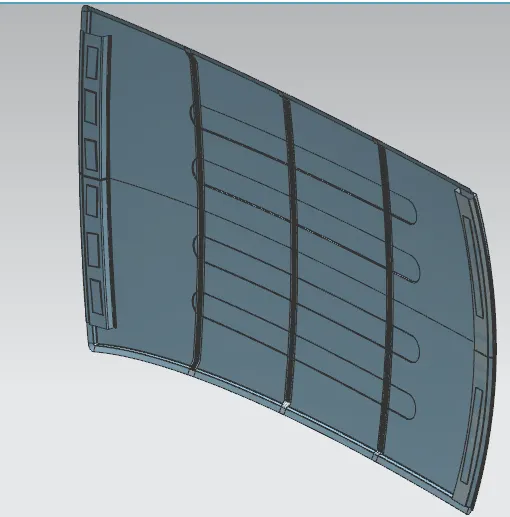

Roof is not just a styling surface, it provides protection to the vehicle occupants so we need a good structure to the roof. In the roof assembly we have roof rail, roof bow, roof support etc which make the roof stronger.

As a safety point of view roof panel is undergone through varies test in which crush test and roll over test look for the strength of the part. So when designing we have to consider strength as an important point.

Design consideration of roof:

• Visibility criteria
• Head clearance
• Curvature study
• Heat distortion and snow load criteria
• Draft analysis
• Safety parameters

Design of roof:

Inputs Given:

Front Rail:

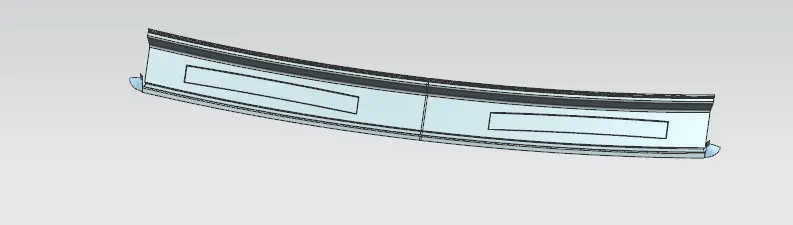

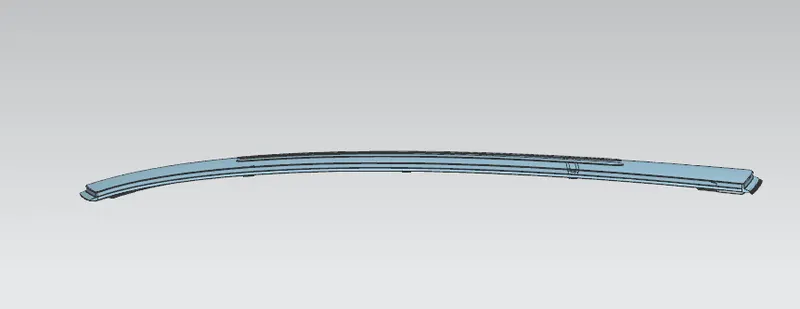

The front roof rail is designed considering the visibility of the driver and headroom clearance. Front rail is a support to the roof panel so it should have good structure and also it should have features to hold the light assembly, rear view mirror etc. The thickness given to the rail is 0.75mm.

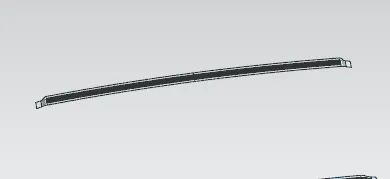

Bow Roof:

The bow roofs gives torsional stiffness and load bearing capacity of the roof structure. The bow roof is positioned based on the curvature of the roof panel. The heat distortion and snow load criteria are checked to analyze the position of the bows.

Rear Rail:

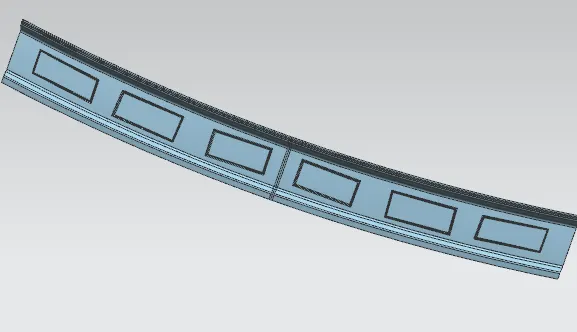

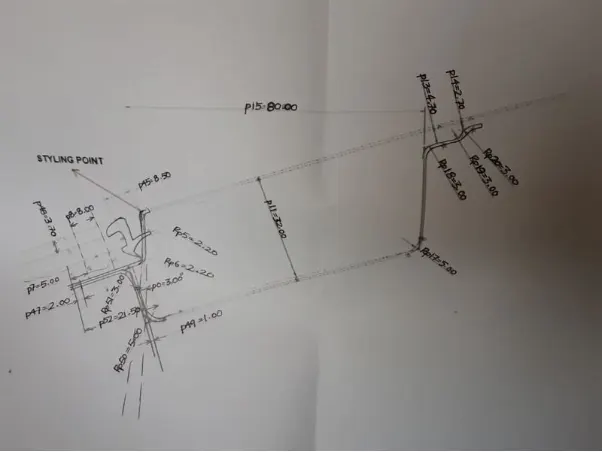

Rear rail is designed according to the master section given. Consider the headroom clearance and also the rear visibility. If there is requirement, lamp holding positions can be given. Thickness of rear rail is given as 0.75mm.

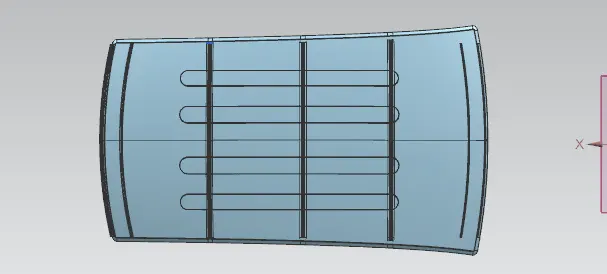

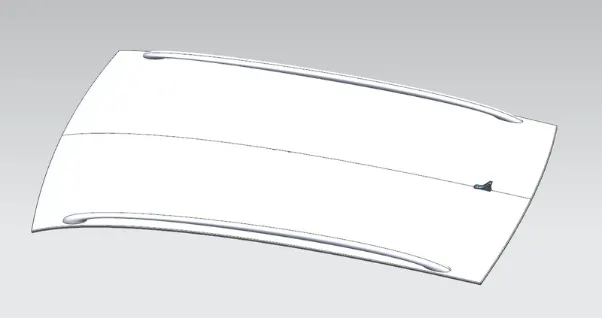

FIG: PROJECTING THE POINTS TO ROOF PANEL

Bow–roof prediction Formula

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

Judgement Condition : OK< 2.7> 3.1

Where

L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)

R = Roof curvature

R = 2(Rx*Ry)/(Rx+Ry)

Rx = X curvature

Ry = Y curvature

t = Roof plate thickness [mm]

l = Bow Roof Span [mm]

Slno	RX	RY	R	I	L	T	R^2/t	W	Ok/Not
1	3140.29	4982.5363	3850.50	561.4	2089.123	0.75	19789008.3	3.29	satisfy
2	3705.5748	2671.8634	3104.94	501.65	2089.123	0.75	12854203.2	3.1	satisfy
3	5028.48	1842.8321	2697.200	468.56	2089.123	0.75	9699850.45	3.11	satisfy

From the above table it can be concluded that all values of W<2.7. It shows that the position of bow roof are optimum as per design and found ok

Snow load study:

Snow load study is done to check the durability of the roof to withstand snowfall and the roof goes back to the original shape without any permanent deformation once the load is removed. For snow load study we take 0Y axis check the curvature. The Qr value should be greater than 3.1, then the design is optimized.

Snow load Prediction formula

Qr = [Iy x t²] / [α x s x [(Rx + Ry)/2]² x 10^-8]

Note: The Qr value given over here is correct. There was a typo error in the formula given in the video.

Where

α = My x Lx² x 10^-12 , My = Y(Ly-Y)

Judgement condition = Qr ≥ 3.1

250 ≤ s ≤ 380

t = Roof plate thickness [mm]

Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]

Length of Roof panel with the center point between Roof rail Front /Rear as the front and rear reference point.

Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]

Width of the roof panel exposed on the surface.

Y = Distance front Front Roof Rail to Roof BOW[mm]

s = Distance for which Roof BOW bears divided load [mm]

s = L1/2 + L2/2

Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]

Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]

Slno	ly	l1	l2	LY	LX	RX	RY	T	Y	S	MY	alpha	OR
1	9.1827	561.14	501.65	2089.123	1041.93	3900.4	2349.94	0.75	449.05	531.39	736475.34	0.799	0.00292
2	5.5013	501.65	468.46	2089.123	1039.20	3887.19	6240.03	0.75	464.93	484.9	752345.07	0.523	0.4147
3	8.54226	468.46	400.32	2089.123	1045.18	458.406	2667.68	0.75	400.4	434.41	676190.45	0.473	0.00407

Roof panel curvature Radius of the Length Lx in Front view

Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]

Roof panel X curvature radius of length s in Side view

From the above table we can conclude that there is one NG condition. At that NG condition when changing the curvature Rx and Ry we can see the changes in Qr. This correction can be communicated to the Styling team to improve the curvature of the surface.

By embody the outer surface it can strenghten and it is the remdy that strenghten the roof by change in curvature.

Conclusion

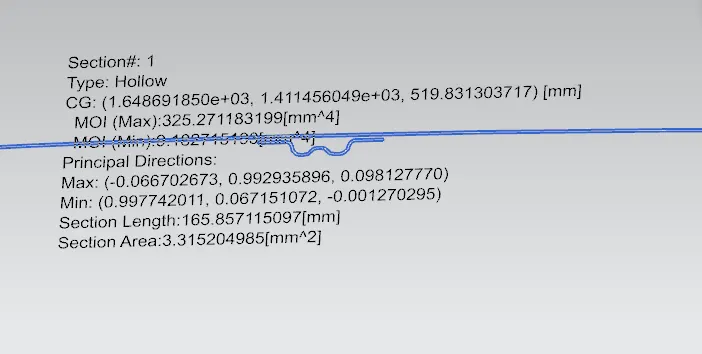

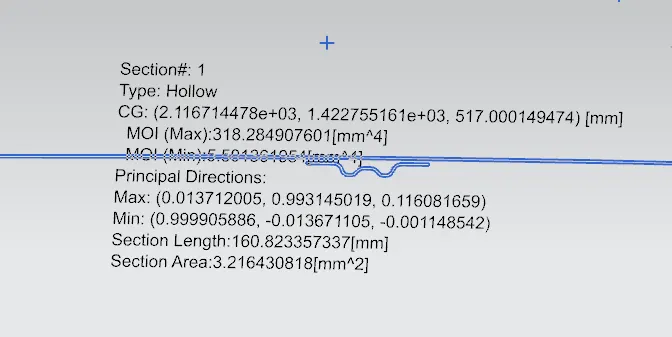

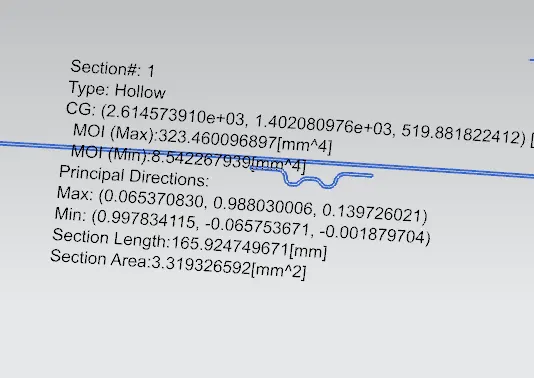

Using roof styling, developing the essential flanges and reinforcement. Designed is provided at appropriate dimension and checked with Draft analysis and also made the section modulus report on 0-Y section.
