REVIT_ Scheduling & Estimation_Week 9

1. Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
   a.Using 3D model create a section box
   b. To create similar doors and windows in a floor plan layout
   c. To reduce the thickness of lines visible in plan views
   d. To apply override settings to a floor in the model section view
   e. To increase the range of visibility in a plan view
   f. To select the previously selected items
   g. To add annotations to the model views
   h. To bring the model elements in line
   i. To rotate the model elements
   j. To move an object to another location
   k. To copy a model element
   l. To mirror an element about an axis
   m. To create an array of model elements

A: AIM: To list the shortcut keys. a.Using 3D model create a section box - BX
b. To create similar doors and windows in a floor plan layout - CS
c. To reduce the thickness of lines visible in plan views - TL
d. To apply override settings to a floor in the model section view - EOD
e. To increase the range of visibility in a plan view - VR
f. To select the previously selected items – Ctrl + <
g. To add annotations to the model views - DI
h. To bring the model elements in line - AL
i. To rotate the model elements - RO
j. To move an object to another location - MV
k. To copy a model element – CO/CC
l. To mirror an element about an axis - MM
m. To create an array of model elements – AR

2. AIM: To use Revit and the project used from week 6 to 8 to prepare a schedule for the following

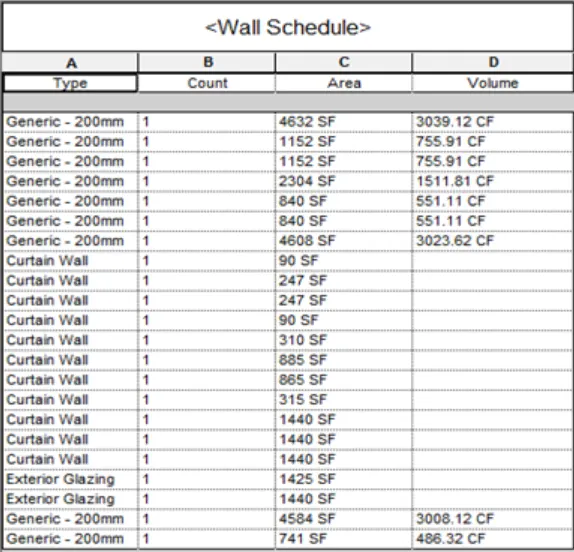

   a.Walls

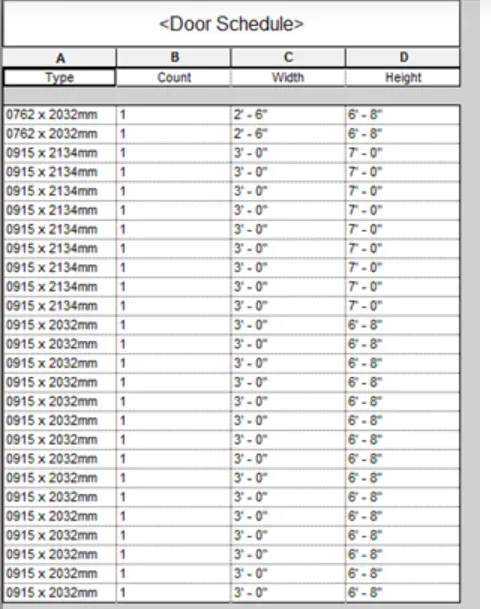

   b. Doors

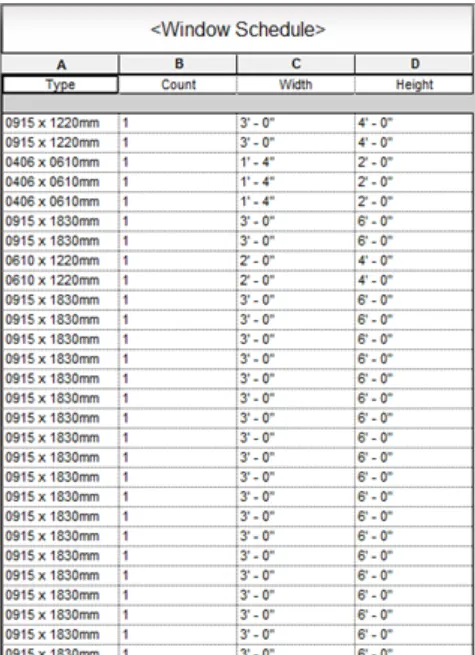

   c. Windows
   d. Material – Concrete/Wood

TOOLS REQUIRED:

• View tab
• Schedules option

PROCEDURE:

• Open project file from week 7.
•

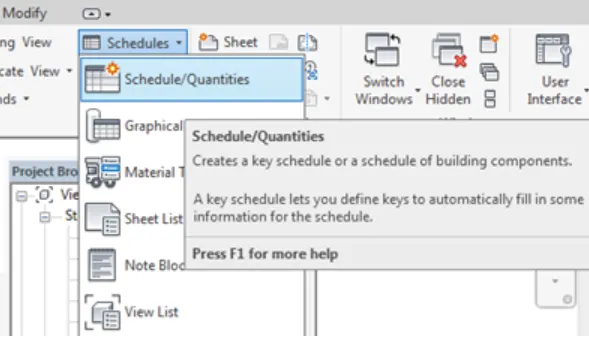

• Click on view tab and select schedules option.

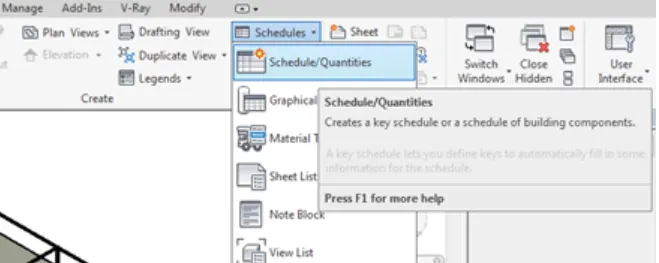

• Now click on schedules/ quantities option to create schedules.

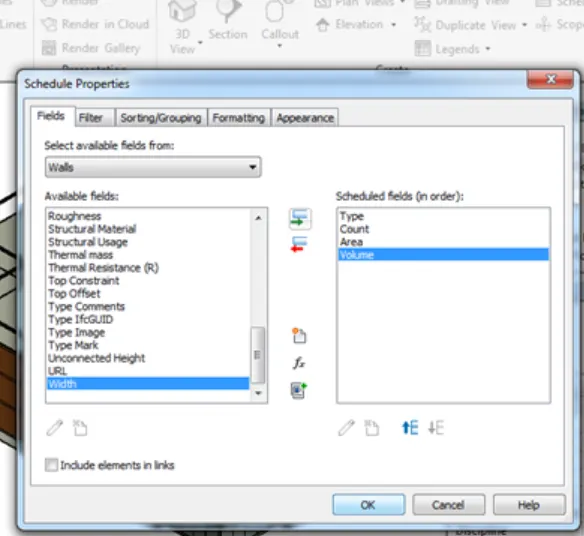

• Now first select walls and click ok and then add all properties like area and volume.
•
• And then click ok so that schedule is created.
•
• Do the same with windows, doors and material.
•
•

RESULT:

Schedules for given elements are created.

3. AIM: To use revit to calculate area and volume of each room in the model with appropriate room tags applied to each room. And also to Prepare a schedule report for area and volume of each room.

TOOLS REQUIRED:

• View tab
• Schedules option

PROCEDURE:

• Open the existing project file.
• Click on view tab and select schedules option. In that select schedules/quantities option.
•

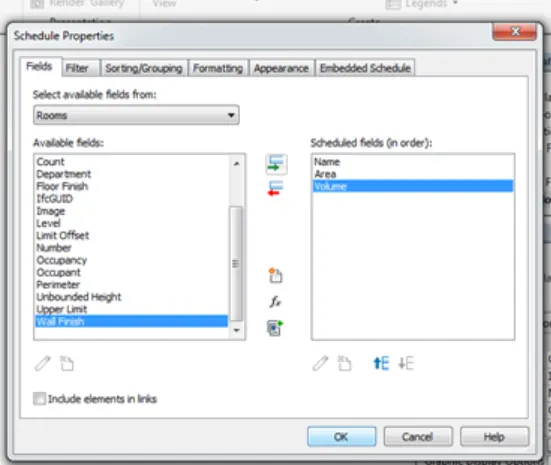

• Now click on rooms option and add required properties like area and volume.
•
•

RESULT:

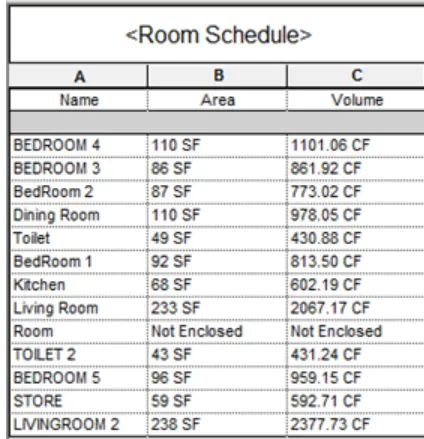

Schedules for rooms with area and volume are created.

4. AIM: Touse the same schedule for the unit cost rate for materials available in the internet, prepare total cost of materials used in the project

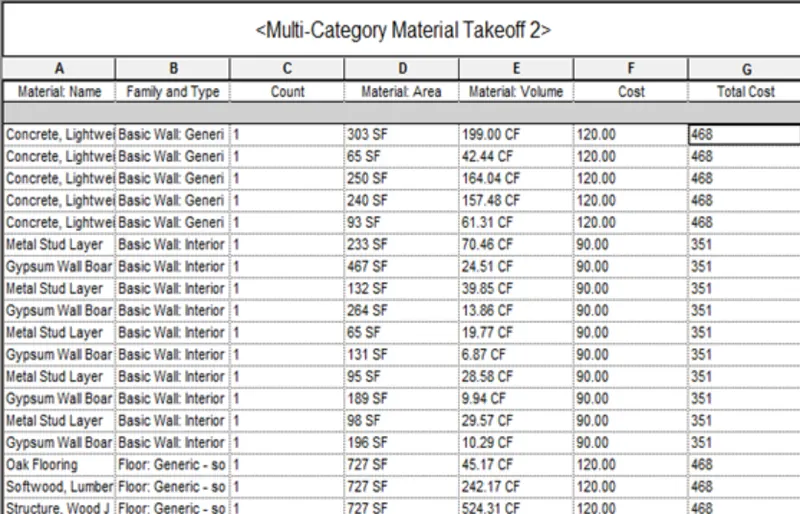

   a.Total Cost of Materials

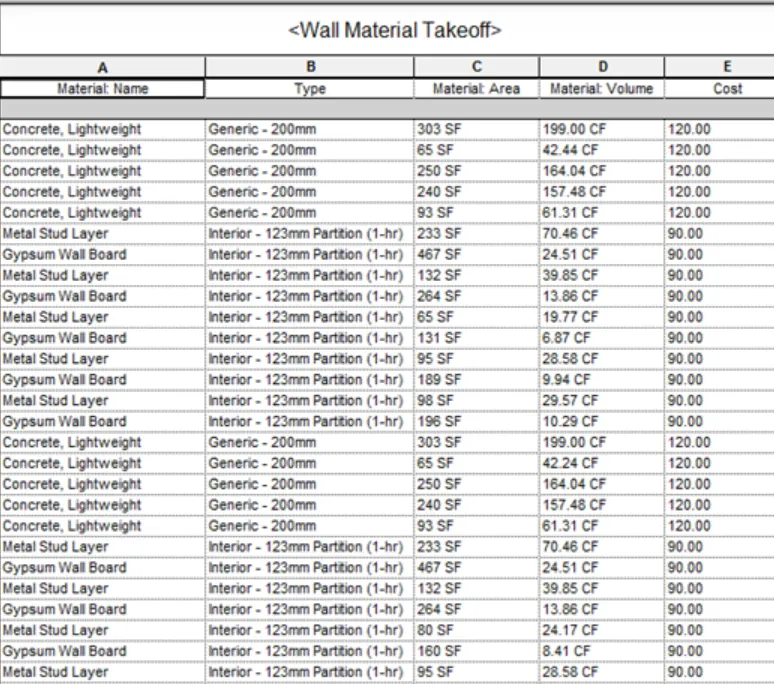

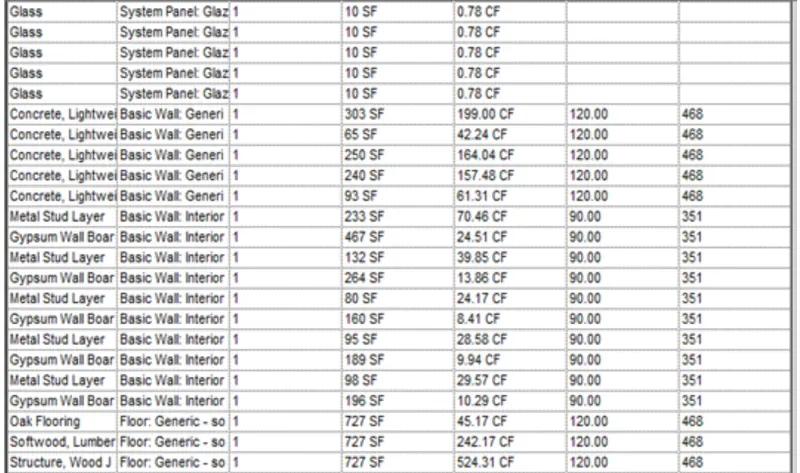

   b. Individual Material Take off

TOOLS REQUIRED:

• View tab
• Schedules option

PROCEDURE:

• Open existing project file.
• Click on view tab and select schedules option.
•

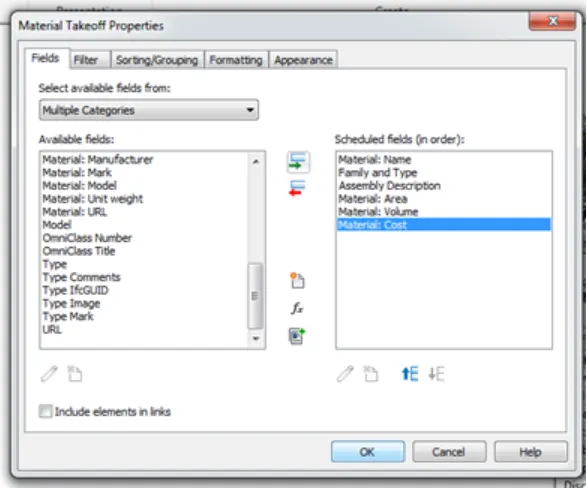

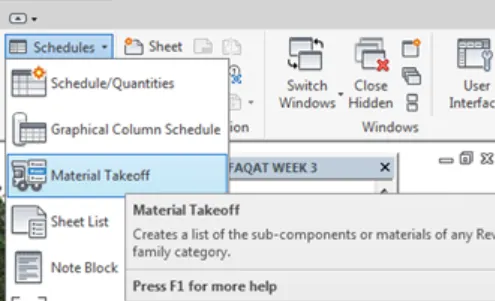

• Now select material take off option.
• Create a formula for total cost of materials and click ok.
•
• Schedule will be created.
•
• Do the same for other components.
•
•

RESULT:

Schedules are created for total cost of materials and individual material take off.

5. AIM: To use the concept of Visual Programming discussed in class to list a flowchart for the following scenario
   a.How to decide framings for a structure using Dynamo ?
   b. If there is no water coming from the pipes

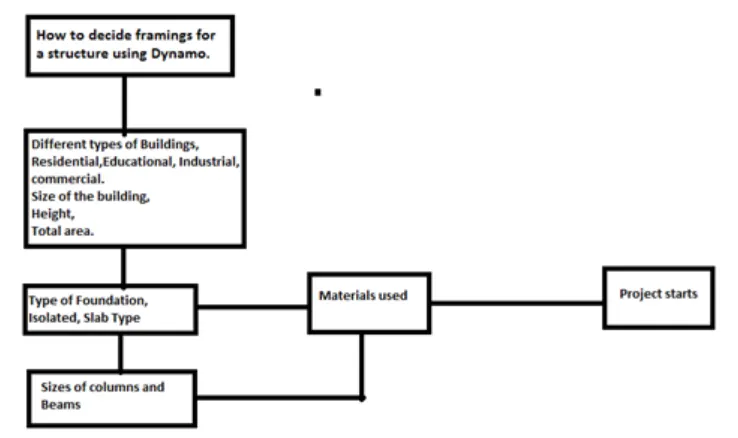

   c. If request for money from client has been declined for the project. A: a)Flowchart for deciding framings for a structure using dynamo.

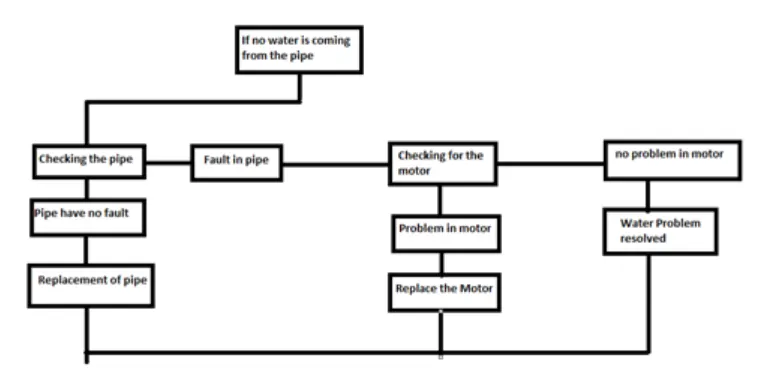

b)Flowchart if there is no water coming from pipes.

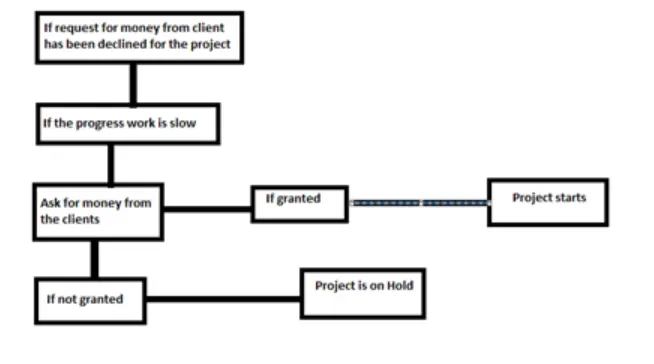

c)Flowchart if request for money from client has been declined for the project.

6. AIM: To List the parameters associated with each model element
   a.Wall
   b. Floor
   c. Door
   d. Window
   e. Table
   f. Building

A: FOR WALL:

• Length
• Width
• Height
• Material
• Type of wall

FOR FLOOR:

• Length
• Width
• Thickness
• Area
• Volume
• Type of floor

FOR DOOR:

• Length
• Width
• Material
• Type of door
• Height of sill and lintel

FOR WINDOW:

• Height
• Width
• Material
• Type of window
• Height of sill and lintel

FOR TABLE:

• Height
• Width
• Type of table
• Material

FOR BUILDING:

• Height
• Area
• Location
• Type of building
