REVIT_ Scheduling & Estimation_Week 9

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

ans:

aim: TO Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below.

short keys are

1. Using 3D model create a section box- BX
2. To create similar doors and windows in a floor plan layout- CS
3. To reduce the thickness of the lines visible in plan views- TL
4. To apply override settings to a floor in the model section view- EOD
5. To increase the range of the visibility in a plan view- VR
6. To select the previously selected items- Ctrl+<
7. To add annotations to the model views-DI
8. To bring the model elements in line-AL
9. To rotate the model elements-RO
10. To move an object to another location-MV
11. To copy a model element-CO/CC
12. To mirror an element about an axis-MM
13. To create an array of model elements

2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls

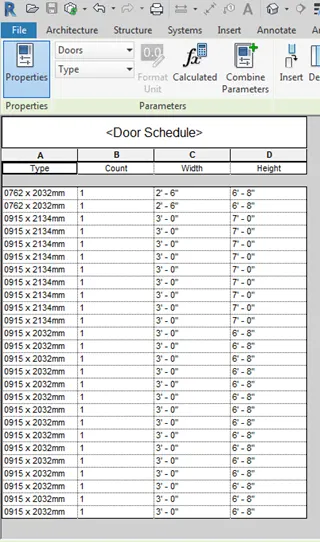

b. Doors

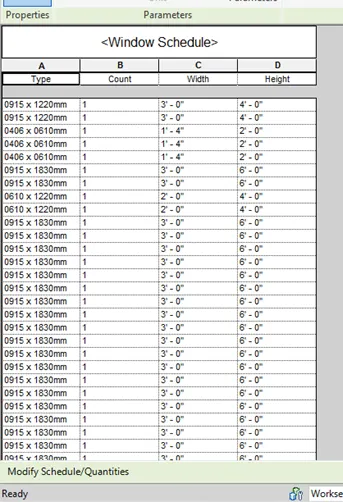

c. Windows
d. Material – Concrete/Wood

aim: Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

procedure:

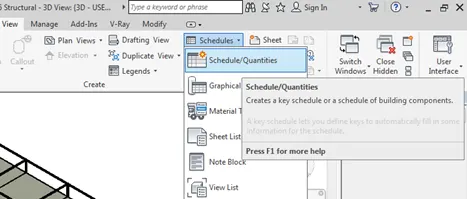

now open the architectural template and open view tab

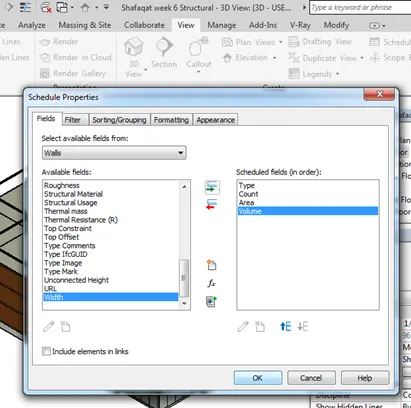

select the schedule quantites. now open the components such as walls,doors etc.

we can see that a tab is diaplayed .

open and select things which we want to display in schedule.

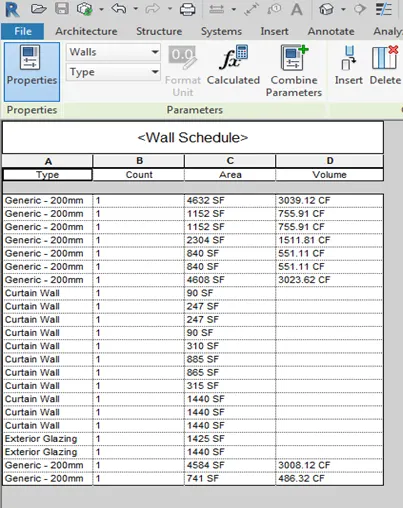

results:

3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

ans:

aim : Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

procedure:

same as privious one open the arch template file.

open the view command and select the schedule command.

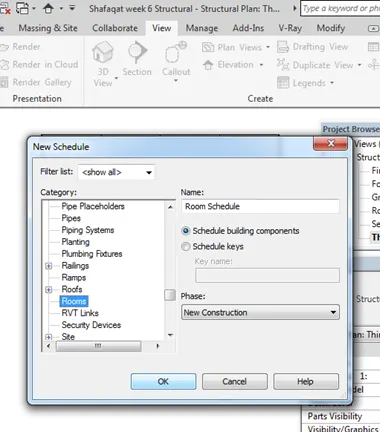

we can see that a tab is displayed.

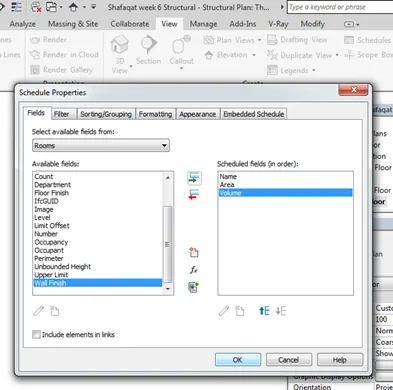

noow select rooms and select parameters areas,volumes and click ok.

we can see that area schedule is created.

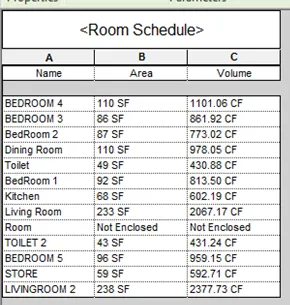

results:

4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

ans:

aim:Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

procedure:

open the architectural template file.

open view command and select schedule quantites .

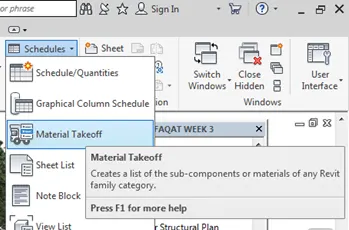

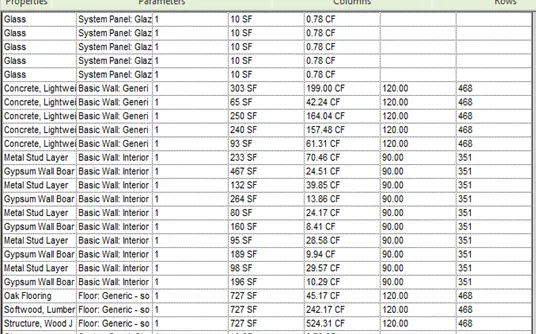

open material takeoff and specify the name and enter.

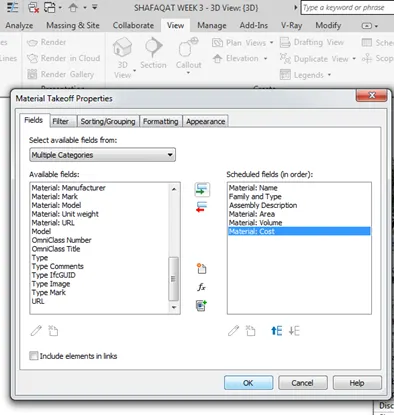

select the required parameters.

select the totalcost and define the formula to total cost.

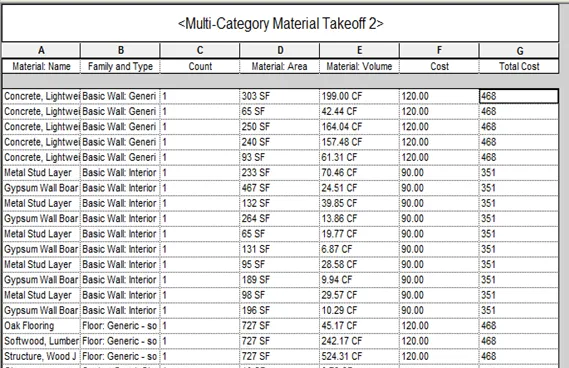

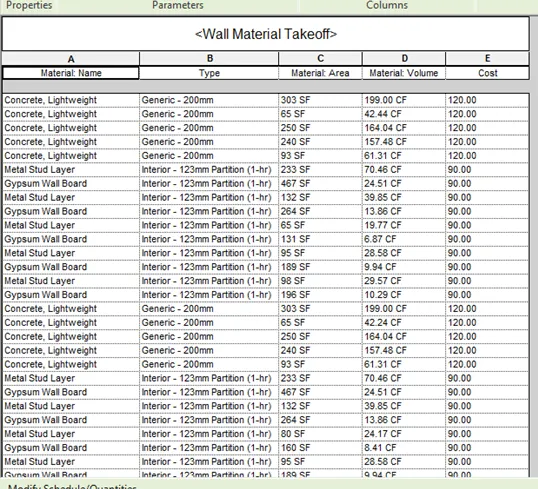

results:

5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project

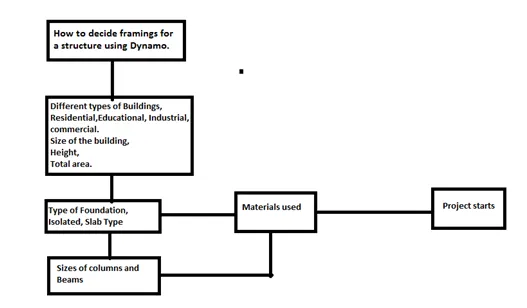

ans: framings for a structure using Dynamo.

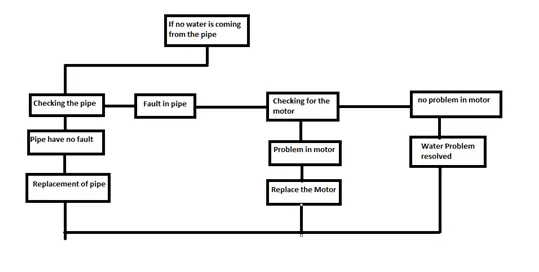

flow chat for pipes are as follows;

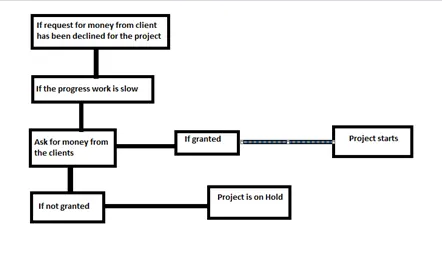

flow chat for request of money from clint for a project:

6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

ans:

Wall:

• Type of wall
• Material used
• Length
• Height
• Width

Floor:

• Types of floor
• Length
• Width
• Area
• Thickness
• Volume

Door:

• Material
• Length
• Height of sill
• Width
• Type of doors
• Height of lintel

Window:

• material
• Height of sill
• Width
• Length
• Type of window
• Height of lintel

Table:

• Material
• Type
• Height
• Width

Building:

• Types of buildings
• of floors
• Materials used
• Area
• Height
• Location
