REVIT_Naviswork_Project- 4

ANSWER : AIM : To develop a model as per the given plan and analyze and design the structure. TOOLS USED : Paint. Manage property sets. Construction levels. Grids. Columns. Beams. REports. Model report. Show report. Interactive design. Slabs on beams. Frames. Roof panels. Wall panels. Loads. Loadcases. Seismic wizard.…

1ans) AIM: To Analyze and Design a Boiler shed structure as per IS code in Tekla Structural Designer. Kindly refer to the enclosed plan and elevation given below for modelling. Tools used: . file . wind panels .wall panels .loads .frames beams .loadcases .construction levels .dead load .live load .wind load.…

ANS 1) AIM : To generate report for the steel building design from challenge 1-6. TOOLS USED : Report. Model report. Show report. PROCEDURE : Open the structure and analyze it. Now click on report tab. Select model report option. New dialog box appears. Now select the particular category and we can obtain the reports for…

ANS 1) AIM : To design the slab and roof foundations of the model and to outline the thought process for designing of the elements. TOOLS USED : Design. Settings. Check panel. Catalogue. Pile cap column. Result. PROCEDURE : First open the file in which the structure was constructed. Next after designing the columns and…

ANS 1) AIM : To design RC column and beams based on the analysis. TOOLS USED : Review. Check member. Static. PROCEDURE : First we have to open the file in which we have completed the structure. Next we have to validate the model in search on any errors if present. Later we have to analyze and create a report. Next open…

AIM : To generate seismic loading based IS codal provisions and zone II. Any other data you can assume and input accordingly. TOOLS USED : Load. Loadcases. Seismic wizard. Seismic load. PROCEDURE : Open the file where we have the structure on which we have to apply the seismic load. Now click on loads tab and select loadcases.…

ANS 1) AIM : To calculate the dead load based on the design and apply it on the structure. TOOLS USED : MS Excel. Loads. Loadcases. Dead load. Area. PROCEDURE : First open MS Excel and start the calculations of the dead load values which should be applied on the structure. Next go to loadcases and create a new loadcase…

ANS 1)   AIM : To setup model for RC building design and based on following parameters for cover.   TOOLS USED : Tekla software. File. Settings. Structural Defaults.   PROCEDURE : First open a new tekla file for starting the structure. Now select file menu. Select settings option under that. Settings dialog…

ANS ) AIM : To analyze a building to 10T crane load. Create a structure as per the given plan in the attachments provided. TOOLS USED : Grids. Levels. File. Model. Manage property sets. Column. Beams. Frames. Loads. Loadcases. Wall panels. Roof panels. Analyze. PROCEDURE : First open a new file to start the structure as…

ANS 1) BENDING MOMENT :  The bending moment can be defined as the bending effect which is caused due to any internal or external force. It is only of the important concept to be studied and bending moment plays an important role in the strength of the structure. In our software Tekla we have such advantages to…

ANS 1 : AIM:   Generate manual wind loading in the design report based IS code as per the following input TOOLS USED : Excel. IS codes. Calculator. PROCEDURE : First we have to open MS Excel (optional) to enter the values used for calculations. Next we have to obtain the required standard values from the IS codes.…

1ans: AIM : To Calculate dead load in design report based on IS code and apply dead load on the model. TOOLS USED : Load Load cases Dead load Imposed load Area Full UDL Line CALCULATIONS : DEAD LOAD : Slab load                             …

ANS 1) AIM :  To create beam properties for First floor and model the beams. TOOLS USED : Home  manage property sets new members steel beams model grid lines PROCEDURE : First open the previous week file. Then go to manage property sets under home. The click on new and select members and then steel beams. Off…

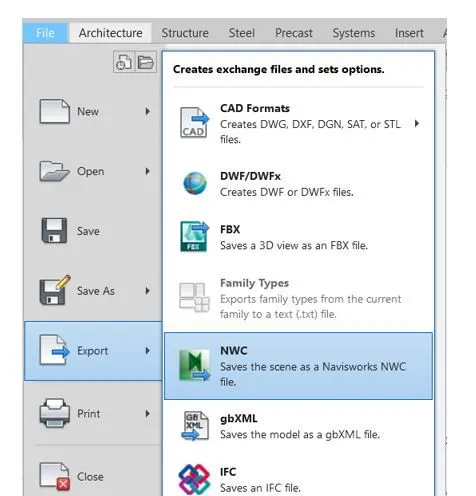

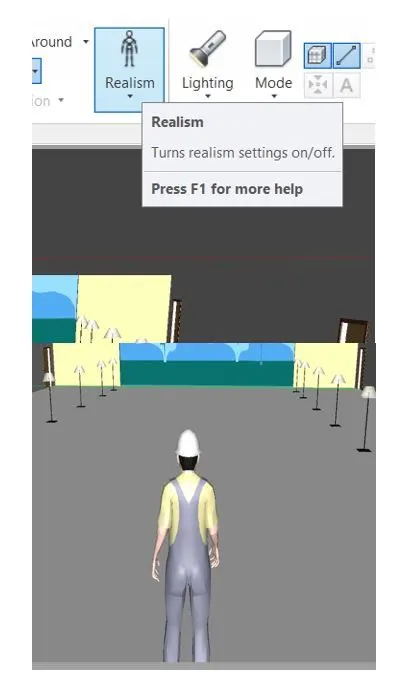

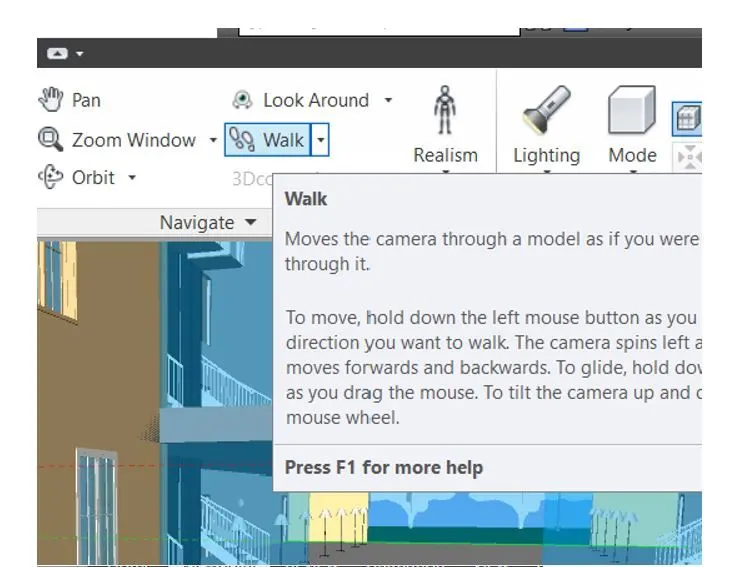

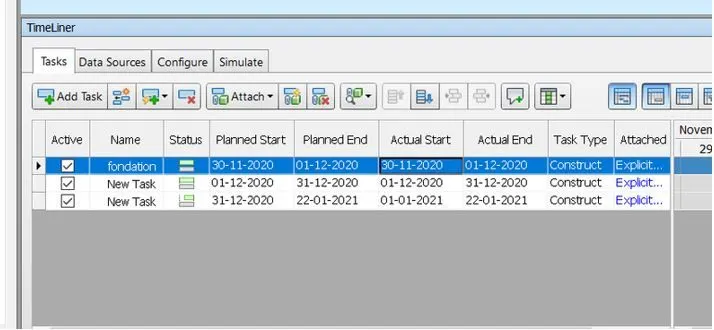

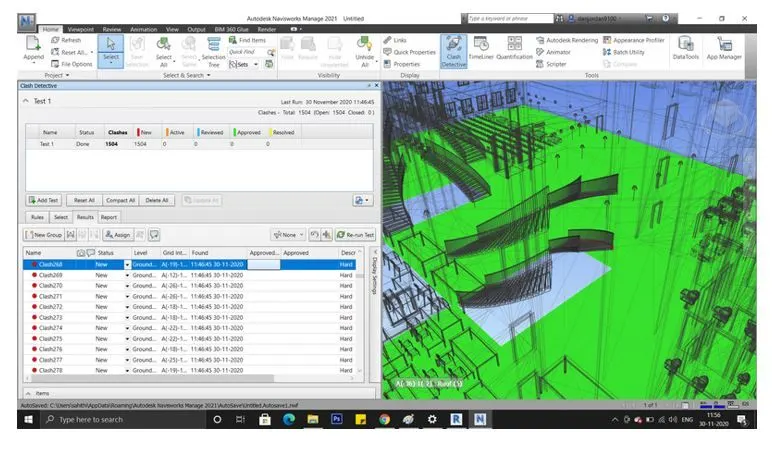

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class ans) Aim: To use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture…

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. ans) Aim: To create a set of sinusoidal points and create a curve and create a surface out of the curve by using Dynamo Tools Used: code block list line by star and end pint product add sine number slider…

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below            a. Using 3D model create a section box            b. To create similar doors and windows in a floor plan layout          …

1) What are the HVAC systems? Why are they essential in the modeling buildings ans) HVAC stands for heating, ventilation, and air conditioning. This provides heating and cooling to kind of buildings. These systems use fresh air from the outdoors to provide high indoor air quality. The Vin HVAC, or ventilation, is the process…

QUESTION 1)  Select the type of structure you want to build from one of the three below         a. Multi Unit Residential Apartment         b. Office Buildings         c. School ANS 1)      From the above given options the type of structure…

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project ans) Aim: To open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project Tools Used: manage architecture  grid collaborate…

1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit? ans) A model building code organization is a set of building codes that are developed and maintained by a standards organization. Building codes give us certain rules to be followed in planning by specifying certain limits…

  1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level ans) Aim: To proceed from the First Floor Level.Model a Ceiling from the architecture tab above the walls at the first-floor level. Tools used: architecture…

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using the floor tool under the architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor level. Align the floor plan with grids created…

Create a G+4 Residential building as per NBC standards and make it a central model file. The model should contain:AIM: To create a G+4 Residential building as per NBC standards and make it a central model file. Your model should containTOOLS REQUIRED:1. Collaborate2. SavePROCEDURE:1)Click on collaborate tab.2) Select ok.3)…

1ans) BIM stands for Building Information Modeling. It is used for the planning, design, construction, and management of building and infrastructure projects. BIM software is used to model and optimize projects by planning, designing, building, and operating BIM models. BIM provides the opportunity for construction…

1ans) Aim: To create a new project and name the project. Procedure:  1.open autodesk revit. 2.left side there will be open and new options visible. 3.click on new and select template.click okay. Result: new project is successfully created using revit. 2ans) Aim: To save a new project file.and also to close and open…
