REVIT_Naviswork_Project- 4

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class.

AIM: To export the Revit architecture and structure model to Navis work cache file following the export settings.

TOOLS/COMMANDS USED:

File

Export

Navis work

3D view

PROCEDURE:

Step-1: Open the architectural model that you have created previously.

Step-2: Select 3D view from view tab to view in 3D.

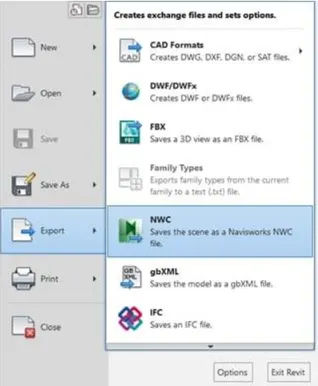

Step-3: Go to file and export option in it.

Step-4: Now select NWC from export option.

Step-5: After clicking on NWC, the file you made converts to NWC format.

Step-6: Now open the structural model of the project.

Step-7: Repeat the same process for the structural model.

RESULT:

Exporting of Revit architecture and structure model to Navis work cache file and export settings has been done successfully.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.

AIM: To use navigate tool to walk around the model and walk through the rooms created and to record the moving as animation in Navis works file.

TOOLS/COMMANDS USED:

Walls

Navis work

Viewpoint

PROCEDURE:

Step-1: Open the architectural model and structural model that we have exported to Navis work earlier.

Step-2: Click on the viewpoint and select the view from where you want to start.

Step-3: Select the record option from viewpoint and then select walk option in it.

Step-4: Now walk through all the rooms.

Step-5: Click stop option after finishing the walk of all rooms.

RESULT:

The animation in Navis work is recorded through walk through

Successfully.

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.

AIM: To use navigate tool to use realism feature to walk through the model and record moving as animation in Navis work.

TOOLS/COMMANDS USED:

Viewpoint

Realism

Record

PROCEDURE:

Step-1: Open the architectural file in Navis work which was exported from Revit.

Step-2: Click on viewpoint and select a view from where we want to start.

Step-3: Click on record option from viewpoint.

Step-4: Now select the realism and click on third person option in top menu bar.

Step-5: Click on record option and start walk operation.

Step-6: Go to different rooms and click on stop after finishing.

RESULT:

Using navigation tool to use realism feature to walk through the model recording moving as animation is been done successfully.

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

AIM: To embed architecture and structure*.nwc file to Navis work file and to create a clash detection test between two models and-

1. Run the clash detection test.
2. Study the clashes between the two models
3. List which of the clashes could be approved.
4. List which of the clashes could be neglected (will be taken care later).
5. List which of the clashes can be resolved
6. Save the results after colour coding the clashes to the Navis works file.
7. In case of resolution annotate the clash and save the view to defined views in Navis work.

TOOLS/COMMANDS USED:

Navis work

Add test

Clash detective

PROCEDURE:

Step-1: Open Navis work manage.

Step-2: Now open architectural and structural model that we have exported to Navis work earlier.

Step-3: Click on home tab and choose clash detective from the top menu bar.

Step-4: Then a new tab will appear on the screen.

Step-5: There are section A and section B appeared.

Step-6: Now click on add test and rename it as architecture vs structure.

Step-7: Now select the surfaces and then click on run test.

Step-8: Different clashes will be appeared which has few details like status, level and found etc.

Step-9: By clicking on each clash, image of that clash appears on the right side.

Step-10: By default, the status of all clashes will be mentioned as new.

Step-11: Now list which of clashes are perfect, perfect can be approved and which are not perfect or not necessary can be neglected.

Step-12: Now list the clashes that can be resolved.

RESULT:

Embedding architecture and structure *.nwc file and creating a detecting test between two models has been successfully accomplished.

5) Using the Time liner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.

AIM: To use the time liner feature in Navis work and to prepare and to prepare a schedule for the project developed earlier by adding reasonable assumptions for task start date and end date and to simulate the task completion as a visual simulation and record it and to save it to Navis work file.

TOOLS/COMMANDS USED:

Navis work

Add task

Time liner

PROCEDURE:

Step-1: Open Navis work manage.

Step-2: Open structural model that we have exported earlier.

Step-3: Click on home tab and choose time liner from available options in top menu bar.

Step-4: A will be appeared on screen which has two columns.

Step-5: At left corner, we can see selection tree, click on that after clicking selection tree, different components of model can be loaded.

Step-6: Go to scheduling section, select add task in it.

Step-7: Select a name section and give name of component which you want to start first.

Step-8: Add next four columns consists of planned start, planned end, actual start and actual end.

Step-9: The above four columns should be filled with dates.

Step-10: Next column is task type where we can mention type of task.

Step-11: Task type is of three types namely construct, demolish and temporary.

Step-12: Start with foundations and go to levels, columns, floors, etc.

RESULT:

Using the time liner feature in Navis work and preparing a schedule for the project developed earlier by adding reasonable assumptions for a task date and end date and simulating the task completion as a visual simulation and recording it and to saving it to Navis work file has been accomplished successfully.
