REVIT_3D Rendering of a House plan_Project 1

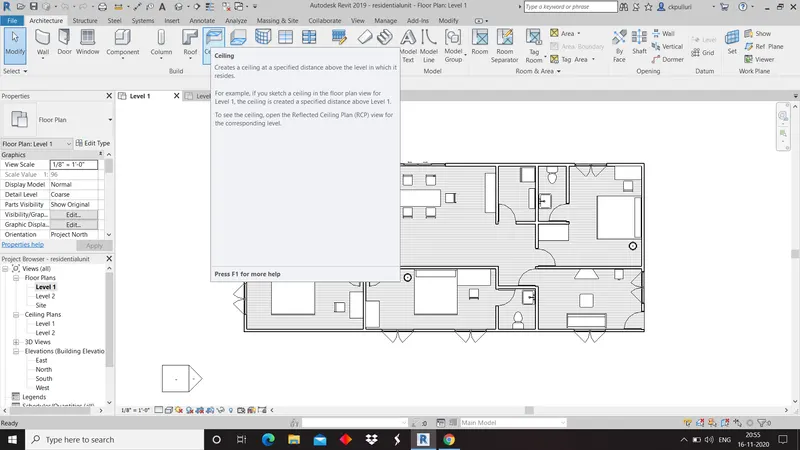

Question-1 Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level

Aim: Model a ceiling above the walls at first floor.

Tools: File menu, first floor plan, architecture tool bar , ceiling

Procedure:

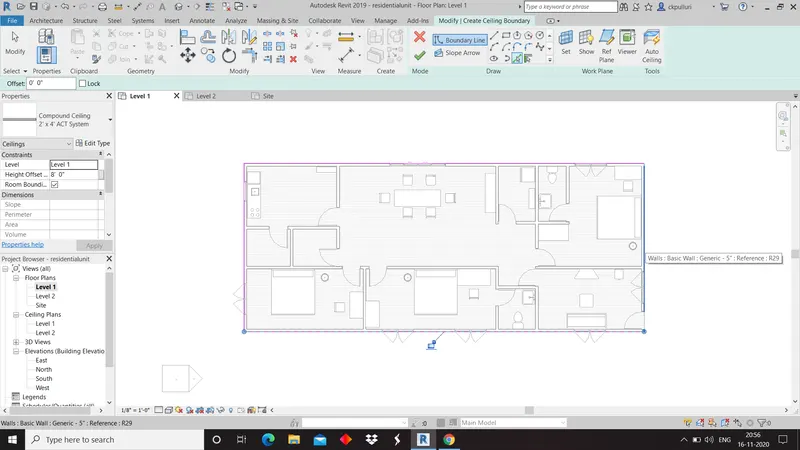

1)Open week-3 project from file menu
2)Select the first floor plan from project browser.
3)Click on architecture tool bar and select the ceiling.
4)Draw the ceiling.

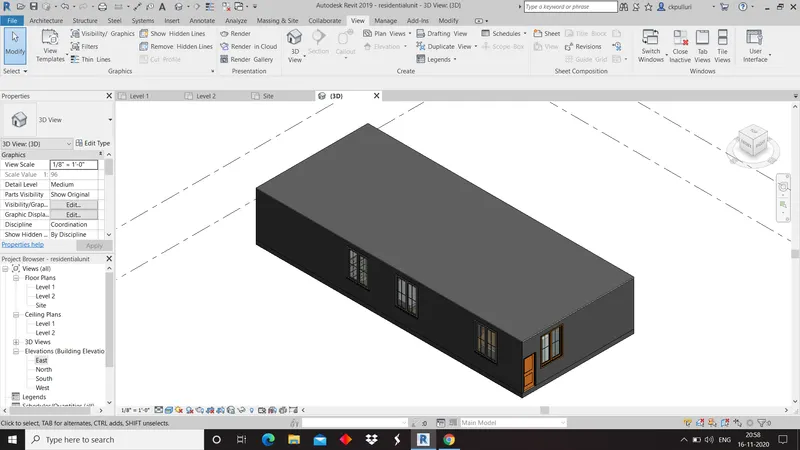

Result: Drawing a ceiling completed.

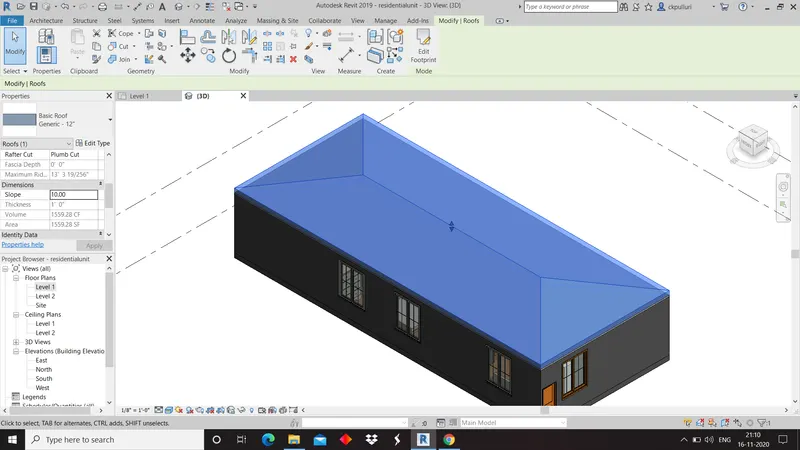

Question-2 Model a roof above the ceiling by selecting the footprints of ceiling. Using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees

Aim: Model a roof above ceiling and slope to 10 degrees.

Tools: Manage tool bar, project units, architecture tool bar, roof and level-1

Procedure:

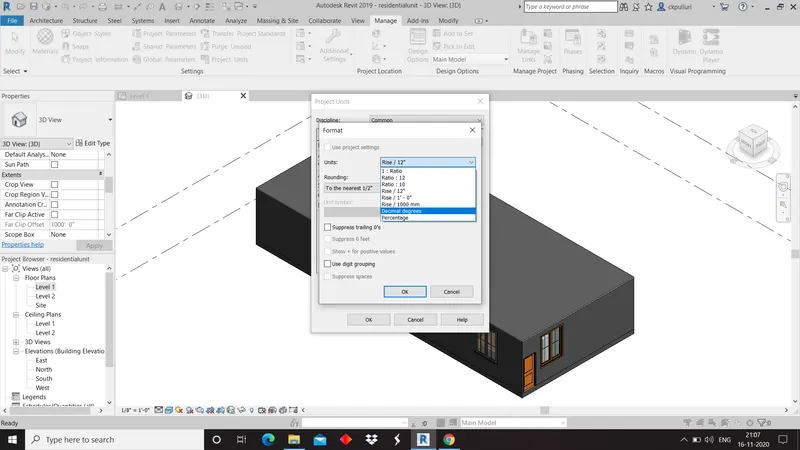

1)Click on manage tool bar, select project units.
2)Change the units of slope to degree and click ok.
3)Click on architecture tool bar, select roof.

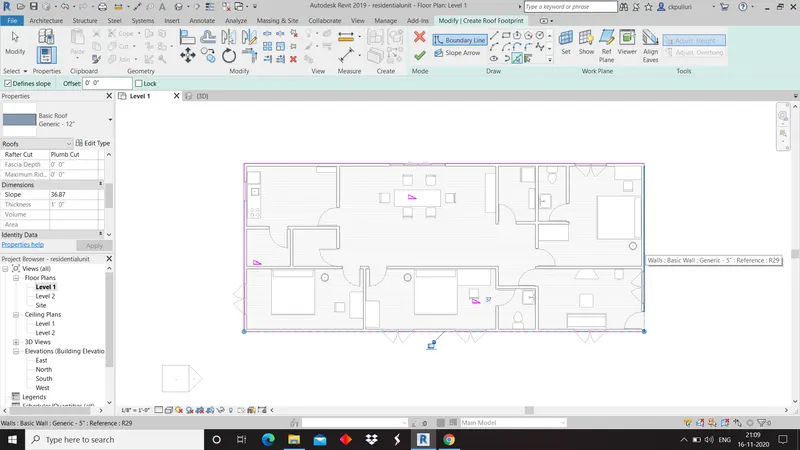

4)Click on level-1 and draw the roof.
5)Select the roof and change the value of slope to 10 degree.

Result: Modelling a roof of slope 10 degree completed.

Question-3

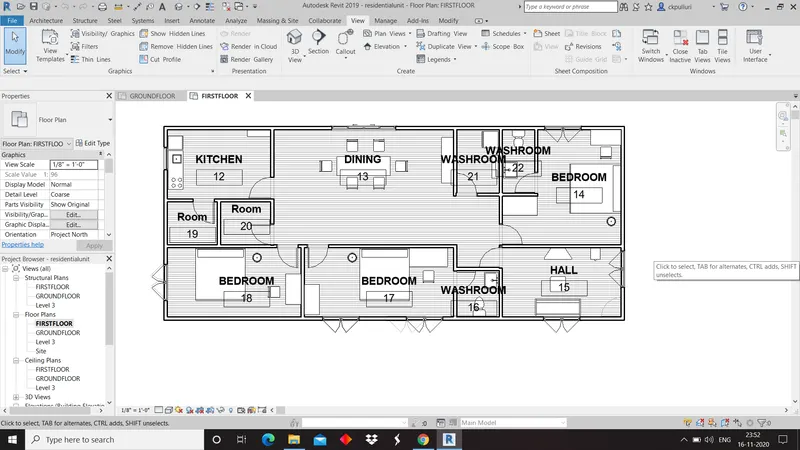

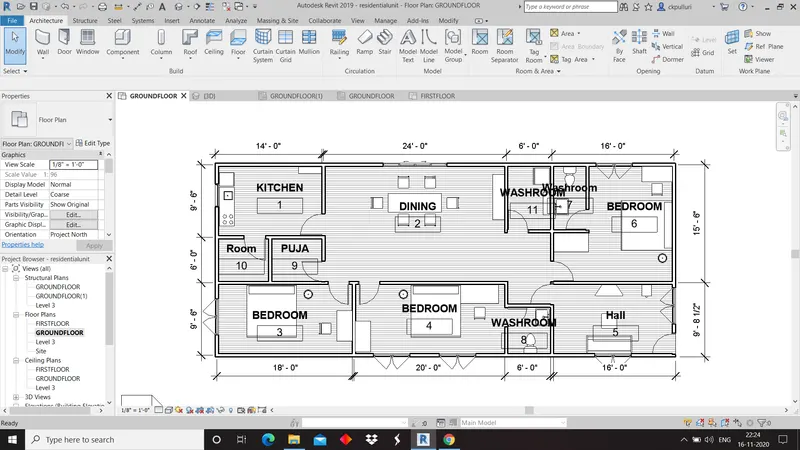

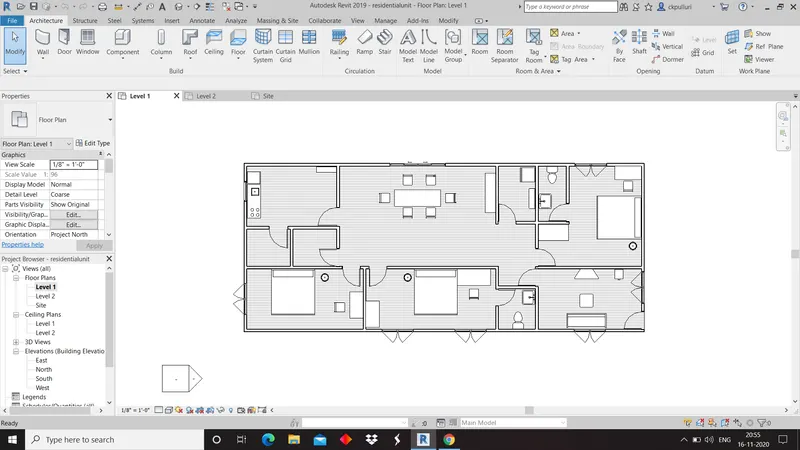

Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls , floors and all the components placed within the building
b. Structure plan must have details of only walls, floors and columns

Aim: Create a plan views for ground floor and first floor level.

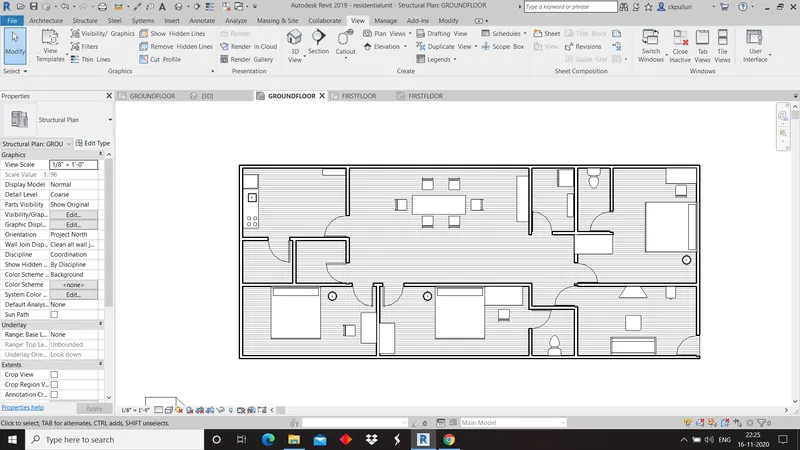

Tools: Structural plan, level-1, level-2, project browser and floor plan.

Procedure:

1)Click on structural plan in project browser.
2)Rename 'level-1' to ground floor and 'level-2' to first floor.
3)Click on structralplan and select the plan from project browser.
4)Click on floor plan, Select the floor.

Result: Separating plan views to architecture and structural plans completed

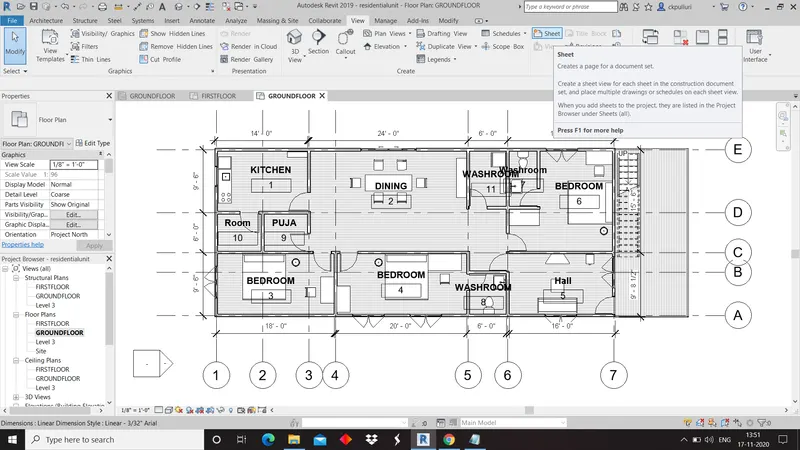

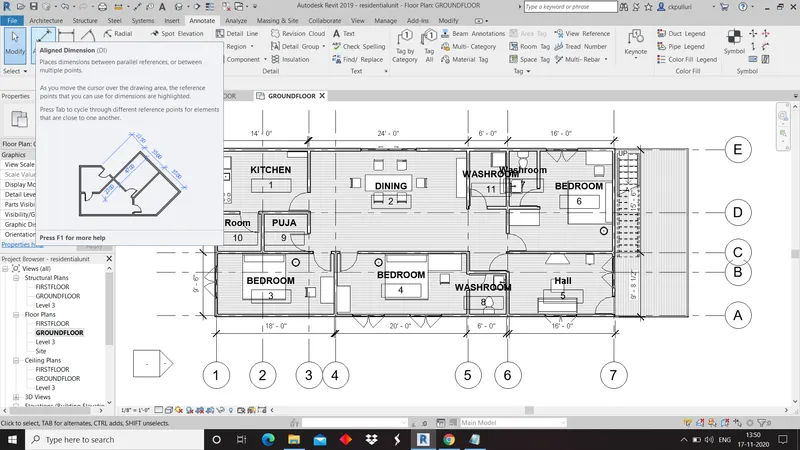

Question-4 Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Aim: Add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

Tools: Architectural tool bar, grids, annotate tool bar and aligne.

Procedure:
1)Open the project from file menu.

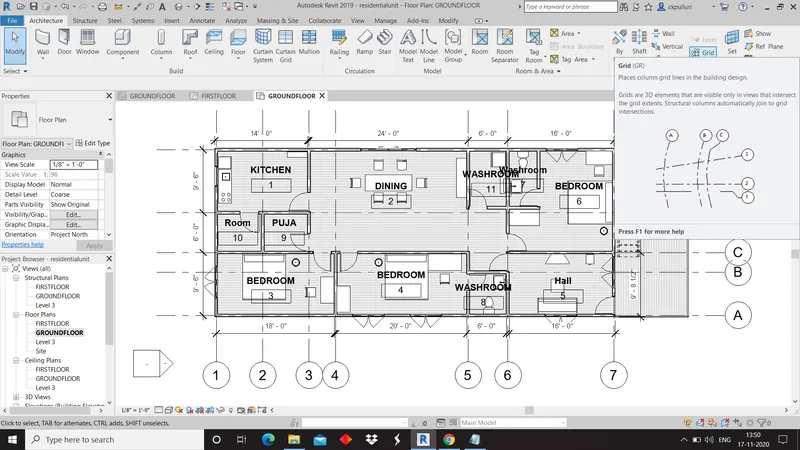

2)Open architectural tool bar and select grid.
3)Draw the grids, name horizantal grids A,B,C,D.. and vertical grids as 1,2,3,4...
4)Click on annotate tool bar and click on aligne.
5)Detail it with reference to grids for both structural and architectural.

Result: Dimension are aligned to the plan.

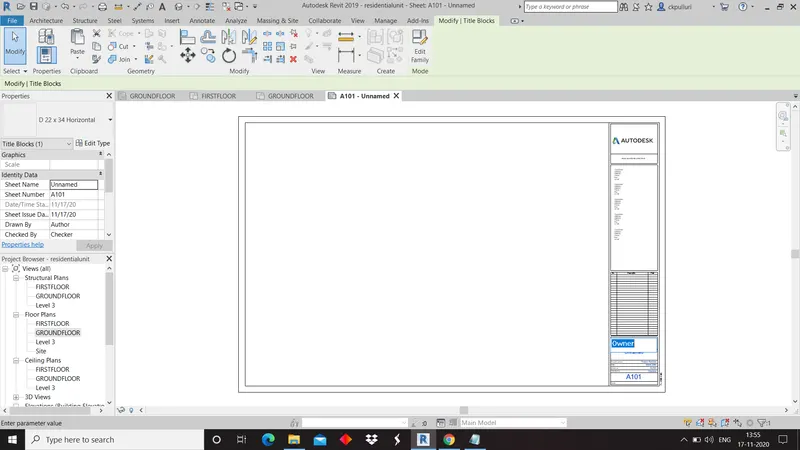

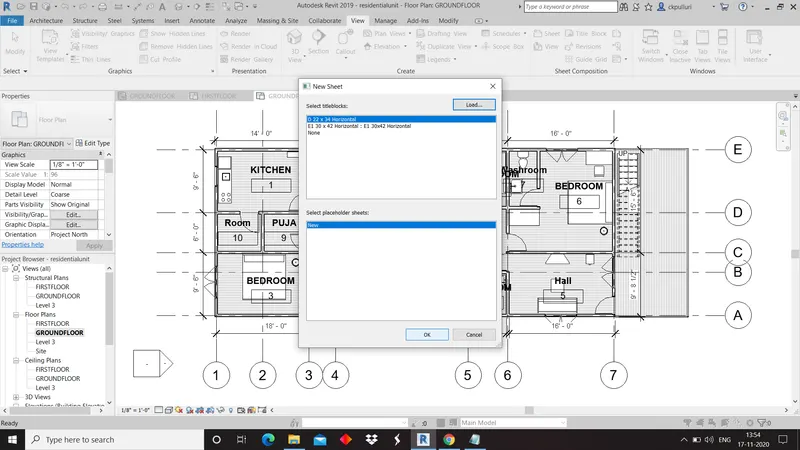

Question-5 Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Aim: Create a sheet template and adjust the parameters.

Tools: View tool bar, sheet and title block.

Procedure:
1)Open the project from file menu.
2)Click on view tool bar and select sheet.

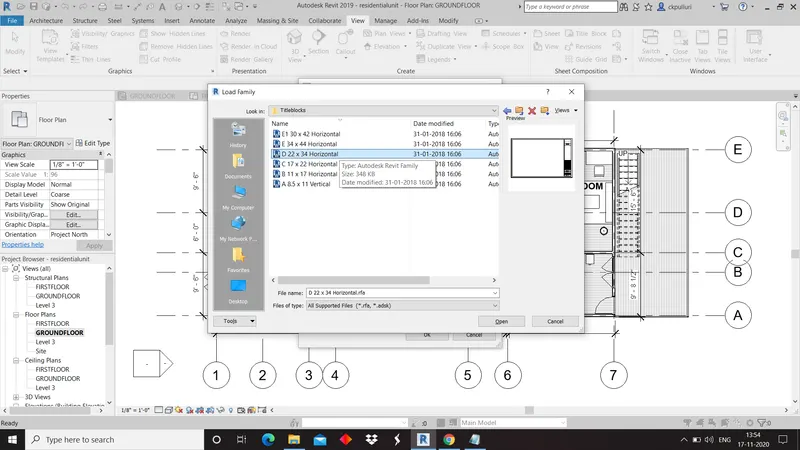

3)Click on load, select title block and select the required sheet.
4)Click ok.
5)Double click on parameters and edit them.

Result: Sheet template successfully created.

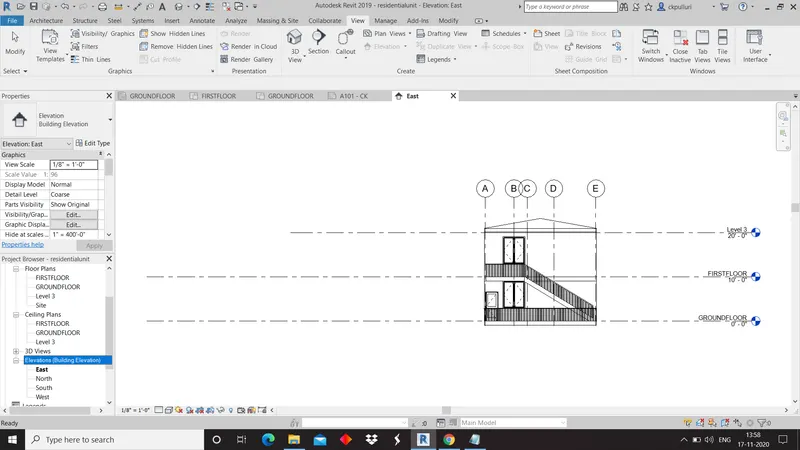

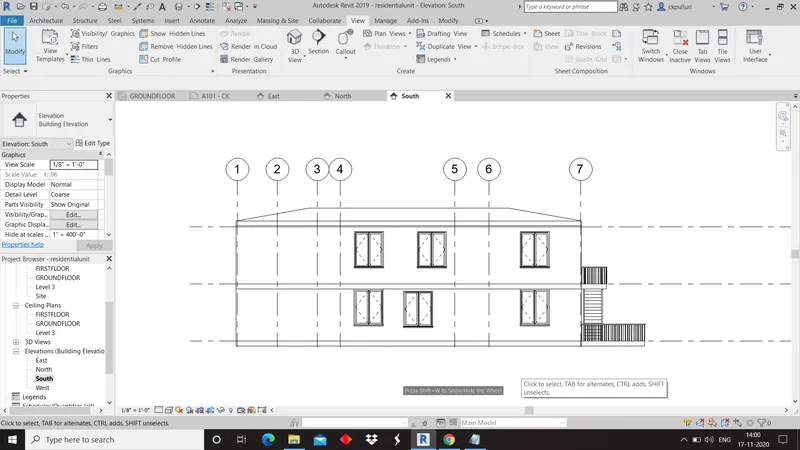

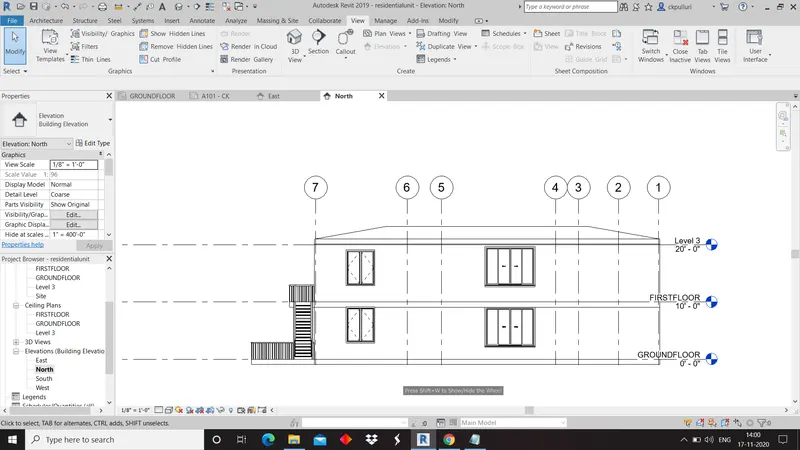

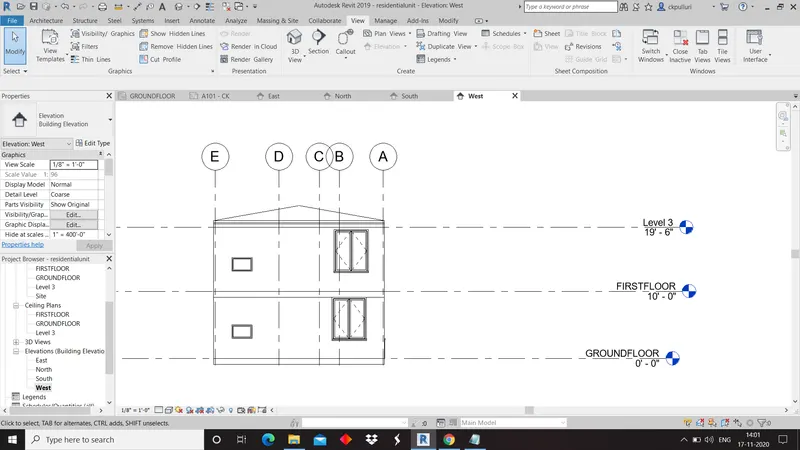

Question-6 Using the elevation tab create the elevation views, looking at your building from East, North, South and West

Aim: Create a elevation view from east, north, south and west.

Tools: Elevation, east, west, north and south

Procedure:
1)Open project from file menu
2)Click on elevation in the project browser.
3)Click on east, north, west and south

Result: Elevation views of the building created.

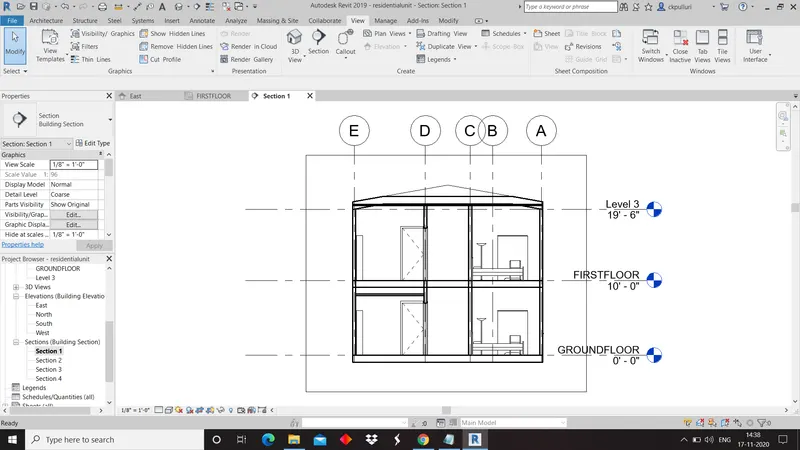

Question-7 Produce section cut through each room either cutting across longitudinally or in a transverse direction

Aim: Show the sectional views of the building

Tools: View tool bar, section and floor plan.

Procedure:
1)Open project from file menu.

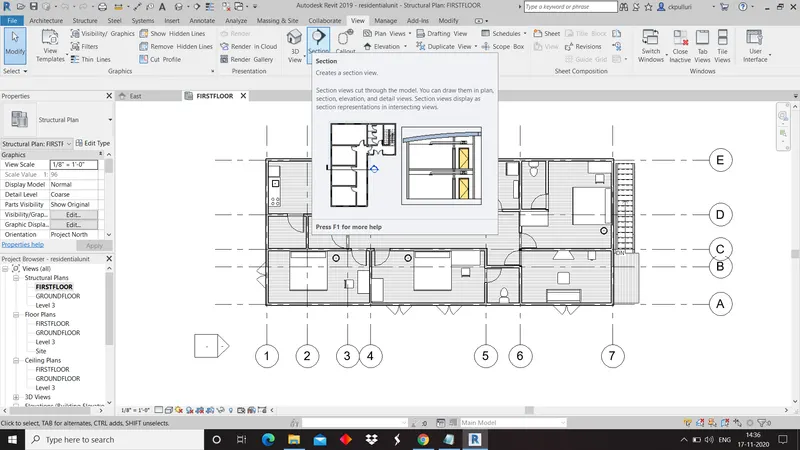

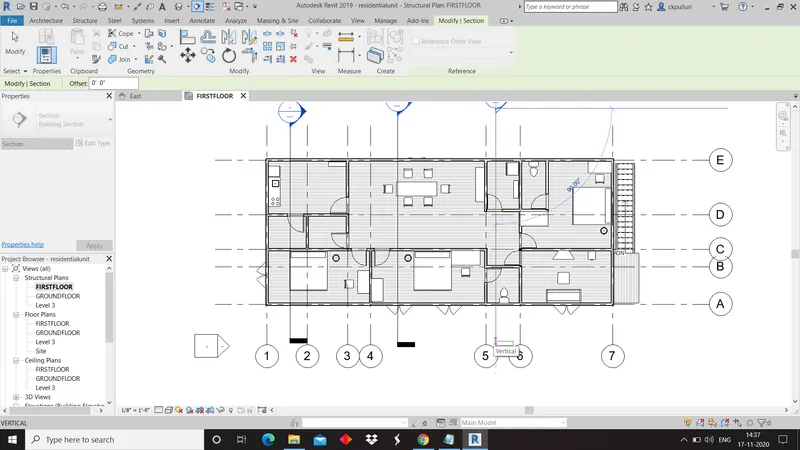

2)Click on view tool bar and select section.
3)Draw the section in floor plan.
4)Click on section in project browser.

Result: Sectional views of the building are created.

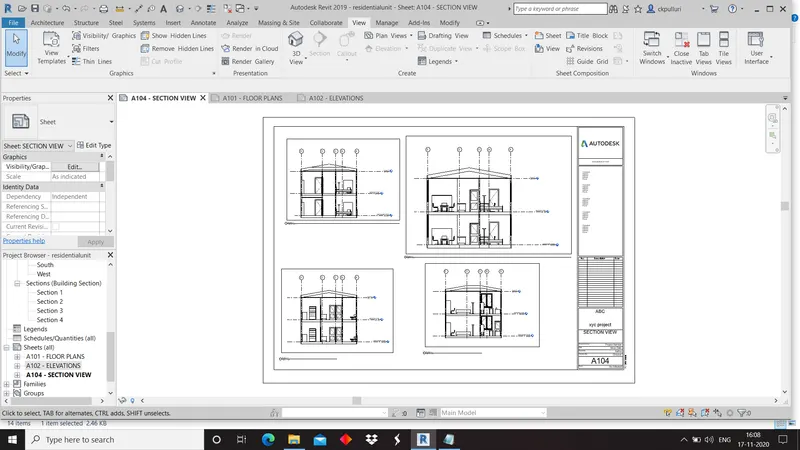

Question-8 Classify the views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser

Aim: Classify the views , Plan Views, Section Views and Elevation views to sheet.

Tools: View tool bar, sheet, property browser and plans.

Procedure:
1)Click on view tool bar and select sheet.
2)From property browser, drag the plans to the sheet.
3)Double click on parameters and edit them.

Result: Plan views, section views and elevation views are added to the sheet.

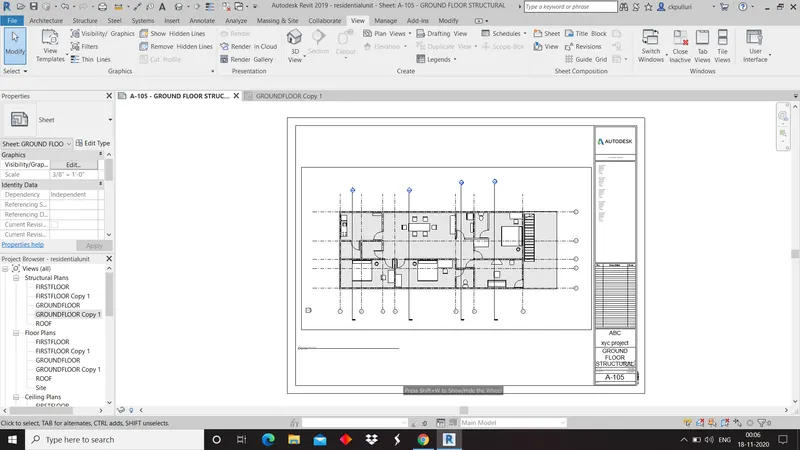

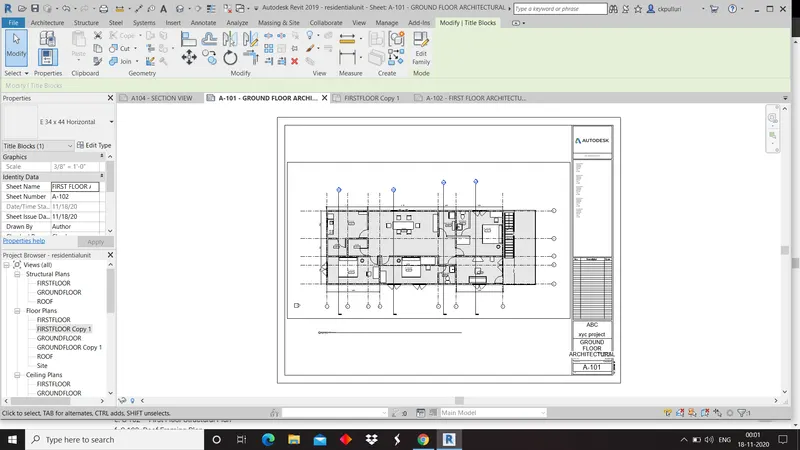

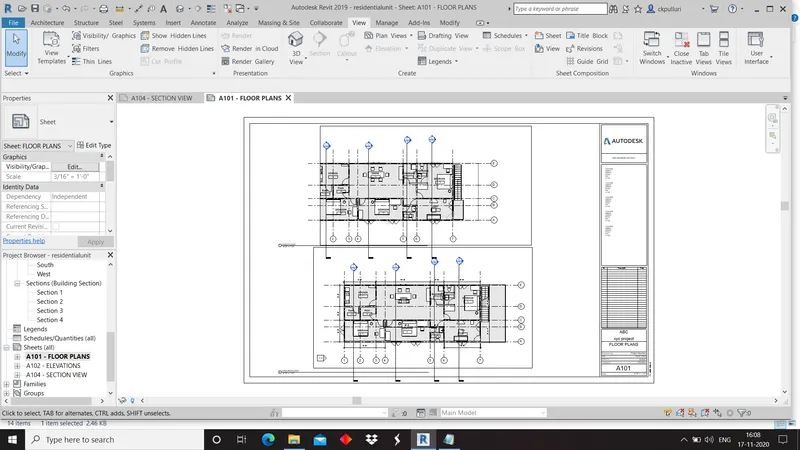

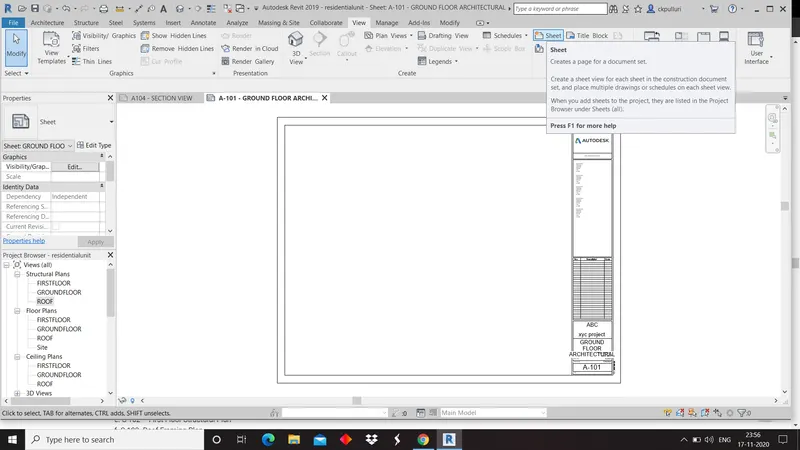

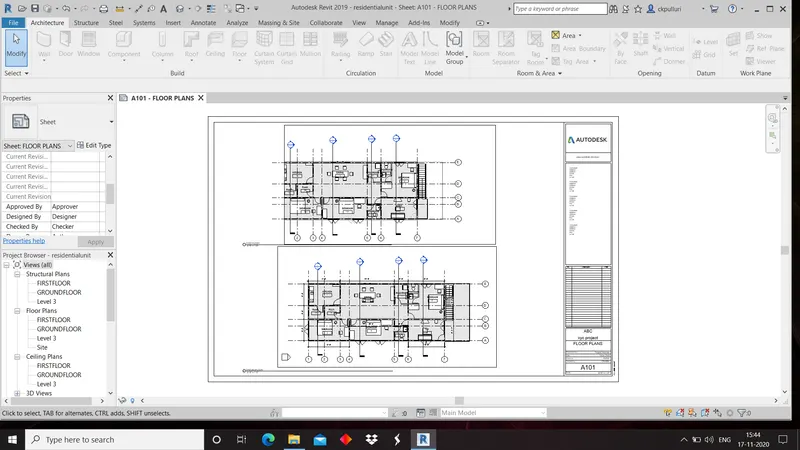

Question-9 Using the sheet template produced create multiple sheets as follows

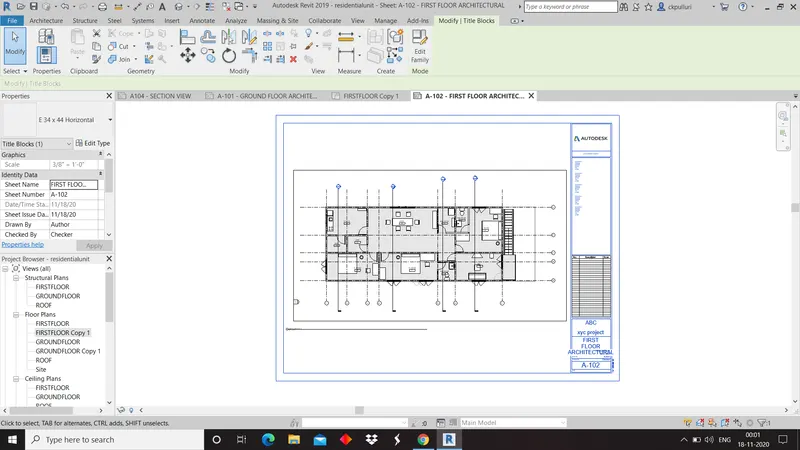

a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

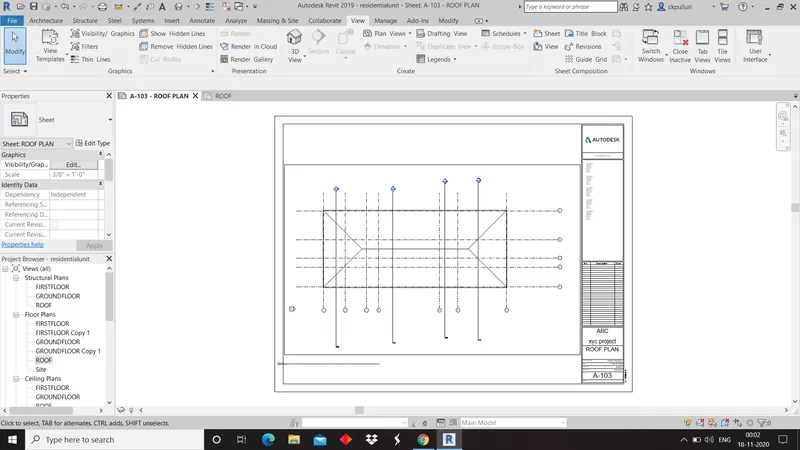

c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan

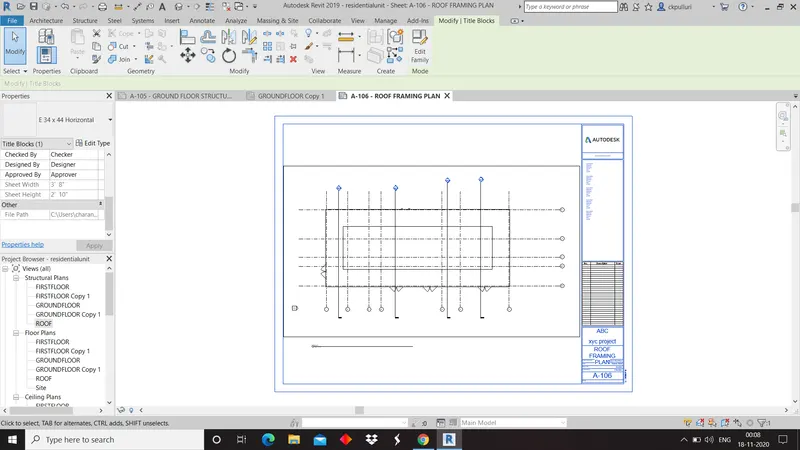

f. S 103- Roof Framing Plan

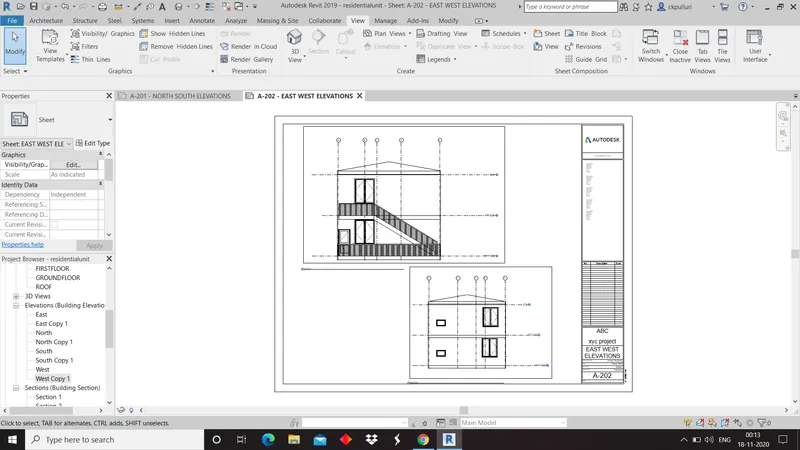

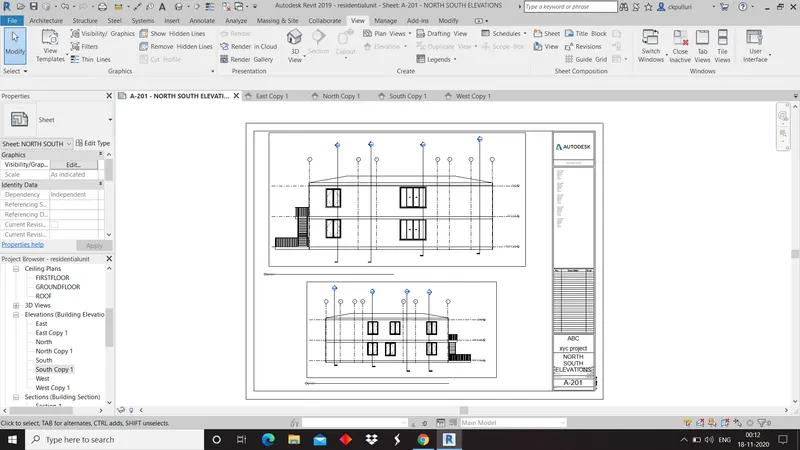

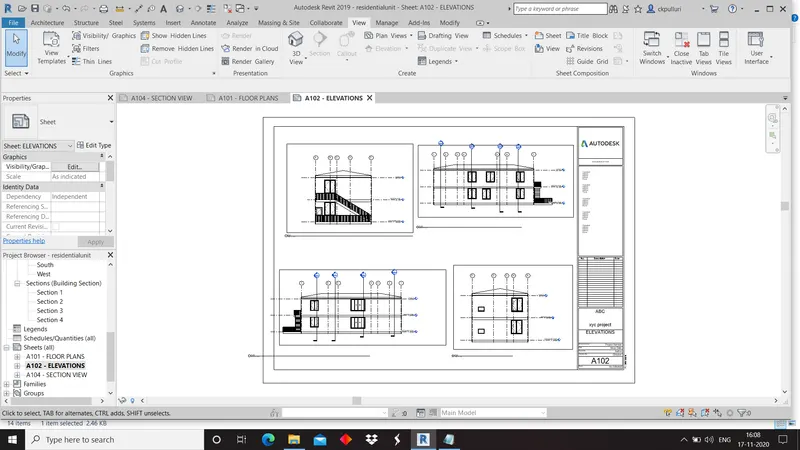

g. A-201 – North South Elevations
h. A-202- East West Elevations

Add additional sheets based on the sections created in your revit file

Aim: Using the sheet template produced create multiple sheets as given.

Tools: View tool bar, sheet and plan views.

Procedure:
1)Open project from file menu
2)Click on view tool bar and select sheet.
3)Drag the pla views to the sheet
4)Edit the parameters as require.

Result: Plans are added to sheet successfully.

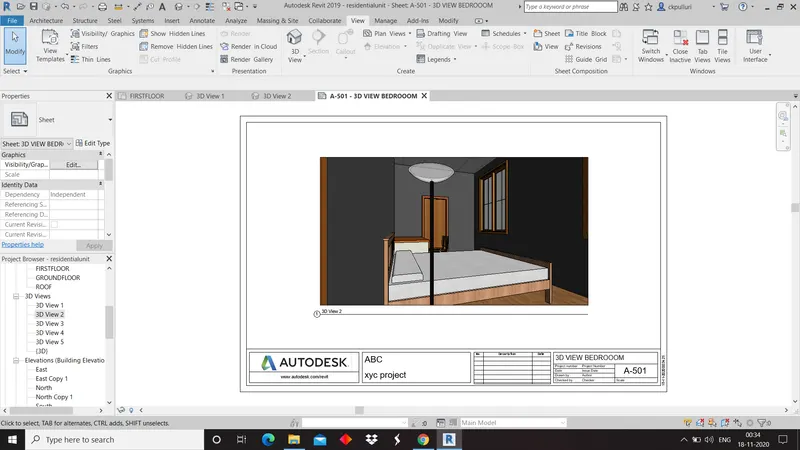

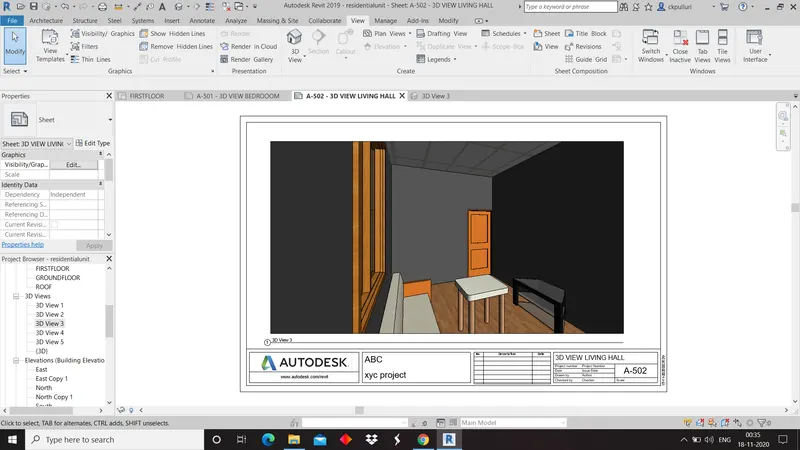

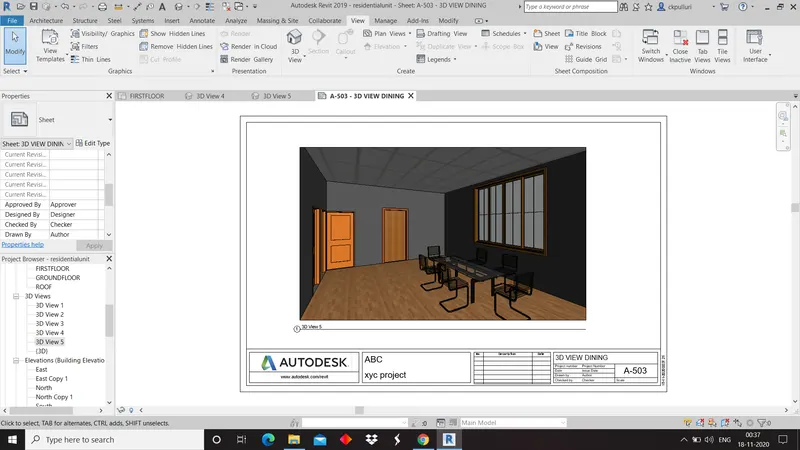

Question-10 Create a camera specific view or a 3D view in each room ( living, dining, bed room ) . Based on the views create new shet of sheets starting A-501 (you can add as many sheets after , 502, 503.. n)to place the 3D view images.Produce the sheets as a part of project drafting.

Aim: Create a camera view and add them to the new sheets.

Tools: View tool bar, 3D view , camera and sheets.

Procedure:
1)Open project from file menu.

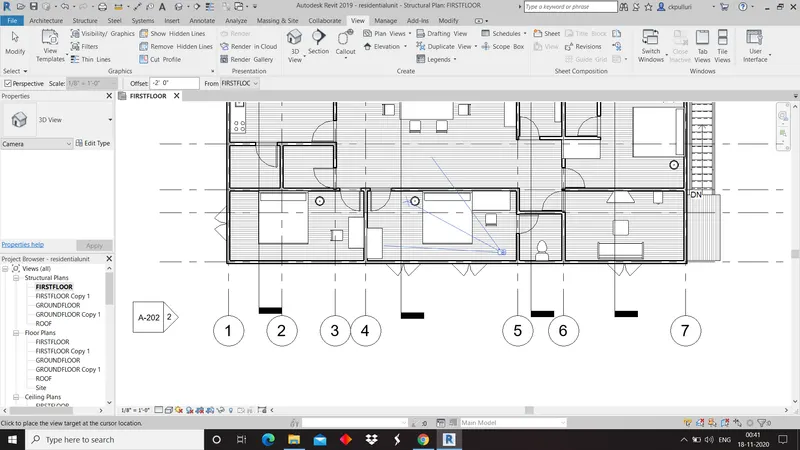

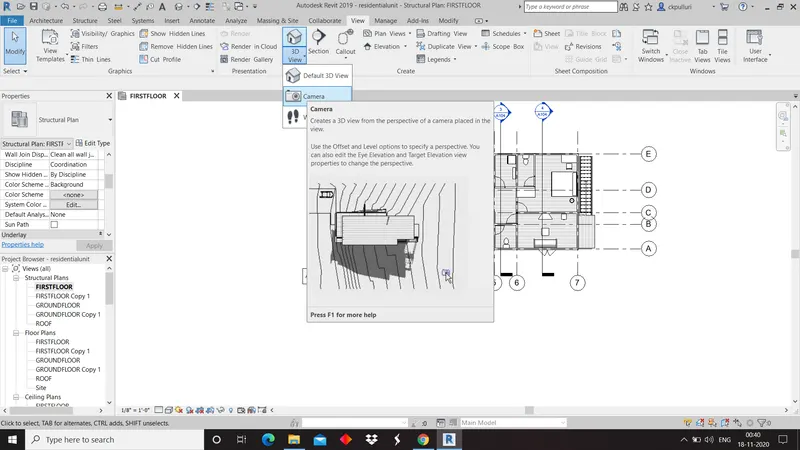

2)Click on view tool bar, select 3D view and click on camera.
3)Place the camera at appropraite view.
4)Create sheets from view tool bar.
5)Drag 3D views in different sheets.

Result: Camera views are added to the sheets successfully.
