REVIT_3D Rendering of a House plan_Project 1

1) Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level

ANS-1

AIM: To model a ceiling from architecture tab above the walls at first floor level.

TOOLS REQUIRED:

• Open file
• Architectural tab
• Ceiling
• pick lines
• Finish edit mode
• Edit type
• View
• 3D view
• Copy
• Paste

PROCEDURE:

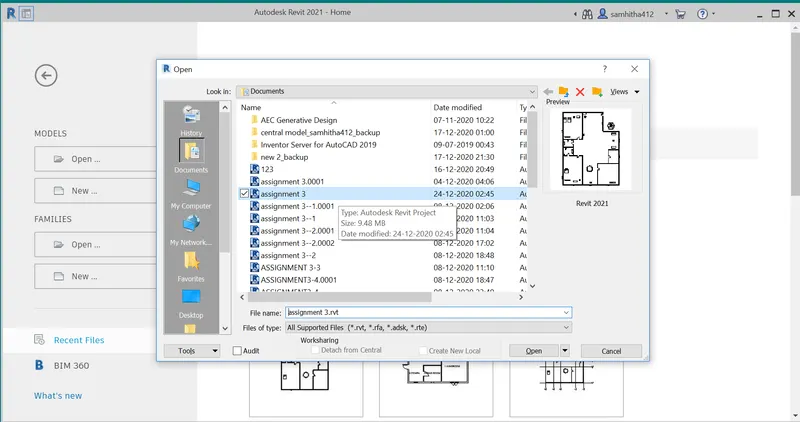

1-After opening revit ,click on OPEN then a dialog box appears.

2-From there select previously saved project file and open it.

3-Copy the plan and then paste it to selected levels i.e level 2 to create first floor.

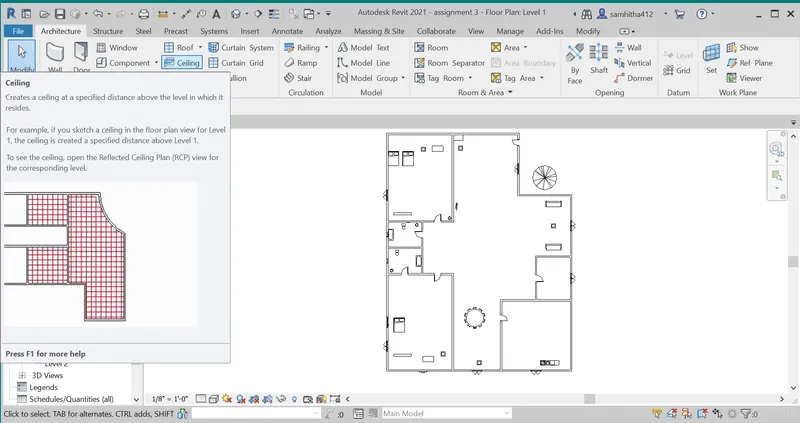

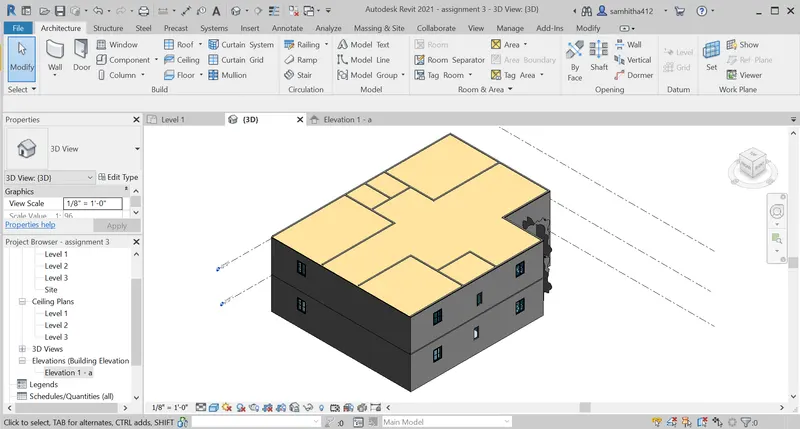

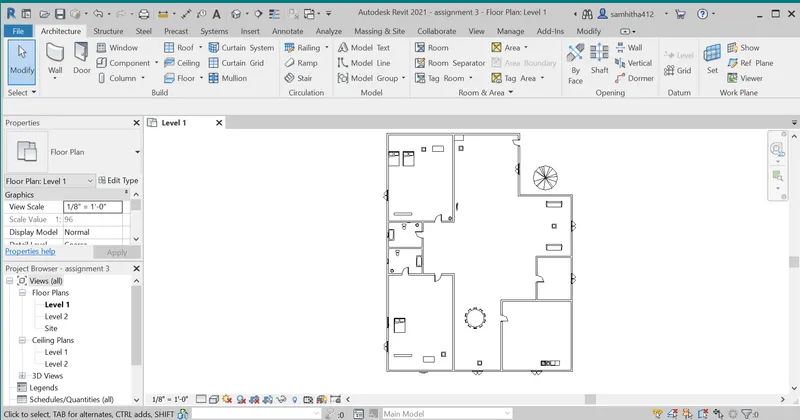

4-Go to architectural tab,Then select ceiling option from build toolbox.

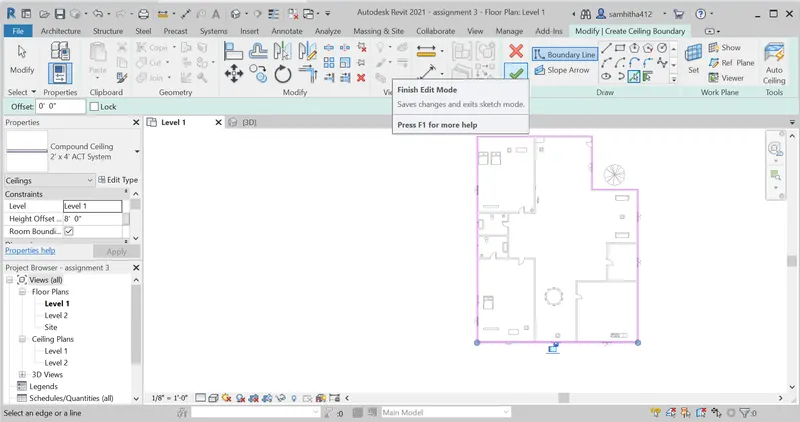

5- Select pick lines from draw toolbox.And then select the borders required for placing the ceiling.

6-Then click on finish edit mode.

7-Select view tab.

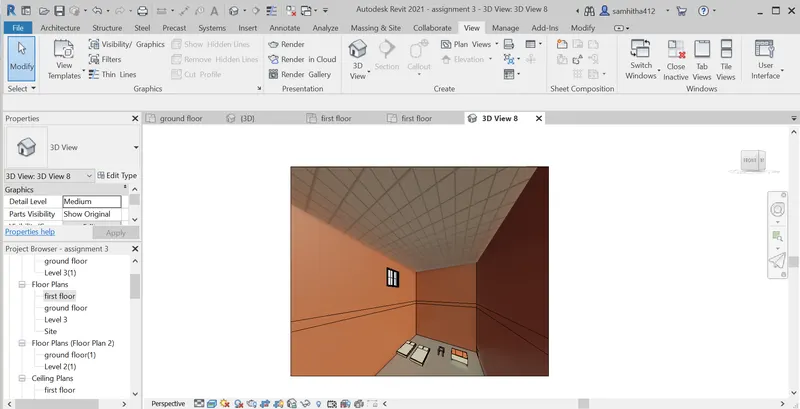

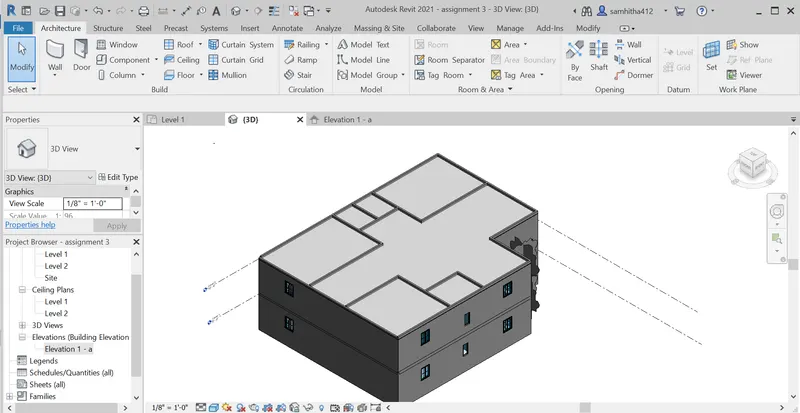

8-click on 3D view and select Default 3D view.

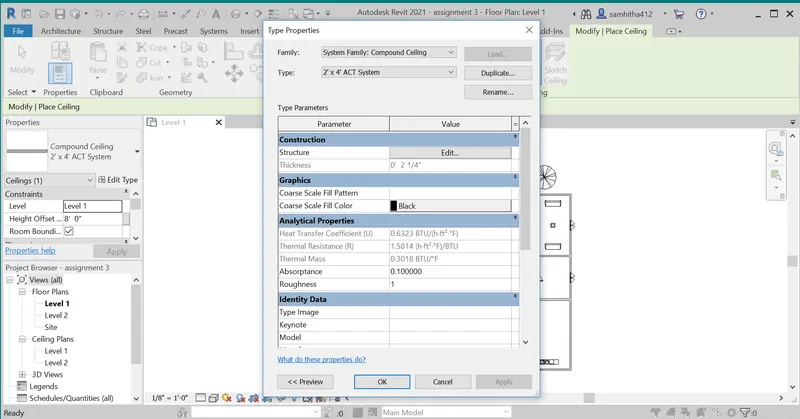

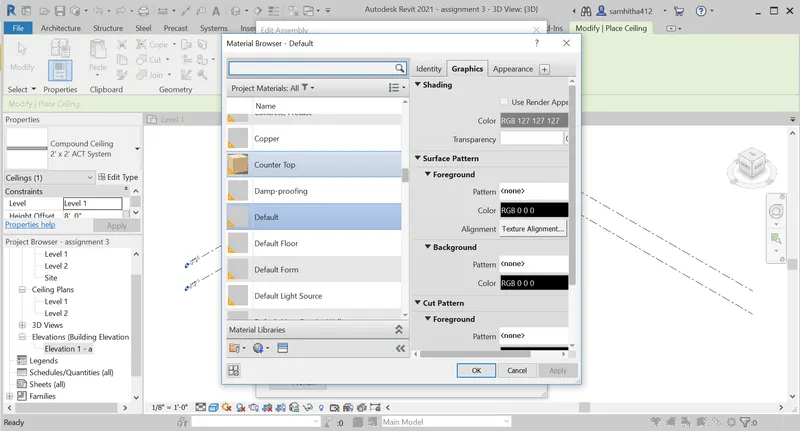

9-Thus the required ceiling is successfully placed, we can change the type of ceiling by clicking on edit type and select the required ceiling and click on ok.

RESULT: The required ceiling from architecture tab above the walls at first floor level is successfully placed.

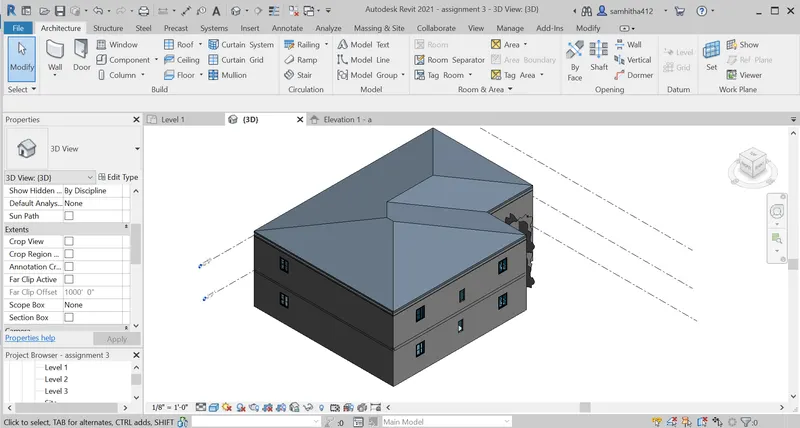

2) Model a roof above the ceiling by selecting the footprints of ceiling. Using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees.

ANS-2

AIM: TO model a roof above the ceiling by selecting the footprints of celing by using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees.

TOOLS REQUIRED:

• Manage
• Project units
• Architectural tab
• Roof
• Roof by footprint

PROCEDURE:

1-Open the existing file.

2-Click on mange tab.

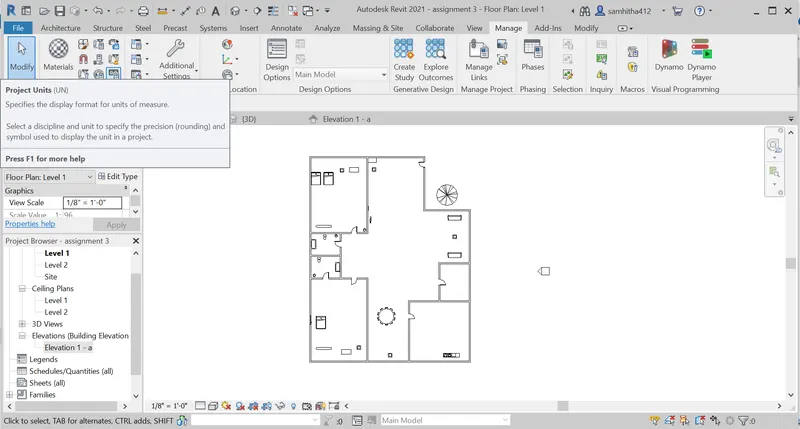

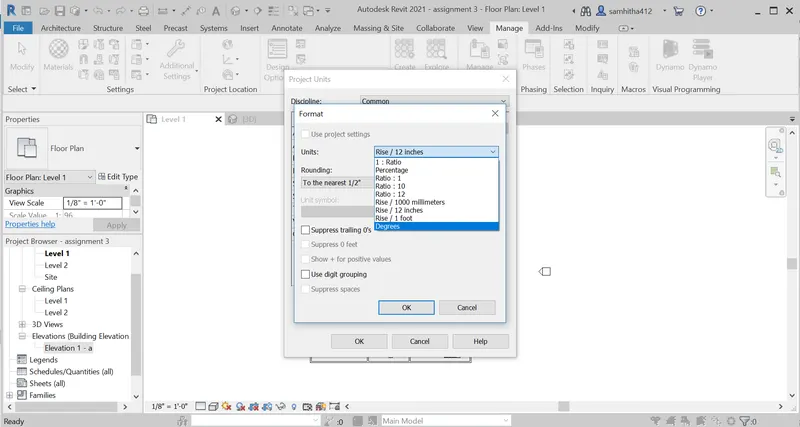

3- Click on project units and then a dialog box appears there we need to change the value to degree in slope.

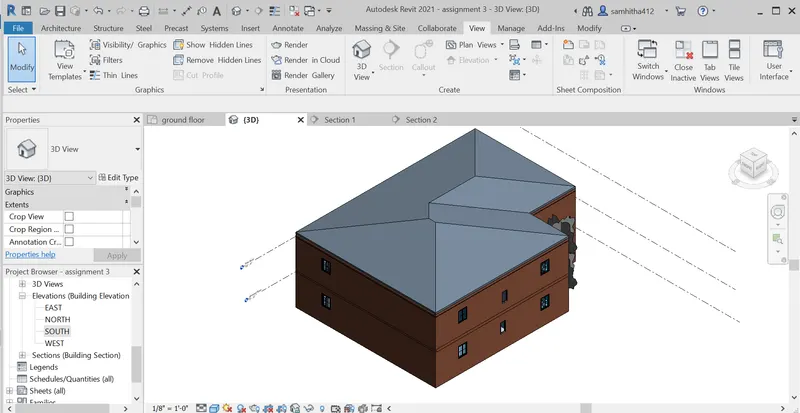

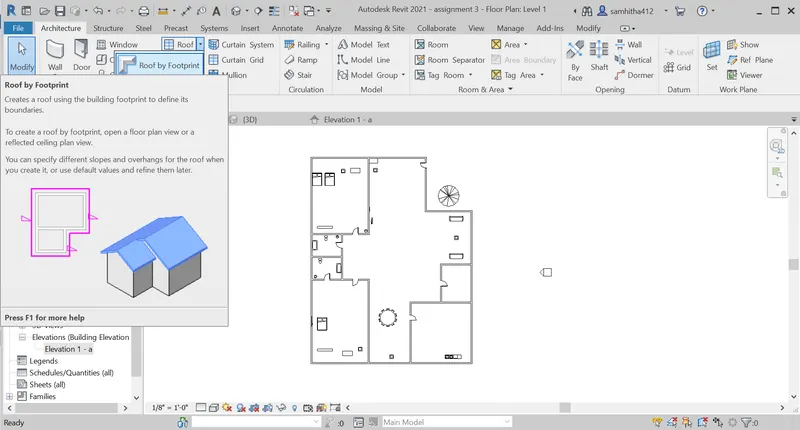

4-Go to architectural tab and then select roof from build toolbar.

5-Then select roof by footprint.

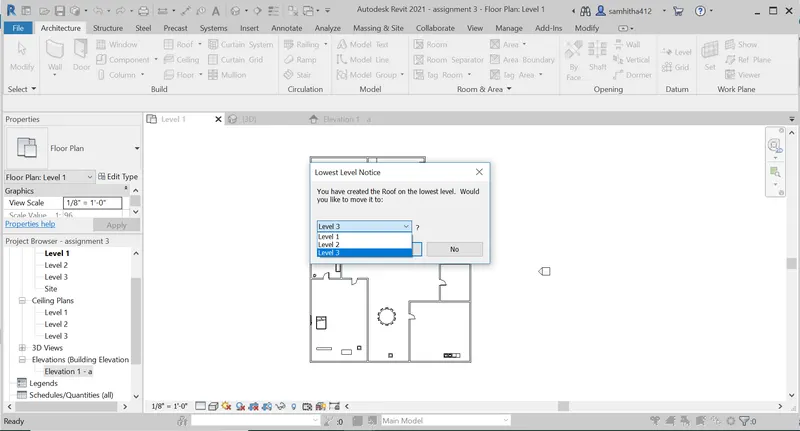

6-A dialog box appears to select the level there select the required level exactly where the roof has to be placed.

7-Pick the border lines where the roof has to be placed and click on finish edit mode.

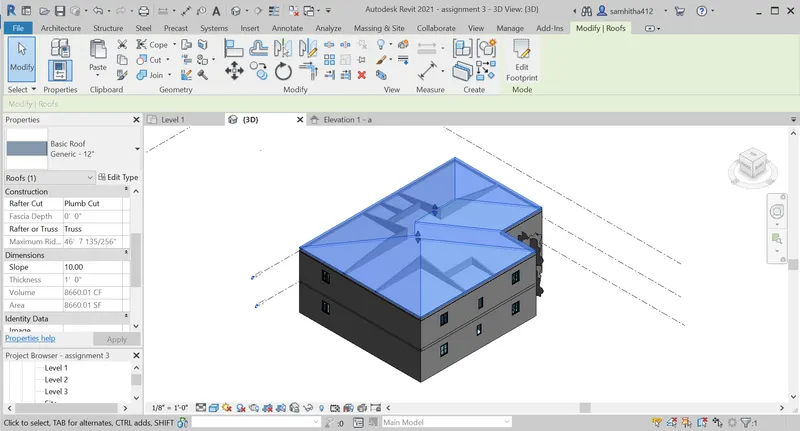

8-Then u can adjust the height of the roof to 10 degrees accordingly using adjustment tool.

9-We can alter the slope to 10 degrees in properties.

RESULT:The required model of roof above the ceiling by selecting the footprints of celing by using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees is succcessfully placed.

3) Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to
architecture and structural plans.

ANS-3

AIM: To create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to
architecture and structural plans.

TOOLS REQUIRED:

• View tab
• Plan view
• Floor plan
• Stuctural plan

PROCEDURE:

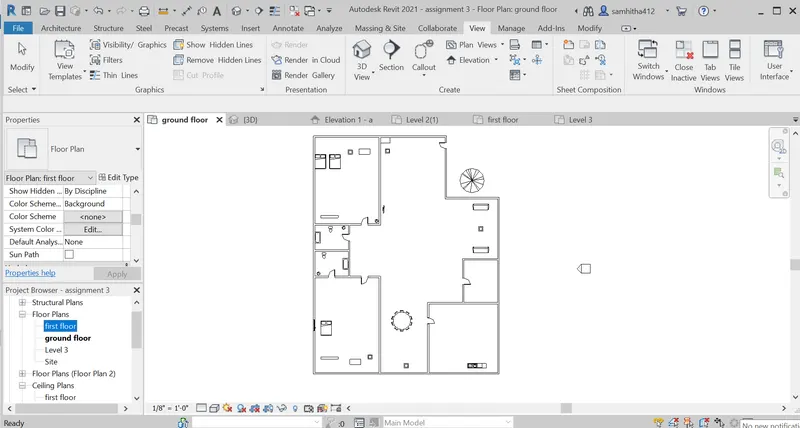

1-Open the existing revit file.

2-Click on view tab.

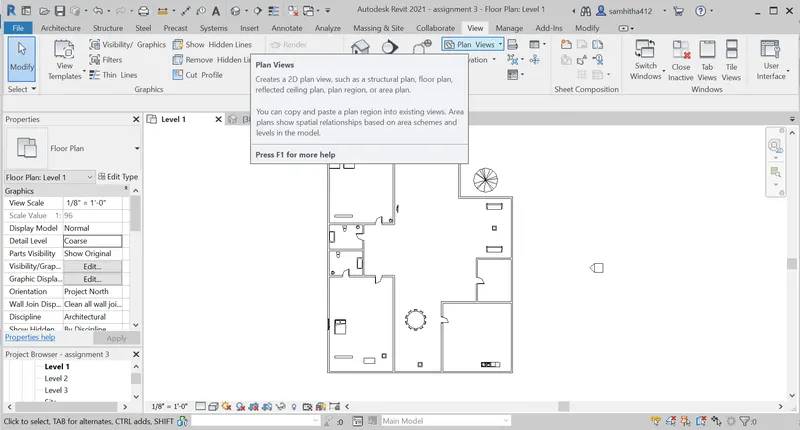

3-Select plan view from create toolbar.

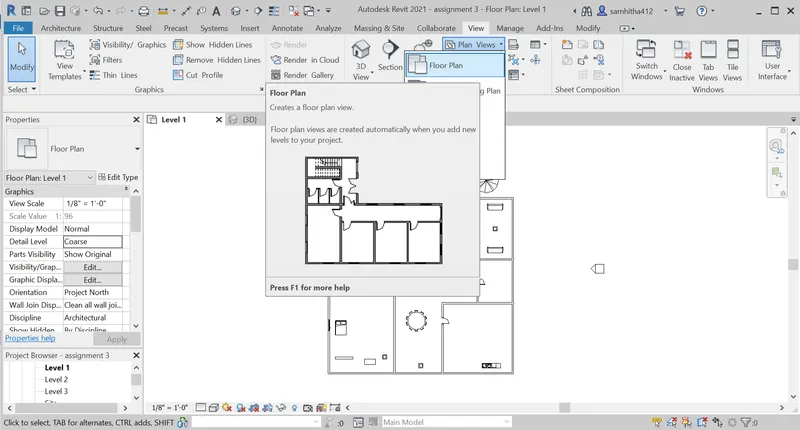

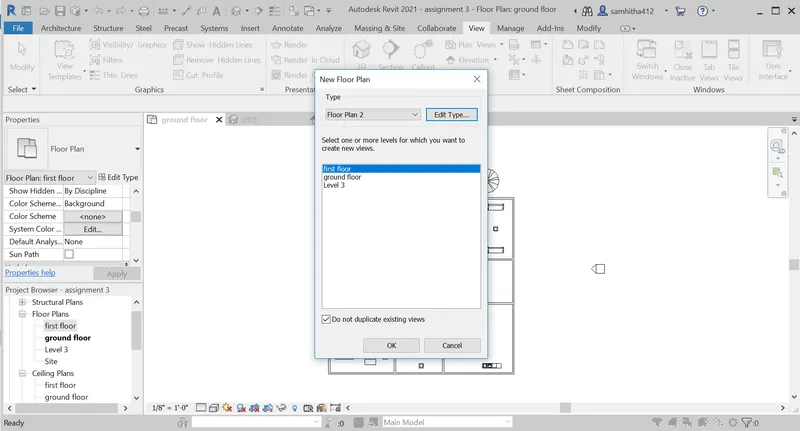

4-There select the floor plan from given options.

5-Then a dialog box appears there select the required floor and click ok.

6-Repeat the same procedure for the other floor.

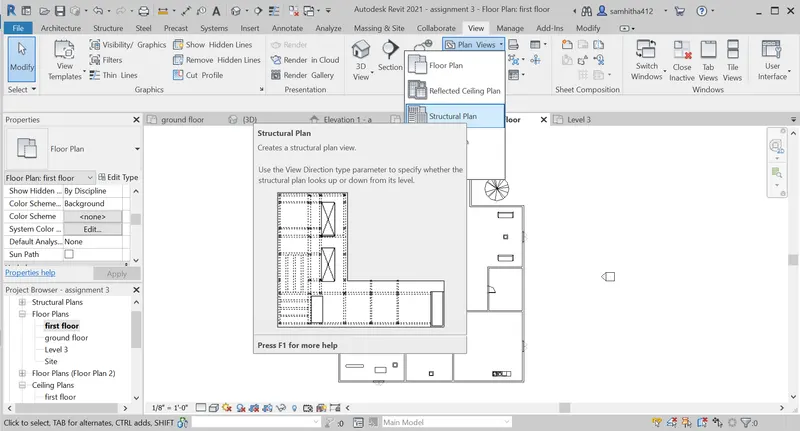

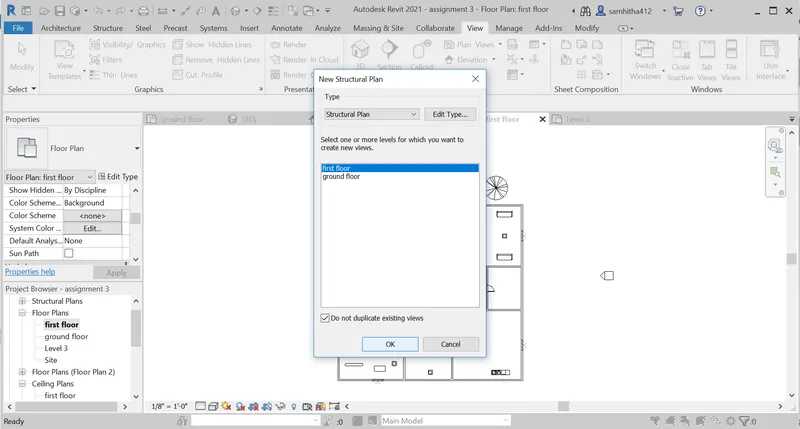

7-For structural plan ,we need again select plan view from view tab.

8-There select structural plan from given options.

9-A dialog box appears similarly there select the respective floors and then click ok.

RESULT: The required plan views for ground floor level and first floor level including all the walls , floors and components are successfully placed and Separated them to
architecture and structural plans respectively.

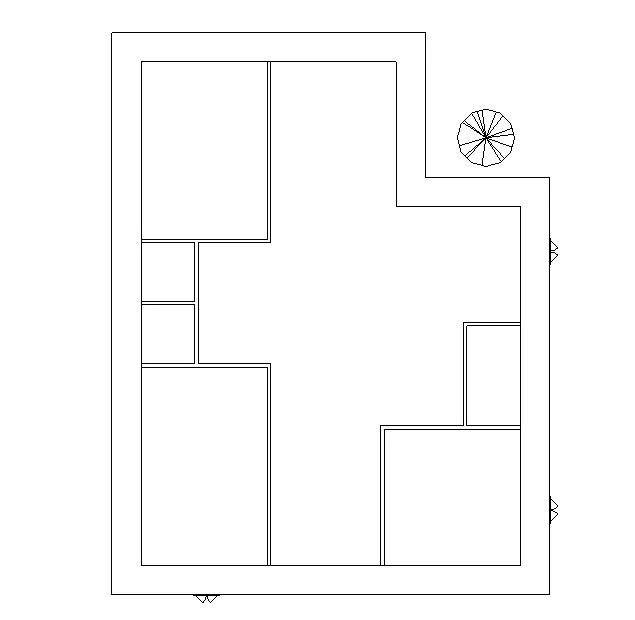

FLOOR PLAN -GROUND FLOOR:

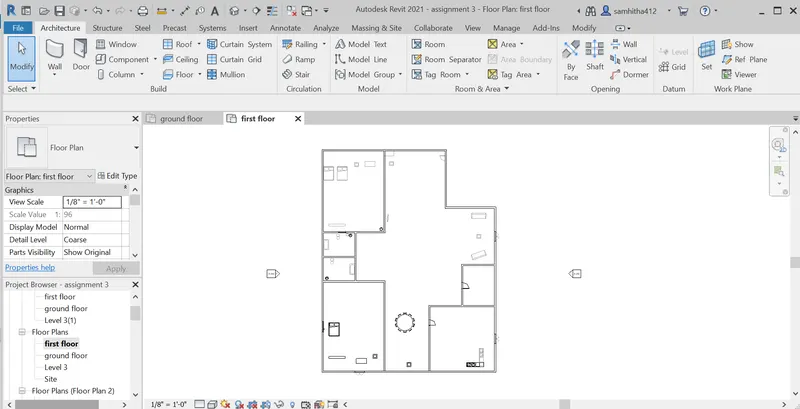

FLOOR PLAN-FIRST FLOOR:

STRUCTURAL PLAN -GROUND FLOOR:

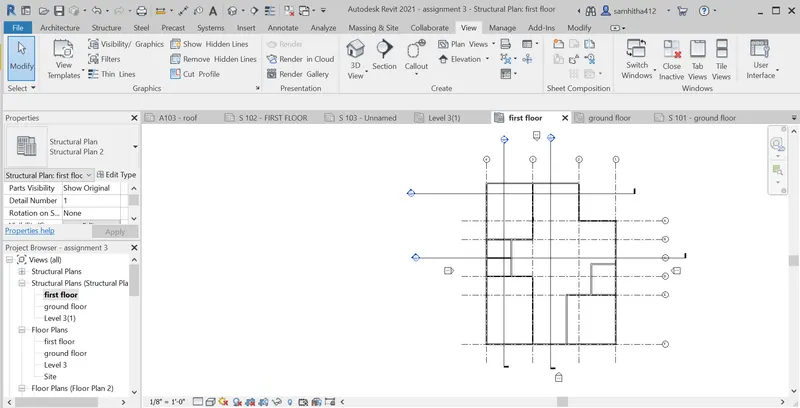

STRUCTURAL PLAN-FIRST FLOOR:

4) Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans.

b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

ANS -4

AIM:

To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file by using annotate tool bar.

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans.

b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans.

TOOLS REQUIRED:

• Architectural tab
• Grid
• Annotate
• Aligned dimension
• Floor plan
• Structural dimension

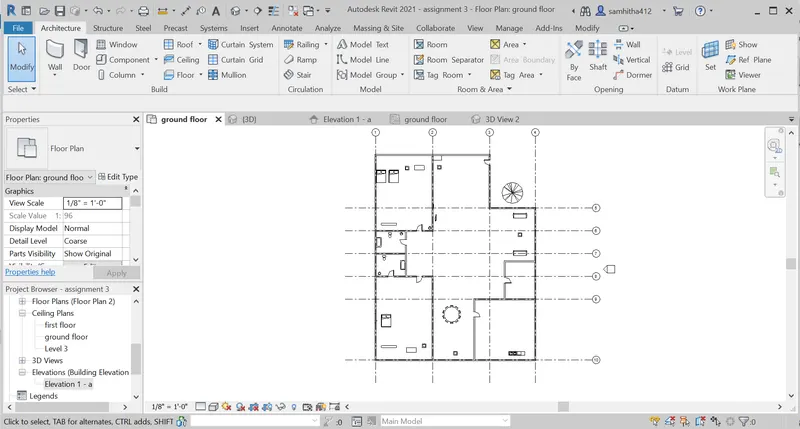

STEPS FOR ARCHITECTURAL PLAN:

1-Open existing revit file and select floor plan from project browser.

2-Click on architectural tab.

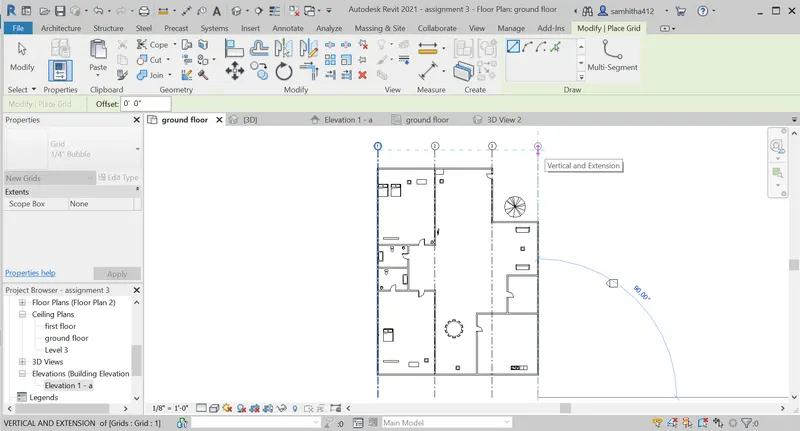

3-Then there select grid from datum .

4-Place the grids longitudinal and transverse grids respectively.

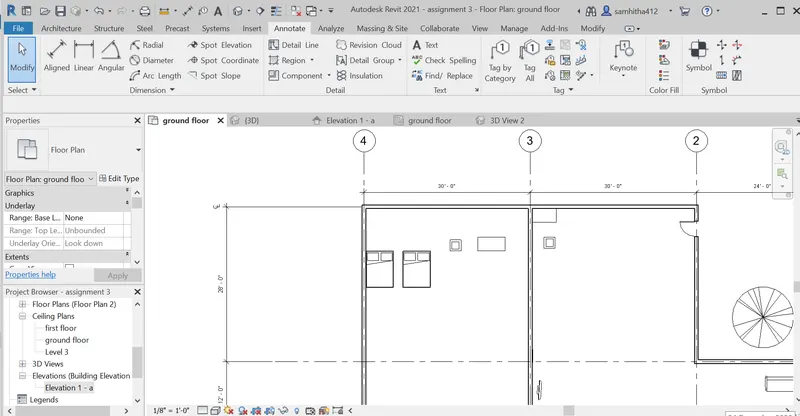

5- Click on Annotate tab.

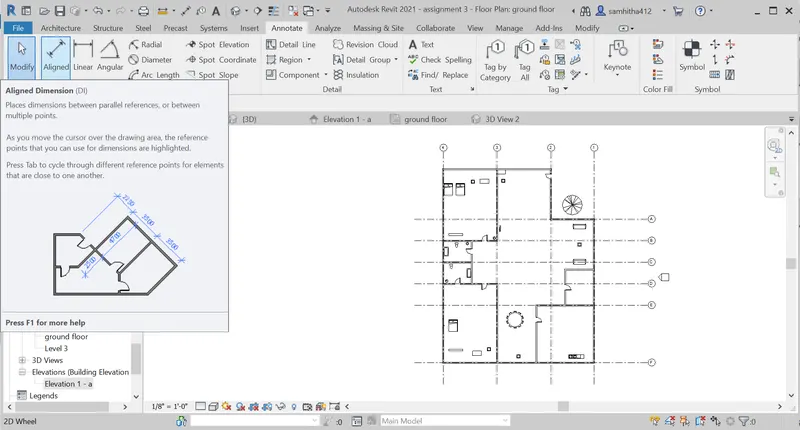

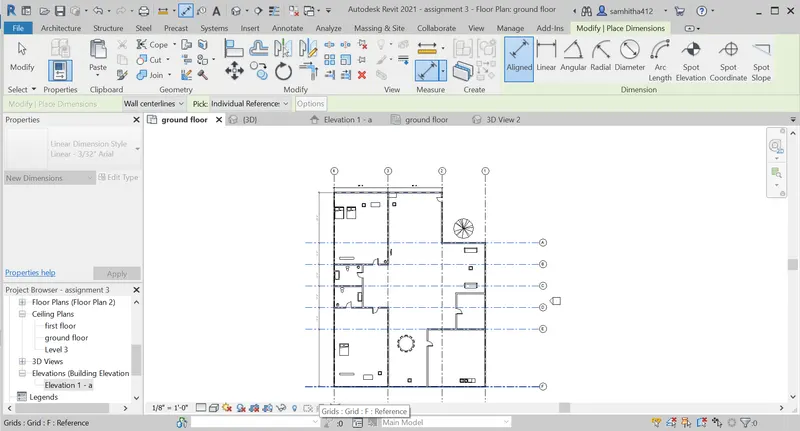

6-Select aligned dimension option and place dimensions .

RESULT:The dimensions are added to all the walls and floors with reference to the longitudinal and transverse grids created in the project file by using annotate tool bar.According to

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans.

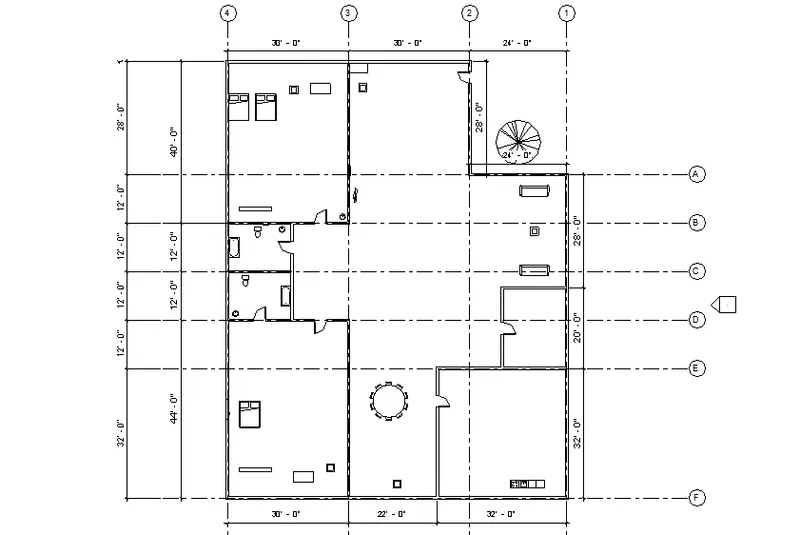

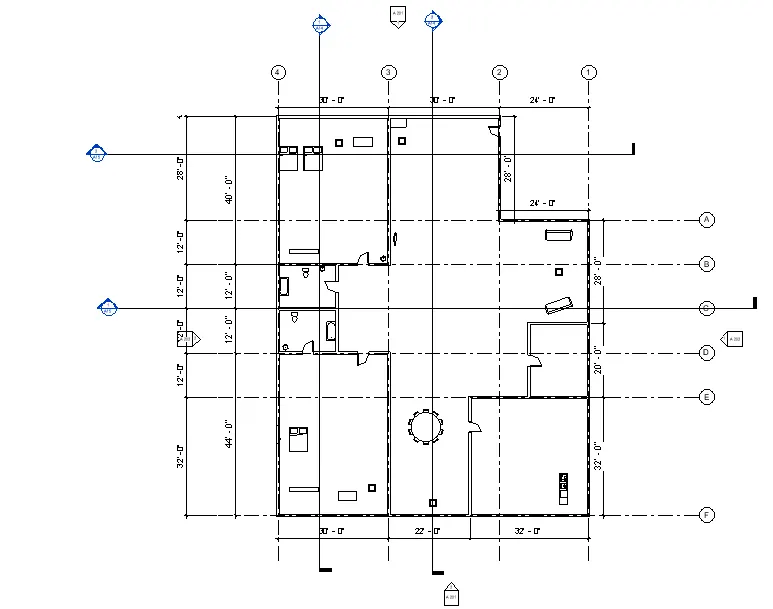

ARCHITECTURAL PLAN:

STEPS FOR STRUCTURAL PLAN:

1-Open existing revit file and select structural plan from project browser.

2-Click on architectural tab.

3-Then there select grid from datum .

4-Place the grids vertically and horizontally respectively.

5- Click on Annotate tab.

6-Select aligned dimension option and place dimensions .

RESULT:The dimensions are added to all the walls and floors with reference to the longitudinal and transverse grids created in the project file by using annotate tool bar.According to

b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans.

STRUCTURAL PLAN

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

ANS-5

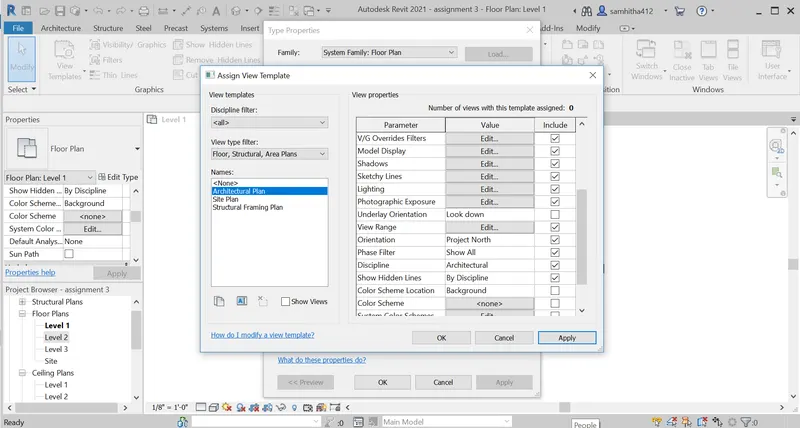

AIM: To Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

TOOLS REQUIRED:

• View tab
• Sheet template
• Place view

PROCEDURE:

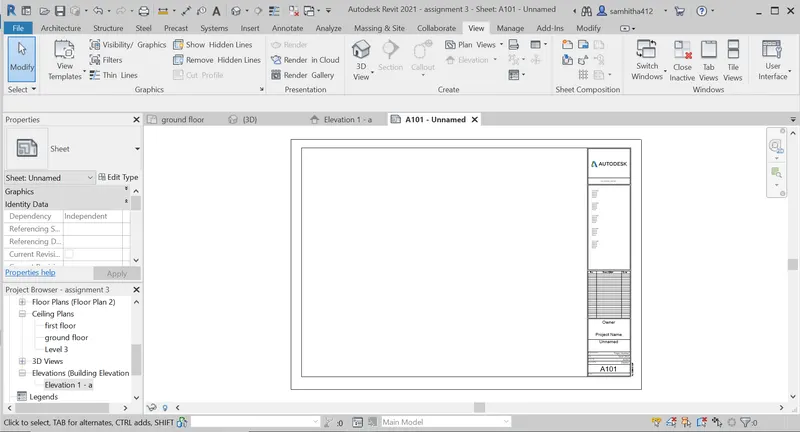

1-Open existing revit file.

2-Click on view tab.

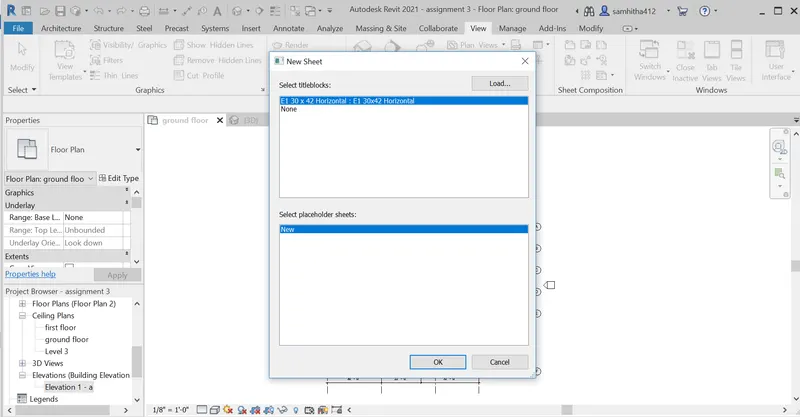

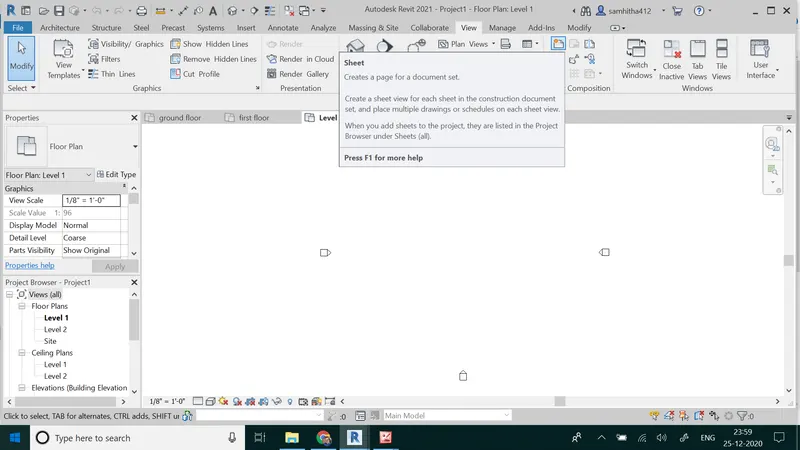

3-Then select sheet from sheet composition.

4-Then a dialog box appears ,click on ok.

5-The sheet template appears.

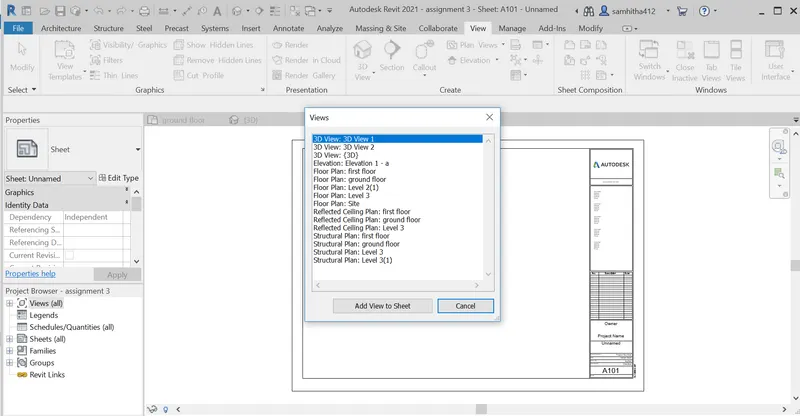

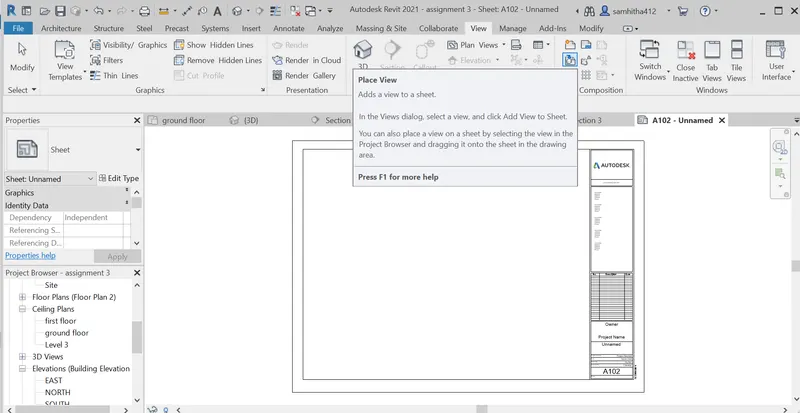

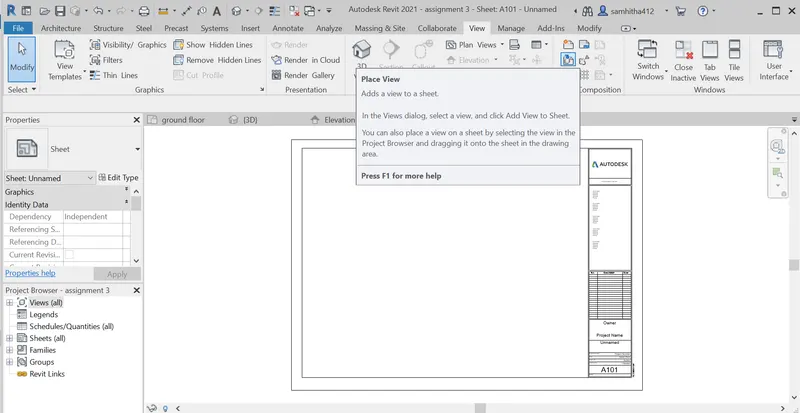

6-Click on place view from sheet composition to place the desired view.

7-Then click on required view from the dialog box appears and click ok.

8-Place the view accordingly in the sheet template.

RESULT: The sheet template is successfully created from the view tab and its parameters adjusted on the sheet to add appropriate views.

6) Using the elevation tab create the elevation views, looking at your building from East, North, South and West.

ANS-6

AIM: To create the elevations views,looking at your building from East, North, South and West using elevation tab.

TOOLS REQUIRED:

• View tab
• Elevation
• Elevation-east
• Elevation-west
• Elevation-north
• Elevation-south

PROCEDURE:

1-Open the existing revit file.

2-Click on view tab.

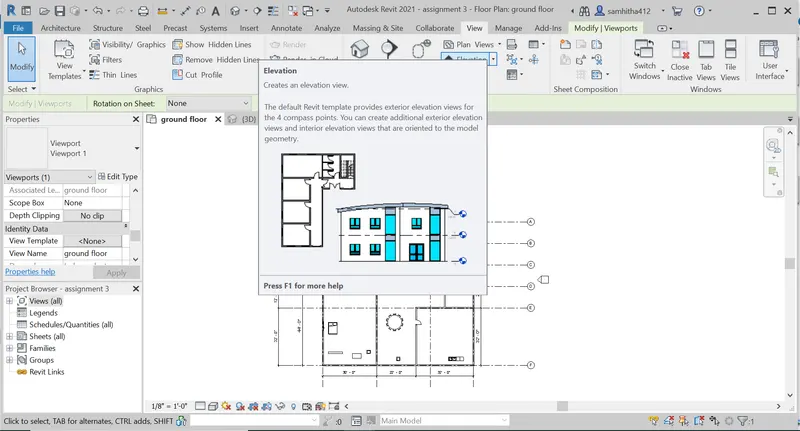

3-Select elevation from create .

4-Place the elevations according to EAST,WEST,NORTH and SOUTH respectively.

5-Click on each elevation to view .

RESULT: Elevations views,looking at your building from East, North, South and West using elevation tab has been successfully created.

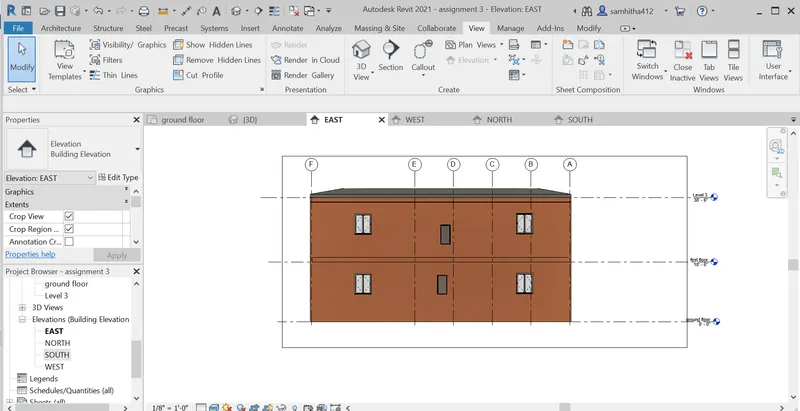

EAST:

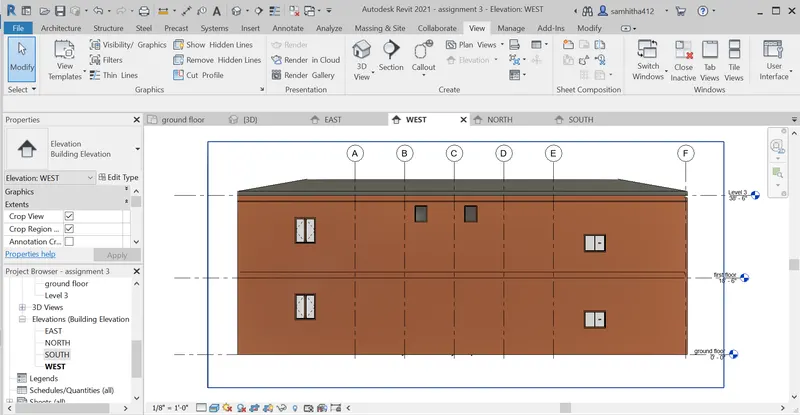

WEST:

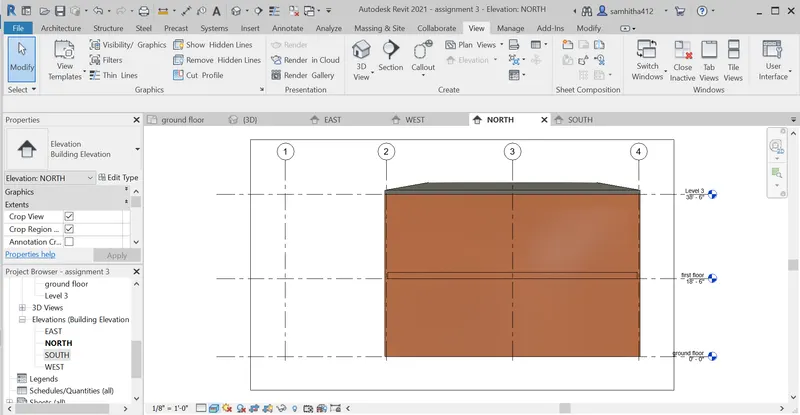

NORTH:

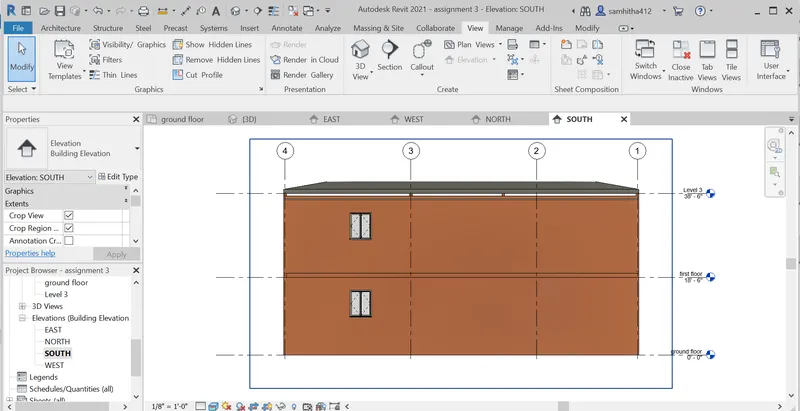

SOUTH:

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction.

ANS-7

AIM: To cut section through each room either cutting across longitudinally or in a transverse direction.

TOOLS REQUIRED:

• View tab
• Section

PROCEDURE:

1-Go to view tab.

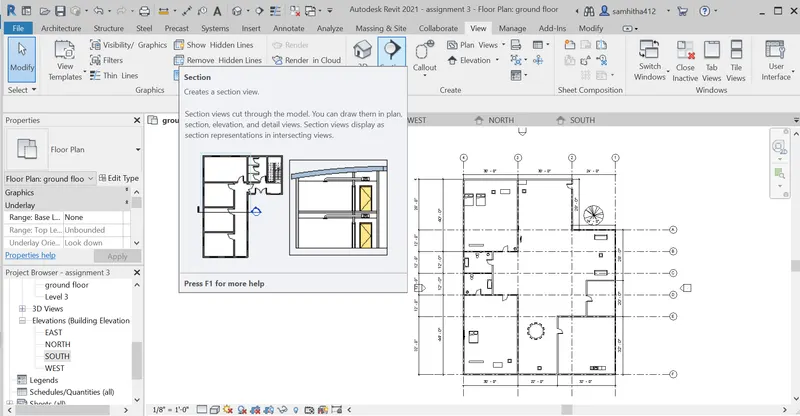

2-Select section from create .

3-Place sections longitudinally as required in the plan.

4-After placing sections longitudinally we need to place section transverse direction.

5-click on each section to view or Select go to view.

RESULT:Section are cut through each room by cutting longitudinally and in transverse direction respectively.

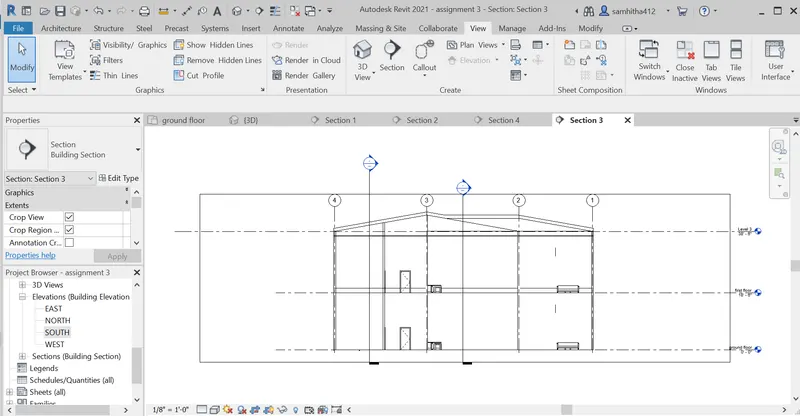

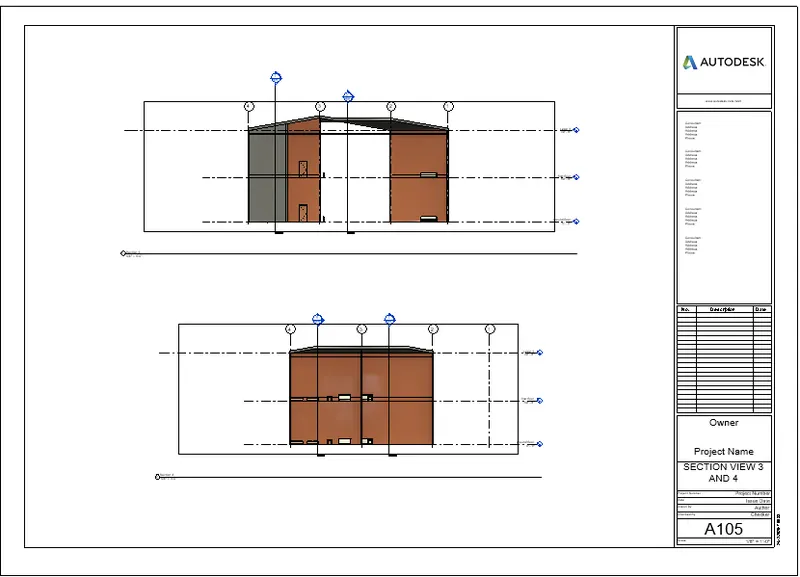

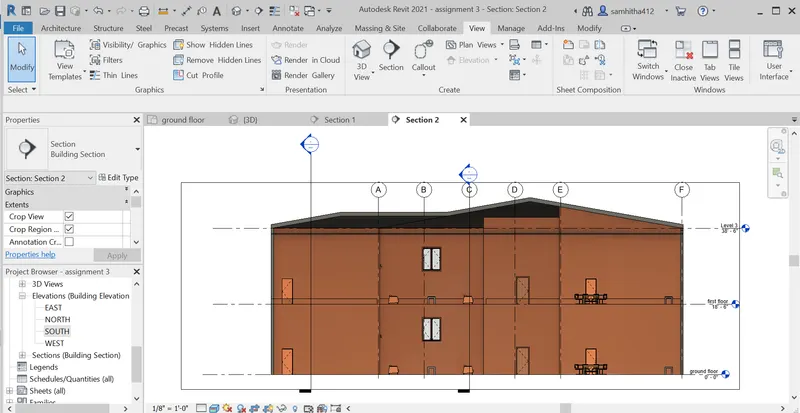

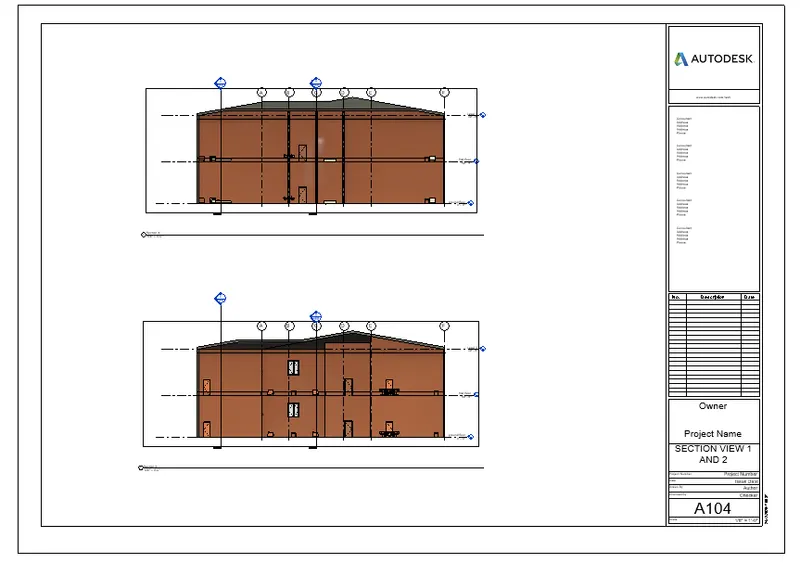

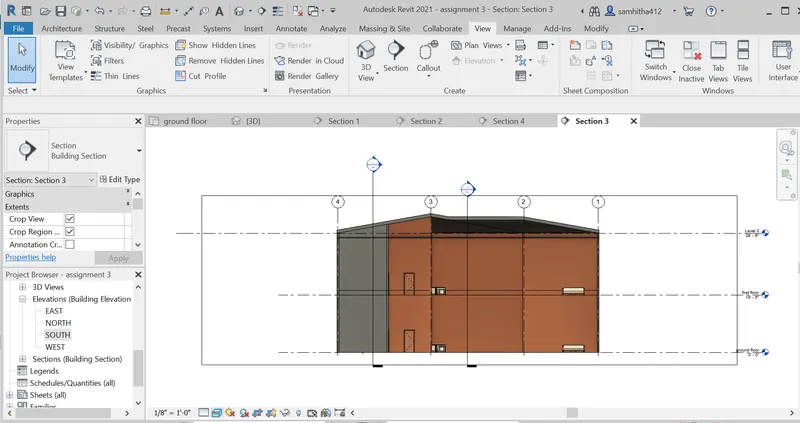

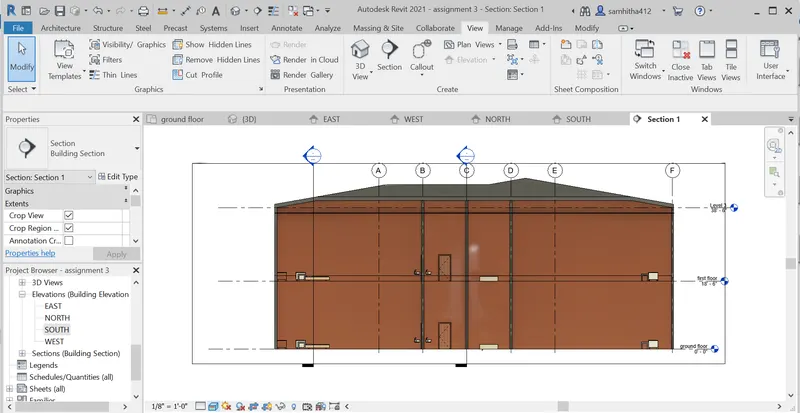

SECTION 1:

SECTION 2:

SECTION 3:

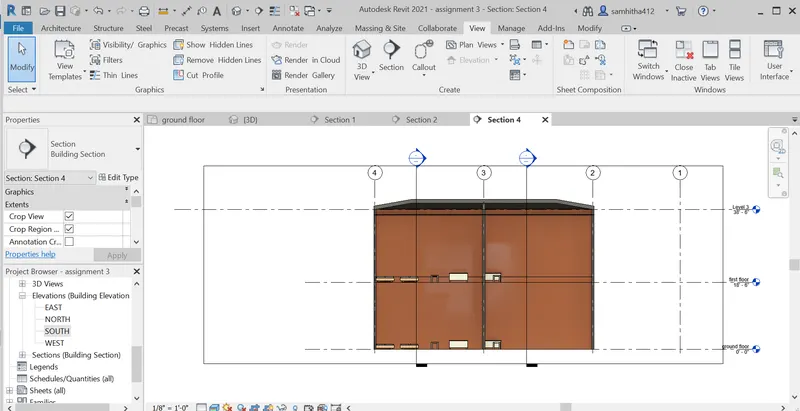

SECTION 4:

8) Classify the views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser

ANS-8

AIM:To Classify the views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser.

PLAN VIEWS- A plan view is the top view of a 3D object.It is an orthographic projection.

SECTION VIEWS- This is cut through the model.The model when cut by a section one half is visible but other half will be cropped.

ELEVATION VIEW- This is default template where we can view 4 types of elevation view-east,west,north,south.

TOOLS REQUIRED:

• View tab
• Sheet
• project browser
• Plan view
• Section view
• Elevation view

PROCEDURE:

1-Open existing revit file.

2-Select view tab.

3-Select sheet from sheet composition.

4-Then click on place view.

5-As there is already placed views in project browser ,select the required view and place it in sheet template.

6- Repeat the same process for all the views required.

RESULT:The views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser have been created.

PLAN VIEW:

SECTION VIEW:

ELEVATION VIEW:

9) Using the sheet template produced create multiple sheets as follows
a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201 – North South Elevations
h. A-202- East West Elevations

Add additional sheets based on the sections created in your revit file

ANS-9

AIM:To create sheet templateson multiple sheets as following

a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201 – North South Elevations
h. A-202- East West Elevations

TOOLS REQUIRED:

• View tab
• Sheet
• place view
• Architectural plan
• Structural plan
• Elevations

PROCEDURE:

1-Open the revit file.

2-Go to view tab .

3-Select sheet from sheet composition.

4-A dialog box appears there click on ok.

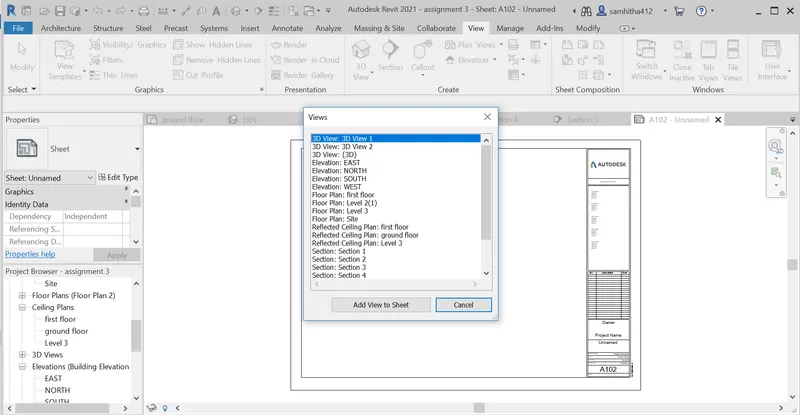

5-Click on place view option from sheet composition of view tab and place the required views .

5-You can also select the view required from the project browser and place it in sheet template.

6-And then name them accordingly as mentioned in question.

RESULT:The required sheet templates of

a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201 – North South Elevations
h. A-202- East West Elevations

are successfully placed in their sheet templates.

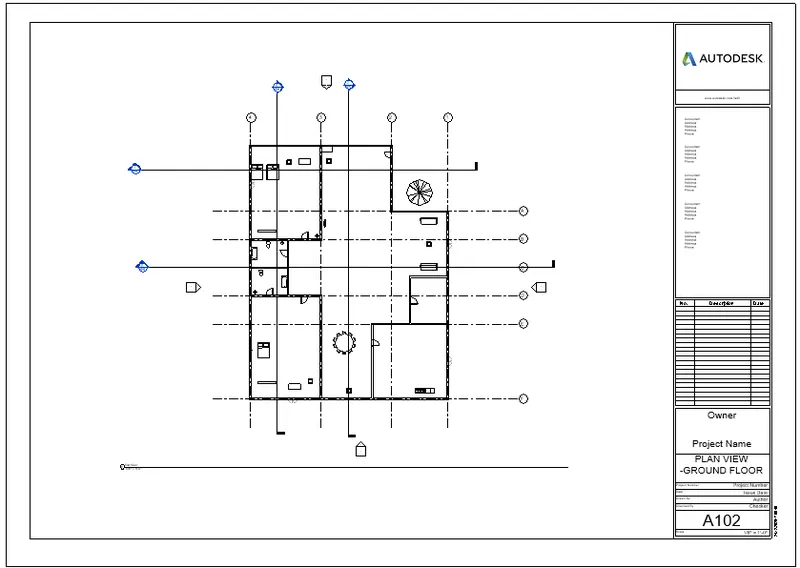

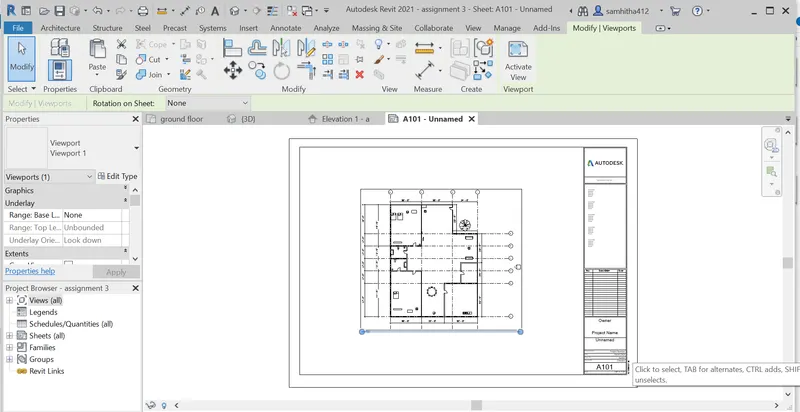

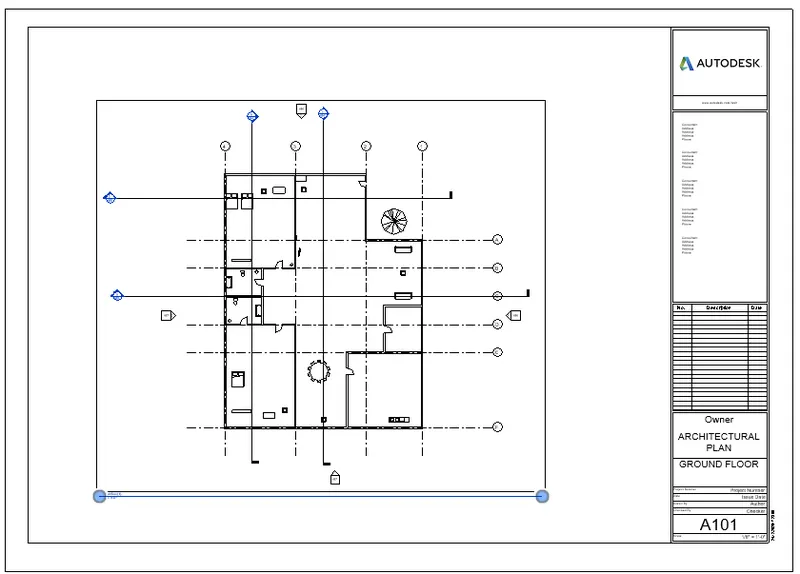

A 101-ARCHITECTURAL PLAN -GROUND FLOOR

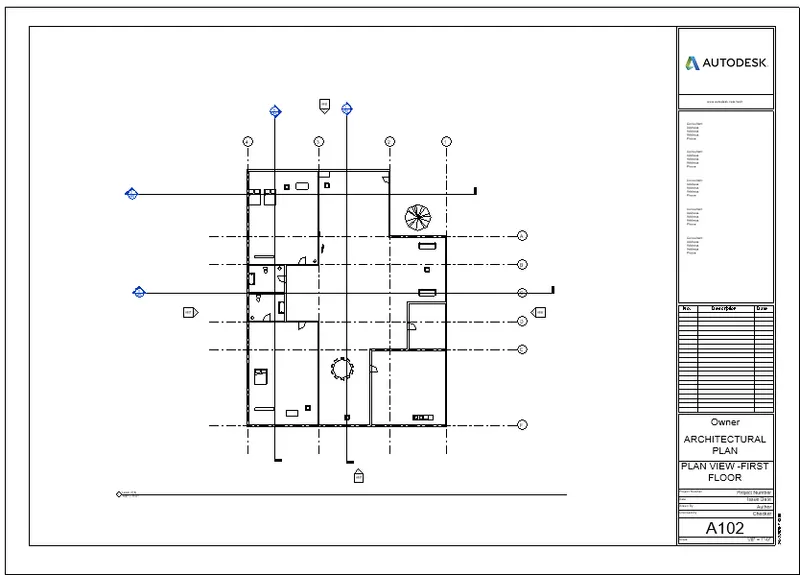

A 102-ARCHITECTURAL PLAN-FIRST FLOOR

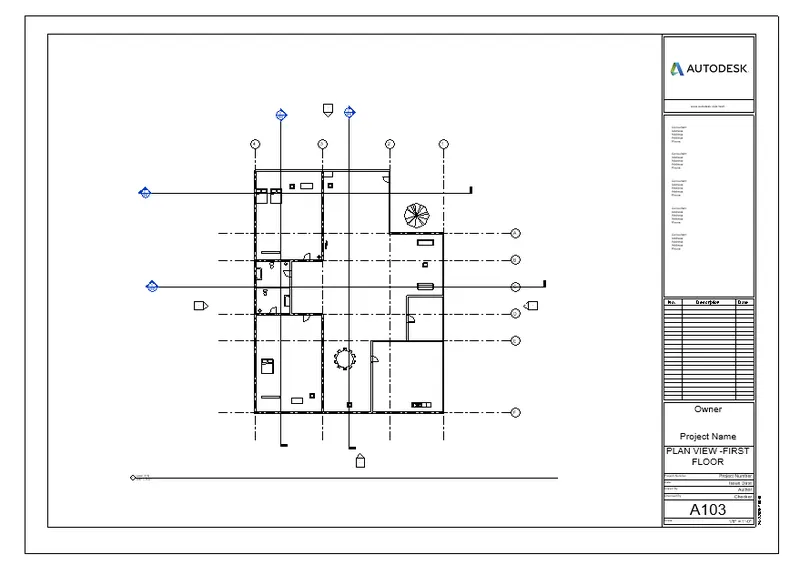

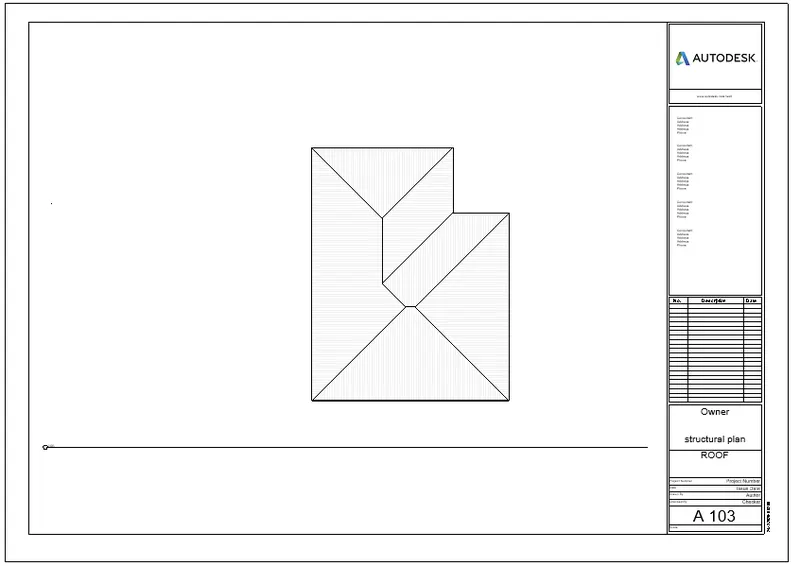

A 103-ROOF

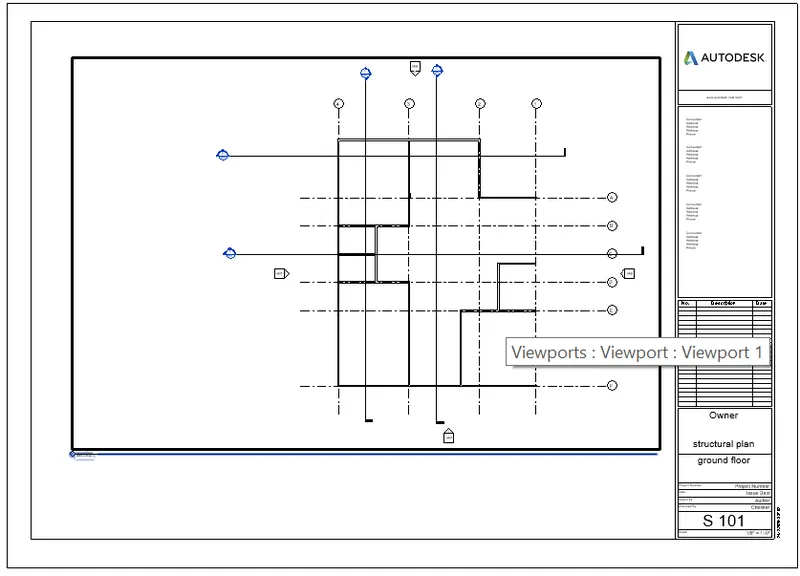

S 101-STRUCTURAL PLAN-GROUND FLOOR

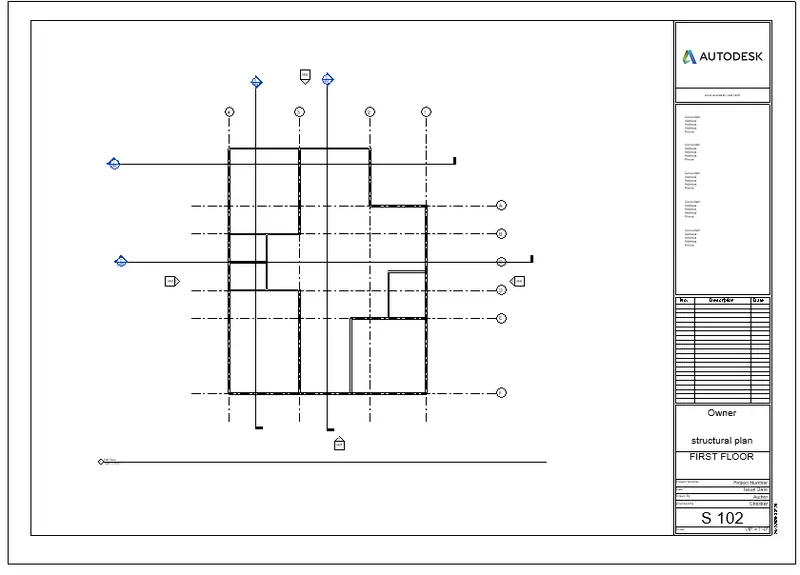

S 102-STRUCTURAL PLAN-FIRST FLOOR

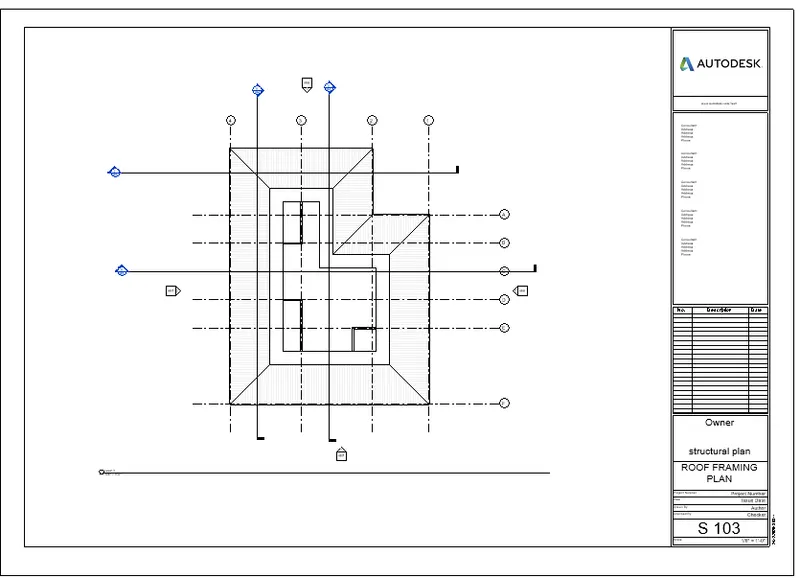

S 103-ROOF FRAMING PLAN

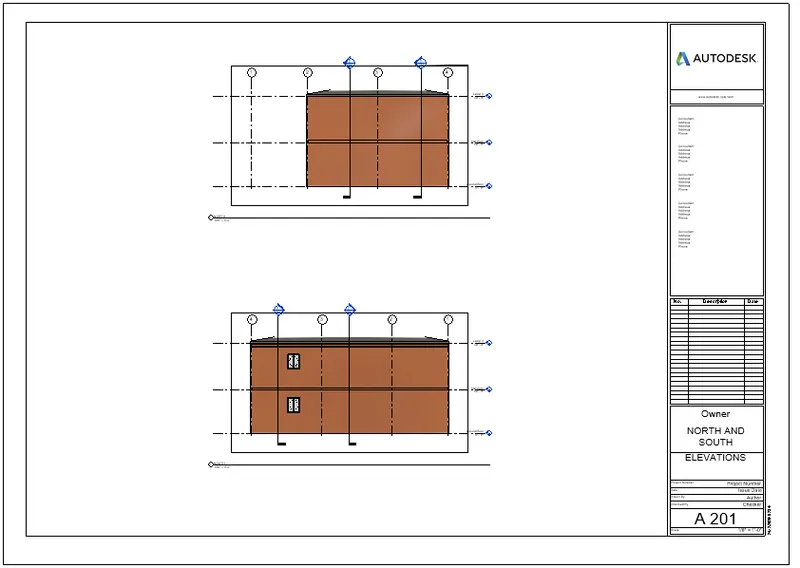

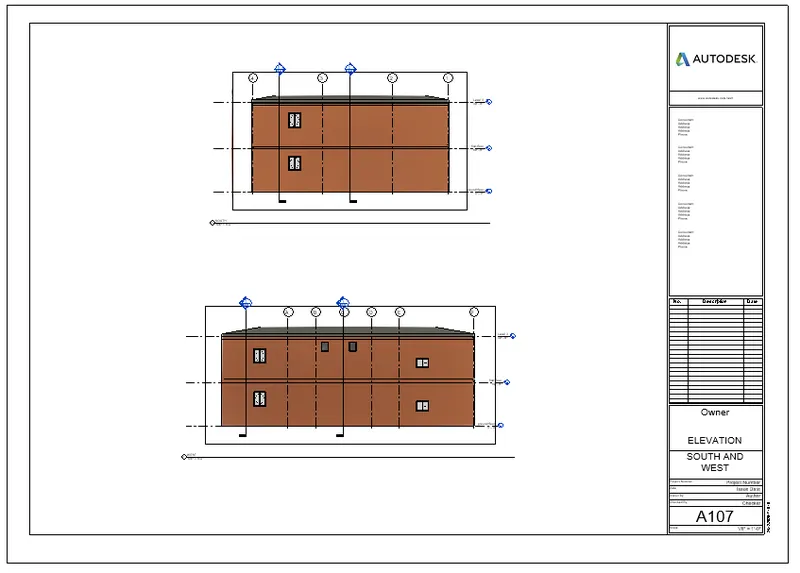

A 201-ELEVATION-NORTH AND SOUTH

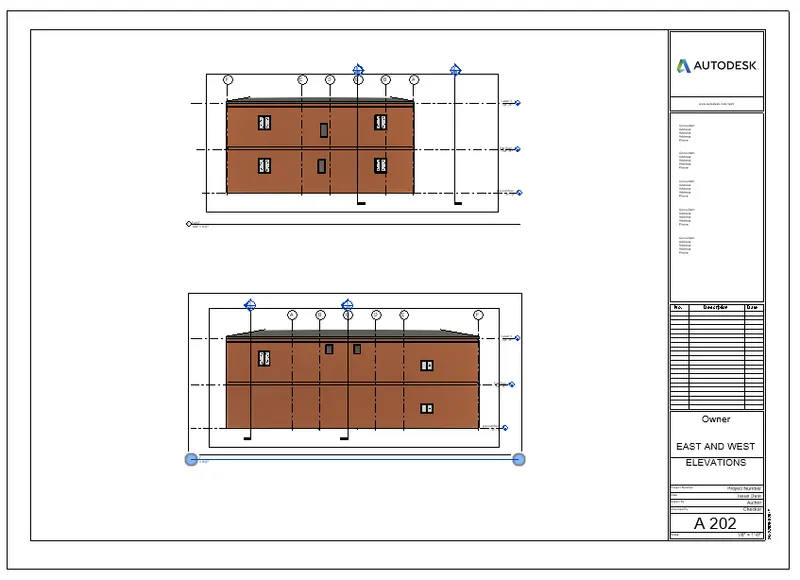

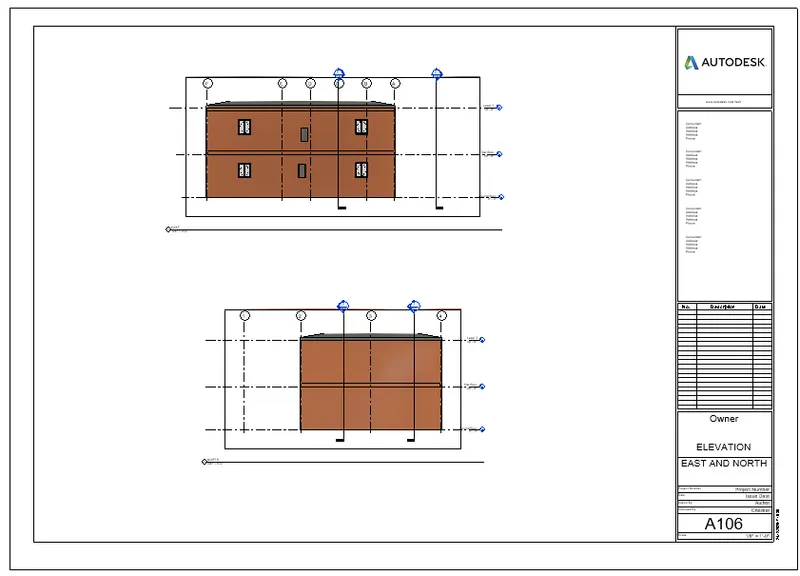

A 202-ELEVATION-EAST AND WEST

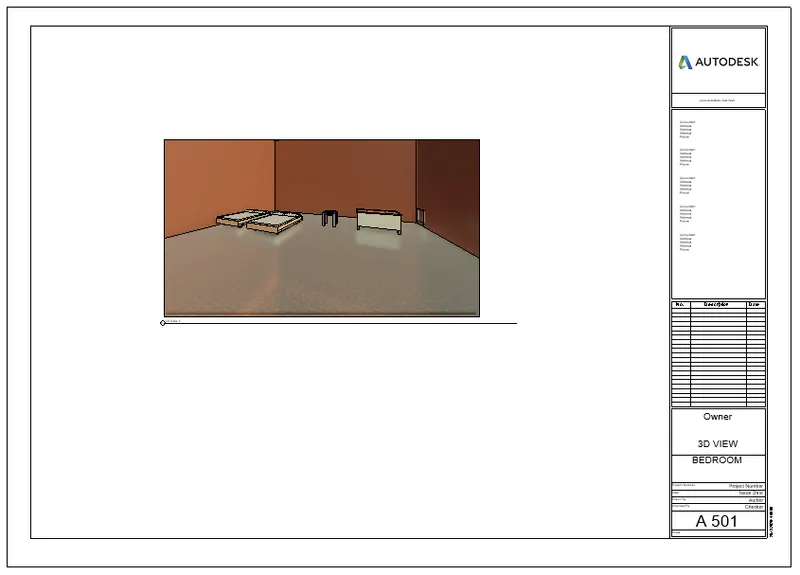

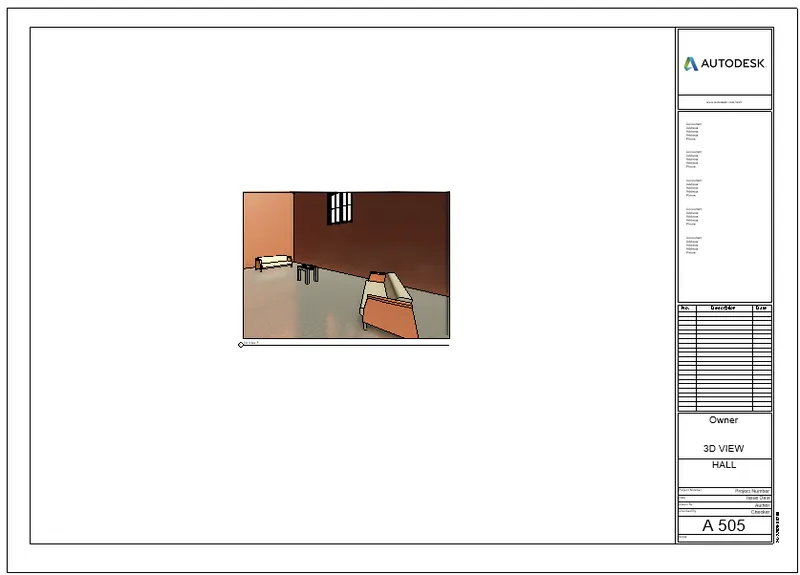

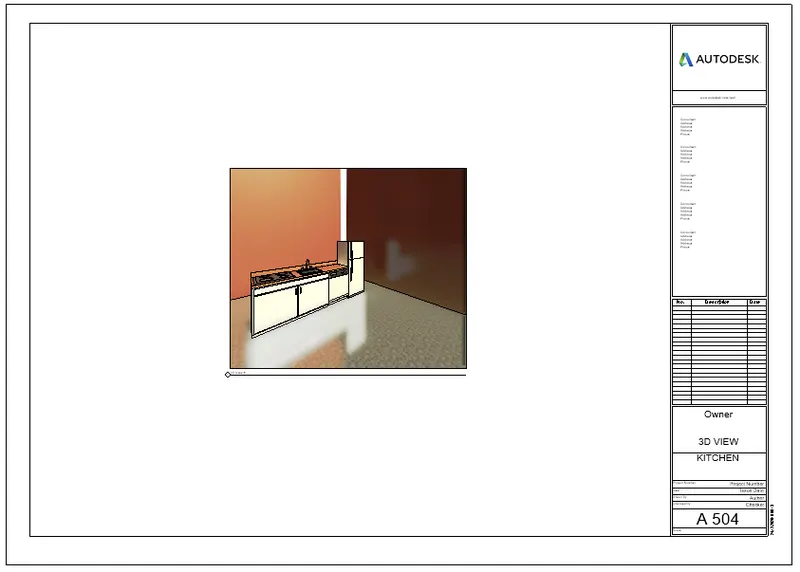

10) Create a camera specific view or a 3D view in each room ( living, dining, bed room ) . Based on the views create new shet of sheets starting A-501 (you can add as many sheets after , 502, 503.. n)to place the 3D view images.Produce the sheets as a part of project drafting.

ANS-10

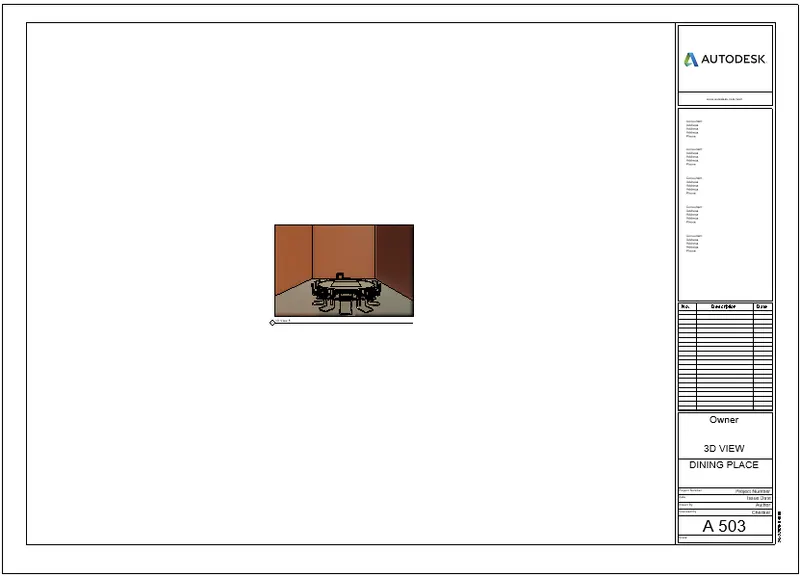

AIM:To create a camera specific view or a 3D view in each room and create a new set of sheets namely A 501, A 502,A 503...

TOOLS REQUIRED:

• View tab
• 3D view
• Camera view
• sheet template

PROCEDURE:

1-Open the existing revit file.

2-Click on view tab.

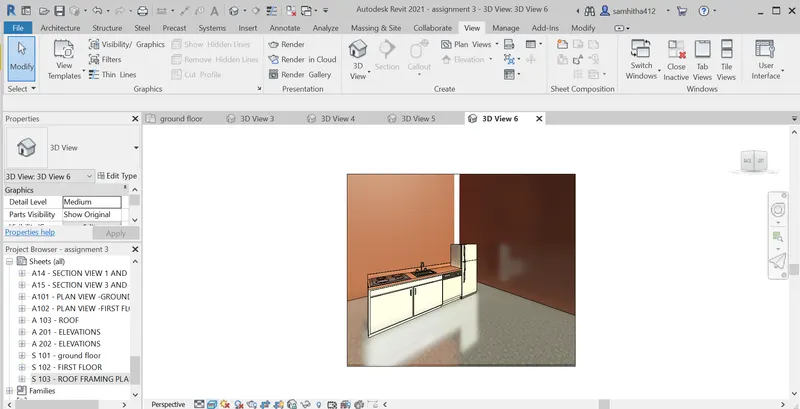

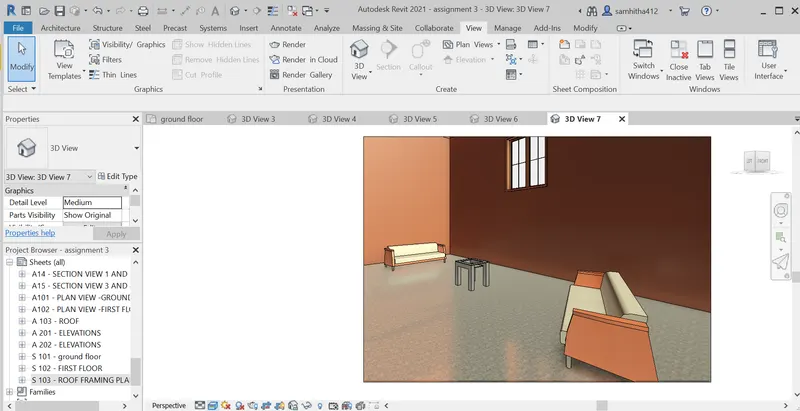

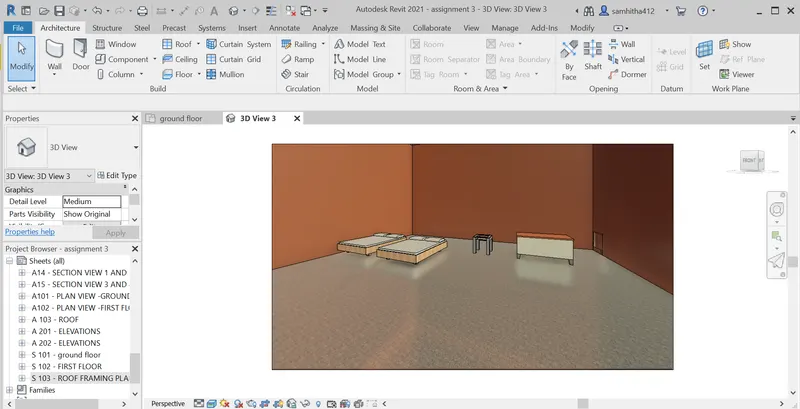

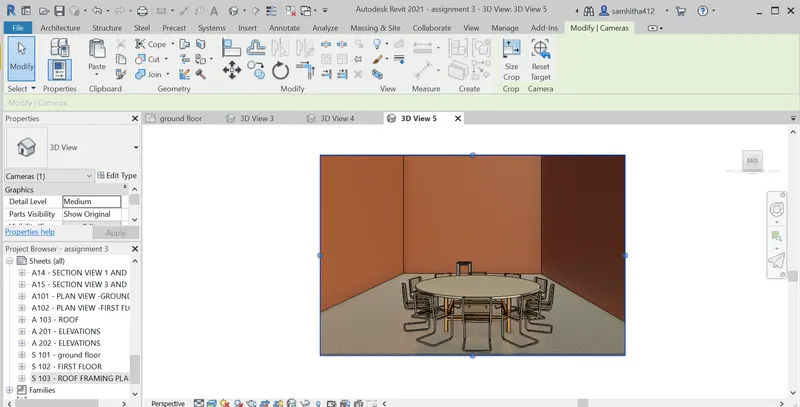

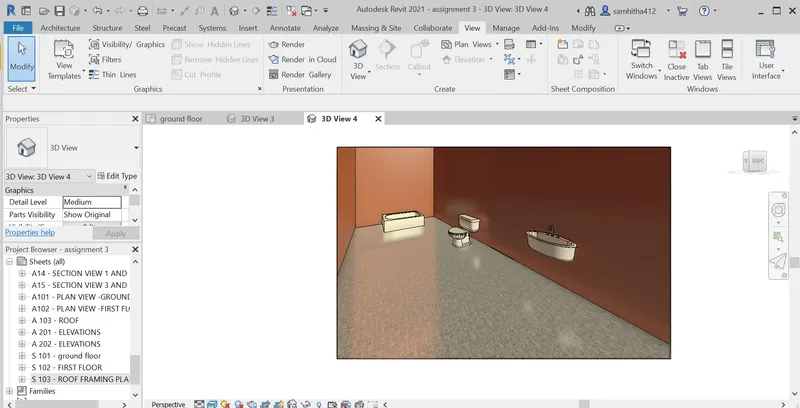

3-click on 3D view ,there select camera view.

4-And place it in each room in the plan and create multiple 3D views.

5- Select sheet from sheet composition.

6-Select place view from sheet composition of view tab

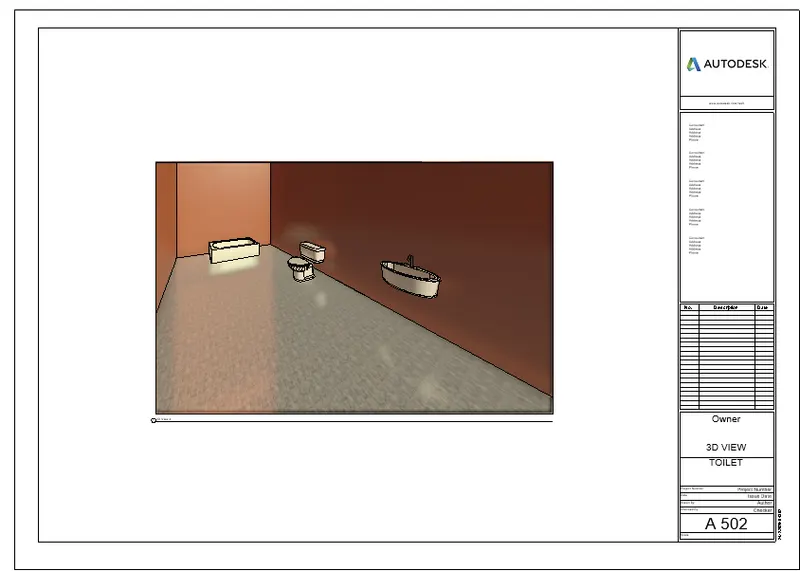

7-Then a dialog box appears there select the required 3D views and place it in sheet template and name it accordingly.

RESULT: The camera specific view or a 3D view in each room is created with a new set of sheets namely A 501, A 502,A 503...
