REVIT_3D Rendering of a House plan_Project 1
1) Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level
AIM: T o model a ceiling from archirectural tab above the walls at first floor level.
TOOLS REQUIRED: 1) architectural tab 2) ceiling
PROCEDURE:
1) open the revit file of week 3
2) select the ceiling from the archtectural tab.
3) select the boundary lines amd click on the green tick.
RESULT: modelling of ceiling from architectural tab is done successfully.

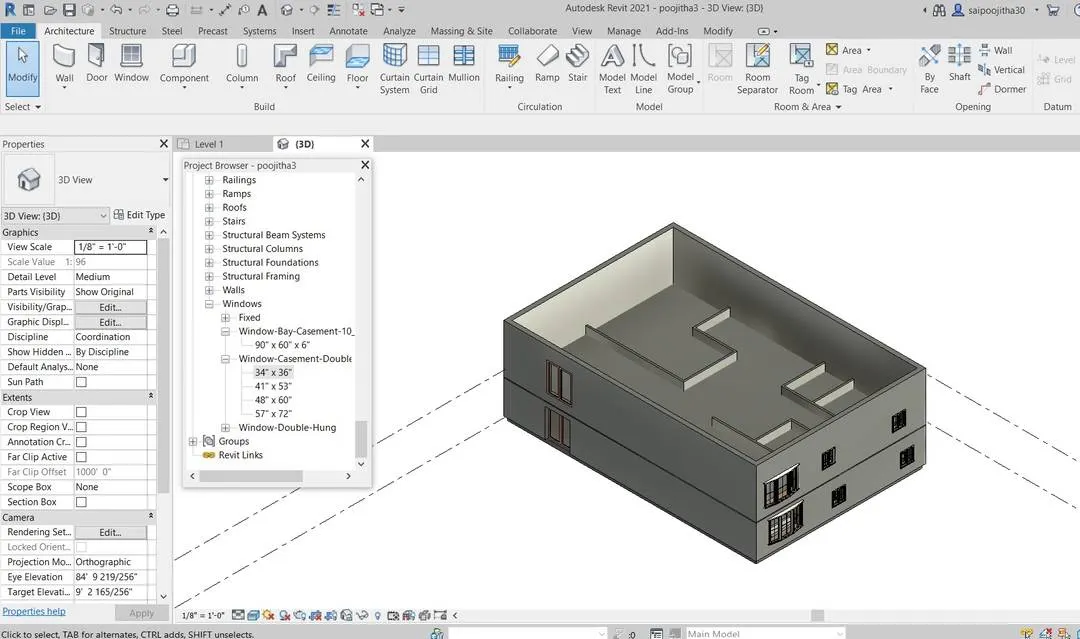

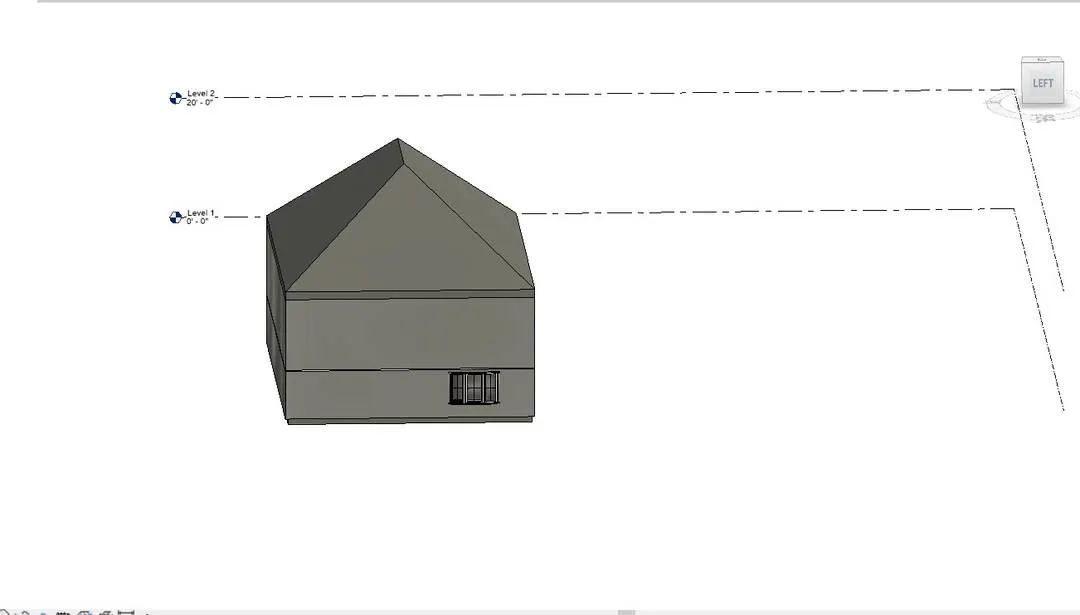

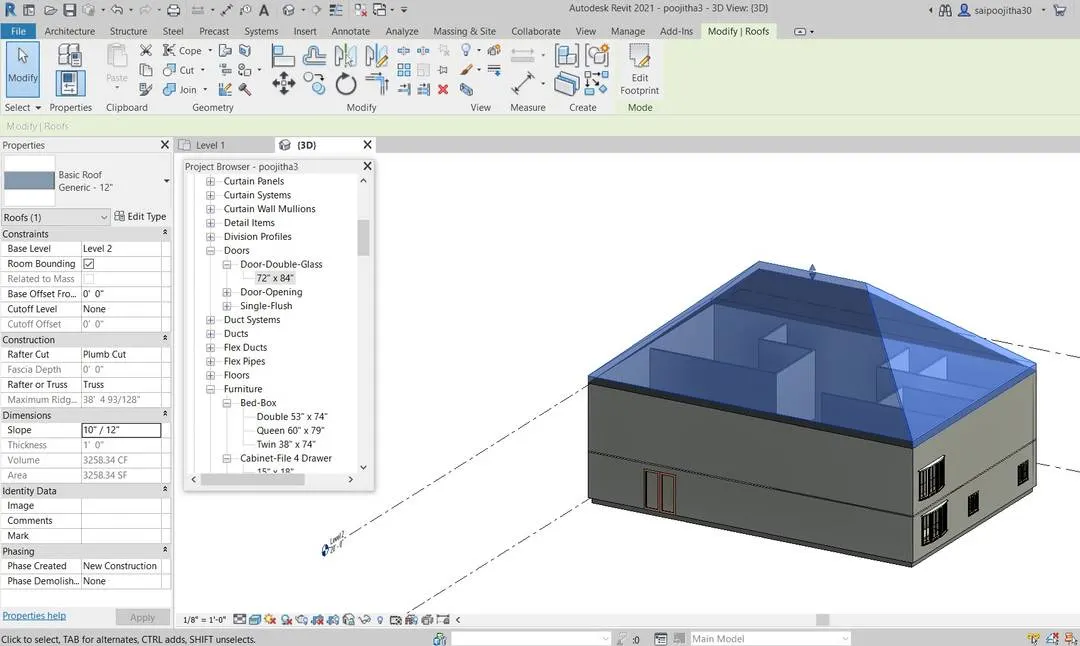

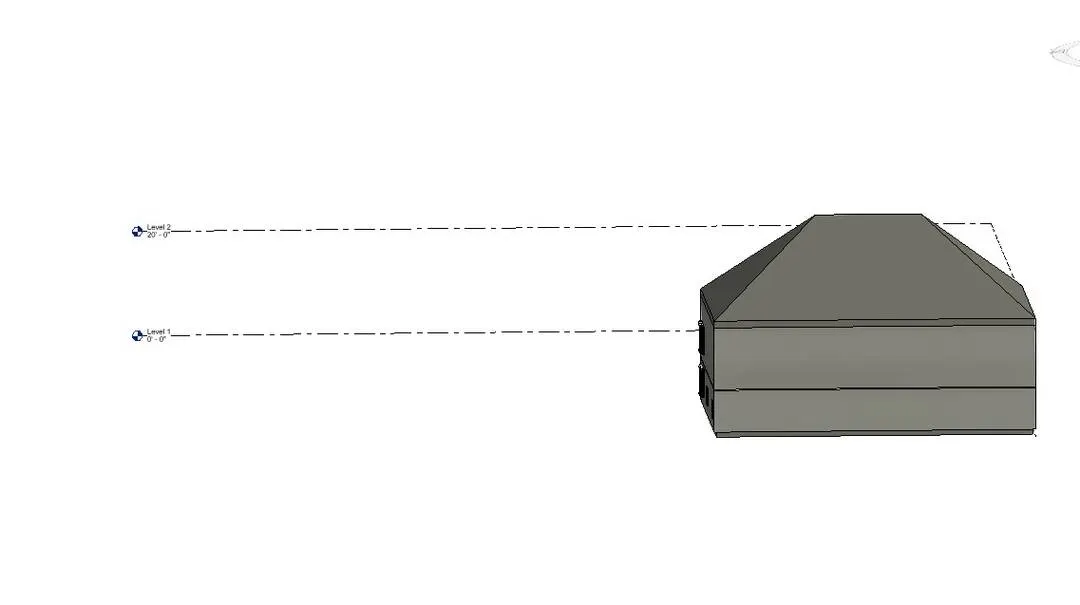

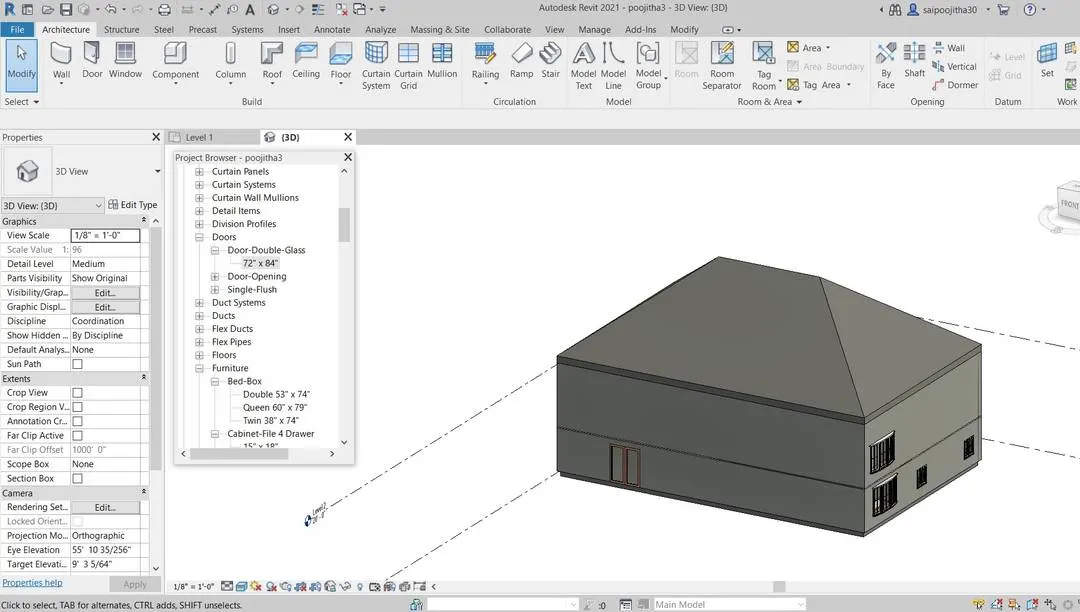

2) Model a roof above the ceiling by selecting the footprints of ceiling. Using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees
AIM: To model a roof above the ceiling by selecting the footprints of the ceiling and adjusting the roof slope to 10 degrees.
TOOLS REQUIRED: 1) architectural tab 2) roof
PROCEDURE:
1) open the revit file
2) select the roof from the architectural tab
3) select the bounday lines for the roof and click on the green tick to complete.
4) In the properties tab, adjust the roof slope to 10 degrees.
RESULT: Roof is modelled successfullyand adjusted to 10 degrees
3) Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls , floors and all the components placed within the building
b. Structure plan must have details of only walls, floors and columns
AIM: To create plan views for ground and first floor level and seperate them into architecture and structural plans.
a. Architecture plan must have walls , floors and all the components placed within the building
TOOLS REQUIRED: 1) View tab 2) plan views
PROCEDURE:
1) Open the revit file
2) go to the plan views in the view tab .
3) select the level for which we want plan and click on it.
4) click apply same for ground, first floor and roof.
RESULT: Plan view is created in the architectural plan.

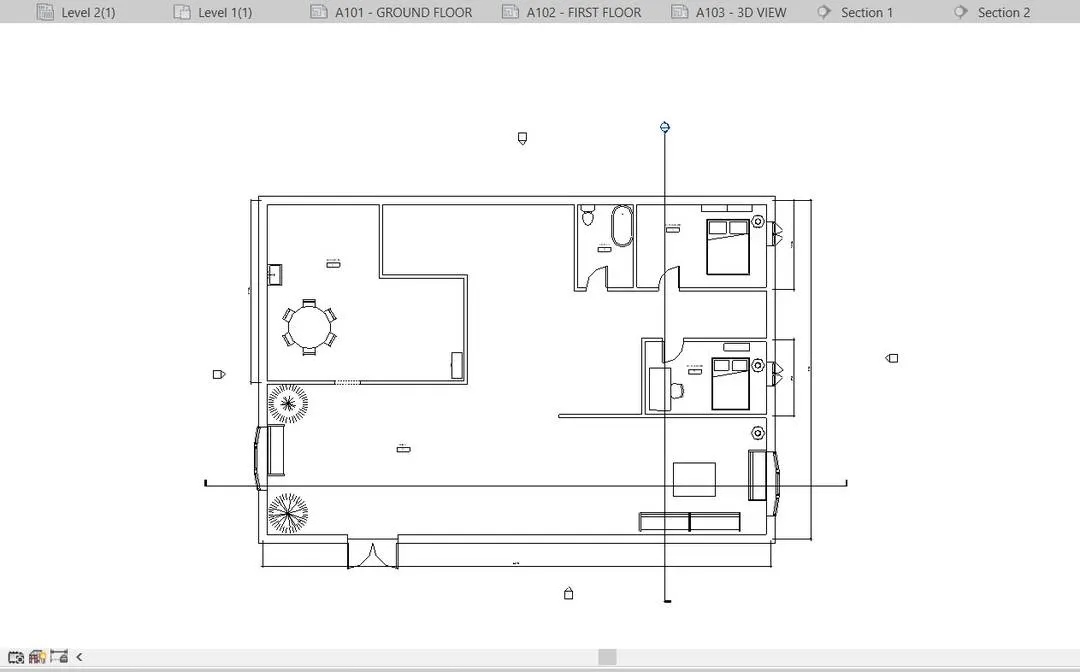

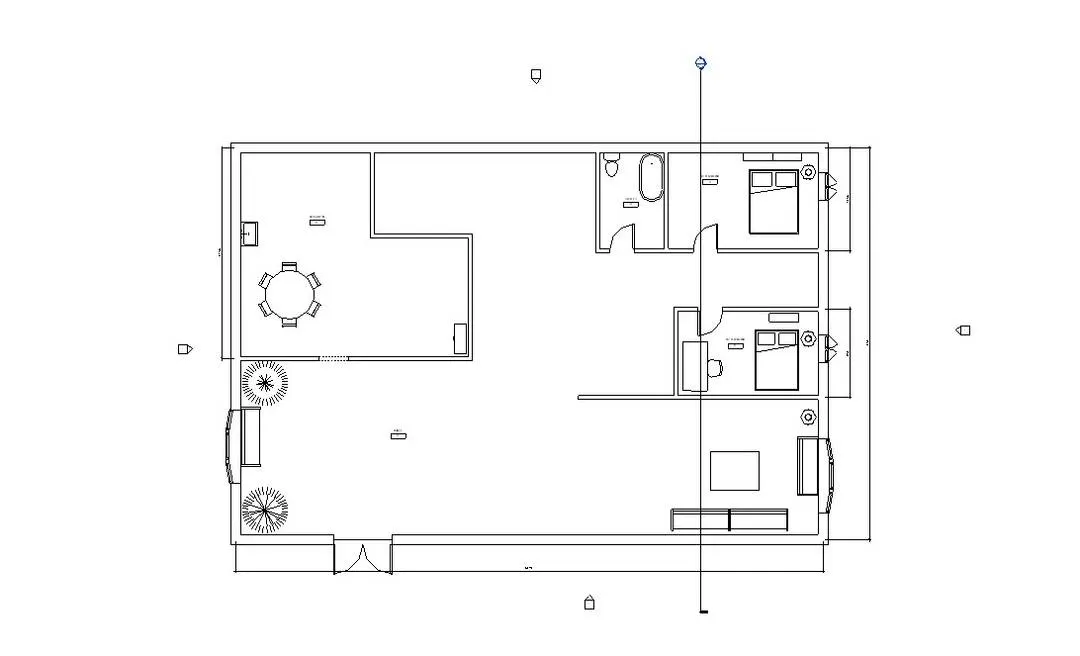

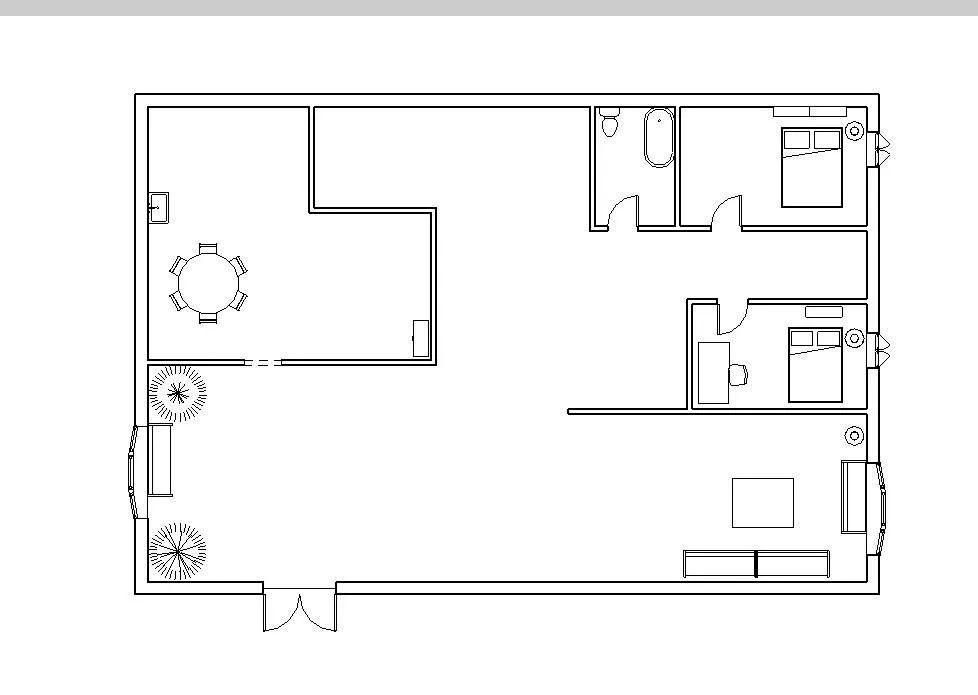

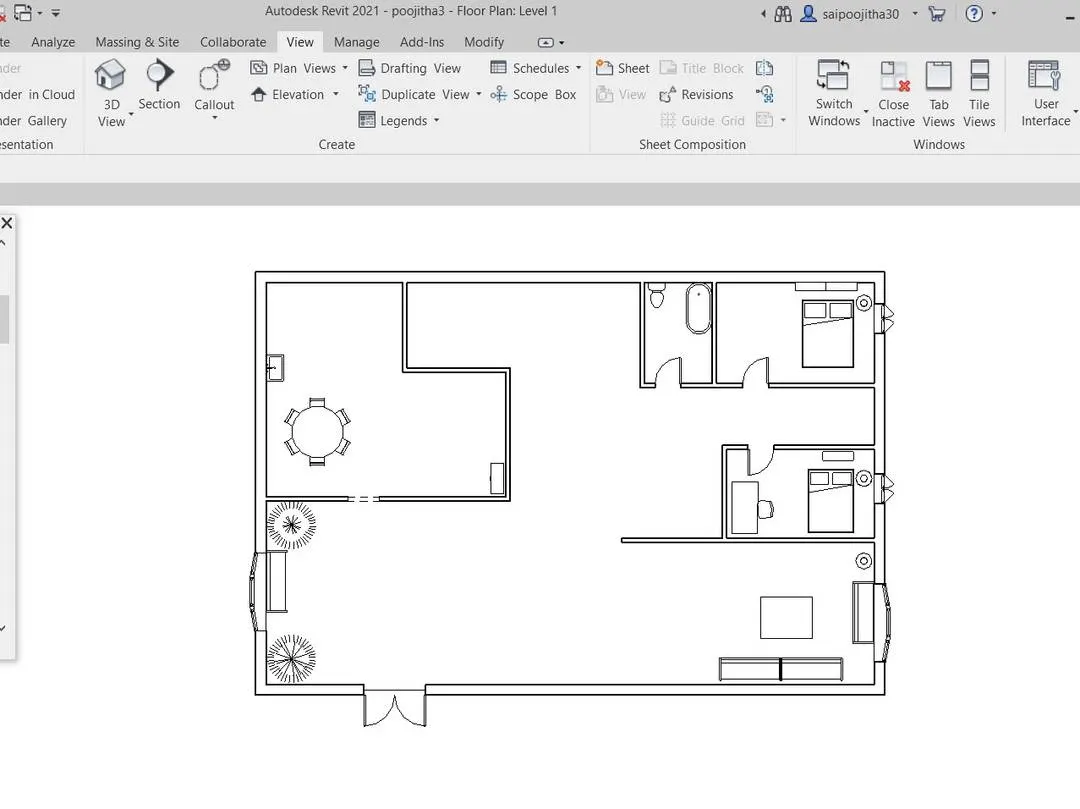

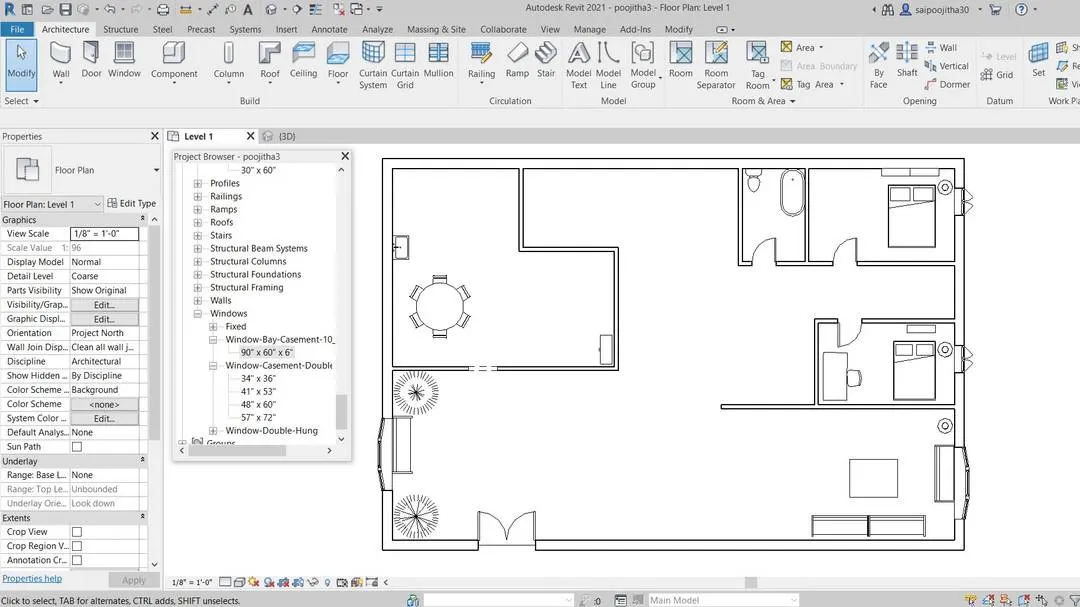

GROUND FLOOR:

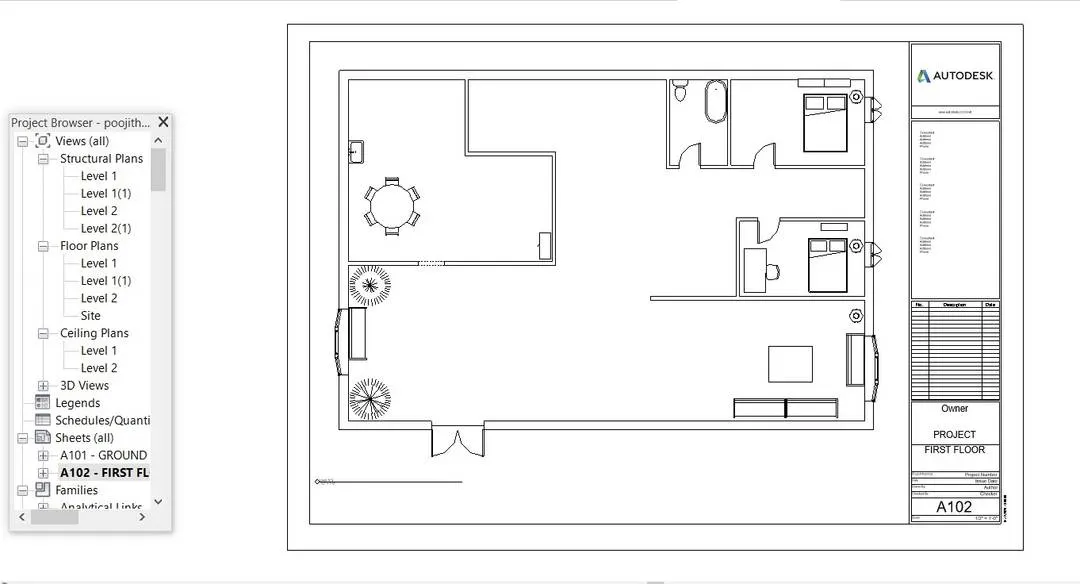

FIRST FLOOR:
b. Structure plan must have details of only walls, floors and columns
TOOLS REQUIRED: 1) view tab 2) structural view
PROCEDURE:
1) Open the revit file

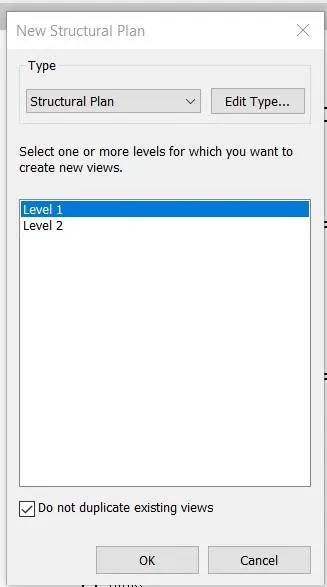

2) go to the Structural views in the view tab .
3) select the level for which we want plan and click on it.
4) click apply same for ground, first floor and roof.
RESULT: Plan view is created in the structural view

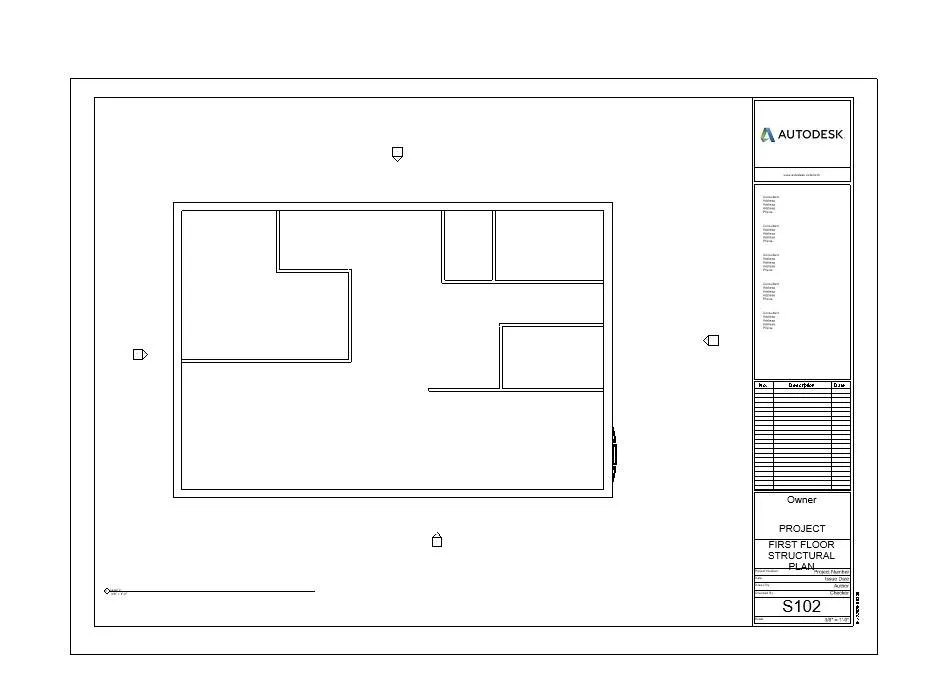

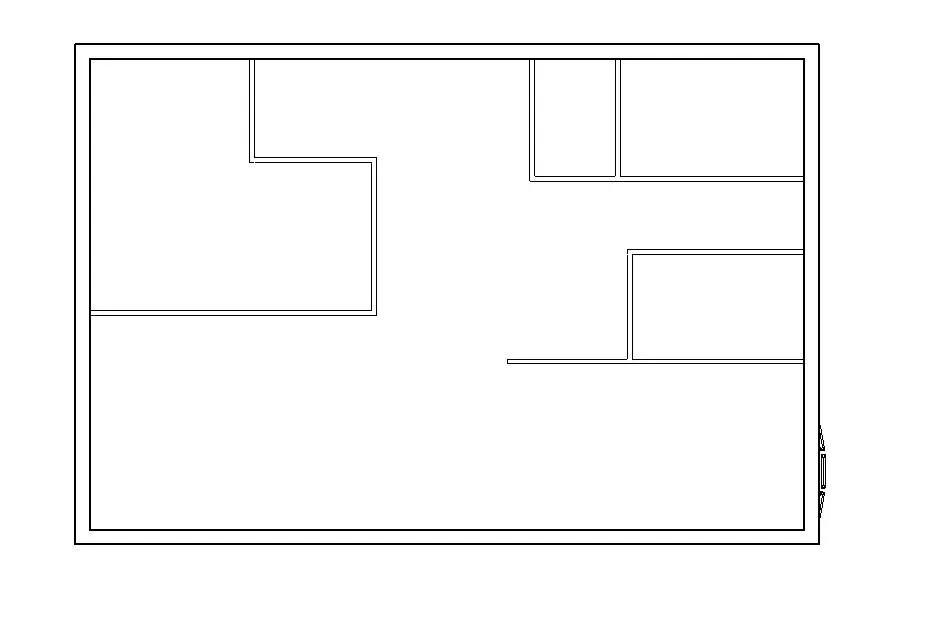

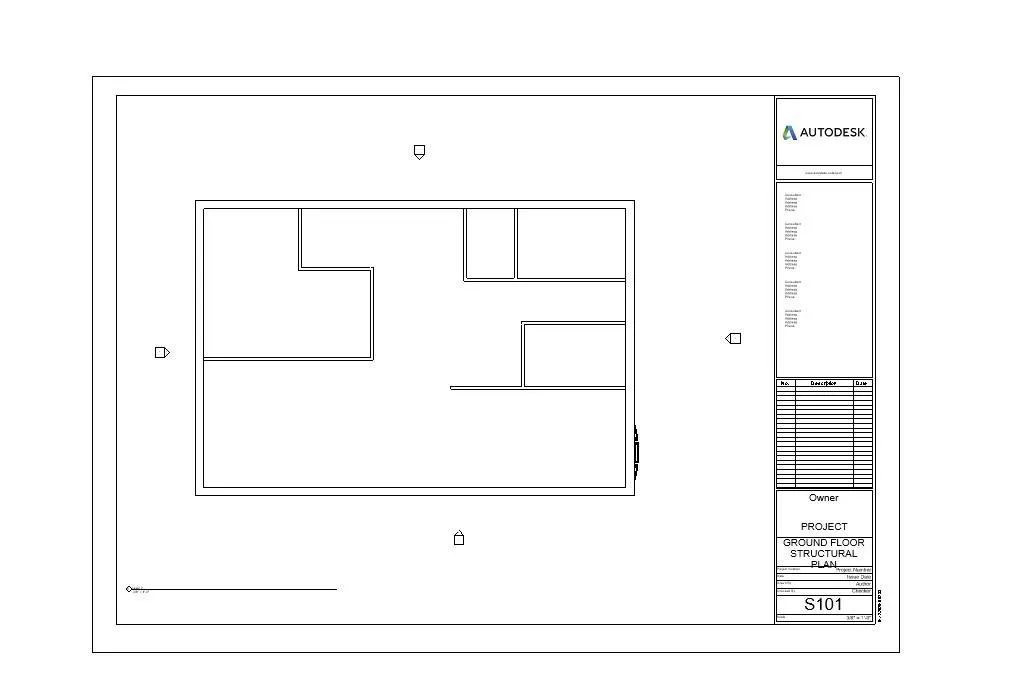

GROUND FLOOR:
FIRST FLOOR:
4) Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
AIM: To use annotate tool bar to add dimensions to all the walls and floors
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
TOOLS REQUIRED: 1) Annotate tool bar 2) linear dimensions 3) architectural command
PROCEDURE:
1) Open the revit file
2) go to the linear dimensions in the annotate tool bar
3) select the lines and add dimensions
4) fo to the architectural tab and tag rooms
RESULT: The architectural plan dimensions are included in the plan view

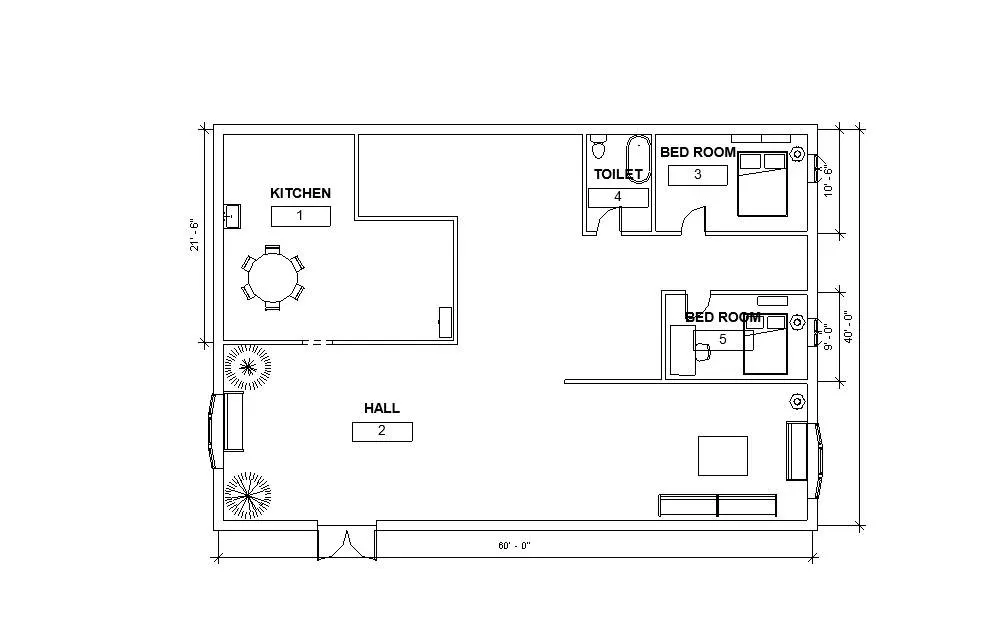

GROUND FLOOR:
FIRST FLOOR:
b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
TOOLS REQUIRED: 1) structural plan 2) architectural tab 3) grids
PROCEDURE:
1) open the revit file
2) click on the structural plan in the plan view
3) go to the architectural command and click on the grids option
4) draw the grid lines for each wall and name it accordingly by the rules
RESULT: Grid lines are drawn successfully.

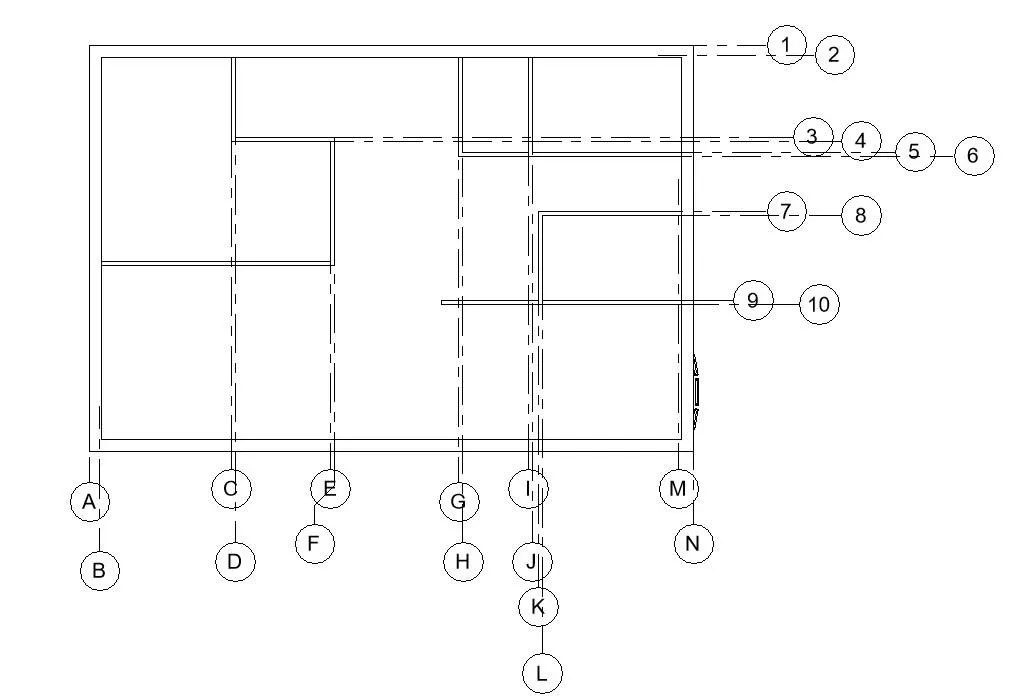

GROUND FLOOR:
FIRST FLOOR:
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
AIM: To create a sheet template from the view tab and adjust the parameters on the sheet
TOOLS REQUIRED: 1)View tab 2) sheet 3) view
PROCEDURE:
1) open the revit file
2) go to the sheet template and select the required sheet from it in the view tab
3) add view from the same view tab and select the required view
RESULT: Sheet template is created from the view tab.
6) Using the elevation tab create the elevation views, looking at your building from East, North, South and West
AIM: To create the elevation views, looking at my building from east, west, north, south.
TOOLS REQUIRED: 1) Elevation tab 2) directions
PROCEDURE:
1) Open the revit file
2) go to the elevation tab and click on the required direction as north, east, west, south
RESULT: The elevation views are created.

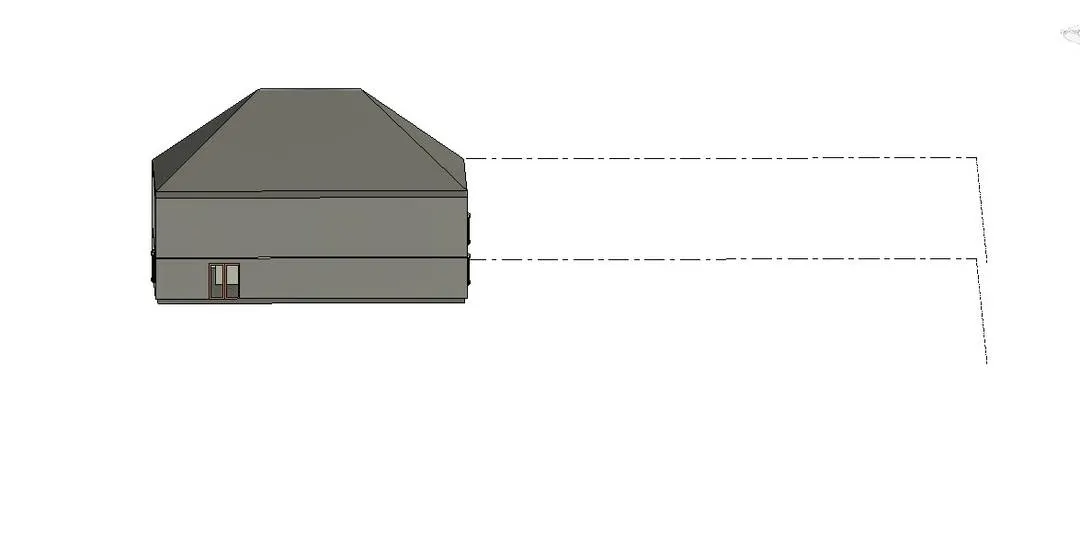

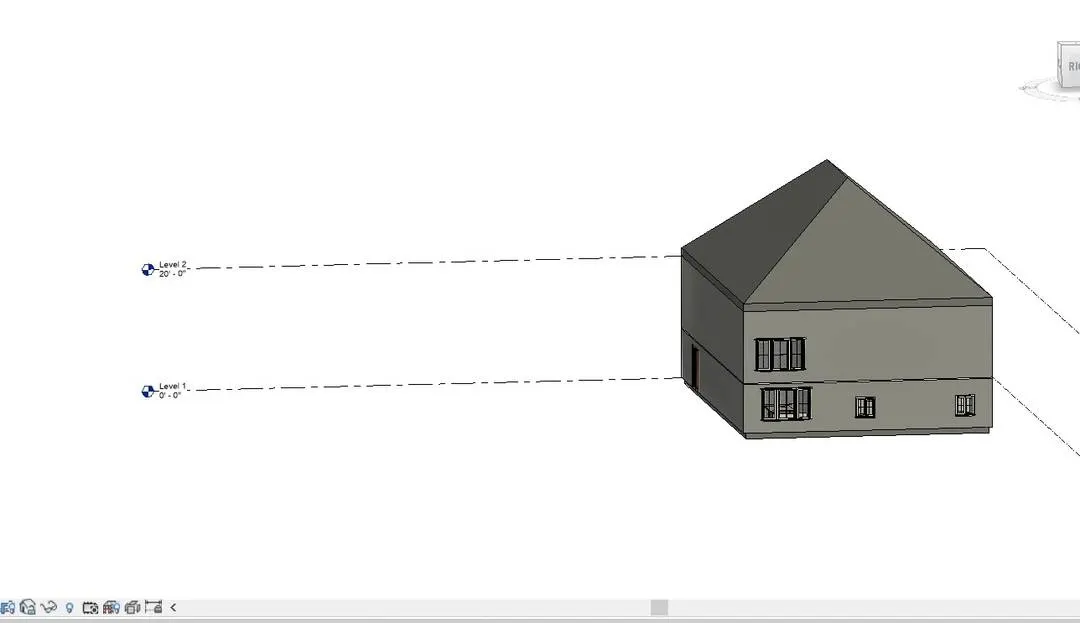

EAST:
NORTH:
WEST:
SOUTH:

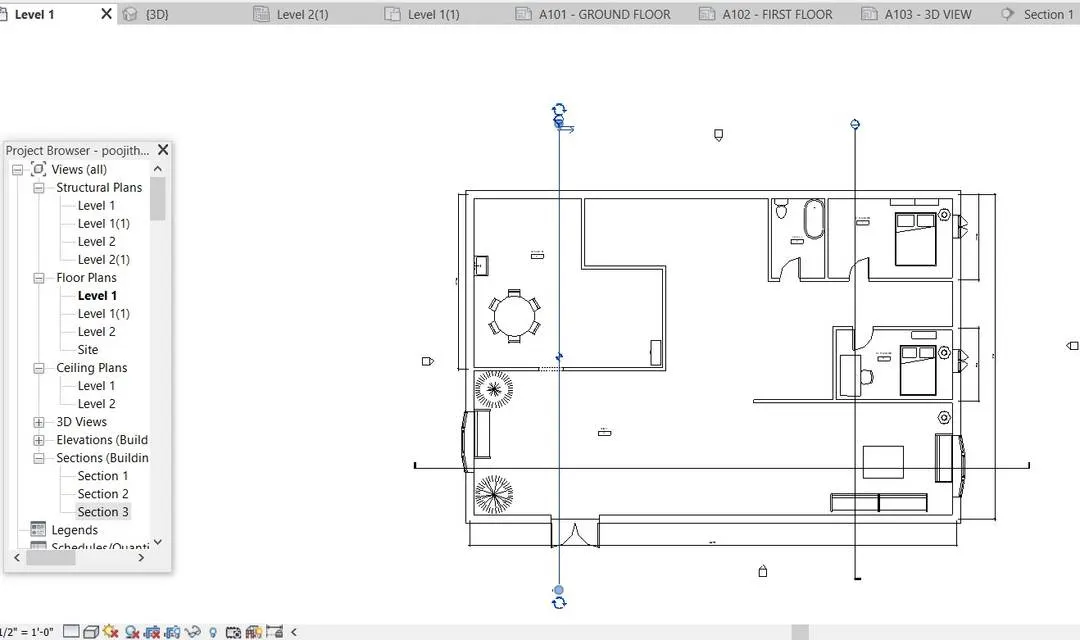

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM: To produce section cut through each room either cutting across longitudinally or in a transverse direction.
TOOLS REQUIRED: 1) View tab 2) section view
PROCEDURE:
1) open the revit file
2) click on the view tab and go to the section view
3) draw the section wherever required and g to the view option to view in realistic view
RESULT: Section cut is produced through each room either cutting longitudinally or in transverse direction.

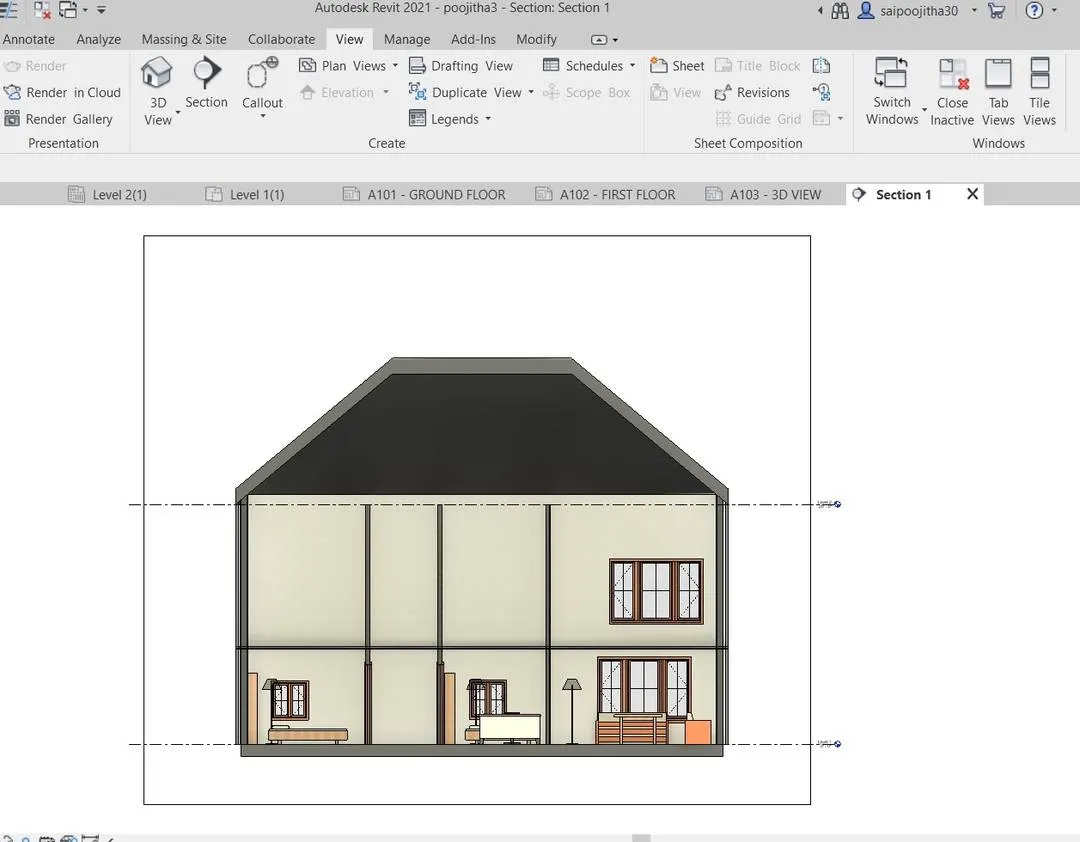

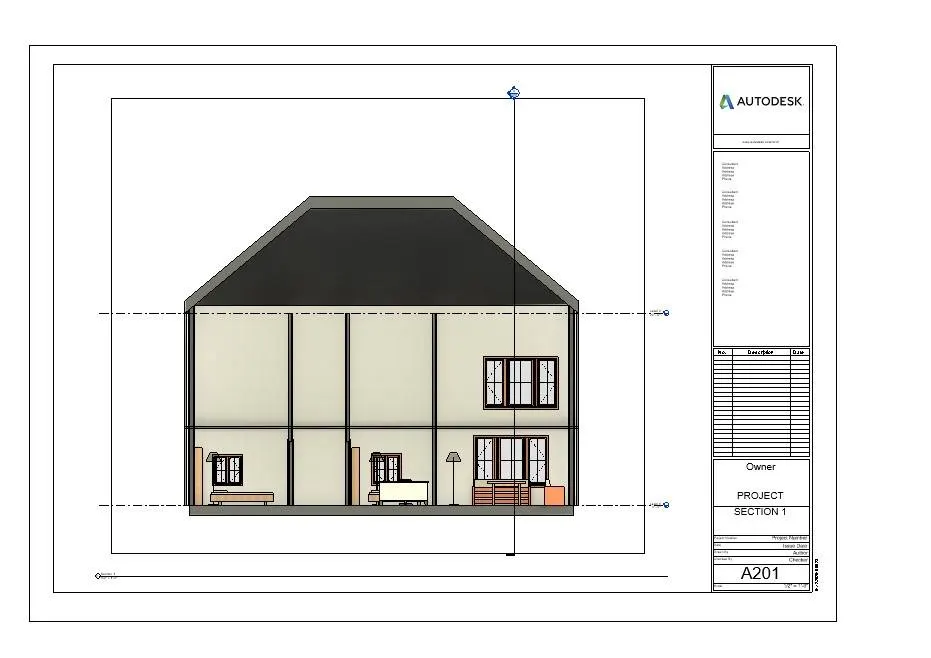

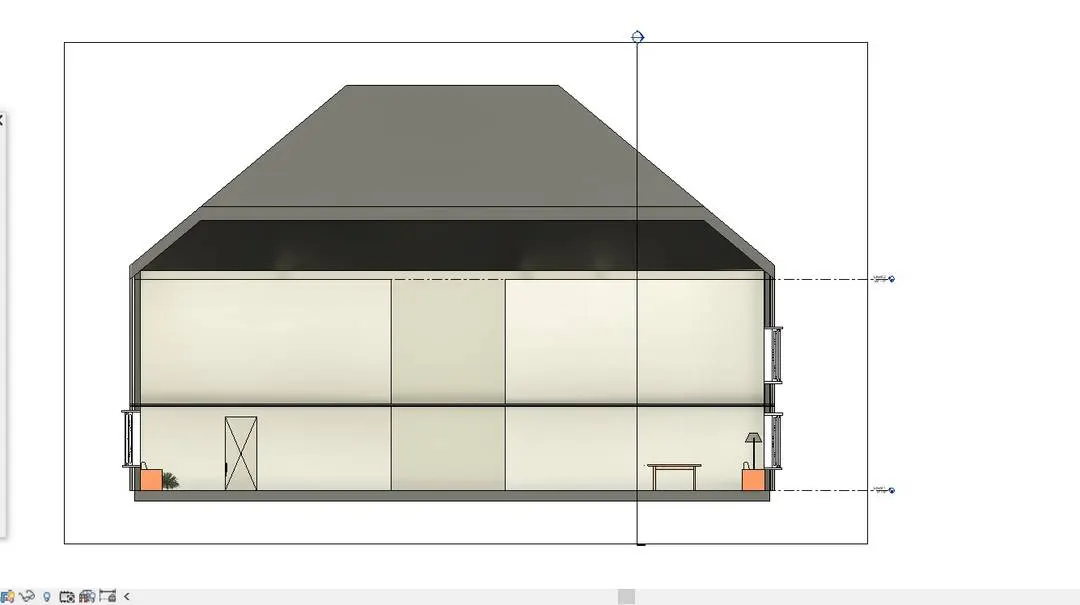

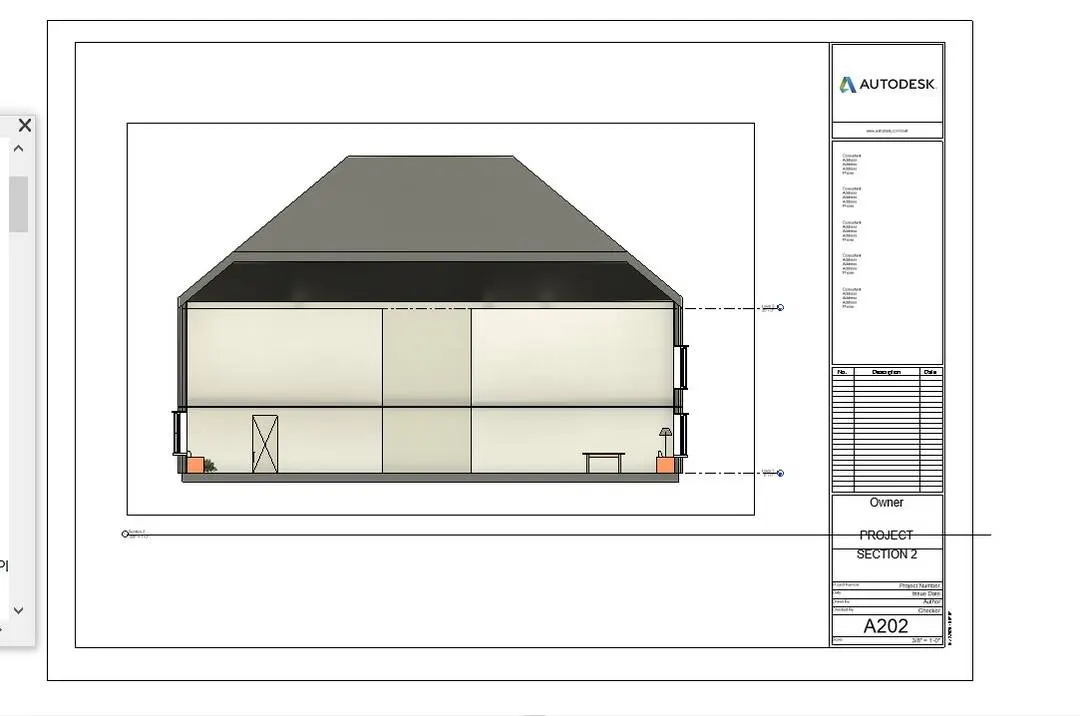

SECTION 1:

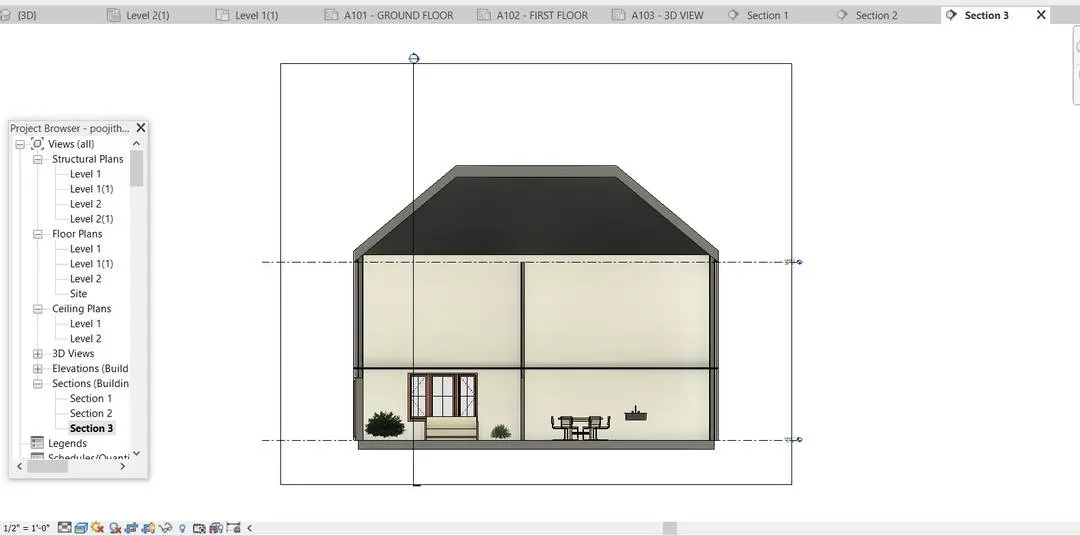

SECTION 2:
SECTION 3:

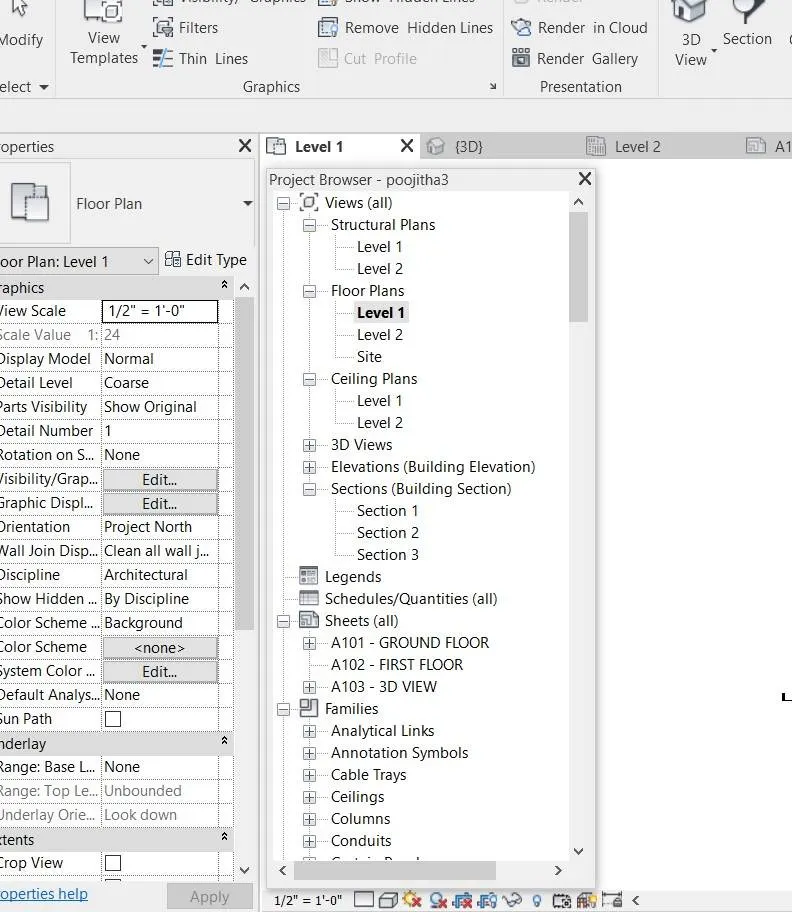

8) Classify the views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser
AIM: To classify the views, plan views, section views and elevation views to either design or documentation category using property browser.
TOOLS REQUIRED: 1) View tab 2) user interface 3) project browser
PROCEDURE:
1) Open the revit file
2) go to the view tab and click on the user interface
3) click on the project browser in project interface.
RESULT: views, section views, Plan views, elevation views are classified.

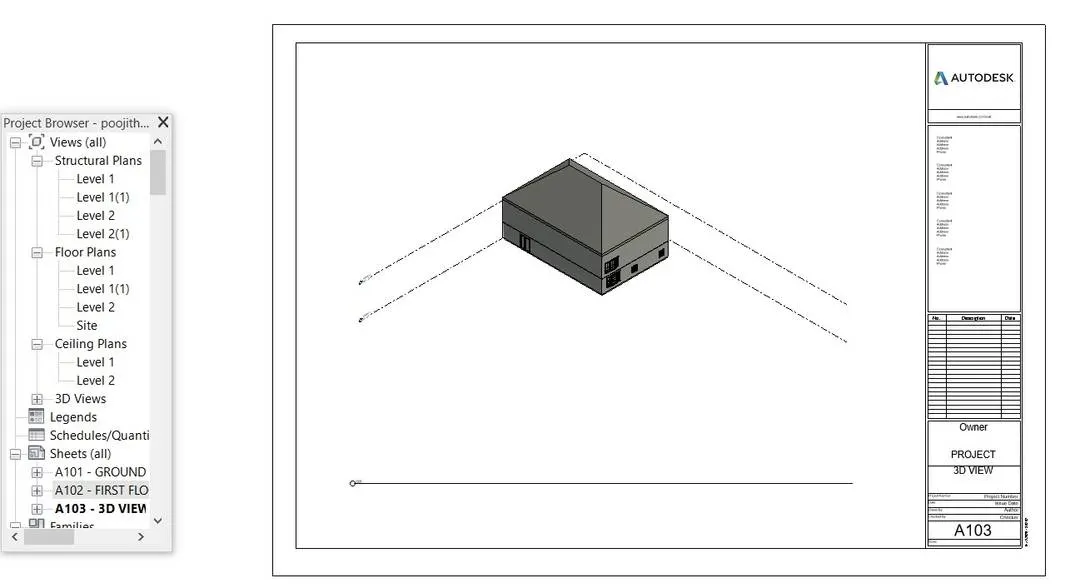

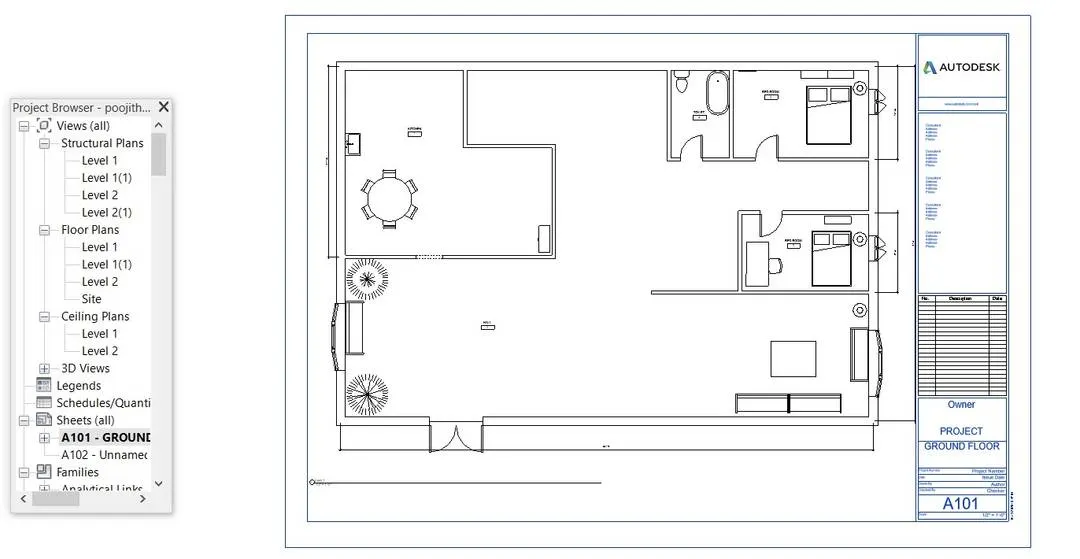

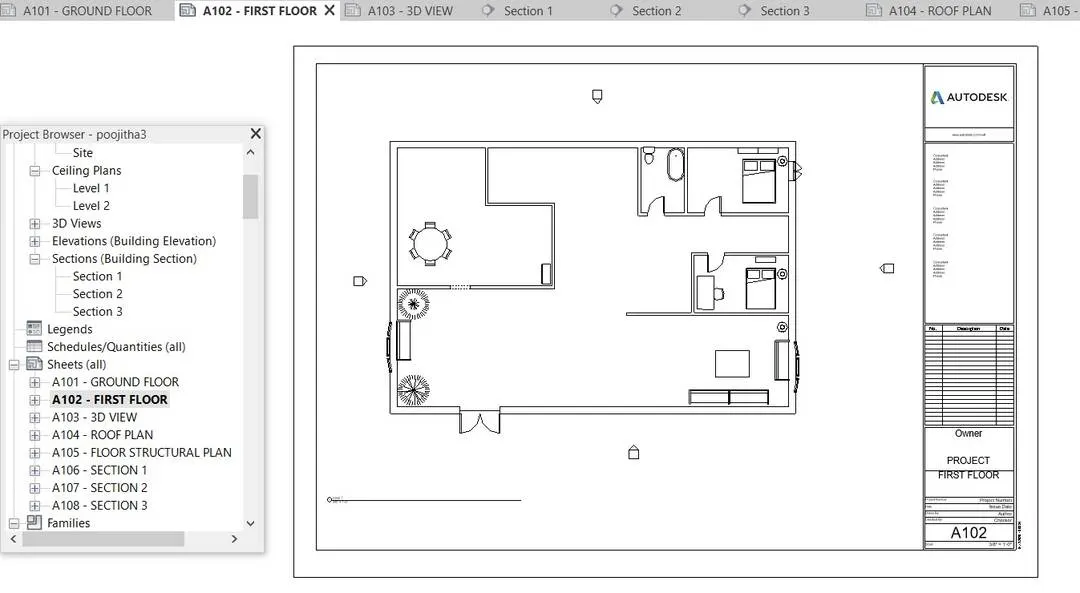

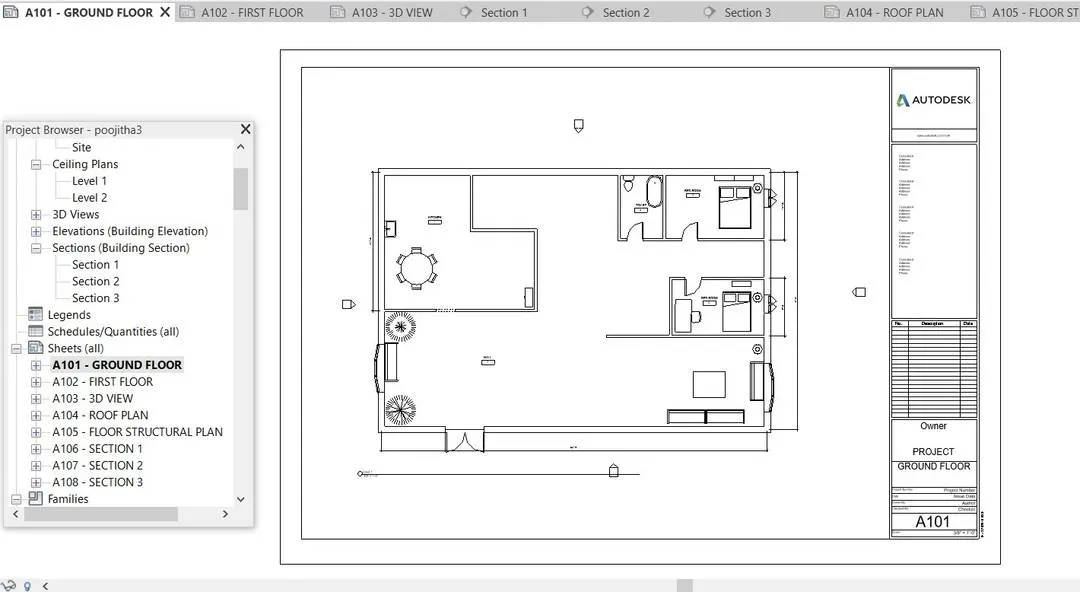

9) Using the sheet template produced create multiple sheets as follows
a. A 101 – Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

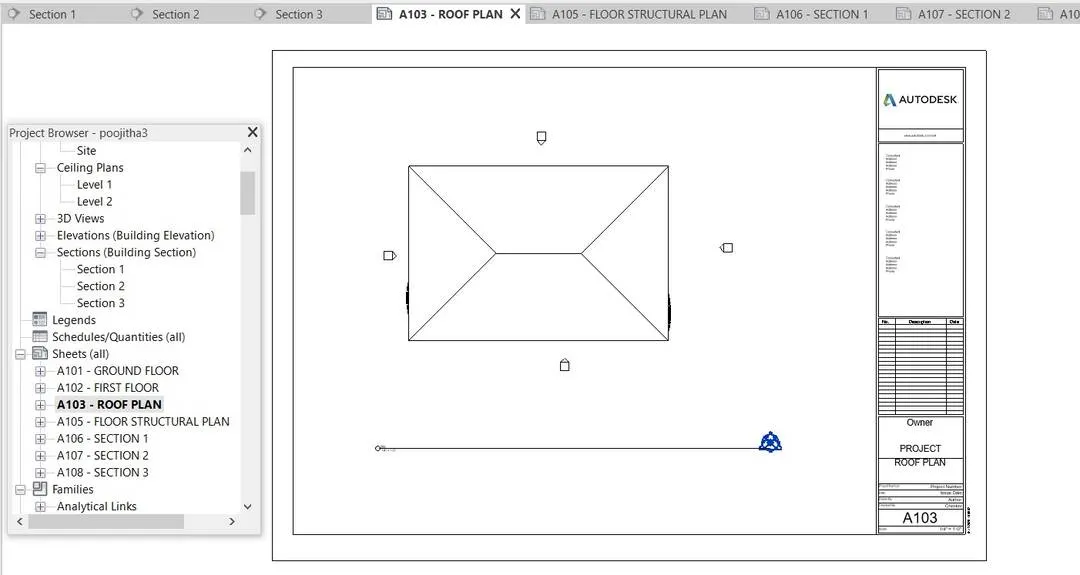

c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102 – First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201 – North South Elevations
h. A-202- East West Elevations
Add additional sheets based on the sections created in your revit file
AIM: To create multiple sheets using the sheet template.
TOOLS REQUIRED: 1) View tab 2) sheet template 3) add view
PROCEDURE:
1) Open the revit file.
2) go to the sheet template from the view tab
3) add the required view from the view tab to the sheet
RESULT: multiple sheets are created succefully.

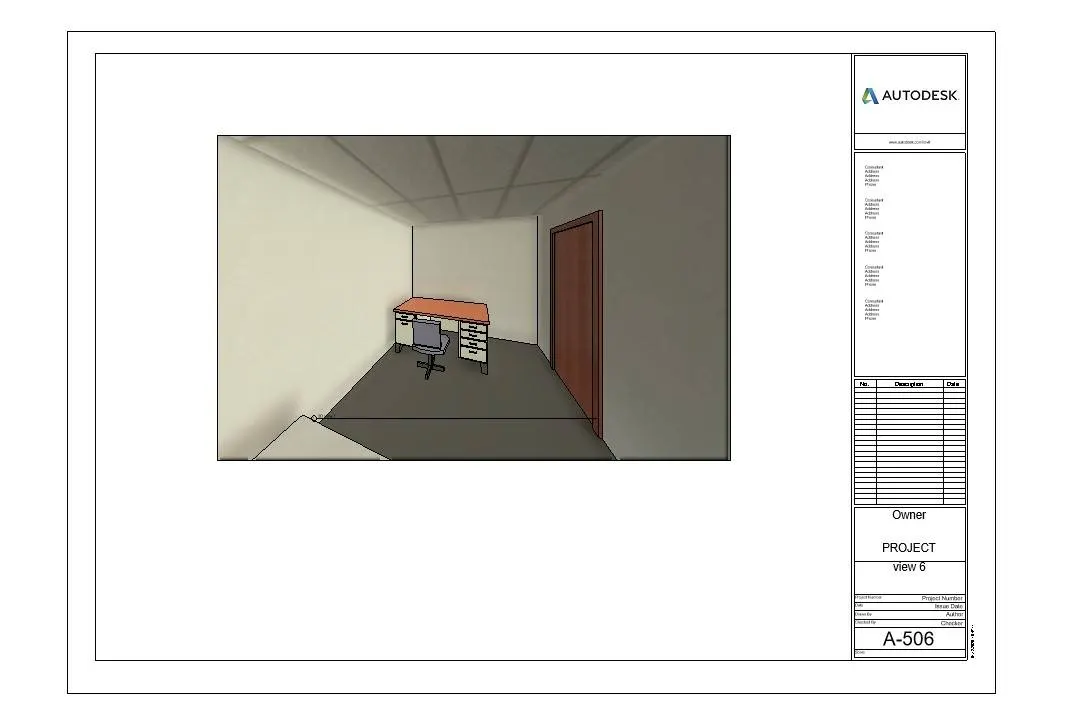

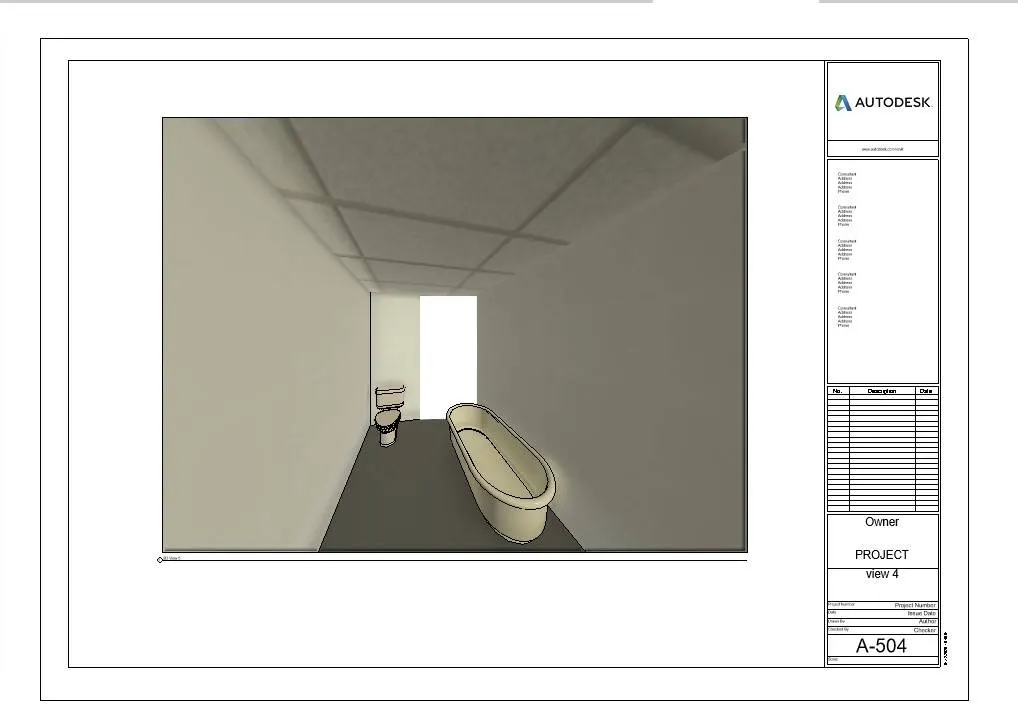

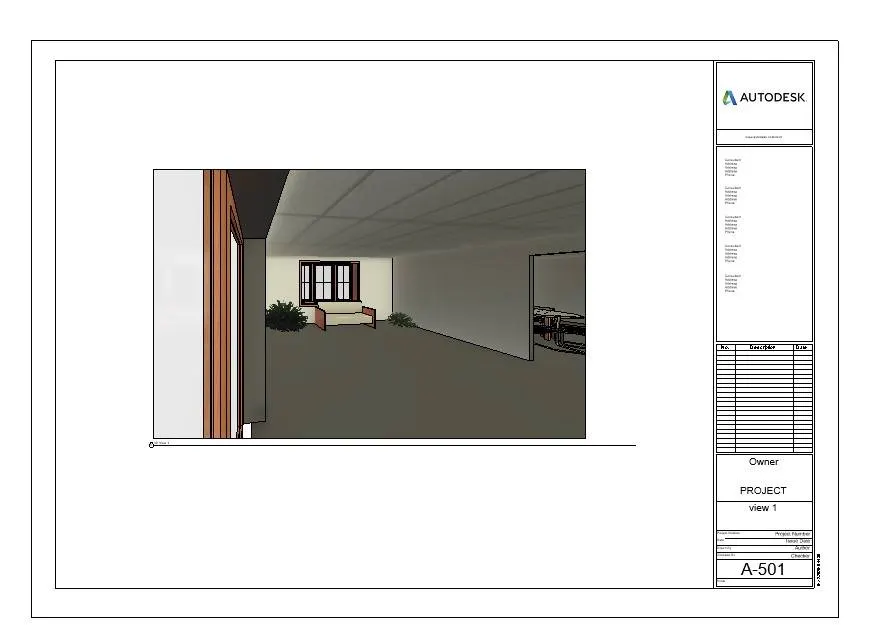

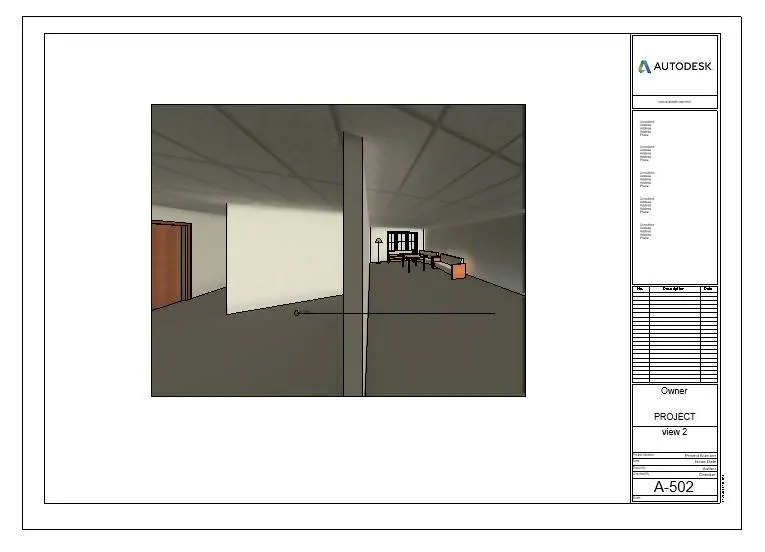

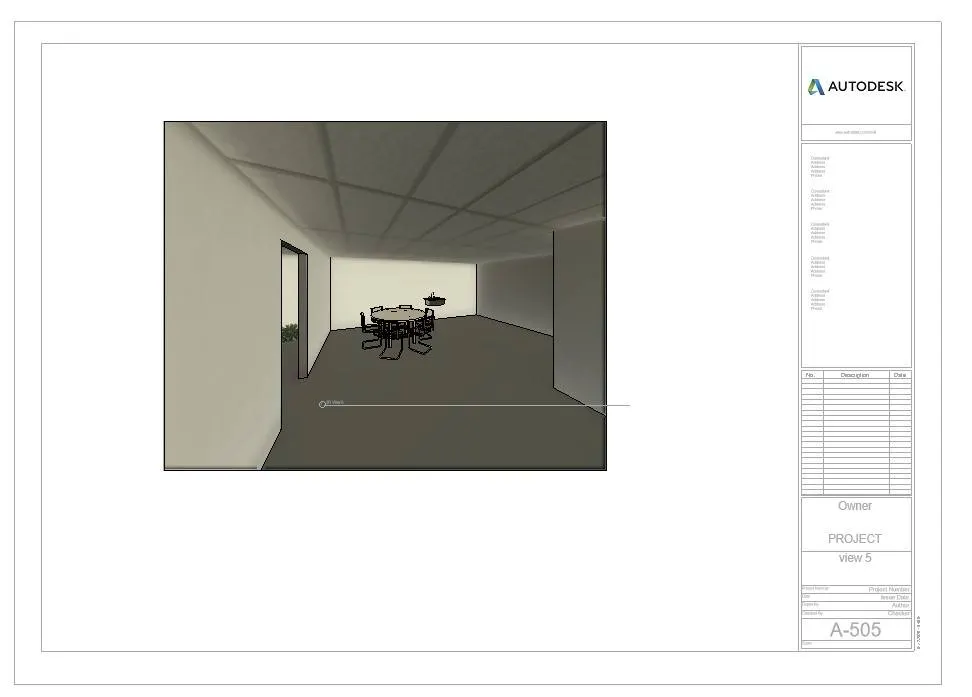

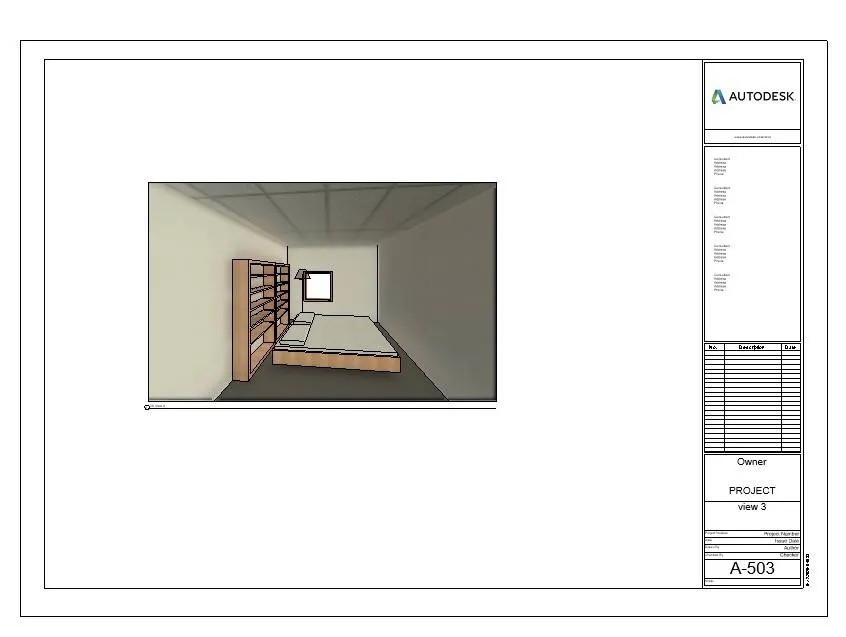

10) Create a camera specific view or a 3D view in each room ( living, dining, bed room ) . Based on the views create new shet of sheets starting A-501 (you can add as many sheets after , 502, 503.. n)to place the 3D view images.Produce the sheets as a part of project drafting.
AIM: To create a camera specific view or a 3D view in each room amd create new set of sheets starting from A-501
TOOLS REQUIRED: 1) View tab 2) camera
PROCEDURE:
1) Open the revit file
2) go to the camera option in the view tab
3) place the camera in the required position to get the image.
4) select the sheet and add the obtained views in the sheets.
RESULT: Camera specific view is created and sheets are made successfully.
