Reinforcement detailing of Columns from ETABS output

AIM:

Reinforcement detailing of columns in Etabs 2018.

The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections.

Introduction :

Procedure :

• Clic on the concrete design icon on the drop down file

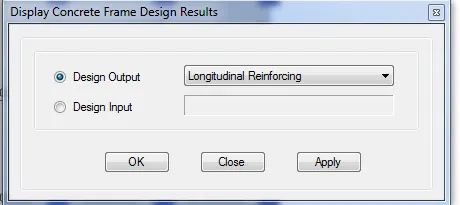

• Click on display deign info option and click on the longitudinal reinforcement

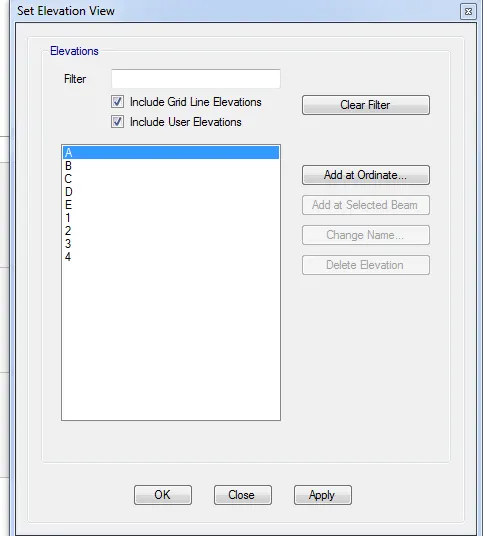

• Click on elevation view

Grid A

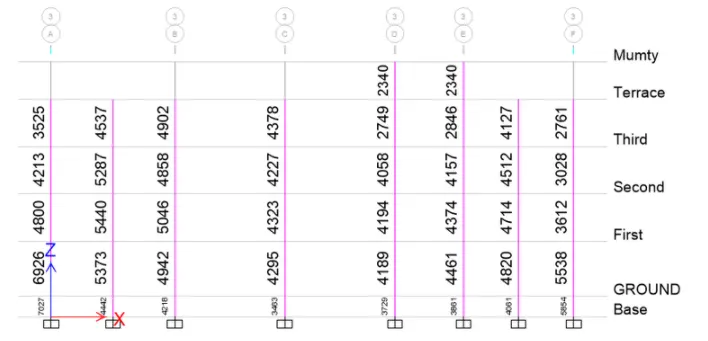

1) From the base to the first floor max steel Ast = 7027

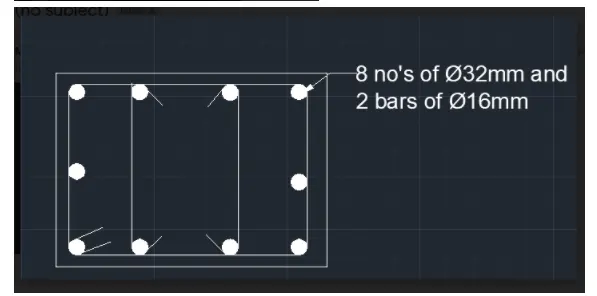

2) So we can provide 8 bars of 32 dia = 9 x 803.84 = 7234.56

2 bar of 16 mm dia = 2 x 200 .96

= 401.92

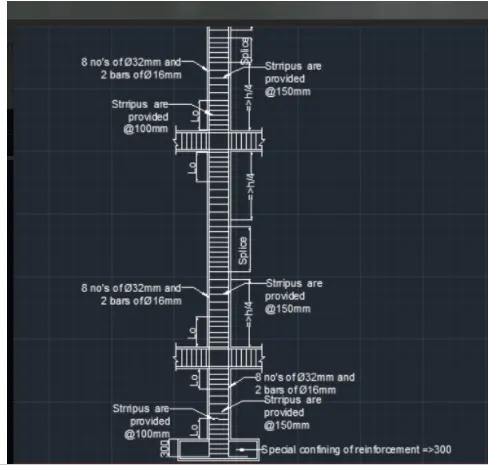

For detailing the column open the auto cad file and detail all the requirment

For Grid B

1 ) from base to terrace the max ast is 5046

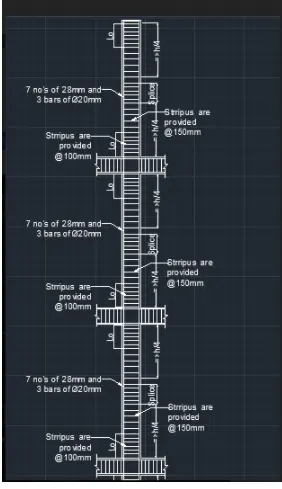

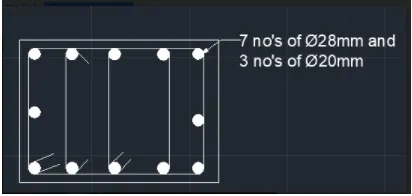

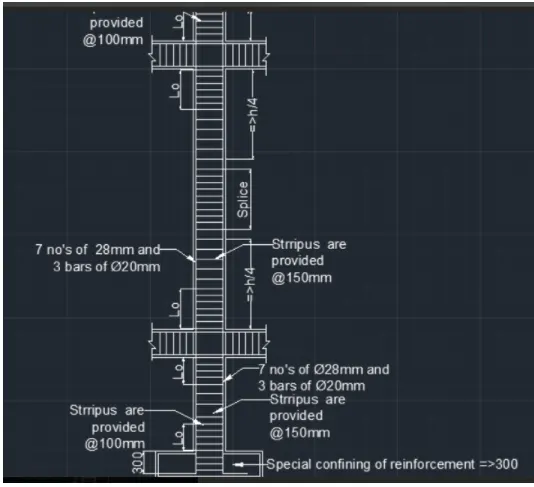

2) So we can provide 7 bars of 28 dia = 7 x 615.44 = 7234.56

3 bar of 20 mm dia = 3 x 314

= 5250.88 mm^2
