Reinforcement detailing of Columns from ETABS output

AIM: Provide longitudinal and shear confining reinforcement details for the column.

INTRODUCTION: The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment ResistingFrame.

1) 3A

2) 3B

PROCEDURE:

• Run the analysis
• Click on the frame of the design and start the design check.

RESULT:

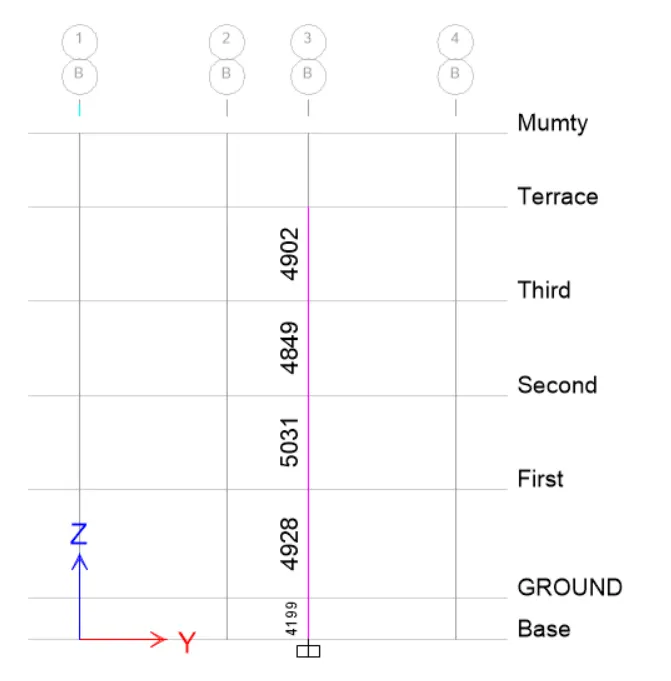

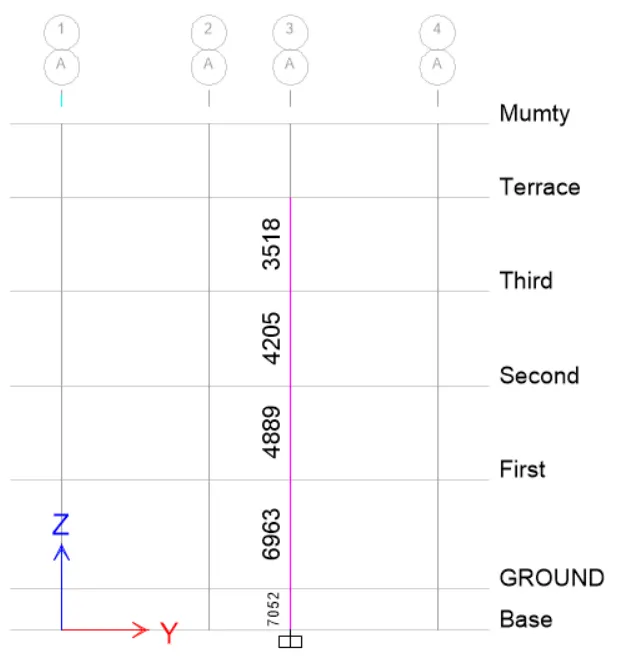

• Details of longitudinal reinforcement for the two columns from the ETABS result:

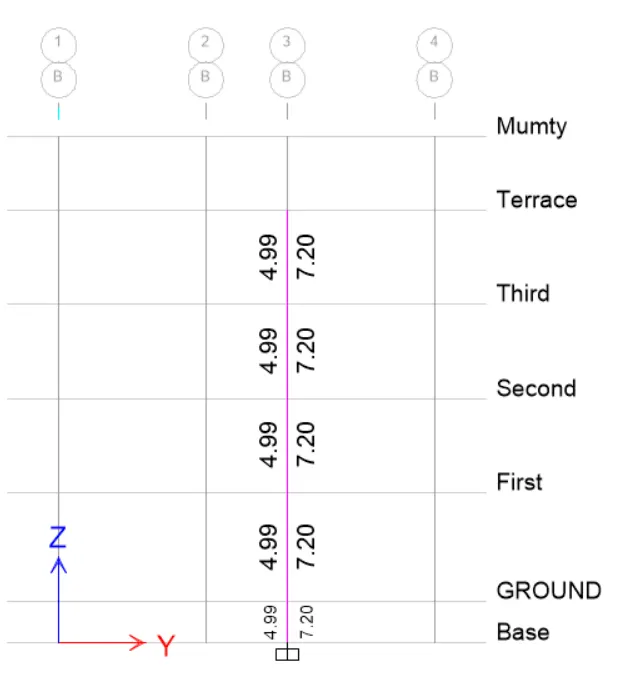

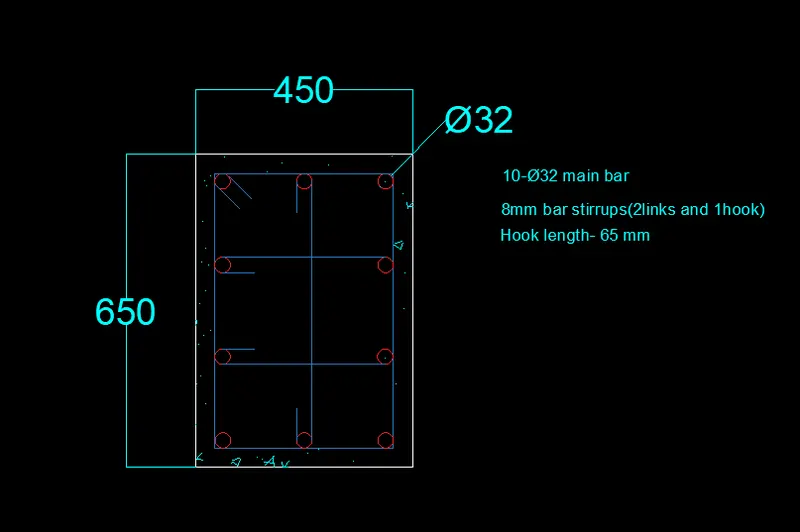

• Details of Shear reinforcement for the two columns from the ETABS result:

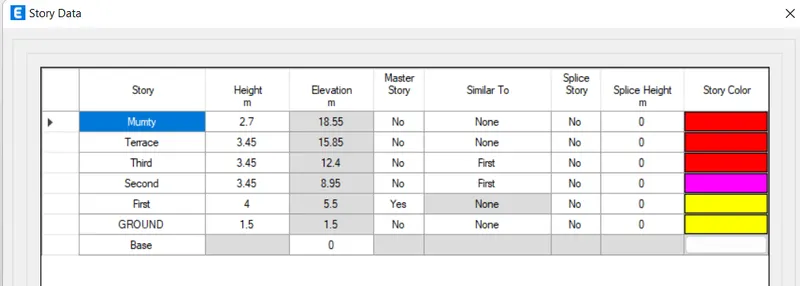

• Elevation height of the building:

• details of longitudinal reinforcement for the two columns, from foundation to the terrace level.

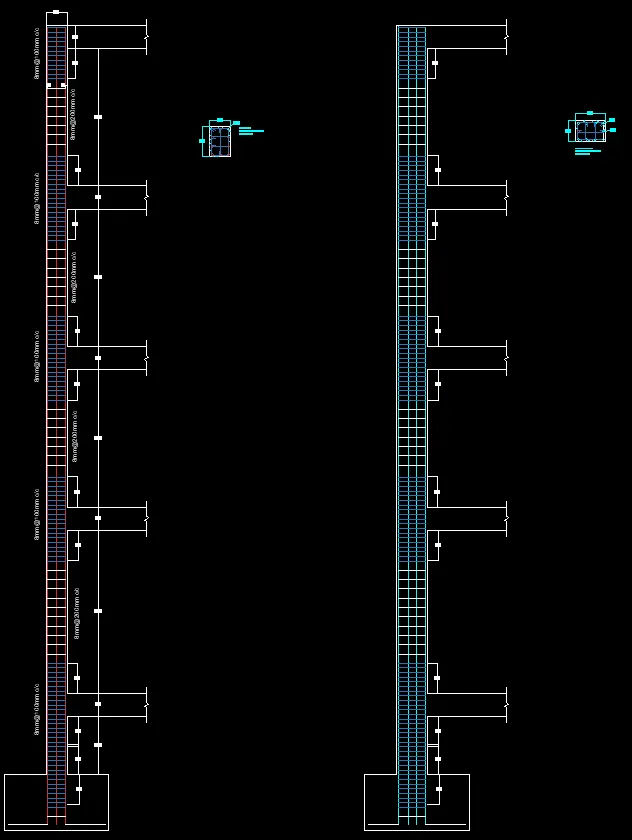

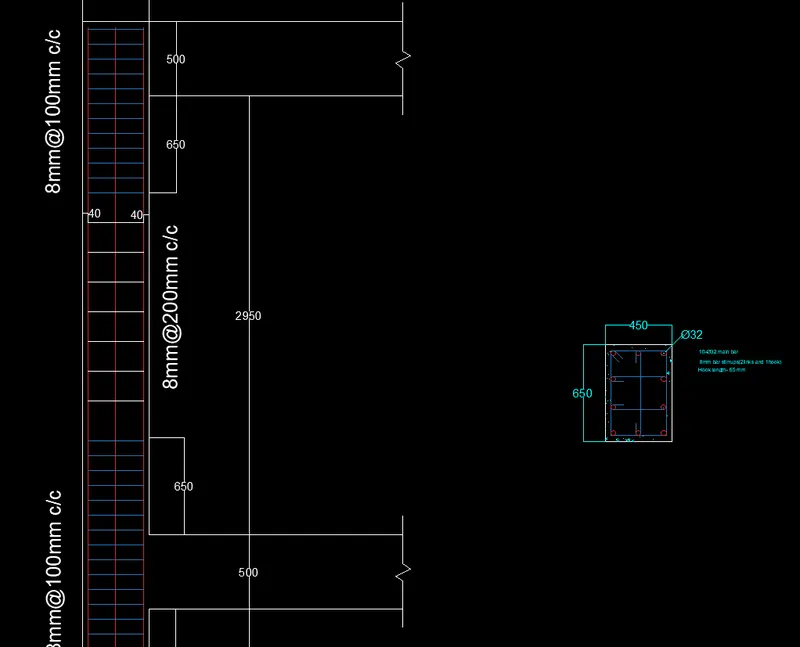

• shear reinforcement & lapping details as per the special confining reinforcement provision of clause 8.1 of IS 13920 - 2016.
